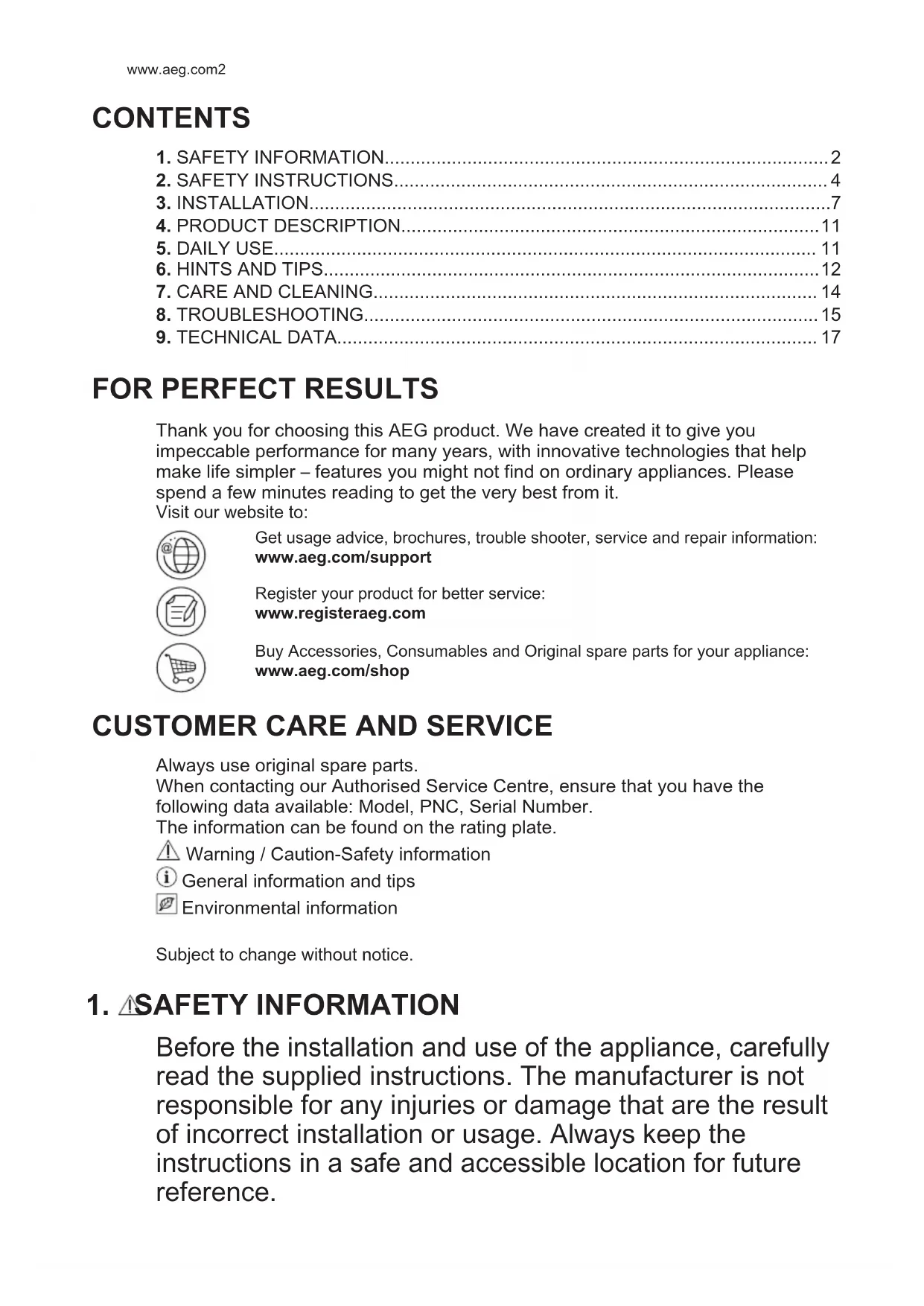

USER MANUAL HGB64420YM AEG

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it. Visit our website to: Get usage advice, brochures, trouble shooter, service and repair information: www.aeg.com/support Register your product for better service: www.registeraeg.com Buy Accessories, Consumables and Original spare parts for your appliance: www.aeg.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts. When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number. The information can be found on the rating plate. Warning / Caution-Safety information General information and tips Environmental information Subject to change without notice.

1. SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference. www.aeg.com21.1 Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.

• Children between 3 and 8 years of age and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised.

• Children of less than 3 years of age should be kept away from the appliance unless continuously supervised.

• Do not let children play with the appliance.

• Keep all packaging away from children and dispose of it appropriately.

• Keep children and pets away from the appliance when it operates or when it cools down. Accessible parts may become hot during use.

• If the appliance has a child safety device, it should be activated.

• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

• WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.

• WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.

• NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

• CAUTION: The appliance must not be supplied through an external switching device, such as a timer, ENGLISH 3or connected to a circuit that is regularly switched on and off by a utility.

• CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.

• WARNING: Danger of fire: Do not store items on the cooking surfaces.

• Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.

• Do not use the appliance before installing it in the built-in structure.

• Do not use a steam cleaner to clean the appliance.

• If the supply cord is damaged, it must be replaced by the manufacturer, an authorized Service or similarly qualified persons in order to avoid a hazard.

• Where the appliance is directly connected to the power supply, an all-pole isolating switch with a contact gap is required. Complete disconnection in compliance with the conditions specified in overvoltage category III must be guaranteed. The earth cable is excluded from this.

• When you route the mains cable, make sure that the cable doesn't come into direct contact (for example using insulating sleeving) with parts that can reach temperatures of more than 50°C above room temperature.

• WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

2. SAFETY INSTRUCTIONS

This appliance is suitable for the following markets: MA www.aeg.com42.1 Installation WARNING! Only a qualified person must install this appliance. WARNING! Risk of injury or damage to the appliance.

• Remove all the packaging.

• Do not install or use a damaged appliance.

• Follow the installation instructions supplied with the appliance.

• Keep the minimum distance from other appliances and units.

• Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.

• Seal the cut surfaces with a sealant to prevent moisture to cause swelling.

• Protect the bottom of the appliance from steam and moisture.

• Do not install the appliance adjacent to a door or under a window. This prevents hot cookware falling from the appliance when the door or the window is opened.

• If the appliance is installed above drawers make sure that the space, between the bottom of the appliance and the upper drawer, is sufficient for air circulation.

• The bottom of the appliance can get hot. Make sure to install a non- combustible separation panel under the appliance to prevent access to the bottom.

2.2 Electrical Connection

WARNING! Risk of fire and electric shock.

• All electrical connections should be made by a qualified electrician.

• The appliance must be earthed.

• Before carrying out any operation make sure that the appliance is disconnected from the power supply.

• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.

• Make sure the appliance is installed correctly. Loose and incorrect electricity mains cable or plug (if applicable) can make the terminal become too hot.

• Make sure that a shock protection is installed.

• Use the strain relief clamp on the cable.

• Make sure the mains cable or plug (if applicable) does not touch the hot appliance or hot cookware, when you connect the appliance to the near sockets.

• Do not use multi-plug adapters and extension cables.

• Make sure not to cause damage to the mains plug (if applicable) or to the mains cable. Contact our Authorised Service Centre or an electrician to change a damaged mains cable.

• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.

• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.

• If the mains socket is loose, do not connect the mains plug.

• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

• Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.

• The electrical installation must have an isolation device which lets you disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.

• All gas connections must be made by a qualified person.

• Before installation, make sure that the local distribution conditions (nature of ENGLISH 5the gas and gas pressure) and the adjustment of the appliance are compatible.

• Make sure that there is air circulation around the appliance.

• The information about the gas supply is on the rating plate.

• This appliance is not connected to a device, which evacuates the products of combustion. Make sure to connect the appliance according to current installation regulations. Follow the requirements for adequate ventilation.

WARNING! Risk of injury, burns and electric shock.

• Remove all the packaging, labelling and protective film (if applicable) before first use.

• This appliance is for household use only.

• Do not change the specification of this appliance.

• Make sure that the ventilation openings are not blocked.

• Do not let the appliance stay unattended during operation.

• Set the cooking zone to “off” after each use.

• Do not put cutlery or saucepan lids on the cooking zones. They can become hot.

• Do not operate the appliance with wet hands or when it has contact with water.

• Do not use the appliance as a work surface or as a storage surface.

• When you place food into hot oil, it may splash. WARNING! Risk of fire and explosion

• Fats and oil when heated can release flammable vapours. Keep flames or heated objects away from fats and oils when you cook with them.

• The vapours that very hot oil releases can cause spontaneous combustion.

• Used oil, that can contain food remnants, can cause fire at a lower temperature than oil used for the first time.

• Do not put flammable products or items that are wet with flammable products in, near or on the appliance. WARNING! Risk of damage to the appliance.

• Do not keep hot cookware on the control panel.

• Do not let cookware boil dry.

• Be careful not to let objects or cookware fall on the appliance. The surface can be damaged.

• Never leave a burner on with empty cookware or without cookware.

• Do not put aluminium foil on the appliance.

• Use only stable cookware with the correct shape and diameter larger than the dimensions of the burners.

• Make sure cookware is centrally positioned on the burners.

• Do not use large cookware that overlap the edges of the appliance. This can cause damage to the worktop surface.

• Make sure the flame does not go out when you quickly turn the knob from the maximum to the minimum position.

• Use only the accessories supplied with the appliance.

• Do not install a flame diffuser on the burner.

• The use of a gas cooking appliance results in the production of heat and moisture. Provide good ventilation in the room where the appliance is installed.

• Prolonged intensive use of the appliance may call for additional ventilation, for example opening of a window, or more effective ventilation, for example increasing the level of mechanical ventilation where present.

• This appliance is for cooking purposes only. It must not be used for other purposes, for example room heating.

• Do not let acid liquids, for example vinegar, lemon juice or limescale remover, touch the hob. This can cause matt patches.

• Discoloration of the enamel or stainless steel has no effect on the performance of the appliance. www.aeg.com62.5 Care and cleaning WARNING! Do not remove the buttons, knobs or gaskets from the control panel. Water may get inside the appliance and cause damage.

• Clean the appliance regularly to prevent the deterioration of the surface material.

• Deactivate the appliance and let it cool down before you clean it.

• Disconnect the appliance from the electrical supply before maintenance.

• Do not use water spray and steam to clean the appliance.

• Clean the appliance with a moist soft cloth. Use only neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.

• Do not clean the burners in the dishwasher.

• To repair the appliance contact the Authorised Service Centre.

• Use original spare parts only.

WARNING! Risk of injury or suffocation.

• Contact your municipal authority for information on how to discard the appliance correctly.

• Disconnect the appliance from the mains supply.

• Cut off the mains electrical cable close to the appliance and dispose of it.

• Flat the external gas pipes.

WARNING! Refer to Safety chapters.

3.1 Before the installation

WARNING! The following instructions about installation, connection and maintenance must be carried out by qualified personnel in compliance with standards and local regulations in force. Choose fixed connections or use a flexible pipe in stainless steel in compliance with the regulation in force. If you use flexible metallic pipes, be careful they do not come in touch with mobile parts or they are not squeezed. Also be careful when the hob is put together with an oven. Make sure that the gas supply pressure of the appliance obeys the recommended values. The adjustable connection is fixed to the comprehensive ramp by means of a threaded nut G 1/2". Screw the parts without force, adjust the connection in the necessary direction and tighten everything. A B C ENGLISH 7A. End of shaft with nut (torque force 10 ± 2 Nm) B. Washer supplied with the appliance C. Elbow supplied with the appliance WARNING! It is important to install the elbow correctly. Make sure that the shoulder is on the end of the thread. Then install it on the hob connecting pipe. Incorrect assembly may cause a gas leakage. Liquid gas Use the rubber pipe holder for liquid gas. Always engage the gasket. Then continue with the gas connection. The flexible pipe is prepared for apply when:

• it can not get hot more than room temperature, higher than 30°C;

• it is no longer than 1500 mm;

• it shows no throttles;

• it is not subject to traction or torsion;

• it does not get in touch with cutting edges or corners;

• it can be easily examined in order to make sure its condition. The control of preservation of the flexible pipe consists in checking that:

• it does not show cracks, cuts, marks of burnings on the two ends and on its full length;

• the material is not hardened, but shows its correct elasticity;

• the fastening clamps are not rusted;

• expired term is not due. If one or more defects are visible, do not repair the pipe, but replace it. WARNING! When installation is complete, make sure that the seal of each pipe fitting is correct. Use a soapy solution, not a flame!

3.3 Injectors replacement

1. Remove the pan supports.

2. Remove the caps and crowns of the

injectors and replace them with the ones which are necessary for the type of gas you use (see table in "Technical Data" chapter).

4. Assemble the parts, follow the same

procedure backwards.

5. Attach the label with the new type of

gas supply near the gas supply pipe. You can find this label in the package supplied with the appliance. If the supply gas pressure is changeable or different from the necessary pressure, you must fit an applicable pressure adjuster on the gas supply pipe.

3.4 Adjustment of minimum

level To adjust the minimum level of the burners:

4. With a thin screwdriver, adjust the

bypass screw position (A).

• from natural gas G20 20 mbar to liquid gas, fully tighten the bypass screw in.

• from liquid gas to natural gas G20 20 mbar, undo the bypass screw approximately 1/4 of a turn (1/2 of a turn for Multi Crown burner). WARNING! Make sure the flame does not go out when you quickly turn the knob from the maximum position to the minimum position.

3.5 Electrical connection

• Make sure that the rated voltage and type of power on the rating plate www.aeg.com8agree with the voltage and the power of the local power supply.

• This appliance is supplied with a mains cable. It has to be supplied with a correct plug which can hold the load that the rating plate rates. Make sure that you install the plug in a correct socket.

• Always use a correctly installed shockproof socket.

• Make sure that there is an access to the mains plug after the installation.

• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

• There is a risk of fire when the appliance is in connection with an extension cable, an adapter or a multiple connection. Make sure that the ground connection agrees with the standards and regulations.

• Do not let the power cable to heat up to a temperature higher than 90° C.

3.6 Connection cable

To replace the connection cable use only the special cable or its equivalent. The cable type is: H03V2V2-F T90. Make sure that the cable section is applicable to the voltage and the working temperature. The yellow / green earth wire must be approximately 2 cm longer than the brown (or black) phase wire.

1. Connect the green and yellow (earth)

wire to the terminal which is marked with the letter 'E', or the earth symbol , or coloured green and yellow.

2. Connect the blue (neutral) wire to the

terminal which is marked with the letter 'N' or coloured blue.

3. Connect the brown (live) wire to the

terminal which is marked with the letter 'L'. It must always be connected to the network phase.

A. Supplied seal B. Supplied bracket

CAUTION! Install the appliance only on a worktop with flat surface.

3.8 Possibilities for insertion

The panel installed below the hob must be easy to remove and let an easy access in case a technical assistance intervention is necessary. Kitchen unit with door min 20 mm (max 150 mm) 30 mm 60 mm

A. Removable panel B. Space for connections Kitchen unit with oven The electrical connection of the hob and the oven must be installed separately for safety reasons and to let easy remove oven from the unit. www.aeg.com104. PRODUCT DESCRIPTION

WARNING! Refer to Safety chapters.

A. Burner cap B. Burner crown C. Ignition candle D. Thermocouple ENGLISH 115.2 Ignition of the burner Always light the burner before you put on the cookware. WARNING! Be very careful when you use open fire in the kitchen environment. The manufacturer declines any responsibility in case of the flame misuse.

1. Push the control knob down and turn

it counterclockwise to the maximum gas supply position (

2. Keep the control knob pushed for

equal or less than 10 seconds. This lets the thermocouple warm up. If not, the gas supply is interrupted.

3. Adjust the flame after it is regular.

If after some tries the burner does not light, check if the crown and its cap are in correct positions. WARNING! Do not keep the control knob pushed for more than 15 seconds. If the burner does not light after 15 seconds, release the control knob, turn it into off position and try to light the burner again after minimum 1 minute. CAUTION! In the absence of electricity you can ignite the burner without electrical device; in this case approach the burner with a flame, turn the control knob counter- clockwise to maximum gas supply position and push it down. Keep the control knob pushed for equal or less than 10 seconds to let the thermocouple warm up. If the burner accidentally goes out, turn the control knob to the off position and try to light the burner again after minimum 1 minute. The spark generator can start automatically when you switch on the mains, after installation or a power cut. It is normal.

5.3 Turning the burner off

To put the flame out, turn the knob to the off position . WARNING! Always turn the flame down or switch it off before you remove the pans from the burner.

WARNING! Refer to Safety chapters.

CAUTION! Do not use cast iron pans, clay or earthenware pots, grill or toaster plates. The stainless steel can become tarnished if it is too much heated. WARNING! Do not put the same pan on two burners. WARNING! Do not put unstable or damaged pots on the burner to prevent spills and injuries. www.aeg.com12CAUTION! Make sure that the bottoms of pots do not stand too close to the control knob, otherwise the flame heats the control knob up. CAUTION! Make sure that pot handles are not above the front edge of the cooktop. CAUTION! Make sure that the pots are placed centrally on the burner in order to get the maximum stability and a lower gas consumption.

• If it is possible, always put the lids on the cookware.

• When the liquid starts to boil, turn down the flame to barely simmer the liquid.

6.3 Diameters of cookware

Use cookware with diameters applicable to the size of burners. Burner Diameter of cookware (mm) Multi Crown 180 - 260 Semi-rapid 120 - 240 Auxiliary 80 - 220

6.4 Suggested recipes

Food categories Recipes Burner type Power level Sauces - Dressing Bechamel Auxiliary 2-6 Tomato sauce Semi-rapid 1-6 Pasta - Rice - other Ce‐ reals Mushrooms rice Multi Crown 1-6 Couscous Rapid 1-6 Spaghetti Multi Crown 6-9 Ravioli Auxiliary 7-9 Soup - Legumes Vegetable soup Semi-rapid 2-8 Mushrooms and pota‐ toes soup Semi-rapid 1-7 Fish soup Multi Crown 1-3 Meat Beef meatballs Multi Crown 1-6 Fillet of pork roast Multi Crown 5-9 Beef burger gratin Auxiliary 1-6 Fish Sepia with peas Multi Crown 1-6 Roasted tuna steak Rapid 5-8 Eggs based meals Omelette Multi Crown 1-6 ENGLISH 13Food categories Recipes Burner type Power level Vegetables Mushrooms with sea‐ sonings Semi-rapid 2-8 Caponata with vegeta‐ bles Multi Crown 3-7 Boiled potatoes Rapid 7-9 Frozen spinach with butter Rapid 1-4 Fried dishes French fries Multi Crown 8-9 Donuts Multi Crown 3-7 Snacks cooked with pan Roasting nuts Semi-rapid 2-6 Croutons of bread Multi Crown 2-6 Pancakes Semi-rapid 3-9 Desserts Caramel Auxiliary 2-6 Custard Auxiliary 2-6 Panna cotta Auxiliary 1-6 All recipes for approximately 4 portions. The settings suggested in the cooking table should only serve as guidelines and be adjusted depending on the rawness of food, its weight and quantity as well as on the type of gas used and the material of the cookware used to prepare the dish. For an optimal delicate cooking use the auxiliary burner.

7. CARE AND CLEANING

WARNING! Refer to Safety chapters.

7.1 General information

• Clean the hob after each use.

• Always use cookware with a clean base.

• Scratches or dark stains on the surface have no effect on how the hob operates.

• Use a special cleaner suitable for the surface of the hob. Stainless steel

• Wash stainless steel parts with water, and then dry them with a soft cloth.

• To remove burnt food, fat and stubborn stains let them soak in a small amount of mild detergent for a few minutes before cleaning. www.aeg.com14• Use cleaning products designed specifically for cleaning stainless steel in order to protect the steel surfaces.

• Do not use cleaning products containing corrosive chemicals such as chlorides, do not clean the surface with disinfectants, stain or rust removers and immersion cleaners.

The pan supports are not resistant to washing in a dishwasher. They must be washed by hand.

1. Remove the pan supports to easily

clean the hob. Be very careful when you replace the pan supports to prevent the hob top from damage.

2. The enamel coating occasionally can

have rough edges, so be careful when you wash the pan supports by hand and dry them. If necessary, remove stubborn stains with a paste cleaner.

3. After you clean the pan supports,

make sure that they are in correct positions.

4. For the burner to operate correctly,

make sure that the arms of the pan supports are aligned with the centre of the burner.

7.3 Cleaning the hob

• Remove immediately: melted plastic, plastic foil, sugar and food with sugar, otherwise, the dirt can cause damage to the hob. Take care to avoid burns.

• Remove when the hob is sufficiently cool: limescale rings, water rings, fat stains, shiny metallic discoloration. Clean the hob with a moist cloth and a non-abrasive detergent. After cleaning, wipe the hob dry with a soft cloth.

• To clean the enamelled parts, caps and crowns, wash them with warm soapy water and dry them carefully before you put them back on.

7.4 Cleaning the spark plug

This feature is obtained through a ceramic ignition candle with a metal electrode. Keep these components well clean to prevent difficult lighting and check that the burner crown holes are not obstructed.

7.5 Periodic maintenance

Speak to your local Authorised Service Centre periodically to check the conditions of the gas supply pipe and the pressure adjuster, if fitted.

WARNING! Refer to Safety chapters. ENGLISH 158.1 What to do if... Problem Possible cause Remedy There is no spark when you try to activate the spark gen‐ erator. The hob is not connected to an electrical supply or it is connected incorrectly. Check if the hob is correctly connected to the electrical supply. The fuse is blown. Make sure that the fuse is the cause of the malfunction. If the fuse is blown again and again, contact a quali‐ fied electrician. Burner cap and crown are placed incorrectly. Place the burner cap and crown correctly. The flame extinguishes im‐ mediately after ignition. Thermocouple is not heated up sufficiently. After lightning the flame, keep the knob pushed for equal or less than 10 sec‐ onds. The flame ring is uneven. Burner crown is blocked with food residues. Make sure that the injector is not blocked and the burner crown is clean.

8.2 If you cannot find a

solution... If you cannot find a solution to the problem yourself, contact your dealer or an Authorised Service Centre. Give the data from the rating plate. Make sure, you operated the hob correctly. If not the servicing by a service technician or dealer will not be free of charge, also during the warranty period. The instructions about the Service Centre and conditions of guarantee are in the guarantee booklet. www.aeg.com168.3 Labels supplied with the accessories bag Stick the adhesive labels as indicated below: MOD. PROD.NO. SER.NO DATA MOD. PROD.NO. SER.NO DATA MOD. PROD.NO.SER.NO.03 ITMADE IN ITALY TYPE IP20

A B C A. Stick it on Guarantee Card and send this part (if applicable). B. Stick it on Guarantee Card and keep this part (if applicable). C. Stick it on instruction booklet.

Recycle materials with the symbol . Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office. Electrolux Appliances AB - Contact Address: Al. Powstańców Śląskich 26, 30-570 Kraków, Poland www.aeg.com18TABLE DES MATIÈRES
