| Product type | Digital voice recorder |
| Brand | Sony |
| Model | ICD-UX71 |
| Dimensions (W x H x D) | 46.0 x 121.0 x 14.0 mm |
| Weight (with battery) | Approx. 55 g |
| Power supply | 1 rechargeable NH-AAA battery (1.2 V) or 1 LR03 (AAA) alkaline battery (1.5 V) |
| Internal storage capacity | 1 GB (flash memory) |
| Main functions | Voice recording, playback, erasing, file transfer to PC, MP3/WMA music playback, clock, alarm, LCD display |
| Supported audio formats (recording) | Sony proprietary format (LP, SP, etc.) |
| Supported audio formats (playback) | MP3, WMA |
| Maximum number of folders | 500 |
| Maximum number of files per folder | 999 |
| Maximum total number of files | 5000 |
| Connectivity | USB 2.0 (mini-USB) |
| Built-in speaker | Yes |
| Headphone jack | Yes (3.5 mm mini-jack) |
| FM radio | No (only on models ICD-UX71F/UX81F/UX91F) |
| Maintenance and cleaning | Clean the exterior with a soft cloth slightly dampened with water. Do not use alcohol, gasoline, or thinner. |
| Safety | Do not use while driving. Avoid exposure to heat, direct sunlight, excessive dust, and mechanical shocks. |
| Spare parts and repairability | NH-AAA battery, MDR-E706 headphones, USB cable provided. For any repairs, contact a qualified technician. |
| General information | Warranty and after-sales service: refer to the provided documents. Manufacturer: Sony Corporation, Japan. |
Frequently Asked Questions - ICD-UX71 SONY
User questions about ICD-UX71 SONY
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Dictaphone in PDF format for free! Find your manual ICD-UX71 - SONY and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. ICD-UX71 by SONY.
USER MANUAL ICD-UX71 SONY
This Quick Start Guide describes only basic operations, such as how to record, play back, or erase messages. The operating instructions explaining all the features and functions are supplied with the IC recorder as PDF files in 19 languages stored on the supplied CD-ROM. You can copy the PDF files of the operating instructions to your computer. Insert the supplied CD-ROM into the CD-ROM drive of your computer, and just follow the instructions shown on the screen. If the instructions are not shown on the screen, right-click the CD-ROM on Windows Explorer to open, and double-click [SetupLauncher.exe]. The English edition of the operating instructions is supplied as a booklet as well.
For customers in Europe
Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)
This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you
will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.
Applicable accessories: Headphones, USB connection support cable
Disposal of waste batteries (applicable in the European Union and other European countries with separate collection systems)
This symbol on the battery or on the packaging indicates that the battery provided with this product shall not be treated as household waste. By ensuring these batteries are
disposed of correctly, you will help prevent potentially negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of the battery. The recycling of the materials will help to conserve natural resources.
In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only. To ensure that the battery will be treated properly, hand over the product at end-of-life to the applicable collection point for the recycling of electrical and electronic equipment.
For all other batteries, please view the section on how to remove the battery from the product safely. Hand the battery over to the applicable collection point for the recycling of waste batteries.
For more detailed information about recycling of this product or battery, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.
Notice for the customers: the following information is only applicable to equipment sold in the countries applying EU directives
The manufacturer of this product is Sony Corporation, 1-7-1 Konan, Minato-ku, Tokyo, Japan. The Authorized Representative for EMC and product safety is Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or guarantee matters please refer to the addresses given in separate service or guarantee documents.
- The recorded music is limited to private use only. Use of the music beyond this limit requires permission of the copyright holders.
- Sony is not responsible for incomplete recording/downloading or damaged data due to problems of the IC recorder or computer.
-
Depending on the types of the text and characters, the text shown on the IC recorder may not be displayed properly on device. This is due to:
-
The capacity of the connected IC recorder.
- The IC recorder is not functioning normally.
Content information is written in the language or the character that is not supported by the IC recorder.
Table of Contents
Checking the Contents of the Package. 5
Getting Started
Step 1: Preparing a Power Source......6
Step 2: Setting the Clock. 7
Step 3: Setting the Language to Be Used in the Display Window. 10
Turning the IC Recorder On or Off.....11
Recording/Playing Back Messages
Recording Messages. 12
Playing Back Messages. 14
Editing Messages
Erasing Messages. 15
Utilizing Your Computer
Using the IC Recorder with Your Computer 18
Transferring Files from Your Computer to the IC Recorder 21
Playing Back Music Files 22
Listening to the FM Radio
Tuning in an FM radio Station. 23
Presetting FM Radio Stations Automatically. 25
Listening to a Preset Radio Station.....26
Erasing Preset FM Radio Stations.....28
Precautions. 29

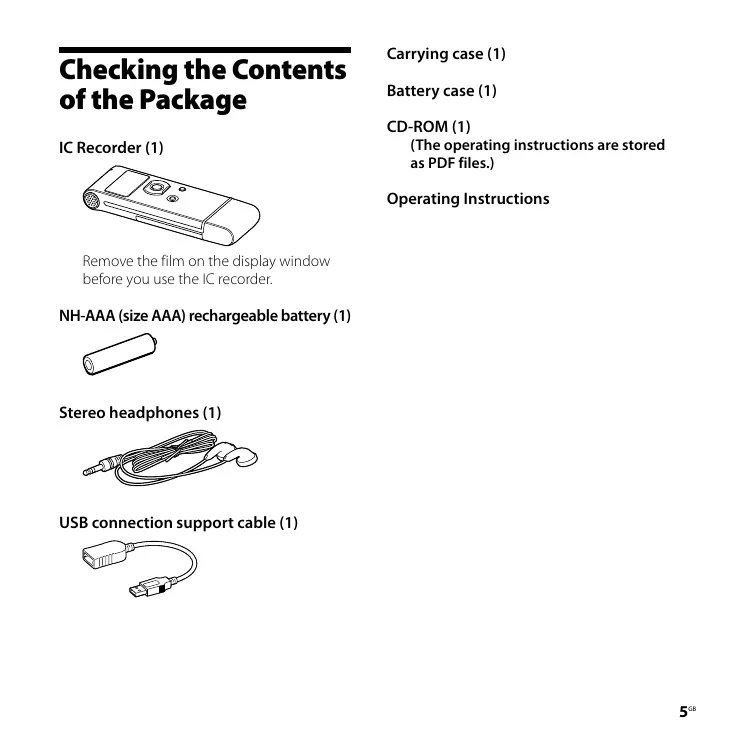

Checking the Contents of the Package
IC Recorder (1)
Remove the film on the display window before you use the IC recorder.
NH-AAA (size AAA) rechargeable battery (1)
Stereo headphones (1)
USB connection support cable (1)
Carrying case (1)
Battery case (1)
CD-ROM (1)
(The operating instructions are stored as PDF files.)
Operating Instructions
Getting Started
Step 1: Preparing a Power Source
Remove the film on the display window before you use the IC recorder.
Inserting the battery
1 Slide and lift the battery compartment lid.

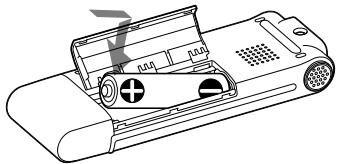

2 Insert one NH-AAA rechargeable battery with correct polarity, and close the lid.

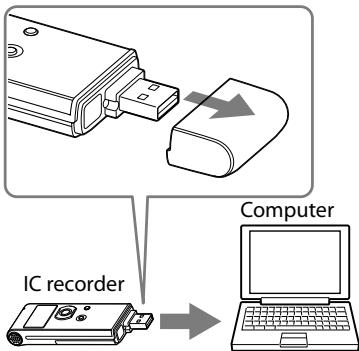

3 Charge the battery by connecting the USB connector of the IC recorder to your computer.
To USB connector
Disconnecting the IC recorder from your computer
Follow the procedures below; otherwise, data may be damaged.
1 Make sure that the operation indicator is not flashing.
2 Disconnect the IC recorder from the USB connector of the computer.
On the Windows screen, left-click "Safely Remove Hardware" on the taskbar, and click "Safely remove USB Mass Storage Device."
On the Macintosh screen, drag the "IC REORDER" on the desktop to "Trash" and drop it there.
For details on disconnecting the IC recorder, refer to the operating instructions supplied with your computer.
Step 2: Setting the Clock
You need to set the clock to use the alarm function or record the date and time.
Clock setting display appears when you insert battery for the first time, or when you insert a battery after the IC recorder has been without battery for more than 3 minutes, "SET DATE & TIME" appears, and then the year section flashes in the display window.
Continued directly from "Step 1: Preparing a Power Source"

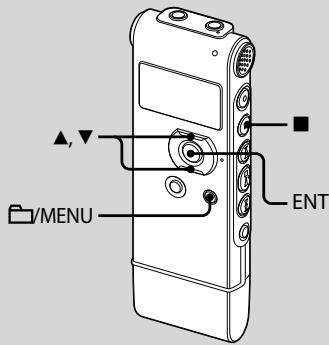

1 Press or on the control button to set the year, month, day, hour, and minute in sequence, and then press ENT.
2 Press (stop) to return to the display of the stop mode.
Setting the clock using the menu
While the IC recorder is in the stop mode, you can set the clock using the menu.
1 Select "DATE & TIME" in the menu.
① Press and hold /MENU to enter the menu mode.
The menu mode will be displayed in the display window.
(2) Press or on the control button to select "DETAIL MENU," and then press ENT.
③ Press or on the control button to select "DATE & TIME," and then press ENT.
2 Press the or on the control button to select "08y1m1d," and then press ENT.
3 Press or on the control button to set the year, month, day, hour, and minute in sequence, and then press ENT.
4 Press (stop) to return to the display of the stop mode.
Note
If you do not press ENT within one minute of entering the clock setting data, the clock setting mode is cancelled and the window will return to the display of the stopmode.
To display the current date and time
Press (stop) to display the current date and time.

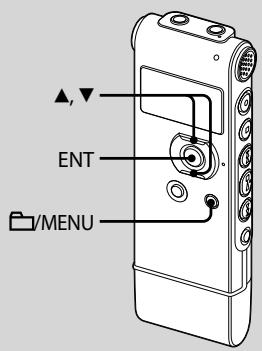

Step 3: Setting the Language to Be Used in the Display Window
You can select the language to be used for messages, menus, folder names, file names, etc. from 2 languages (European model)/7 languages (other models).
1 Press and hold / MENU to enter the menu mode.
The menu mode window will be displayed.
2 Press or on the control button to select "DETAIL MENU," and then press ENT.
3 Press or on the control button to select "LANGUAGE," and then press ENT.
4 Press or on the control button to select the language that you want to use, and then press ENT.
You can select the following languages.
European model :
ENGLISH, Pycckn (Russian)
Other models :
ENGLISH, Pycckn (Russian),
简体中文 (Chinese), 繁體中文 (Chinese), mnu (Thai)

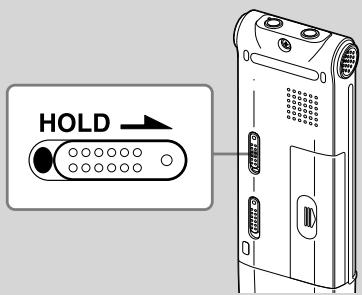

Turning the IC Recorder On or Off
When you are not using the IC recorder, you can prevent the battery from getting weak quickly by turning the power off.
Turning the power off
Slide the HOLD switch in the direction of the arrow in the stop mode. "HOLD" lights up and the key mark flashes and then "POWER OFF" is displayed. The IC recorder turns off within a few seconds.
Turning the power on
Slide the HOLD switch in the opposite direction from that of the arrow. The IC recorder is turned on, and an accessing animation is displayed.
Tips
- When you are not going to use the IC recorder for a long time, we recommend to turn off the IC recorder.
- When 10 minutes have passed after you have turned on the IC recorder and leave it without doing anything, the display goes off automatically. (Press any button to show the display.)

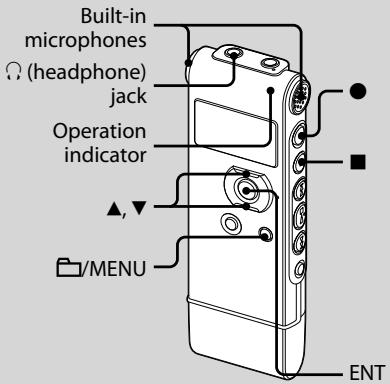

Recording Messages
1 Select a folder.
① Press /MENU to display the folder selection window.
② Press or on the control button to select the folder in which you want to record messages (FOLDER01-05), and then press ENT.
2 Start recording.
① Press (record/pause) in the stop mode.
The operation indicator lights in red. (When "LED" is set to "OFF" in the menu, the operation indicator does not light.)
You do not need to press and hold
- (record/pause) while recording.
The new message will be automatically recorded after the last recorded message.
② Speak into the built-in microphones.
3 Press (stop) to stop recording.
The IC recorder stops at the beginning of the current recording.

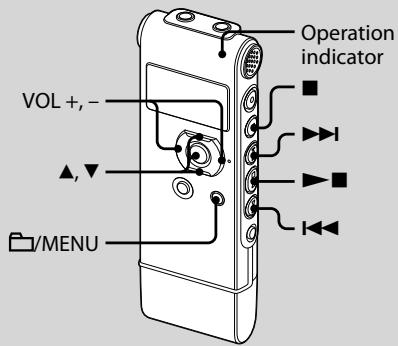

Playing Back Messages
1 Select a folder.
① Press /MENU.
② Press or on the control button to select the folder, and then press ENT.
2 Press I or to select the message you want to play.
3 Press to start playback.
The operation indicator lights in green. (When "LED" is set to "OFF" in the menu, the operation indicator does not light.)
4 Press VOL + or - on the control button to adjust the volume.
5 Press (stop) to stop playback.
Editing Messages
Erasing Messages
You can erase the recorded messages one by one or all messages in a folder at a time.
Note
Once a recording has been erased, you cannot retrieve it.

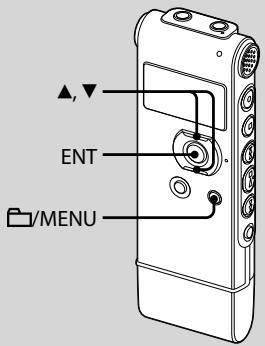

Erasing messages one by one
You can erase unwanted messages, retaining all other messages when the IC recorder is in the stop or playback mode. When a message is erased, the remaining messages will advance and be renumbered so that there will be no space between messages.
1 Select the message you want to erase.
2 Press and hold / MENU to enter the menu mode.
The menu mode window will be displayed.
3 Press or on the control button to select "ERASE A FILE," and then press ENT.
The message to be erased will be played back.
4 Press or on the control button to select "EXECUTE," and then press ENT.
"ERASING ..." appears in the display window and the selected message will be erased.
ERASE A FILE
EXECUTE
CANCEL
To cancel erasing
Select "CANCEL" in step 4, and then press ENT.
To erase another message
Proceed with the same steps again from the beginning.
To erase a part of one message
Divide the message into two messages first, and then proceed with the same steps from the beginning.

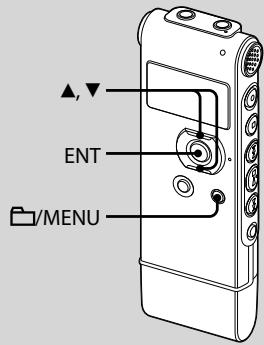

Erasing all messages in a folder
1 Select the folder containing the messages you want to erase when the IC recorder is in the stop mode.
2 Press and hold /MENU to enter the menu mode.
The menu mode window will be displayed.
3 Press or on the control button to select "ERASE ALL," and then press ENT.
ALARM
ERASE ALL
ERASE A FILE
4 Press or on the control button to select "EXECUTE," and then press ENT.
"ERASING ..." appears in the display window and all messages in the selected folder will be erased.
ERASE ALL
EXECUTE
CANCEL
To cancel erasing
Select "CANCEL" in step 4, and then press ENT.
Utilizing Your Computer
Using the IC Recorder with Your Computer
System requirements
Operating systems:
Windows Vista® Ultimate
Windows Vista® Business
Windows Vista® Home Premium
Windows Vista Home Basic
Windows® XP Media Center Edition 2005
Service Pack 2 or higher
Windows® XP Media Center Edition 2004
Service Pack 2 or higher
Windows® XP Media Center Edition
Service Pack 2 or higher
Windows® XP Professional
Service Pack 2 or higher
Windows® XP Home Edition
Service Pack 2 or higher
Windows® 2000 Professional Service Pack
4 or higher
Mac OS X (v10.2.8-v10.5)
Pre-Installed
Notes
- Operation is not guaranteed if any operating system other than those described above (Windows® 98 or Linux, etc.) is used.
- Any 64 bit operating system is not supported.
- For the latest version information and compatibility with your operating system, please access the support home page for the IC recorder:
European model:
http://support.sony-europe.com/DNA
Other models:
http://www.sony-asia.com/support
Hardware environment:
- Port: USB port
Sound board: Sound cards compatible with any of the supported Microsoft®Windows® operating systems
Note
The following systems are not supported:
- Operating systems other than the ones indicated on the left
- Personally constructed computers or operating systems
- Upgraded operating systems
Multi-boot environment
Multi-monitor environment
When you are using Windows® 2000 Professional
Install the driver using "SonyRecorder Driver.exe" in the IC recorder.
Connecting the IC recorder to your computer

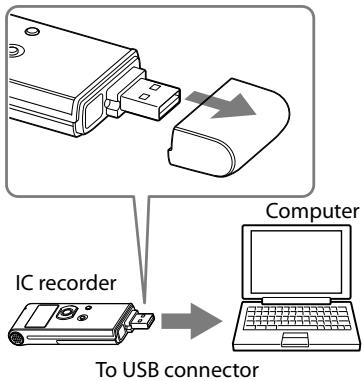

You can transfer the IC recorder data onto your computer by connecting the IC recorder to the computer. Remove the USB cap from the IC recorder and then connect the IC recorder to the USB connector of your computer. The IC recorder is recognized by the computer as soon as the connection is made. While the IC recorder is connected to the computer, "CONNECTING" is displayed in the display window of the IC recorder.
Tip

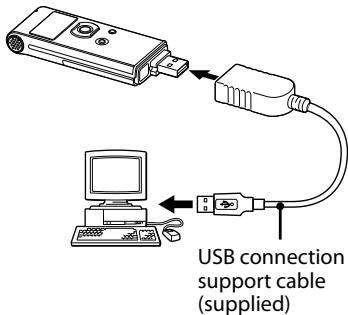

If the IC recorder cannot be connected to the USB connector of your computer directly, use the supplied USB connection support cable.
Notes
- If you connect more than two USB devices to your computer, normal operation will not be guaranteed.
- Use of this IC recorder with a USB hub or a USB connection support cable other than the supplied cable is not guaranteed.
- A malfunction may occur depending on the USB devices connected at the same time.
- Before connecting the IC recorder to the computer, make sure that the battery is inserted in the IC recorder.
- It is recommended that you disconnect the IC recorder from the computer when you are not using the IC recorder connected to the computer.
Disconnecting the IC recorder from your computer
Follow the procedures below; otherwise, data may be damaged.
1 Make sure that the operation indicator is not flashing.
2 Disconnect the IC recorder from the USB connector of the computer.
On the Windows screen, left-click "Safely Remove Hardware" on the taskbar, and click "Safely remove USB Mass Storage Device."
On the Macintosh screen, drag the "IC RECORDER" on the desktop to "Trash" and drop it there.
For details on disconnecting the IC recorder, refer to the operating instructions supplied with your computer.
Transferring Files from Your Computer to the IC Recorder
You can play back music or language files (MP3/WMA*) from your computer using the IC recorder.
You can make an MP3/WMA file using either a player software application installed on your computer or a commercially available software application.
- For the file formats that can be played back using the IC recorder, refer to "Specifications" (page 110 in "Operating Instructions").
Copying a music file from your computer to the IC recorder (drag and drop)
1 Connect the IC recorder to your computer (page 19).
On the Windows screen; open "My Computer" and make sure that "IC REORDER" has been recognized. On the Macintosh screen; make sure that an "IC REORDER" drive is displayed on the desk top.
2 Copy the folder in which the music files are stored to the IC recorder.
On the Windows screen using Explorer, and on the Macintosh screen using Finder, drag and drop the folder onto the IC recorder.
The IC recorder can recognize up to 500 folders. You can copy up to 999 files to one folder and up to 5,000 files in total.

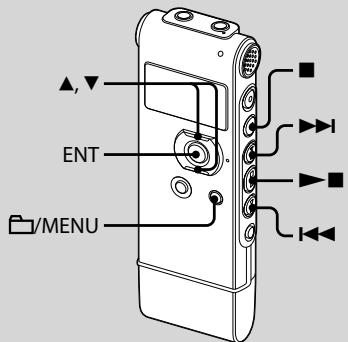

Playing Back Music Files
1 Remove the IC recorder from your computer, press /MENU, press ▲ or on the control button to select the folder ( ) in which music files are stored, and then press ENT.
2 Press I or to select the music file you want to play.
3 Press to start playback.
4 Press (stop) to stop playback.
Listening to the FM Radio
(for ICD-UX71F/UX81F/UX91F only)
The headphone cord is an FM antenna, therefore, connect the headphone when listening to the radio.
During FM reception or FM recording, you can switch between the sound from the speaker and the sound from the headphones using the menu. For details, see page 87 in "Operating Instructions."
Note
During FM reception you cannot charge the battery.

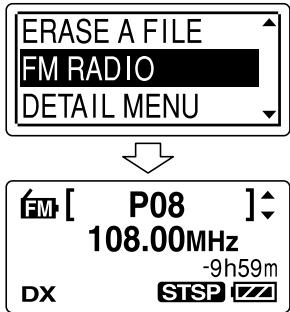

Tuning in an FM radio Station
The display in the display window may be different from the actual one in some regions.
1 Press and hold /MENU to enter the menu mode.
The menu mode window will be displayed.
2 Press or on the control button to select "FM RADIO," and then press ENT.
The IC recorder enters FM radio mode.
You can switch the display between preset number and frequency by pressing ENT.
3 Tune in a station.
4 Press or on the control button repeatedly to tune in a station or press and hold or on the control button until the frequency digits begin to change on the display.
The IC recorder automatically scans the radio frequencies and stops when it finds a clear station.
If you cannot tune in a station, press or on the control button repeatedly to change the frequency step by step.
When a station you tune in is a preset station, the preset number is displayed, otherwise, "P --" appears instead.

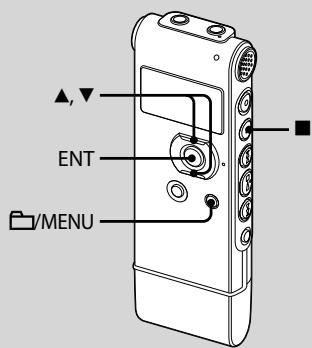

Presetting FM Radio Stations Automatically
The display in the display window may be different from the actual one in some regions.
You can preset up to 30 FM radio stations automatically using the preset menu.
1 Press and hold /MENU to enter the menu mode when listening to the FM radio.
The menu mode window will be displayed.
2 Press or on the control button to select "AUTO PRESET," and then press ENT.
3 Press or on the control button to select "EXECUTE," and then press ENT.
The IC recorder automatically scans for available radio frequencies and the stations will be stored in memory from the lower frequencies to the higher ones.
While presetting FM radio stations automatically, the preset number ready to be assigned flashes.
To stop the automatic presetting
Press (stop). The preset numbers stored until you press the (stop) button remain in memory.

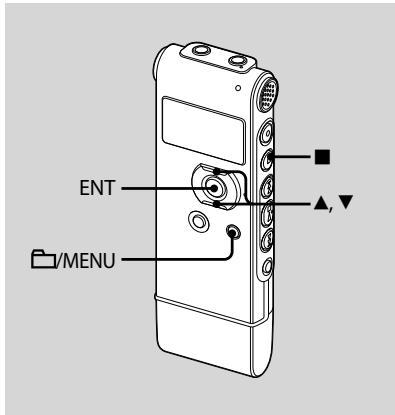

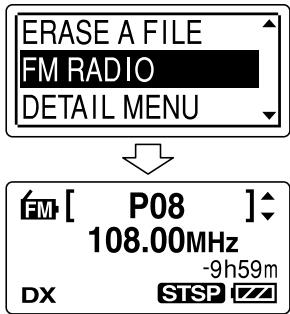

Listening to a Preset Radio Station
The display in the display window may be different from the actual one in some regions.
1 Press and hold /MENU to enter the menu mode.
The menu mode window will be displayed.
2 Press or on the control button to select "FM RADIO," and then press ENT.
The IC recorder enters FM radio mode.
3 To tune in a station, press or on the control button repeatedly until the preset number you want is displayed.
When you press and hold or on the control button, the preset numbers change rapidly.
4 Press (stop) to turn the FM radio off.

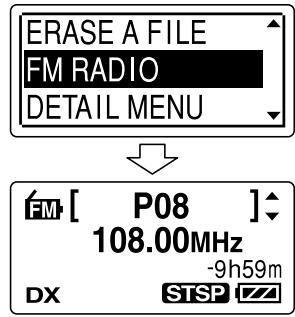

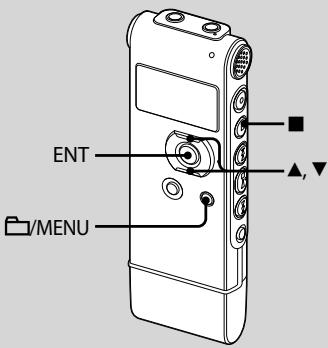

Erasing Preset FM Radio Stations
The display in the display window may be different from the actual one in some regions.
1 Press and hold /MENU to enter the menu mode.
The menu mode window will be displayed.
2 Press or on the control button to select "FM RADIO," and then press ENT.
The IC recorder enters FM radio mode.
3 To tune in a station, press or on the control button repeatedly until the preset number you want to erase is displayed.
4 Press and hold ENT.
The preset number and "ERASE?" will be displayed on the display.
5 Press or on the control button repeatedly to select "EXECUTE," and then press ENT.
The preset number will be changed to "P- -".
Precautions
On power
- Operate the unit only on 1.5V or 1.2V DC. Use one NH-AAA rechargeable battery or one LR03 (size AAA) alkaline battery.
On safety
- Do not operate the unit while driving, cycling or operating any motorized vehicle.
On handling
- Do not leave the unit in a location near heat sources, or in a place subject to direct sunlight, excessive dust or mechanical shock.
- Should any solid object or liquid fall into the unit, remove the battery and have the unit checked by qualified personnel before operating it any further.
On noise
- Noise may be heard when the unit is placed near an AC power source, a fluorescent lamp or a mobile phone during recording or playback.
- Noise may be recorded when an object, such as your finger, etc., rubs or scratches the unit during recording.
On maintenance
- To clean the exterior, use a soft cloth slightly moistened in water. Do not use alcohol, benzine or thinner.
If you have any questions or problems concerning your unit, please consult your nearest Sony dealer.
Backup recommendations
To avoid potential risk of data loss caused by accidental operation or malfunction of the IC recorder, we recommend that you save a backup copy of your recorded messages on a tape recorder or to a computer, etc.
Trademarks
- Microsoft, Windows, Windows Vista and Windows Media are registered trademarks or trademarks of the Microsoft Corporation in the United States and/or other countries.
Apple, Macintosh and Mac OS are trademarks of Apple Inc., registered in the USA and other countries. - Nuance, the Nuance logo, Dragon NaturallySpeaking, and RealSpeak are trademarks and/or registered trademarks of Nuance Communications, Inc., and/or its affiliates in the United States and/or other countries. © 2007 Nuance Communications, Inc. All rights reserved.
- MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson.
All other trademarks and registered trademarks are trademarks or registered trademarks of their respective holders.
Furthermore, "TM" and " " are not mentioned in each case in this manual.
This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary.
Pile rechargeable NH-AAA (AAA) (1)
Casque stéreo (1)
© 2007 Nuance Communications, Inc.
This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary.
http://support.sony-europe.com/DNA
Otros modelos:
http://www.sony-asia.com/support
Entorno de hardware:
This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary.
