DH 600 - Dehumidifier Orbegozo - Free user manual and instructions

Product Type	Dehumidifier
Brand	Orbegozo
Model	DH 600
Dimensions (L x H x D)	245 x 360 x 185 mm
Power Supply	12 V DC, 6 A (AC/DC adapter supplied)
Power Consumption	72 W
Dehumidification Capacity	Approximately 600 ml/day at 30°C, 80% RH
Technology	Thermoelectric module (without compressor)
Fan	DC brushless motor 90x90 mm
Water Tank	Removable, 2 litres (auto shut-off at ~1.5 L)
Indicator Lights	Green light (on), yellow light (tank full)
Air Outlet	Two sides, warm air
Operating Environment	Temperature >15°C, humidity >40% RH
Cleaning	Soft cloth and brush for grilles
Safety	Auto shut-off when tank full, do not open, repair by professional
Package Contents	Dehumidifier, AC/DC adapter
Intended Use	Domestic, small rooms (cloakrooms, wardrobes, etc.)

Frequently Asked Questions - DH 600 Orbegozo

How to turn on the Orbegozo DH 600 dehumidifier?

Connect the AC/DC adapter to the device and to the mains outlet. Press the ON/OFF button (1) to ON position. The green light (2) comes on and the device starts operating.

What to do when the yellow light comes on?

The yellow light (3) indicates the water tank is full. The device shuts off automatically. Turn it off with the ON/OFF button, remove the tank (5), empty it, then replace it and turn the device back on.

How to clean the DH 600 dehumidifier?

Unplug the device. Use a soft cloth to clean the surface and a brush to remove dust from the air intake (4) and outlet (6) grilles.

Where to place the dehumidifier for optimal performance?

Place it in a small closed room (cloakroom, wardrobe, pantry, bedroom) with a temperature above 15°C and relative humidity above 40%. Keep the ventilation grilles unobstructed.

What is the power consumption of the DH 600?

The power consumption is 72 W. The power supply is 12 V DC with an included mains adapter.

What is the dehumidification capacity per day?

Approximately 600 ml per day under conditions of 30°C and 80% relative humidity.

Is the outgoing air warm?

Yes, the air exits through both sides (6) and is warm because the thermoelectric technology produces heat.

Can I leave the device running all night?

Yes, the device is designed for continuous use. It stops automatically when the tank is full. Ensure the tank is empty at startup and that the device is placed on a stable surface.

What to do if the device does not turn on?

Check that the adapter is properly connected to the device and to the mains outlet. Make sure the outlet works. If the problem persists, contact an approved technical service.

How to empty the water tank?

Turn off the device with the ON/OFF button (1) to OFF. Grasp the tank (5) and pull it outward. Empty the water, replace the empty tank, then turn the device back on.

USER MANUAL DH 600 Orbegozo

White portable air purifier with ventilation grilles and a transparent cover, no visible text or symbols on the device itself.

DH 600

Sonifer, S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Person in white suit holding a white plastic device with ventilation grille (no visible text or symbols)

CARACTERÍSTICAS

Line drawing of a hand pressing down on a device component (no text or symbols)

Illustration of a hand pressing down on a computer mouse (no text or symbols)

Illustration of a hand pressing down on a computer mouse (no text or symbols)

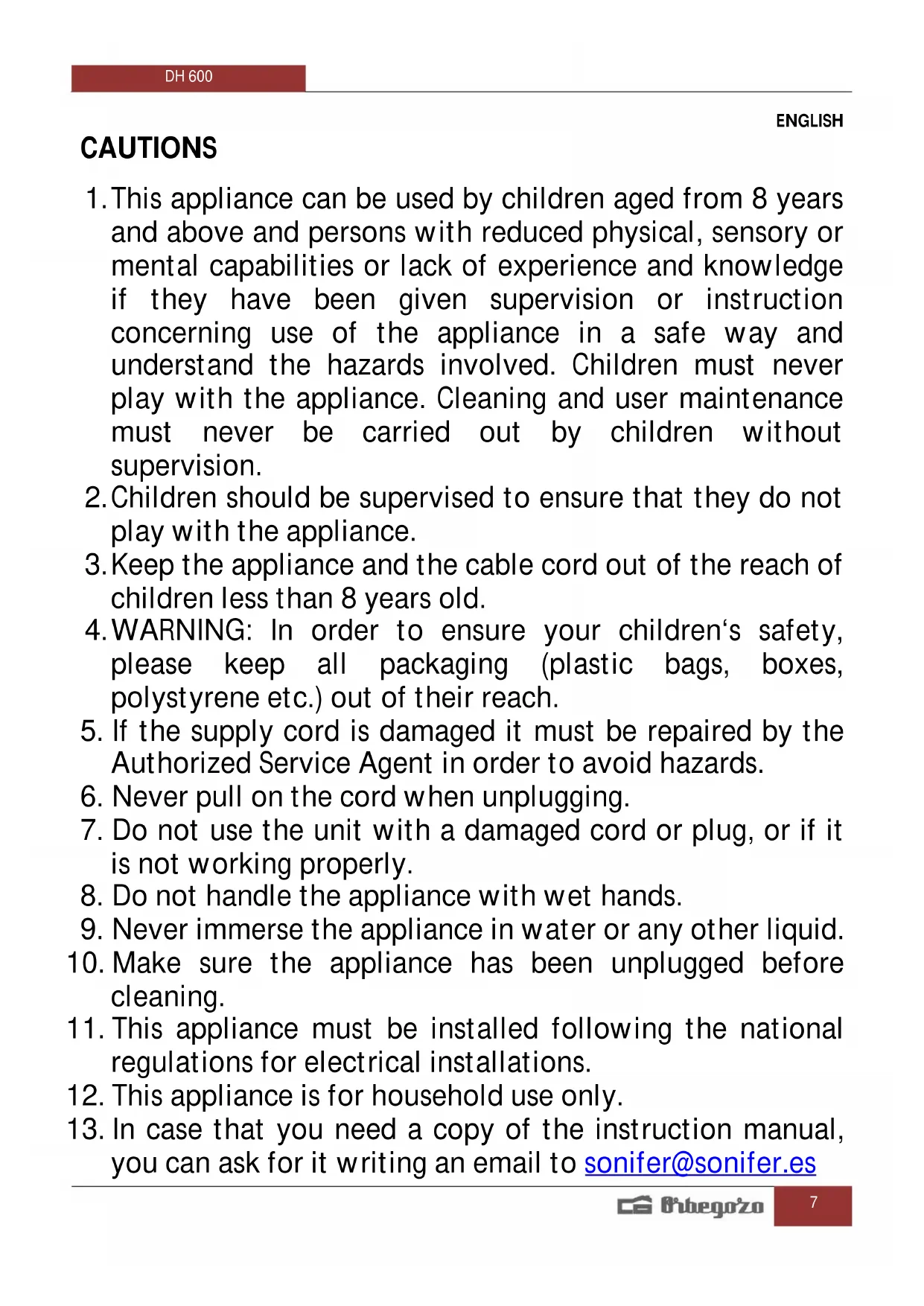

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not play with the appliance.

3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.

4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

5. If the supply cord is damaged it must be repaired by the Authorized Service Agent in order to avoid hazards.

6. Never pull on the cord when unplugging.

7. Do not use the unit with a damaged cord or plug, or if it is not working properly.

8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other liquid.

10. Make sure the appliance has been unplugged before cleaning.

11. This appliance must be installed following the national regulations for electrical installations.

12. This appliance is for household use only.

13. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail]

14. WARNING: In case of misuse, there is a risk of possible injury.

15. After having finished using the Midi dehudifier, the user should switch the unit off by pressing the On/Off button to Off position.

16. Keep The front inlet grill and the side outlets free from air blocking materials such as clothing, plastic bag or paper.
17. Always keep the unit at an up-right position to avoid water leakage.
18. The thumb should be placed at the top center of the unit while lifting by the lift-slot(7), to avoid tilting. At the same time, the other hand should be holding the base to secure the unit (as Fig.).

Person in white suit holding a white plastic bag with ventilation grille (no text or symbols visible)

- This appliance must be installed following the national regulations for electrical installations.

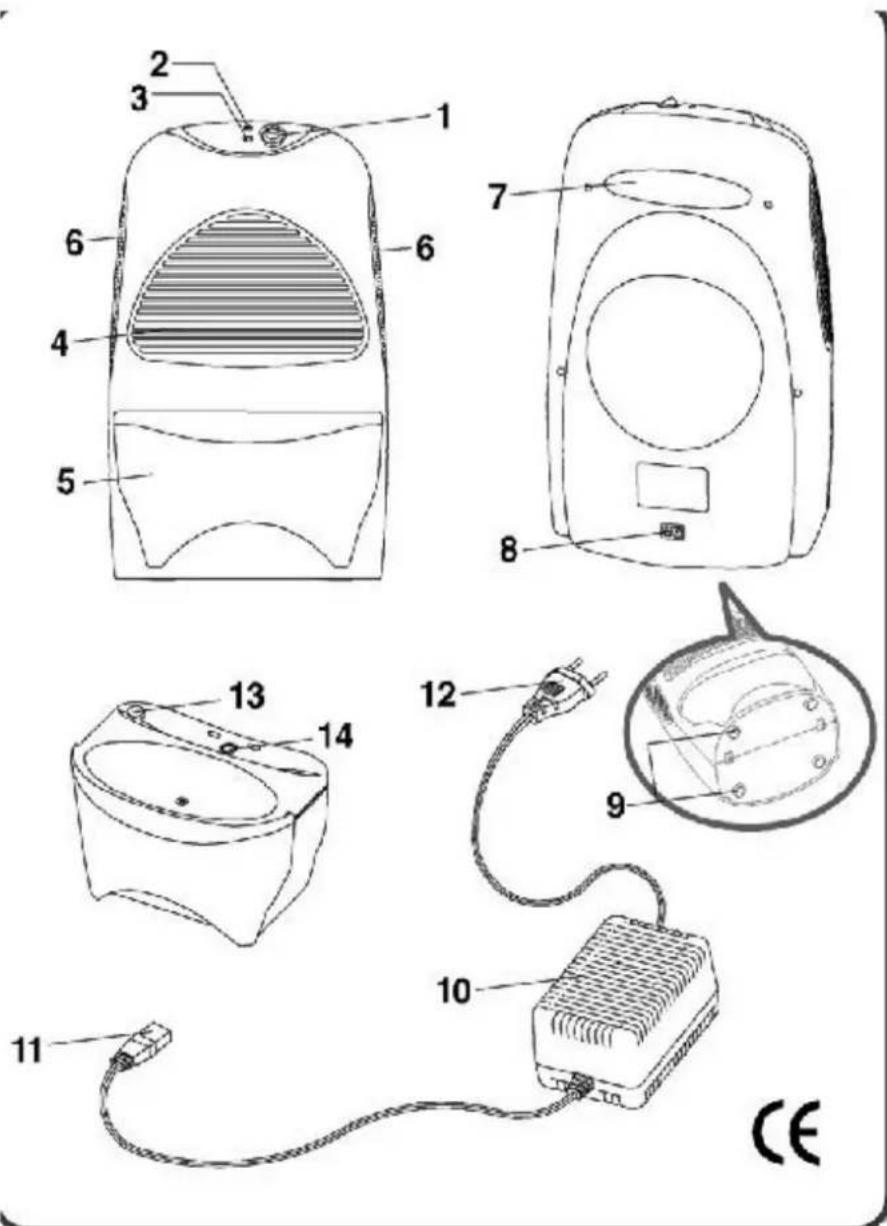

NAMES AND FUCTIONS PARTS

FEATURES

This midi Dehumidier uses Peltier technology(no compresor) which makes it light and quiet. It is perfect for small romos. Poor ventilation causes musty odour and damp in wardrobes, walk-in closet, larders, cabinet or store room, etc. The midi Dehumidifier eliminates this problem by keeping them free of unwanted moisture.

1) On/Off button.
2) 'On' Green LED.
3) 'Full' Yellow LED.
4) Air inlet.
5) Removable water tank.
6) Dry air outlet.
7) Lift-slot(Hold when moving the unit).
8) DC power socket.
9) Rubber Feet.
10) AC/DC switching mode power supply.
11) DC power jack.
12) AC plug with power cord (Plug type is subject to market).
13) Water displacement hole.

14) Hydraulic cut-off.

* To avoid electric shock. Do not open. There are no userserviciable parts inside.
* Any repair work must be done by qualified technician appointed by our distributors.
* Specifications are subject to change for improvement without prior notice.

SPECIFICATIONS

Moisture removal: Approximately 600ml per day at 30°C,80% RH

Cooling Element: Thermo-electric Peltier module.

Fan: 90x90mm high speed long life DC brushless motor with turbo blades.

A.C./ D.C. power supply:12V DC 6Amp.

Power consumption: 72W

Water tank capacity: 2 Litre

Water level Detector: Automatic switch off with 'Yellow' LED indicator when water tank is full.

Drying feature: Warm air outlet on both sides for drying purposes.

Product dimension: 245mm (W)x360mm(H)x185mm(D)

Working environment: Over 15°C, over 40% RH.

CONNECTION

1. After removing the packaging materials, there should be 2 items:

a.Midi dehumidifier.

b. AC/DC switching mode power supply.

1. Plug the DC power jack(11) of the switching mode power supply to the DC power socket(8), then connect the AC plug(12) of the switching mode power supply to the appropriate main socket.

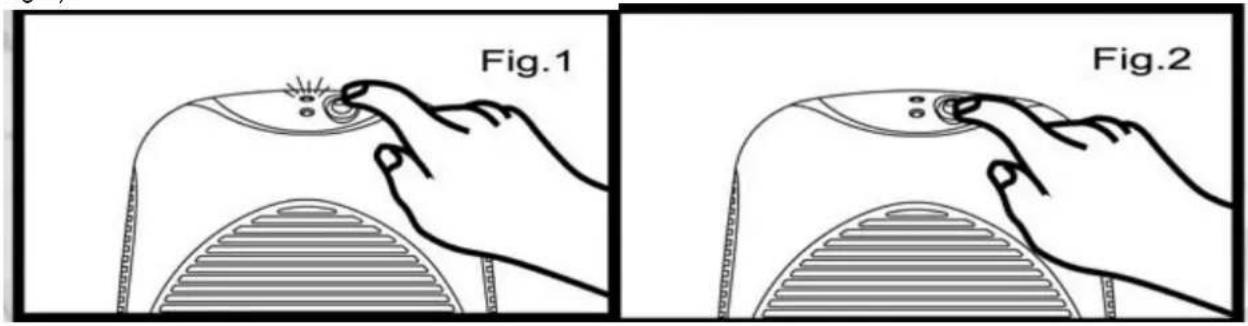

Press the ‘Ôn/ Off’ button(1) to ‘Ôn’ position, the midi dehumidifier will begin to operate. The green LED will be turned on. Listen and feel for the air blowing form dry air outlet (fig 1).

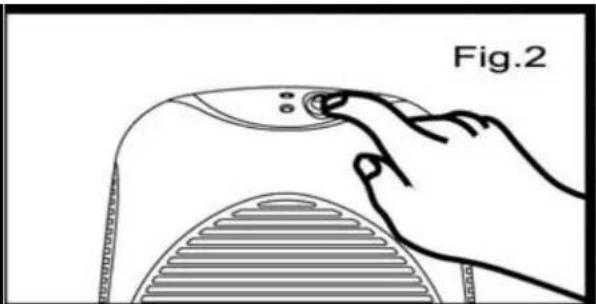

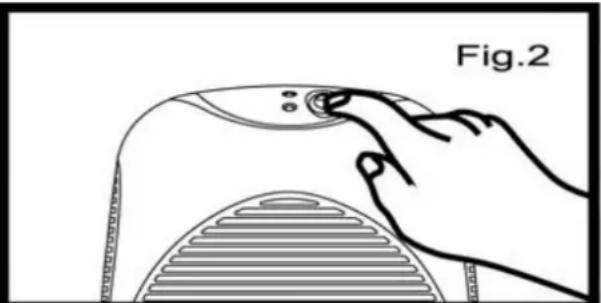

To switch off the unit press'on/off' button(1) to 'Off' position, the midi dehumidifieer will be turned off.(as fig.2).

REMOVABLE WATER TANK

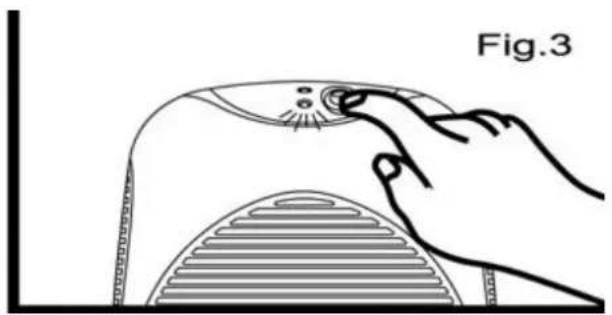

When the water tank is full, with approximately 1.5 litre of water collected, the unit will be switched off automatically and the 'Yellow' LEd(3) will be on. (as fig.3)

Illustration of a hand pressing down on a computer mouse (no text or symbols)

To remove the water tank, first switch off the Midi dehumidifier, press 'On/Off' button to the 'Off' position. Then, remove the water tank from the unit and pour the water out to the toilet or bathroom. Put the water tank back into the unit. To continue dehumidifying, press the 'On/Off' button to 'On' position again.

CLEANING

Before cleaning the unit, turn off the Midi Dehudifier and unplug the AC plug from the main socket first. Use a piece of soft cloth to clean the surface of the product or use a bruch to wipe the dust off the grills of the air inlet(4) and air outlet(6).

Disposal of old electrical appliances.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that

when you dispose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2006/95/EC and the requirements of the EMC directive 2004/108/EC.
