USER MANUAL MIG 2325 Orbegozo

Front view of a microwave oven with a brown mesh grille and control panel (no visible text or symbols on the main device body)

MIG 2325

Sonifer,S.A.

Read this manual carefully before running this appliance and save it for reference

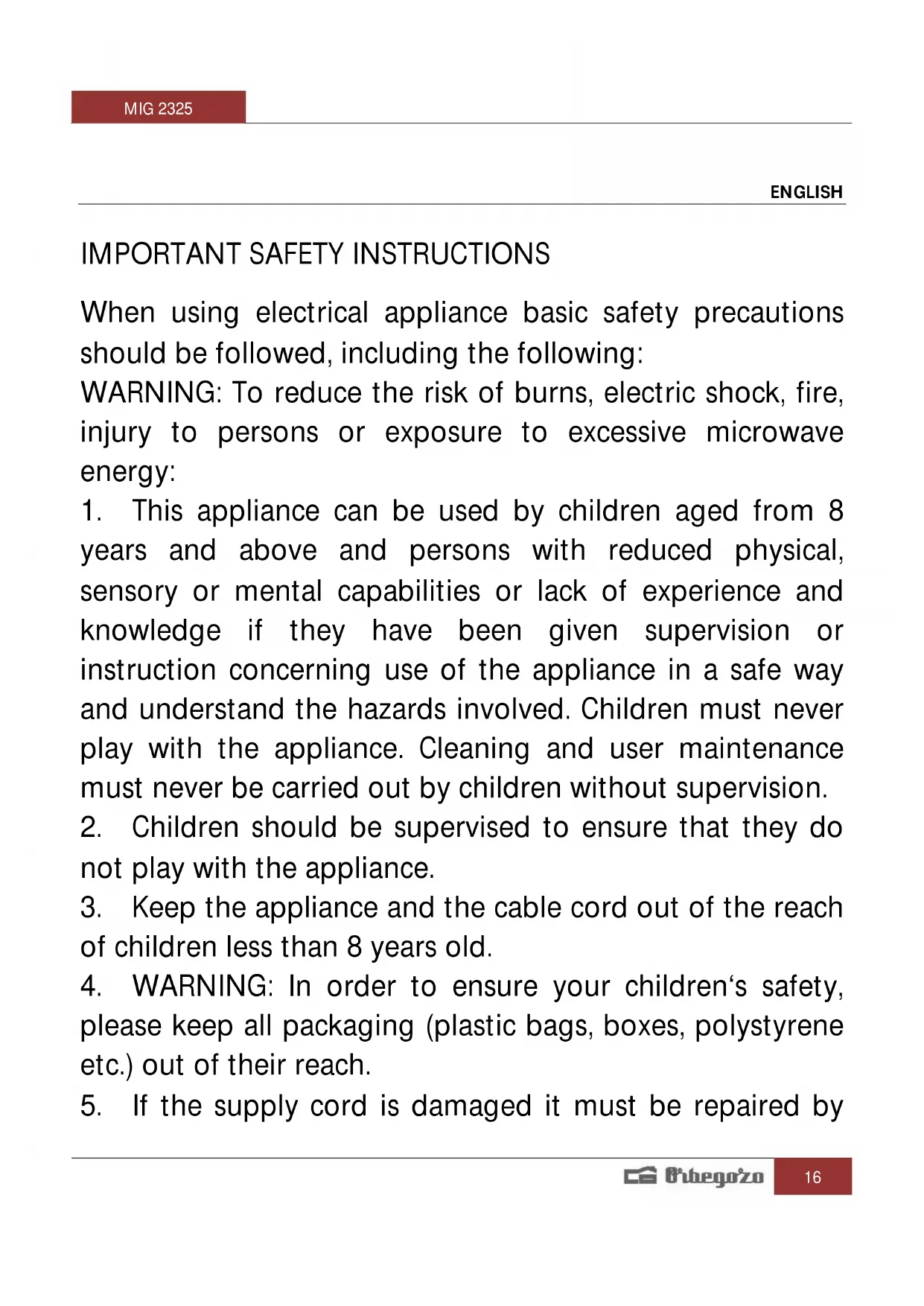

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliance basic safety precautions should be followed, including the following:

WARNING: To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by

the Authorized Service Agent in order to avoid hazards.

1. Never pull on the cord when unplugging.
2. Do not use the unit with a damaged cord or plug, or if it is not working properly.
3. Do not handle the appliance with wet hands.
4. Never immerse the appliance in water or any other liquid.
5. Make sure the appliance has been unplugged before cleaning.
6. This appliance must be installed following the national regulations for electrical installations.
7. This appliance is for household use only.
8. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail].
9. The rear of the appliance should be against the wall.
10. WARNING: It is hazardous for anyone other than a trained person to carry out any service or repair operation which involves the removal of any cover which gives protection against exposure to microwave energy.
11. WARNING: Liquid or other food must not be heated in sealed containers since they are liable to explode.
12. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
13. Microwave heating of beverage can result in delayed

eruptive boiling, therefore care has to be taken when handling the container.

1. The contents of feeding bottles and baby jars should be stirred or shaken and the temperature should be checked before serving in order to avoid burns.
2. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode even after microwave heating has ended.
3. WARNING: If the door or seals are damaged, the oven must not be used until properly repaired by qualified service personnel.
4. Use only utensils that are intended for use in microwave ovens.
5. When heating food in plastic or paper containers, carefully attend the oven due to the possibility of ignition.
6. The intended use of the microwave oven is that of heating beverages and food. The drying of food or clothes and the warming of pillows, slippers, sponges, damp clothes and similar items may result in injury, ignition or fire.
7. The oven must be cleaned regularly and any food residue removed.

8. The failure to keep the oven clean could lead to damage in its surface and negatively affect the appliance's performance, leading to a potentially hazardous situation.

9. WARNING: Check the oven for any damage, for example, a misaligned or bent door, damaged door seals and sealing surfaces, broken or loose latches or hinges, and dents inside the oven or on the door. If there is any damage, do not operate the oven and contact the qualified service personnel.

10. Read these instructions completely before using the microwave.
11. Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.
12. Do not operate the oven when empty.
13. To reduce the risk of fire in the oven cavity:
14. Remove wire twist-ties from paper or plastic bags before placing bag in oven.
15. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use.
16. Do not fry food in the oven. Hot oil can damage oven parts and utensils and even result in skin burns.
17. Pierce foods with heavy skins such as potatoes, whole squashes, apples and chestnuts before cooking.
18. Cooking utensils may become hot because of heat

transferred from the heated food. Potholders may be needed to handle the utensil.

1. Utensils should be checked to ensure that they are suitable for use in microwave oven.
2. This product is a Group 2 Class B ISM equipment. The definition of Group 2 which contains all ISM (Industrial, Scientific and Medical) equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment. For Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purpose.
3. CAUTION: The surface can remain hot during or after use.
4. Do not operate the device connected to an external timer or a separate remote control system.
5. WARNING: In case of misuse, there is a risk of possible injury.

SPECIFICATIONS*

Power Consumption:
	230V/50Hz,1400W(Microwave)
	1000W(Grill)
Rated Microwave Power Output:	900W
Operation Frequency:	2450MHz
Outside Dimensions:	385x595x395
Oven Cavity Dimensions:	22220x340x320
Oven Capacity:	23Litros
Cooking Uniformity:	Turntable system
Net Weight:	Approx.13,6kg

INSTALLATION

1. Make sure that all the packing materials are removed from the inside of the door.
2. WARNING: Check the oven for any damage, such as misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven and contact qualified service personnel.
3. This microwave oven must be placed on a flat, stable surface to hold its weight and the heaviest food likely to be cooked in the oven.
4. Do not place the oven where heat, moisture, or high humidity are generated, or near combustible materials.
5. For correct operation, the oven must have sufficient airflow. Allow 20cm of space above the oven, 10cm at back and 5cm at both sides. Do not cover or block any openings on the appliance. Do not remove feet.
6. The appliance shall be only used on a countertop over 3 feet above the floor.
7. Do not operate the oven without glass tray, roller support, and shaft in their proper positions.
8. Make sure that the power supply cord is undamaged and does not run under the oven or over any hot or sharp surface.
9. The socket must be readily accessible so that it can be easily unplugged in an emergency.
10. Do not use the oven outdoors.

RADIO INTERFERENCE

Operation of the microwave oven can cause interference to your radio, TV, or similar equipment.

When there is interference, it may be reduced or eliminated by taking the following measures:

1. Clean door and sealing surface of the oven.
2. Reorient the receiving antenna of radio or television.
3. Relocate the microwave oven with respect to the receiver.

4. Move the microwave oven away from the receiver.

5. Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits

GROUNDING INSTRUCTIONS

This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current. It is recommended that a separate circuit serving only the oven be provided. Using a high voltage is dangerous and may result in a fire or other accident causing oven damage.

WARNING Improper use of the grounding plug can result in a risk of electric shock.

Note:

1. If you have any questions about the grounding or electrical instructions, consult a qualified electrician or service person.
2. Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the electrical connection procedures.

The wires in this cable main are colored in accordance with the following code:

Green and Yellow = EARTH

Blue = NEUTRAL

Brown = LIVE

MICROWAVE COOKING PRINCIPLES

1. Arrange food carefully. Place thickest areas towards outside of dish.
2. Watch cooking time. Cook for the shortest amount of time indicated and add more as needed. Food severely overcooked can smoke or ignite.
3. Cover foods while cooking. Covers prevent spattering and help foods to cook evenly.
4. Turn foods over once during microwaving to speed cooking of such foods as chicken and hamburgers. Large items like roasts must be turned over at least once.
5. Rearrange foods such as meatballs halfway through cooking both from top to bottom and from the center of the dish to the outside.

BEFORE YOU CALL FOR SERVICE

If the oven fails to operate:

1. Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds, and plug it in again securely.
2. Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.
3. Check to ensure that the control panel is programmed correctly and the timer is set.
4. Check to ensure that the door is securely closed engaging the door safety lock system. Otherwise, the microwave energy will not flow into the oven.

IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT A QUALIFIED TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE OVEN YOURSELF

UTENSILS GUIDE

1. The ideal material for a microwave utensil is transparent to microwave, it allows energy to pass through the container and heat the food.
2. Microwave can not penetrate metal, so metal utensils or dishes with metallic trim should not be used.
3. Do not use recycled paper products when microwave cooking, as they may contain small metal fragments which may cause sparks or fires.
4. Round or oval dishes rather than square or oblong ones are recommend, as food in corners tends to overcook.
5. Narrow strips of aluminum foil may be used to prevent overcooking of exposed areas. But be careful

don't use too much and keep a distance of 1 inch (2.54cm) between foil and cavity.

The list below is a general guide to help you select the correct utensils.Cookware	Microwave	Grill	Combination*
Heat-Resistant Glass	Yes	Yes	Yes
Non Heat-Resistant Glass	No	No	No
Heat-Resistant Ceramics	Yes	Yes	Yes
Microwave-Safe Plastic Dish	Yes	No	No
Kitchen Paper	Yes	No	No
Metal Tray	No	Yes	No
Metal Rack	No	Yes	No
Aluminum Foil & Foil Container	No	Yes	No

* Combination: applicable for both "microwave+grill", and "microwave+convection" cooking.

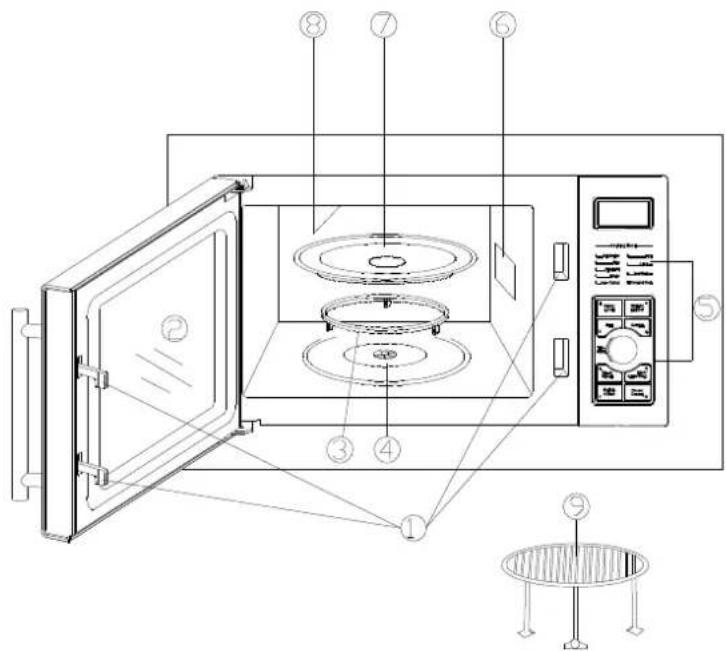

PART NAMES

1. Door Safety Lock System
2. Oven Window
3. Roller Ring
4. Shaft
5. Control Panel
6. Wave Guide

(Please do not remove the mica plate covering the wave guide)

1. Glass Tray
2. Grill Heater
3. Metal Rack

Technical diagram of a microwave oven with numbered components for identification

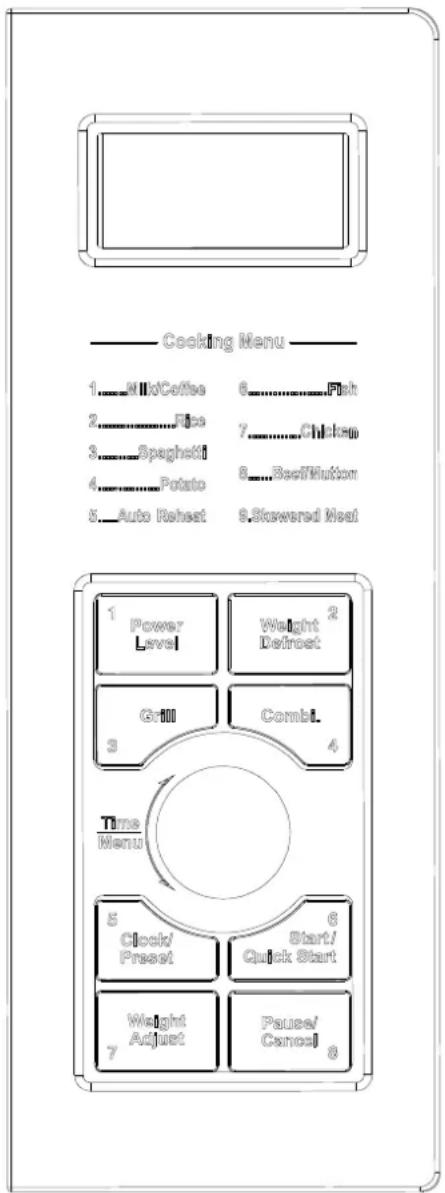

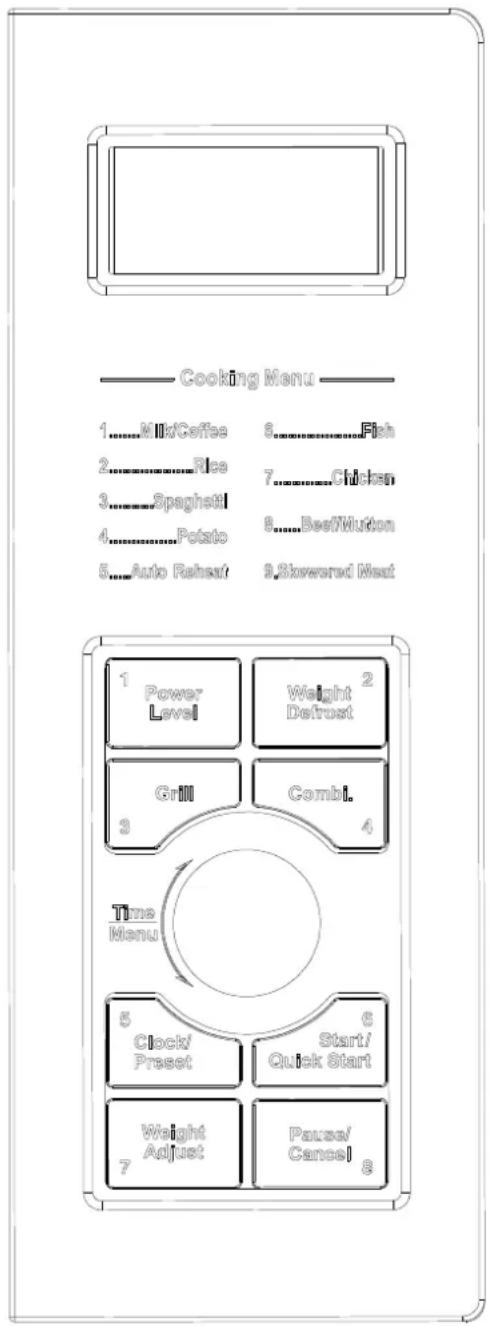

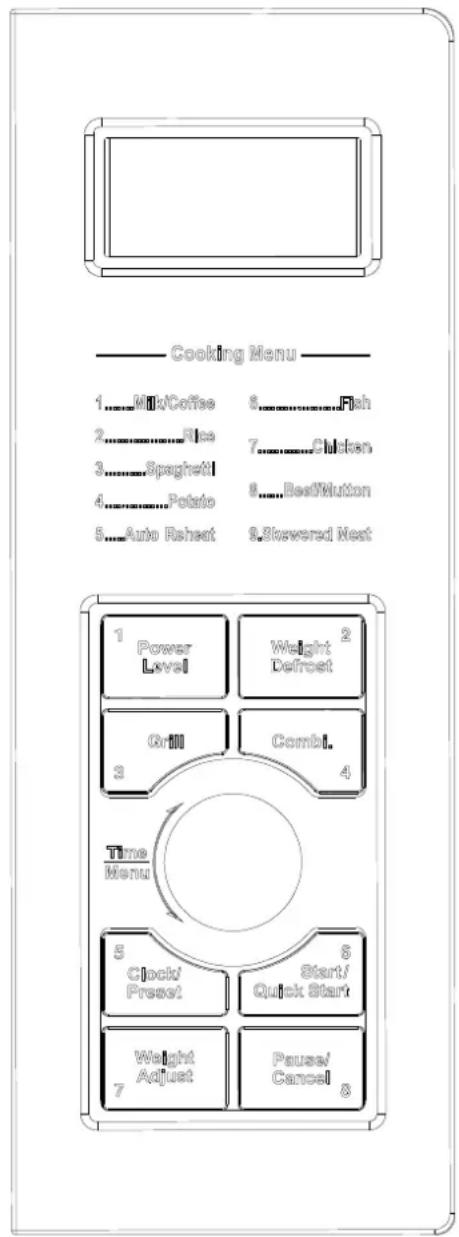

CONTROL PANEL

Cooking Menu 1....Mix/Coffee 8.......Pah 2.......Rice 7.......Chicken 3.......Spaghetti 8.......BestMutton 4.......Potato 8.......SweetMutton 5.......Auto Ratchet 9.......Slashed Next 1 Power Level 2 Weight Defrost 3 Grill Combl. 4 Time Menu 5 Clock/ Press 6 Start/ Quick Start 7 Weight Adjust Pause/ 7 Cancel 8

MENU ACTION SCREEN

Cooking time, power, action indicators, and clock time are displayed.

POWER LEVEL

Touch this button to set microwave cooking power level.

WEIGHT DEFROST

Use to set defrost program by weight.

GRILL

Press to set a grill cooking program.

COMBI.

Press to set one of two combination cooking program.

TIME/MENU

Turn the dial to set the oven clock time and input cooking time.

Turn the TIME/MENU dial to select an auto-cooking menu.

Touch to start a cooking program.

CLOCK/PRESET

Touch this button to set the oven clock or to set preset program.

START/QUICK START

Simply touch it to start a cooking program or set quick start program.

WEIGHT ADJUST

Use it to specify food weights or number of servings of auto-cooking menu.

PAUSE/CANCEL

Press to cancel setting or reset the oven before setting a cooking program and to set the child lock.

(Please also see the following pages for more detail)

HOW TO SET THE OVEN CONTROLS

Each time a button is touched, a beep will sound to acknowledge the touch

SETTING CLOCK TIME

This is a 12- or 24-hour clock according to different specifications. To check the time while the oven is operating, press the CLOCK/PRESET button, then the time will be displayed in the display.

FOR EXAMPLE: Suppose you want to set the oven clock time at 8:30 (A.M. or P.M.).

1. Turn TIME/MENU to set 8 o'clock.
2. Press CLOCK/PRESET button.
3. Turn TIME/MENU to set 30 min.

4. Press CLOCK/PRESET to confirm the setting.

5. Press CLOCK/PRESET once or twice to select 12 or 24 hour display.

MICROWAVE COOKING

For microwave cooking, press the POWER LEVEL button to select a cooking power level, and then use the TIME/MENU dial to set a desired cooking time. The longest cooking time is 95 minutes. You can press POWER LEVEL during cooking to check power.

Select power level by pressing the POWER LEVEL button.

PRESS POWER LEVEL BUTTON	COOKING POWER
once 100%
twice	80%
3 times 60%
4 times 40%
5 times 20%
6 times 0%

For example, suppose you want to cook for 1 minute at 60% of microwave power.

1. Press POWER LEVEL button 3 times.
2. Turn TIME/MENU to 1:00.
3. Press START/QUICK START button.

PRESET

This function allows the oven to start in a later time.

Steps:

1. Set a cooking program.
2. Press CLOCK/PRESET pad.
3. Rotate the TIME/MENU to set the hour digits.
4. Press CLOCK/PRESET pad.
5. Rotate the TIME/MENU to set the minute digits.
6. Press START/QUICK START pad.

NOTE:

1. Make sure that food is placed into the oven in advance before any cooking starts.
2. WEIGHT DEFROST and QUICK START cannot be preset.
3. You can check the preset cooking time by touching CLOCK/PRESET, and press PAUSE/CANCEL to cancel the preset program.

GRILL

The longest cooking time is 95 minutes.

Grill cooking is particularly useful for thin slices of meat, steaks, chops, kebabs, sausages and pieces of chicken.

Suppose you want to program grill cooking for 12 minutes:

1. Press GRILL button once.
2. Turn the TIME/MENU to 12:00.
3. Press START/QUICK START button.

COMBINATION

This feature allows you to combine grill and microwave cooking on two different settings.

During cooking, you can see the programmed setting by pressing COMBI.

The longest cooking time is 95 minutes

COMBINATION 1

30% of time for microwave cooking, 70% for grill cooking. Use for fish or au gratin.

Suppose you want to set combination 1 cooking for 25 minutes.

1. Press PAUSE/CANCEL button.
2. Press COMBI. button once.
3. Turn TIME/MENU to 25:00.
4. Press START/QUICK START button.

COMBINATION 2

55% of time for microwave cooking, 45% for grill cooking. Use for pudding, omelets, baked potatoes and poultry.

Suppose you want to set combination 2 cooking for 12 minutes.

1. Press PAUSE/CANCEL button.
2. Press COMBI. button twice.
3. Turn TIME/MENU to 12:00.

Press START/QUICK START button

AUTO COOK MENU

For the following foods or cooking operation, you do not need to input cooking power and time. It is sufficient to indicate the type of food that you want to cook as well as the weight of this food.

You may need to turn food over during cooking.

For example, to cook 300g fish;

1. In waiting mode, turn TIME/MENU dial in anti-clockwise direction to select pizza, which is the item 6 on

the auto-menu.

1. Press WEIGHT ADJUST buttons to the desired weight.
2. Press START/QUICK START button.

CODE	AUTO MENU	Press WEIGHT ADJUST to indicate weights or number of servings
A-1	Milk/Coffee(200ml/cup)	1. For items milk/coffee and potato, it's the number of servings not weight that matters.2. For cooking chicken, beef/mutton and skewered meat, the oven will pause and beep to remind you to turn food over during cooking process.3. The result of auto cooking depends on factors such as the shape and size of food, your personal preference as to the doneness of certain foods and even how well you happen to place food in the oven. If you find the result at any rate not quite satisfactory, please adjust the cooking time a little bit accordingly.
A-2	Rice (g)
A-3	Spaghetti (g)
A-4	Potato (each 230g)
A-5	Auto Reheat (g)
A-6	Fish (g)
A-7	Chicken (g)
A-8	Beef/mutton (g)
A-9	Skewered Meat (g)

MULTI-STAGE COOKING

Your oven can be programmed for up to 2 automatic cooking sequences .Suppose you want to set the following cooking program:

1. 100% Microwave cooking;
2. 80% Microwave cooking

Steps:

1. Input 100% microwave power level and cooking time.
2. Input 80% microwave power level and cooking time.
3. Press START/QUICK START pad.

NOTE: Auto cook, Weight Defrost and Quick Start can't be set in multi-stage cooking.

WEIGHT DEFROST

The oven can be used to defrost food by weight you entered. The defrosting time and power level are automatically set once the food weight is programmed.

FOR EXAMPLE: Suppose you want to defrost 600g meat.

1. Press WEIGHT DEFROST button once.
2. Press WEIGHT ADJUST to select weight of food.
3. Press START/QUICK START button.

Note: The frozen food weight ranges from 100g to 1800g. Do not enter weight exceed this range.

During defrosting program, the system will pause and sound beeps to remind user to turn food over, and then press START/QUICK START to resume the defrosting.

QUICK START

The oven will operate at HIGH power (100% power output) for QUICK START cooking program.

Press the START/QUICK START button to set cooking time, the oven starts working immediately at full

power. The longest cooking time you can set is 10 minutes.

CHILD LOCK

Use to prevent unsupervised operation of the oven by little children. The CHILD LOCK indicator will show on display screen, and the oven can not be operated while the CHILD LOCK is set.

To set the CHILD LOCK: Press and hold the PAUSE/CANCEL button for 3 seconds, a beep sounds and LOCK indicator lights.

To cancel the CHILD LOCK: Press and hold the PAUSE/CANCEL button for 3 seconds until lock indicator on display turns off

CLEANING AND CARE

1. Turn off the oven and remove the power plug from the wall socket before cleaning.
2. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface.
3. The outside surfaces should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
4. Wipe the door and window on both sides, the door seals and adjacent parts frequently with a damp cloth to remove any spills or spatters. Do not use abrasive cleaner.
5. Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the control panel, leave oven door open to prevent oven from accidentally turning on.
6. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity condition. And it is normal.
7. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.
8. The roller ring and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent. The roller ring may be washed in mild sudsy water or dishwasher. When removing the roller ring from cavity floor for cleaning, be sure to replace in the proper position.
9. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl, microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.
10. When it becomes necessary to replace the oven light, please consult a dealer to have it replaced.
11. The oven should be cleaned regularly and any food deposits removed. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
12. Please do not dispose this appliance into the domestic rubbish bin; it should be disposed to the particular disposal center provided by the municipalities.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2006/95/EC and the requirements of the EMC directive 2004/108/EC.

Diagram of a microwave oven with numbered components for identification and assembly reference.

PANNEAU DE COMMANDE

Cooking Menu 1.......MilkCoffee 8.......Fish 2.......Rice 7.......Chicken 3.......Spaghetti 8.......BeefMutton 4.......Potato 9.......Auto Reheat 9...Skewered Meat 1 Power Level Weight 2 Detrust Grill Combl. 3 Time Menu 5 Clock/ Preset 6 Start/ Quick Start Weight Adjust Pause/ Cancel 7

AFFICHEUR DU MENU

This device complies with the requirements of the Low Voltage Directive 2006/95/EC and the requirements of the EMC directive 2004/108/EC.

PRECAUÇÕES PARA EVITAR A POSSÍVEL EXPOSIÇÃO A ENERGIA DE MICROONDAS EXCESSIVA

Diagram of a microwave oven with numbered components for identification and assembly reference.

PAINEL DE CONTROLO

Cooking Menu 1....MiloCoffee 6............Fish 2.......Rice 7............Chicken 3.......Spaghetti 8............BeefMutton 4.......Potato 8............BeefMutton 5..Auto Reheat 9.Skawered West 1 Power Level Weight 2 Defroed Grill Combl. 3 4 Time Menu 5 Clock/ Preset Start/ Quick Start Weight Adjust Pause/ 7 Cancel 8

ECRÃ DAS FUNÇÕES DO MENU

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)
