USER MANUAL TVDR6608BAW VIKING

Description Part Number/Size Quantity
Rear Surface Burner (B) #78 1
Rear Surface Burners (C) #105 2
Front Surface Burner (D) #120 3
Frenchtop Burner (F) #90 1
Conversion label PF030377 1
LPKTVDR Conversion Instructions 056242-000 1

NOTE: Depending on the model being converted, some of the orifices may not be used.

IMPORTANT - Please Read and Follow!

WARNING

FIRE/EXPLOSION HAZARD

If the information in this

guide is not followed exactly, a fire or explosion may result causing property damage, personal injury or death.

WHAT TO DO IF YOU SMELL GAS:

• DO NOT try to light any appliance.
  •DO NOT touch any electrical switch.
  •DO NOT use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.

Installation and service must be performed by a qualified installer, service agency, or the gas supplier.

CAUTION

Be sure the electric power is turned off at the breaker box while the unit is being converted.

CAUTION

Before placing the appliance into operation, always check for gas leaks with a soapy water or other acceptable method.

DO NOT use an open fl ame to check for leaks.

Regulator Conversion

• Remove hex nut from top of regulator.
  •Unsnap plastic plunger from hex nut.
• Reverse plunger and reinstall onto hex nut by pressing firmly.

NOTE: Plunger is marked "NAT" or "LP".

Converted fuel type will be shown on the lower portion of plunger.

Natural Orientation LP Orientation

Apply sideways finger pressure to remove pin from cap.

conversion Lp Lp conversion

- Reinstall hex nut onto regulator in configuration desired.

Orifi ce Locations

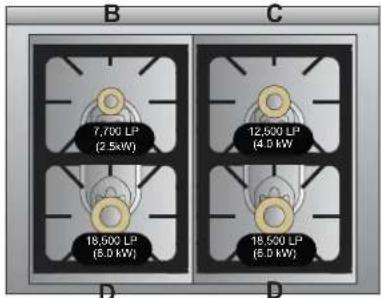

36" W /4 Surface Burners

B 7,700 LP (2.5kW) C 12,500 LP (4.0 kW) 18,500 LP (6.0 kW) D 18,500 LP (6.0 kW) B

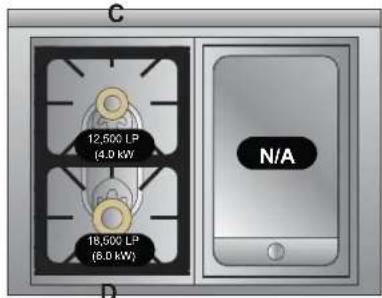

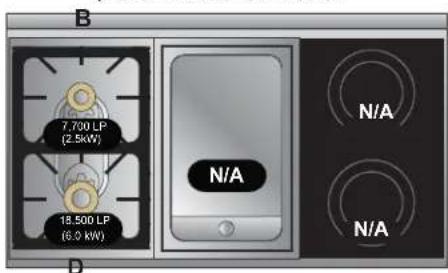

36" W /2 Surface Burners/Griddle

C 12,500 LP (4.0 kW) 18,500 LP (6.0 kW) N/A D

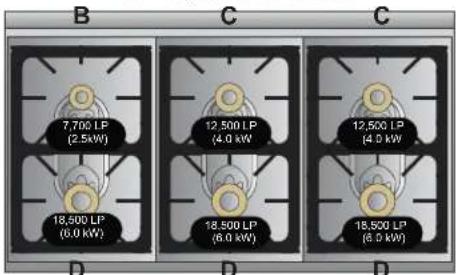

48" W /6 Surface Burners

B 7,700 LP (2.5kW) C 12,500 LP (4.0 kW) D 18,500 LP (6.0 kW) C 12,500 LP (4.0 kW) D 18,500 LP (6.0 kW) D

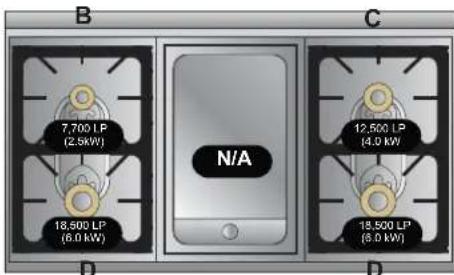

48" W /4 Surface Burners/Griddle

B 7,700 LP (2.5kW) 18,500 LP (6.0 kW) N/A C 12,500 LP (4.0 kW) 18,500 LP (6.0 kW) D D

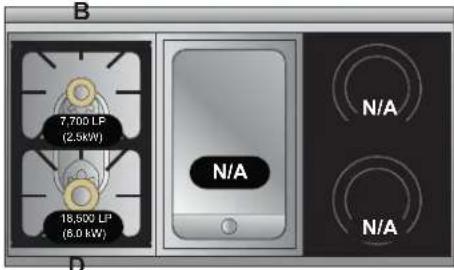

48" W /2 Surface Burners/Griddle/Induction

B 7.700 L.P. (2.5kW) 18,500 L.P. (6.0 kW) N/A N/A D

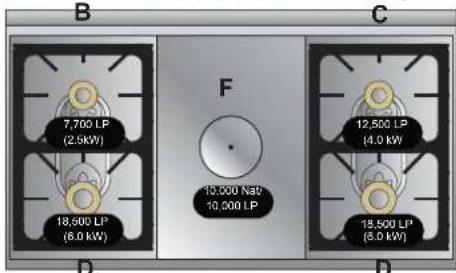

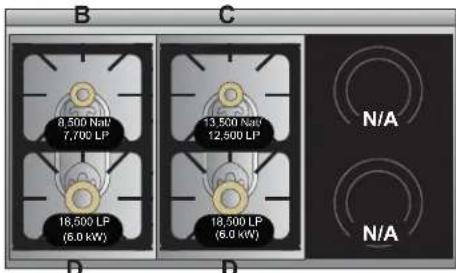

48" W /4 Surface Burners/French Top

B 7,700 LP (2.5kW) 18,500 LP (6.0 kW) F 13,000 Nw 10,000 LP C 12,500 LP (4.0 kW) 15,500 LP (6.0 kW) D D

48" W /4 Surface Burners/Induction

B 8,500 NaV 7,700 LP C 13,500 NaV 12,500 LP N/A 18,500 LP (6.0 kW) D 18,500 LP (6.0 kW) D N/A

Surface Burner Conversion

Remove grates, surface burner caps and frenchtop (if applicable)

Surface Burner Conversion

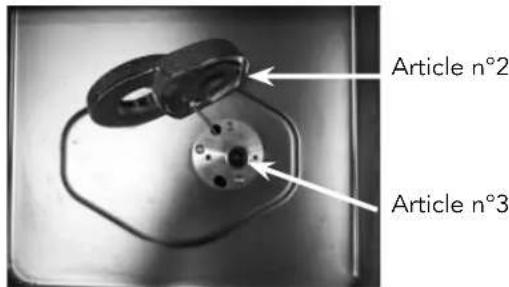

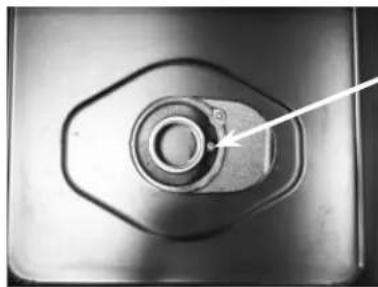

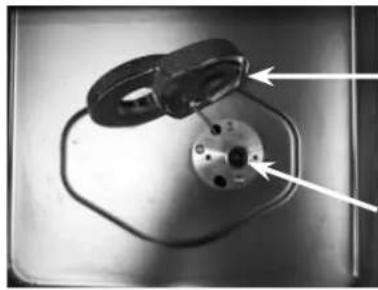

-Locate appropriate orifi ce

-Remove screw (Item #1) fl at-head screwdriver.

- Lay the burner fl ange to side - do not disconnect the igniter wire. (Item #2).

-Use a nut driver to remove orifi ce (Item #3).

-Replace with correct orifi ce - refer to next page.

Tech tip: Tape can be applied to the inside of the socket to assist in the removal of the surface burner orifices. This can prevent the orifices from falling into the range during removal.

- After replacing the orifice, replace Item#2 burner fl ange.

-Reinstall screw and reverse procedure to reassemble.

NOTE: For proper placement of the burner head, rotate until burner head seats into groove.

Close-up of a mechanical component with a central bore and flange, no visible text or symbols

Item #1

Close-up of a mechanical component with a metallic housing and mounting holes, no visible text or symbols

Item #2
Item #3

Frenchtop Burner Conversion

-Remove frenchtop plate.

-Remove screws around burner.

-Remove screws holding burner box.

-Slide burner box forward and lift out.

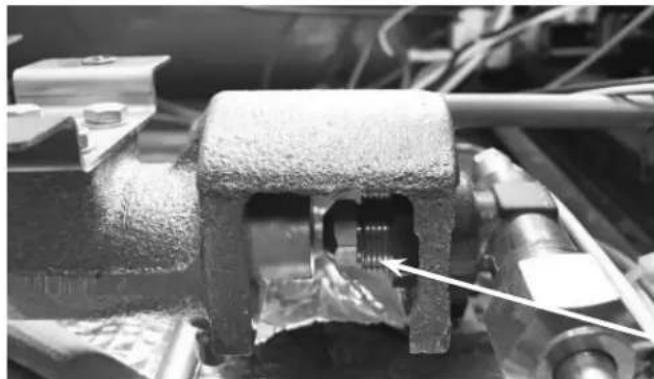

-Orifi ce is located under orifi ce bracket, attached to tubing.

-Use a nut driver to remove orifi ce.

Tech tip: Tape can be applied to the inside of the socket to assist in the removal of the surface burner orifices. This can prevent the orifices from falling into the range during removal.

- After replacing the orifice, reinstall burner box and frenchtop plate

Mechanical testing apparatus with perforated circular component and wiring, no visible text or symbols

Orifi ce bracket

Close-up of a mechanical component with a highlighted internal section and an arrow pointing to it (no visible text or symbols)

Orifi ce

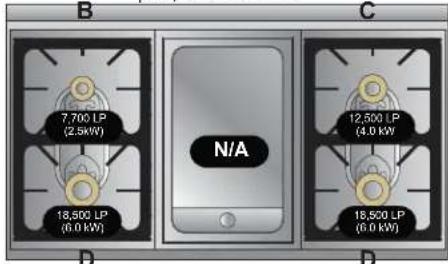

Rating Label Location

When the LP/Propane conversion is complete, complete the enclosed conversion label and place it next to the rating label.

The rating label is located under the control panel.

This appliance was converted on day-month-year to □ Nat. or □ LP gas by: (name and address of organization making the conversion ), which accepts the responsibility that this conversion has been properly made property

Architectural detail drawing of a kitchen appliance with ladder and grating (no text or symbols)

B 7,700 L P (2.5 kW) C 12,500 L P (4.0 kW) D 18,500 L P (6.0 kW) C 12,500 L P (4.0 kW) D 18,500 L P (6.0 kW) D 18,500 L P (6.0 kW)

48 po W /2 Brûleurs de surface/ plaque chauffante/Induction

B 7,700 LP (2.5kW) 18,500 LP (6.0 kW) N/A N/A D

36 po W /2 Brûleurs de surface/ plaque chauffante

C 12,500 LP (4.0 kW) 16,500 LP (6.0 kW) N/A D

48 po W /4 Brûleurs de surface/ plaque chauffante

B 7,700 LP (2.5kW) 18,500 LP (6.0 kW) N/A C 12,500 LP (4.0 kW) 18,500 LP (6.0 kW) D D

B 8,500 N/W 7,700 LP C 11,500 N/W 12,500 LP 18,500 LP (6.0 kW) N/A D 18,500 LP (6.0 kW) D N/A

Surface Burner Conversion

Article n°1

Article n°2 Article n°3

Close-up of a mechanical testing apparatus with no visible text or symbols

Close-up of a mechanical component with a highlighted internal section and an arrow pointing to it (no visible text or symbols)

l'orifi ce

This appliance was converted on _day-month-year to □ Nat. or □ LP gas by: (name and address of organization making the conversion ), which accepts the responsibility that this conversion has been properly made.

Architectural detail drawing of a cabinet or elevator shaft with decorative patterns and a dashed oval highlighting a section (no text or symbols)
