USER MANUAL TVDR3604BAW VIKING

Description Part Number/Size Quantity
Rear Surface Burner (B) #78 1
Rear Surface Burners (C) #105 2
Front Surface Burner (D) #120 3
Frenchtop Burner (F) #90 1
Conversion label PF030377 1
LPKTVDR Conversion Instructions 056242-000 1

NOTE: Depending on the model being converted, some of the orifi ces may not be used.

IMPORTANT - Please Read and Follow!

WARNING

FIRE/EXPLOSION HAZARD

If the information in this

guide is not followed exactly, a fire or explosion may result causing property damage, personal injury or death.

WHAT TO DO IF YOU SMELL GAS:

-DO NOT try to light any appliance.
-DO NOT touch any electrical switch.
DO NOT use any phone in your building.
- Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
- If you cannot reach your gas supplier, call the fire department.

Installation and service must be performed by a qualified installer, service agency, or the gas supplier.

CAUTION

Be sure the electric power is turned off at the breaker box while the unit is being converted.

CAUTION

Before placing the appliance into operation, always check for gas leaks with a soapy water or other acceptable method.

DO NOT use an open f1 ame to check for leaks.

Regulator Conversion

• Remove hex nut from top of regulator.
• Unsnap plastic plunger from hex nut.
• Reverse plunger and reinstall onto hex nut by pressing firmly.

NOTE: Plunger is marked "NAT" or "LP". Converted fuel type will be shown on the lower portion of plunger.

Natural Orientation LP Orientation

• Reinstall hex nut onto regulator in configuration desired.

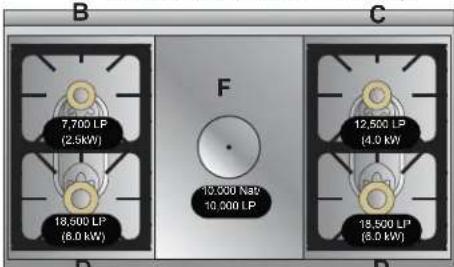

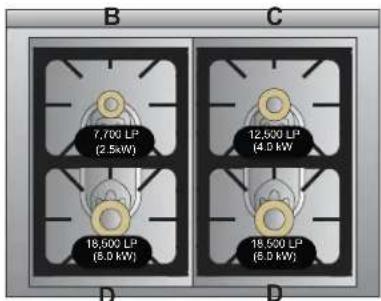

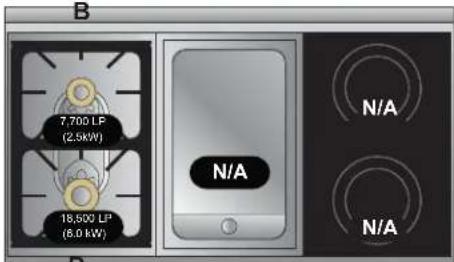

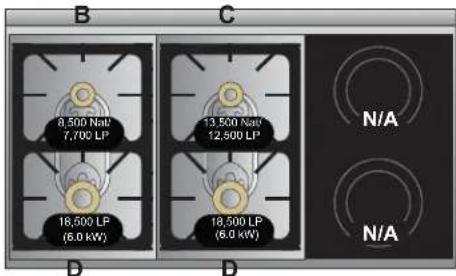

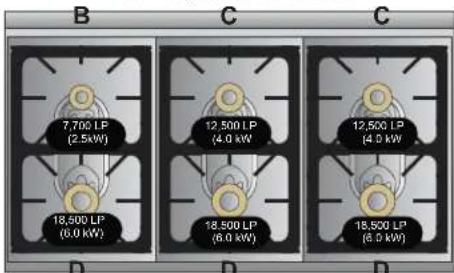

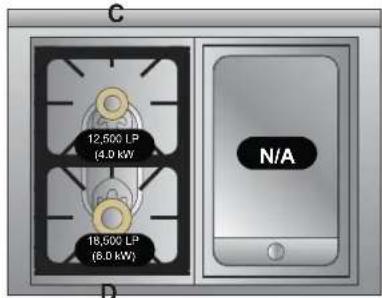

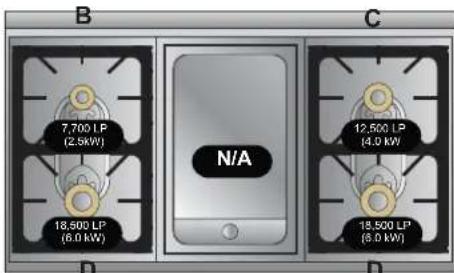

Orifices Locations

36" W/4 Surface Burners

36'' W/2 Surface Burners/Griddle

48" W/6 Surface Burners

48" W/4 Surface Burners/Griddle

48" W/2 Surface Burners/Griddle/Induction

48" W/4 Surface Burners/French Top

D
48" W/4 Surface Burners/Induction

Surface Burner Conversion

Remove grates, surface burner caps and frenchtop (if applicable)

Surface Burner Conversion

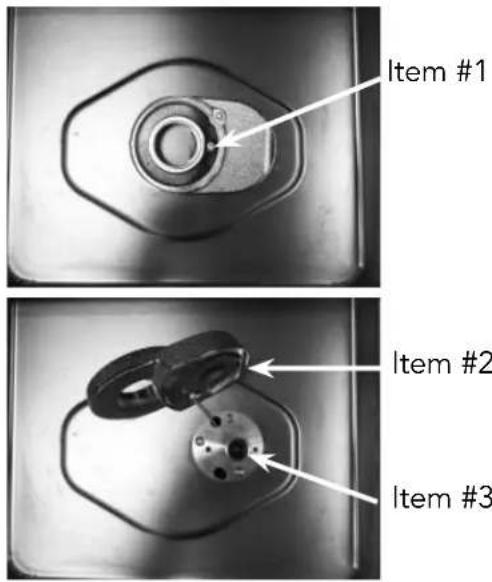

-Locate appropriate orificce
-Remove screw (Item #1) fl at-head screwdriver.
- Lay the burner flange to side - do not disconnect the igniter wire. (Item #2).
-Use a nut driver to remove orificce (ltem #3).
-Replace with correct orific e - refer to next page.

Tech tip: Tape can be applied to the inside of the socket to assist in the removal of the surface burner orifices. This can prevent the orifices from falling into the range during removal.

• After replacing the orifice, replace Item#2 burner fl ange.
  -Reinstall screw and reverse procedure to reassemble.

NOTE: For proper placement of the burner head, rotate until burner head seats into groove.

Frenchtop Burner Conversion

-Remove frenchtop plate.
-Remove screws around burner.
-Remove screws holding burner box.
-Slide burner box forward and lift out.

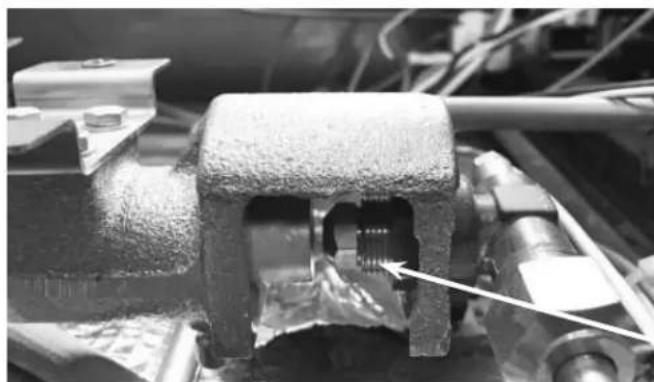

-Orifice is located under orifice bracket, attached to tubing.
-Use a nut driver to remove orifi ce.

Tech tip: Tape can be applied to the inside of the socket to assist in the removal of the surface burner orifices. This can prevent the orifices from falling into the range during removal.

• After replacing the orifice, reinstall burner box and frenchtop plate

Orifice bracket

Orificce

Rating Label Location

When the LP/Propane conversion is complete, complete the enclosed conversion label and place it next to the rating label.

The rating label is located under the control panel.

or visit our web site at vikingrange.com in the U.S. or brigade.ca in Canada.
