USER MANUAL KBK994519M AEG

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler - features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it. Visit our website to:

Receive advice, download our brochures, solve any anomaly and find information on technical support: www.aeg.com/webselfservice Register your product and receive a better service: www.registeraeg.com Purchase accessories, consumables and original spare parts for your appliance: www.aeg.com/shop

CUSTOMER SERVICE AND MAINTENANCE

We recommend always using original spare parts. Always have the following information at hand when you contact the authorised Assistance Centre: Model, PNC and serial number. You can find the information on the rating plate. Warning/Attention - Important safety information Information and general recommendations Environmental information Subject to change without notice.

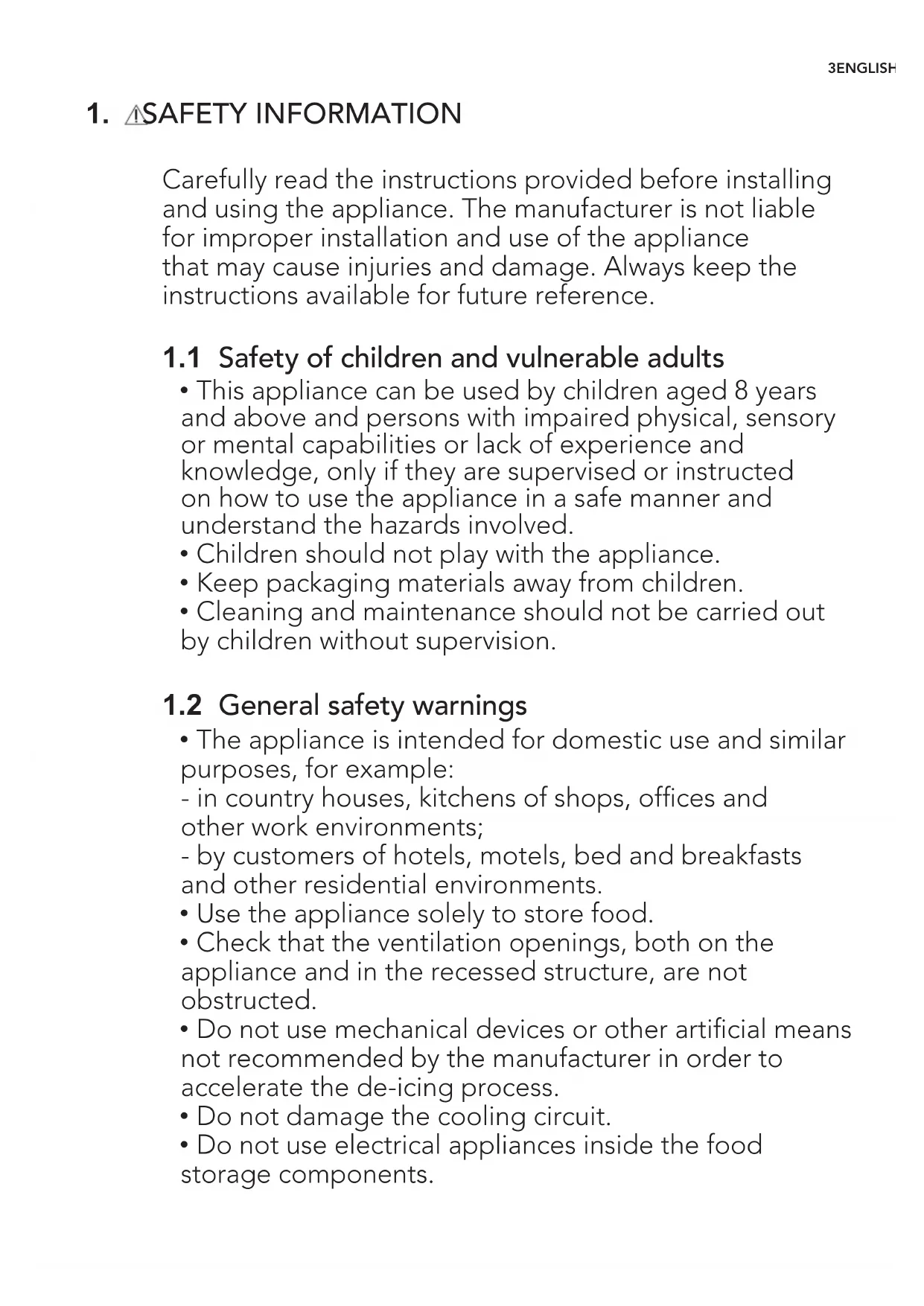

Carefully read the instructions provided before installing and using the appliance. The manufacturer is not liable for improper installation and use of the appliance that may cause injuries and damage. Always keep the instructions available for future reference.

1.1 Safety of children and vulnerable adults

• This appliance can be used by children aged 8 years and above and persons with impaired physical, sensory or mental capabilities or lack of experience and knowledge, only if they are supervised or instructed on how to use the appliance in a safe manner and understand the hazards involved.

• Children should not play with the appliance.

• Keep packaging materials away from children.

• Cleaning and maintenance should not be carried out by children without supervision.

1.2 General safety warnings

• The appliance is intended for domestic use and similar purposes, for example: - in country houses, kitchens of shops, offices and other work environments; - by customers of hotels, motels, bed and breakfasts and other residential environments.

• Use the appliance solely to store food.

• Check that the ventilation openings, both on the appliance and in the recessed structure, are not obstructed.

• Do not use mechanical devices or other artificial means not recommended by the manufacturer in order to accelerate the de-icing process.

• Do not damage the cooling circuit.

• Do not use electrical appliances inside the food storage components.4 www.aeg.com

• Do not spray water or use steam to clean the appliance.

• Clean the appliance with a damp and soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive sponges, solvents or metal objects.

• Do not use this appliance to store explosive substances such as aerosol cans containing flammable propellant.

• If the power cord is damaged it must be replaced by the manufacturer, by an authorised technician or by a qualified person to prevent dangerous situations.

CAUTION! The appliance must be installed by qualified personnel.

• Remove all the packaging material.

• Do not install or use the appliance if it is damaged.

• Comply with the instructions supplied with the appliance.

• Always be careful when moving the appliance as it is very heavy. Always wear safety gloves.

• Make sure that air can circulate freely around the appliance.

• Wait at least 4 hours before connecting the appliance to the power supply. This is to allow the oil to flow back into the compressor.

• Do not install the appliance near radiators, stoves, ovens or hobs. The rear surface of the appliance must rest against the wall with a channel.

• Do not install the appliance where it is exposed to direct sunlight.

• Do not install this appliance in excessively damp or cold places, such as structural extensions, garages or basements.

• To move the appliance, lift it from the front, so as not to scratch the floor.

2.2 Electrical connection

CAUTION! Risk of fire and electric shock.

• All the electrical connections must be carried out by a qualified electrician.

• The appliance must be earthed.

• Make sure that all the electrical data shown on the data plate correspond to those of the system. Otherwise, contact an electrician.

• Always use an electrical outlet with a correctly installed protective contact.

• Do not use multi-plug adapters or extension cables.

• Make sure not to damage the electrical components (e.g. power plug, power cord, compressor). Contact the Service centre or an electrician to replace the electrical components.

• The power cord must remain below the level of the power plug.

• Insert the power plug into the socket only after installation is complete. Make sure the power plug remains accessible after installation.

• Do not pull the power cord to disconnect the appliance. Always pull from the plug.5ENGLISH

CAUTION! Risk of fire and electric shock.

• Do not modify the specifications of this appliance.

• Do not introduce electrical equipment (e.g. ice-cream makers) into the appliance unless specifically permitted by the manufacturer.

• Be careful not to damage the cooling circuit. It contains R404a mixture, a non-flammable gas at a pressure of one atmosphere.

• In the event of damage to the cooling circuit, make sure that no open flames and sparks are generated in the room. Ventilate the environment thoroughly.

• Do not place very hot objects on the plastic parts of the appliance.

• Do not store flammable gases and liquids in the appliance.

• Do not place or keep flammable liquids or materials, or easily flammable objects, on top of, inside or near the appliance.

• Do not touch the compressor or condenser. They are very hot.

2.4 Maintenance and cleaning

CAUTION! Risk of injury or damage to the appliance.

• Before carrying out any maintenance operation, turn the appliance off and remove the plug from the socket.

• The appliance’s cooling unit contains hydrocarbons. The unit must be recharged and inspected by qualified personnel only.

• Check the appliance’s drain regularly and clean it if necessary. The obstruction of the drain can cause a water deposit.

CAUTION! Risk of injury or choking.

• Remove the plug from the power supply.

• Cut the mains cable and dispose of it.

• Remove the door lock to prevent children and pets from remaining closed inside the appliance.

• The cooling circuit and the insulation materials respect the ozone layer.

• The insulating foam contains flammable gases.

• Contact the local authorities for information on how to dispose of the appliance properly.

• Do not damage the cooling unit components located near the heat exchanger.6 www.aeg.com

Food sensor connector The blast chiller derives from the professional sector and is designed to reduce the temperature (+ 3°C) and freeze (-18°C) food. Raw and cooked foods, processed this way, keep their organoleptic qualities unaltered, preserving their taste and freshness. At the end of each selected cycle, the appliance automatically switches to the holding phase, keeping the product at the preset temperature for a maximum of 24 hours.

ON/OFF Turns the appliance on/off.

Rotary knob To adjust the settings and move within the menu. Press to start the appliance. Hold the rotary knob to activate the settings screen. Hold and turn the rotary knob to move within the menu. Hold and press the rotary knob to confirm a setting or access the selected submenu. To go back to the previous menu, find the Back option in the menu list, or confirm a selected setting.

To activate the selected function.

To disable the selected function.8 www.aeg.com

Weight / time selection

Options / up timer Symbol Function Food sensor The display shows the use of the food sensor. Duration The display shows the time required for the cycle. Cycle end The display shows the remaining time. Timer To set the countdown. This function has no effect on the operation of the blast chiller. Select and set the time. When the time ends, the signal sounds. Press the rotary knob to stop the signal. The Reminder can also be used when the blast chiller is switched off. Other indicators on the display A B C D E F9ENGLISH

5. BEFORE USING FOR THE FIRST TIME

CAUTION! Refer to the chapters on safety.

5.1 Cleaning for the first time

Remove the accessories and the removable shelf supports from the appliance. Refer to the “Cleaning and maintenance” chapter.

5.2 First connection

After the first connection, the software version is displayed for 7 seconds. You will need to set the language, Display Brightness and the Time.

CAUTION! It is recommended to use the food sensor to optimise the blast chiller operating times and consumption. Make sure that the food sensor is placed in the centre of the food (see picture). CAUTION! Always close the connector cap when the food sensor is not used (see picture).10 www.aeg.com Diagram of blast chilling or freezing with food sensor

2. Select the desired program and

confirm by pressing the knob.

4. The appliance will start the blast

chilling cycle until the set temperature is reached. At the end of the cycle, the appliance will go into holding mode. Diagram of blast chilling or freezing with weight

3. Select the quantity and confirm. Press

temperature and confirm. Press

Make sure the food sensor is not inserted.

2. Select the desired program and

confirm by pressing the knob.

4. The appliance will start the blast

chilling cycle. The display will indicate the total time and the progressive cycle time . At the end of the cycle, the appliance will go into holding mode.

1-10 L Assisted freezing Fruit and vegetables -18°C 0.5-3 Kg Sashimi / Raw fish -20°C 3 Kg Ice cream / Desserts Ice cream holding -20°C Ice cream ready to serve -14°C Ice cubes 0.5-3 Kg CAUTION! Keep the door closed during each blast chilling or freezing program. If the door is not closed, the program will not start and a message will appear on the screen asking you to close it. If the door is opened during the blast chilling or freezing cycle, the fan stops, followed by the compressor (after about 1 minute). If the door stays open for more than two minutes, the program stops working.12 www.aeg.com

6.3 Guidelines for the main functions

Symbol Function Use Holding Gentle chilling Load less than 0.5kg, single-portions, all vegetables (even if greater than 0.5 kg) desserts, liquid foods and sauces, sous- vide cooking, dough Refrigerator Chilling Load greater than 0.5kg, multi-portions, meat, first courses, au gratin, gateaux, whole fish Refrigerator Freezing Any food, frozen desserts Freezer Fridge / Freezer Mode Use the blast chiller as a refrigerator or freezer for up to 24 hours Refrigerator/ Freezer CAUTION! At the end of the indicated program the blast chiller maintains the set temperature for up to a maximum of 24 hours. CAUTION! When using the function (blast chilling) with small quantities, single-portion foods, thin slices, vegetables, desserts, a thin layer of ice can form on the surface. This does not affect the quality of the processed food. CAUTION! The function (sashimi / raw fish -20°C) sanitises fish for raw consumption. The cycle lasts 28 hours. (4 hours for freezing and 24 hours for holding at -20°C)

CAUTION! At the end of each use it is recommended to carefully dry the cavity to prevent condensation water from stagnating and generating unpleasant odours. Keep the door open as illustrated for at least 60 minutes after the cavity has been dried.13ENGLISH

Always make sure that the tip of the food sensor is placed in the middle of the food (see picture).

7.2 Loading the machine

To ensure good machine performance and not have any food alterations:

• arrange the products so as to promote the circulation of cold air throughout the cell;

• avoid prolonged and frequent door opening.

7.3 Cavity temperature

Temperature uniformity is ensured by the fins in the right hand shelf support. CAUTION! Make sure that food to be blast chilled and/or frozen is not overlapped and in any case does not have a thickness greater than 65 mm. Do not overload the machine beyond what is established by the manufacturer (3 kg).14 www.aeg.com

8. CLEANING AND MAINTENANCE

8.1 Periodic cleaning

The appliance must be cleaned regularly. Avoid pulling, moving or damaging pipes and/or cables inside the appliance. To clean the internal parts, do not use detergents, abrasive powders, products with strong fragrances or polishing waxes as they may damage the surface and leave an intense odour.

• Wash the internal surfaces with a solution of warm water and bicarbonate. Use 2 tablespoons of bicarbonate for one litre of water.

• Wash the shelves with a neutral detergent.

• Wring out excess water from the sponge or cloth before cleaning near the controls or any electrical component.

• Wash the inside and the accessories with warm water and neutral soap.

• Inspect the door gaskets regularly and remove any traces of dirt and residues with a damp cloth.

• Rinse and dry thoroughly. Be careful not to damage the cooling system. After cleaning, reconnect the appliance to the mains.

8.2 Periods of inactivity

If the appliance is not used for a long time, take the following precautions:

• disconnect the appliance from the mains;

• remove all the accessories;

• clean the appliance and all the accessories;

• leave the door open to prevent the formation of unpleasant odours.

CAUTION! Refer to the chapters on safety.

9.1 What to do if...

Problem Possible cause Solution The appliance does not turn on. No power supply. Check the electrical connection. Presence of ice in the cavity. The appliance has been used for too long. Run a de-icing cycle with the door open. Turn the machine off at the end of the cycle. Excessive formation of water at the bottom of the cavity. Intensive use of the appliance and subsequent de-icing. Use the sponge provided to dry the cavity. Displayed message “close the door to continue the program”. The door is not closed properly. Check that the gasket supporting surface is clean. Remove any ice from the door frame/gasket.15ENGLISH The capacitive keypad does not react to commands. The display is dirty. Clean the display, turn the machine off and on again. The food does not reach the required temperature. Incorrect setting of the cooling cycle. Check the program and food distribution inside the cavity. Food not divided properly on the trays. Check for air circulation obstructions. Excessively thick food. Reduce food thicknesses. Presence of cover or lid. Remove the cover or lid. The temperature indicated by the food sensor is incorrect. Food sensor inserted incorrectly. Check that the food sensor is positioned in the product core. The food sensor is damaged. Only use timed or assisted programs and call the support service for replacement. The appliance prompts you to insert the food sensor with the food sensor already inserted. Food sensor failure. Contact the technical support service. Food sensor connected incorrectly. Check that the food sensor is inserted properly in the connector. The lights do not work. LED light failure. Contact the technical support service. The LEDs are switched off with the doors open. De-ice function active. Wait for the end of the program. LED light failure. Contact the technical support service.

10. ENVIRONMENTAL CONSIDERATIONS

Recycle materials that carry this symbol . Dispose of the packaging in special containers for recycling. Help protect the environment and human health and recycle waste deriving from electric and electronic devices. Do not dispose of appliances that carry this symbol together with normal domestic waste. Take the product to your local recycling facility or contact your municipal office. Contains fluorinated greenhouse gases. Hermetically sealed. Gas name: R404a Total mass F-gas: 0.28 Kg GWP: 3922
