Technical Features	Titanium case, 44 mm diameter, water resistance up to 100 meters.
Movement	El Primero 21 automatic movement, frequency of 36,000 vibrations per hour.
Functions	Hours, minutes, seconds, chronograph, power reserve indicator.
Usage	Designed for daily and sporty use, suitable for water activities.
Maintenance	Recommended every 3 to 5 years by a qualified watchmaker to ensure proper functioning.
Safety	Do not expose to strong shocks and avoid extreme temperatures.
General Information	2-year warranty, after-sales service available, spare parts provided by the manufacturer.

Frequently Asked Questions - Defy El Primero 21 95.9005.900401.M9000 ZENITH

How do I set the time on my ZENITH Defy El Primero 21?

To set the time, unscrew the crown and pull it to the first position. Turn the crown clockwise or counterclockwise to adjust the time.

My watch does not wind automatically, what should I do?

Make sure the watch is worn regularly. If it stops for too long, it may be necessary to wind it manually by turning the crown clockwise.

How do I maintain my ZENITH Defy El Primero 21?

To maintain your watch, clean it with a soft, dry cloth. Avoid chemical products and do not expose the watch to extreme temperatures.

Is the watch water resistant?

Yes, the ZENITH Defy El Primero 21 is water resistant up to 100 meters. However, it is recommended not to use the buttons underwater.

What should I do if my watch strap is too large?

You can adjust the strap by removing links. It is advisable to consult a professional to avoid damaging the strap.

How do I know if my watch needs servicing?

If you notice time delays, unusual noises, or if the watch stops working, it is time for servicing. Contact an authorized ZENITH service center.

Where can I find spare parts for my watch?

Spare parts can be obtained from authorized ZENITH service centers or directly via the official ZENITH website.

What is the battery life of my watch?

The ZENITH Defy El Primero 21 is equipped with a mechanical movement, so it does not require a battery. Just make sure to wind it regularly.

Can I wear my watch while practicing water sports?

Yes, being water resistant up to 100 meters, you can wear your watch during water sports, but avoid activities involving strong shocks or impacts.

USER MANUAL Defy El Primero 21 95.9005.900401.M9000 ZENITH

Having invested in a ZENITH chronograph, you are now wearing a Manufacture watch.

ZENITH is part of a select circle of authentic Swiss watch manufactures that develop and produce their own movements. Since 1865, we have been manufacturing our watches in the same place, at our Manufacture at 34 rue des Billodes, in the village of Le Locle situated in the mountainous valleys of the Canton of Neuchâtel. There are few brands in the world that can pride themselves on having an approach as rigorous as ours. From the very moment you invest in a Zenith watch, you can be absolutely certain that you are in possession of a watch that has been produced from start to finish at the Le Locle Manufacture.

Having won more than 2333 chronometric observatory prizes, ZENITH is one of the Swiss brands that has been most highly rewarded in terms of accuracy. You can further share our passion for this fine craft by visiting our website www.zenith-watches.com. As an owner of a ZENITH watch you are invited to sign up. By doing so, you will receive an additional year's warranty. Your chronograph features a mechanical movement that is the product of more than 300 years of traditional watchmaking. We ask that you take care of it and are careful when making any adjustments. In the following pages you will find information on how to use your watch and its functions. The functions available depend on the model.

1 EL PRIMERO 21 MOVEMENT

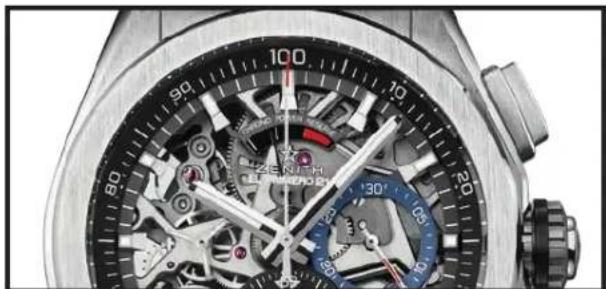

In front of you is the El Primero 21 movement. It is the only mechanical 1/100th of a second chronograph movement.

The El Primero 21 movement is a masterpiece of modern engineering. Constructed using state-of-the-art methods and finished using the newest technologies and materials, this movement fulfils two objectives: a finish of the highest possible quality, and optimum performance and accuracy on the wrist. First released in 1969, the world's most accurate series-made chronograph entered a new era of mechanical timekeeping with the El Primero 21 movement.

An impressive frequency of 360,000 vibrations per hour is testament to the groundbreaking ingenuity of Zenith, and enables precise measurement of time periods to a hundredth of a second. The jump from tenths to hundredths of a second is a quantum leap in terms of watchmaking performance and engineering.

For Zenith, accuracy is the absolute priority. To avoid any risk of the chronograph affecting the accuracy of the time display, the El Primero 21 movement is equipped with a "double-chain structure".

This means that the time display and chronograph each have their own completely independent mechanism with its own barrel and high frequency escapement.

For the chronograph, this oscillates at a breathtaking 50 Hz (360,000 VpH). As standard for the El Primero, the time display calibre oscillates at 5 Hz (36,000 VpH).

Key features

El Primero 21 [Calibre 9004]

Diameter: 32.80 mm (14 %)

Thickness: 7.90 mm

Number of components: 293

Number of jewels: 53

2 barrels:

Watch power reserve: 50 hours Frequency: 36,000 VpH 15 Hz
Chronograph power reserve: 50 minutes Frequency: 360,000 VpH (50 Hz)

Unidirectional automatic winding for the watch and manual winding for the chronograph.

Functions:

Hours, minutes and seconds
1 / 100 th of a second central chronograph
30-minute counter at 3 o'clock
60-second counter at 6 o'clock
Chronograph power reserve at 12 o'

2 WINDING THE WATCH

Your watch is fitted with an automatic mechanical movement. The movement is wound via the crown or the effect of the oscillating weight. Winding via the oscillating weight takes place when the watch is on your wrist.

When your watch has stopped

The crown must be in the position D, meaning it should be pressed against the case.

With the watch in your hand, turn the crown counter-clockwise. Turn the crown 72 times to fully wind the watch. The barrel that contains the mainspring has now been wound. In order for the automatic winding to work properly, the watch must be worn for at least 12 hours per day, for several days. Not wearing the watch enough causes it to stop.

If you do not wear your watch during the night, turn the crown a few times the following morning before you put it on.

Having been wound, the power reserve of your watch is around 50 hours, but this does not appear on the dial. Only the chronograph power reserve appears on the dial of your watch.

CHRONOMETER CERTIFICATION

The El Primero 9004 movement has been certified as a chronometer by TIMELAB in Geneva. It has been tested and successfully meets the requirements set by the ISO3159 standard.

A chronometer is a device that measures time to the highest accuracy, and can be adjusted to different positions and under a range of temperatures.

3 WINDING THE CHRONOGRAPH

Alongside the double-chain structure of the calibre, and the remarkable accuracy this ensures, the El Primero 21 movement boasts two other technical innovations: a new, patented start/stop-reset mechanism composed of three heart pieces, and an exclusive starter mechanism which ensures reliable operation under all circumstances, and allows the chronograph second, tenths and hundredths displays to be simultaneously reset.

Procedure

The crown must be in the 0 position, meaning that it should be pressed against the case.

With the watch in your hand, turn the crown clockwise until the hand of the chronograph power reserve is fully wound [around 25 turns]. The barrel that contains the mainspring has now been wound.

Fully wound, the chronograph power reserve is around 50 minutes. This is displayed by the hand located under the Zenith logo.

9←

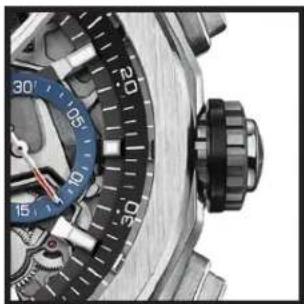

4→SETTING THE TIME

Position 0: winding position

In this position you can manually wind your chronograph movement and watch by turning the crown. Pull the crown out a notch to change to position [1].

Position 1: correcting the time

To correct the time, turn the crown in the required direction.

Do not forget to return the crown to position (0).

5 TIMEKEEPING FUNCTION

Switching it on/off: a single press of the push-button (A) switches the timekeeping function on, pressing it again will switch it off. Reviving the timekeeping function: pressing the push-button (A) again will revive the timekeeping function.

Resetting the chronograph: Once the chronograph has stopped, one firm press on the push-button (C) will send the hand of the chronograph back and the totalisers back to zero.

Warning: Before switching the timekeeping function on, the hands of the chronograph must be reset. If necessary, reset using the push-button (c).

6 ZENITH'S INTERNATIONAL WARRANTY

Zenith watches are the product of our Manufacture and are high-precision, high-tech products. Before your watch leaves the Manufacture, it is subjected to numerous stringent quality checks. However, should there be any manufacturing faults, an international warranty means your watch is covered for two years starting from the date of purchase.

Sign up on our website, www.zenith-watches.com, to receive an additional year's warranty. This warranty is observed by service centres approved by Zenith worldwide if the following conditions are observed:

→ The watch has been purchased from an official dealer as approved by Zenith; your name, address, the date of purchase and the watch reference are clearly detailed on the warranty card.
Your watch is worn in normal conditions and maintained in accordance with Zenith's recommended care instructions and has not been subjected to improper handling.
The warranty card, the only valid proof of purchase, must be sent along with your watch to an authorised Zenith service centre.

PLEASE be aware that Zenith's international warranty does not cover normal ageing of your watch, natural wear and tear of the leather, fabric or rubber straps, nor any scratches that may appear on the case or sapphire crystals during use.

Your watch and its movement deserve a special kind of care: In order to maintain their accuracy, Zenith service centres recommend servicing your watch every 5 years.

→ ZENITH

DnAmEtP:32,80MM(14 %

TOnuHa:7,90 MM

Hcno Detanei: 293

Yncno kAmHei:53

26apa6aHa:

→3anac xoja yacob:50 yacob
HacToTa Kone6aHn: 36000 nOlyKone6aHn B ac (5Tc)
→3anac xoja xpoHorpa:~50 mHyT
YactotaKone6aHn:360000nonykoIe6aHnBvac(50Tc)

OdHOHaPpAaHHeHHb aBOMaTnueckn nDnMaHexaHn3Ma YacOBpyHNO pD3ABoD nI MaexaHn3Ma XPOHOrpa.

DyHKUH:

→YacOBa, MmHyTHa N ueHTpaJIbHa cKeyHdHa CTpeKN
→ ΒeHTpaIbHaЯ cTpeIka xpoHOrpaΦa c TocHocTBko n3MepeHn 1/100 ceKyHdbI

MnHyTHbI CyeTcHk Ha OTMeTke 3aacA (30 MmHyT)

Cekyndha ctpenka xpohorpa ha OTMeTke 6acob

Ykaataenb 3anaca xoja xpohorpa aHa OTMeTke 12 yacob

2→N0D3ABOДYACOB

BaunuacbOcHaueHbMexaHn3MOMcABTOMaUeCKMN NO3aBOOM.
YacoBou MEXaHn3M NOD3aBOoNTCn NOMOIO 3aBOHOI NOBKN
INIOI NOI IOEiCTBnEM INHePUNOHORrpy3a.No3aBOINHEPUNOHORrpy3a IPONCXoINT PnE ExeHBeHOM HOWeHHN YacOB Ha 3anCTbe.

Ecnn yacbl octaHOBNNCb

3aBODHn rONOBKa DOnJHa HaxOHTbcra B nOnOKeHN O, T. e. npKATA BnIoTHyIO K Kopnycy.

Bo3bMnte yacB b pyKn n HauHnTe BpaaTa b 3abOHyo roNoBky npOTNB acBOB cTpeKN. dNnONHO NO3aBODa DOCTaTOUHO 72 60pOToB 3aBOHO rONOBKn. B cBOIO oupeB 6apabAH 3aBOHO npyKnHb TaKke 6yEt NOn3aBeHEn. YTO6bI MExAHN3M ABTomATueckoro NO3aBOda pa6OtAN npABInbHO, cAcB cNeDyET HocNTb He MeHee 12 acOB B deHb Ha npOTJxHeHn HeCKoJIbKnX dHe. EcNI Bbl HeOCTaTOUHO DOnr HOcNNu CaB, OHN MOrTy OCTaHOBtBCR.

EcnBbHe Hocnte CBOHacbI HoHybIO,TO yTpOM,pepeTcKak INx HaTeB, Heo6xoJIMO cDetaTb HeckOJIbKO o6OpOTOB 3aBoJHOI RONOBKn.

3anac xoja nonHoctbio 3abeHHbix yacob coCTabnaret He meHee 50 yacob. Hndkaunza 3ana cxa oja Ha uhepe6nate daHHOJ moen otcyTcByet. Ha uhepe6nate Baunx yacob npucytCTbyet TOnbko ykaatene b 3ana cxa xoja xpohorpa.

CEPTNΦUKALUNXPOHOMETPA

Yacobm MexaHm3 El Primero 9004 nonyun cepTnФkaXpoHometpa XeHeBcKo JIabOpatOpnn YacOBoro NCKycCTBa mKnponHexeHepnn Timelab. OH 6bIn npoteCtnpoBAn B daHnoJIabopatOpnn nONHocTbO OTBeuAet Tpe6oBaHnAM ISO 3159.

XpoHOMeTpbl -3TO BbICOKOTOHyB yCTpOJIcTBa IJIa N3MepeHHBVPeMHN,NCbIbTaHHbI B pa3NCHbIX nONKeHHnx npn pa3HbIX TempepaTpyax.

3→N0D3ABOД XPOHOΦA

NOMMOKOHCTpyKuHaOCHOBeDByxKHeMaTHueccknxZeenei n rapaHTnpoBaHHoBbICOKoTouHocn，yacobOI mexAHm3M EI Primero 21 BKIOUaET Bce6e EeBdA TexHuecckNX HOBOBBeHEnHOHBI 3anaTeHTOBaHHbMeXaHN3M 3anycka，OCTahOBKn I O6HyHEnNOkA3AHn XPOHorpaFa，COCTOAnuN3 TpEx OCHOBhIX KOMNoHEHTOB，N3CKKN3MBHbI NcCKOBmExAHN3M，KOTOpBI rapaHTnpyET HAdEXKHyO pa6Oty npn IIO6bX ObCTOReNbctBax， NO3BOJRAODHOBpeMeHHo O6HyNtB NOKa3AHn CcTeYHKOB CeKYH, DECATBX IN COTBX DOnE CEkyHdbI.

PopdoKdeTbn

3aBODHa rOLOBa DOnJXHa HaxoNTbC B NIOJOKeHH (0), T. e. npKata BnIoTHyIO K KopnyCy.

Bo3bMNTe TaCb B pyKn BpaaAte 3aBodHyIO rONOBky no YacobO BCTpeNke Do Tex nop, noka Ctpenka yKa3aTeN 3anaca XoDa xpoHOrpapa He yKaeT ha ero nonHbI NO3aBOD (npImepHO 25 06OpOTOB). B cBOHO OuepeB 6apabah 3aBOnHO npyKnbl TaKxe 6ydet No3aBeDen.

3anac xoda nonnoctbko 3abeHnoro xpohorpa ca coctabniet okono 50 mnyt. Hndkaunza 3ana cxa ocyuectbneta npn nomooun ctpenkn, pacnonoKeHHou had norotnnom ZENITH.

45←

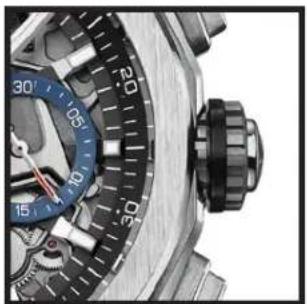

4→YCTAHOBKA BPEMEH

NooxeHne 0: nooxeHne no3aOda

B 3TOM nONOKeHN Bbl MoKeTe BpyHyIO nO3aBeCTn MexAHN3MbI xPOHOrpaFa N acOB, BpaAaJ 3aBOdHyIO rOIOBky.ДЯ npexoJa B nONOKeHne (1) BbITaHNTe 3aBOdHyIO rOIOBky Ha ONo DeJeHne.

PonoXeHne 1: yCTaHOBKa BpeMeHH

BpaaTe 3aBodHyro rOIOBky B IIO6OM HApBaIeHNn DnnycTaHOBKn TOnHOro BpeMeHN.

He 3a6ydbte BepHytb 3a0bndhyo roNoBky B noIooxHne (O).
