USER MANUAL CHW3070S Campomatic

Hot & Cold Water Dispenser INSTRUCTION MANUAL Cauon: Read and follow all safety and operang instrucon before rst use of this product. Campomac S.R.L. Via Congliachi 5/B . 35031, Abano Terme (Padova), ITALIA

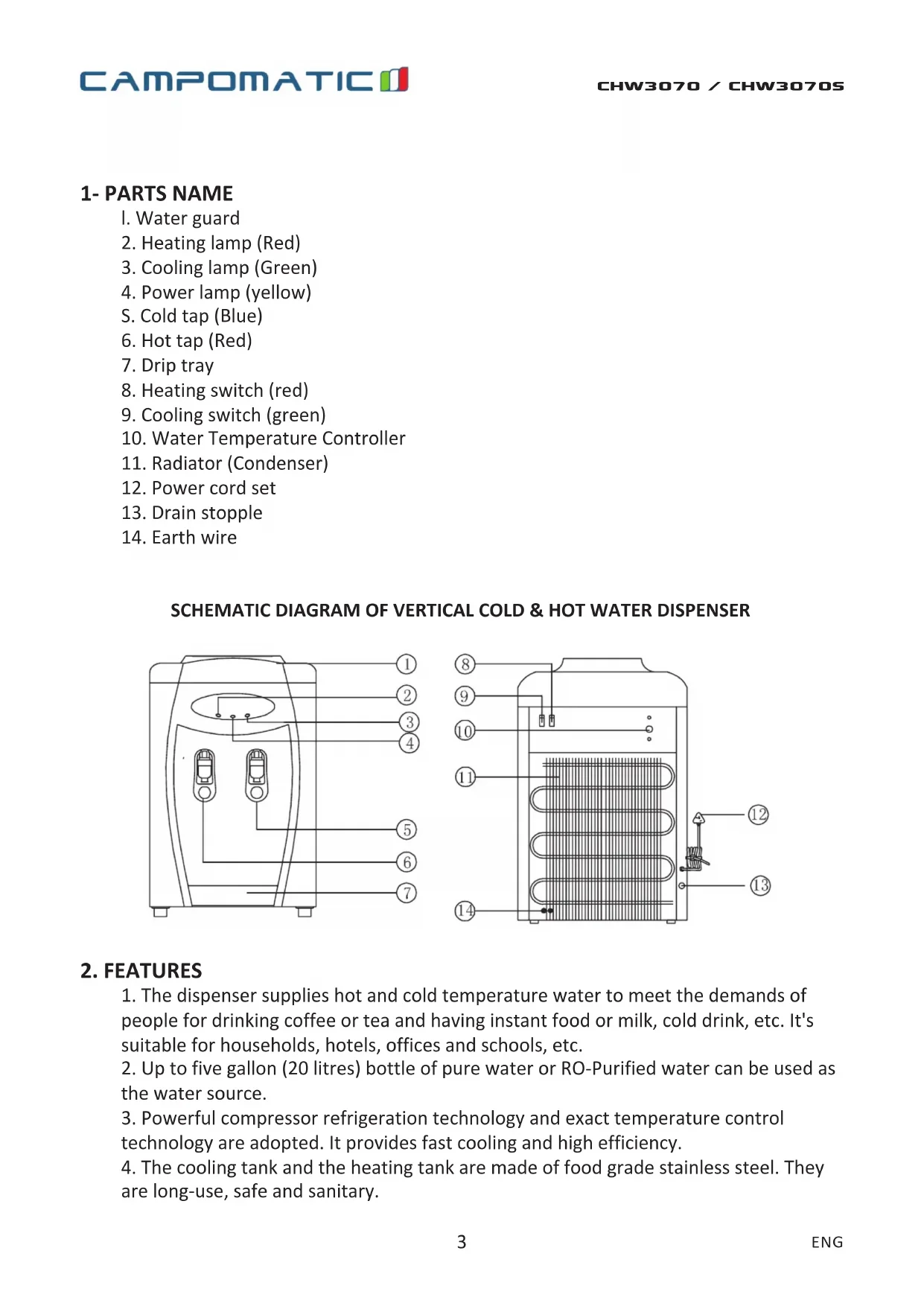

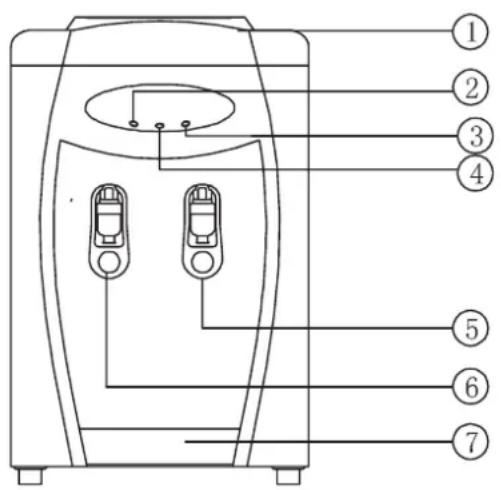

2. Heating lamp (Red)

3. Cooling lamp (Green)

4. Power lamp (yellow)

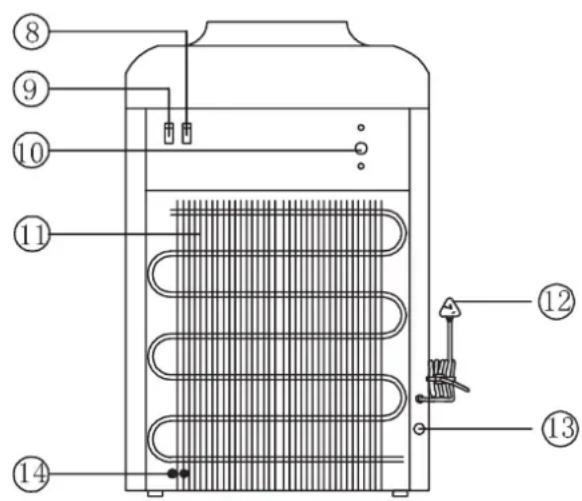

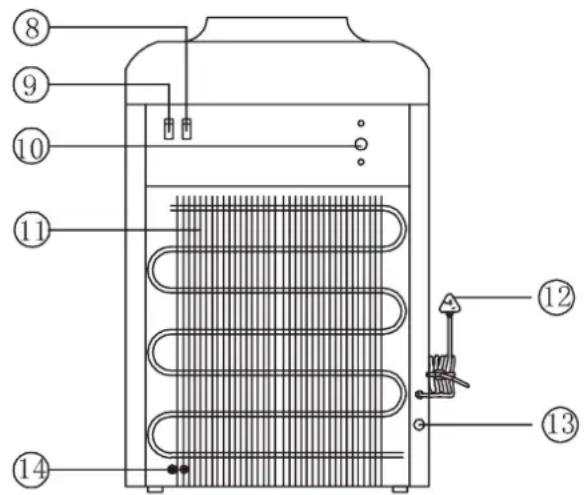

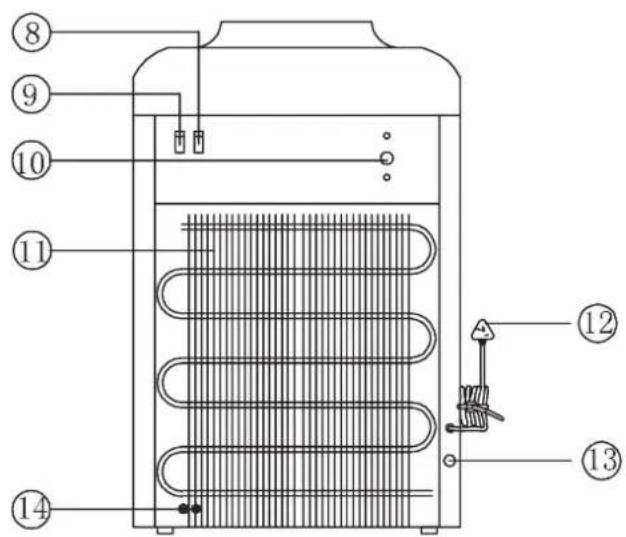

8. Heating switch (red)

1. The dispenser supplies hot and cold temperature water to meet the demands of

people for drinking coffee or tea and having instant food or milk, cold drink, etc. It's suitable for households, hotels, offices and schools, etc.

2. Up to five gallon (20 litres) bottle of pure water or RO-Purified water can be used as

3. Powerful compressor refrigeration technology and exact temperature control

technology are adopted. It provides fast cooling and high efficiency.

4. The cooling tank and the heating tank are made of food grade stainless steel. They

are long-use, safe and sanitary.4

1. In case it was transported or stored horizontally, place the dispenser in an upright

position for at least 4 hours before plugging it into the socket.

2. Remove the tamper seal label from the cap of the bottle. Do not remove the cap.

3. Gently insert the bottle vertically into the water guard and press the taps until the

water flows out from the RED (hot) tap.

4. Insert the power plug into a properly grounded socket, then turn on the switches

(DON'T TURN ON THE SWITCHES AT THE SAME TIME) to start the machine, the heating lamp and the cooling lamp light up. It will stop or start working automatically when the water temperature reaches the factory temperature settings.

5. If you do not want to dispense hot water, turn off the hot water switch on the back

of the unit (Red color)

6. If you do not want to dispense cold water, turn off the cold water switch on the back

of the unit (Green color)

1. Replace bottle as soon as you notice it is empty. Unplug unit if bottle and tanks are

2. This unit dispenses water at temperatures that can cause severe burns. Avoid direct

contact with hot water.

3. Keep children away from unit while dispensing.

4. Never allow children to dispense hot water without proper and direct supervision.

5. Prior to use, this dispenser must be properly assembled and installed in accordance

6. This dispenser is intended for water use only. Do NOT use other liquids.

7. For indoor use only. Keep water dispenser in a dry place away from direct sunlight.

8. Install and use only on a hard, flat and levelled surface.

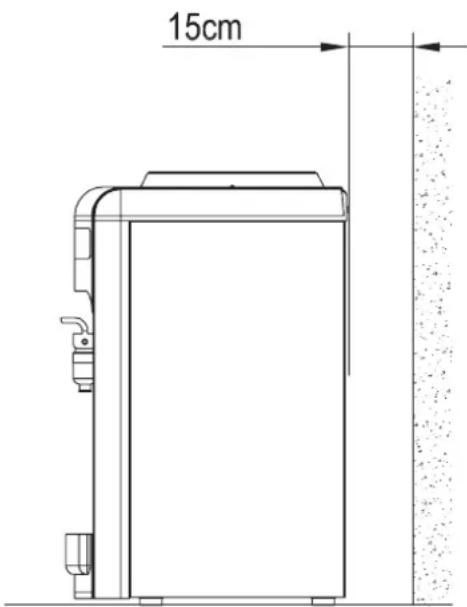

9. Do NOT place dispenser into an enclosed space or

cabinet. Always maintain its distance more than 15cm from the wall. There should be a distance of 15cm on the left and right side.

10. Make sure the adoption of the earth wire with

Three Pin-hole Socket and the Electric Leakage Protector is available to avoid any electric shock.

11. Do not use an extension cord with your water

12. Always grasp plug and pull straight out from outlet.

Never unplug by pulling on power cord.

13. Do NOT use dispenser if the cord or plug is

14. To protect against electric shock, do NOT immerse

cord, plug, or any other part of cooler in water or other liquids.

15. Ensure dispenser is unplugged prior to cleaning.

16. Do not move it roughly. Do not incline it over 45°

17. Never allow children to use the dispenser without proper and direct supervision.

Unplug unit to prevent unsupervised use by children.

18. In order to avoid a hazard due to inadvertent resetting of the thermal cutout,

this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

19. Maintenance and repair must be carried out by specialized technicians. It is

extremely dangerous to any person to fix the device or to dismantle it for repairing purposes other than a qualified technician.

20. Do not let the power plug dangling over the edge in the reach of children.

Note: Do NOT use abrasive materials or chemical cleaners.

1. Clean cabinet surfaces with a soft cloth and warm soapy water. Dry it with a cloth

2. Brush off dust from the radiator (12) located at back of dispenser to improve

6. CLEANING COLD TANK

Recommended to be done every 2 to 3 months depending on the water type

1. Best to do prior to loading a fresh bottle

2. Turn off both switches on back

3. Unplug power cord

4. Remove water bottle

5. Place at least a 10 Litre bucket under the drain of the dispenser (found on the

6. Remove drain cap and silicon plug. Cold water will flow into the bucket. This

will be followed several seconds later by hot water at temperatures that can cause severe burns. Avoid direct contact with hot water.

7. Place drain cap and silicon plug in a safe location so they are not lost.

8. Keep children away while draining the dispenser

9. Remove remaining water from the reservoirs by dispensing from both taps

10. Replace silicon plug and drain cap

11. Remove water guard (1) assembly by turning it counter clockwise.

12. Clean water guard assembly with a soft cloth using a cleaning mixture with 2%

cooking citric acid and 5 litres of clean water and then rinse the water guard and place it on a clean cloth. ENG6

13. Pour remaining cleaning mixture into the tank

14. Dispense all cleaning mixture through the both taps

15. Wipe inside of reservoir and area around both taps with a soft cloth

16. Rinse system twice by dispensing 5 litres of tap water through both taps

17. Make sure all water has been dispensed.

18. Replace water guard assembly

19. Repeat INSTALLATION procedure as mentioned previously

Dispenser does not operate. - Make sure the power cord is properly connected to a working outlet. Water is leaking. - Bottle may have a leak. Remove bottle and replace with new bottle. No water is coming from the taps. - Make sure the bottle is not empty. If so replace it. - Make sure to push the water controls in fully. Cold water is not cold. - Make sure the switch is on and the plug is in the socket. - Check the fuse and replace if necessary. - It takes up to one hour after setup to dispense cold water. - Make sure the back of the dispenser is at least 15cm from a wall Hot water is not hot. - Make sure the switch is on and the plug is in the socket. - It takes 15-20 minutes after setup to dispense hot water. - Check the fuse and replace if necessary. Dispenser is noisy. - Make sure dispenser is positioned on a level surface with proper distance from walls or enclosure cabinet. Water tastes bad. - Drain water from reservoirs and replace bottle with a fresh one. - Clean dispenser as per Care & Cleaning instructions. Electrical Leakage. - Make sure the earth wire and the leakage protector are available ENG7

9. CORRECT DISPOSAL OF THIS PRODUCT

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. ENG8
