B400 - Blender Campomatic - Free user manual and instructions

Product type	Blender
Brand	Campomatic
Model	B400
Power	400 Watts
Bowl capacity	2 liters
Number of speeds	2 (slow and fast) + Pulse
Pulse function	Yes, for intermittent operation at full power
Auto Clean function	Yes, automatic cleaning with soapy water
Power supply	Mains
Control type	Rotary switch and push buttons
Included accessories	Measuring cup, lid
Bowl cleaning	Dishwasher or manual
Motor unit cleaning	Damp sponge, do not immerse
Safety	Do not blend boiling liquid, do not run empty, sharp blades
Maximum continuous operation time	3 minutes, then let it cool
Recommended uses	Blending, grinding, milkshakes, soups, sauces, compotes, crushed ice
Repairability	Appliance to be returned to an approved center

Frequently Asked Questions - B400 Campomatic

How to use the Pulse button?

The Pulse button (G) allows intermittent operation at full power. Set the main switch (E) to '0', then press and release the Pulse button to blend in bursts. Ideal for milkshakes.

How to clean the blender?

For the bowl (C), use the Auto Clean function (F) by pouring soapy water, then rinse. The bowl can also go in the dishwasher. The motor unit (D) is cleaned with a damp sponge, never immerse it.

What is the maximum capacity of the bowl?

The graduated bowl (C) has a maximum capacity of 2 liters. Do not exceed the maximum level indicated on the bowl.

Can I blend hot ingredients?

No, never pour boiling liquid into the blender. Wait for the ingredients to cool before blending.

Can I put the motor unit in the dishwasher?

No, the motor unit (D) should never be immersed or placed in the dishwasher. Clean it only with a damp sponge.

What to do if the blender does not start?

Check that the switch (E) is set to 'I' or 'II' and the appliance is plugged in. Make sure the bowl and lid are properly locked. If the problem persists, contact an approved center.

How long can I run the blender continuously?

Do not exceed 3 minutes of continuous operation. Let the motor cool before restarting.

How to assemble the blender?

Place the bowl (C) on the motor unit (D) aligning the three motor feet with the slots on the bowl. Add the ingredients, then the lid (B) with the measuring cup (A). Plug in and select the speed.

Can I blend solid ingredients without liquid?

No, always add a little liquid to avoid damaging the blades and motor. Hard ingredients must be accompanied by liquid.

Where can I find spare parts?

For any repair or spare part, return the appliance to an approved center. Do not attempt to repair the blender yourself.

USER MANUAL B400 Campomatic

Caution: Read and follow all safety and operating instruction before first use of this product.

Campomatic S.R.L. Via Configliachi 5/B . 35031, Abano Terme (Padova), ITALIA

WWW.CAMPOMATIC.COM

Table of Content

English 3

French 9

Italian 12

German 15

22

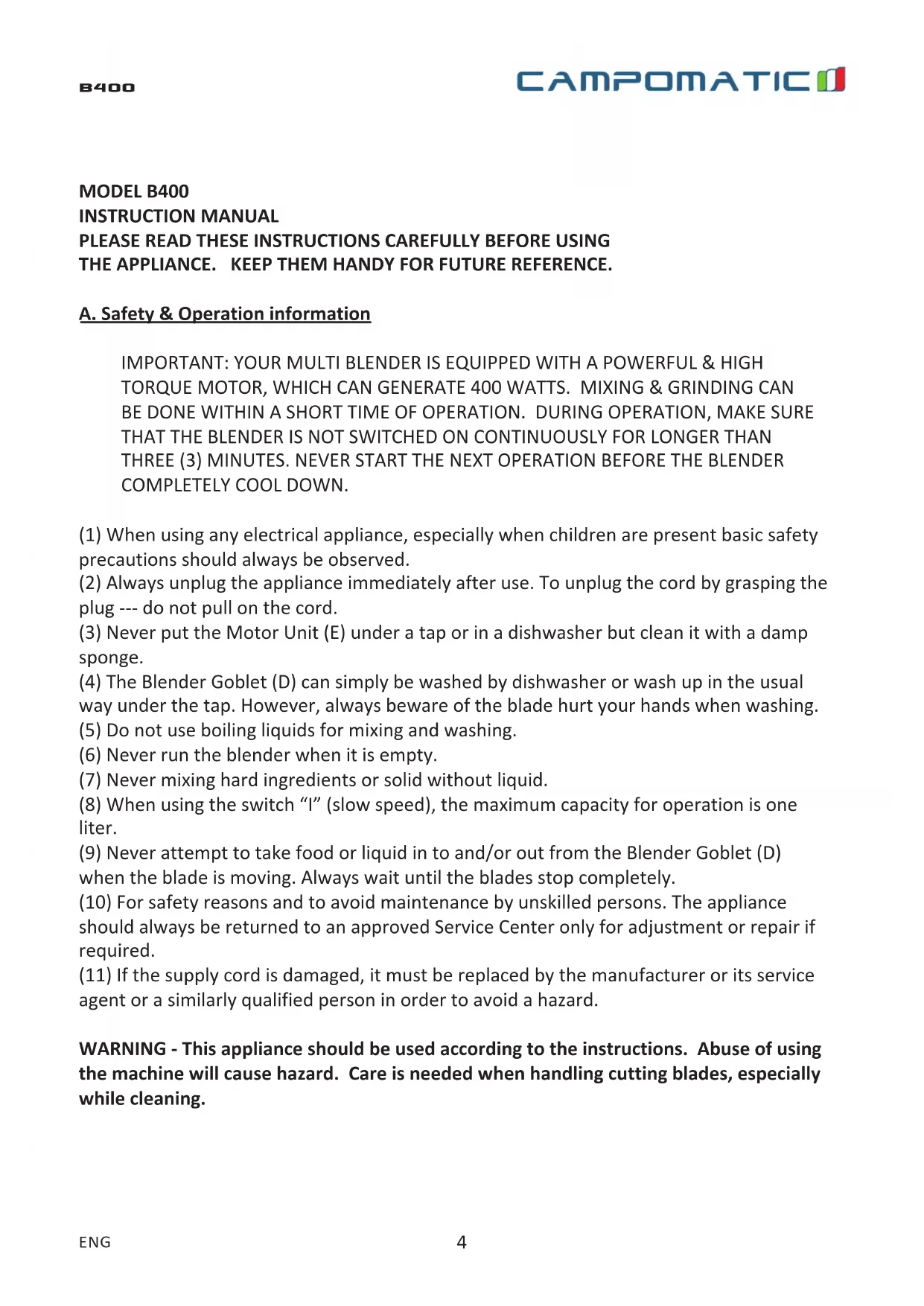

MODEL B400

INSTRUCTION MANUAL

PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE USING

THE APPLIANCE. KEEP THEM HANDY FOR FUTURE REFERENCE.

A. Safety & Operation information

IMPORTANT: YOUR MULTI BLENDER IS EQUIPPED WITH A POWERFUL & HIGH TORQUE MOTOR, WHICH CAN GENERATE 400 WATTS. MIXING & GRINDING CAN BE DONE WITHIN A SHORT TIME OF OPERATION. DURING OPERATION, MAKE SURE THAT THE BLENDER IS NOT SWITCHED ON CONTINUOUSLY FOR LONGER THAN THREE (3) MINUTES. NEVER START THE NEXT OPERATION BEFORE THE BLENDER COMPLETELY COOL DOWN.

(1) When using any electrical appliance, especially when children are present basic safety precautions should always be observed.
(2) Always unplug the appliance immediately after use. To unplug the cord by grasping the plug --- do not pull on the cord.
(3) Never put the Motor Unit (E) under a tap or in a dishwasher but clean it with a damp sponge.
(4) The Blender Goblet (D) can simply be washed by dishwasher or wash up in the usual way under the tap. However, always beware of the blade hurt your hands when washing.
(5) Do not use boiling liquids for mixing and washing.
(6) Never run the blender when it is empty.
(7) Never mixing hard ingredients or solid without liquid.
(8) When using the switch "1" (slow speed), the maximum capacity for operation is one liter.
(9) Never attempt to take food or liquid in to and/or out from the Blender Goblet (D) when the blade is moving. Always wait until the blades stop completely.
(10) For safety reasons and to avoid maintenance by unskilled persons. The appliance should always be returned to an approved Service Center only for adjustment or repair if required.
(11) If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

WARNING - This appliance should be used according to the instructions. Abuse of using the machine will cause hazard. Care is needed when handling cutting blades, especially while cleaning.

B. How to assemble & operate the B400

1. assemble and parts description

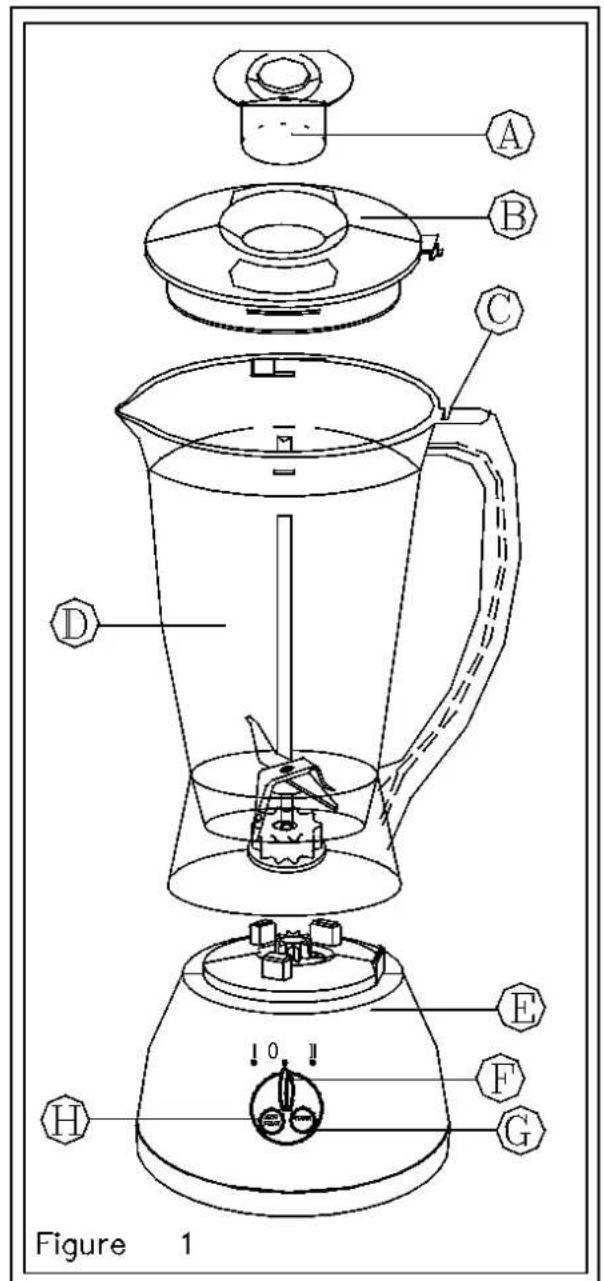

Before you actually assemble & use your B400, please see the Figure 1 for the relevant description of parts shown below:

A- Ingredients Measurer

B-Lid

C- Locking slot

D- Blender Goblet

E-Motor Unit

F-ON/OFF & Speed Control Switch

G-Pulse Button

H- Auto Clean Button

2. Operation

This Multi Blender is ideal to process different style of foodstuff and mixtures including:

• Batters of pancakes, waffles, yorkshire pudding.
• Fruit juices, cocktails, crushed ice and milkshake.
• Creamy soup, sauces, and computes.

i) Place the Blender Goblet (D) onto the Motor Unit (E) as shown in Figure 2. Make sure the three pillars on the top of the Motor unit (E) are inserted into the three slots on the bottom of the Blender Goblet (D).
ii) Put the ingredients into the Blender Goblet (D) for blending, then add the liquid. IT IS VERY IMPORTANT that the liquid must not exceed the maximum level marked on the Goblet.
iii) Put Ingredients Measurer (A) onto the Lid (B) and then put the Lid (B) onto the Blender Goblet (D). Make sure the Lid (B) is locked into the Locking Slot (C). Otherwise, the unit will not operate.
iv) Plug in your MULTI BLENDER and turn ON/OFF & Speed Control Switch (F) to either "I" (slow speed) or "II" (fast speed). When using the "I" (slow speed), the maximum capacity for operation is one litter.
v) You may also use the Pulse Button (G) but only at the time when you are turning ON/OFF & Speed Control Switch (F) to "0". Pressing the Pulse Button (G) leads the MULTI BLENDER an instant quick start and releasing the Pulse Button (G) will stop the MULTI BLENDER quickly.

HINTS: Pulse method [i.e. press/release, press/release.... The Pulse Button (G) is perfectly for milkshaking.

IMPORTANT: Do not use the Pulse Button (G) when the blender is turning on "I" or "II".

vi) After finish mixing, turn ON/OFF & Speed Control Switch (F) to "0" and unplug the appliance. Wait your MULTI BLENDER totally stop then you may remove the Blender Goblet (D) & the Lid (B), please see Figure 3. Enjoy your gourmet.

C. Cleaning your MULTI-BLENDER

IMPORTANT: Never put the motor unit (E) under a tap or in a dishwasher but clean it with a damp sponge.

i) Place the Blender Goblet (D) onto the Motor Unit (E) as shown in Figure 2.
ii) Pour a little warm soapy water into the Blender Goblet (D). Then press the Auto Clean Button (H) for a few seconds.
iii) Remove the Blender Goblet (D) and rinse under running water.
iv) Repeat rinsing if necessary. Dry the Blender Goblet (D) naturally.
v) Wipe clean the Motor Unit (E) with a damp cloth; never immerse in water.

D. Technical features

400WATTS
2.0 liter of Blender Goblet
- 2 speed switch : "II" stands for FAST, "I" stands for SLOW and "0" stands for OFF.
- Pulse Button.
- Auto Clean Button

E. Optional Accessories (Universal grinder with stainless steel blades and container)

• maximum capacity = 60 grams ( = 2/3 of the bowl capacity),

• It can grind coffee, seed, almonds, rusks, spices, sugar. This accessory is fitted with a safety lid that prevents any access to the rotating blades.

USING THE ATTACHMENTS:

-put the mill attachment on the motor unit. Put the ingredients to be grounded into the mill. Put the lid into place. Plug in the appliance and switch it on by using the control switch (position "I" or "II")

-Turn the appliance off by setting the control switch back to "0"

-Wait for the appliance to stop completely before removing the lid.

-After mixing, you can also tip the ingredients into the bowl of the grinder to use it as a container.

Recipes for Soup and Batter

- GAZPACHO SOUP-COLD- Serves 4-6

4 cups tomato juice divided in half.
2 tablespoons olive or vegetable oil.
2 tablespoons of wine vinegar
1 teaspoon salt

Freshly ground black pepper

4 medium tomatoes, peeled and quartered
1 small white onion, peeled and quartered
12 medium size green pepper, pith and seeds removed and cut into 6 pieces.

Add 2 cups tomato juice, olive oil, vinegar seasonings and half the vegetables to

Blender Jar. Do not exceed 4 1/2 cups of content in jar. Cover, and blend for 4-5

pulses. Pour into large container. Repeat with remaining tomato juice and vegetables.

Add to container and stir well. Cover, and chill thoroughly before serving. Garnish with seasoned herbs or croutons.

MANGO MOUSSE - Serves 4-6

2 mangoes, peeled and cored, 250ml of milk, 400g of sweetened condensed milk,

300g fresh double cream

• mix all the ingredients in the blender and place in the fridge. Serve well chilled.

EGGPLANT PATE-Serves 6

2 eggplants baked for about 1 hour, unpeeled

1 clove garlic peeled

12 cup olive oil

Juice of 1 lemon

1 teaspoon salt

Freshly ground black pepper

When eggplants are cooled, scoop out flesh and place in blender, cover and blend until

smooth, about 10 seconds. Add garlic, lemon juice and seasonings. Blend for a further

5 seconds. With blender still running, pour in oil through top. Blend until smooth.

Taste for seasoning, and add more lemon juice if desired. Chill for at least one hour

before serving. Garnish with finely chopped chives or parsley, and serve with toast.

Recipes for Cocktail and Smoothie

VITALITY COCKTAIL:

1 banana 200g of carrots, 100g melon, 500 ml orange juice, juice of 1 lemon

• 8 ice cubes.
• Place all the ingredients in the blender, apart from the ice cubes, and mix for 40 seconds.
• Add the ice cubes and mix for 20 seconds

For the recipes listed below, follow the basic mixing directions: 1. Pour all liquid ingredients into the blender. 2. Add all frozen ingredients. 3. Blend at speed I for 30s then blend at speed II until smooth. 4. Serve immediately

- STRAWBERRY BANANA COCKTAIL

300 ml apple juice, 300 ml milk, 1 frozen banana, 500g frozen strawberries, 300 ml strawberry yogurt

ORANGE BANANA CREAM

350 ml milk, 500 ml orange juice, 1/2 tsp. Vanilla, 1/2 frozen banana (chunks), 350ml Vanilla frozen Yogurt, 180ml orange yogurt, 3 tbs. orange juice concentrate

PEACH BANANA COCKTAIL

700 ml apple juice, 300 ml vanilla frozen yogurt, 1/2 banana, 300 ml peach yogurt, 500ml frozen peach slices

MANGO COCKTAIL

500 ml pineapple juice, 500 ml orange juice, 180 ml frozen banana (chunks), 500g frozen mango slices
