Product Type	Toaster Oven
Brand	Black & Decker
Model	CTO649
Power Supply	120 V ~ 60 Hz
Power	1440 W
Approximate Dimensions	38 x 28 x 23 cm
Approximate Weight	4.5 kg
Main Functions	Toast, Bake, Broil
Timer	60 minutes with audible alert
Toast Setting	Variable toast shade control
Capacity	Deep, curved interior, fits large portions
Included Accessories	Slide rack, Crumb tray, Baking pan, Drip pan
Door	Glass with handle
Material	Metallic exterior, non-stick interior
Cleaning and Maintenance	Rack, pan, and drip pan are dishwasher safe. Removable crumb tray. Clean with a non-abrasive sponge.
Replacement Parts	Rack (CTO650-91), Crumb Tray (4850), Baking Pan (46), Drip Pan (43)
Warranty	1 year (U.S. and Canada)
Rating	Grounded plug (3 prongs)

Frequently Asked Questions - CTO649 BLACK & DECKER

What to do if the oven does not heat?

Check that the outlet works and the appliance is plugged in. Make sure the temperature control and timer are set: the oven only heats if both controls are set to a position other than Off.

Why is the second toast cycle too dark?

During consecutive cycles, the oven remains hot. Select a slightly lower toast shade than the previous setting to compensate for residual heat.

Condensation forms on the glass door, is this normal?

Yes, it is normal. Moisture from food (bread, bagels, pastries) condenses on the cold door and typically disappears during the cycle. This does not affect cooking.

How to use the timer?

Turn the timer selector past the 20 mark, then back to the desired number of minutes. This action arms the mechanism. A bell sounds at the end of cooking.

Should I preheat the oven?

For baking, it is recommended to preheat for 5 minutes for best results. For toasting, no preheating is needed.

What containers can I use?

Use ovenproof glass, ceramic, or metal. Ensure the top edge of the container is at least 3 cm from the heating elements. Avoid paper, cardboard, and plastic.

How to clean the appliance?

Unplug and allow to cool. The rack, pan, and drip pan are dishwasher safe. The crumb tray slides out to be cleaned with soapy water. Do not use metal scouring pads or abrasive cleaners.

Why is there smoke or a burning smell?

Food residue in the crumb tray or on the walls may burn. Clean all parts thoroughly as indicated in the Cleaning and Maintenance section.

The heating elements turn on and off, is this normal?

Yes, they cycle to maintain temperature. During toasting, only the upper element works; during baking, both elements work.

Where to find replacement parts?

Part numbers: rack (CTO650-91), crumb tray (4850), baking pan (46), drip pan (43). To order, contact service at 1-800-738-0245 (U.S./Canada).

USER MANUAL CTO649 BLACK & DECKER

Please Read and Save this Use and Care Book

Countertop Oven/Broiler

Black-and-white photo of a small electric toaster oven with open lid and control knobs (no visible text or symbols)

Register your product online at www.prodprotect.com/applica,

for a chance to WIN \$100,000!

For US residents only

Accessories/Parts (USA/Canada)

When using electrical appliances, basic safety precautions should always be followed, including the following:

Read all instructions.
☐ Do not touch hot surfaces. Use handles or knobs.
☐ To protect against risk of electrical shock, do not immerse cord, plug, or any non-removable parts of this oven in water or other liquid.
☐ Close supervision is necessary when any appliance is used by or near children.
☐ Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
☐ Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or is dropped or damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair, or electrical or mechanical adjustment. Or, call the appropriate toll-free number listed on the cover of this manual.
☐ The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
☐ Do not use outdoors.
☐ Do not let cord hang over edge of table or counter, or touch hot surfaces.
☐ Do not place on or near a hot gas or electrical burner, or in a heated oven.
☐ Extreme caution must be used when moving an appliance containing hot oil or other hot liquid.
☐ To disconnect, turn any control to "off" then remove plug from wall outlet.
☐ Do not use appliance for other than intended use.
☐ Oversize foods or metal utensils must not be inserted in this appliance, as they may create a fire or risk of electric shock.
☐ A fire may occur if the toaster oven is covered or touching flammable material including curtains, draperies, walls and the like, when in operation. Do not store any item on top of unit when in operation.
☐ Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts resulting in a risk of electric shock.

☐ Use extreme caution when removing tray or disposing of hot grease.
☐ Extreme caution should be used when using containers constructed of other than metal or glass.
☐ Do not store any material, other than manufacturer's recommended accessories, in this oven when not in use.
☐ Do not place any of the following materials in the oven: paper, cardboard, plastic wrap, and the like.
☐ Do not cover crumb tray or any parts of the oven with metal foil. This will cause overheating of the oven.
☐ To stop toasting, turn toast browning control to OFF. To stop baking or broiling, turn temperature control OFF and Timer to 0.

SAVE THESE INSTRUCTIONS.

GROUNDED PLUG

As a safety feature, this product is equipped with a grounded plug, which will only fit into a three-prong outlet. Do not attempt to defeat this safety feature. Improper connection of the grounding conductor may result in the risk of electric shock. Consult a qualified electrician if you are in doubt as to whether the outlet is properly grounded.

ELECTRICAL CORD

a) A short power-supply cord (or detachable power-supply cord) is to be provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
b) Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use.
c) If a long detachable power-supply cord or extension cord is used,

1) The marked electrical rating of the detachable power-supply cord or extension cord should be at least as great as the electrical rating of the appliance,

2) If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord, and

3) The longer cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over.

Note: If the power supply cord is damaged, it should be replaced by qualified personnel or in Latin America by an authorized service center.

GETTING FAMILIAR WITH YOUR UNIT

Product may vary slightly from what is illustrated.

Line drawing of a portable air purifier with ventilation grilles and base (no text or symbols)

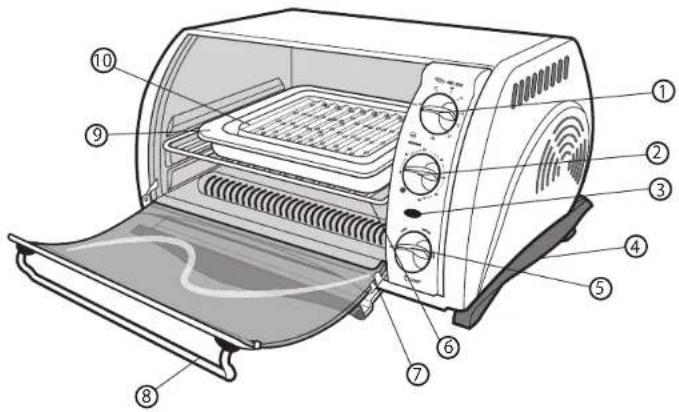

Labeled diagram of a toaster oven showing interior components and exterior view with numbered parts

1. Toast and Bake/Broil temperature control

2. 60-minute bake timer

3. On indicator light

4. Side handle

5. Toast browning control

+ 6. Slide rack (Part # CTO650-91 )

+7. Slide-out crumb tray(Part # 4850)

1. Door handle

+ 9. Bake pan (Part # 46)

† 10. Broil rack (Part # 43)

1. Extra-deep curved interior

† Consumer replaceable/removable parts

Important:

When making toast or using

the TIMER function, always

turn the dial past 20 and

then turn back or forward

to desired setting.

KOSU, LUC. 200-19.6971 No. 85168, RZ

C A UT IO

THIS OVEN GETS HOT WHEN

IN USE. ALWAYS USE OVEN

MITTS OR POT HOLDERS

WHEN TOUCHING ANY

OUTER OR INNER SURFACE OF

THE OVEN.

How to Use

This product is for household use only.

GETTING STARTED

1. Wash all parts as instructed in the Care and Cleaning section.
2. Insert the crumb tray underneath the bottom heating elements.
3. Plug the unit into a standard outlet.

TOASTING

1. Insert the slide rack in the rack slot with the curved end toward the back of the oven (A). It is not necessary to preheat the oven for toasting.
2. Set the toast browning control as desired. For best results, select the medium setting for your first cycle, then adjust lighter or darker to suit your taste.

3. Turn temperature control to Toast setting. The On indicator light comes on and stays on during the toasting cycle. When toasting is done, you hear a bell sound. The On indicator light goes out.

4. Turn the toast browning control to Off.

5. Using an oven mitt or pot holder, open the door and slide out the slide rack to remove food.

Caution: The oven is hot. Do not let your skin touch any surface.

Tip for multiple toasting cycles:

For best results when making consecutive batches of toast, allow a short cooldown period between toasting cycles.

BAKING

1. Place bake pan containing food to be cooked on the slide rack.
2. Turn the temperature control to the desired temperature setting.

a. If not using the bake timer, turn the control to On and monitor the food.
b. If using the 60-minute bake timer, turn the control to the desired number of minutes.

Important: When making toast or using the TIMER function, always turn the dial past 20 and

then turn back or forward to desired setting.

Note: For best results, always preheat the oven for 5 minutes.
3. When finished cooking, turn the temperature control to Off.
4. If using the 60-minute bake timer, you will hear a bell sound once it reaches the set time. If not, when cooking is done, turn the Timer to 0 (off). The On indicator light goes out.
5. Using an oven mitt or pot holder, open the door and slide out the slide rack to remove the bake pan.

Caution: The oven is hot. Do not let your skin touch any surface. BROILING

1. Insert the broil rack in the bake pan and place both on the slide rack (B).
2. Turn time selector to 20 and then turn back or forward to desired broiling time, including 5 minute preheat.
3. When finished broiling, using an oven mitt or pot holder, slide out slide rack to remove bake pan.

Caution: The oven is hot. Do not let you skin touch any surface.

1. Turn temperature control to Off and 60-minute bake timer to 0 (off).

Care and Cleaning

This product contains no user serviceable parts. Refer service to qualified service personnel.

1. Turn off unit, unplug from wall outlet and let it cool before cleaning.
2. Clean the glass door with a nylon pad and sudsy water. Do not use a spray glass cleaner.
3. To remove slide rack, open the door, pull the rack forward and out. Wash in warm, sudsy water or in the dishwasher.
   To remove stubborn spots, use a polyester or nylon pad. To replace the slide rack, open the door completely, slide into the rack slot and close the door.
4. Wash the bake pan and broil rack in warm, sudsy water or in the dishwasher. To minimize scratching, use a polyester or nylon pad.

1. To remove the crumb tray, grasp the handle at the front of the oven and pull it out (C). Dispose of crumbs and wash the tray in warm, sudsy water. Remove stubborn spots with a nylon mesh pad. Be sure to dry thoroughly before inserting the tray back into the oven.

NONSTICK COATING

1. Unplug the oven and let it cool, then wipe with a soapy sponge or nylon pad after each use.
2. Do not use a chemical oven cleaner. Do not use any abrasive cleansers or scouring pads as they may harm the coating. Dry with paper towel or soft cloth.

EXTERIOR

Important: This oven gets hot. When in use, always use oven mitts or potholders when touching any outer or inner surface of the oven.

Let the oven cool completely before cleaning any outer surface. Wipe with a damp cloth or sponge and dry with paper towel or soft cloth.

COOKING CONTAINERS METAL, OVENPROOF GLASS

Metal, ovenproof glass without lids or ceramic bakeware can be used in your oven. Follow manufacturer's instructions. Be sure the top edge of the container is at least 1.5" (3.81 cm) away from the upper heating elements.

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE	SOLUTION
Unit is not heating or stops heating.	Electrical outlet is not working or oven is unplugged.	Check to make sure outlet is working. Both the temperature control and the timer must be set in order for the oven to function.
Second toasting is too dark. Setting	on toast is too dark. If doing repeated toasting in the oven, select a shade slightly lighter than the previous setting.
Moisture forms on the inside of the glass door during toasting.	The amount of moisture differs in different products, whether bread, bagels or frozen pastries.	The moisture that forms on the oven door is quite common and will usually disappear during the toasting cycle. Since the oven is closed the moisture cannot evaporate as it would in a toaster.
Food is overcooked or undercooked.	Temperature and cook time may need to be adjusted.	As your toaster oven is much smaller than a regular oven, it may heal up faster and cook faster. Try lowering the temperature 25°F from the suggested temperature in a recipe or on a label.
There is burnt food odor or smoking when oven is being used.	There are remnants of food in crumb tray or on the walls of the oven.	Refer to the directions in the CARE AND CLEANING section of this Use & Care booklet. Make sure all parts of the oven, baking pan and rack are clean.
Heating elements do not seem to be on.	The heating elements cycle on and off during baking.	Check the oven to make certain the function desired is being used. On broil, only the top element is on.

Line drawing of a portable air purifier with ventilation grilles and a label pointing to the lid (no text or symbols on the device itself)

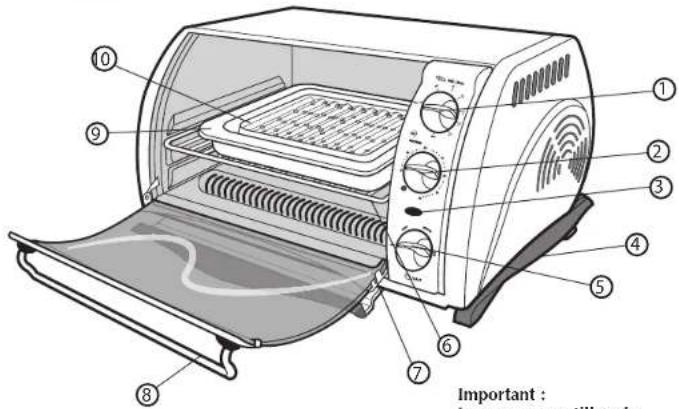

Labeled diagram of a toaster oven showing interior components and exterior view

Importante:

Line drawing of a portable electric heater with ventilation grilles and a label pointing to the lid (no text or symbols on the device itself)

Important :

KCS, LLC, 200-756-011 No. 20148-82

ATTENTION

10

LE FOUR DEVIENT CHAUD LORSQU'IL EST EN MARCHE. TOUJOURS UTILISER DES MITAINES DE CUISINE OU DES POIGNÉES POUR TOUCHER LES SURFACES EXTÉRIEURES OU INTÉRIEURES DU FOUR.

Utilisation

For service, repair or any questions regarding your appliance, call the appropriate 800 number on cover of this book. Please DO NOT return the product to the place of purchase. Also, please DO NOT mail product back to manufacturer, nor bring it to a service center. You may also want to consult the website listed on the cover of this manual.

One-Year Limited Warranty

(Applies only in the United States and Canada)

What does it cover?

- Any defect in material or workmanship provided; however, Applica's liability will not exceed the purchase price of product.

For how long?

• One year after date of purchase.

What will we do to help you?

- Provide you with a reasonably similar replacement product that is either new or factory refurbished.

How do you get service?

• Save your receipt as proof of date of sale.
• Visit the online service website at www.prodprotect.com/applica, or call toll-free 1-800-231-9786, for general warranty service.
  • If you need parts or accessories, please call 1-800-738-0245.

What does your warranty not cover?

• Damage from commercial use
• Damage from misuse, abuse or neglect
• Products that have been modified in any way
- Products used or serviced outside the country of purchase
• Glass parts and other accessory items that are packed with the unit
- Shipping and handling costs associated with the replacement of the unit
- Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.)

How does state law relate to this warranty?

- This warranty gives you specific legal rights. You may also have other rights that vary from state to state or province to province.
