Technical Features	Stainless steel case, 38 mm diameter, 10.7 mm thickness
Movement	Automatic movement GP01800-0006
Display	Blue dial with rose gold indexes, rose gold hands
Water Resistance	Water resistant up to 100 meters
Materials	Stainless steel, anti-reflective sapphire glass
Bracelet	Stainless steel bracelet with deployant clasp
Usage	Luxury watch for daily use and special occasions
Maintenance	Recommended service every 3 to 5 years
Safety	Do not expose to strong shocks or magnetic fields
General Information	2-year warranty, certificate of authenticity included

Frequently Asked Questions - Laureato 80189D11A182311A Girard-Perregaux

How do I set the time on the Girard-Perregaux Laureato 80189D11A182311A?

To set the time, gently pull the crown to position 2. Turn the crown clockwise or counterclockwise to adjust the time. Push the crown back to its original position.

How do I change the battery of the Girard-Perregaux Laureato 80189D11A182311A?

The Girard-Perregaux Laureato is an automatic watch and does not require a battery change. If you experience any operational issues, please consult a professional watchmaker.

What is the water resistance of the Girard-Perregaux Laureato 80189D11A182311A?

This watch is water resistant up to 100 meters, meaning it is suitable for swimming and water activities but not for scuba diving.

How do I maintain my Girard-Perregaux Laureato 80189D11A182311A?

To maintain your watch, clean it regularly with a soft, dry cloth. Avoid exposure to harsh chemicals and have it serviced every 3 to 5 years by a professional.

What should I do if my Girard-Perregaux Laureato watch is not working?

If your watch is not working, try winding it manually by turning the crown clockwise. If it still does not work, please consult a professional watchmaker.

Can I wear my Girard-Perregaux Laureato every day?

Yes, the Girard-Perregaux Laureato is designed for daily use. Its robustness and design make it an ideal watch for all occasions.

USER MANUAL Laureato 80189D11A182311A Girard-Perregaux

INDICATEUR JOUR NUIT 28

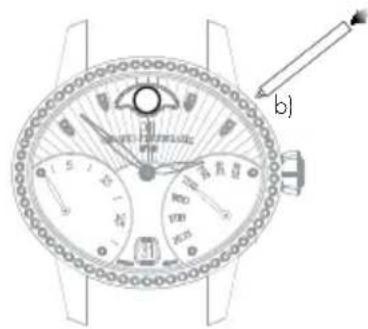

INDICATEUR DES PHASES DE LUNE 29

BI-RETRO 31

CALENDRIER COMPLET 34

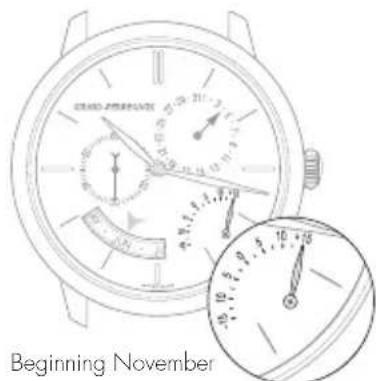

CALENDRIER ANNUEL ET EQUATION DU TEMPS 37

CALENDRIER PERPÉTUEL 40

INDICATEUR JOUR NUIT

Introduction

You are now the proud owner of a Girard-Perregaux watch, and we would like to thank you for your choice.

Our expert watchmakers and craftsmen have mastered all the expertise required to create exceptional pieces, from traditional watchmaking to the latest cutting-edge technologies.

Our uninterrupted history spanning more than two centuries, our dozens of watch patents and our never-ending quest for innovation make our Brand one of the most prestigious names in Swiss Haute Horlogerie.

Our heritage is our most precious asset, and we are proud to count you as one of its guardians.

We invite you to consult the user guide and hope you enjoy your Girard-Perregaux watch.

INTERNATIONAL WARRANTY

The international warranty below is applicable to all Girard-Perregaux watches sold by Girard-Perregaux brand authorized dealers and submitted for repair or inspection under warranty in all countries.

Only Girard-Perregaux authorized Repair Centers are authorized to provide the service set out by the international warranty, in accordance with Girard-Perregaux's instructions. Any service, repairs or other operations on your watch not performed by a Girard-Perregaux authorized Repair Center shall render the international warranty void.

We guarantee your watch against any lack of conformity and against any defect due to the materials used for a period of two years from the purchase date. If during this period your timepiece were to exhibit one of these defects, we are committed to repairing it free of charge. Once the warranty period has expired, repairs will be invoiced for parts and labor.

To be entitled to this warranty, you must submit a copy of the warranty certificate, properly completed, dated, stamped and signed by an authorized dealer or distributor. You are therefore advised to keep the Girard-Perregaux international warranty certificate safe, as it is the only document validating the warranty.

If need be, we recommend giving the watch to be inspected or repaired to one of our exclusive distributors or authorized dealers, who will send it to our nearest authorized Repair Center. You can also send your watch directly to one of our authorized Repair Centers.

If posting your watch, we recommend packaging it very carefully and sending by secure mail, to prevent any incident in transit.

Girard-Perregaux can under no circumstances guarantee the authenticity of Girard-Perregaux products acquired outside its official distribution and authorized dealer network.

This warranty entitles you to specific aforementioned rights, which may be supplemented by other rights varying between countries.

The warranty does not cover:

Battery, leather, rubber and fabric straps;
The consequences of wear and normal aging of the watch (in particular scratches, scoring, etc.);
Damage caused deliberately, or resulting from incorrect handling, negligence or an accident;
Damage resulting from abnormal use or misuse (in particular impacts or crushing);
Watches with the identification number or any other identification mark deliberately removed or altered;
Loss and theft;
Damage caused by natural events such as fire, natural catastrophes and acts of war;
Any defect resulting from the addition of one or more accessories not issued from the manufacture Girard-Perregaux will automatically lead to the end of the warranty.

PRECAUTIONS FOR USE AND CARE

Your watch has been manufactured with the greatest care, and will provide years of service if you take the following precautions:

1. Precautions for use and care

• Never activate the crown or push buttons of your watch in water. If your watch has a screw-down crown, make sure that it never comes into contact with water when its crown is unscrewed:
  Avoid thermal shocks and exposing your watch to extreme temperatures, below 0^ or above 60^ (sauna, baths, etc.);
• Never use corrosive or chemical products to clean your watch;
• Avoid contact with certain chemical substances (petrol, thinners, perfumes, cleaning products, glues, paints, etc.), to prevent any damage to your watch and its leather strap;
  Avoid exposing your watch to a powerful magnetic field (magnets, loudspeaker, etc.);
• Avoid violent impacts;
  Avoid leaving your watch immobile for long periods of time. Only regular wear prevents the oils contained in the movement from congealing;
• Never attempt to open the case of your watch yourself;
• Rinse your watch with fresh water after bathing in the sea; avoid bathing with a leather strap to prevent accelerated wear.

2. Maintenance service

Therefore, to ensure that your watch continues, after years of use, to provide the accuracy you can rightly expect, Girard-Perregaux recommends entrusting your watch to one of its authorized Repair Centers every 2 to 3 years for the necessary inspections.

WATER-RESISTANCE PRECAUTIONS

Your watch has undergone numerous water-resistance tests in our workshops, depending on the required protection level, to ensure you can enjoy the following activities:

ACTIVITIES / DEGREE OF WATER-RESISTANCE	3 atm - 3 bar 30 m - 100 ft	5 atm - 5 bar 50 m - 165 ft	10 atm - 10 bar 100 m - 330 ft	50 atm - 50 bar 500 m - 1650 ft
Rain, splashing	yes	yes	yes	yes
Shower, bath, surface water sports	no	yes	yes	yes
Swimming, snorkeling	no	no	yes	yes
Scuba diving	no	no	no	yes

1. Water-resistance precautions

Your watch has been rigorously checked and will retain its water-resistance if you take the following precautions:

• Ensure that the crown and the push buttons on your watch are in their initial position - position 0 - to prevent any damage to the mechanism. To do this, press the crown against the case.
  If your watch is equipped with a screw-down crown, ensure that it is locked after any adjustment and before use in an aquatic environment. To do this, screw the crown in a clockwise direction, whilst keeping it pressed against the case of your watch.
• Never activate the crown or push buttons of your watch under water, if the watch is in contact with water or when it is wet.

2. Water-resistance test

The water-resistance of your watch is ensured by a sophisticated system of seals. These are subject to the damaging effects of a range of external factors (perspiration, changes in temperature, ultraviolet rays, salt or chlorinated water, dust, etc.). For this reason, and to ensure the seals can carry out their role perfectly, Girard-Perregaux recommends entrusting your watch to one of its authorized Girard-Perregaux Repair Centers every 2 to 3 years for the necessary water-resistance inspections.

USERGUIDE

SETTINGS

CROWN

Introduction

The crown is a component allowing the adjustment of different watch functions, such as setting the time, manual winding and on certain models, setting the day or the date.

Simple crown

Setting

A. Pull out the crown to go on to different settings.
B. To assure its water-resistance, it is important that the crown is pushed back into position O) once you have finished using it. To do this, press the crown against the case as illustrated opposite.

Screw-down crown

The screw-down crown ensures perfect water-resistance to the depth for which the model was designed.

Setting

A. Unscrew the crown to go on to different settings. To do this, turn the crown counterclockwise.
B. To assure its water-resistance, it is important that the crown is pushed back into position 0) once you have finished using it. To do this, screw the crown in clockwise while pressing it against the case, as illustrated opposite.

WINDING

Introduction

Winding allows the movement to store up the energy necessary for your watch to function well.

Mechanical movements manufactured and produced at the manufacture Girard-Perregaux can be manual or automatic depending on the model of your watch.

Manual winding mechanical movement

This type of movement means that to function normally, your watch needs to be regularly wound. Depending on the model and the power reserve of your watch, it can go between 30 to 60 hours between two windings.

Setting

To wind your watch, turn the crown clockwise when it is in position O) or O') when it is a screw-down crown. As soon as it starts to resist, it means the mechanism is sufficiently wound.

Warning: Do not force if the resistance increases, the movement mechanism could be damaged.

Automatic mechanical movement

This term means that your watch automatically stores up energy as you wear it on your wrist. Indeed, your daily movement allows the oscillating mass to carry out rotating movements which, thanks to a clockwork system, reproduce an energy to the movement and allows it to automatically wind itself. Daily wear is enough to assure the power reserve necessary for your watch to function well without it being necessary to wind it.

If your watch has not been worn for several consecutive days, it has to be manually wound. To do this, please refer to the paragraph above 'Manual winding mechanical movement'.

Quartz movement

Quartz watches are battery-powered and do not need to be wound. The battery must be replaced periodically, approximately every 2 years. To have the battery replaced, contact an approved Girard-Perregaux Repair Centre.

Recycling

New or spent batteries must not be disposed of with household waste. These components must be taken to a collection point specifically designed for recycling electrical and electronic equipment and batteries. By ensuring that these products are correctly and appropriately disposed of, you are helping to prevent any potentially harmful effects on the environment and on human health. Recycling materials will help protect natural resources.

Part Name	Hazardous Substances
	Lead (Pb)	Mercury (Hg)	Cadmium (Cd)	Hexavalent Chromium (Cr (VI))	Polybrominated biphenyls (PBB)	Polybrominated diphenyl ethers (PBDE)
Brass components (main plate and bridges)	X	O		O	O	O

0

PRACTICAL FUNCTIONS

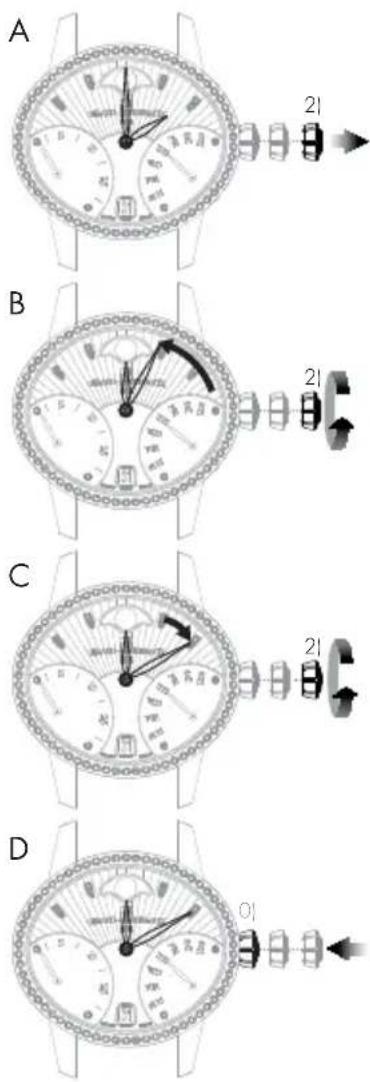

HOUR AND MINUTE

Introduction

Setting the time of your watch is completed via the crown. This could be in two or three positions, depending on the model of your watch.

2 position crown

3 position crown

O) Movement manual winding position (crown not pulled out).
1) Time setting position (crown pulled out).
O) Movement manual winding position (crown not pulled out).
1) Date setting position (crown half pulled out).
2) Time setting position (crown fully pulled out).

If your watch has a date indicator, make sure that the hands are in the date change position, i.e. at midnight rather than midday. Use midnight as a reference for the date and day change to ensure you are positioned at the right time of day.

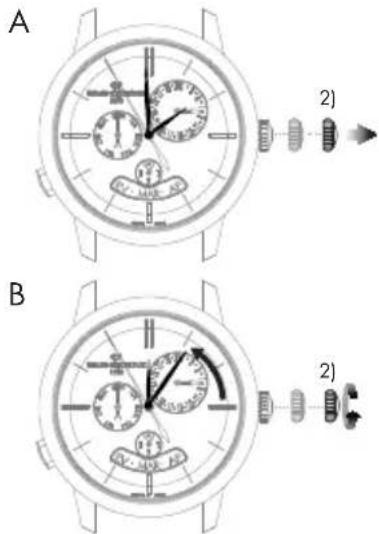

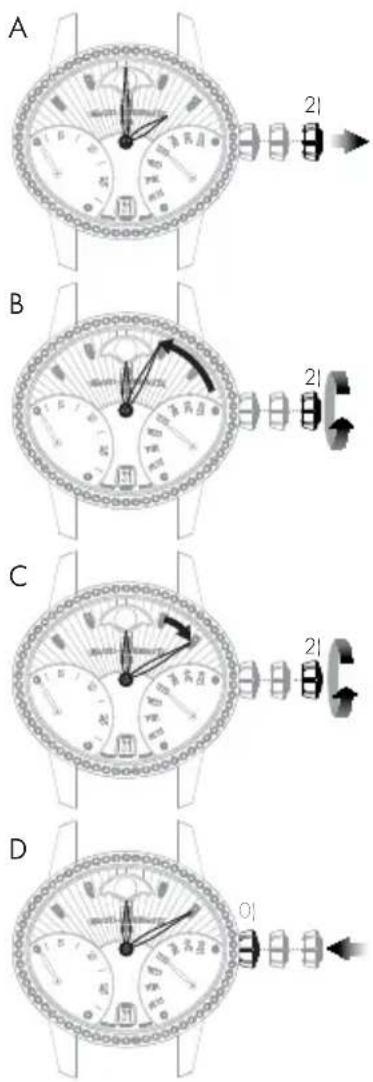

Setting

A. Pull your crown out to the time setting position. On watches with a seconds indicator, the seconds hand will stop.
B. Turn your crown clockwise so as to indicate the selected time minus 5 minutes.
C. Slowly move the minute hand forward clockwise, stopping it exactly at the selected minute.
D. At the desired time, push the crown back against the case, in position 0). The watch will restart immediately.

Warning: After making any setting, always return the crown to its original position against the case, in position 0), to preserve the water-resistance of your watch and prevent any damage to the mechanism. To do so, refer to the chapter "Crown".

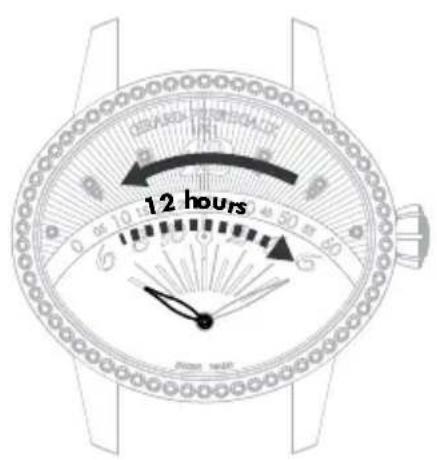

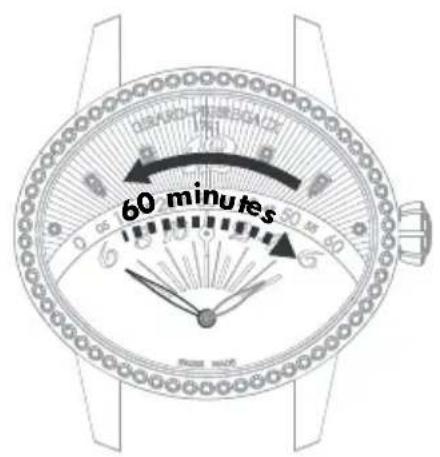

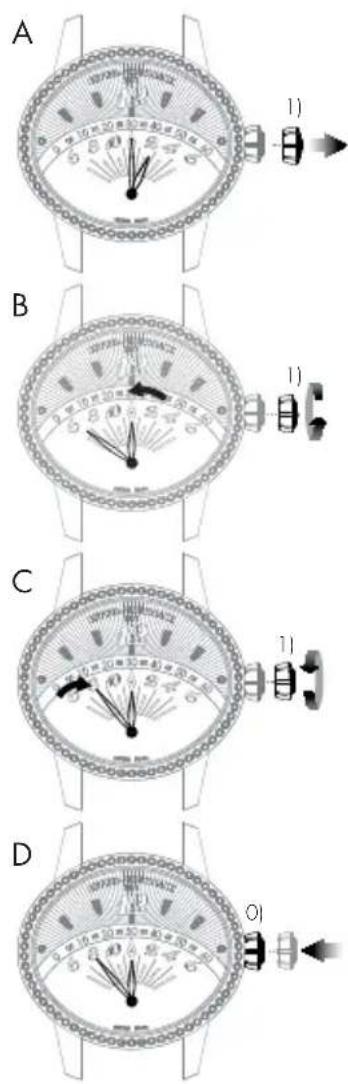

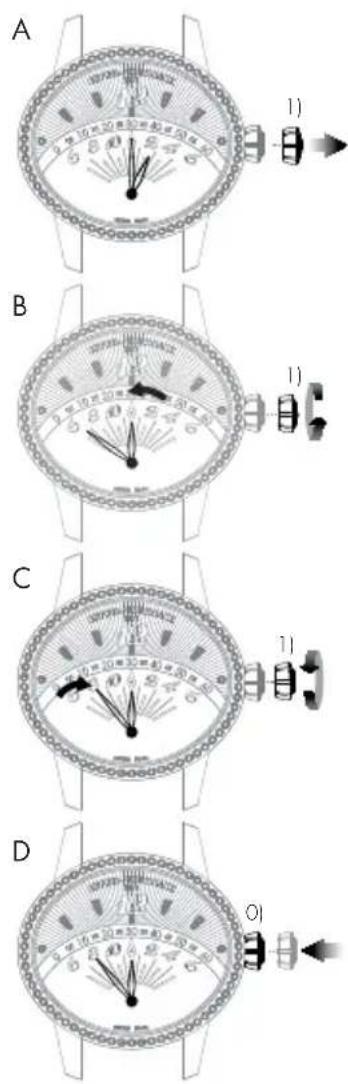

Retrograde display

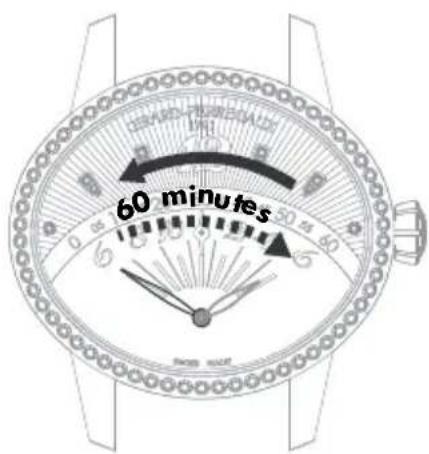

The retrograde hour and minute hands move from 6 to 6 o'clock (left to right) and from 0 to 60 minutes (left to right) respectively, before returning immediately to their starting point and beginning their journey once more.

Hour hand Minute hand

Setting

A. Pull your crown out to the time setting position.
B. Rotate the crown until the required time, less 5 minutes, is displayed.
C. Slowly move the minute hand forward clockwise, stopping it exactly at the selected minute.
D. At the desired time, push the crown back against the case, in position O). The watch will restart immediately.

Warning: After making any setting, always return the crown to its original position against the case, in position 0), to preserve the water-resistance of your watch and prevent any damage to the mechanism. To do so, refer to the chapter "Crown".

DATE

Introduction

The date indication shows the number of the day in the month.

This function enables rapid date setting for your watch without altering the time. The indication of the date is synchronized with the hour and minute hands. In any case, you need to correct the date display for any month not lasting 31 days, for a single date.

Warning: Do not perform this operation between 8 PM and 8 AM as the date change mechanism is engaged, and the mechanism could become damaged.

Setting

Window display date

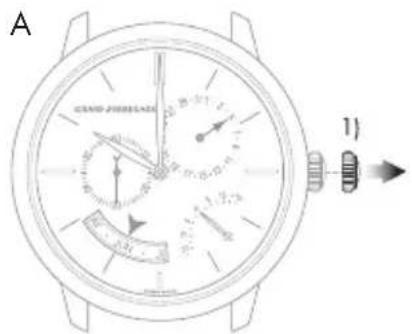

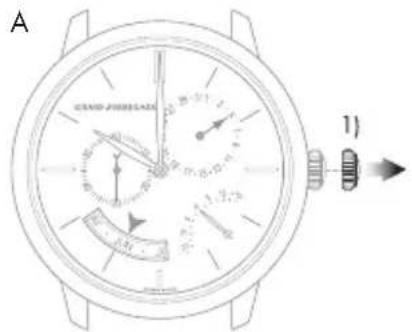

A.Pull out the crown of your watch into the date setting position, in position 1).
B. Turn the crown clockwise until the desired date appears in the window. According to the model, the crown may be turned in the opposite direction.

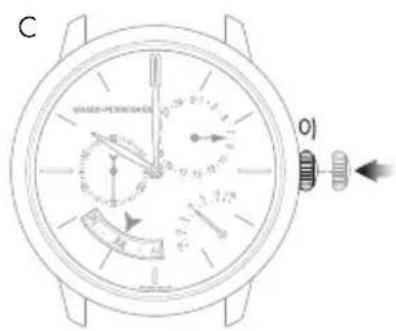

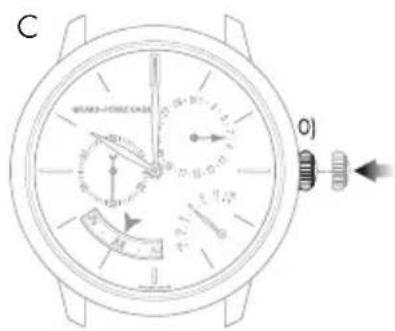

C. At the desired date, push the crown back against the case, in position O).

Warning: After making any setting, always return the crown to its original position against the case, in position 0), to preserve the water-resistance of your watch and prevent any damage to the mechanism. To do so, refer to chapter "Crown".

Hand display date

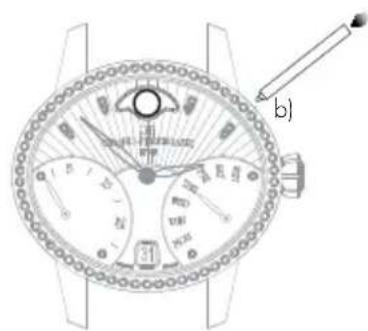

If your watch has a hand display date, you can correct it via the corrector, found on the case of your watch.

Press on the corrector, with the help of the little tool delivered with your watch, until the date hand indicates the desired date. One press on the corrector corresponds to one day forward.

POWER RESERVE INDICATOR

Introduction

This indicator allows you to know the status of your watch power in real time, or how long your watch can work for before it will need to be wound again.

Reading

The power reserve status of your watch is indicated by a little hand moving along a graded arc.

Setting

The power reserve indicator is synchronized with the movement, so it does not need to be set.

Stop soon Full

SECOND TIME ZONE

Introduction

This function, which is highly valued by travellers, is used to display two time zones simultaneously: The reference time or ‘home time’, and the local time.

Reading

The reference time («home time») is displayed on the central 24-hour graduated disc. As usual, the local time is read on the external graduated scale.

Setting

Reference time («home time») hours and minutes

Before every setting, make sure the position of the hands corresponds to the date changing at midnight and not at midday. Use midnight as an approximate reference for the date jump to ensure you are positioned at the right time of day.

Warning: The date hand only follows the local hour hand (set using the push Buttons at 2 o'clock and 4 o'clock).

A. Pull the crown of your watch out to the time setting position, in position 1). The seconds hand will stop.

B. Turn the crown clockwise so as to indicate the selected time minus 5 minutes. This setting simultaneously moves the reference (‘home time’) hour and minute hands and the local hour hand.

C. Slowly move the minute hand forward in a clockwise direction, stopping it exactly at the selected minute.
D. At the desired time, push the crown back against the case, in position 0); the watch will restart immediately.

Warning: After making any setting, always return the crown to its original position against the case, in position 0), to preserve the water-resistance of your watch and prevent any damage to the mechanism. To do so, refer to chapter "Crown".

Date change by hand

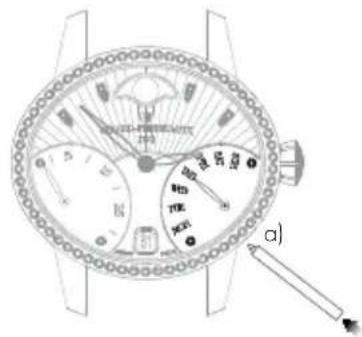

Press on the corrector a) located at 8 o'clock using the small tool supplied with your watch, until the date hand indicates the desired date. One press on the corrector corresponds to one day forward.

Warning: Between 11PM and midnight, a date correction using corrector a) will only enable the date to be moved forward by one day. However, this action will not damage your mechanism.

Second time zone (local time)

The push Buttons located at 2 o'clock and 4 o'clock can be used to move the second time zone hour hand forwards or backwards (local time). Press once to move the time forwards or backwards one hour.

C

D

WORLD TIME INDICATOR

Introduction

This function tells you the local time in 24 of the world's major cities, at the same time as your own. The rim of your watch's dial is equipped with a "24 hour" rotating disc synchronised with the hour hand, and a second rotating disc bearing the names of these cities. The time in each time zone can be read on the 24 hour disc opposite the corresponding reference city.

Setting

Hour and minute

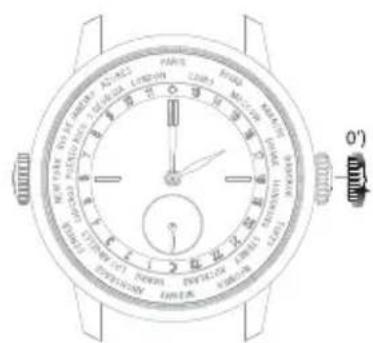

A. Unscrew and pull out the watch crown to the time-setting position, in position 1). The seconds hand will stop.
B. Rotate the crown until the required time, less 5 minutes, is displayed.
C. Slowly move the minute hand forward clockwise, stopping it exactly at the selected minute.
D. At the desired time, screw the crown back against the case, in position 0); the watch will restart immediately.

Warning: After making any setting, always screw the crown back into its original position against the case, in position 0), to preserve the water-resistance of your watch and prevent any damage to the mechanism.

Note that the "24 hour" disc is synchronised with the hour and minute hands. It does not need to be set.

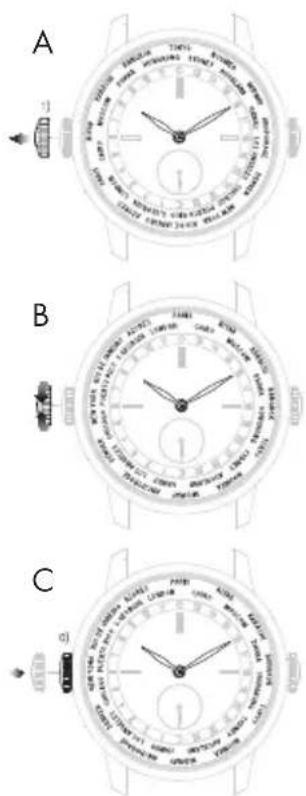

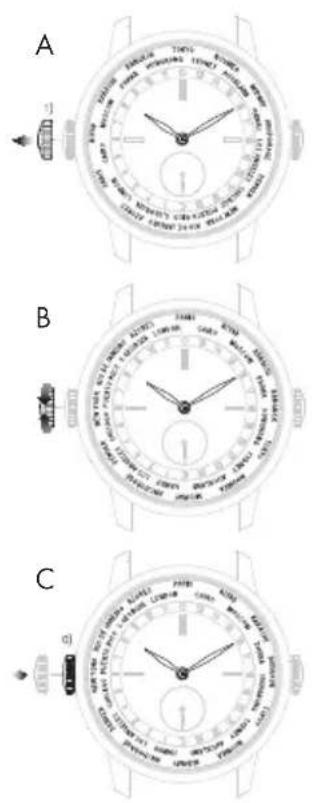

City ring

A. Unscrew the crown at 9 o'clock in position 1).
B. Turn the crown to 12 o'clock for the city corresponding to the time zone of your location.
C. When the desired time zone is correctly set to 12 o'clock, screw the crown back against the case, in position O).

Warning: After making any setting, always screw the crown back into its original position against the case, in position 0), to preserve the water-resistance of your watch and prevent any damage to the mechanism.

Winter time / Summer time

The summer time system was adopted by certain countries for energy saving purposes. It consists of adding one hour to the legal time during the summer months.

The 1966 WW.TC watch does not take the summer time change into account, because it is not adopted by all countries (Japan, China, Taiwan, etc.). So a difference of one hour should be taken into account during this period.

24 time zones

The twenty-four time zones, each covering 15^ longitude (i.e. an hour each) and with the Greenwich Meridian as the origin, form the basis for Universal Time measurement (UT). While the hour indication depends on the time zone, the minute indication, unlike local time, is the same regardless of the zone.

TACHOMETRIC SCALE

Introduction

This function measures an average speed over a given distance.

Reading

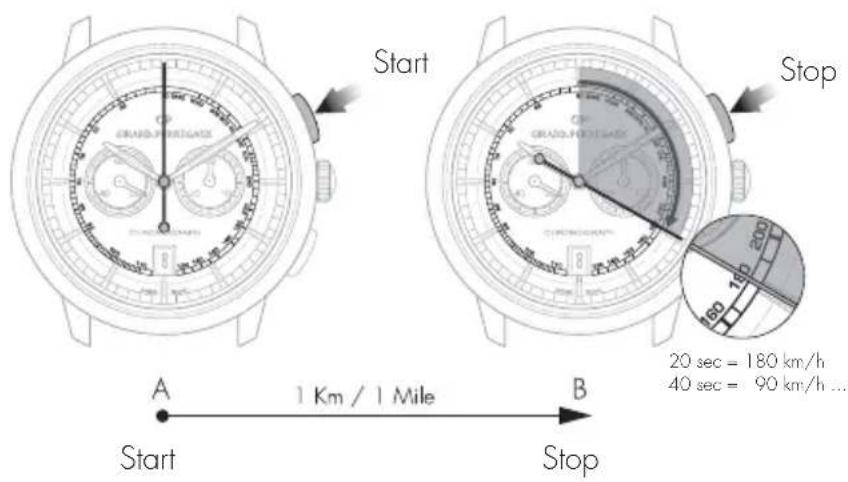

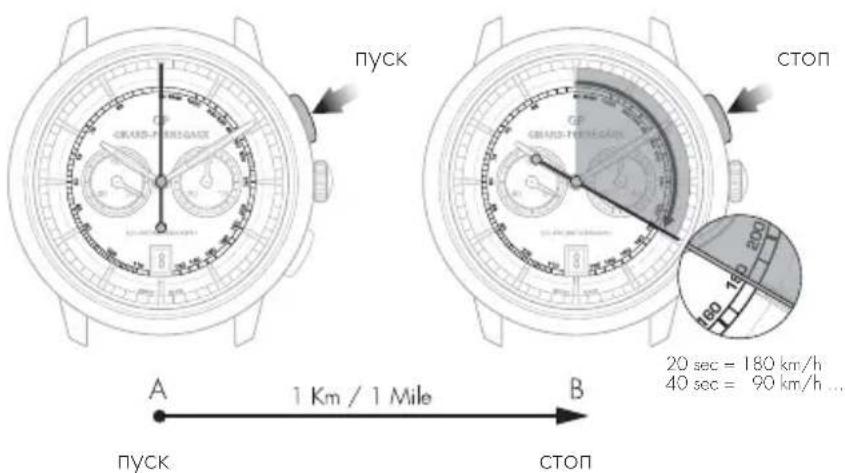

Let us take a road with 2 markers A and B set one kilometer (or mile) apart. Start your chronograph as your car passes marker A, then stop it as it passes marker B. Then read the average speed in kilometers/hour or miles/hour on the tachometer scale at the tip of the chronograph center seconds hand.

CHRONOGRAPH

Introduction

The chronograph seconds are displayed by a large center hand. The minute, and possibly the hour, are generally displayed by 1 or 2 small counters.

The seconds hand and the counters are interconnected.

On certain models, minute timing may also be indicated by a center hand pointing to the dial's graduated rim.

Setting

A. Press your watch's push button at 2 o'clock: The center seconds hand will start.
B. Press the same push button at 2 o'clock again: the center seconds hand will stop.
C. Press your watch's push-button at 4 o'clock: The center seconds and the counter hands will return to zero.

Warning: While the second hand is working, never reset to zero to prevent damage to the mechanism. Always check the second hand has stopped before resetting to zero.

ASTRONOMIC FUNCTIONS

DAY/NIGHT INDICATOR

Introduction

The day/night indicator uses a system of discs representing the sun and moon to indicate whether it is day or night. The special window depicts the night sky, in which the shape of the moon and sun changes as the day advances.

Reading

When setting the time, take into account the day/night indication, as this is synchronised with the hour and minute indications. For example, at midnight, the moon should appear at 6 o'clock, while at midday the sun should appear at 6 o'clock.

Midday Midnight

MOON PHASES INDICATOR

Introduction

Moon phases indication allows the reproduction of the moon cycle (new moon, first quarter, full moon, final quarter) by means of a disc or a window. The moon phases indicator offers a representation of the sky in which the form of the moon is shown at its different stages throughout the lunar month.

Reading

A disc, with two moons placed in a starry sky, turns in a window.

At the start of each moon phase, one of the two moons appears in the left-hand section of the window; it initially appears as a slim crescent, emerging from behind the rounded edge, then gradually grows over the course of the days.

In the middle of the lunar month, the moon appears in the middle of the window in its full form. It then starts to gradually disappear behind the second rounded cover on the right.

New moon First quarter Last quarter Full moon

Setting

For watches with a corrector, press on the corrector a), using the little tool supplied with your watch, until the desired moon phase is displayed. One press on the corrector corresponds to one day forward.

Warning: Do not correct the moon phases indicator when the mechanism changing the date is engaged, between 3 PM and 3 AM, as this could damage the mechanism. To be sure, use midnight as a reference for the date and day change to ensure you are positioned at the right time of day.

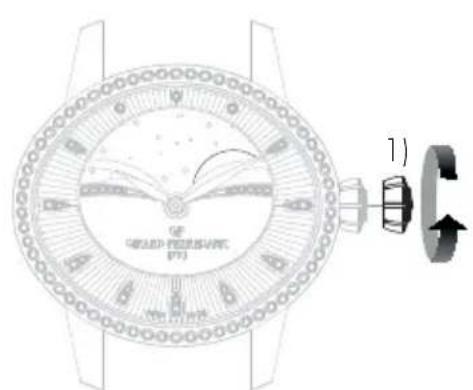

For watches without a corrector, pull the crown into position 1) and turn it clockwise until the desired moon phase is displayed.

Warning: After making any setting, always return the crown to its original position against the case, in position 0), to preserve the water-resistance of your watch and prevent any damage to the mechanism. To do so, refer to the chapter entitled "Crown".

*Corrector with variable position according to the model

BI-RETRO

Introduction

The retrograde seconds and day of the week hands move from 0 to 30 (up to down) and from MON to SUN (down to up) respectively before returning immediately to their starting point and beginning their journey once more.

Setting

Hour and minute

A. Pull out the crown of your watch into the hour setting position, in position 2).
B. Rotate the crown until the required time, less 5 minutes, is displayed.
C. Slowly move the minute hand forward clockwise, stopping it exactly at the selected minute.
D. At the desired time, push the crown back against the case, in position 0). The watch will restart immediately.

Warning: After making any setting, always return the crown to its original position against the case, in position 0), to preserve the water-resistance of your watch and prevent any damage to the mechanism. To do so, refer to the chapter "Crown".

Date

A.Pull out the crown of your watch into the date setting position, in position 1].
B. Turn the crown clockwise until the desired date appears in the window.
C. At the desired date, push the crown back against the case, in position 0].

Warning: After making any setting, always return the crown to its original position against the case, in position 0), to preserve the water-resistance of your watch and prevent any damage to the mechanism. To do so, refer to chapter "Crown".

Day of the week

The day can be corrected by pressing on the corrector a), positioned at 4.30, using a small tool delivered with your watch. One press on the corrector corresponds to one day forward.

Warning: Do not change the day of the week between 19:00 and 1:00, when the date-change mechanism is being activated, as this could damage the movement.

Moon phases

Press corrector b), positioned at 14.30, using the small tool supplied with your watch, until the desired moon phase is displayed. One press on the corrector corresponds to one day forward.

Warning: Do not correct the moon phase indicator between 7:00 PM and 1:00 AM, when the date-change mechanism is being activated, as this could damage the movement. To be sure, use midnight as a reference for the date and day change to ensure you are positioned at the right time of day.

FULLCALENDAR

Introduction

As well as showing the hours and the minutes, the watchmaking complication "Full calendar" also clearly displays the date, the day of the week, the month and indicates moon phases.

Warning: Do not correct the calendar or the moon phases indicator when the mechanism changing the date is engaged, between 3 PM and 8 PM, as this could damage the mechanism. To be sure, use midnight as a reference for the date and day change to ensure you are positioned at the right time of day.

Setting

Hour and minute

Before every setting, make sure the position of the hands corresponds to the date changing at midnight and not at midday. To be sure, use midnight as a reference for the date and day change to ensure you are positioned at the right time of day.

A. Pull your crown out to the time setting position, in position 1). The seconds hand will stop.
B. Turn your crown clockwise so as to indicate the selected time minus 5 minutes.
C. Slowly move the minute hand forward clockwise, stopping it exactly at the selected minute.
D. At the desired time, push the crown back against the case, in position O1. The watch will restart immediately.

Warning: After making any setting, always return the crown to its original position against the case, in position 0), to preserve the water-resistance of your watch and prevent any damage to the mechanism. To do so, refer to the chapter "Crown".

Date change by hand

Press on the corrector a) located at 4 o'clock using the small tool supplied with your watch, until the date hand indicates the desired date. One press on the corrector corresponds to one day forward.

Warning: Going from the 31^st to the 1^st leads to a change in the month indicated (continuing to the next month).

Day of the week

Press on the corrector b) (located at 10 o'clock) using a small tool delivered with your watch, until the desired day of the week appears in the window.

Month

Press on the corrector c) (located at 2 o'clock) using a small tool delivered with your watch, until the desired month appears in the window.

Warning: Do not perform this operation if the date or calendar display is between the 30^th and the 2^nd , as the month change mechanism is engaged, as you risk damaging the mechanism.

Moon phases

Press on the corrector d) (located at 8 o'clock) using a small tool delivered with your watch, until the desired moon phase appears. One press on the corrector corresponds to one day forward.

ANNUALCALENDAR AND EQUATION OF TIME

Introduction

Unlike a conventional calendar mechanism, your annual calendar only requires date correction for February in non-leap years, i.e. 3 corrections in total in a 4-year cycle.

Setting

Hour and minute

Before every setting, make sure the position of the hands corresponds to the date changing at midnight and not at midday. Use midnight as an approximate reference for the date jump to ensure you are positioned at the right time of day.

A. Pull out the crown of your watch into the hour setting position, in position 2). The seconds hand will stop.
B. Turn your crown clockwise so as to indicate the selected time minus 5 minutes.
C. Slowly move the minute hand forward, stopping it exactly at the selected minute.
D. At the desired time, push the crown back against the case, in position 0); the watch will restart immediately.

Warning: After making any setting, always return the crown to its original position against the case, in position 0), to preserve the water-resistance of your watch and prevent any damage to the mechanism. To do so, refer to the chapter "Crown".

Date and month

Warning: Before making any correction, ensure that the time display is between 9:30 AM and 8:30 PM. Outside this range, any rotation of the stem in position 1) will have no effect. Use midnight as a reference for the date and day change to ensure you are positioned at the right time of day.

A. Turn the crown of your watch into the date setting position, in position 1).
B. Turn the crown until the day hand a) indicates the desired date. The crown can be turned in both directions. The month disc b) is synchronized with the date hand, so it does not need to be changed.
C. At the desired date, push the crown back against the case, in position 0); the watch will restart immediately.

Warning: After making any setting, always return the crown to its original position against the case, in position 0), to preserve the water-resistance of your watch and prevent any damage to the mechanism. To do so, refer to chapter "Crown".

Warning: For months with 30 days, the date takes approximately 4 hours 30 minutes to jump to the first day of the next month, passing through the 31^st . For February, the date takes approximately 7 hours 30 minutes to jump to the March 1^st , passing through the 30^th and 31^st .

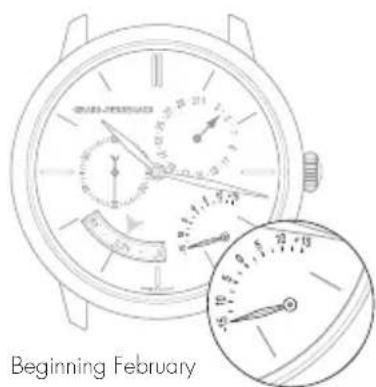

Equation of time

Introduction

The Earth's orbit around the sun is not perfectly circular. As with most of the celestial bodies in our solar system, its trajectory is elliptical. In addition, the Earth's axis is tilted in relation to the orbit's plane. A consequence of this irregular trajectory is that the length of the solar day - the interval between the times at which the sun twice passes the meridian at a given location - varies according to the season. The 24-hour day used for civil time is calculated using the average duration of the solar day.

Reading

The equation of time function indicates the difference between the mean time and the solar time. This difference is indicated by a little hand which moves along a graduated arc. It can extend to between approximately +14 and -16 minutes for certain dates at the start of February and November respectively.

Setting

The equation of time indicator is synchronized with the calendar readings, and therefore does not require adjustment.

PERPETUALCALENDAR

Introduction

The perpetual calendar indicates the date, day and month, taking into account the different lengths of the months in the Gregorian calendar, including leap years. Its "mechanical memory" therefore counts 1461 days, or four years.

Please note that this type of mechanism cannot take non-standard common years into account (years which are not leap years as they can be divided by 100 but not by 400, such as 2100).

Setting

Before making any correction, ensure that the time display is between 1:00 PM and 8:30 PM. Outside this range, any rotation of the stem in position 1) will have no effect. Use midnight as an approximate reference for the date jump to ensure you are positioned at the right time of day. Adjustment outside the hours of 1:00 PM and 8:30 PM will not cause any damage to the mechanism.

Hour and minute

Before every setting, make sure the position of the hands corresponds to the date changing at midnight and not at midday. Use midnight as an approximate reference for the date jump to ensure you are positioned at the right time of day.

A. Pull out the crown of your watch into the hour setting position, in position 2). The seconds hand will stop.
B. Rotate the crown until the required time, less 5 minutes, is displayed.
C. Slowly move the minute hand forward clockwise, stopping it exactly at the selected minute.
D. At the desired time, push the crown back against the case, in position 0); the watch will restart immediately.

Warning: After making any setting, always return the crown to its original position against the case, in position 0), to preserve the water-resistance of your watch and prevent any damage to the mechanism. To do so, refer to chapter "Crown".

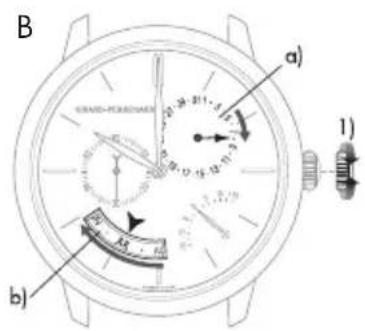

Date and month

A.Pull out the crown of your watch into the date setting position, in position 1).
B. Turn the crown until the day hand a) indicates the desired date. The crown can be turned in both directions. The month disc b) is synchronized with the date hand, so it does not need to be changed.
C. At the desired date, push the crown back against the case, in position O); the watch will restart immediately.

Warning: After making any setting, always return the crown to its original position against the case, in position 0), to preserve the water-resistance of your watch and prevent any damage to the mechanism. To do so, refer to chapter "Crown".

Warning: For months with 30 days, the date takes approximately 4 hours 30 minutes to jump to the first day of the next month, passing through the 31^st . For the month of February, the date takes approximately 7 hours 30 minutes to jump to the first of March in a leap year, passing through the 30^th and 31^st , and approximately 12 hours in a common year, passing through the 29^th , 30^th and 31^st .

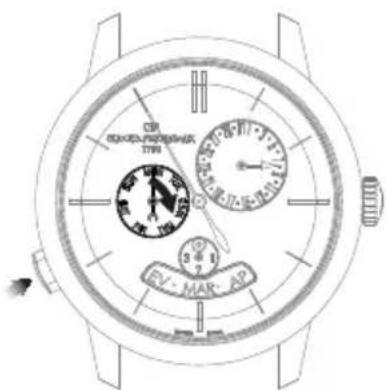

Day of the week

The day of the week is corrected by pressing the push-button at 8 o'clock. One press on the push- button corresponds to one day forward.

Please note that the push-button can be activated at any time of day without any risk of damage.

Leap year indicator

The leap year indicator is synchronised with the month disc, which is in turn synchronised with the date hand. It does not need to be set.

DEUTSCH

INHALT

INTERNATIONALE GARANTIE 91

Yacobar CTpeKa MHyTHaer CTpeKa

Hactpoika

A. BbTnHHe rOIOBky yacOB b noIOnKeHne dny yCTaHOBKn BpeMeHN.
B. C nOMOJIbIO 3aBOHONrOBoKN yCTaHOBnTe CTpeIKN TaKIM O6pa3OM, YTO6bOH NIOKA3bBAJIH a 5 MNHyT MeHbIe ToCHORo BpemeH.
C. Медельно вразашие минугю стpenky B habралени no yacoboi CTpekenke n octahOBITE ee ToHNO Ha bblbpaHHO MNHyTe.
D. Посné установки Вьбран Horо У са пижмite Глову К корпсу, Бер hyB ee B nonoxeHne 0).Часы Totua Bo3o6HOBaT CBOI xOД.

BHHMaHHe! KaXdbi pa3 nocne hactpoyn Bcerda Bo3Bpaaate ronobky B nepBOHaHbHoe noLoxehne, npKab ee K KopnyCy B noLoxehne 0, yTo6b coXpaHnTb BOIOCTOIOKcTB BaIHX YacOB N36ExaTb NObpexJeHn MEXAHN3Ma. Ira 3TOrO O3HakombTeCb c pa3dEnOM 3aboHNaR rONOBka>.

DATA

BVeJeHne

Hnkaa TaTbno3BOJeT yHaTb npAkoBbH OMeep H B MeCae.

YCTAHOBKa DAtbI N03BOJAEt 6bICTpo CMeHHTb DAty B Yacax, He N3MeHra NOKa3aHn BpeMeHN. HdNkauN DaTb CIHHXPOHn3INPOBaHa C YACOBn MmHyTHoN CTpeKAMn. Tem He MeHee, B Yacax C INDkATOpOM DaTbI Heo6xOIMo KopkeTnpoBaTb NOKa3aHn DaTb B KOHc MeCraueB, B KOTopbIX MeHee 31 dHr.

BnMaHne! 4To6bI n36exaTb NObpexdeHnaMexAHn3Ma, He yCTaHaBnBaTe DaTy B npomexyTke ot 20.00 do 08.00, nockoJIbky B 3O To BpeM MEXAHn3M CMeHb I DaTb I npxOJNT B DeJCTBHe.

Hactpoika

HnKauaHa DaTbI BOKoWKe

A. BbIyHHTe rOIOBky hAcOB B nOIOXeHHe dIy yCTaHOBKn dAtb (nONoxHHe 1).
B. Bpaaate ronobky no yacoboi ctpenke do tex nop, noka B okouke He NOBHTc HxHAR daT (B 3abncmoCTn OT MOeJIH HanpabHeHne BpaeeHnra roNOBKn MoKeT 6bIb pa3HbM).
C. Iocne yctaHOBKn HxHOn DaTb npnxMITE rOIOBky K KopnyCy, BepHyB ee B noJoxeHnE O.

BHHMaHHe! KaXdbi pa3 nocne HactpoKn BO3BpaaJte rONOBky B nepBOHaHbHoe nOOnKeHne, npxab ee K Kopnyc B noOnKeHne 0, qTO6bI coXPaHHT bOdoCToKocTb Baunx yacob n36eKaTb nobpeJeHn MEXAHN3Ma. IINr 3TOrO O3HaKoMbTeCb c pa3dEnOM 3abODHaR rONOBka>.

Ctpenoyha Hndkaun DaTbI

B yacax co ctpenoyho nHnkauee daTbe ee hactpoika ocyuaceTBnraetc npn nooyn Koppektopa ha o6patnoi ctopohe kopnyca yocob.

Haxmante Ha Khonky-koppektop npn nomou npinooxehoro K yacam nhtpymenta do tex nop, noka ctpenka kanehdapr He 6ydet yka3bvatb hyxhyo daty. Odno haxatne Ha KHonky-koppektop COOTBETCTBYET nepexody Bneped Ha ODNH LyHHb DeHb.

YKA3ATEJIb 3APACA XOДA

BVeDHeHne

TOT yka3aTeB no3BoJraR BIO6oM oMeH BPemHOnpeJeNt b CoToHne 3abOda MexAHn3Ma Baux HacOB NIN Bpema, OCTAOUeecr DO CNeDyUoero 3abo.

CHTbIBAHHe NOKa3AHn

3anac xoana yacob yka3bBaetc nnoMoU MO ManeHko CTpeKN, DnKyuueCn NO KpyroBoi Wkane C neHeHHaM.

Hactpoika

Hnkaa 3ana cna CnHXPOH3npoBaHa C MexAHN3MOM, NO3TOMy OHa He Tpe6yeT HactpoKn.

KOHEL 3BOOa NONHbN 3BOO

BTOPOUACOBOIPOC

BBeDHeHne

ФункиIMeETOCO6OE3HauHHeIpyTeWecTBeHHNKOB,TAKKAK OHa NO3BOJrEOTHOBpeMeHNOOTo6paxaTbDbaYacobxNORca:3TANOHoe (ДOMaUHee)IMeCTHOB Bpem.

CHTbBAHHe NOKa3AHN

3TANOHoe (DOMaunHee) Bpemr yka3bBaetc Hau cHTpaBHom uhepe6nate c 24-uaCobOu shko. To kacaetc MeCTHO RpeMeH, To OHO yka3bBaetc Hau TpaHUNOHo 12-uaCobOu shkane, KOtopa HaHeceHa No BHeHemy KpaIO uHep6nata.

Hactpoika

3TANOHHbIyacbIMnHytb（《DOMaWHeeBpemra

Ipepe npoBeHnem HactpoKu y6eHntecb, 70 noJoxHe cTePOK COOTBcTByET n3MeHnIO DaTb B nonHOy, a He B nonJeHb. 706bI y6eHtbcra B npabInbHom BbOpe BpemeHn cyTOk, onpeJeHnTE nonHOy, bpaaor cTeJIKN OKA He npOn3OuE T CMeHa DaTb.

BHHMaHHe! Ctpenka yka3aTeNa DaTb CnEpyet TOnbKO 3a CtpenKoMecTHoro BpemeHn (HactpoKa ocUeCTBnErc npi NOMOu KNONOK, paCNOJoxeHHbIX y OTMeTOK 24aca> n 44aca').

A. BbTnHte rONOBky yacOB B noNoXeHne dny yCTaHOBKn BpeMeHN (noNoXeHne 1). CekyHnHa aCtpeIka octaHOBNTcR.
B. Bpaaute ronobky no yacoboy ctpenke do tex nop, noka ctpenka He OKaketc B noIoxehn 3a 5 MInHyT do Tpe6yemoro yaca. Ppi BbnoHenn HactpoKN ctpenkN 3tanOHoro (DOMaHero) N MeCTHO BpemeHN nepemeeaaOTc oNDOBpemeHHO.

C. Tenepb MeDneHNO Bpaaute 3aBOnHyIO rOIOBky no hAcobOu CTpeIke, UTo6b ToHO yCTAHOBNTMnHyTHyIO CTpeNkY Ha BB6paHHo MNHyTe.
D. Поссе установки Вьбразноу са спжмITE roNoBky K Kopnycy, БерHyBee B noNoxKeHne 0; уасы Totac Bo3o6HOBrt CBOI xOJ.

BHHMaHHe! Nocne BbONHeHn IIO6bx HAcTpoek BCerda BO3BpaaAnTe 3ABOHyo roNoBky B hCxOHDoe nOtoKeHne (0) nIIOTHo npnxHMaTe ee K KopnyCy aCoB, yTO6b oEeChuTB BOHOENpOHuaemocb n He DOyCTnTB NOBPexJeHN MExAHN3Ma. BoJee NoPpO6Ho CMOTpTE B pa3dene «3abOHaR rONoBka>.

CtpeNoHra HndnKaun DaTbI

Haxmaite Ha Khonky-KopkeTOp (a), pacnoonxeHHyO y OTMeTKI 8acob, nCnolb3y r CneunabHbN INCTpyMeHT, npnaRaIOuINcK Yacam, noka cTpeKa kaneHapre He ykaxet Ha TekyUo DaTy. Ondo Haxatne Ha Khonky-KoppeTOp COOTBeTCTByET nepexOdy CTpeKN DaTb HA OOnH DeH Bnepei.

BHHMaHHe! BInIePbane Mekdy 23.00 n 00.00 HacTpoKa DaTbI npn NOMOuN KHOKN-KoppeKToPa (a) MoKeT BbINoJIrTaCra ToJIbKO Ha OOnH DeHb BnePeJ. OHaKo, 3To DeIcTBHe HIKoM O6pa3OM He BpeNT YacOBOMy MexAHN3My.

BtopoI yacoboi noC (MeCThoe Bpem)

KhONKn, pacnoonoxeHHbIe y OTMeTOK 2 qaca> n4 qaca>, no3BOJrOT nepeboHtB Bneped nn Ha3aH acobyO cTpeNkY BTOPO rACOBORo NOrca (MeCTHOBVPemeh). OndHO haxatne Ha KhoNky COOTBETCTBYET nepexOdy Ha oINH aC Bneped nn H3ad.

C

D

ФУнкця BCEМИPHOTO BPEMEHIN

BBeDHeHne

Данная Функuaя NO3BOJЯET ONpeДeNTb MeCTHoe BpeM B 24 Куньх ratopodax Mnpa OndOBpeMeHHO C MeCThBIM BpeMeHem B BaWem ropode.ДЯЗТOrO Ha BHeuHЯчТи UNФep6Iata pacnONoxeH BpaUaOuNcR 24-ACOBoN DnCK, CnHXPOHN3INpOBaHHb C YACOBОI CTpeNKoI, a TAKKe BTOPOJ DnCK, HAcKOTOpbI HAHeceHb HAZAHra rOpoOB. BpeM B KAXDOM YACOBOM NORCE ChTbBaETcRHa 24-YacOBOM DnCKe HAnpotNB HeoBXOnmOro rOpoJa.

Hactpoika

Yacbi MNHyTbi

A. Otkpytne n BbTnHte 3aBODHyIO rONOBky y OTMeTKN «3 Yaca» B noJoxeHne Iy yCTaHOBKn BpeMeHH (noJoxeHne 1). CekyHnHaO cTpEka OCTaHOBNTcR.
B.CnOMOJIbIO 3aBOJHOI rONOBKN yCTaHOBNTe CTpeJIKN TAKIM O6pa3OM, YTO6bl OH NOKa3bIbAJIH Ha 5 MInHyT MeHbIe Bb6paHHOro BpemeHN.
C. Tenepb MeIeHNO BpaaIte 3aBODHyIO rONOBky NO hAcobOy CTpeNke, YTObToHNO yCTAHOBNTb MNHYTHyIO CTpeNky HA BBbpaHHo MNHyTe.
D. Iocne yctaHOBKn Bb6paHHoro BpemeHn npxMnte 3abOHyIO rONOBky K KopnyCy H 3ABHTnte eB hCXoHOM NOXKeHN (NOXKeHne O); qacbl TOTAc BO306HOBRT CBOI XOD.

BHHMaHHe! KaKdBi pa3 nocne HacTPOkN BO3BpaaJte rONOBky B nepBOHaHbHoe noLoXeHne, npixab ee K Kopnycy, (noLoXeHne 0), TTo6b coxpaHnTB BoDoHepoHnuaemoctb Baux x acob n36exatb nobpeXdeHna MexAHn3Ma.

O6paTne BnMaHne, 24-ACOBON DnCK CnHXPOH3npoBAn C acBOOn mHyTHoN CTpeKAMn. CneIOBATEJIbHO, erO HAcTpoKa He Tpe6yETc.

HACKC H03BAHnMn IPOOIOB

A. OTKpyTnTe 3aBODHyO rONOBky y OTMeTkn «9 qacOB» B nONoxKeHne 1].
B. Bpaosra 3aBOHyIO rONOBky, yCTaHOBnTe HAnpoTnB OTMeTKN «12HacOB» H03BaHne rOpOda, COOTBeTCTByIOUeO YacOBomy Norcy, B KOTOpOM Bn HaxoDITecb.
C. KOrda Heo6xOaMbI yacOBn noAe BCTaHET HAnpoTnB OTMeTKN 12 yacOB, npnxMnte roNoBky K KopnyCy, BepyB ee B noNoXeHne O.

BHHMaHHe! KaXdbi pa3 nocne Hactpoyn Bo3Bpaaante roNobky B nepBOHaHbHoe noLoxKeHne, npKab ee K KopnyCy (noLoxKeHne 0), YTo6bl coXpaHnTb BOHOHePOnHuaemocTb Baux yacob n36exatb nobpeXdHn MExAH3Ma.

JETHeeBpeM/3mHHeeBpeM

B ueJx 3neproc6epeXeHn HeKOTOpbI cTpaHbI nepeuHn Ha pexm nTeHro BpeMeHn, npN KOTOpOM B BeceHHe-JeTHn nepNoD KO BpeMeHn DaHHoro Yacoboro NoCa Io6abTcra OOnH yac.

Baun yacb1 1966 WW.TC He yuHTbBAOT nepexoHa JIeTHee Bpemr, TAK KAK B HeKOTOpbIX cTpaHax (HaNPmep, B JnoHn, KITae, Ha TaIbaHe n T. d.) noobhny nepexoH He ocuyecTBnEetc. CneobateBHO, B TeueHne nepnoaJeTHero BpemeHH Heo6xOIMO yuHTbBAT pa3HnUy B OINH ac.

24 yacobbix nora

KaXbI n3 24 hAcOBbIX NORcOB COOTBETCTByet 15^ rpaDycam DnTOrb (TaKIM o6pa3OM, B KAXDOM CNeIyIOUeM CeKTOpe BpEmr OTNnaeTCRA Ha 1 yac). OTCuET HauHaeTcC rPnHBNUCKOro MEpuINaHa, KOtOpB rBnAeTcR INCXoHNbIM npn ONpeIeHEN yHNBepcaIbHoro BpemeHn (U.T.). 3NaueHnY hACOB pa3NIHAIOTcB 3ABNCIMOCTHn OT hAcOBOro NORCa, HO 3NaueHn MInHyT OCTAIOTcOOnHAKOBbIM BO BCEX NORcAX.

TAXIMETPNUECKA JUKAJA

BVeDeneHne

HnHg yHKnI NO3BONrE NT3MepuTb CpeHIO CKOpocTb Ha OTe3Ke Nyt, paBHOM OndHomy KInlometpy.

CHTbBAHHe NOKa3AHN

Paccmotpim OTpe3OK nyTu, Ha KOTopom Dba dopoxhbx cTOn6nka, A n B, pacnoonoxeHb B ODHOM KINOMETpe npyrot dpyra. B MOMENT, KOrda Baaw abTomobnB npoe3kAet cTOn6nA, 3anyctnte xpohorpaH n octahOBNTe erO B MOMENT npoe3da cTOn6nka B. Ha Taxlmepnueecko shKane, pacnoonoxeHHo BOKpyr OKOHeuHOCTN cekynHOIc TpeKNxPOHorpaQa, Bby yBnDITe cpeHIO CKOpocB b KM/4ac nIN B MInx/Yac.

XPOHOΓPAΦ

BVeDHeHne

HnHKaun HmepenHbIX cekyHd ocuueCTBnraTc npn NOMOUn CEHTpaNbHOI cekyHIO CTpeJIKN XPOHOrpOa. HnDKaUN MmHyT n, B HeKOTOpBX CnyHax, YacOB OboUHO OcyuECTBnraTc npn NOMOUn ODHOrO INI DByX MAJbIX CHTNKOB.

Iyck, octaHObKa n o6HyJIeHHe NOKa3AHn CHTUKNOB HENOCpeJCTBeHHO CBra3aHbC NyCKOM, OCTaHOBko N O6HyJIeHHeM NOKa3AHn CEHTpaJIbHOcKHyHDOIcTpeIKN XPOHorpaΦa.

B HeKOTOpbIX MoeJnx OTCuET MInHyT MOKe TAKKe OcyUeCTBJIaTBc npi NOMOuI paCnoIooXeHHo B ceHTpe CTpeKN, YKa3bIBaIOSeH Ha 1kAly Ha BHeUHem o6oKe cIepe6nata.

Hactpoika

A. Haxmte Ha KHONky, HaxoJyIOcB NOJoxeHN «2 yaca»: cekyHdHa CTpeKKa xpoHorpaΦa npxOoNT B DnXeHne.
B. Eue pa3 HaxmTe Ha Ty Xe KHonky: cekyHdHa CTpenKa xpoHorpaΦa OCTAHABNIBaETcR.
C. Haxmte Ha KhoNky, HaxoJyIOc B noJoxeHn «4 yaca': cekyHnHa CTpeKa n CTpeKN ChETHKnOB XPOHOpaΦa BO3BpaIaOTc K HynEBOI OTMeTke.

BnHmAHHe! HkoIgHa He o6HyJnIe NOKa3AHn XpoHOrpaΦa, ecnn cekyHdHa CTpeIka HaxoIITcB DvIXeHHN, NOCKoJIbKy 3TO MOxET pINBeCTN K NOBpeXeHHIO mexAHn3Ma. Bcerda CneIte 3a Tem, 4TObI nepeD o6HyNeHem nOKa3AHn cekyHdHa CTpeIka 6bla octahOBnEHa.

ACTPOHOMNueCKNEФYHKUIN

YKA3ATEJIb BPEMEHn CYTOK (DEHb/HOUb)

BVeJeHne

IINIKAUIN BpemeHn CYTOK NcONb3yeTcR DNCKOBu yka3aTeNb C n3o6paXeHNEM ConHua n Lyhbl. Ha fOHe He6a B OKoUke yka3aTeNBA COOTBETCTBUN CO BpemeHem CYTOK NOABnIOTcR DNCKN Lyhbl nn ConHua.

CHTbIBAHHe NOKa3AHN

Bo BpeM yCTAHOBKn TOUHOro BpeMeH, yuHTbBaIte yKa3aHnJeHb/Houh, TAK KAK OHN CINHXPOHn3nPoBAHc yKa3aHnem Yacob MmHyT. HanpImep, ToUHO B nonHOy JyHa DoJXHa nOraBnTbcr y OTMeKn 06:00, BTO BpeM kak ConHue dONxHo OKa3aTbcr y 3Toi Xe OTMeKn TOUHO B noJIdeHb.

Ponndenb Ponnnoch

INHДИКATOPФА3blЛУнbl

BBeDHe

HnKATOp 03bI NyhI NO3BOJAE T BOCPON3BECTN cIKI 3eMNI (HOBONYHne, nepBar HeTBeptb, nIOHOnyHne, nOcNEHRA YETBeptb) npn NOMOUI CNCTEMBI C OTO6paxeHNEM NOKa3AHn Ha DnCKe IINB OKoWKe. B CneuaJIbHOM OKoWKe BOCPON3BedeH φpaMeHT He6a, HApOTOPOM LyHHbI DnCK npINHMaET pa3InuHyio fOpMy IIO Mepe TeueHn LyHHoro Mecra.

CHTbBAHHe IOKa3AHN

Bokwke BpaaaetcNCK, ykpaewHHbI DByMa N3o6paXeHnMn JyHbHa 3Be3HOM He6e.
B haane kaxdo rnyhoro zikna oH3 dByx n3o6paxeHn otKpbBaetcB3rJy B neBoi qactn OKoSKa; B cAmOM hauane OHO cKpbBaETc 3a OkpyTNO 3acNoHKo N IMeET BnD TOHKOrO cepNa, a 3aTeM pactet no Mepe DvHexHn BpeMeHN.
B cepenHe lyHHoro uKna nonHocTbIO oKpbItoe n3O6paXeHne Lyhbl HaxoNTcB C cepenHe okouka. 3aTeM OHO HauHaeT NoCTeNEHNO yMeHbWATbcR, CKpbBaRCb 3a paCnNoXeHHo CNpBa BTOPOkpyrno 3acNoHkoN.

HOBOyHNE npBae YETBeptb NocneDnAe TBeptbnNOHOLyHne

HactpoKa

IЯ qacob c KoppeKTOpOM haxmaite KhoNky-KoppeKTop a) npnaraembIM K hacam nHCTpyMeHTOM do tex nop, noka b OKoUke He noBntc Tekyuzaa 0a3a lyhbl. Ondo haxatne KhoNkn-KoppeKTopa COOTBeTCTByet nepexOdy Ha oIN dEhb Bnepei.

BnmaHne!Bo n36exaHne noBpexdeHmexAHm3Ma He yCTAHABnBAute 4y LyhB INHTepBaTe MEXdy 15.00 do 03.00. TTo6bHe nepenyTaB BpeMeHHo npomexyTOK, pyKOBOCTByTEcB nepeXODM DaTb B paHOne NOyHOu, TaK BcCMoxete rapaHTnpOBaT npabINbHOCTb Bb6paHHORO BpeMeHN dHaCTpoKn.

Iyra yacob 6e3 KoppeKTopa BbTAHnTe 3aBODHyIO rONOBky B noNOxHne 1) n BpaaaiTe ee do tex np, noka b OKoUke He nOABNTcRA TeKUaA a3a NHybl.

BHHMaHHe! KaJbI pa3 noCne HAcTPOKn Bcerda Bo3BpaaAte rONoBky B nepBOHaJbHoe nONoXeHne, npxab ee K KopnyCy B noNoXeHne 0), To6bI coXpaHnTB BOHOENpOHuaemocb Baunx YacOB n 36exaTb NOpeXeHnMEXAHN3Ma. Ia TTO O3HAKOmbTeCb C pa3dELOM 3aBOHNaRrONoBka>.

C KoppeKTopoM Be3 KoppeKTopa

*MeCTOHAXOXJEHHeN KOppeKToP a3aBcNt OT MOnen

BI-RETRO

BBeHne

PetporpaHra cekyHdH a cTeKa dBnHaTc oT OTMeTKI O MHyT I O OTMeKn 30 MNHT (CBepx y Bn3), a petporpaHra cTeKa, yKa3bBAIOJaa DeHb Hepei,-OT PH (MON) K BC (SUN) (CH3y BBepx), nOKa KaJAA mHOBeHHo He BO3BaPauaTcB CBOIO HCxOHyTOky, C KOTopoB IO3O6HOBJIeT CBOI XOD.

HactpoKa

Yacbi MNHyTbi

A. BbIaHInTe rOIOBky yacOB B NOIOXeHne dYcTaHOBKn BpeMeHN (nonoxeHne 2).
B.CnOMOJIIO 3aBOJHOI rOJOBKYNCTAHOBNTe CTPENK TAKIM O6pa3OM,HTo6bOHN NOKa3bAJIH Na 5 MNHYT MeHbWe TOCHOR BpemeH.
C. MeDneHNO BpaaIte MNHyTHyIO CTpeKv B HApBaNHeHH NO HaCOBOI CTpeKe N OCTaHOBnTE ee ToHNo HA Bb6paHHO MNHyTe.
D. Nocne yctahOBKn Bb6paHoro Yaca npKMMte rONOBky K Kopncy, BepHyB ee B noJoxKeHne O).Yacbl TOTHAC BO3O6HOBRT CBOI XoJ.

BHHMaHHe! KaXbI pa3 nocne hactpoiKn Bcerda Bo3BaPauaTe rONOBky B nepBOHaunbHoe noLoXeHne, npKxab ee K Kopny CB noLoXeHne 0, yTo6b coXpaHnTB BOOCToIKoCTb Baunx Yacob N36ExaTb NObpexJeHn MEXAHN3Ma. Ira 3TOrO O3HakOMbTEcB c pa3dJenOM 3ABODHAR rONOBKa

Data

A. BbyHHTe roIOBky yacOB b NOIOXeHne dIy yCTaHOBKn DaTbI (NOIOXeHne I).
B. Bpaaute e no yacobon ctpenke, noka b okowke He noarntc Tekyua daTata.
C. NocJIe yCTaHOBKn Heo6xOIMOn DaTbI npXMMTe rOIOBky K Kopnycy, BepHyB ee B noIOKeHne 0).

BHHMaHHe! KaXdbi pa3 nocne HactpoKn Bcerda Bo3bpaaate rOIOBky B nepBOHaayabHoe nooKeHne, npKab ee K KopnyCy B nooKeHne 0, yTo6b coxpaHnt b OBOCTOkoct Baunx YacOB n 36eKaTb nobpeJeHn MexAHn3Ma. Ira 3TOrO O3HakombTeCc c pa3dJenOM 3ABODHra rONOBka>.

Hb Hedein

YCTAHOBKa DnH HeDEn BbINONHReTc HaxaTne Ha paCNOJoxeHHyO y OTMeTKN «04:30» KhoNky-KoppeKTop (a) c NOMoBbIO IHCTpyMeHTa, npnaIarIOUeROc K BaIIM Yacam. OdHO HAXaTne Ha KhoNky-KoppeKTop COOTBetCTByET nepexOy CTpeKN DaTb HA ODNH DeH Bnepei.

BHHMaHHe! 3aPepaaetc BbIOnnHaTb yCTaHOBky dHr Heeenn B npomexyToK BpeMeHN c 19:00 do 01:00, TAK KAK B ETO Bpempa6oTaET MexAHm3M CMeHb NOKa3aHm DaTb, MMOxHO NobpeNtBuacOBmexAHm3M.

Φa3a ΜγHbI

Haxma Te Knonky-koppeKTop b) B nooxhen 14 cob 30 MHyT npnaeembIM K acam HCTpyMeHOM do Tex nop, noka B OKoIke He noBnTc Tekuza aa a3a Nyhbl. Ondno Haxatne Ha KHonky-koppeKTop COOTBeTCTByet nepexOy CTpeNk DaTb Ha oIN DeHb Bnepei.

BHHMaHHe! 3aIpeaetcBbINOJIHTb KoppeKTIPOBky a3bI NybI B npomexyTO BpemeHc 19:00 do 01:00, TAK KAK B ETo Bpempa6oTaET MexAHN3M CMeHb NOKa3AHn DaTb, IN MOXHO NOBpeDITb YacOBm MexAHN3M. UTo6bI He nepenyTb BpemeHHO npomexyTO, pyKOBOCTbYteCb nepexODOM DaTb B paHOne nOlyHOn, TAK Bbl cMOKeTe rapaHTnpoBaTb npabINbHOCTb Bb6paHHOrO BpemeHd HAcTpOKn.

ПОЛный KAJIЕнДAPb

BVeDHeHne

Cnoxha yacobar yHKnna, H3bBaemr KaneHapem, no3B0nraT o6ecneuHb nerKo CHTbBAeMyIO INdkaunIO He TOnbKO YACOB MInHyT, HO N DaTbI, Dn Hn HeDenn, Mecaa n aas lyhbl.

BnHmAHne! Yto6bI n36exaTb NOBpeXeHnM MExAHn3Ma, He KOppeKTHpyTe NOKa3AHN KAnEhApB npomexyTke ot 15.00 do 08.00, nockoJIbky B 3TO BpeM MEXAHn3M CMeHb DaTb I Φa3bl NyHb npHXoNTB DeiCTBne. Yto6bI He nepenyTaB BpeMeHHO IpomexyToK, pyKOBoDcByuTEcb NepexoOM DaTb B paHOne nOlyHOH, TaK Bb cMOxete rapaHTnpOBaTb PpaBnIbHOctb Bb6paHHOro BpeMeHN DnHaCTpOKn.

Hactpoika

Yacbl MHHyTbi

Ipepe npoBeHnem HAcToPouKn yBc, TTO noLoXeHne CTePekO COOTBeTCTByet N3MeHeHIO DaTb B NoHOy, a He B NoJeHb. TTo6b He nepenyTaB BpeMeHHo npomExyTok, pykoBOcTBayTEcb nepexoOM DaTb B paHOne nOlyHOuN, TaK Bbl CMoxete rapaHTnpOBaTb npaBnBHOctb Bb6paHoro BpeMeHN Ira HAcToPouKn.

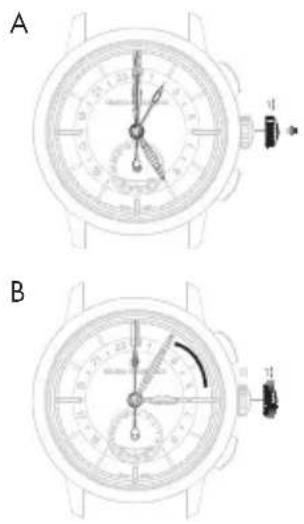

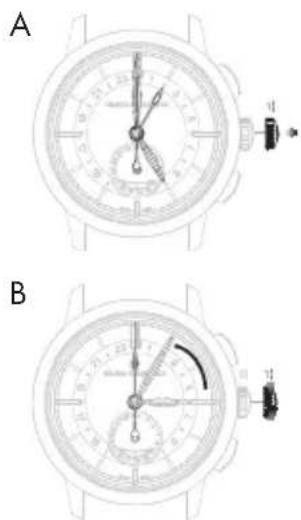

A. BbIaHInTe roIOBky yacob B noIOXeHne IyCTaHOBKn BpeMeHN (noIOXeHne 1). CekyHdHa cTpeJIka OCTaHOBHTcR.
B. Bpaaute ronobky no yacoboy ctpenke do tex nop, noka ctpenka He OKaxetcB NOJoxehn 3a 5 MInyT do Tpe6yemoro hca.
C. MedneHNO Bpaaate MNHyTHyIO CTpeNky B HApapBHeHN NO YacOBoN CTpeNke N OCTaHOBnTe ee TOuHO HA Bb6paHHO MNHyTe.
D. Iocne yctAHOBKn Bb6paHoro qaca npKmnte rONOBky K Kopncy, BepHyB ee B NOJoxKeHne O; YacbTOTcAC BO306HOBRT CBOI XOJ.

BHHMaHHe! KaXdbi pa3 nocne HactpoKn BO3Bpaaate RoNOBky B nepBOHaHbHoe noLoxKeHne, npKab ee K KopnyCy B noLoxKeHne 0,HTo6b coXpAHnTb BOOcToIKocTB Baunx yacob N36exaTb NobpeXeHn MExAHn3Ma. IInr eTOrO O3HaKoMbTeCb c pa3denom 3abOJaHra roNOBka>.

CtpenoyHnHnKaunDaTbI

HaxmaTe Ha KhoNky-KoppeKTop (a) B noLoXeHHN 4 haca》 npinaraembIM K hacam nHcTpymentom Do Tex nop, noka cTpeJka DaTb He yKaXeT HxHoe 3HaueHne. OdHO Haxatne Ha KhoNky-KoppeKTop COOTBETCTByet nepexOyD CTpeKN DaTb Ha OHn DeHb BnpeI.

BHHMaHHe! NepexoJ ot 3auehenra 31K 3auehenIO 1 O3haeT cMeHy MecaHa Ha HndkaTope Mecau (nepexoK cnedyUoemy Mecau).

HnHeenn

HaKImaIte Ha KhoNky-KoppeKTop (b) B noLoXeHnn «10acOB» npInaragEmbIM K hAcAM HCTpyMeHTOM do tex nop, nOKA B OKoUke He NoBnTcR HyxHb N deHb HeDenn.

Mecra

Haxmte Ha KhoKy-KopkTop (c) B noNoxehn 2aca npunaraembM K yacam HCTpyMeTOM do Tex nop, noka B OKoIke He NoBHTcR HyKhB MeCra.

BnmaHne! 36Kb H36Kb Ta NobpeXdHn MEXAHN3Ma, He HAcTpaNBaTe NOKa3AHn MeCya, cnn NOKa3AHn DaTb nn KaHeHapra HaxOJaTc MExNy 3NaueHnMn 30> n 2, NockoJbky B 3TO BpeM MEXAHN3M CMeHb MeCya npNXoIHT B DeICTBne.

Φa3a ΜyHbI

Haxmaite Ha KhoKy-KoppeKTop (d) B nonoxehn 8 acob] npnaeraembM K qacam HcTpyMeHTOM do Tex nop, noka B okoKe He noBntcra Hyxha a3a lyhbl. OndHO Haxatne Ha KhoKny-KoppeKtop COOTBeTCTByet nepexody BnepeHa OOnn LyHHb DeHb.

TOIOBOIKAJIENDApNΦYHKUryPABHEHnBPEMeHN

BVeDHeHne

B OTNIUHne O T KNaCCnueCKOro MExAHn3Ma KaIeHdAp, RoIOBOI KaIeHdApb Tpe6yET HAcTPOuKN DaTb ToJIbKO B KOHcE ΦEBpAII HeBnCOKOCHO rOJa, T. e., BCero Tpr pa3a B TeueHHe 4-JeTHero BnCOKOCHO uKJna.

HactpoKa

Yacbi MmHyTbi

Ipepe npoBeHnem HactpoKu y6eHntecb, 70 noNoxHe nCTpeNOK COOTBcTByET N3MeHEnIO DaTb B NOHOb, a He B NoJDeHb. 706bI y6eHtbcB PpABInbHom BblOpe BpeMeHN CyTOk, ONpeDenTe NOHOb, BpaAaR CTpeKN Ioka He npOn3OuET CMeHa DaTb.

A. BbyTnHte rONOBky yacob B noNoXeHne dny yCTaHOBKn BpeMeHn (noNoXeHne 2). CekyHnHa cTpeNk aOCTaHOBHTc.
B. Bpaaute ronobky no yacoboy ctpenke do tex nop, noka ctpenka He okaxetcB nooKeHH 3a 5 MHyT do Tpe6yemoro yaca.
C. MeDneHNO BpaaIte MNHyTHyIO CTpeKy B HappaBHeHH No YacOBoN CTpeKe N OCTAHOBITE ee TOHHO BA Bb6paHHO MNHYTe.
D. Iocne yctAHOBKn Bb6paHoro Yaca npKMMte rONOBky K Kopncy, BepHyB ee B NIOXKeHne O; Yacbl TOTcAC BO3O6HOBRT CBOI XOD.

BHHMaHHe! KaKbI pa3 nocne HacTpoKn BO3BpaaTe rONOBky nepBOHaJIbHoe noLoXeHne, npxab ee K KopnyCy B noLoXeHne 0, yTo6b coXpAHHT bOdoCToIKoCTb Baunx qacob n36exaTb NObpexJeHH MexaHN3Ma. IINr 3TOrO O3HaKOMbTEcB c pa3dEnom «3aBoiHa rO1OBka>.

Data Meca

BnmaHne! Npei npoBeHeHem HAcTpoKu y6eIntecb, YTo yacOBa CTpeKa HaxOHTcB nPOMexyTke MExdy OTMeKoN 9 uacob 30 MNHTN OTMekO N20 acob 30 MNHT. BHe yka3aHHoro noNoxehna BpaueHne WtOKa B NoNoXeHN1 He 6ydt MeTb HnKAKOrO eΦeKTA. TObbl HAcTPOB TaCbHa npabInbHyIO NOOBHy CYTOK, CneITte 3a CMeHO DaTb B OKoUKE: OHa npOnCXoDNT OKONo NOnyHOuN.

A. BbIyHInTe rONOBky yacobB noJoxeHne Iry yCTaHOBKn DaTb (nonoXeHne 1).
B. BpaaTe rONOBky Do Tex nop, noka cTpeKka KaneHapra (a) He ykaxe T HxHyIO DaTy. rONOBky MoXHO Bpaatb B DByx HanpabneHnX. Ncck MecaeB (b) CnHXPOHn3nPoBaH CO cTpeNoHbIM INHnKoTOpOM DaTb, NOromy OH He Tpe6yET HAcTpoKn.
C. Пocне установки HeobxOIMoI datb npnxMITE roOBky K Kopnycy, BepHyB ee B noIoXeHne 0); Yacbl TOTcAC BO3O6HOBRT CBOI XOD.

BnmaHne! KaJb pa3 nocne hactpoKn BO3Baaate ronOBky B nepBOHaayabHOe nooxehne, npXAB ee K KopnyCy B nooXeHne 0, TTo6bl coxpaHT bOIOCTOkoCTb Baunx YacOB n 36exatb nobpeXdeHmexAHN3Ma. JIy 3TOrO O3HaKOMbTEcB c pa3dELOM 3aBOHna rONOBKa>.

Bnmae! B meaax, hacntbtaiox 30 dnei nepexo a tbl k nepbomy ncy cneiyooero Mecaa npocxodnt B teuehne np6n3ntelho 4 acob 30 mHyT, MHyra nCno 31.B febpane nepexo da bK nepbomy mapTa npocxodnt B teuehne np6n3ntelho 7 acob 30 mHyT, MHyra nCna 30' n 31'.
