Technical specifications	46-bottle wine cellar, dimensions: 84.1 cm (H) x 59.5 cm (W) x 57.1 cm (D), weight: 52 kg
Capacity	Capacity of 46 standard wine bottles
Adjustable temperature	Temperature range: 5 to 18 °C, with digital control
Cooling system	Compressor cooling for stable temperature
Interior lighting	Interior LED lighting for better visibility
Usage	Ideal for storing wines at an optimal temperature, suitable for domestic use
Maintenance	Regular cleaning of the interior and filters, do not use abrasive products
Safety	Safety lock to prevent unauthorized openings
General information	Elegant stainless steel design, 2-year warranty

Frequently Asked Questions - KUWL304ESS KITCHENAID

How do I set the temperature on my KITCHENAID KUWL304ESS wine cellar?

To set the temperature, press the temperature setting button on the control panel. Use the arrows to choose the desired temperature between 5 \u00b0C and 18 \u00b0C.

Why is my wine cellar not cooling properly?

Check if the door is properly closed and if the seals are in good condition. Also ensure there is enough space around the appliance for air circulation.

How do I clean the inside of my wine cellar?

Unplug the appliance, remove the shelves, and clean the interior with a mixture of warm water and mild soap. Rinse with a damp cloth and dry thoroughly before plugging back in.

My wine cellar is making unusual noises, what should I do?

Noises can be normal, such as the compressor or fan operation. However, if the noise is loud or unusual, check that the appliance is level and that nothing is blocking the fans.

The interior light of my wine cellar does not turn on, what should I do?

First check if the appliance is powered on. If it is, the bulb may be burnt out. Replace it with an appropriate type of bulb, making sure to unplug the appliance before doing so.

How can I transport my wine cellar without damaging it?

To transport the wine cellar, empty it completely, remove the shelves and secure them. Use a dolly to move the appliance and avoid tilting it. Make sure it is well protected during transport.

What types of wines can I store in my KITCHENAID KUWL304ESS wine cellar?

You can store different types of wines, including red, white, and rosé wines. Make sure to set the appropriate temperature according to the type of wine you are storing.

Does the KITCHENAID KUWL304ESS wine cellar have a humidity control function?

Yes, this model has a humidity control system to maintain an optimal level, which helps keep the cork in good condition and prevents wine evaporation.

How do I know if my wine cellar is in eco mode?

Eco mode is usually indicated by a symbol on the control panel. Check the user manual for specific instructions on activating and checking eco mode.

What are the dimensions of the KITCHENAID KUWL304ESS wine cellar?

The dimensions of the KITCHENAID KUWL304ESS wine cellar are 76.2 cm height, 60.9 cm width, and 64.8 cm depth.

USER MANUAL KUWL304ESS KITCHENAID

For questions about features, operation/performance, parts, accessories, or service, call: 1-800-422-1230 or visit our website at...

www.kitchenaid.com

In Canada, call: 1-800-807-6777, or visit our website at...

www.KitchenAid.ca

BODEGA

WINE CELLAR SAFETY 3

INSTALLATION REQUIREMENTS....4

Tools....4

Location Requirements....4

Electrical Requirements 4

INSTALLATION INSTRUCTIONS....5

Unpack the Wine Cellar 5

Door Closing....5

WINE CELLAR USE....6

Normal Sounds 6

Using the Controls 6

Wine Racks 8

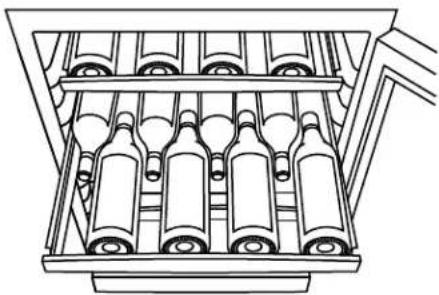

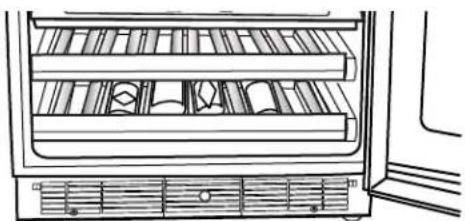

Stocking the Wine Cellar....8

WINE CELLAR CARE 9

Base Grille 9

Cleaning....9

Vacation and Moving Care....9

TROUBLESHOOTING ....10

ASSISTANCE OR SERVICE....11

In the U.S.A. 11

In Canada 11

Accessories 11

WARRANTY 12

ÍNDICE

ASSISTANCE OU SERVICE....34

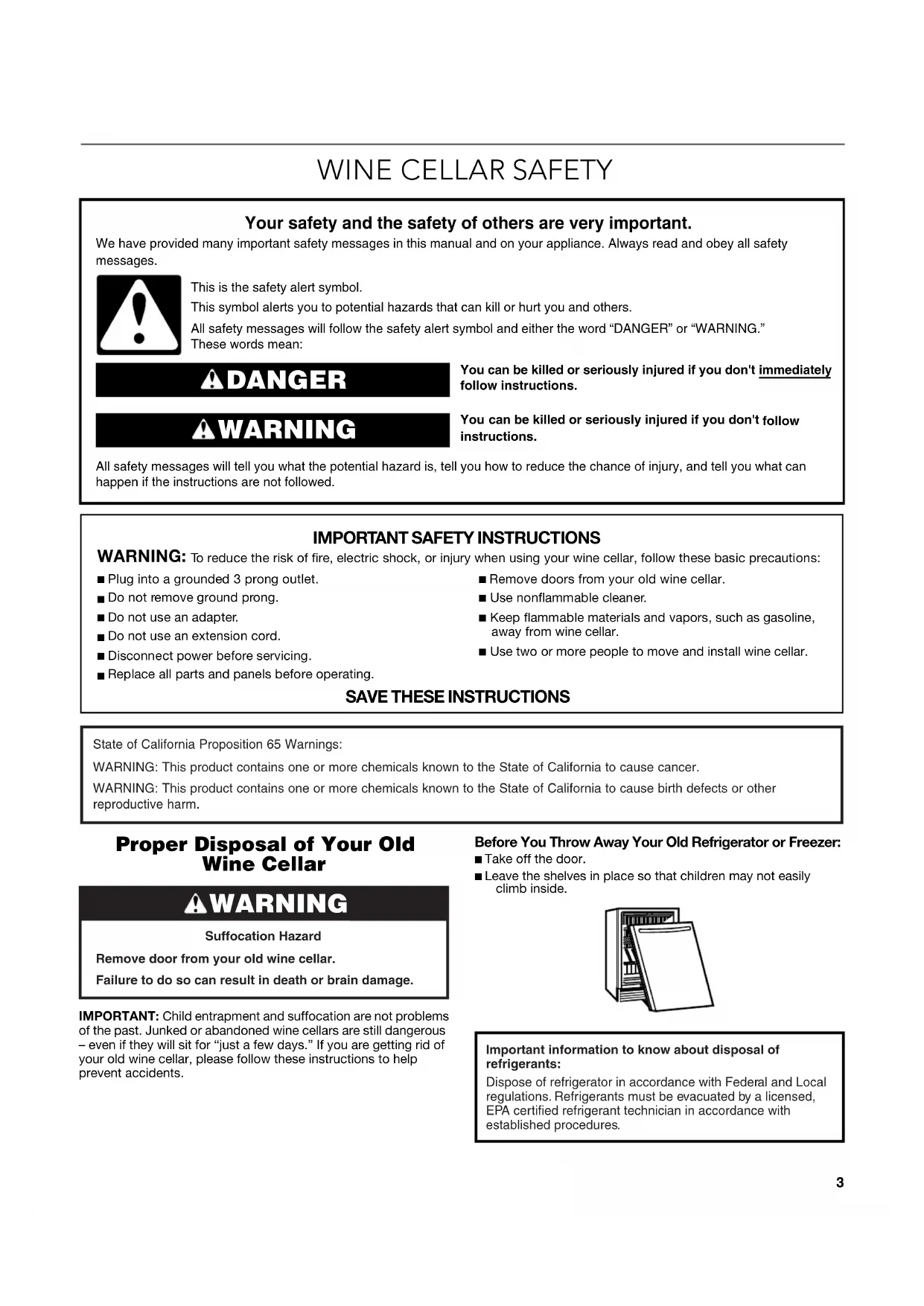

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electric shock, or injury when using your wine cellar, follow these basic precautions:

■ Plug into a grounded 3 prong outlet.
■ Do not remove ground prong.
■ Do not use an adapter.
■ Do not use an extension cord.
■ Disconnect power before servicing.
■ Replace all parts and panels before operating.

■ Remove doors from your old wine cellar.
■ Use nonflammable cleaner.
- Keep flammable materials and vapors, such as gasoline, away from wine cellar.
■ Use two or more people to move and install wine cellar.

SAVE THESE INSTRUCTIONS

State of California Proposition 65 Warnings:

WARNING: This product contains one or more chemicals known to the State of California to cause cancer.

WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive harm.

Proper Disposal of Your Old Wine Cellar

WARNING

Suffocation Hazard

Remove door from your old wine cellar.

Failure to do so can result in death or brain damage.

IMPORTANT: Child entrapment and suffocation are not problems of the past. Junked or abandoned wine cellars are still dangerous – even if they will sit for “just a few days.” If you are getting rid of your old wine cellar, please follow these instructions to help prevent accidents.

Before You Throw Away Your Old Refrigerator or Freezer:

■ Take off the door.
■ Leave the shelves in place so that children may not easily climb inside.

Illustration of a stack of documents or folders with one sheet of paper partially visible (no text or symbols)

Important information to know about disposal of refrigerants:

Dispose of refrigerator in accordance with Federal and Local regulations. Refrigerants must be evacuated by a licensed, EPA certified refrigerant technician in accordance with established procedures.

INSTALLATION REQUIREMENTS

Tools

Tool Needed

Gather the required tool before starting installation.

■ Phillips screwdriver

Location Requirements

WARNING

Explosion Hazard

Keep flammable materials and vapors, such as gasoline, away from wine cellar.

Failure to do so can result in death, explosion, or fire.

NOTES:

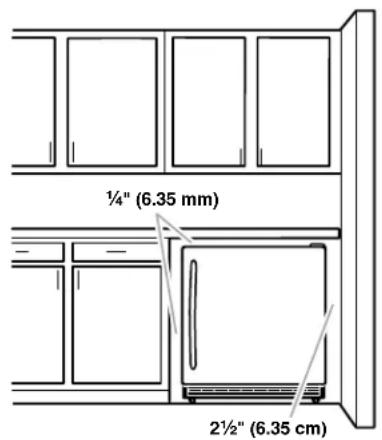

■ For the wine cellar to be flush with the front of the base cabinets, remove any baseboards or moldings from the rear of the opening. See “Opening Dimensions” later in this section.
■ It is recommended that you do not install the wine cellar near an oven, radiator, or other heat source.
■ Do not install in a location where the temperature will fall below 55^ F ( 13^ C). For best performance, do not install the wine cellar behind a cabinet door or block the base grille.

1/4" (6.35 mm) 2½" (6.35 cm)

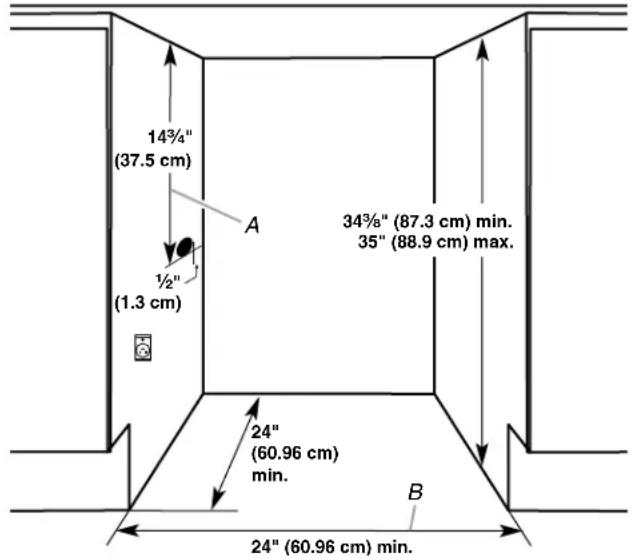

Opening Dimensions

■ Height dimensions are shown with the leveling legs extended to the minimum height.
NOTE: When leveling legs are fully extended, add 58 " (15 mm) to the height dimensions.

■ If the floor of the opening is not level with the kitchen floor, shim the opening to make it level with the kitchen floor.

14¾" (37.5 cm) A ½" (1.3 cm) 34¾" (87.3 cm) min. 35" (88.9 cm) max. 24" (60.96 cm) min. 24" (60.96 cm) min. B

Critical Dimensions:
A. 1434'' (37.5 cm) utility opening
B. 24" (60.96 cm) minimum opening width

Electrical Requirements

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

Before you move your wine cellar into its final location, it is important to make sure you have the proper electrical connection.

Recommended Grounding Method

A 115 volt, 60 Hz., AC only, 15- or 20-amp fused, grounded electrical supply is required. It is recommended that a separate circuit serving only your wine cellar be provided. Use an outlet that cannot be turned off by a switch. Do not use an extension cord.

NOTE: Before performing any type of installation, cleaning, or removing a light bulb, unplug wine cellar or disconnect power.

INSTALLATION INSTRUCTIONS

Unpack the Wine Cellar

WARNING

Excessive Weight Hazard

Use two or more people to move and install wine cellar.

Failure to do so can result in back or other injury.

Remove the Packaging

■ Remove tape and glue residue from surfaces before turning on the wine cellar. Rub a small amount of liquid dish soap over the adhesive with your fingers. Wipe with warm water and dry.
- Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners to remove tape or glue. These products can damage the surface of your wine cellar. For more information, see “Wine Cellar Safety.”
■ Dispose of/recycle all packaging materials.

When Moving Your Wine Cellar:

Your wine cellar is heavy. When moving the wine cellar for cleaning or service, be sure to cover the floor with cardboard or hardboard to avoid floor damage. Always pull the wine cellar straight out when moving it. Do not wiggle or “walk” the wine cellar when trying to move it, as floor damage could occur.

Clean Before Using

After you remove all of the packaging materials, clean the inside of your wine cellar before using it. See the cleaning instructions in "Wine Cellar Care."

Door Closing

Door Closing

Your wine cellar has four leveling legs. If your wine cellar seems unsteady or you want the door to close more easily, adjust the wine cellar's tilt using the instructions below.

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

1. Plug into a grounded 3 prong outlet.

WARNING

Excessive Weight Hazard

Use two or more people to move and install wine cellar.

Failure to do so can result in back or other injury.

1. Move the wine cellar into its final location.
2. Turn the leveling legs to the right to lower the wine cellar, or turn the leveling legs to the left to raise it. It may take several turns of the leveling legs to adjust the tilt of the wine cellar.

NOTE: Having someone push against the top of the wine cellar takes some weight off the leveling legs. This makes it easier to adjust the leveling legs.

Pure mechanical diagram showing a rotating component with arrows indicating rotational motion (no text or symbols)

1. Open the door and check that it closes as easily as you like. If not, tilt the wine cellar slightly more to the rear by turning both front leveling screws to the right. It may take several more turns, and you should turn both leveling legs the same amount.

WINE CELLAR USE

Normal Sounds

Your new wine cellar may make sounds that your old one didn't make. Because the sounds are new to you, you might be concerned about them. Most of the new sounds are normal. Hard surfaces, such as the flooring and surrounding structures, can make the sounds seem louder. The following describes the kinds of sounds and what may be making them.

■ Your wine cellar is designed to run more efficiently to keep your wine at the desired temperatures and to minimize energy usage. The high efficiency compressor and fans may cause your wine cellar to run longer than your old one. You may also hear a pulsating or high-pitched sound from the compressor or fans adjusting to optimize performance.
■ Rattling noises may come from the flow of refrigerant or items stored inside the wine cellar.
■ As each cycle ends, you may hear a gurgling sound due to the refrigerant flowing in your wine cellar.
■ You may hear water running into the drain pan when the wine cellar is defrosting.
■ You may hear clicking sounds when the wine cellar starts or stops running.

Using the Controls

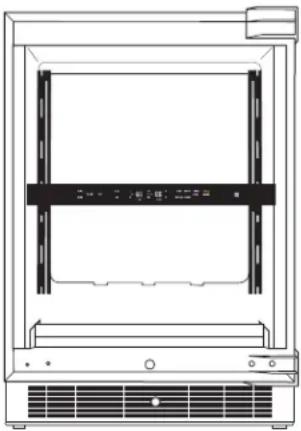

The control panel for the wine cellar is located on the middle separator (mullion) of the wine cellar. The control of the wine cellar has no mechanical parts or buttons. When disconnected, the control panel displays nothing and may be difficult to locate.

Technical line drawing of a mechanical device with no visible text or symbols

Turning Control On/Off

■ The first time that the wine cellar is plugged in, the control will be in Cool Off mode. Cool On and Cool Off will be the only options that display.

■ Press COOL ON for 3 seconds to turn on the wine cellar. All menus and recommended temperature settings will be displayed.

CoolBit Auto Light Lock Assented White Wire + 50 °C 50 + CaCOFF Champagne Super White - UTER BRC LIVER Red Wire White Wire HiFiS Sec Gaobatch Campaigns Special White

■ The left temperature and preset touch pads control the temperature of the upper compartment.
■ The right temperature and preset touch pads control the temperature of the lower compartment.

Viewing Celsius Temperatures

■ Press the F/C touch pad to toggle between displaying the temperature in degrees Fahrenheit and degrees Celsius. The corresponding indicator will illuminate.

+ - 50 UPPER °F °C F/C A

A. F/C touch pad

Adjusting the Control

When the wine cellar is turned On for the first time, the temperature defaults to the recommended setting. There are two adjustable temperature controls, with one for each compartment.

+ - 50 UPPER °F F/C

■ To adjust set point temperatures, press “+” (plus) or “-” (minus) until the desired temperature setting is reached.

NOTE: The set point for the wine cellar is 50^ F ( 10^ C) for both the upper and lower compartments. The set point range for the upper compartment is 42^ F to 54^ F ( 5^ C to 12^ C) and 42^ F to 64^ F ( 5^ C to 17^ C) for the lower compartment

The control is set correctly when the wine is as cold as you like it.

NOTE: Wait at least 24 hours between adjustments for the product to acclimate. Recheck the temperatures before making further adjustments.

Using Presets

For your convenience, your wine cellar also has controls that are preset to recommended storage temperature for specific wines.

Assorted White Wine + 50 °F 50 + Red Wine White Wine Champagne Sweet Wine - UPPER F/C LOWER - Champagne Sweet Wine

Pressing any preset option will set the temperature to the recommended temperature for the specified wine:

■ Assorted: 54°F (12°C)
■ Champagne: 46° (7°C)
■ Red Wine: 64°F (17°C)
■ Sweet Wine: 42°F (5°C)
■ White Wine: 50°F (10°C)

Auto Light

The wine cellar has a sensor that will turn on the interior display light automatically when someone walks by. When motion is no longer detected, the interior display light will go off after 2 minutes.

■ Press the Auto Light option to activate this feature.

Cool On Auto Light Lock Cool Off

■ When the Auto Light is not activated, the interior display light will only turn on when the door is opened.

NOTE:

■ Leaving the light on for an extended period of time will slightly increase the temperature of the wine cellar.
■ The light is an LED, which does not need to be replaced. However, if the LED does not illuminate when the door is opened, call Service to check the problem and replace, if necessary. See “Assistance or Service” for contact information.

Sabbath Mode

Sabbath Mode is designed for the traveler or for those whose religious observances require turning off the lights. By selecting this feature, the temperature set points remain unchanged, but the control panel lights, interior lights, and control audio turn off. For most efficient wine cellar operation, it is recommended to exit the Sabbath Mode when it is no longer required.

Hold 3 Sec Over Temp Sabbath Reset Alarm

■ Press and hold SABBATH for 3 seconds to turn on the feature. After the 3-second countdown, the feature will activate and all other displays will turn Off.
■ Press and hold SABBATH for 3 seconds to turn off the feature and turn on the display.

Door Open

If the door is open longer than 5 minutes, an alarm will sound every 2 minutes until the door is closed or any control is pressed.

Over Temp Alarm

The Over Temperature feature is designed to let you know when the wine cellar temperature rises above 70^ F ( 21^ C) for 4 hours or longer. The audio alarm will shut off automatically when the temperature returns to normal. To let you know an Over Temperature condition occurred, the indicator light will continue to flash until the Reset Alarm touch pad is pressed.

Hold 3 Sec Over Temp Sabbath Reset Alarm

If the over temperature condition is still present when an Over Temp reset is performed, the indicator light will continue to reactivate every 4 hours until the wine cellar temperature is below 70^ F ( 21^ C).

NOTE: These features will not appear on your control unless your wine cellar is above 70^ F ( 21^ C) and the alarm requires a reset.

Lock Mode

The Lock mode deactivates all other options and avoids any changes being made to your desired temperature settings.

Cool On Auto Light Lock Cool Off

■ To activate Lock mode, press and hold LOCK for 3 seconds. After the countdown, all other displays will turn off and become unavailable except Cool On, Cool Off and Lock.

Showroom Mode

This mode is used only when the wine cellar is on display in a retail store. If you unintentionally turn on Showroom mode, Cool Off will light up on the display, and the controls will appear to work. Exit Showroom mode by pressing and holding COOL ON and SABBATH at the same time for 3 seconds.

Wine Racks

Remove and Replace the Wine Racks

NOTE: When storing large bottles or magnums, remove the rack directly above.

1. Pull the rack forward until it stops.

2. Release the rack from the supports.

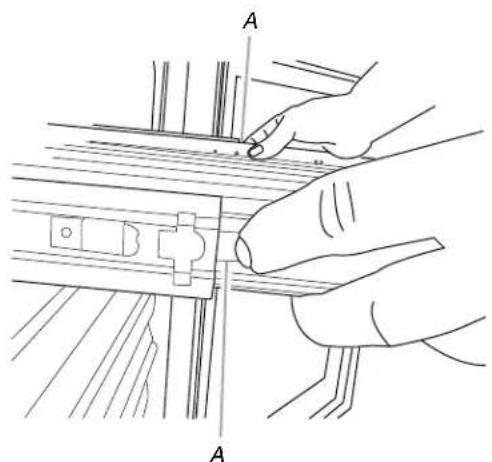

■ Style 1 - Push in on the tabs to release the rack.

Technical diagram showing hands installing or adjusting a mechanical component with labeled parts A

A. Tabs

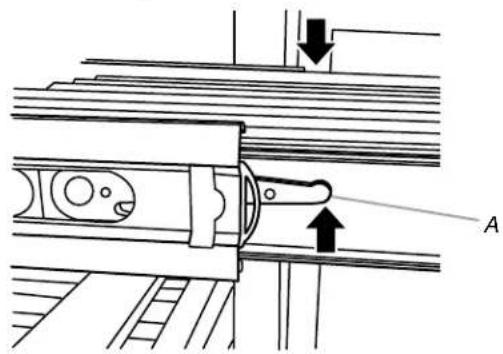

■ Style 2 - Lift up on the left-hand lever while pressing down on the right-hand lever to release the rack.

Technical diagram showing mechanical assembly with labeled component A and directional arrows indicating movement or force

A. Lever

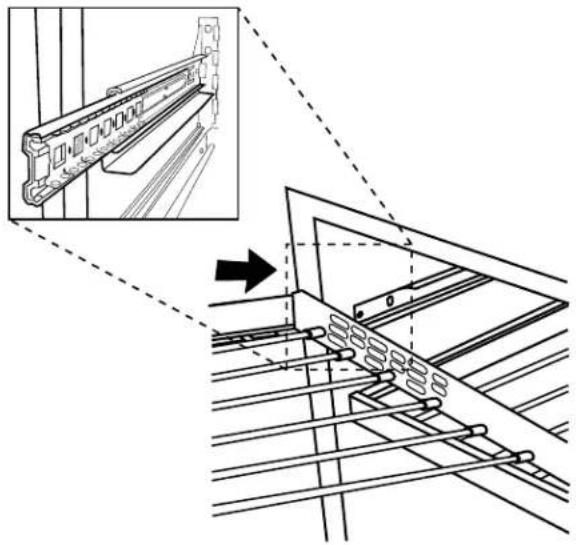

1. Pull the rack forward and lift it up and out of the rack supports

2. Replace the rack by inserting the rack into the supports and sliding it toward the rear of the wine cellar.

Technical line drawing of a mechanical assembly with an inset showing a bracket detail (no text or symbols)

Stocking the Wine Cellar

NOTES:

■ For optimum wine storage, place white wines on the upper rack of the wine cellar and place red wines on the lower rack of the wine cellar.
■ The wine racks can be stocked with the bottles facing either direction, however, to optimize storage adjacent bottles should be facing in opposite directions.

To Stock the Wine Cellar

1. Start stocking the wine cellar with the bottom display rack.
2. Starting on the left-hand side, place the first bottle on the bottom of the rack with the neck of the bottle facing the front of the wine cellar.
3. Place the next bottle on its side with the neck of the bottle facing the back of the wine cellar. Alternate the direction of the bottles, in this manner, until the display rack is full.

Line drawing of an open refrigerator with shelves and drawer (no text or symbols)

1. Slide the bottom rack into place and pull the next rack forward.
2. Continue stocking each remaining rack as described in the above steps.

Line drawing of a multi-volume wine rack with bottles and vials (no text or labels)

WINE CELLAR CARE

Base Grille

You must remove the base grille to access the condenser coils for cleaning.

To Remove the Base Grille:

1. Open the wine cellar door to access the base grille.
2. Using a Phillips screwdriver, remove the two screws.
3. Push both tabs in toward the center to release the base grille from the cabinet and remove.

Technical line drawing of a vehicle air duct system with no text or symbols

A. Tabs
B. Screws

To Replace the Base Grille:

1. Open the wine cellar door.
2. Position the base grille so that both tabs align and the base grille snaps into place. Replace the two screws. Tighten the screws.

Cleaning

WARNING

Explosion Hazard

Use nonflammable cleaner.

Failure to do so can result in death, explosion, or fire.

Clean the wine cellar about once a month to avoid buildup of odors. Wipe up spills immediately.

To Clean Your Wine Cellar:

1. Unplug wine cellar or disconnect power.
2. Remove all racks from inside the wine cellar.
3. Hand wash, rinse, and dry removable parts and interior surfaces thoroughly. Use a clean sponge or soft cloth and a mild detergent in warm water.

■ To avoid damaging wooden tines and trim pieces, wipe them off with a clean sponge or soft cloth and warm water. Do not use detergent or immerse the entire rack into water when cleaning.

■ Do not use abrasive or harsh cleaners such as window sprays, scouring cleansers, flammable fluids, cleaning waxes, concentrated detergents, bleaches or cleansers containing petroleum products on plastic parts, interior and door liners or gaskets. Do not use paper towels, scouring pads, or other harsh cleaning tools. These can scratch or damage materials.
■ To help remove odors, you can wash interior walls with a mixture of warm water and baking soda (2 tbs to 1 qt [26 g to 0.95 L] of water).

1. Wash stainless steel and painted metal exteriors with a clean sponge or soft cloth and a mild detergent in warm water. Do not use abrasive or harsh cleaners, or cleaners containing chlorine. These can scratch or damage materials. Dry thoroughly with a soft cloth.

NOTE: To keep your stainless steel wine cellar looking like new and to remove minor scuffs or marks, it is suggested that you use the manufacturer's approved Stainless Steel Cleaner and Polish. To order the cleaner, see "Accessories."

IMPORTANT: This cleaner is for stainless steel parts only!

Do not allow the Stainless Steel Cleaner and Polish to come into contact with any plastic parts such as the trim pieces, dispenser covers or door gaskets. If unintentional contact does occur, clean plastic part with a sponge and mild detergent in warm water. Dry thoroughly with a soft cloth.

1. Replace the racks.
2. Clean the condenser coils regularly. They are located behind the base grille. Coils may need to be cleaned as often as every other month. This may help save energy.

■ Remove the base grille. See "Base Grille."
■ Use a vacuum cleaner with an extended attachment to clean the condenser coils when they are dusty or dirty.
■ Replace the base grille.

1. Plug in wine cellar or reconnect power.

Vacation and Moving Care

Vacations

If you choose to turn the wine cellar off before you leave, follow these steps.

1. Remove all wine bottles from the wine cellar.
2. Unplug the wine cellar.
3. Clean the wine cellar. See "Cleaning."
4. Tape a rubber or wood block to the top of the door to prop it open far enough for air to get in. This stops odor and mold from building up.

Moving

When you are moving your wine cellar to a new home, follow these steps to prepare it for the move.

1. Remove all wine bottles from the wine cellar.
2. Unplug the wine cellar.
3. Clean, wipe, and dry it thoroughly.
4. Take out all removable parts, wrap them well, and tape them together so they don't shift and rattle during the move.
5. Tape the doors shut and tape the power cord to the wine cellar.

When you get to your new home, put everything back and refer to the "Installation Instructions" section for preparation instructions.

TROUBLESHOOTING

Try the solutions suggested here first in order to avoid the cost of an unnecessary service call.

Your wine cellar will not operate

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

■ Is the power supply cord unplugged? Plug into a grounded 3 prong outlet.
■ Has a household fuse blown, or has a circuit breaker tripped? Replace the fuse or reset the circuit.
■ Is the Wine Cellar Control in Cool Off Mode? See “Using the Controls.”

The motor seems to run too much

Is the temperature outside hotter than normal? Expect the motor to run longer under warm conditions. At normal temperatures, expect your motor to run about 40% to 80% of the time. Under warmer conditions, expect it to run even more of the time.
Is the door opened often? Expect the motor to run longer when this occurs. In order to conserve energy, try to get everything you need out of the wine cellar at once. Keep wine bottles positioned label side up so that they are easy to find, and close the door as soon as the wine is removed.

■ Is the control set correctly for the surrounding conditions? See "Using the Controls."

Is the door closed completely? Push the door firmly shut. If it will not shut all the way, see “The door will not close completely” later in this section.

■ Are the condenser coils dirty? This obstructs air transfer and makes the motor work harder. Clean the condenser coils. See “Cleaning.”

Temperature is too warm

Is the door opened often? Be aware that the wine cellar will warm when this occurs. In order to keep the wine cellar cool, try to get everything you need out of the wine cellar at once. Keep wine bottles positioned label side up so that they are easy to find, and close the door as soon as the wine is removed.

■ Is the control set correctly for the surrounding conditions? See "Using the Control."

Is the base grille blocked? For best performance, do not install the wine cellar behind a cabinet door or block the base grille.

There is interior moisture buildup

Is the door opened often? To avoid humidity buildup, try to get everything you need out of the wine cellar at once, keep wine bottles positioned label side up so that they are easy to find, and close the door as soon as the wine is removed. When the door is opened, humidity from the room air enters the wine cellar. The more often the door is opened, the faster humidity builds up, especially when the room itself is very humid.
■ Is it humid? It is normal for moisture to build up inside the wine cellar when the air is humid.
Is the control set correctly for the surrounding conditions? See "Using the Controls."

The door is difficult to open

WARNING

Explosion Hazard

Use nonflammable cleaner.

Failure to do so can result in death, explosion, or fire.

Is the gasket dirty or sticky? Clean the gasket and the surface that it touches. Rub a thin coat of paraffin wax on the gasket following cleaning.

The door will not close completely

- Are the racks out of position? Put the racks back into their correct positions. See “Wine Cellar Use” for more information.

WARNING

Explosion Hazard

Use nonflammable cleaner.

Failure to do so can result in death, explosion, or fire.

Is the gasket sticking? Clean the gasket and the surface that it touches. Rub a thin coat of paraffin wax on the gasket following cleaning.

ASSISTANCE OR SERVICE

Before calling for assistance or service, please check

“Troubleshooting.” It may save you the cost of a service call. If you still need help, follow the instructions below.

When calling, please know the purchase date and the complete model and serial number of your appliance. This information will help us to better respond to your request.

If You Need Replacement Parts

If you need to order replacement parts, we recommend that you only use factory specified replacement parts. Factory specified replacement parts will fit right and work right because they are made with the same precision used to build every new KITCHENAID® appliance.

To locate factory specified replacement parts in your area, call us or your nearest designated service center.

In the U.S.A.

Call the KitchenAid Customer eXperience Center toll free: 1-800-422-1230.

Our Consultants Provide Assistance With:

■ Features and specifications on our full line of appliances.
■ Installation information.
■ Use and maintenance procedures.
■ Accessory and repair parts sales.
■ Specialized customer assistance (Spanish speaking, hearing impaired, limited vision, etc.).
■ Referrals to local dealers, repair parts distributors, and service companies. KitchenAid designated service technicians are trained to fulfill the product warranty and provide after-warranty service anywhere in the United States.

To locate the KitchenAid designated service company in your area, you can also look in your telephone directory Yellow Pages.

For Further Assistance

If you need further assistance, you can write to KitchenAid with any questions or concerns at:

KitchenAid Brand Home Appliances

Customer eXperience Center

553 Benson Road

Benton Harbor, MI 49022-2692

Please include a daytime phone number in your correspondence.

In Canada

Call the KitchenAid Canada Customer eXperience Centre toll free: 1-800-807-6777.

Our Consultants Provide Assistance With:

■ Features and specifications on our full line of appliances.
■ Use and maintenance procedures.
■ Accessory and repair parts sales.
■ Referrals to local dealers, repair parts distributors, and services companies. KitchenAid Canada designated service technicians are trained to fulfill the product warranty and provide after-warranty service anywhere in Canada.

For Further Assistance

If you need further assistance, you can write to KitchenAid Canada with any questions or concerns at:

KitchenAid Canada Customer eXperience Centre 200 – 6750 Century Ave. Mississauga, Ontario L5N 0B7

Please include a daytime phone number in your correspondence.

Accessories

The following accessories are available for your wine cellar. To order an accessory, contact us and ask for the Part Number.

In the U.S.A., visit our webpage www.kitchenaid.com/accessories or call 1-800-442-9991.

In Canada, visit our webpage www.whirlpoolparts.ca or call 1-800-807-6777.

Stainless Steel Cleaner and Polish

Order Part #4396095

KITCHENAID® REFRIGERATION LIMITED WARRANTY

ATTACH YOUR RECEIPT HERE. PROOF OF PURCHASE IS REQUIRED TO OBTAIN WARRANTY SERVICE.

Please have the following information available when you call the Customer eXperience Center:

■ Name, address and telephone number
■ Model number and serial number
■ A clear, detailed description of the problem
■ Proof of purchase including dealer or retailer name and address

IF YOU NEED SERVICE:

1. Before contacting us to arrange service, please determine whether your product requires repair. Some questions can be addressed without service. Please take a few minutes to review the Troubleshooting or Problem Solver section of the Use and Care Guide, scan the QR code on the right to access additional resources, or visit http://kitchenaid.custhelp.com.
2. All warranty service is provided exclusively by our authorized KitchenAid Service Providers. In the U.S. and Canada, direct all requests for warranty service to:

KitchenAid Customer eXperience Center

In the U.S.A., call 1-800-422-1230. In Canada, call 1-800-807-6777.

http://kitchenaid.custhelp.com

If outside the 50 United States or Canada, contact your authorized KitchenAid dealer to determine whether another warranty applies.

FIVE YEAR LIMITED WARRANTY

WHAT IS COVERED WHAT IS NOT COVERED

LIMITED WARRANTY

For one year from the date of purchase, when this major appliance is installed, operated and maintained according to instructions attached to or furnished with the product, KitchenAid brand of Whirlpool Corporation or Whirlpool Canada LP (hereafter "KitchenAid") will pay for Factory Specified Replacement Parts and repair labor to correct defects in materials or workmanship that existed when this major appliance was purchased, or at its sole discretion replace the product. In the event of product replacement, your appliance will be warranted for the remaining term of the original unit's warranty period.

SECOND THROUGH FIFTH YEAR LIMITED WARRANTY ON CAVITY LINER AND SEALED REFRIGERATION SYSTEM

In the second through fifth years from the date of purchase, when this major appliance is installed, operated and maintained according to the instructions attached to or furnished with the product, KitchenAid brand will pay for factory specified replacement parts and repair labor for the following components to correct non-cosmetic defects in materials and workmanship in this part that prevent function of the refrigerator and that existed when this major appliance was purchased:

■ Refrigerator/freezer cavity liner if the part cracks due to defective materials or workmanship.
■ Sealed Refrigeration system (includes compressor, evaporator, condenser, dryer and connecting tubing).

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. Service must be provided by a KitchenAid designated service company. This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. This limited warranty is effective from the date of original consumer purchase. Proof of original purchase date is required to obtain service under this limited warranty.

1. Commercial, non-residential or multiple-family use, or use inconsistent with published user, operator or installation instructions.
2. In-home Instruction on how to use your product.
3. Service to correct improper product maintenance or installation, installation not in accordance with electrical or plumbing codes or correction of household electrical or plumbing (i.e. house wiring, fuses or water inlet hoses).

4. Consumable parts (i.e. light bulbs, batteries, air or water filters, preservation solutions, etc.).

5. Defects or damage caused by the use of non-genuine KitchenAid parts or accessories.

6. Damage from accident, misuse, abuse, fire, floods, acts of God or use with products not approved by KitchenAid.

7. Repairs to parts or systems to correct product damage or defects caused by unauthorized service, alteration or modification of the appliance.

8. Cosmetic damage including scratches, dents, chips, and other damage to appliance finishes unless such damage results from defects in materials and workmanship and is reported to KitchenAid within 30 days.

9. Discoloration, rust or oxidation of surfaces resulting from caustic or corrosive environments including but not limited to high salt concentrations, high moisture or humidity or exposure to chemicals.

10. Food or medicine loss due to product failure.

11. Pick-up or delivery. This product is intended for in-home repair.

12. Travel or transportation expenses for service in remote locations where an authorized KitchenAid servicer is not available.

13. Removal or reinstallation of inaccessible appliances or built-in fixtures (i.e. trim, decorative panels, flooring, cabinetry, islands, countertops, drywall, etc.) that interfere with servicing, removal or replacement of the product.

14. Service or parts for appliances with original model/serial numbers removed, altered or not easily determined.

The cost of repair or replacement under these excluded circumstances shall be borne by the customer.

DISCLAIMER OF IMPLIED WARRANTIES

IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY

KitchenAid makes no representations about the quality, durability, or need for service or repair of this major appliance other than the representations contained in this warranty. If you want a longer or more comprehensive warranty than the limited warranty that comes with this major appliance, you should ask KitchenAid or your retailer about buying an extended warranty.

LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. KITCHENAID SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

Illustration of a closed storage cabinet with open lid and stack of books (no text or symbols)

Pure mechanical diagram showing a cylindrical component with rotational arrows, no text or symbols present

Technical line drawing of a mechanical or electrical enclosure with no visible text, numbers, or symbols.

Technical diagram showing hands operating a mechanical component with labeled parts A

A. Lengüetas

Technical diagram showing mechanical assembly with labeled component A and directional arrow

A. Palanca

Technical diagram showing a mechanical assembly with an inset view of a bracket component (no text or symbols present)

Line drawing of a refrigerator interior showing three horizontal shelves with ventilation grilles (no text or symbols)

Line drawing of a multi-tiered storage tray with bottles (no text or symbols)

Technical line drawing of a ventilation duct with mounting brackets and a triangular support labeled BA (no text or symbols beyond label)

A. Lengüetas B. Tornillos

KitchenAid Brand Home Appliances

Customer eXperience Center

553 Benson Road

Benton Harbor, MI 49022-2692

Customer eXperience Centre

200 - 6750 Century Ave.

Mississauga, Ontario L5N 0B7

Illustration of a closed storage cabinet with a lid removed (no text or symbols)

Pure mechanical diagram showing a rotating component with arrows indicating rotational motion (no text or symbols)

Technical line drawing of a mechanical or electrical enclosure with no visible text, numbers, or symbols.

Line drawing of hands assembling or adjusting a mechanical component with labeled points A (no text or symbols beyond labels)

A. Onglets

Technical diagram showing mechanical assembly with labeled component A and directional arrow

A. Manette

Technical line drawing of a mechanical assembly with an inset showing a bracket detail (no text or symbols)

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

Line drawing of a multi-volume wine rack with bottles and wheels (no text or symbols)

ENTRETIEN DE LA CAVE À VIN

Grille de la base

Technical line drawing of a mechanical component with no visible text or symbols

A. Onglets
B. Vis

ASSISTANCE OU SERVICE

KitchenAid Brand Home Appliances

Customer eXperience Center

553 Benson Road

Benton Harbor, MI 49022-2692

1901 Minnesota Court

Mississauga, Ontario L5N 0B7

www.kitchenaid.com/accessories ou composer le

1-800-442-9991.

http://www.kitchenaid.ca

GARANTIE LIMITÉE DE CINQ ANS

CE QUI EST COUVERT CE QUI N'EST PAS COUVERT

GARANTIE LIMITÉE
