USER MANUAL LI 670 DUO Ariston Thermo

HQHUJHWLFLDGDWWRD VWRYLJOLHHSHQWROH

DVFLXJDWXUDHFFHWWR QHOFDVRGLVHOH]LRQH G HOO H [WU D D V FLXJD WXUD %UHYHODYDJJLRD& 5LVFLDFTXRFDOGRD&

G H OLF D WL S L VHQVLE LOL DOOHDOWHWHPSHUDWXUH VXELWRGRSROXVR

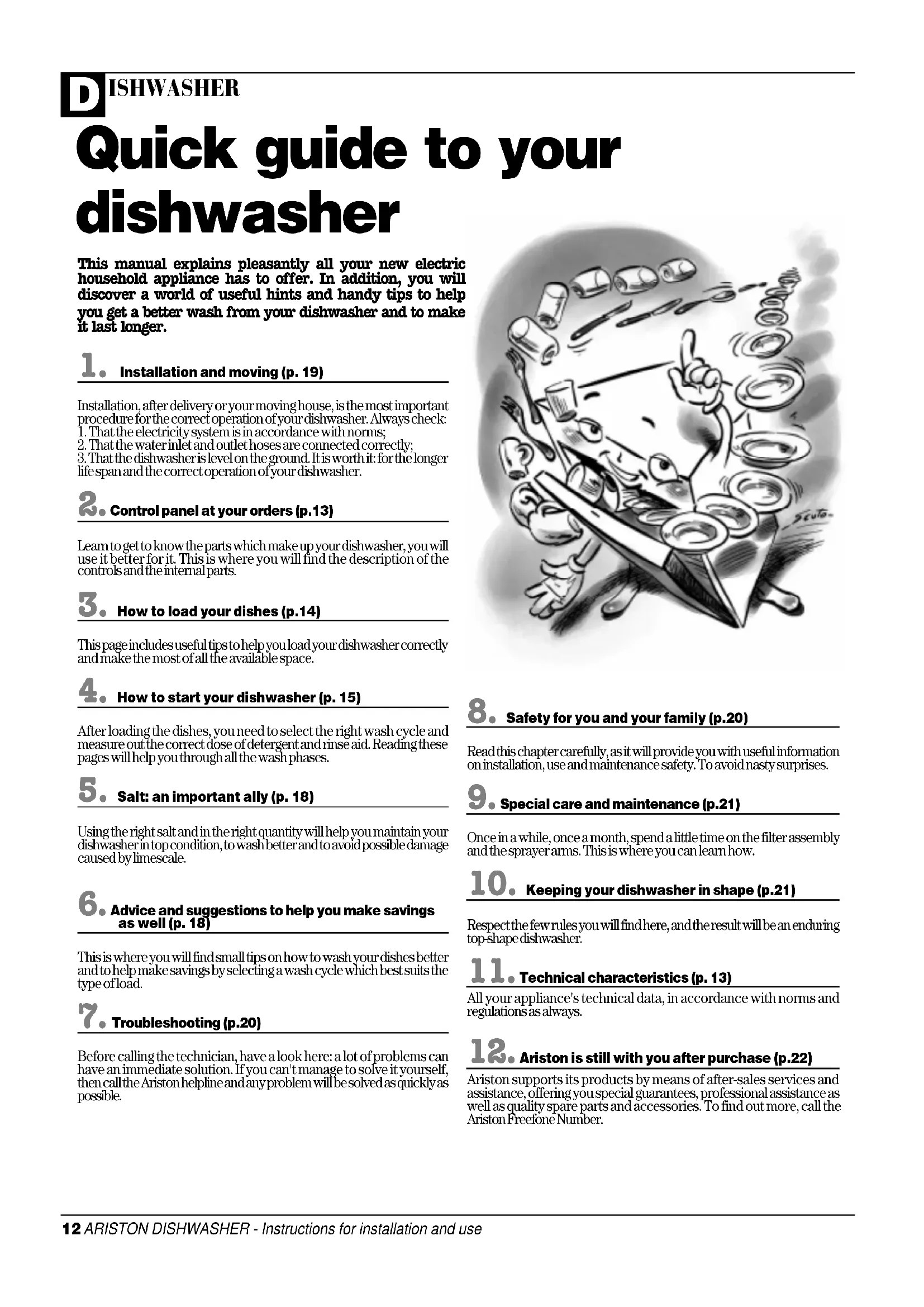

ISHWASHER Quick guide to your dishwasher

1. Installation and moving (p. 19)

Installation, after delivery or your moving house, is the most importantprocedure for the correct operation of your dishwasher. Always check:1. That the electricity system is in accordance with norms;2. That the water inlet and outlet hoses are connected correctly;3. That the dishwasher is level on the ground. It is worth it: for the longerlife span and the correct operation of your dishwasher.

2. Control panel at your orders (p.13)

Learn to get to know the parts which make up your dishwasher, you willuse it better for it. This is where you will find the description of thecontrols and the internal parts.

3. How to load your dishes (p.14)

This page includes useful tips to help you load your dishwasher correctlyand make the most of all the available space.

4. How to start your dishwasher (p. 15)

After loading the dishes, you need to select the right wash cycle andmeasure out the correct dose of detergent and rinse aid. Reading thesepages will help you through all the wash phases.

5. Salt: an important ally (p. 18)

Using the right salt and in the right quantity will help you maintain yourdishwasher in top condition, to wash better and to avoid possible damagecaused by limescale.

6. Advice and suggestions to help you make savings

as well (p. 18)This is where you will find small tips on how to wash your dishes betterand to help make savings by selecting a wash cycle which best suits thetype of load.

7. Troubleshooting (p.20)

Before calling the technician, have a look here: a lot of problems canhave an immediate solution. If you can't manage to solve it yourself,then call the Ariston helpline and any problem will be solved as quickly aspossible.

8. Safety for you and your family (p.20)

Read this chapter carefully, as it will provide you with useful informationon installation, use and maintenance safety. To avoid nasty surprises.

9. Special care and maintenance (p.21)

Once in a while, once a month, spend a little time on the filter assemblyand the sprayer arms. This is where you can learn how.

10. Keeping your dishwasher in shape (p.21)

Respect the few rules you will find here, and the result will be an enduringtop-shape dishwasher.

11. Technical characteristics (p. 13)

All your appliance's technical data, in accordance with norms andregulations as always.

12. Ariston is still with you after purchase (p.22)

Ariston supports its products by means of after-sales services andassistance, offering you special guarantees, professional assistance aswell as quality spare parts and accessories. To find out more, call theAriston Freefone Number.This manual explains pleasantly all your new electrichousehold appliance has to offer. In addition, you willdiscover a world of useful hints and handy tips to helpyou get a better wash from your dishwasher and to makeit last longer.ARISTON DISHWASHER - Instructions for installation and use 13

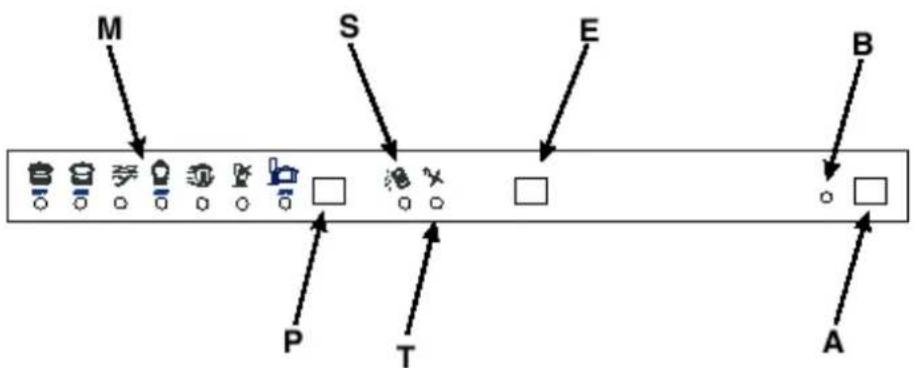

ISHWASHER Control panel at your orders A. ON-OFF ButtonPress this button toswitch the appliance on.B.ON-OFF IndicatorlightThis light informs youthat the dishwasher is on.E. Extra drying buttonPress this button forgreater drying.P. Cycle select buttonEach time this button ispressed, one of the cycleindicator lights M willcome on in sequence.M.Cycle indicator lightThis light informs youwhich cycle you haveselected or the one inprogress. How is it made? E. Upper rackF. Top sprayer armG. Rack height adjusterH . Lower rack Let's open up your dishwasher together

I. Bottom sprayer armJ. Salt container capK . Washing filterL. Detergent and rinseaid dispenser

Technical Characteristics Learn to get to know the parts which make upyour dishwasher, you will use it better for it. Technical characteristics Width cm. 59,

Depth cm. 57 Height cm. 82 Capacity 12 standard place settings Mains water pressure 4,3 psi - 145 psi (30 KPa÷ 1MPa )(0,3 ÷10 bar) Power voltage See data plate Total absorber power See data plate Fuse See data plate This dishwasherconforms to thefollowing EuropeanCommunityDirectives: 73/23/EC (Low Voltage Directive) and subsequent amendments; 89/336/EC (Electromagnetic Compatibility) and subsequent amendments. 97/17/EC (Labelling) 2002/96/EC (Waste Electrical and Electronic Equipment) S. Low salt indicator lightThis light warns you thatit is time to add more salt.T. Low rinse aid indicatorlightThis light warns you thatit is time to add morerinse aid.14 ARISTON DISHWASHER - Instructions for installation and use

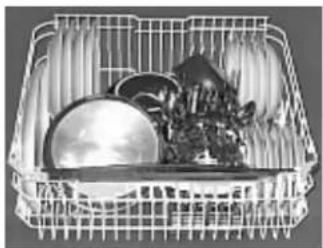

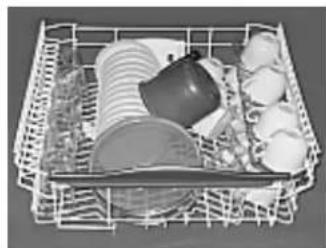

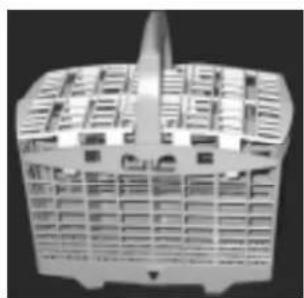

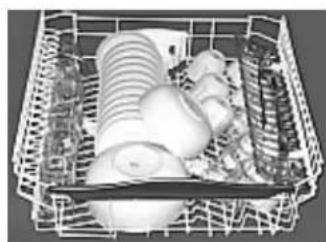

ISHWASHER How to load your dishes Before washing, a few small steps can help you get a better wash and keep your dishwasher for longer. Remove the largest scraps of food left over on your plates, soak saucepans and frying pans with tough incrustations. After loading your dishes, make sure the blades on the sprayer arm turn well upper racklower rackFirst of all. Before placing the dishes in the racks, remove the largest scraps of food left over on your plates, you will thus avoid blocking the filter, which would reduce the efficacy of the wash. If the saucepans and frying pans are very dirty, allow them to soak before being washed. To make it easier to load your dishes, pull the racks out. Multisystem racks This dishwasher model is fitted with newer and more modern upper and lower racks and a cutlery basket. They are made to provide greater flexibility in loading dishes, mak- ing them more suitable to meet your specific needs. What goes into thelower rack? We recommend you place the most difficult dishes to wash into the lower rack: saucepans, lids, soup dishes and plates, but also: mugs, cups and glasses (see photos for load examples). Serving dishes and large lids: place them on the sides of the rack. Saucepans, salad bowls: must always be placed upside down Very deep dishes: place them obliquely, thus allowing water to run down them and cleaning them better Glasses and cups: Position them as indicated in the figure. The cutlery basket may be splitinto two parts by pulling out thehandle.When you only have little cutleryto wash, you can use just half thebasket; save space for othercrockery or place the other half ofthe basket in the upper rack instead(see figures A and B).This basket is equipped with tworemovable grids: insert the cutleryone by one into the slots; knivesand utensils with sharp blades ortips should be positioned with thesharp parts at the bottom.Position all cutlery items so thatthey don't touch. Load examplesIt is best if you place longerutensils horizontally at the frontof the upper rack.What goes into theupper rack? Place delicate and lightweight dishes in the upper rack: glasses, tea cups and coffee cups, saucers - but plates too - shallow salad bowls, slightly dirty frying pans and shal- low pans. Position light weight dishes in such a way as to avoid their being moved by the spray of water. The appliance can also be equipped with one or two tip-up compart- ments onto which you can place mugs and cups, as well as long sharp knives and serving cutlery. After loading the dishes, remem- ber to check that the blades on the sprayer arms can turn freely with- out hitting against any dishes. How to adjust the toprack. The upper rack can be set in high or low position to enable you to organise your dishes effortlessly. Open the rail stop flaps and pull therack out completely. Now place it inhigh or low position, then slide it alongthe guide rails until the front wheelsalso go in. Now close the rail stop flaps.Follow the sequence of actionsillustrated in figure "F".

AARISTON DISHWASHER - Instructions for installation and use 15

ISHWASHER You have loaded your dishes and you now have to set the wash cycle. It takes just one minute to learn how Starting the dishwasher Ready, steady, go! Make sure thewash cycle hasended beforeremoving thedishes!There's been a power fail-ure? Have you opened thedishwasher door?The wash cycle stops and then re-starts when the electricity comesback on or when you shut the door.Everything is under control!Do you want extradrying?Press button "E" before you startthe selected wash cycle. A longbeep will tell you that you haveselected extra drying and the washcycle will last longer in order toprovide you with drier dishes.First of all.After performing all the operationsdescribed in the previous para-graphs, turn the water tap on com-pletely, open the appliance door andpress ON-OFF button "A": indica-tor light "B" comes on. Your appli-ance is now on and awaiting in-structions.Selecting the washcycle.Select the wash cycle by pressingbutton "P". Each time this buttonis pressed, one of the indicatorlights "M" will come on in sequence,select the wash cycle you deemmost suitable for the type of dishesto wash (take a look at page 17,where you will find the wash cycletable). Close the appliance door andafter a few seconds, you will heara short beep: the wash cycle hasbegun.Modifying a wash cycle inprogress.But if you have chosen the wrongcycle, not to worry! You can modifythe wash cycle in progress, if it hasonly just started. Open the appli-ance door carefully to avoid anyhot water splashes, then keep but-ton "P" pressed for approximately5 seconds, until you hear a shortbeep. Indicator light "M" will comeoff and at this point, all the settingswill have been cancelled. You arenow free to re-set the correct washcycle.You've left out a dish?Well, it happens to everyone. Inter-rupt the wash cycle by opening theappliance door with the utmostcare, as usual, then insert the dishyou had forgotten. When you shutthe appliance door, the cycle willstart up from where you interrupted it. Finished?The end of the wash cycle is indi-cated by a double beep and the flash-ing of the wash cycle indicator light"M".Turn off the water tap.Wait a few minutes before unload-ing the dishes: they are very hot! Ifyou wait a little while, they drybetter thanks to the steam.Empty the lower rack first.If opening thedoor soon afterthe end of theprogramme,orduring it, standaway from theDishwasher, toavoid possibleinjury from hotsteam.You can cancelthe wash cyclein progress, if ithas only juststarted.Warning!Open the dishwasher door,turn off by pressing button A,unplug the appliance from theelectricity socket to cut off thepower supply; the power supplycable should consequently beeasily accessible.16 ARISTON DISHWASHER - Instructions for installation and use

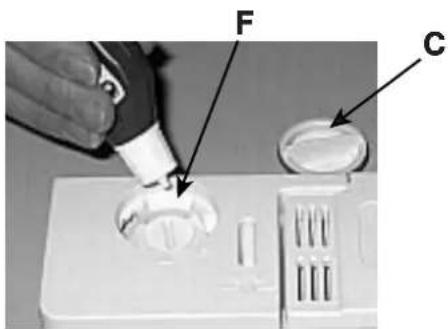

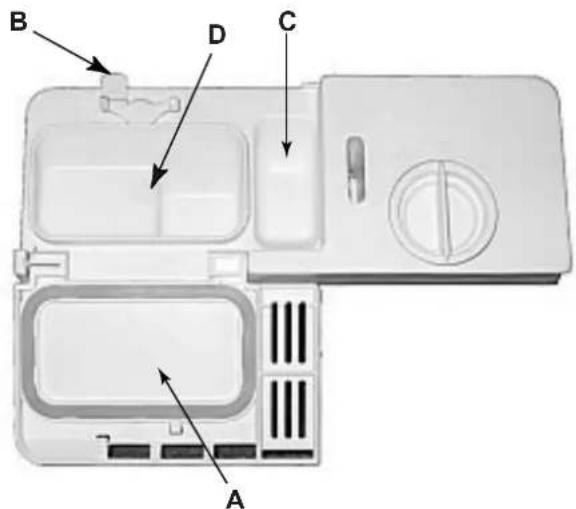

ISHWASHER Detergent and rinse aid The rinse aid.This product makes dishes sparklemore as it improves their drying.The rinse aid container is situatedon the inside of the door: It shouldbe filled up when the low rinse aidindicator light "T" flashes.Loading the rinse aid.To open the dispenser, turn cap Canticlockwise. Take care when youpour in the rinse aid to avoid itoverflowing. You can adapt theamount of rinse aid used by thedishwasher: regulate the adjusterF which you will find under lid C.The detergentLoading the detergentTo open lid A, press button B. Thedetergent should be poured into thetwo containers C and D up to the rim. Now you can close the lid: press itdown until you hear it click.If you prefer to use the detergentin tablet form, then place one insidethe container D and close the lid.It won't close!Check whether there is anydetergent residue on the edges ofthe dispenser. It is due to this resi-due that the lid won't close. Get ridof it and you'll see that it closes.Only use specific dishwasher detergents. Pour the detergent into thedispenser on the inside of the door. Before the wash cycle starts! Use the rightamount ofdetergent: if youuse too much,you will not getcleaner dishes,but just moreenvironmentalpollution. Keep yourdishwasherdetergent andrinse aid in acool, dry placeand away fromchildren. Useful tips You can choose from six different positions.It is normally set to 4.

Proper dosage ofthe rinse aidimproves drying.If drops of waterremain on thedishes or spottingoccurs, turn thedosage adjuster toa higher setting.If, on the otherhand, the disheshave whitestreaks, then turnthe dosageadjuster down toa lower setting.WarningThree-in-one dishwasher tablets are now available on the market, and combine detergent, salt and rinse aid all in one. If the water in your area is hard or very hard, we still recommend you pour extra salt into the relevant dispenser to prevent the formation of white streaks on your dishes or on the interior of the appliance.Using a three-in-one product means it is no longer necessary to put rinse aid into the relevant container.If you want to achieve perfectly dry dishes, you may add rinse aid as long as the dosage adjuster is set to no.2.In any case, please read the manufacturer's instructions on the packet. If you use only these products, it is normal for the salt and rinse aid indicator lights to flash permanently after a certain number of cycles.ARISTON DISHWASHER - Instructions for installation and use 17

ISHWASHER A wash cycle for every degree of soil Select the right wash cycle Salt, rinse aid, the right amount of detergent and the correct wash cycle:this is the formula to get the best results and to keep your dishwasher inshapeNote: in the auto wash cycles, the cycles could undergosome modifications due to the intervention of the sensorwhich evaluates how dirty the dishes are and optimisesthe cycle in accordance."AUTO" washcyclesThis means that yourdishwasher is equipped witha sensor which evaluatehow dirty your dishes areand allows these washcycles to adjustautomatically, to provideyou with a more efficientand economic wash cycle.&\FO H&\FOHVHOHFWLRQLQVWUXFWLRQV&\FOH GH V FU LSWLRQ'HWHUJHQWIRU SU H ZDV K ZDV K5LQVH$L G:DVK F\FO HGXUDWLRQWROH UDQFH Z LWKRXWH[WUDGU\LQJ$X WR,QWH QVLYH9HU \ GLUW\GLVKHVDQGSDQVQRW WREHXV HGIRUGHOLFDWHLW HPV3UHZDVK DW&:DVK DW&&ROGULQ VHV+RWULQ VHDW&'U\LQJJ

IURPGU\LQJRQWRWKHGLVKHV $X WR

WHP SHUDW X U HV5XQ F\FOH LPP HGLDW HO\DI W HUX V H :DVK DW&5LQVHDW &+RWULQ VHDW&'U\LQJ

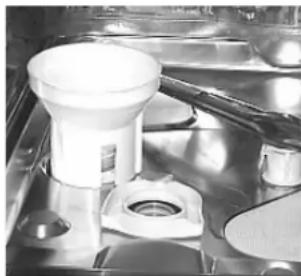

ISHWASHER Never without salt Loading the salt.Always use salt which is intendedfor dishwasher use.The salt container is situatedunderneath the lower rack, fill itup as follows:1.Pull out the lower rackcompletely, unscrew andremove the container cap2. Is it the first time you load thesalt? First fill the container upwith water (you won't have todo this again next time)3. Put the dishwasher funnel on thehole and pour in approximatelytwo kilos of salt. It is normalthat some water comes out ofthe container.4. Screw the cap back in placecarefully. Water in your home When should I load thesalt?The salt container should be filledup when the low salt indicator light"S" flashes. Your appliance will re-mind you to do so for 5 consecu-tive wash cycles.Salt adjustmentYour dishwasher can adjust its saltconsumption according to the hard-ness of the water in your home.This way, you can optimise andcustomise your dishwasher's saltconsumption (not too much, nor toolittle).To adjust salt consumption, do asfollows:1. Unscrew the salt container cap2. There is an arrow on the neck ofthe container (see figure): ifnecessary, turn the arrow anti-clockwise from the "-" settingto the "+" setting.Select the arrow positiondepending on the water hardness,referring to the table provided.You don't knowhow hard thewater in yourhome is? Ask thecompany thatsupplies water inyour area.Water hardness varies according to where you live. If the water in your home ishard, without water softening, incrustations would form on your dishes. Yourdishwasher is fitted with a water softener which uses special salt to get rid oflimescale in the water.Using your electric household applianceswisely helps you make savings and isgood for the environment. Savings are easy Maximum load.To optimise consumption levels, try to use thedishwasher with a full load only. If it takesquite some time to fill up your dishwasher,use the soak cycle to avoid the formation ofbad odours and caked-on food.The right wash cycle.Select the most suitable wash cycle for thetype of load you have placed in the dishwasher.The choice of wash cycle depends on the typeof dishes to wash and on how dirty they are.To select the right wash cycle, please consultthe wash cycle table on page 17. How to look after and protect the dishes you hold dear ■ For particularly delicate dishes,we recommend you use thespecific wash cycle offered byyour dishwasher. Suggestions and advice for you. Apart frommaking you savetime and energy,your dishwasherdisinfects yourdishes, washingthem at a hightemperature.■ Silver plates and serving dishesshould be washed immediatelyafter use, especially if they havecontained salt, eggs, olives,mustard, vinegar, fruit juicesand cooked vegetables.■ Almost all silverware can becleaned in a dishwasher.There are two exceptions: oldsilverware and silverwaredecorated with an oxidisingagent. Hot water can loosenthe handles on old silverwaread wear off the decorations onthe other.Never let silverware come intocontact with other metals: youwill thus avoid stains andblackeningTo prevent rustfrom forming, loadthe salt just beforebeginning a washcycle. Water Hardness Clarke degrees °fH mmol/l Selector position Salt consu- mption (grams/- cycle) Autono-

>71 > 89 > 8,9 "+" 60 25ARISTON DISHWASHER - Instructions for installation and use 19

ISHWASHER If the powersocket to whichthe appliance isconnected is notcompatible withthe plug, replaceit with a suitableplug rather thanusing adapters ormultiple plugs asthese could causeoverheating orburns. Installation and moving After having bought or moved your dishwasher to another home, a correct installation ensures that your dishwasher will operate smoothly and efficiently. use for an extended period of time,let the water run to make sure it isclear and free of impurities beforemaking the connection. If thisprecaution is not taken, the waterinlet could get blocked, causingdamage to your dishwasher.Hot water connection.Your dishwasher can be suppliedwith hot water from the mainssupply (if you have a central heatingsystem with radiators) at a tempe-rature of no more than 60°C.In this case, the wash cycle timewill be about 15 minutes shorterand the wash will be slightly lesseffective.The connection must be made tohot water supply following thesame procedures as those indicatedfor the cold water connection.Anti-flooding protectionYour dishwasher is provided with aspecial system which blocks thewater supply in the event of leaksinside the appliance. It is furtherequipped with a water inlet hosethat can withstand extremely highpressures and that turns bright redin the event of breakage. Safety inthe event of flooding is ensured bythe second clear hose that containsthe former and thus highlights thelatter when it has turned bright red.It is vital that you check it on aregular basis: if you see it has turnedbright red, then you know you haveto replace it as soon as possible.Call for an authorised technicalengineer to come and replace it.Drain hose connection.Fit the drain pipe into a drain linewith a minimum diameter of 4 cmor place it over the sink. Avoidrestricting or bending it. The partof the pipe marked with the letterA should be between 40 and 100cm above the ground.The pipe should not be immersedin water.Electrical connection.First of all, check that the mainsvoltage and frequency valuescorrespond to those stated on therating plate located on the stainlesssteel inner door of the applianceand that the electrical system towhich the dishwasher is connectedis sized for the maximum currentindicated on said rating plate.Choose where you want to installyour dishwasher, you can evenplace it so that its sides or backpanel are side by side with furnitureor up against the wall. Thedishwasher is provided with watersupply and drain hoses, which canbe directed towards the left or rightto facilitate appropriateinstallation.Levelling.Once the appliance is positioned,adjust the feet by screwing them inor out depending on how high youwant it and to level it so that it ishorizontal. Make sure that it is notinclined more than 2 degrees. If theappliance is level, it will help ensureits correct operation.Adjusting the back FeetInsert the appliance into the cutoutand then adjust the height using thescrews located on the front bottompart of the machine. Use ascrewdriver to turn the screws inthe clockwise or anti-clockwisedirection to increase or decreasethe height respectively.Cold water connection.This electric household applianceshould be connected to the watermains using the cold water supplyhose provided with the applianceonly. Do not use a different hose. Inthe event of replacements, useoriginal spare parts only.Connect the cold water supplyhose to a 3/4 gas threadedconnection, taking care to screw ittightly onto the tap. If the waterhoses are new or have been out of Your dishwasher has arrived

Earth: indispensablesafety.Only now can you plug theappliance into a socket providedwith an efficient earth connection(the system's earthing is aguarantee of safety provided for bylaw, make sure your system has it). Power supply wire.Check the power supply wire on aregular basis; if it is damaged, werecommend you have it replacedby an authorised technicalAssistance service centre.The plugThe dishwasher plug must beaccessible even when the applianceis installed as a built-in unit so thatmaintenance can be done safely.Condensation-proof tape.On some models, a transparentcondensation-proof adhesive tapehas been provided.It should be stuck onto the lowerside of your wooden worktop toprotect it from the formation ofcondensation.When not provided, this tape canbe requested as a spare part fromauthorised retailers.20 ARISTON DISHWASHER - Instructions for installation and use

ISHWASHER Safety within your home Your dishwasher was built in accordance with the strictest international safety regulations. They protectyou and your family. Read the instructions and information contained in this manual: they will provideyou with useful hints as to installation, use and maintenance safety. To avoid nasty surprises.1. Dispose of the packagingmaterial carefully (follow theinstructions on how to divideyour rubbish up provided byyour local Council)2. After removing thepackaging, check to makesure your appliance is intact.If in doubt, contact a qualifiedprofessional.3. Your dishwasher must only beused by adults and for washinghousehold dishes, according tothe instructions included inthis manual. Do not touch theappliance with wet hands orfeet or barefoot.4. We discourage the use ofextension leads and multipleplugs. If the electricity supplywire is not long enough, thenhave it replaced with one ofthe correct length andremember that it should befree of bends or dangerouskinks.5. If the appliance is not operatingproperly or if maintenanceoperations are necessary,disconnect the dishwasherfrom the mains power supply(unplug it!).6. Keep children away from thedishwasher when it is open andkeep detergents out of theirreach.7. Your dishwasher is not to beinstalled outdoors, not even ifthe area is covered by a roof:it is extremely dangerous toleave it exposed to rain andthunderstorms.8. Do not touch the heatingelement during or straightafter a wash cycle.9. Do not lean or sit on the doorwhen it is open, as this couldoverturn the dishwasher.10. If the appliance malfunctions,turn off the water inlet tap anddisconnect the plug from thewall socket. Then tryconsulting the section entitled"I you have a problem, readthis". If you cannot resolve theproblem, then call the servicecentre.11. Once taken out of use,appliances must be madeinoperable: cut the powersupply wire and damage thedoor lock.12. Disposal of old electricalappliancesThe European Directive 2002/96/EC on Waste Electrical andElectronic Equipment(WEEE), requires that oldhousehold electricalappliances must not bedisposed of in the normalunsorted municipal wastestream. Old appliances mustbe collected separately inorder to optimise the recoveryand recycling of the materialsthey contain and reduce theimpact on human health and If you have a problem, read this Your dishwasher may not work or not function properly. In many cases, these are problems which can besolved without having to call for a technician. Before calling the service centre, always check the pointsbelow.The dishwasher won'tstart■ Is the water supply tap turned on? ■ Is the water supply tapconnected to the hose properly?■ Has the water in your homebeen cut off?■ Is the pressure of the watersupply sufficient?■ Is the hose bent?■ Is the filter on the water supplyhose blocked?■ Is the dishwasher door open?The dishes are notclean.■ Have you put the right amountof detergent into the dispenser?■ Is the wash cycle suitable forthe dishes you have placedinside the appliance?■ Are the filter and microfilterclean?■ Can the sprayer arms turnfreely?The dishwasher won'tdrain.■ Is the drain hose bent?Limescale deposits or awhite film form on thedishes.■ Is the lid on the salt containerclosed properly?■ Is the rinse aid dosage correct?Error messagesYour dishwasher is equipped witha safety system which is able todetect any operating anomalies.These anomalies are reported byone or two wash cycle indicatorlights "M" flashing rapidly. Take anote of which lights are flashing,turn the appliance off and call fortechnical assistance.Tap off alarmIf you have forgotten to turn thewater tap on, your appliance willremind you of this by sounding afew short beeps for a few minutes.Turn the tap on and your appliancewill start up again after a few min-utes. Were you to be absent whenthese beeps are sounded, the appli-ance will be blocked automaticallyand wash cycle 5 and 6 indicatorlights (crystal and auto duo-wash)will flash rapidly. Turn the applianceoff at the ON-OFF button, turn onthe water tap and wait approxi-mately 20 seconds before turningthe appliance back on.Re-select a wash cycle as indi-cated in the "Selecting the washcycle" paragraph and the appliancewill start.Clogged filter alarmIf the appliance is blocked andwash cycle 3 and 5 indicator lights(eco and crystal) flash rapidly, thismeans the filter is clogged by largeparticles of food residue. Turn theappliance off, clean the filterthoroughly and reposition it in itsseat as illustrated on page 21. Thenturn the appliance back on.Re-select a wash cycle as indi-cated in the "Selecting the washcycle" paragraph and the appliancewill start. Troubleshooting Water load solenoid valvemalfunction alarm.If indicator light 5 (Rapid) flashesrapidly, TURN the dishwasher OFFAND BACK ON AGAIN after oneminute. If the alarm persists, firstturn off the water tap to avoid anyflooding and then cut off theelectricity supply and call fortechnical assistance.You have checkedeverything, but thedishwasher still doesn'twork and the problempersists?Call an authorised service centrenear you and remember to mention: the type of malfunction the model mark (Mod.) and theserial number (S/N.) indicated onthe rating plate located on the innerdoor, to one side.the environment. The crossedout "wheeled bin" symbol onthe product reminds you ofyour obligation, that when youdispose of the appliance itmust be separately collected.Consumers should contacttheir local authority or retailerfor information concerningthe correct disposal of theirold appliance.Never call uponthe services ofunauthorisedtechnicians andalways refusespare parts thatare not originals.ARISTON DISHWASHER - Instructions for installation and use 21

ISHWASHER Cleaning and special maintenance Cleaning the sprayerarms.Food residue may becomeencrusted onto the sprayer armsand block the holes where watercomes out. Check the sprayerarms regularly and clean themonce in a while (letters F and I Howis it made?).Once in a while,once a month,spend a little timeon the filterassembly and thesprayer arms. Keep your dishwasher in shape Respecting these few rules ensures you will alwayshave a reliable work companion by your side.After every wash.When the wash cycle has ended,always remember to turn off thewater supply tap and to leave theappliance door ajar. This way,moisture and bad odours will notbe trapped inside.Unplug the appliance.Before carrying out any cleaningor maintenance on the dishwasher,always remove the plug from theelectricity socket. Do not run risks.No solvents! No abrasives!To clean the exterior and rubberparts of your appliance, do not usesolvents or abrasive cleaningproducts. Use a cloth dampenedwith lukewarm soapy water only.If there are any stains on thesurface of the appliance interior,use a cloth dampened with waterand a little white vinegar, or acleaning product specifically madefor dishwashers.Going on holiday?When you go away for an extendedperiod of time, we recommend youdo the following: run a cycle with the dishwasherempty turn off the water inlet tap. leave the appliance door ajarThis will help the seals last longerand prevent unpleasant odoursfrom forming inside the appliance.Moving the appliance.Should the appliance have to bemoved, try to keep it in a verticalposition. If absolutely necessary, itcan be positioned on its back.The seals.One of the factors that causeunpleasant odours to form insidethe dishwasher is food that remainstrapped in the seals. Periodiccleaning using a damp sponge willprevent this from occurring.Your dishwasher is not a wastedisintegrator!Do not worry about removing everysingle bit of food residue from yourdishes, but do get rid of bones, peel andrind and any other left-overs beforeplacing them in the racks. Empty outall glasses and cups. Care and maintenance

The filter assemblyIf you want consistent good resultsfrom your dishwasher, you need toclean the filter assembly.The food particles are removedfrom the wash water, allowing it tobe recirculated during the cycle,filtered perfectly. For this reason,it is a good idea to remove the largerfood particles trapped inside thecup C and the semi-circular filterA after each wash; pull the cuphandle upwards to remove them.Just rinse them under runningwater.The entire filter assembly shouldbe cleaned thoroughly once amonth: cup C + semi-circular filterA + cylindrical filter B. Rotate filterB anticlockwise to remove it.For cleaning, use a non metallicbrush.Reassemble the filter parts (asshown in the figure) and reinsertthe whole assembly into thedishwasher. Position it into itshousing and press downwards.The dishwasher is not to be usedwithout filters. Improperreplacement of the filters may re-duce the efficiency of the wash andeven damage your dishwasher.22 ARISTON DISHWASHER - Instructions for installation and use

ISHWASHER We're as close to you as your telephone For direct access to Genuine Ariston Spare Parts and Accessories, call 0870 558 5850 and speak to our skilled staff who can help you to identify and purchase the item you require. For a Rapid Response to a problem with your appliance, call 0870 607 0805. We're open from Monday to Saturday (8am - 5.30pm weekdays, 9am - 5pm Saturday). We have our own department of highly trained Aristonservice staff. For most calls, our Service Engineer can fix the problem on the first visit.Please have the following details to hand when you ring us: The nature of the problem, the Model Number and the Serial Number. These numbers can be found on the appliance and on the portion of the Registration Card which you retain. Stay in touch THANK YOU for choosing an Ariston appliance. We are confident you have made a good choice and that your new appliance will give many years of excellent service.And we're there when you need us. Register your purchase now This will confirm your entitlement to free spare parts for five years, and you could also be lucky enough to recover the cost of your purchasein our quarterly prize draw.Simply complete and return the Registration Form supplied with the appliance documents, using the FREEPOST envelope supplied. Or call the Registration Hotline on 0870 010 4305. Enjoy complete peace of mind. By registering now, you automatically qualify for a full year's guarantee on parts and labour PLUS free functional parts cover for a further 4 years, provided they are genuine Ariston spare parts fitted by an Ariston Service Engineer.LAVE-VAISSELLE ARISTON - Mode d'installation et d'emploi 23
