Features	Details
Hood type	Decorative hood
Dimensions (W x D x H)	60 cm x 50 cm x 75 cm
Max air flow	600 m9/h
Power levels	3 power levels
Lighting	LED
Grease filter	Metal filters, dishwasher safe
Installation	Wall-mounted installation
Energy consumption	Energy class C
Noise level	65 dB(A) at maximum power
Safety	Protection against electrical overload
Warranty	2 years

Frequently Asked Questions - CBG6201X CANDY

How do I clean the filters of the CANDY CBG6201X hood?

To clean the filters, remove them from the hood and soak them in warm soapy water for about 30 minutes. Rinse them thoroughly with clean water and let them dry before putting them back in place.

What should I do if the hood does not turn on?

First, check that the hood is properly plugged in and that the electrical circuit is working. If everything is in order, try resetting the hood by unplugging it for a few minutes.

Does the CANDY CBG6201X hood make noise?

Some noise is normal during operation. However, if the noise is excessive, check if the filters are clean and if the hood is properly mounted. A dirty filter or incorrect installation can increase the noise.

How do I adjust the suction power of the hood?

The suction power can be adjusted using the control buttons located on the front panel of the hood. Select the desired speed according to cooking needs.

What types of filters are compatible with the CANDY CBG6201X?

The hood uses aluminum grease filters and can also be equipped with carbon filters for recirculation mode. Make sure to choose filters compatible with the CBG6201X model.

How do I install the CANDY CBG6201X hood?

Follow the installation manual provided with the hood. Make sure to mount the hood at an appropriate height above the stove and comply with local electrical standards when connecting.

Can the CANDY CBG6201X hood be used without external venting?

Yes, the hood can operate in recirculation mode with carbon filters, which purify the air without external venting.

How do I know when to replace the filters?

It is recommended to check the filters every 3 months. If you notice a decrease in suction or if the filters are visibly dirty, it is time to replace them.

USER MANUAL CBG6201X CANDY

INSTALLATION AND USER'S MANUAL

CONTENT

INTRODUCTION....3

SAFETYPRECAUTION....3-4

PREPARE FOR INSTALLATION....5

SKPECIFICATIONS....5

INSTALLATION....6-7

OPERATION....7-8

MAINTENANCE....8

TROUBLESHOOTING....9

ENVIRONMENTALPROTECTION....9

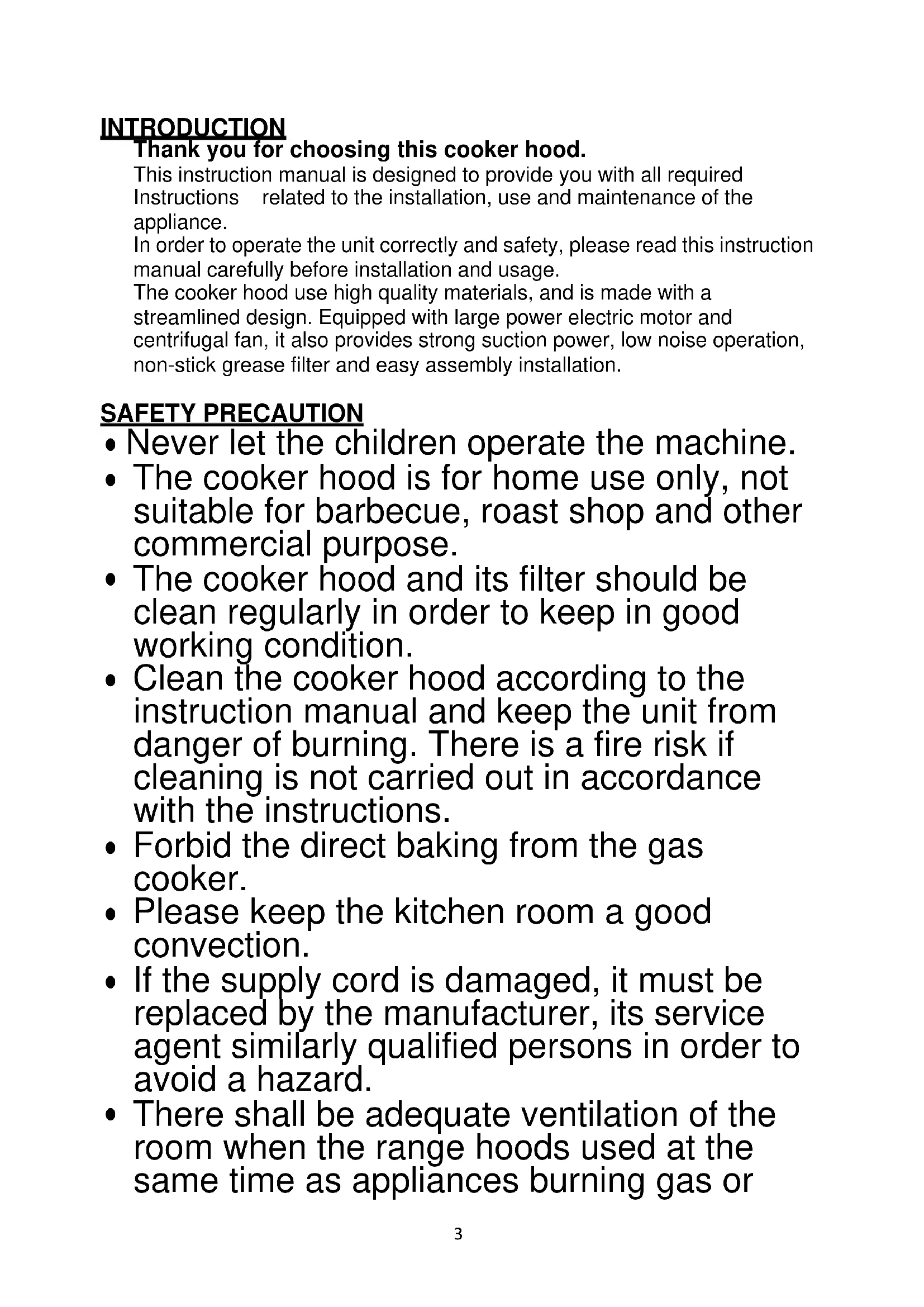

INTRODUCTION

Thank you for choosing this cooker hood.

This instruction manual is designed to provide you with all required Instructions related to the installation, use and maintenance of the appliance.

In order to operate the unit correctly and safety, please read this instruction manual carefully before installation and usage.

The cooker hood use high quality materials, and is made with a streamlined design. Equipped with large power electric motor and centrifugal fan, it also provides strong suction power, low noise operation, non-stick grease filter and easy assembly installation.

SAFETY PRECAUTION

- Never let the children operate the machine.

- The cooker hood is for home use only, not suitable for barbecue, roast shop and other commercial purpose.

- The cooker hood and its filter should be clean regularly in order to keep in good working condition.

- Clean the cooker hood according to the instruction manual and keep the unit from danger of burning. There is a fire risk if cleaning is not carried out in accordance with the instructions.

- Forbid the direct baking from the gas cooker.

- Please keep the kitchen room a good convection.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent similarly qualified persons in order to avoid a hazard.

- There shall be adequate ventilation of the room when the range hoods used at the same time as appliances burning gas or

other fuels;

• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels;
• Regulations concerning the discharge of air have to be fulfilled.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Do not flame under the range hood.
• CAUTION: Accessible parts may become hot when used with cooking appliance.
• The warning shall be in the same part of the instructions that include details of how to mount the equipment.

Electrical Shock Hazard

• Only plug this unit into a properly earthed outlet. If in doubt seek advice from a suitably qualified engineer.
• Failure to follow these instructions can result in death, fire, or electrical shock.

Prepare for installation:

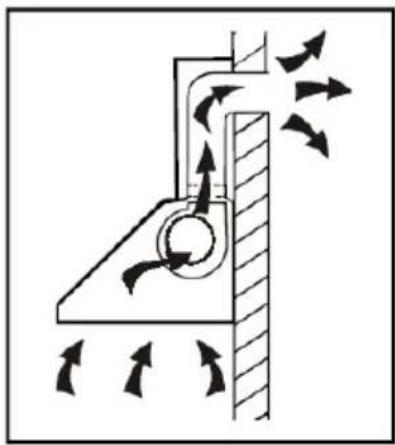

a. If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminum, flexible pipe or inflammable material with an interior diameter of 150mm)

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

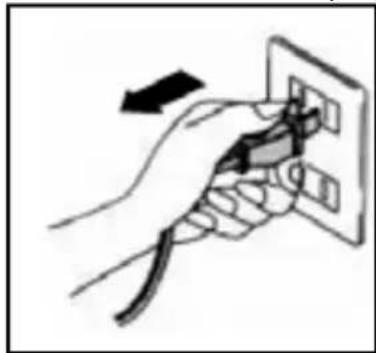

b. Before installation, turn the unit off and unplug it from the outlet.

Hand holding a plug inserted into an electrical outlet socket (no text or symbols visible)

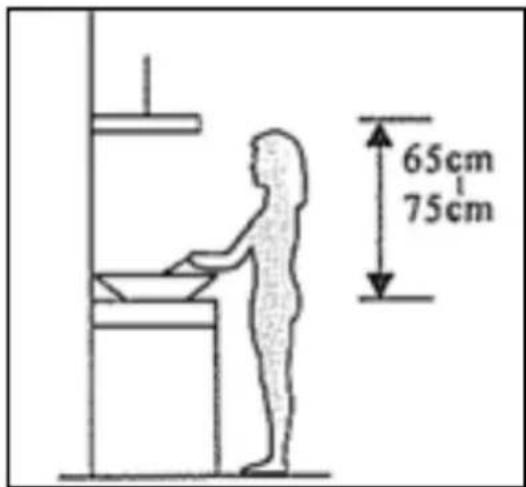

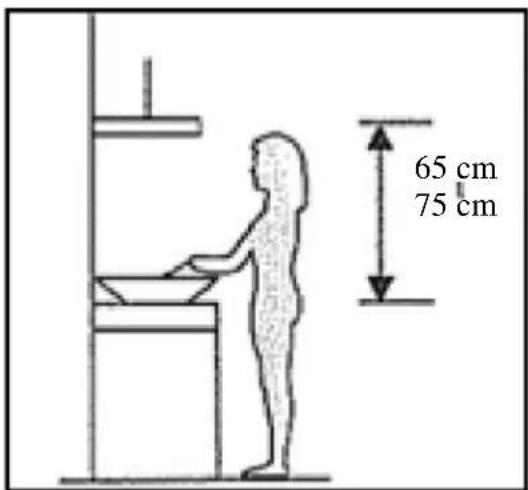

c. The cooker hood should be placed at a distance of 65\~75cm above the cooking plane for best effect.

65cm 75cm

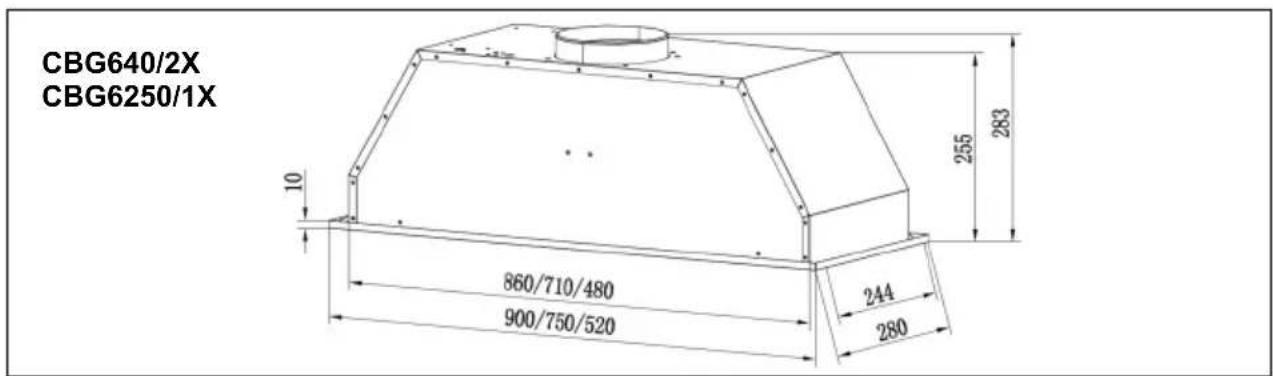

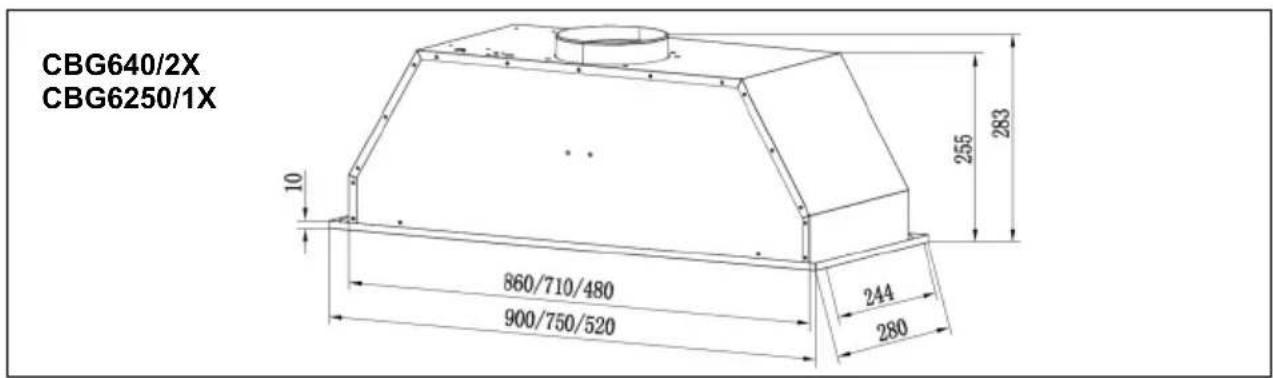

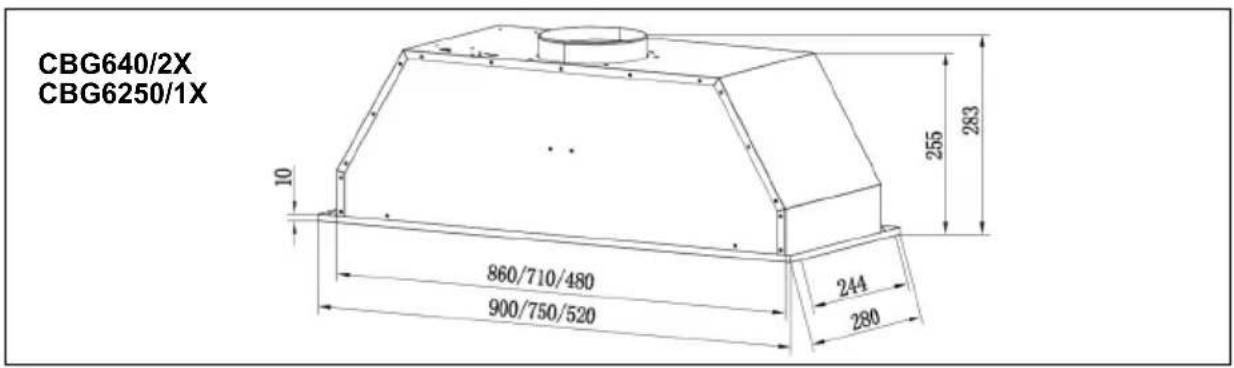

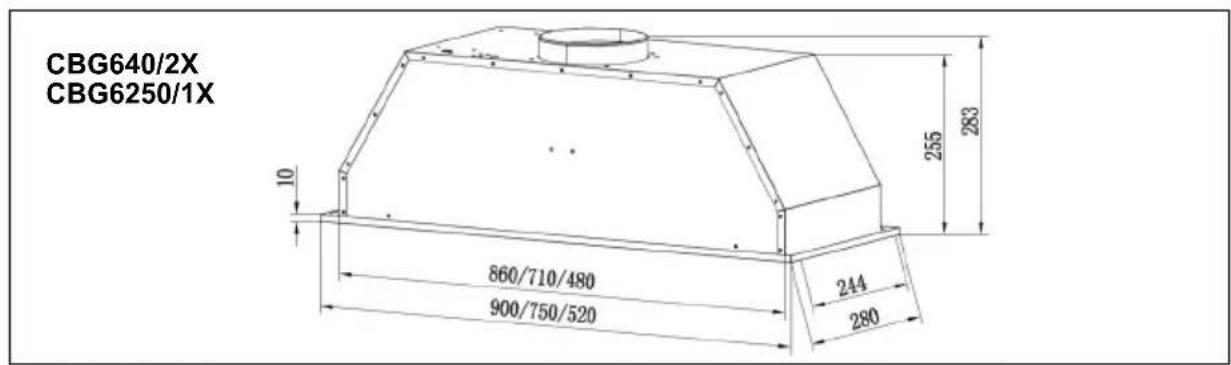

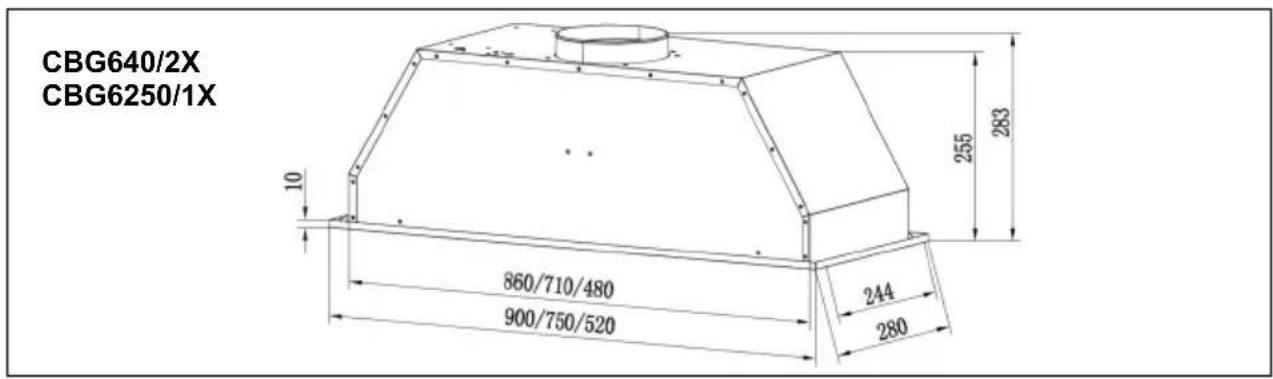

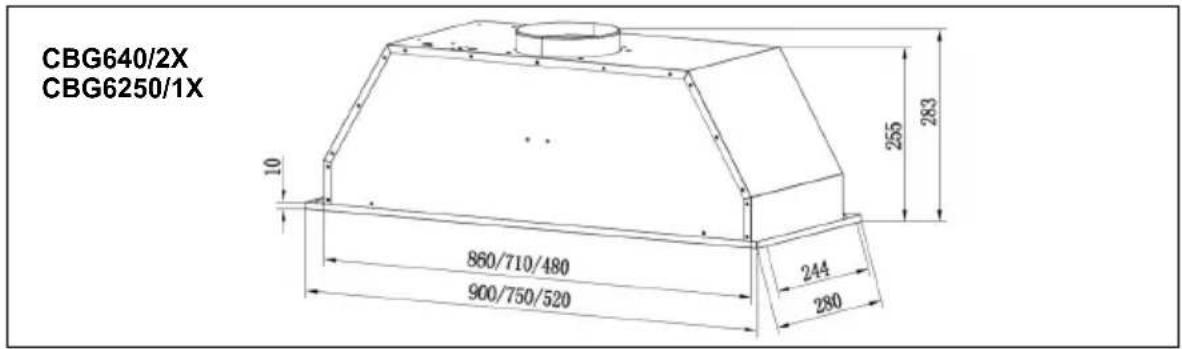

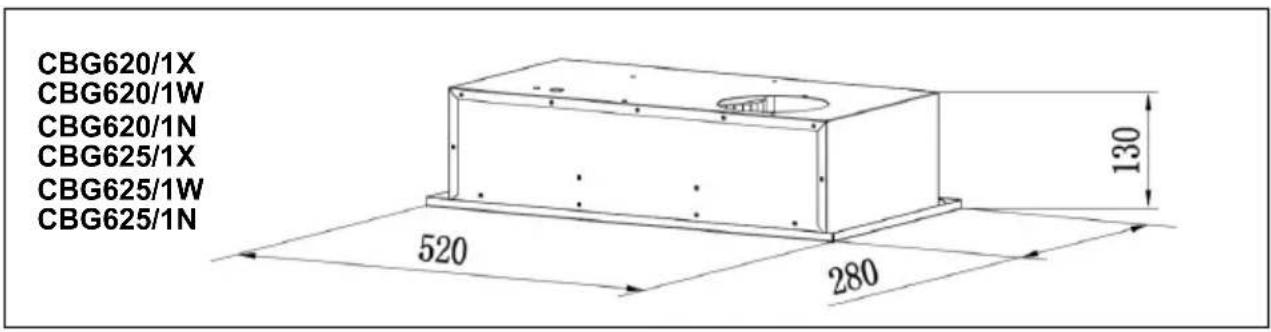

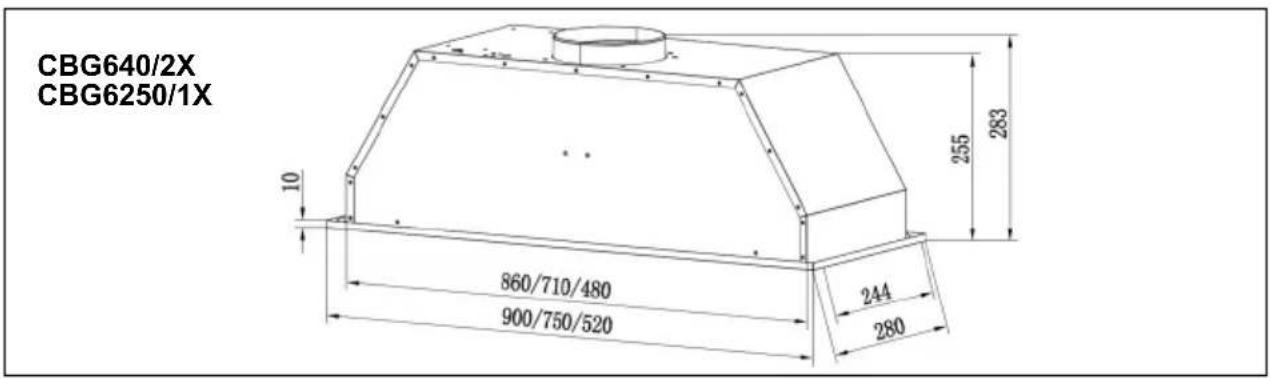

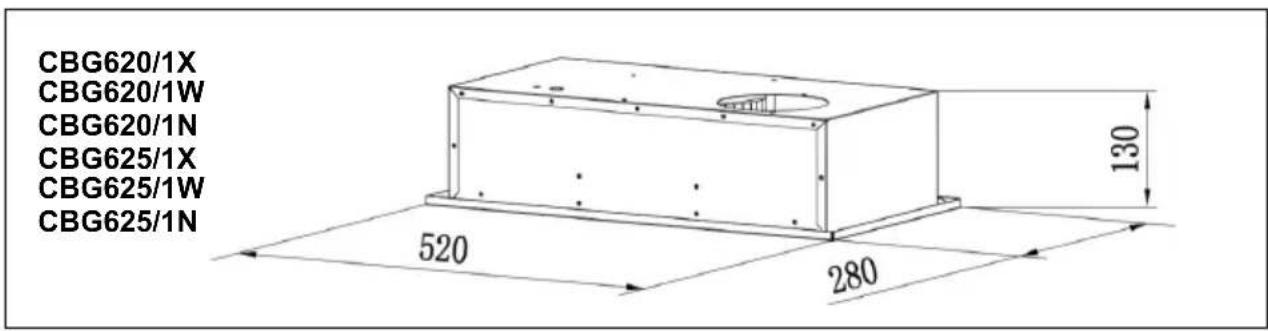

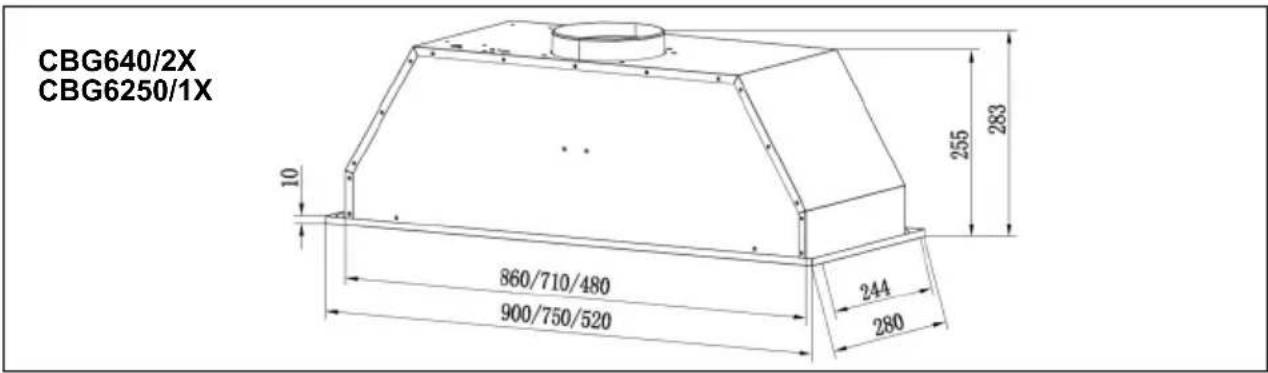

Specifications

CBG620/1X CBG620/1W CBG620/1N CBG625/1X CBG625/1W CBG625/1N 520 280 130

CBG640/2X CBG6250/1X 10 860/710/480 900/750/520 255 283 244 280

Installation

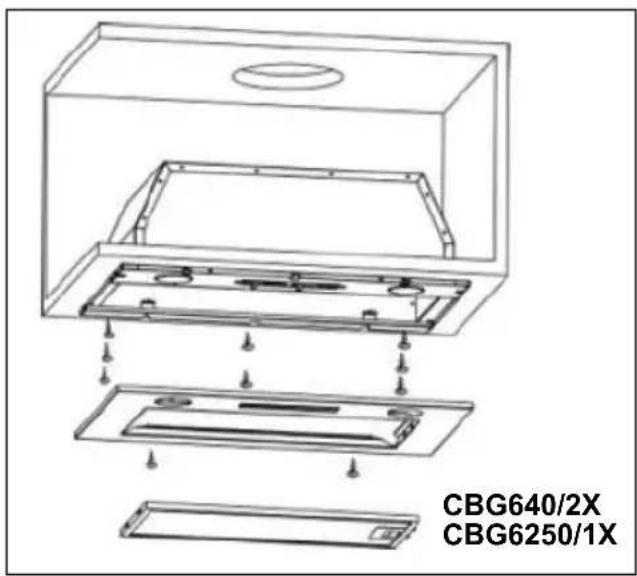

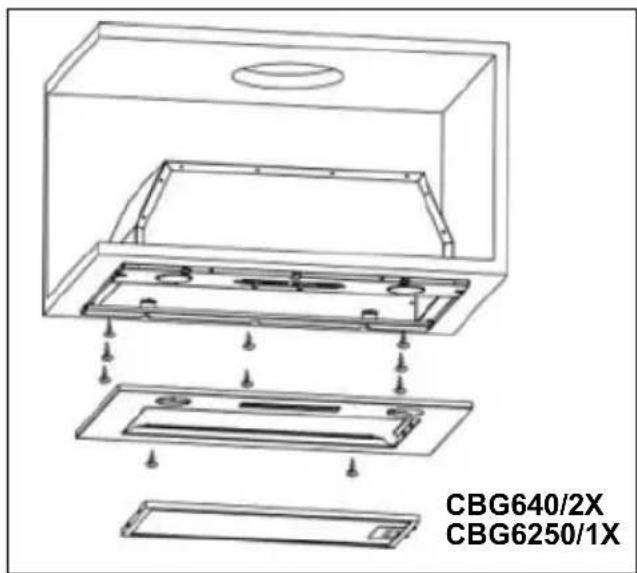

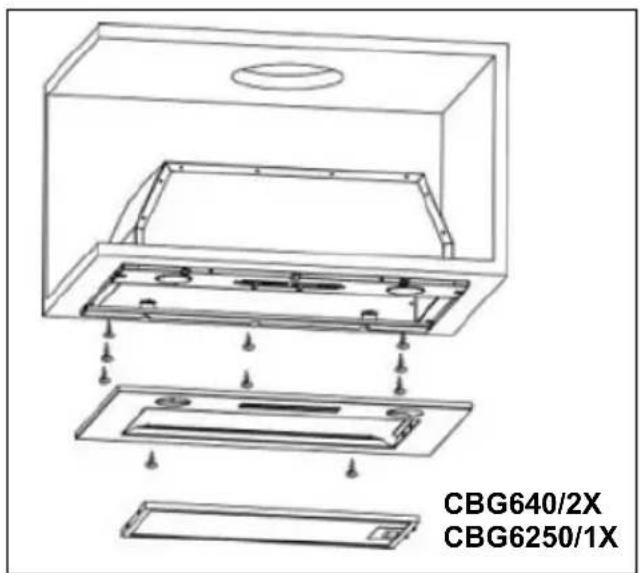

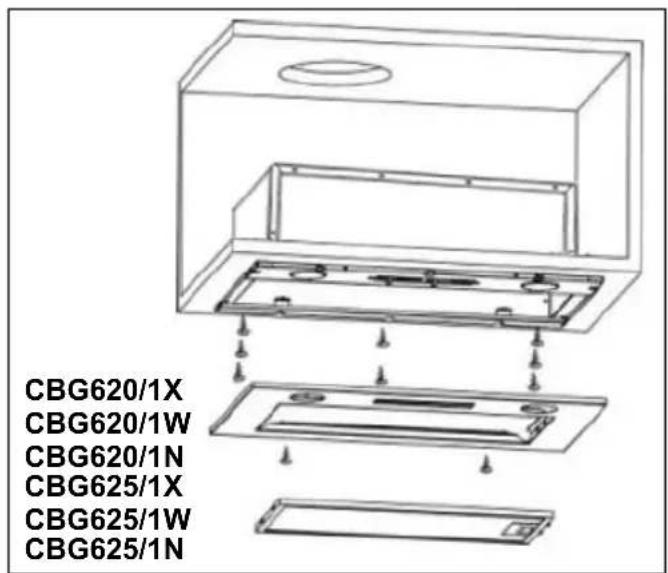

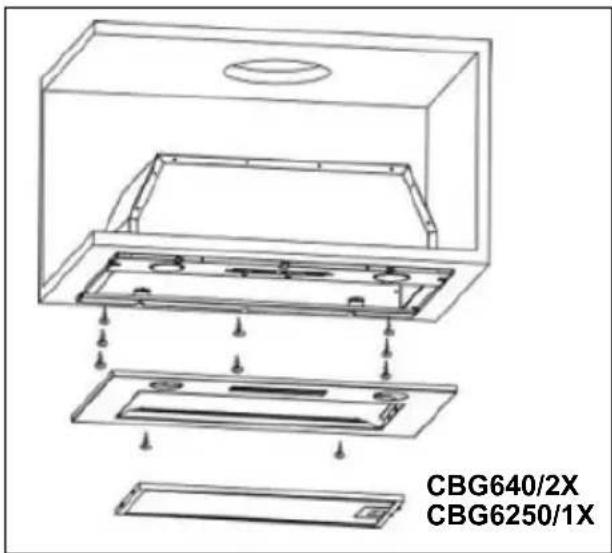

- The typical installation method for your range hood is into a purpose built overhead/wall cabinet.

- Using a jigsaw, create the required cut-out for your range hood, as 490 × 250mm

• Make sure the cut-out is at least 35mm from the cabinet edge.

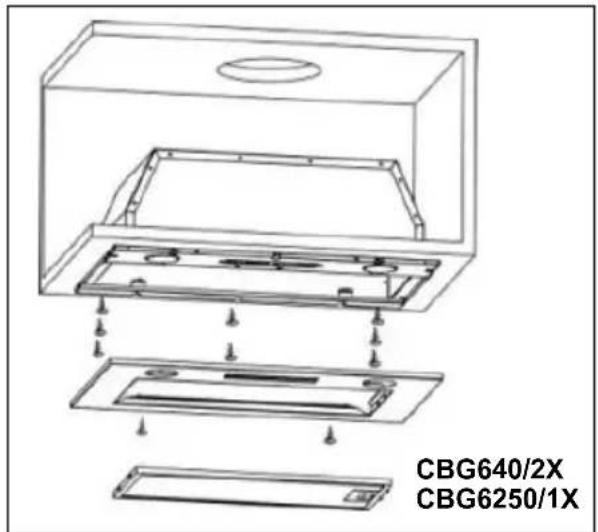

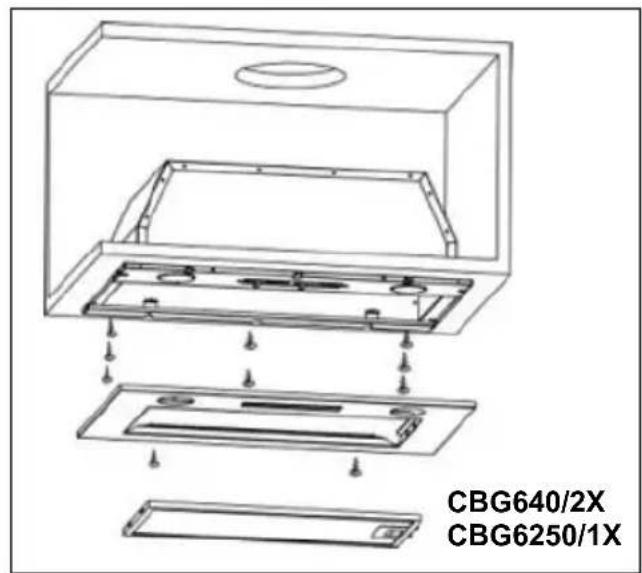

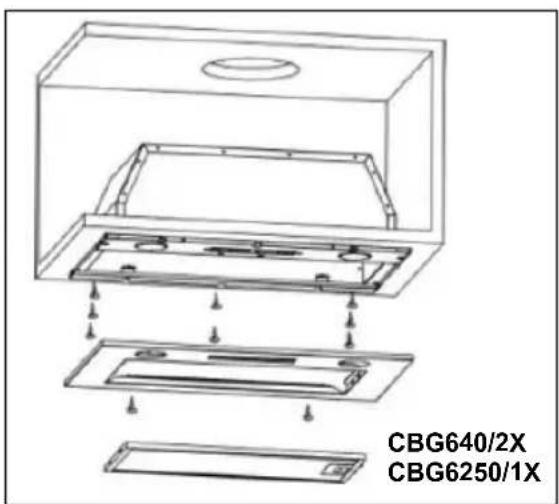

• Remove the grease filter and remove the 2 screws on the panel.
• Screw the range hood into the cabinet using 8 screws (supplied).
• Re-fit the panel with the 2 screws (previously removed).

CBG620/1X CBG620/1W CBG620/1N CBG625/1X CBG625/1W CBG625/1N

CBG640/2X CBG6250/1X

Activated carbon filter can be used to trap odors.

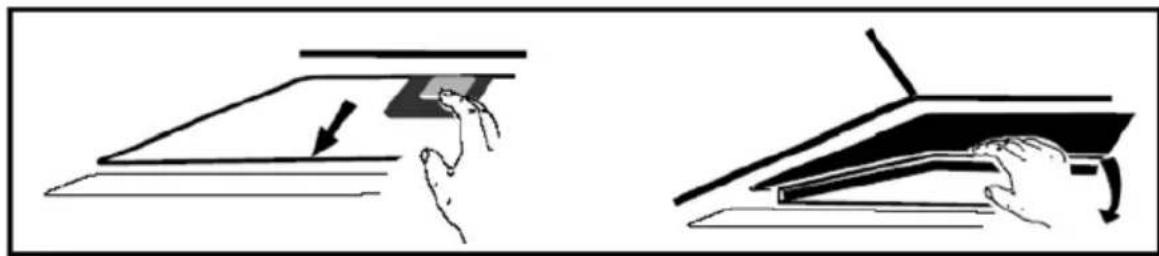

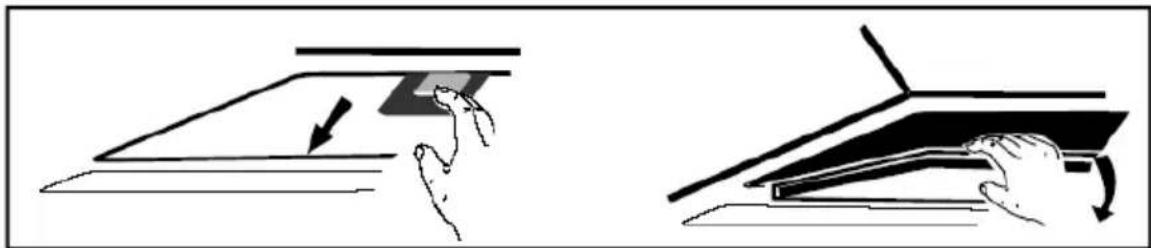

In order to install the activated carbon filter, the grease filter should be detached first. Press the lock and pull it downward.

Two-step diagram showing hand pressing a component on a flat surface, with arrows indicating motion (no text or symbols)

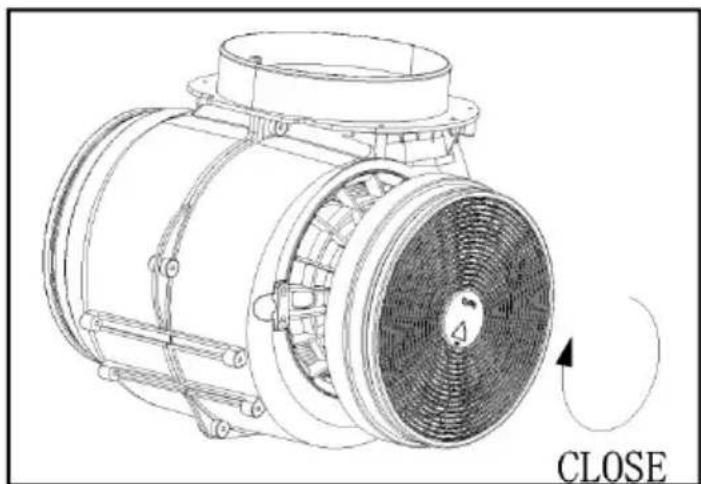

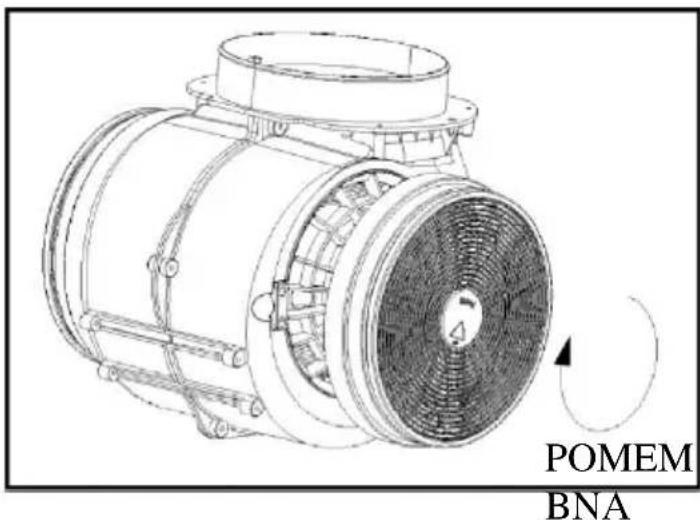

Plug the activated carbon filter into the unit and turn it in clockwise direction. Repeat the same on the other side.

Technical line drawing of a mechanical fan or motor assembly with no visible text or symbols

NOTE:

○ Make sure the filter is securelylocked. Otherwise, it would loosen and cause dangerous.
- When activated carbon filter attached, the suction power will be lower.

DESCRIPTION OF COMPONENTS

OPERATION

Low Speed button

It's used for Ventilation on the kitchen. It is suitable for simmering and cooking which do not make much steam.

Medium Speed button

2

Airflow speed is ideally for ventilation in standard cooking operation.

High Speed button

When high density of smoke or steam produced, press high-speed button for highest effective ventilation.

Light button

NOTE: If Low / Medium / High speed buttons are press at the same time, the unit will only operate at the highest speed.

MAINTENANCE

Before cleaning switch the unit off and pull out the plug.

I. Regular Cleaning

Use a soft cloth moistened with hand-warm mildly soapy water or household cleaning detergent. Never use metal pads, chemical, abrasive material or stiff brush to clean the unit.

II. Monthly Cleaning for Grease Filter

ESSENTIAL: Clean the filter every month can prevent any risk of fire.

The filter collects grease, smoke and dust.....so the filter is directly affecting the efficiency of the cooker hood. If not cleaned, the grease residue (potential flammable) will saturate on the filter. Clean it with household cleaning detergent.

III. Annual Cleaning for Activated Carbon Filter

Apply SOLELY to unit that installed as a recirculation unit (not vented to the outside). This filter traps odours and must be replaced at least once a year depending on how frequent the cooker hood used.

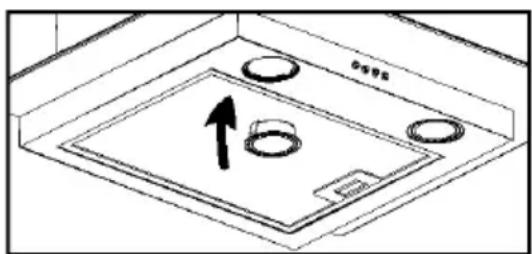

III. Bulb Replacement

1. Switch the unit off and unplug the appliance.
2. Remove the lamp cover by unscrewing the 2 screws.
3. Unscrew the LED lamp
4. Replace with the same type and lamp

● LED lamp (220V max, 2W).

Diagram of a kitchen sink with circular fixtures and an upward arrow indicating direction (no text or symbols)

TROUBLESHOOTING

Fault	Cause	Solution
Light on, but fan does not work	The fan blade is jammed.	Switch of the unit and repair by qualified service personnel only.
	The motor is damaged.
Both light and fan do not work	light bulb burn.	Replace the bulb with correct rating.
	Power cord looses.	Plug in to the power supply again.
Serious Vibration of the unit	The fan blade is damaged.	Switch of the unit and repair by qualified service personnel only.
	The fan motor is not fixed tightly.	Switch of the unit and repair by qualified service personnel only.
	The unit is not hung properly on the bracket.	Take down the unit and check whether the bracket is in proper location.
Suction performance not good	Too long distance between the unit and the cooking plane	Readjust the distance to 65-75cm

ENVIRONMENTAL PROTECTION

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment

Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Diagram of airflow around a mechanical structure with directional arrows indicating movement (no text or symbols)

من مقبس الطاقة.

Hand holding a power outlet plug with a cable, no text or symbols visible

CBG620/1X CBG620/1W CBG620/1N CBG625/1X CBG625/1W CBG625/1N 520 280 130

CBG640/2X CBG6250/1X 10 860/710/480 900/750/520 255 283 244 280

CBG620/1X CBG620/1W CBG620/1N CBG625/1X CBG625/1W CBG625/1N

CBG640/2X CBG6250/1X

Illustration showing two hand-drawn diagrams of a device with a scroll, one pointing at a component and the other holding a slide (no text or symbols)

Technical line drawing of a mechanical fan or motor assembly with no visible text or symbols

ملاحظة:

Five abstract geometric symbols with dotted outlines, no text or labels present

التشغيل

Diagram of a mechanical component with two circular holes and an upward arrow, no text or symbols present

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Hand inserting a plug into an electrical outlet (no text or symbols visible)

CBG620/1X CBG620/1W CBG620/1N CBG625/1X CBG625/1W CBG625/1N 520 280 130

CBG640/2X CBG6250/1X 10 860/710/480 900/750/520 255 283 244 280

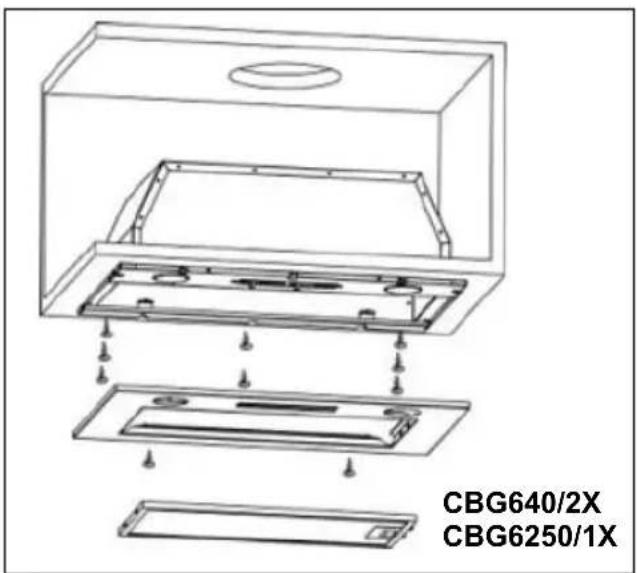

Instalace
