Product Type	Watch
Brand	Adidas
Model	ADH2169
Movement	Quartz
Display	Analog with digital display (ana-digi)
Main functions	Chronograph, alarm, timer, dual time zone, date, electroluminescent backlight (EL)
Power supply	Battery (type not specified)
Water resistance	5 ATM (50 meters) depending on model (check marking on case back)
Case material	Not specified
Strap material	Not specified
Dimensions	Not specified
Weight	Not specified
Care and cleaning	Clean with a soft, dry cloth. Avoid chemicals and prolonged immersion if not suitable.
Safety	Do not use buttons underwater. Tighten crown in normal position. Respect water resistance limits.
Spare parts and repairability	Entrust any repair to a qualified watchmaker. Battery replaceable by a professional.
General information	Manual available in several languages. Standard manufacturer warranty.

Frequently Asked Questions - ADH2169 ADIDAS

How to set the time and date on my ADH2169 watch?

To set the time, pull the crown to position 2 (click). Turn it counterclockwise to scroll through the hours until the previous day becomes today's date. Set the correct time, then push the crown back to position 1. To set the date only, pull the crown to position 2 and turn it clockwise (or counterclockwise depending on model) until the desired date. Caution: avoid setting the date between 9 PM and 1 AM to ensure correct change the next day.

How to use the chronograph?

Press button A (or B depending on model) to start the chronograph. Press the same button again to stop it. To reset, press button B (or A). Some models allow measuring split times by pressing a dedicated button (e.g., D) during timing. Note: if the chronograph hands are not at zero (12 o'clock), you can reset them by pulling the crown to position 3 and using buttons A and B to align them.

How to set the alarm?

Access alarm mode by pressing button B (depending on model). Press and hold button D for 2 seconds to enter setting mode. The hour flashes: use C to increase and D to decrease. Press B to move to minutes. Once set, press A to exit. The alarm is automatically activated. You can activate/deactivate it with button C or D depending on model. Note: the alarm sounds for a maximum of 30 seconds.

How to use the timer (countdown)?

Press button B (or A) to access timer mode. Press C to start the countdown. Press D to stop, and press D again to reset. To set the duration, press and hold D in timer mode: the hours flash, use C to increase and D to decrease, then B to move to minutes and seconds. Press A to save. Note: at the end of the countdown, an alarm sounds for 30 seconds.

How to set the dual time zone?

Depending on model, press button C to switch between time zone 1 and 2. To set the second time zone, press and hold C for 2 seconds to select it, then press and hold B to enter setting mode. The time offset flashes: use C to increase and D to decrease. Press B to exit. Some models use buttons A and B to advance/retard the second hand in 15-minute increments.

What does water resistance mean and at what depth can I use my watch?

Water resistance is indicated on the case back (e.g., 3 ATM, 5 ATM, etc.). A 5 ATM (50 meters) watch withstands splashes, showering, and swimming, but not diving. Important: never operate buttons underwater and always tighten the crown in normal position. For snorkeling, 10 ATM (100 meters) is recommended. Check the specific marking of your ADH2169 watch.

How to reset the chronograph to zero if the hands are not aligned?

If a chronograph hand is not at zero (12 o'clock), pull the crown to position 3. Press button A to move the hand clockwise, or B to move counterclockwise. Repeat until aligned, then push the crown back to position 1. This operation recalibrates the chronograph.

How to activate the backlight (EL)?

Press button A (or B depending on model) to turn on the electroluminescent (EL) backlight. It turns off automatically after a few seconds. Some models offer an 'auto-EL' setting that activates with wrist movements. Consult the manual for available options.

How to change the battery of my ADH2169 watch?

Battery replacement should be done by a qualified watchmaker to avoid damaging the water resistance. The battery type is not specified in the manual; refer to the marking on the old battery or contact Adidas customer service. Caution: after battery change, it may be necessary to reset the chronograph hands.

What to do if my watch stops working or stops?

First check if the battery is dead. If the display is blank or the hands are motionless, replace the battery. If the problem persists, ensure the crown is fully pushed in (position 1). In case of malfunction after immersion, have the water resistance checked by a professional. For any failure, contact an authorized repair service or Adidas support.

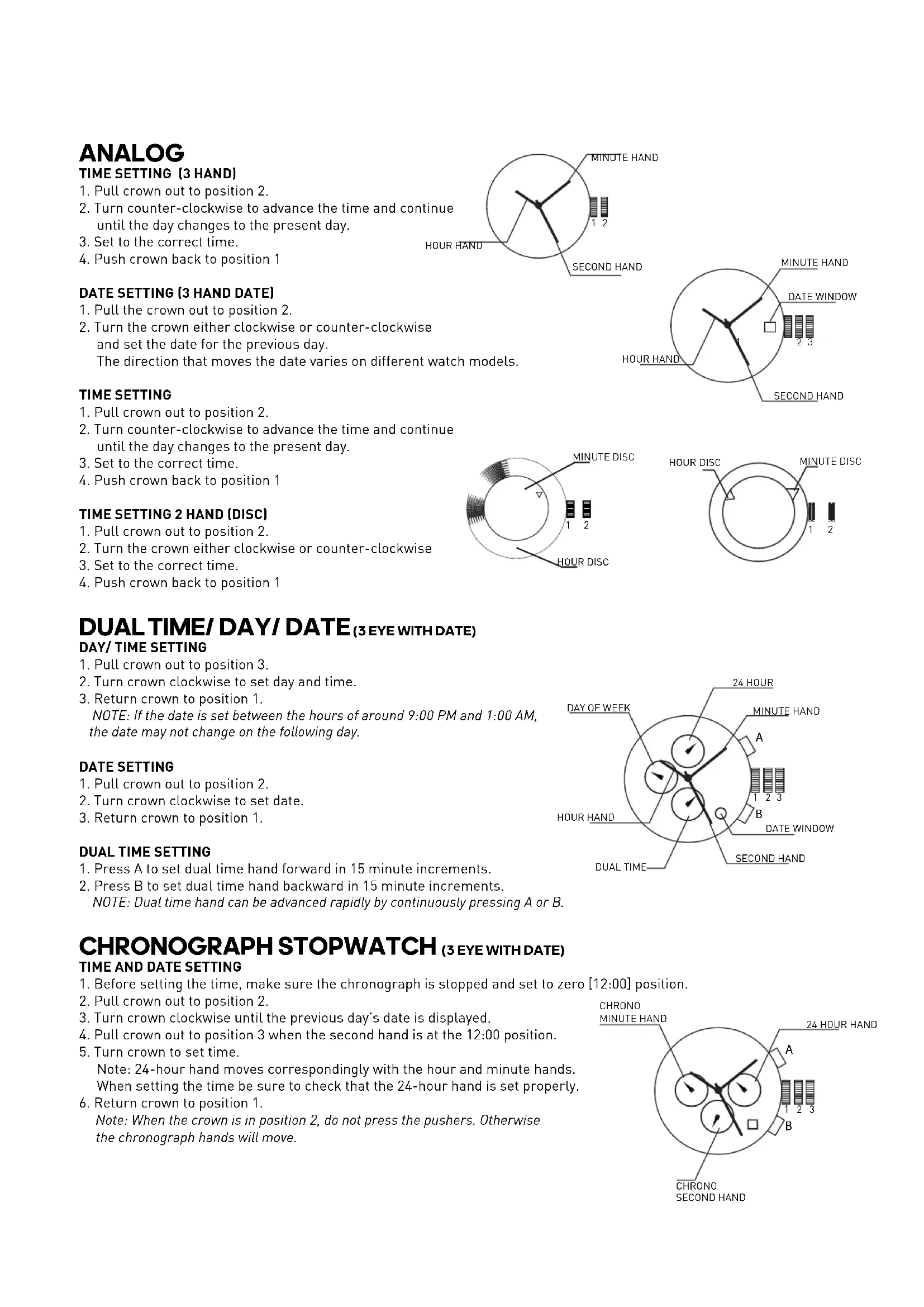

USER MANUAL ADH2169 ADIDAS

1. Pull crown out to position 2.
2. Turn counter-clockwise to advance the time and continue until the day changes to the present day.
3. Set to the correct time.
4. Push crown back to position 1

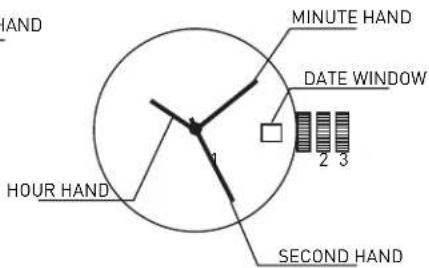

DATE SETTING (3 HAND DATE)

1. Pull the crown out to position 2.
2. Turn the crown either clockwise or counter-clockwise and set the date for the previous day. The direction that moves the date varies on different watch models.

TIME SETTING

1. Pull crown out to position 2.
2. Turn counter-clockwise to advance the time and continue until the day changes to the present day.
3. Set to the correct time.
4. Push crown back to position 1

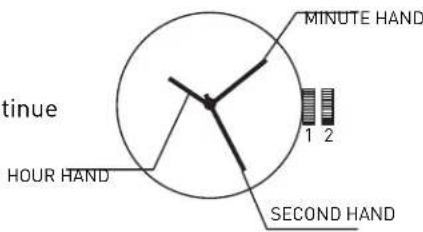

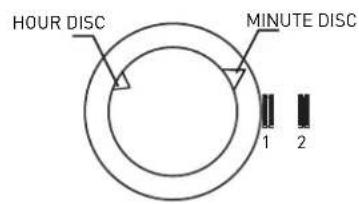

TIME SETTING 2 HAND (DISC)

1. Pull crown out to position 2.
2. Turn the crown either clockwise or counter-clockwise
3. Set to the correct time.
4. Push crown back to position 1

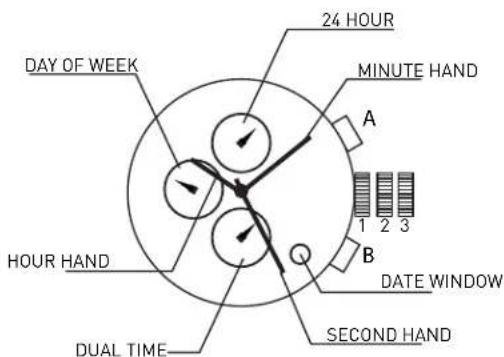

DUAL TIME/ DAY/ DATE (3 EYE WITH DATE)

DAY/TIME SETTING

1. Pull crown out to position 3.
2. Turn crown clockwise to set day and time.
3. Return crown to position 1. NOTE: If the date is set between the hours of around 9:00 PM and 1:00 AM, the date may not change on the following day.

DATE SETTING

1. Pull crown out to position 2.
2. Turn crown clockwise to set date.
3. Return crown to position 1.

DUAL TIME SETTING

1. Press A to set dual time hand forward in 15 minute increments.
2. Press B to set dual time hand backward in 15 minute increments.

NOTE: Dual time hand can be advanced rapidly by continuously pressing A or B.

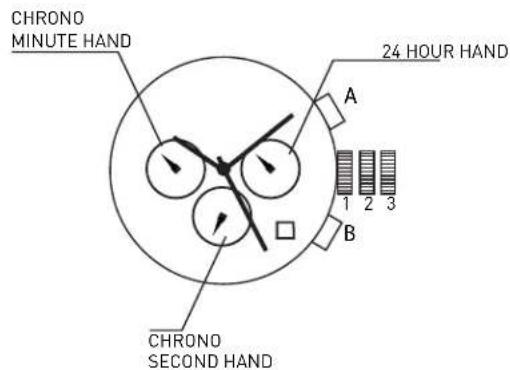

CHRONOGRAPH STOPWATCH (3 EYE WITH DATE)

TIME AND DATE SETTING

1. Before setting the time, make sure the chronograph is stopped and set to zero [12:00] position.
   2.Pull crown out to position 2.
2. Turn crown clockwise until the previous day's date is displayed.
3. Pull crown out to position 3 when the second hand is at the 12:00 position.
4. Turn crown to set time.

Note: 24-hour hand moves correspondingly with the hour and minute hands. When setting the time be sure to check that the 24-hour hand is set properly.

1. Return crown to position 1.

Note: When the crown is in position 2, do not press the pushers. Otherwise the chronograph hands will move.

CHRONOGRAPH

1. Press A to start/slop the chronograph.
2. Press B to reset to zero.

CHRONOGRAPH ZERO RESET

1. If either of the chronograph hands is not at the zero [12:00] position, pull crown out to position 3.
2. Press A to move hands clockwise; press B to move hands counter-clockwise.
3. Return crown to position 1

CHRONOGRAPH 2 EYE WITH DATE (WITH OR WITHOUT DATE)

TIME AND DATE SETTING

1. Before setting the time, make sure the chronograph is stopped
   and set to zero [12:00] position.
   2.Pull crown out to position 2.
2. Turn crown clockwise until the previous day's date is displayed.
3. Pull crown out to position 3 when the second hand is at the 12:00 position.

Turn crown to set time.
Note: 24-hour hand moves correspondingly with the hour and minute hands.
When setting the time be sure to check that the 24-hour hand is set properly.

& Return grown to position 1

Note: When the crown is in position 2, do not press the pushers. Otherwise the chronograph hands will move.

CHRONOGRAPH

1. Press B to start/slop the chronograph.
2. Press A for Split time, Press A again to restart
3. Press A to reset lo zero.

CHRONOGRAPH ZERO RESET

1. If either of the chronograph hands is not at the zero (12:00) position, pull crown out to position 3.
2. Press A to move hands clockwise; press B to move hands counter-clockwise.
3. Return crown to position 1

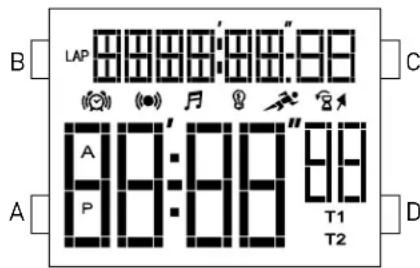

CALAGARY (QFL769BB/QFL873AC)

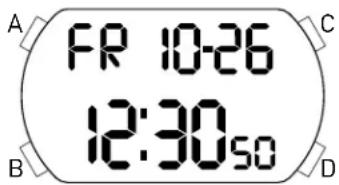

NORMAL TIME DISPLAY

1. Press A for EL
2. Press C to select T1 or T2 format.
3. Press D to toggle chime on/off.

TIME/CALENDAR SETTING

1. In time mode, press and hold D for 2 seconds to enter time setting; hour will begin flashing.
2. Press C to increase selling value. Press D to decrease selling value.
3. Press B to enter next setting field
4. Setting sequence is hour, minute, second, year month, date,12/24 hr
5. Press A to exit setting mode.

CHRONOGRAPH MODE

1. Press B to enter chrono mode.
2. Press D to select split or lap mode. Split mode will display the full time of all records after
   each split. Lap mode will display only the new lap time after each record has been recorded.
3. Press C to start chrono.
4. Press C again to split time.
5. Repeat step 4 until desired number of laps have been reached (maximum 10).
6. Press D to stop chrono.
7. To review, press B to enter recall mode before resetting.
8. Press D again to reset chrono

RECALL MODE

1. Press C to recall each lap [10 maximum]
2. Press D to return to chronog.

ALARM MODE

1. Press B to enter alarm mode.
2. Press C to toggle alarm on/off.
3. Press D to select T1 Alarm 1 or T2 Alarm 2.

ALARM SETTING

1. Press and hold D for 2 seconds to enter alarm setting; hour will begin flashing.
2. Press C to increase setting value. Press D to decrease setting value.
3. Press B to set minutes.
4. Press A to exit setting mode
   NOTE: Alarm turns on automatically when exiting setting mode.

TIMER MODE

1. Press C to start countdown timer.
2. Press D to stop countdown timer. Press D again to reset timer.

TIMER SETTING

1. Press B to enter timer mode.
2. Press and hold D to enter setting mode; hour will begin flashing.
3. Press C to increase setting value. Press D to decrease setting value.
4. Press B to enter next setting field.
5. Setting sequence is hour, minute, second
6. Press A to exit setting

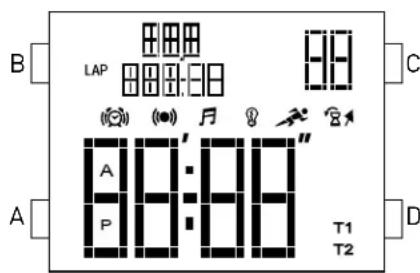

PEACHTREE (FL145GB)

NORMAL TIME DISPLAY

1. Press A for EL in any mode
2. Press C to toggle between Time 1 and Time 2
3. Press and hold C to set Time 1 or Time 2 as the default timer.
4. Press D to toggle chime on/off.

TIME/CALENDAR SETTING

1. In normal time display, press and hold A to enter setting mode; chime will begin flashing.
2. Press C to increase setting value. Press D to decrease setting value.
3. Press B to set and advance to next setting value.
4. Setting sequence is chime, 12/24-hour time, hour, minute, second, year, month, date, Auto EL
5. Press A to save data and exit setting mode.

CHRONOGRAPH MODE

1. Press B to change to chronograph mode.
2. Press C to start chronograph: press D for lap when the chronograph is running.
3. Press D to change views while chronograph is running
4. Press C to stop chronograph.
   NOTE: When running, there is a maximum of 10 laps, afterward last lap will be overwritten each time

additionol tap is recorded.

RECALL MODE

1. Press A to recall the memory when the chronograph is stopped.
2. Press A to view the next lap.
3. Press C or D to exit Recall Mode and go back to chronograph mode.

TIMER MODE

1. Press B to change to timer mode.
2. Press C to start timer.
3. Press C to stop timer. Press D to reset the timer when it is stopped.

TIMER SETTING

1. In timer mode, press and hold A to enter setting mode; timer type will begin flashing.
2. Press C and D to select count down stop, count down repeat, or count up timer.
3. Press B to advance to next setting field.
4. Press C to decrease and D to increase.
5. Press B to set and advance to next setting value.
6. Setting sequence is timer type, hour, minute, second.
7. Press A to save data and exit setting mode.

NOTE: Alarm will sound at 2 beeps per second, and will beep for 30 seconds after timer reaches zero.

ALARM MODE

1. Press B to change to alarm mode.
2. Presse C to loop between alarms 1, 2, 3, 4
3. Press D to enable the alarm; press D again to disable the alarm.
4. Press B to exit alarm mode.

ALARM SETTING

1. In alarm mode, press and hold A to enter setting mode, hour will begin flashing.
2. Press C to increase; press D to decrease.
3. Press B to set and advance to next setting value
4. Setting sequence is hour, minute.
5. Press A to exit setting mode.

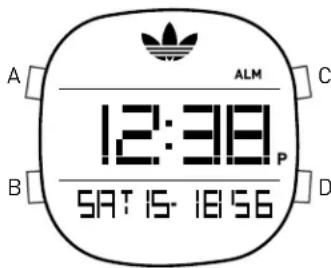

DENVER/CANDY/SYDNEY (UPCR-780A-P07/QUPCR-823A-P03/QUPCR-780A-3-P16)

NORMAL TIME DISPLAY

1. Press A for E.

2. Press C to select T1 or T2 format.

TIME/CALENDAR SETTING

1. In time mode, areas and holds 0 for 2 seconds to enter time
   setting; hour will begin flashing.
2. Press C to increase setting value
3. Press B to enter next setting field
4. Setting sequence is hour, minute, day, year, month, date.
5. Press D to exit setting mode.

ALARM MODE

1. Press B to enter alarm mode.
2. Press C to toggle alarm/chime on/off
3. Press D to select Home Alarm or T2 Alarm.

ALARM SETTING

1. Press and hold D for 2 seconds to enter alarm setting; hour will begin flashing.
2. Press C to increase setting value.
3. Press B to set minutes.

Press D to exit setting mode.

NOTE: Alarm turns on automatically when exiting setting mode.

CHRONOGRAPH MODE

1. Press Big eni r chnp mode
2. Press D to select split or lap mode. Split mode will display the full time of all records after each split.
   Lap mode will display only the new lap time after each record has been recorded.
3. Press C to start chrono.
4. Press C again in split limnc
5. Repeat step 4 until desired number of laps have been reached (maximum 10).
6. Press D to stop chrono.
   7.To review,press B to enler recall mods before rsslling.
7. Press D again to reset chrono.

RECALL MODE

1. Press C to rseall each lap [10 maximum]
2. Press D to return to chrono.

TIMER MODE

1. Press C to start countdown timer.
2. Press D to stop countdown timer. Press D again to reset timer.

TIMER SETTING

1. Press B to enter timer mode.
2. Press and hold D to enter setting mode; hour will begin flashing
3. Press C to increase setting value.
4. Press B to enter next setting field.
5. Setting sequence is hour, minute, second
6. Press D to exit setting mode

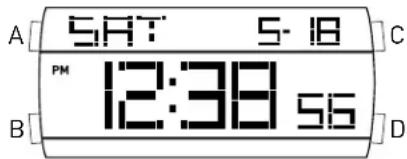

Seoul / Curitiba [9FL657]

NORMAL TIME DISPLAY

1. Press A to change mode. Mode sequence is normal time,
   shrnooggh, hmsr, alarm.
2. Press B for E.L.
3. Press C to Flash time zone 2. Press and hold C 2 seconds
   To logals normal time displaytime zone 2.
4. Press D to toggle key tone and/off.

NOTE: At any point in any setting mode, press B to exit setting mode. NOTE: In any setting mode, if no pusher is operated for 30 seconds, all changes will be saved and the setting will automatically return to normal time display.

TIME/CALENDAR SETTING

1. In normal time display, press and hold B 2 seconds; auto EL

spall will begin fashng.

1. Press C toggle auto EL on/off.

2. Press to set and advance to next setting value.

3. Press C to increase digit; press D to decrease digit. Press and hold C or D for fast increment/decrement.

4. Repeat steps 3 and 4 through setting sequence. Setting sequence is: auto EL, chime on/off

12/24 hour format, hour, minute, second, year, month/date or date/month format, month and date.

1. Press B to exit setting mode.

NOTE: Weekday is automatically updated upon exiting setting mode.

TIME ZONE 2 SETTING

1. To set Time Zone 2, press and hold C 2 seconds to change to Time Zone 2.
2. Press and hold B 2 seconds; time difference between time zone 1 and time zone 2 will begin flashing.
3. Press C to increase value; press D to decrease value. Press and hold C or D for
   fast increment/decrement.
4. Press B to exit setting mode.

CHRONOGRAPH MODE

1. Press A to change to chronograph mode.
2. Press B to recall lap data. Press B to scroll through laps.
3. Press C to start/slop the chronograph.
4. Press and hold D 2 seconds to reset to zero.
   NOTE: Insert chronograph indicolor here will flash in all modes if the chronograph is running.

LAP COUNTING

1. Press D while the chronograph is running for lap counting (up to 10 laps).
   NOTE: After 8 seconds, display will show total chronograph time in the lower portion of the display; next lap running time will show in upper portion of the display.
2. Press C to stop chronograph
3. Press B when the chronograph is stopped to recall chronograph lap data.
4. Press C or D to exit recall mode and return to chronograph.

TIMER MODE

1. Press A to change to timer mode.
2. Press C to start/stop timer.
3. Press D to reset the timer.

NOTE: Alarm will sound for 30 seconds when countdown reaches zero. Press any pusher to silence alarm.

TIMER SETTING

1. In timer mode, press and hold B 2 seconds to enter setting mode; timer type will begin flashing.
   Press C to select countdown-stop ("CD-STP"), countdown-repeat ("CD-REP"), or countdown-then up timer ("CD-UP").
2. Press A to set and advance to next setting value.
3. Press C to increase digit, press D to decrease digit. Press and hold C or D for fast increment/decrement.
4. Repeat steps 3 and 4 through selling sequence. Setting sequence is: timer type, hour, minute, seconds.
5. Press B to exit setting mode.

ALARM MODE

1. Press A to change to alarm mode.
2. Press C to select alarm 1-4.
3. Press D to toggle alarm on/off.

ALARM SETTING

1. In alarm mode, press and hold B 2 seconds; hour will begin flashing.
2. Press C to increase digit; press D to decrease digit. Press and hold C or D for fast increment/decrement.
3. Press A to set and advance minute.
4. Repeat step 2.
5. Press B to exit setting mode.

NOTE: Alarm will sound for 30 seconds. Press any pusher to silence alarm.

ANALOG

[UPCR-780A-P07/QUPCR-823A-P03/QUPCR-780A-3-P16]

[UPCR-780A-P07/QUPCR-823A-P03/QUPCR-780A-3-P16]

AFFICHAGE NORMAL DE L'HEURE

{UPCR-780A-P07/QUPCR-823A-P03/QUPCR-780A-3-P16}

VISUALIZACION NORMAL DE LA HORA

[UPCR-780A-P07/QUPCR-823A-P03/QUPCR-780A-3-P16]

SCHERMO CON L'ORA STANDARD

{UPCR-780A-P07/QUPCR-823A-P03/QUPCR-780A-3-P16}

VISUALIZACAO NORMAL DA HORA

[UPCR-780A-P07/QUPCR-823A-P03/QUPCR-780A-3-P16]

OTOBPAXEHNE ObbyHOro BPEMEHN

1. Haxmte KhoNky A JEA EL.
2. HaxmTe KhoNky C nIy Bb6opa foMpTa T1 nnT2.

YCTAHOBKA BPEMEHN

1. HaxoJcB bpeKmE BpeMeHn, HaxMnte n ydepKnBaTe KhoNky D B TeueHne 2 cekyH, UTObI BoHTn B peKm ycTaHOBKn; uO3HaauOpune Yacbl, HaHyT MrraTb.
2. HaxmTe KhoNky C, yTo6bIyBEnuHTb 3HaueHne ycTaHOBKn.
3. Haxmte KhoNky B, yTo6bI nepeuTn K cJeDyUoEmy npaMeTpY ycTaHOBKn.
4. NocJeIOBATEbHOCTb yCTaHOBKN - Yac, MHyTa, DeHb, RoD, MeCra, DaTa.
5. Haxmte KhoNky D IaI BbIXOa n3 peXnMa yCTaHOBKn.

PEXKIM BUDINJIbHnKA

1. HaxmTe KhoNky B Dny BxOda B pexM 6yDnIbHnKa.
2. HaxmTe KhoNky C nIe BkIIOHeHry/BbIKIOHeHry 6yDnIbHnKa/3ByKOBOrO cnHaHa.
3. HaxmTe KhoNky D nIy Bbl6pa domaaHero 6yDnJIbHnKa nn 6yDnJIbHnKa T2.

YCTAHOBKA BydNJIbHnKA

1. Haxmte u ydepunBaTe KhoNky D B TeueHne 2 cekyH, YTo6bl BoTn B pexm ycTaHOBKn 6yDnIbHnka; Cnpbl, o03HaayIoune Yacbl, HauHyT MmraTb.
2. Haxmnte KhoNky C, yTo6bIyBEnuHTb 3HaueHne ycTaHOBKn.
3. Haxmte KhoNky B, yTo6bl yCtHaOBuTb MHyTbI.
4. HaxmTe KhoNky Dnla BbIXoJa n3 peXIma yctahOBKn.

PIMMEYAHNE: BydunbHK BKNIOaTeaBtOMaTHueckn npu BbIXOe n3 pexkMa yctahOBKn.

PEKIM XPOHOMETPA

1. HaxmTe KhoNky B, yTo6bl BoTn B pexm xpoHometpa.
2. Haxmnte KhoNky D, YTo6bI Bb6paTb pexnmpomexkytoHoro fHHuHa nn Kpyra. PeknnpomexkytoHoro fHHuHa nokaket noJHoe BpeMa BCex pekopdoB nocne kKdoRo npomexkytoHoro fHHuHa. Pekn Kpyra nokaket tolbko BpeMa HOBO r Kpyra nocne 3aunCn kKdoRo pekopda.
3. HaxmTe KhoNky C, 4to6bI 3aNyCTnTb xpoHometp.
4. Haxmte eue pa3 KhoNky C, yTo6bI pa36nTb BpeMra.
5. NOBTOPNE 4, NOKA He doctnHte XeJenaEMO KOJIueCTBa KpyroB (MaKcMym 10).
6. HaxmTe KhoNky D, yTo6bl OctaHOBnTp xpoHometp.
   7.ДЯ NOBTOPOHOro npocmoTpa HaxMnte KhoNky B, YTo6bl BoYTu B peXm 3aONMaHaHnpepeHOBou yCTaHOBkoI.
7. Haxmte eue pa3 KhoNky D nla o6hynn xpoHometpa.

PEKIM 3ANOMHAHNA

1. HaxmTe KhoNky CДЯ 3aNoMHaHnKaJdoRo Kpyra (MaKcMym 10).
2. HaxmTe KhoNky D nIy Bo3BpTa K xpoHometpy.

PEKIM TAIMEPA

1. Haxmnte KhoNky C, yTo6bl 3aNyctntb TaMep o6paTHoro OTCeta.
2. Haxmte KhoNky D, YTo6bI ocTaHOBntb TaMep o6paTHOrO oTcyeTa. Haxmte eue pa3 KhoNky D dJa 06HyJeHn TaMepa.

YCTAHOBKA TAI MEPA

1. Haxmte KhoNky B, YTO6bI BOITN B pexnT TaMepa.
2. Haxmte KhoNky u ydepKnBaTe KhoNky D nIy BxOJa B pexm ycTaHOBKn; cHpbl, 06o3Haayaoune yacbl, hauHyT mRaTb.
3. Haxmnte KhoNky C, yTo6bI yBEnuHTb 3HaueHne ycTaHOBKn.
4. HaxmTe KhoNky B, TTo6bI nepeuTn K CneJeUoUeMy npaMeTp yctAHOBKn.
5. YcTahOBKa npOn3BODnTCB CNeJeYIOeM nopJKe:HaCbI, MHyTbI, cekyHnbl.
6. HaxmTe KhoNky DnBbIXoJa n3 pexIma yctahOBKn.

SEOUL/CURITIBA

(QFL657)

HACTPOIKA TEKYUJIEGOBPMEHNI

1. HaxmTe KhoNky A dny n3MeHnpy pexnma. Pexn mocJeOBaTeJbHoro nepeKIOUeHnry - Tekyuee Bpem, xpoHOrpa, taMep, 6yDnIbHnK.
2. Haxmte KhoNky B dny BKJIOueHn noCDCBETK (EL).
3. Haxmte KhoNky C, yTo6bI Bbl6paTb yacoBoi noC 2. Haxmte u ydepXnBaTe KhoNky C 2 cekyHdbI dny nepeKluyeHna B pexm TeKyUero BpemHu/acyoBOr o nOca 2.
4. Haxmte KhoNky D nla BkIooHn/ByIKIOueHn CnHaHa hXaTna KnaBn.

IPIME4AHHE: B JIO6oM MoeHT BpeMeHn, BHe 3aBcUmocTn OT peXmHaHacToPouKn, HaxMnte B, YTO6bI BbIuN u3 peXmHaHacToPouKn.

IPIIME4AHHE: B IIO6om pejxime HacTpoKn, ecnn KJIaBnHn He HaxmamOTcB B TeueHne 30 cekyHd, BCE n3MeHeHHa ByyT coXpaHeHb, a kpaH abTomatueckn BepHeTcB peXm OTo6paxeHHBpeMeHN.

HACTPOIKA BPEMEH N KAJEHAPRA

1. BpeKnme oTo6paXeHnBpeMeHn, HaxMnte n ydepxnBaTe KhoNky B 2 ceKyHdb; 3KpaH aBTOMaTnuecKn HaHT MraTb.
2. Haxmte KhoNky C dIy BkIOueHn/ByIKIOueHn NoCBeKn.
3. HaxmTe KhoNky A, yTo6bI ycTaHOBnTb n nepeuTu K hAcTpOKe cJeDyUoJero napaMeTpA.
4. Haxmnte KhoNky C, yTo6bI yBeJIuNTb 3HaueHHe; Haxmnte KhoNky D, yTo6bI yMeHbUHTb 3HaueHHe. Haxmnte u yDepKnaBte KhoNky C nIn D dJa 6bICTpO rO yBeJIuHHeHr/YMeHbUHeHr 3HaueHnra.
5. NOBTOPiTe 3n 4 nyTeM nocJeDoBaTeIbHOro nepeKIOueHnMaekDy onuMn.Pexm nocJeDoBaTeIbHOro nepeKIOueHnCneJyUcN: aBTo noDCBeTka (EL), BkI/BbIKn 3ByKOBoRo CnHaJa, 12/24-ycaOBo OopMat, HaCbI, MInHyTbI, ceKYNDbI, rO,I, fOpMaT "MecaU/deHb" IIN "DeHb/Mecua", Mecau n data.
6. Haxmte KhoNky B JnB BixOa n3 peKmHa hAcToKn. PNIMEyAHVE:JeHb HeJeIn ABToMaTuYeCKn OShOBnEeTc np N BixOe n3 peKmHa hAcToKn.

HACTPOIKA YACOBOIO NORACA 2

1. YTO6bI yCTaHOBNT bacOBn IORc 2, HaxMnte n ydePknBaTe KhoNky C 2 ceKynbl, YTO6bI nepeTn K acobomy norcy 2.
2. Haxmte u ydepknBaTe KhoNky B 2 cekyHdb; Ha 3kpaHe 6ydet MnraTb pa3Hua BO BpeMeHN Mekdy YacOBbIM NORCOM 1 u YacOBbIM NORCOM 2.
3. HaxmTe KhoNky C dIy yBeIuHEny 3HaueHn; HaxmTe KhoNky D dIy MeHbWeHn 3HaueHn. HaxmTe n ydepKnbaiTe KhoNky C nIi D dIy 6bictporo yBeIuHEny/YMeHbWeHn 3HaueHn.
4. Haxmte KhoNky B dny bixoHa n3 peKIma hAcToPoiKn.

PEKIMXPOHOPTPAΦA

1. Haxmte KhoNky A dIy nepexoDa B pexm xpoHometpa.
2. HaxMnte KhoNky BДЯ BbIbOda DaHHbIX O npEdbIyUx N3MepeHnX. HaxMnte KhoNky BДЯ npOLnCTbIBaHnJaHHbIX.
3. Haxmte KhoNky C dnyzka/octaHObKxpoHorpaa.
4. Haxmte u yepkua Te KhoNky D 2 cekyHdbi, cy06b1 c6pocntb Hactpoyn Do Hyna. IPIMEUAHIE: BCTaBte xpoHorpaΦ. Ecnn xpohorpaΦ 3anyueH, HndnkaTop 6ydt MrtabB JIObOM peXmme.

I3MEPEHNE BPEMEHHbIX IPOMEKytKOB

1. Haxmte KhoNky D nocne 3anycka xpoHorpaΦa, YTO6bI n3Mepntb npomexytoK BpeMeHH [do 10-Tn npomexytkoB].

INPMEAHHE:Yepe3 8 cekyH, B HnXHeN qactn 3KpaHa 6yJeT BBBeDeHO 06uee Bpem pa6oTBxpoHorpaΦa; 3aTeM Bpem ONpeIeNEHHOrO npomexytka 6yJeT OTo6paKeHo B BepxHeN qactn 3KpaHa.

1. Haxmte KhoNky C dIa octaHOBKn xpoHorpaFa.
2. Haxmte KhoNky B noCle octaHOBKn xpoHorpaΦa nIy BbIOda daHHbIX o6 n3MepeHnX xpOHorpaΦa.
3. Haxmte KhoNky Cnn D, yTo6bI Bbln n3 peXmAbBbIOda daHHbx IN BepHyTbcK xpOHorpafoy.

PEKUM TAIIMEPA

1. HaxmTe KhoNky AДЯпepexoDa Bpexm TaMepa.
2. Haxmnte KhoNky C dIa 3aynck/aocTaHOBk TaMepa.
3. Haxmte KhoNky D dny c6poca npaametpoB taMepa. PNMEUHHE: npu doctxkeHHn HyeBOrO 3naueHn 6ydt 3ByaTb CnHaI Ha npotjxeHH 30 cekynd. Haxmte IIObYIO KhoNky dny npekpaueHHcHnHa.

HACTPOIKA TAIIMEPA

1. B pexnme TaMepa, Haxmnte u ydepxnbAte KhoNky B 2 cekyHdbI, UTo6bBoNTBpeXnHactpoKn;HaHTe MntaTb TIN TaMepa.
2. Haxmte KhoNky C, qTo6bBbIbpaTb 6paTHbI OTCye-CTOn ("CD-STP"), 6paTHbI OTCye-NOBTOp ("CD-REP") IInn 6paTHbI OTCye-IPrMoI OTCye ("CD-UP").
3. HaxmTe KhoNky A, yTo6bI yCTaHOBnTb n nepeuTN K hAcTpOKe cJeDyUoero npaMeTpa.
4. HaxMnte KhoNky C, yTo6bl yBeJnUHTb 3HaueHne; HaxMnte KhoNky D, yTo6bl yMeHbWntb 3HaueHne. HaxMnte n yDepKunBaIte KhoNky C nIn D nIa 6bICTporo yBeJnUHeHry/YMeHbWeHry 3HaueHna.
5. NOBTOPiTe 3 n 4 nyTem noCleJIOBaTeIbHOro nepeKIOUeHnMexyOnuMaM.HacTpoKn 6dyT nepeKIOUaTbcra B cIeDyIOSeI NOcJIeOBATeIbHOCTN: TIN TaIMepa, HAcbl, MInHyTbI, CeKYHbI.
6. Haxmte KhoNky BДЯ BbIXOa n3 peKIma HacToPoiKn.

PEKIM BUDINbHnKA

1. Haxmte KhoNky A dny nepexoDa B pexm 6yDnBnKa.
2. HaxmTe KhoNky C, yTo6bI BbIbpaTb 6yDnJIbHnK 1-4.
3. Haxmte KhoNky D IaB BkIIOUeHn/ByIKIOUeHn 6yDnIbHnKa.

HACTPOIKA BdyINbHNKA

1. BpeKIme 6yUnIbHnka, HaxMnte n ydepxnBaIte KhoNky B 2 cekynbl; NaHyT MInraTb Yacbl.
2. Haxmnte KhoNky C, yTo6bl yBeJnUHTb 3HaueHne; Haxmnte KhoNky D, yTo6bl yMeHbUnTb 3HaueHne. Haxmnte n yDepKunBaIte KhoNky C nn D nn 6bictporo yBeJnUHeHra/YMeHbWeHna 3HaueHna.
3. Haxmte KhoNky A, yTo6bl ycTaHOBnTb n IpeuTn K HacTpOKe MHyT.
4. Nobtopute war 2.
5. Haxmte KhoNky B dIy BbXOa n3 peKIma HacTpoKn. PNMEUHNE: CnHaI 6yDnBnKa 6yTe 3ByaTb B TeueHne 30 ceKyHd. Haxmte IIO6yIO KhoNky dIy npEkpaueHna CnHaIa.

ИСПОЛьзУITE МЕРы ПЕДОCTОPOЖHOCTN - BOДОCTОйKOCTь

CTeneHb BOHOHePOnHuaemocTu YacOB adidas yka3aHa B cneDuoue Ta6Iuue.

{UPCR-780A-P07/QUPCR-823A-P03/QUPCR-780A-3-P16}

正常时间显示

{UPCR-780A-P07/QUPCR-823A-P03/QUPCR-780A-3-P16}

五圣山阿五

1. EL（前日告白福社）到自A
   2.C将T10N T2F

#
