Product Type	Analog and digital strap watch
Brand	Adidas
Model	ADH6063
Main functions	Time, date, day, dual time zone, chronograph with split time and laps, timer, alarm, electroluminescent backlight
Water resistance	Up to 50 ATM (500 meters) depending on model (marking on case back)
Power supply	Battery (type not specified, standard for watch)
Display type	Analog with hands and digital for some functions
Number of counters	Up to 3 counters (depending on model)
Time setting	By crown pull or buttons for digital versions
Chronograph	Measures up to 10 laps or split times, accuracy to 1/100th of a second (depending on model)
Timer	Countdown with stop, repeat, or count-up modes
Alarm	Up to 4 independent alarms, ring duration 30 seconds
Dual time zone	Display of two distinct time zones with button adjustment
Backlight	Electroluminescent (EL), activated by button
Care and cleaning	Rinse with fresh water after use in aquatic environments; avoid solvents and chemicals
Safety	Do not operate buttons underwater; lock crown after setting
General information	Manual available in several languages; 76-page manual; water resistance according to chart

Frequently Asked Questions - ADH6063 ADIDAS

How do I set the time on my Adidas ADH6063 watch?

Pull the crown to position 2. Turn it counterclockwise to scroll through the time to today's date. Set the correct time, then push the crown back to position 1. For digital models, press and hold button D for 2 seconds to enter setting mode, use C to increase and D to decrease.

How do I use the chronograph?

Press button B to enter chrono mode. Press C to start/stop. Press D to record a lap. Use B to recall laps. To reset, press and hold D for 2 seconds when the chrono is stopped.

How do I set the alarm?

Press B to go to alarm mode. Press and hold D for 2 seconds to enter setting. Use C to increase the hour, D to decrease, B to switch to minutes. Confirm with A or exit with B. The alarm activates automatically.

What is the water resistance of my watch?

Water resistance depends on the model. Check the marking on the case back: WR for splashes, 3 ATM (30m) for hand washing, 5 ATM (50m) for swimming, 10 ATM (100m) for snorkeling, 20 ATM or more for scuba diving. Never operate the buttons underwater.

How do I change the battery?

The manual does not provide detailed instructions for battery replacement. It is recommended to have this done by a professional watchmaker to avoid damaging the water resistance.

How do I set the date?

Pull the crown to position 2. Turn it clockwise (or counterclockwise depending on model) until yesterday's date appears, then pull to position 3 to set the time. On digital models, press and hold D to access calendar settings.

How do I activate the dual time zone?

On analog models, use buttons A and B to advance/retard the hand for both time zones in 15-minute increments. On digital models, press C to switch between time zones, or press and hold C to set the default time zone.

How do I use the timer?

Press B to enter timer mode. Press and hold D to set the countdown: hours, minutes, seconds. Press C to start/stop, press D to reset. The alarm sounds for 30 seconds at the end.

How do I care for my watch?

Rinse it with fresh water after use in a pool or sea. Avoid chemicals and shocks. Clean the strap with a soft cloth. Make sure the crown is fully pushed in or screwed down to maintain water resistance.

What if the chronograph does not reset to zero?

If the chronograph hand is not exactly at 12:00, pull the crown to position 3. Use buttons A (clockwise) and B (counterclockwise) to align the hands, then push the crown back to position 1. On digital models, press and hold D to reset.

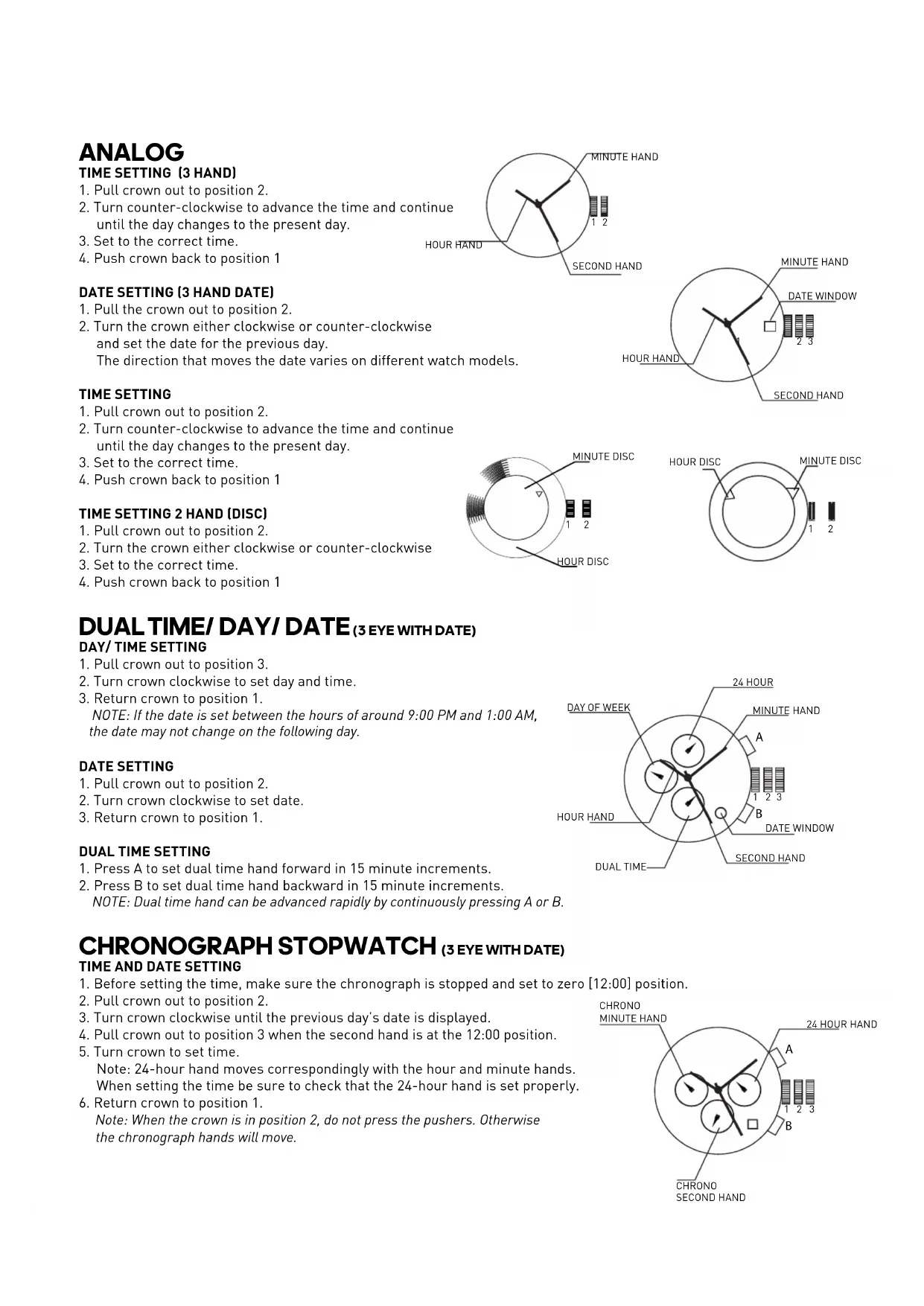

USER MANUAL ADH6063 ADIDAS

1. Pull crown out to position 2.
2. Turn counter-clockwise to advance the time and continue until the day changes to the present day.
3. Set to the correct time.
4. Push crown back to position 1

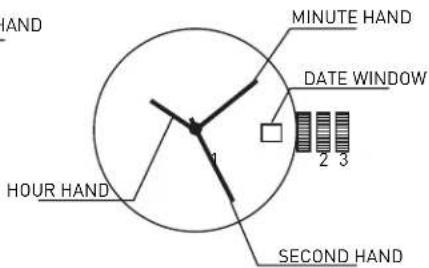

DATE SETTING (3 HAND DATE)

1. Pull the crown out to position 2.
2. Turn the crown either clockwise or counter-clockwise and set the date for the previous day. The direction that moves the date varies on different watch models.

TIME SETTING

1. Pull crown out to position 2.
2. Turn counter-clockwise to advance the time and continue until the day changes to the present day.
3. Set to the correct time.
4. Push crown back to position 1

TIME SETTING 2 HAND (DISC)

1.Pull crown out to position 2.
2. Turn the crown either clockwise or counter-clockwise
3. Set to the correct time.
4. Push crown back to position 1

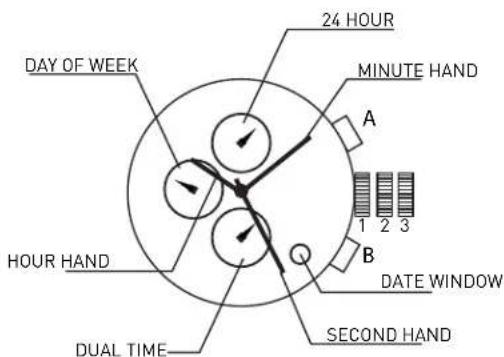

DUAL TIME/ DAY/ DATE (3 EYE WITH DATE)

DAY/TIME SETTING

1. Pull crown out to position 3.
2. Turn crown clockwise to set day and time.
3. Return crown to position 1. NOTE: If the date is set between the hours of around 9:00 PM and 1:00 AM, the date may not change on the following day.

DATE SETTING

1. Pull crown out to position 2.
2. Turn crown clockwise to set date.
3. Return crown to position 1.

DUAL TIME SETTING

1. Press A to set dual time hand forward in 15 minute increments.
2. Press B to set dual time hand backward in 15 minute increments.

NOTE: Dual time hand can be advanced rapidly by continuously pressing A or B.

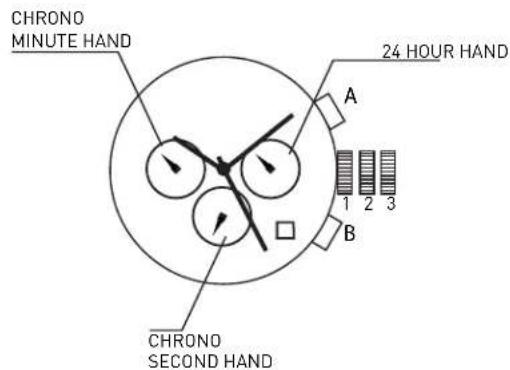

CHRONOGRAPH STOPWATCH (3 EYE WITH DATE)

TIME AND DATE SETTING

1. Before setting the time, make sure the chronograph is stopped and set to zero [12:00] position.
   2.Pull crown out to position 2.
2. Turn crown clockwise until the previous day's date is displayed.
3. Pull crown out to position 3 when the second hand is at the 12:00 position.
4. Turn crown to set time.

Note: 24-hour hand moves correspondingly with the hour and minute hands. When setting the time be sure to check that the 24-hour hand is set properly.

1. Return crown to position 1.

Note: When the crown is in position 2, do not press the pushers. Otherwise the chronograph hands will move.

CHRONOGRAPH

1. Press A to start/slop the chronograph.
2. Press B to reset to zero.

CHRONOGRAPH ZERO RESET

1. If either of the chronograph hands is not at the zero [12:00] position, pull crown out to position 3.
2. Press A to move hands clockwise; press B to move hands counter-clockwise.
3. Return crown to position 1

CHRONOGRAPH 2 EYE WITH DATE (WITH OR WITHOUT DATE)

TIME AND DATE SETTING

1. Before setting the time, make sure the chronograph is stopped
   and set to zero [12:00] position.
   2.Pull crown out to position 2.
2. Turn crown clockwise until the previous day's date is displayed.
3. Pull crown out to position 3 when the second hand is at the 12:00 position.

Turn crown to set time.
Note: 24-hour hand moves correspondingly with the hour and minute hands.
When setting the time be sure to check that the 24-hour hand is set properly.

& Return grown to position 1

Note: When the crown is in position 2, do not press the pushers. Otherwise the chronograph hands will move.

CHRONOGRAPH

1. Press B to start/slop the chronograph.
2. Press A for Split time, Press A again to restart
3. Press A to reset lo zero.

CHRONOGRAPH ZERO RESET

1. If either of the chronograph hands is not at the zero (12:00) position, pull crown out to position 3.
2. Press A to move hands clockwise; press B to move hands counter-clockwise.
3. Return crown to position 1

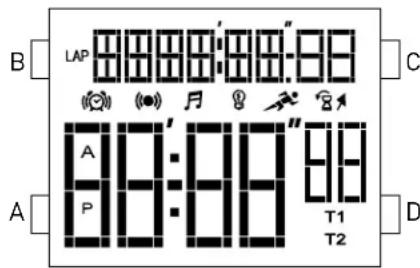

CALAGARY (QFL769BB/QFL873AC)

NORMAL TIME DISPLAY

1. Press A for EL
2. Press C to select T1 or T2 format.
3. Press D to toggle chime on/off.

TIME/CALENDAR SETTING

1. In time mode, press and hold D for 2 seconds to enter time setting; hour will begin flashing.
2. Press C to increase selling value. Press D to decrease selling value.
3. Press B to enter next setting field
4. Setting sequence is hour, minute, second, year month, date,12/24 hr
5. Press A to exit setting mode.

CHRONOGRAPH MODE

1. Press B to enter chrono mode.
2. Press D to select split or lap mode. Split mode will display the full time of all records after
   each split. Lap mode will display only the new lap time after each record has been recorded.
3. Press C to start chrono.
4. Press C again to split time.
5. Repeat step 4 until desired number of laps have been reached (maximum 10).
6. Press D to stop chrono.
7. To review, press B to enter recall mode before resetting.
8. Press D again to reset chrono

RECALL MODE

1. Press C to recall each lap [10 maximum].
2. Press D to return to chronog.

ALARM MODE

1. Press Big eniig alarm mode.
2. Press C to toggle alarm on/off.
3. Press D to select T1 Alarm 1 or T2 Alarm 2.

ALARM SETTING

1. Press and hold D for 2 seconds to enter alarm setting; hour will begin flashing.
2. Press C to increase setting value. Press D to decrease setting value.
3. Press B to set minutes.
4. Press A to exit setting mode
   NOTE: Alarm turns on automatically when exiting setting mode.

TIMER MODE

1. Press C to start countdown timer.
2. Press D to stop countdown timer. Press D again to reset timer.

TIMER SETTING

1. Press B to enter timer mode.
2. Press and hold D to enter setting mode; hour will begin flashing.
3. Press C to increase setting value. Press D to decrease setting value.
4. Press B to enter next setting field.
5. Setting sequence is hour, minute, second.
6. Press to exit setting

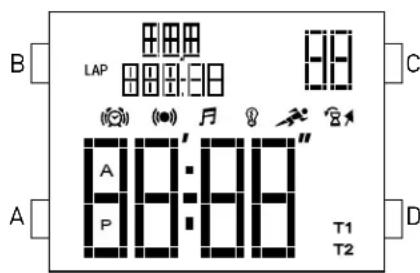

PEACHTREE (FL1459B)

NORMAL TIME DISPLAY

1. Press A for EL in any mode
2. Press C to toggle between Time 1 and Time 2
3. Press and hold C to set Time 1 or Time 2 as the default timer.
4. Press D to toggle chime on/off.

TIME/CALENDAR SETTING

1. In normal time display, press and hold A to enter setting mode; chime will begin flashing.
2. Press C to increase setting value. Press D to decrease setting value.
3. Press B to set and advance to next setting value.
4. Setting sequence is chime, 12/24-hour time, hour, minute, second, year, month, date, Auto EL
5. Press A to save data and exit setting mode.

CHRONOGRAPH MODE

1. Press B to change to chronograph mode.
2. Press C to start chronograph: press D for lap when the chronograph is running.
3. Press D to change views while chronograph is running
4. Press C to stop chronograph.
   NOTE: When running, there is a maximum of 10 laps, afterward last lap will be overwritten each time
   additionl lap is recorded.

RECALL MODE

1. Press A to recall the memory when the chronograph is stopped.
2. Press A to view the next lap.
3. Press C or D to exit Recall Mode and go back to chronograph mode.

TIMER MODE

1. Press B to change to timer mode.
2. Press C to start timer.
3. Press C to stop timer. Press D to reset the timer when it is stopped.

TIMER SETTING

1. In timer mode, press and hold A to enter setting mode; timer type will begin flashing.
2. Press C and D to select count down stop, count down repeat, or count up timer.
3. Press B to advance to next setting field.
4. Press C to decrease and D to increase.
5. Press B to set and advance to next selling value.
6. Setting sequence is timer type, hour, minute, second.
7. Press A to save data and exit setting mode

NOTE: Alarm will sound at 2 beeps per second, and will beep for 30 seconds after timer reaches zero.

ALARM MODE

1. Press B to change to alarm mode.
2. Press C to toggle between alarms 1, 2, 3, 4.
3. Press D to enable the alarm: press D again to disable the alarm.
4. Press B to exit alarm mode.

ALARM SETTING

1. In alarm mode, press and hold A to enter setting mode, hour will begin flashing.
2. Press C to increase; press D to decrease.
3. Press B to set and advance to next setting value
4. Setting sequence is hour, minute.
5. Press A to exit setting mode

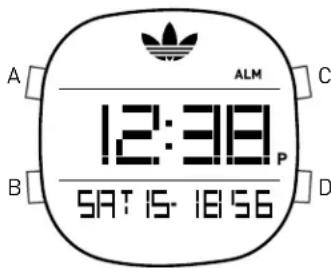

DENVER/CANDY/SYDNEY (UPCR-780A-P07/QUPCR-823A-P03/QUPCR-780A-3-P16)

NORMAL TIME DISPLAY

1. Press A for EL.

2. Press C to select T1 or T2 format.

TIME/CALENDAR SETTING

1. In time mode, press and hold D for 2 seconds to enter time.
   setting; hour will begin flashing.
2. Press C to increase setting value
3. Press B to enter next setting field
4. Setting sequence is hour, minute, day, year, month, date.
5. Press D to exit setting mode.

ALARM MODE

1. Press B to enter alarm mode.
2. Press C to toggle alarm/chime on/off
3. Press D to select Home Alarm or T2 Alarm

ALARM SETTING

1. Press and hold D for 2 seconds to enter alarm setting; hour will begin flashing
2. Press C to increase selling value
3. Press B to set minutes.

Press D to exit setting mode.

NOTE: Alarm turns on automatically when exiting setting mode.

CHRONOGRAPH MODE

1. Press Big eni r chron mode.
2. Press D to select split or lap mode. Split mode will display the full time of all records after each split.
   Lap mode will display only the new lap time after each record has been recorded.
3. Press C to start chrono.
4. Press C again in split limc.
5. Repeat step 4 until desired number of laps have been reached [maximum 10].
6. Press D to stop chrono.
7. To review, press B to enter recall mode before reselling
8. Press D again to reset chrono.

RECALL MODE

1. Press C to recall each lap [10 maximum]
2. Press D to return to chrono.

TIMER MODE

1. Press C to start countdown timer.
2. Press D to stop countdown timer. Press D again to reset timer.

TIMER SETTING

1. Press B to enter timer mode.
2. Press and hold D to enter setting mode; hour will begin flashing
3. Press C to increase setting
4. Press B to enter next setting field.
5. Setting sequence is hour, minute, second
6. Press D to exit setting mode

Seoul / Curitiba (QFL657)

NORMAL TIME DISPLAY

1. Press A to change mode. Mode sequence is normal time,
   shrponogreeh, limsr, alarm.
2. Press B for E.L.
3. Press C to flash time zone 2. Press and hold C 2 seconds
   To logals normal time displaytime zone 2.
4. Press D to toggle key tone an/off.

NOTE: At any point in any setting mode, press B to exit setting mode.

NOTE: in any setting mode, if no pusher is operated for 30 seconds,
all changes will be saved and the setting will automatically return
to normal time

TIME/CALENDAR SETTING

1. In normal time display, press and hold B 2 seconds; auto EL
   sn/alf will begin flashing.
2. Press C toggle auto EL on/off.
3. Press A to set and advance to next setting value.
4. Press C to increase digit; press D to decrease digit. Press and hold C or D for fast increment/decrement.
5. Repeat steps 3 and 4 through setting sequence. Setting sequence is: auto EL, chime on/off
   12/24 hour format, hour, minute, second, year, month/date or date/month format, month and date
6. Press B to exit setting mode.
   NOTE: Weekday is automatically updated upon exiting setting mode.

TIME ZONE 2 SETTING

1. To set Time Zone 2, press and hold C 2 seconds to change to Time Zone 2.
2. Press and hold B 2 seconds; time difference between time zone 1 and time zone 2 will begin flashing.
3. Press C to increase value: press D to decrease value. Press and hold C or D for
   fast increment/decrement
4. Press B to exit setting mode.

CHRONOGRAPH MODE

1. Press A to change to chronograph mode.
2. Press B to recall lap data. Press B to scroll through laps.
3. Press C to start/slop the chronograph.
4. Press and hold D 2 seconds to reset to zero.
   NOTE: Insert chronograph indicolor here will flash in all modes if the chronograph is running.

LAP COUNTING

1. Press D while the chronograph is running for lap counting [up to 10 laps].
   NOTE: After 8 seconds, display will show total chronograph time in the lower portion of the display; next lap running time will show in upper portion of the display.
2. Press C to stop chronograph
3. Press B when the chronograph is stopped to recall chronograph lap data.
4. Press C or D to exit recall mode and return to chronograph.

TIMER MODE

1. Press A to change to timer mode.
2. Press C to start/stop timer.
3. Press D to reset the timer.

NOTE: Alarm will sound for 30 seconds when countdown reaches zero. Press any pusher to silence alarm.

TIMER SETTING

1. In timer mode, press and hold B 2 seconds to enter setting mode; timer type will begin flashing.
   Press C to select countdown-stop ("CD-STP"), countdown-repeat ("CD-REP"), or countdown-then up timer ("CD-UP").
2. Press A to set and advance to next setting value.
3. Press C to increase digit, press D to decrease digit. Press and hold C or D for fast increment/decrement.
4. Repeat steps 3 and 4 through selling sequence. Setting sequence is: timer type, hour, minute, seconds.
5. Press B to exit setting mode.

ALARM MODE

1. Press A to change to alarm mode.
2. Press C to select alarm 1-4.
3. Press D to toggle alarm on/off.

ALARM SETTING

1. In alarm mode, press and hold B 2 seconds; hour will begin flashing.
2. Press C to increase digit; press D to decrease digit. Press and hold C or D for fast increment/decrement.
3. Press A to set and advance minute.
4. Repeat step 2.
5. Press B to exit setting mode.

NOTE: Alarm will sound for 30 seconds. Press any pusher to silence alarm.

ANALOG

{UPCR-780A-P07/QUPCR-823A-P03/QUPCR-780A-3-P16}

[UPCR-780A-P07/QUPCR-823A-P03/QUPCR-780A-3-P16]

AFFICHAGE NORMAL DE L'HEURE

{UPCR-780A-P07/QUPCR-823A-P03/QUPCR-780A-3-P16}

VISUALIZACION NORMAL DE LA HORA

{UPCR-780A-P07/QUPCR-823A-P03/QUPCR-780A-3-P16}

SCHERMO CON L'ORA STANDARD

{UPCR-780A-P07/QUPCR-823A-P03/QUPCR-780A-3-P16}

VISUALIZACAO NORMAL DA HORA

[UPCR-780A-P07/QUPCR-823A-P03/QUPCR-780A-3-P16]

OTOBPAXEHNE ObbyHOro BPEMEHN

1. Haxmte KhoNky A JEA EL.
2. HaxmTe KhoNky C nIy Bb6opa foMpTa T1 nnT2.

YCTAHOBKA BPEMEHN

1. HaxoJcB bpeKmE BpeMeHn, HaxMnte n ydepKnBaTe KhoNky D B TeueHne 2 cekyH, UTObI BoHTn B peKm ycTaHOBKn; uO3HaauOuNe Yacbl, HaHyT MrraTb.
2. HaxmTe KhoNky C, yTo6bIyBEnuHTb 3HaueHne ycTaHOBKn.
3. Haxmte KhoNky B, yTo6bI nepeuTn K cJeDyUoEmy npaMeTpY ycTaHOBKn.
4. NocJeIOBATEbHOCTb yCTaHOBKN - Yac, MHyTa, DeHb, RoD, MeCra, DaTa.
5. Haxmte KhoNky D IaI BbIXOa n3 peXnMa yCTaHOBKn.

PEXKIM BUDINJIbHnKA

1. HaxmTe KhoNky B Dny BxOda B pexM 6yDnIbHnKa.
2. HaxmTe KhoNky C nIe BkIIOHeHry/BbIKIOHeHry 6yDnIbHnKa/3ByKOBOrO cnHaHa.
3. HaxmTe KhoNky D nIy Bbl6pa domaaHero 6yDnJIbHnKa nn 6yDnJIbHnKa T2.

YCTAHOBKA BydNJIbHnKA

1. Haxmte u ydepunBaTe KhoNky D TeueHne 2 cekyH, YTo6bl BoTn B pexm ycTaHOBKn 6yDnIbHnka; Cnpbl, o03HaayIoune Yacbl, HauHyT MmraTb.
2. Haxmnte KhoNky C, yTo6bIyBEnuHTb 3HaueHne ycTaHOBKn.
3. Haxmte KhoNky B, yTo6bl yCtHaOBuTb MHyTbI.
4. HaxmTe KhoNky Dnla BbIXoJa n3 peXIma yctahOBKn.

PIMMEYAHNE: BydunbHK BKNIOaTeCABTOMaTHueCKn npu BbIXOe n3 pexkMa yctahOBKn.

PEKIM XPOHOMETPA

1. HaxmTe KhoNky B, yTo6bl BoTn B pexM xpoHometpa.
2. Haxmnte KhoNky D, YTo6bI Bb6paTb pexnmpomexkytoHoro fHHuHa nn Kpyra. PeknnpomexkytoHoro fHHuHa nokaket noJHoe BpeMa BCex pekopdoB nocne kKdoRo npomexkytoHoro fHHuHa. Pekn Kpyra nokaket tolbko BpeMa HOBO r Kpyra nocne 3aunC kKdoRo pekopda.
3. Haxmnte KhoNky C, 4to6bI 3aNyCTnTb xpoHometp.
4. Haxmte eue pa3 KhoNky C, yTo6bI pa36nTb BpeMra.
5. NOBTOPNE 4, NOKA He doctnHte XeJenaEMO KOJIueCTBa KpyroB (MaKcMym 10).
6. HaxmTe KhoNky D, yTo6bl OctaHOBnTp xpoHometp.
   7.ДЯ NOBTOPOHOro npocmoTpa HaxMnte KhoNky B, YTo6bl BoYTu B peXm 3aONMaHaHnpepeHOBou yCTaHOBkoI.
7. Haxmte eue pa3 KhoNky D nla o6hynn xpoHometpa.

PEKIM 3ANOMHAHNA

1. HaxmTe KhoNky CДЯ 3aNoMHaHnKaJdOro Kpyra (MaKcMym 10).
2. HaxmTe KhoNky D nIy Bo3BpTa K xpoHometpy.

PEKIM TAIMEPA

1. Haxmnte KhoNky C, yTo6bl 3aNyctntb TaMep o6paTHoro OTCeta.
2. Haxmte KhoNky D, YTo6bI ocTaHOBntb TaMep o6paTHOrO oTcyeTa. Haxmte eue pa3 KhoNky D dJa 06HyJeHn TaMepa.

YCTAHOBKA TAI MEPA

1. Haxmte KhoNky B, YTO6bI BOHTB BpeKIM TaMepa.
2. Haxmte KhoNky u ydepKnBaTe KhoNky D nIy BxOJa B pexm yCTaHOBKn; cHpbl, 06o3Haayaoune yacbl, hauHyT mRaTb.
3. HaxmTe KhoNky C, yTo6bl yBeInuHTb 3HaueHne yCTaHOKn.
4. HaxmTe KhoNky B, TTo6bI nepeuTn K CneJeUoUeMy npaMeTp yCTaHOBKn.
5. YcTahOBKa npOn3BODnTCB CNeJeYIOeM nopJKe:HaCbI, MHyTbI, cKyHnbl.
6. HaxmTe KhoNky DnIy BixOda n3 pexIma yctahOBKn.

SEOUL/CURITIBA

(QFL657)

HACTPOIKA TEKYUJIEGOBPMEHNI

1. HaxmTe KhoNky A dny n3MeHnpy pexnma. Pexn mocJeOBaTeJbHoro nepeKIOUeHnry - Tekyuee Bpem, xpoHOrpa, taMep, 6yDnIbHnK.
2. Haxmte KhoNky B dny BKIOueHn noCDBeTkn (EL).
3. Haxmte KhoNky C, yTo6bI Bbl6paTb yacoBoi noC 2. Haxmte u ydepXnBaTe KhoNky C 2 cekyHdbI dny nepeKluyeHna B pexm TeKyUero BpemHu/acyoBOr o nOca 2.
4. Haxmte KhoNky D nla BkIooHn/ByIKIOueHn CnHaHa hXaTna KnaBn.

IPIME4AHHE: B JIO6oM MoeHT BpeMeHn, BHe 3aBcUmocTn OT peXmHaHacToPouKn, HaxMnte B, YTO6bI BbIuN u3 peXmHaHacToPouKn.

IPIIME4AHHE: B IIO6om pejxime HacTpoKn, ecnn KJIaBnHn He HaxmamOTcB B TeueHne 30 cekyHd, BCE n3MeHeHHa ByyT coXpaHeHb, a 3kpaH abTomatueckn BepHeTcB peXm OTo6paxeHHBpeMeHN.

HACTPOIKA BPEMEH N KAJEHAPRA

1. BpeKnme oTo6paXeHnBpeMeHn, HaxMnte n ydepxnBaTe KhoNky B 2 ceKyHdb; 3KpaH aBTOMaTnuecKn HaHT MraTb.
2. Haxmte KhoKny C dIy BkHoueHHaBbIKHoueHHn noCBeKn.
3. HaxmTe KhoNky A, yTo6bI ycTaHOBnTb n nepeuTu K hAcTpOKe cJeDyUoJero napaMeTpA.
4. Haxmnte KhoNky C, yTo6bI yBeJIuNTb 3HaueHHe; Haxmnte KhoNky D, yTo6bI yMeHbUHTb 3HaueHHe. Haxmnte u yDepKnaBte KhoNky C nIn D dJa 6bICTpO rO yBeJIuHHeHr/YMeHbUHeHr 3HaueHnra.
5. NOBTOPiTe 3n 4 nyTeM nocJeDoBaTeIbHOro nepeKIOueHnMaekDy onuMn.Pexm nocJeDoBaTeIbHOro nepeKIOueHnCneJyUcN: aBTo noDCBeTka (EL), BkI/BbIKn 3ByKOBoRo CnHaJa, 12/24-ycaOBo JOpMaT, HaCbI, MInHyTbI, ceKYNDbI, rO,I, fOpMaT "MecaU/deHb" IIN "DeHb/Mecua", Mecau n data.
6. Haxmte KhoNky B JnB BixOa n3 pexmHa hactpoKn. PIMcHVE: Heh HeJeN ABToMaTneckn oHOBnEe Tc np N BixOe n3 peXmHa hactpoKn.

HACTPOIKA YACOBOIO NORACA 2

1. YTO6bI yCTaHOBNT bacOBn IORc 2, HaxMnte n ydePknBaTe KhoNky C 2 CEyHdbI, YTO6bI nepeTn K YacoBOmy NoRcy 2.
2. Haxmte u ydepknBaTe KhoNky B 2 cekyHdb; Ha 3kpaHe 6ydet MnraTb pa3Hua BO BpeMeHN Mekdy YacOBbIM NORCOM 1 u YacOBbIM NORCOM 2.
3. Haxmte KhoNky C dIy yBeJIuHEny 3HaueHn; Haxmte KhoNky D nIy MeHbWeHn 3HaueHn. HaxmTe n yepKnbAitc KhoNky C nIy D nIy 6bictporo yBeJIuHEny/YMeHbWeHn 3HaueHn.
4. Haxmte KhoNky B dny bixoHa n3 peKIma hAcToPoiKn.

PEKIMXPOHOPTPAΦA

1. Haxmte KhoNky A dIy nepexoDa B pexm xpoHometpa.
2. HaxMnte KhoNky BДЯ BbIbOda DaHHbIX O npdebldyuixx n3MepeHnX. HaxMnte KhoNky BДЯ npolncTBaHnA daHHbx.
3. Haxmte KhoNky C dnyzka/octaHObKn xpoHorpaa.
4. Haxmte u yedejxnbai Te KhoNky D 2 cekyHdbi, YTO6bI c6pocntb Hactpoyn Do Hyna. IPIMEUAHIE: BCTaBbTe xpoHorpaΦ. Ecnn XpoHorpaΦ 3aNyueH, INHnKaTOp 6ydt MrtabB JIObOM peXmme.

I3MEPEHNE BPEMEHHbIX IPOMEKGTKOB

1. Haxmte KhoNky D nocne 3anycka xpoHorpaΦa, YTO6bI n3Mepntb npomexytoK BpeMeHH [do 10-Tn npomexytkoB].

PIMMEAHHE:Yepe3 8 cekyH, B HnKHeu qacTn 3kpaHa 6yTeBbBeJeHO 06uee Bpemra 6oToBxpoHorpa;3aTeM BpemOnpeJeHOrO npomexyTKa 6yTe OTo6paKeHo B BepXHeu qactn 3kpaHa.

1. Haxmte KhoNky C dIa octaHOBKn xpoHorpaFa.
2. Haxmte KhoNky B noCle octaHOBKn xpoHorpaΦa nIy BbIOda daHHbIX 06 n3MepeHnX xpOHorpaΦa.
3. Haxmte KhoNky Cnn D, yTo6bI Bbln n3 peXmAbBbIOda daHHbx IN BepHyTbcK xpOHorpafoy.

PEKUM TAIIMEPA

1. HaxmTe KhoNky AДЯпepexoDa Bpexm TaMepa.
2. Haxmnte KhoNky C dIa 3aynck/aocTaHOBk TaMepa.
3. Haxmte KhoNky D dny c6poca npaametpoB taMepa. PNMEUHHE: npu doctxkeHHn HyeBOrO 3naueHn 6ydt 3ByaTb CnHaH npotxkeHH 30 cekynd. Haxmte IIObYIO KhoNky dny npekpaeeHHcHnHa.

HACTPOIKA TAIIMEPA

1. B pexnme TaMepa, Haxmnte u ydepxnbAte KhoNky B 2 ceKynbl, UTo6bl BOHTBpeXnHAcTpoKn; HaHET MNaTb TIN TaMepa.
2. Haxmte KhoNky C, qTo6bBbIbpaTb 6paTHbI OTCye-CTOn ("CD-STP"), 6paTHbI OTCye-NOBTOp ("CD-REP") nJn 6paTHbI OTCye-IPrMoN OTCye ("CD-UP").
3. HaxmTe KhoNky A, YTo6bI yCTaHOBnTb n nepeuTN K HacTpOKe cJeDyUoero npaMeTpa.
4. HaxMnte KhoNky C, yTo6bl yBeJnUHTb 3HaueHne; HaxMnte KhoNky D, yTo6bl yMeHbWntb 3HaueHne. HaxMnte n yDepKunBaIte KhoNky C nIn D nIy 6bICTporo yBeJnUHeHry/YMeHbWeHry 3HaueHnn.
5. NOBTOPiTe 3 n 4 nyTem noCleJIOBaTeIbHOro nepeKIOUeHnMexyOnuMaM.HacTpoKn 6dyT nepeKIOUaTbcra B cIeDyIOSeI NOcJIeOBATeIbHOCTN: TIN TaIMepa, HAcbl, MInHyTbI, CeKYHbI.
6. Haxmte KhoNky BДЯ BbIXOa n3 peKIma HacTpoKn.

PEKIM BUDINbHnKA

1. Haxmte KhoNky A dny nepexoDa B pexm 6yDnBnKa.
2. HaxmTe KhoNky C, yTo6bI BbIbpaTb 6yDnJIbHnK 1-4.
3. Haxmte KhoNky D IaB BkIIOueHn/ByIKIOueHn 6yDnIbHnKa.

HACTPOIKA BdyINbHNKA

1. BpeKIme 6yUnIbHnka, HaxMnte n ydepxnBaIte KhoNky B 2 cekynbl; NaHyT MInraTb Yacbl.
2. Haxmnte KhoNky C, yTo6bl yBeJnUHTb 3HaueHne; Haxmnte KhoNky D, yTo6bl yMeHbUnTb 3HaueHne. Haxmnte n yDepKunBaIte KhoNky C nn D nn 6bictporo yBeJnUHeHra/YMeHbWeHna 3HaueHna.
3. Haxmte KhoNky A, yTo6bl ycTaHOBnTb n IpeuTn K HacTpOKe MHyT.
4. Nobtopute war 2.
5. Haxmte KhoNky B dIy BbXOa n3 peKIma hAcToKn. PNIMEUAHNE: CnHaI 6yDnBnHka 6yTe 3ByaTb B TeueHne 30 cekyn. Haxmte IIO6yIO KhoNky dIy npEkapuen CnHaIa.

ИСПОЛьзУITE МЕРы ПЕДОCTОPOЖHOCTN - BOДОCTОйKOCTь

CTeneHb BOHOHePOnHuaemocTu YacOB adidas yka3aHa B cneDuoue Ta6Iuue.

{UPCR-780A-P07/QUPCR-823A-P03/QUPCR-780A-3-P16}

正常时间显示

{UPCR-780A-P07/QUPCR-823A-P03/QUPCR-780A-3-P16}

五圣山阿五

1. EL（前日告白福社）到自A
   2.C将T10N T2F

#
