Technical Specifications	Klarstein Freezer 10032193
Freezing Capacity	100 liters
Energy Class	A+
Dimensions (W x D x H)	55 x 60 x 85 cm
Weight	35 kg
Noise Level	42 dB
Cooling Type	Static cooling
Usage	Ideal for storing frozen foods
Maintenance	Manual defrost recommended
Safety	Door lock system
General Information	2-year warranty

Frequently Asked Questions - 10032193 Klarstein

How do I set the temperature on my Klarstein Freezer 10032193?

To set the temperature, use the thermostat located inside the freezer. Turn the knob to adjust the temperature according to your needs.

Why is my freezer not working?

Check if the freezer is properly plugged in and if the outlet is working. Also make sure the door is properly closed and the thermostat is set correctly.

How do I defrost my Klarstein Freezer 10032193?

To defrost, unplug the freezer and let the ice melt naturally. Place towels to absorb the water and clean the interior once defrosting is complete.

What is the storage volume of my freezer?

The Klarstein Freezer 10032193 has a storage volume of 100 liters, ideal for keeping your frozen foods.

My freezer is making too much noise, what should I do?

A certain level of noise is normal. Make sure the freezer is on a flat and stable surface. If the noise persists, check that nothing is blocking the fan inside.

How do I clean the inside of my freezer?

To clean the inside, use a mixture of warm water and mild soap. Avoid abrasive products and make sure to dry the interior well before putting food back in.

What is the energy consumption of this freezer?

The Klarstein Freezer 10032193 is rated energy class A+, meaning it is designed to be energy efficient.

How do I prevent odors in my freezer?

To prevent odors, clean the interior regularly and use an odor absorber. Avoid storing unpackaged foods.

Can I store hot food in the freezer?

It is not recommended to store hot food directly in the freezer. Let it cool to room temperature before placing it inside.

USER MANUAL 10032193 Klarstein

Labeled diagram of a stainless steel oven with numbered parts for identification

BEDIENFELD

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability.

CONTENT

Technical Data 10

Declaration of Conformity 10

Safety Instructions 11

Product description 13

Control Panel 13

Before first Use 14

Care and Cleaning 14

Troubleshooting 15

Hints on Disposal 16

TECHNICAL DATA

Item number 10032193, 10032194
Power supply 220-240 V ~ 50 Hz

DECLARATION OF CONFORMITY

Producer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)

643/2009/EC (ErP)

1060/2010/EU (ErP)

SAFETY INSTRUCTIONS

- The appliance is not designed for commercial use. It is intended for use in domestic households and in similar working and residential environments, such as staff kitchen areas, farm houses, hotels, motels and bed and breakfast type environments.

- This appliance can be used by children aged from 8 years and above and persons with reduce physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- The appliance has to be unplugged after use and before carrying out user maintenance on the appliance.

- Risk of fire / flammable materials.

- Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- Do not damage the refrigerant circuit.

- Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

- Please abandon the freezer according to local regulators for it use flammable blowing gas and refrigerant.

- Do not use extension cords or ungrounded two prong adapters

- Packaging material could be dangerous for children! For disposing of package and the appliance please go to a recycling centre. Cut off the power supply cable and make the door closing device unusable.

- The freezer must be disconnected from the source of electrical supply before attempting the installation of accessory.

- Refrigerant and cyclopentane foaming material used for the freezer are flammable. Therefore, when the freezer is scraped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.

- Do not arbitrarily disassemble or reconstruct the freezer, nor damage the refrigerant circuit; maintenance of the appliance must be conducted by a specialist.

- Damaged power cord must be replaced by the manufacturer, its maintenance department or related professionals in order to avoid danger.

- Do not allow any child to get into or climb the freezer; otherwise suffocation or falling injury of the child may be caused.

- Do not place heavy objects on the top of the freezer considering that objectives may fall when close or open the door, and accidental injuries might be caused.

- Please pull out the plug in case of power failure or cleaning. Do not connect the freezer to power supply within five minute

Electricity related warnings

• Do not pull the power cord when pulling the power plug of the freezer. Please firmly grasp the plug and pull out it from the socket directly.
• To ensure safe use, do not damage the power cord or use the power cord when it is damaged or worn.
• Please turn off the valve of the leaking gas and then open the doors and windows in case of leakage of gas and other flammable gases.
• Do not unplug the freezer and other electrical appliances considering that spark may cause a fire.
• Please use a dedicated power socket and the power socket shall not be shared with other electrical appliances.
• The power plug should be firmly contacted with the socket or else fires might be caused.
• Please ensure that the grounding electrode of the power socket is equipped with a reliable grounding line.
• Do not use electrical appliances on the top of the appliance, unless they are of the type recommended by the manufacturer. Hersteller empfohlen.

Warnings for placement

• Do not put flammable, explosive, volatile and highly corrosive items in the freezer to prevent damages to the product or fire accidents. Do not place flammable items near the freezer to avoid fires.
• The freezer is intended for household use, such as storage of foods; it shall not be used for other purposes, such as storage of blood or drugs, etc.
• Do not arbitrarily disassemble or reconstruct the freezer, nor damage the refrigerant circuit; maintenance of the appliance must be conducted by a specialist.
• Damaged power cord must be replaced by the manufacturer, its maintenance department or related professionals in order to avoid danger.
• Do not allow any child to get into or climb the freezer; otherwise suffocation or falling injury of the child may be caused.
• Do not place heavy objects on the top of the freezer considering that objectives may fall when close or open the door, and accidental injuries might be caused.
• Please pull out the plug in case of power failure or cleaning. Do not connect the freezer to power supply within five minutes to prevent damages to the compressor due to successive starts.
• The gaps between freezer doors and between doors and freezer body are small, be noted not to put your hand in these areas to prevent squeezing the finger. Please be gentle when close the freezer door to avoid falling articles.
• Do not pick foods or containers with wet hands in the freezing chamber when the freezer is running, especially metal containers in order to avoid frostbite.
• Do not store beer, beverage or other fluid contained in bottles or enclosed containers in the freezing chamber; otherwise the bottles or enclosed containers may crack due to freezing to cause damages.

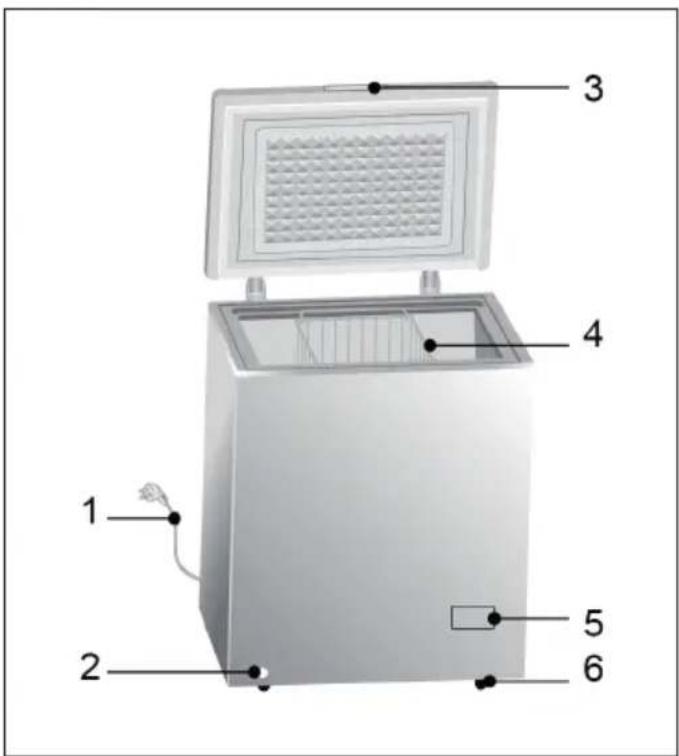

PRODUCT DESCRIPTION

1 Power cord
2 Drainage hole
3 Door handle
4 Shelving basket
5 Control panel
6 Wheel

Labeled diagram of a stainless steel oven with numbered parts for identification

CONTROL PANEL

- Connect the freezer to power supply and "Power" indicator will shine; "Run" indicator will shine in operation; "ALARM" Indicator light when the inside temperature is too high.

- The temperature of the chamber is adjusted through the thermostat knob. The number „1, 2, 3, 4, 5, 6,“ do not mean a specific temperatures, the lower the number is, the higher the temperature inside will be.

• „OFF .. stands for inoperation.

Power Run Alarm 5 6 4 OFF 3 2 1

BEFORE FIRST USE

• Before use, remove all packing materials, including bottom cushions, foam pads and tapes inside of the freezer; tear off the protective film on the doors and the freezer body.
• Keep away from heat and avoid direct sunlight. Do not place the freezer in moist or watery places to prevent rust or reduction of insulating effect.
• Do not spray or wash the freezer; do not put the freezer in moist places easy to be splashed with water so as not to affect the electrical insulation properties of the freezer.
• The freezer is placed in a well-ventilated indoor place; the ground shall be flat, and sturdy (rotate left or right to adjust the wheel for levelling if unstable).
• The top space of the freezer shall be greater than 70 cm, and The freezer should be placed against a wall with a free distance more than 20 cm to facilitate heat dissipation.

CARE AND CLEANING

Defrosting

The freezer is made based on the air-cooling principle and thus has automatic defrosting function. Frost formed due to change of season or temperature may also be manually removed by disconnection of the appliance from power supply or by wiping with a dry towel.

Out of operation

• Power failure: In case of power failure, even if it is in summer, foods inside the appliance can be kept for several hours; during the power failure, the times of door opening shall be reduced, and no more fresh food shall be put into the appliance.
• Long-time nonuse: The appliance shall be unplugged and then cleaned; then the doors are left open to prevent odor.
• Moving: Before the freezer is moved, take all objects inside out, fix the glass partitions, vegetable holder, freezing chamber drawers and etc. with tape, and tighten the leveling feet; close the doors and fix them with tape. During moving, the appliance shall not be laid upside down or horizontally, or be vibrated; the inclination during movement shall be no more than 45°.

TROUBLESHOOTING

Problem Possible cause and suggested solution
Failed operation. Check whether the appliance is connected to power or whether the plug is in well contact.
Odor. Odorous foods shall be tightly wrapped.
Long-time operation of the compressor.	Long operation of the freezer is normal in summer when the ambient temperature is high.
	It is not suggestible having too much food in the appliance at the same time.
	Food shall get cool before being put into the appliance.
	The doors are opened too frequently.
Doors cannot be properly closed.	The door is stuck by food packages Too much food is placed.
	The freezer is tilted.
Loud noise. Check whether the floor is level and whether the freezer is placed stably.
Surface condensation. Condensation on the exterior surface and door seals of the freezer is normal when the ambient humidity is too high. Just wipe the condensate with a clean towel.
Abnormal noise. Buzz: The compressor may produce buzzes during operation, and the buzzes are loud particularly upon start or stop. This is normal.

HINTS ON DISPOSAL

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.
