Product Type	Analog watch
Brand	Adidas
Model	ADH2047
Movement	Quartz (button cell)
Display	Analog hands with subdials
Main functions	Time, minutes, seconds, date, day, chronograph, dual time zones, alarm
Chronograph	Minute and second display, measures up to 10 laps
Date and day	Calendar with date and day of week
Dual time zones	Separate display with 15-minute increment adjustment
Power supply	1 button cell (type SR626SW or equivalent)
Estimated battery life	Approximately 2 to 3 years
Water resistance	5 ATM (50 meters) – suitable for surface swimming
Case material	Stainless steel or resin (depending on version)
Strap material	Leather, silicone, or stainless steel (depending on version)
Case diameter	Approximately 40-45 mm
Case thickness	Approximately 10-12 mm
Weight	Approximately 60-80 g (depending on strap)
Care and cleaning	Clean with a soft dry cloth. Avoid chemicals. Rinse with fresh water after contact with saltwater.
Safety	Do not expose to extreme temperatures. Avoid strong shocks. Keep the crown pushed in to maintain water resistance.
Spare parts and repairability	Battery and strap replaceable by a watchmaker. The movement requires professional servicing.
General information	User manual available online. Refer to the manual for specific settings (chronograph, alarm, time zone).

Frequently Asked Questions - ADH2047 ADIDAS

How to set the time on the Adidas ADH2047 watch?

Pull the crown to position 2, turn it counterclockwise until the day advances to the current date, set the correct time, then push the crown back to position 1.

How to set the date on the ADH2047 watch?

Pull the crown to position 2, turn it clockwise or counterclockwise (depending on model) until the desired date is displayed. Note: do not set the date between 9 PM and 1 AM to avoid date change problems.

How to use the chronograph?

Press button A to start/stop the chronograph, and button B to reset to zero. For a two-counter chronograph, use B to start/stop and A for lap time.

How to set the dual time zones?

Press button A to advance the dual time zone hand in 15-minute increments, and button B to move it back. You can hold down for fast scrolling.

Is the ADH2047 watch waterproof?

Yes, it offers water resistance of 5 ATM (50 meters). It supports surface swimming but not diving. Make sure to push the crown in fully before any contact with water.

How to change the battery of the ADH2047 watch?

Battery replacement should be done by a professional watchmaker to maintain water resistance. Use a button cell battery type SR626SW or equivalent.

How to set the alarm?

For models with alarm, in alarm mode, hold button D for 2 seconds, then use C to increase and D to decrease the hour. Press B to switch to minutes. The alarm activates automatically when leaving setting mode.

What to do if the chronograph does not return to zero?

If the chronograph hands are not at 12:00, pull the crown to position 3, then press A to move them clockwise and B counterclockwise until zero.

How to clean my ADH2047 watch?

Use a soft, dry cloth. For stubborn dirt, slightly dampen the cloth. Avoid solvents and abrasive products. After swimming in saltwater, rinse the watch with fresh water.

Where to find the complete user manual?

The manual is available for free download on sites like Notice-Facile.com. You can also request a translation into your language via the form provided.

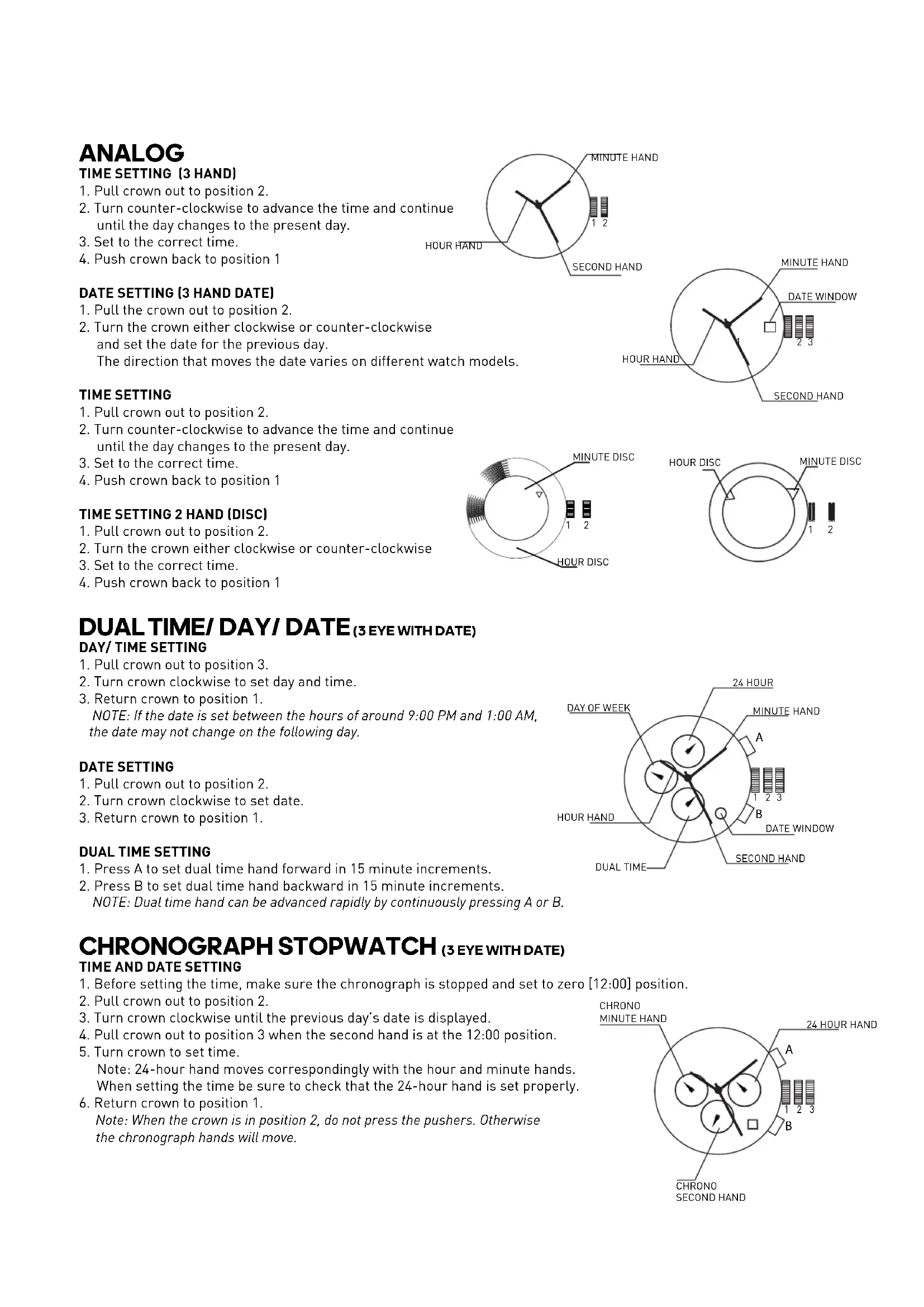

USER MANUAL ADH2047 ADIDAS

1. Pull crown out to position 2.
2. Turn counter-clockwise to advance the time and continue until the day changes to the present day.
3. Set to the correct time.
4. Push crown back to position 1

continue HOUR HAND MINUTE HAND 1 2 SECOND HAND

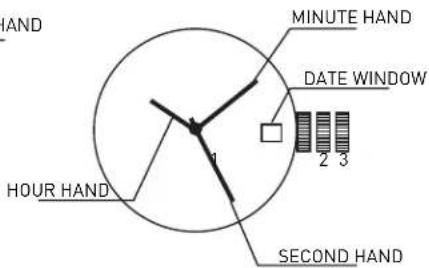

HARD MINUTE HAND DATE WINDOW 1 2 3 HOUR HAND SECOND HAND

DATE SETTING (3 HAND DATE)

1. Pull the crown out to position 2.
2. Turn the crown either clockwise or counter-clockwise and set the date for the previous day.
   The direction that moves the date varies on different watch models.

TIME SETTING

1. Pull crown out to position 2.
2. Turn counter-clockwise to advance the time and continue until the day changes to the present day.
3. Set to the correct time.
4. Push crown back to position 1

TIME SETTING 2 HAND (DISC)

1. Pull crown out to position 2.
2. Turn the crown either clockwise or counter-clockwise
3. Set to the correct time.
4. Push crown back to position 1

MINUTE DISC 1 2 HOUR DISC

HOUR DISC MINUTE DISC 1 2

DUAL TIME/ DAY/ DATE (3 EYE WITH DATE)

DAY/TIME SETTING

1. Pull crown out to position 3.
2. Turn crown clockwise to set day and time.
3. Return crown to position 1.
   NOTE: If the date is set between the hours of around 9:00 PM and 1:00 AM, the date may not change on the following day.

DATE SETTING

1. Pull crown out to position 2.
2. Turn crown clockwise to set date.
3. Return crown to position 1.

DUAL TIME SETTING

1. Press A to set dual time hand forward in 15 minute increments.
2. Press B to set dual time hand backward in 15 minute increments.
   NOTE: Dual time hand can be advanced rapidly by continuously pressing A or B.

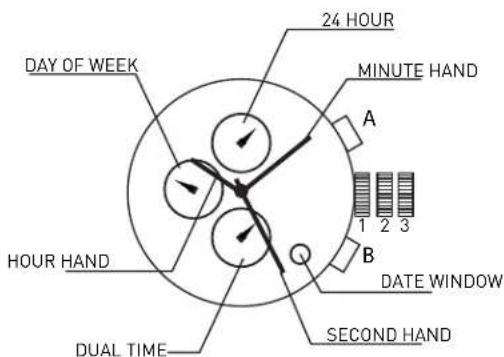

24 HOUR MINUTE HAND A 1 2 3 B DATE WINDOW SECOND HAND DAY OF WEEK HOUR HAND DUAL TIME

CHRONOGRAPH STOPWATCH (3 EYE WITH DATE)

TIME AND DATE SETTING

1. Before setting the time, make sure the chronograph is stopped and set to zero [12:00] position.
2. Pull crown out to position 2.
3. Turn crown clockwise until the previous day's date is displayed.
4. Pull crown out to position 3 when the second hand is at the 12:00 position.
5. Turn crown to set time.
   Note: 24-hour hand moves correspondingly with the hour and minute hands. When setting the time be sure to check that the 24-hour hand is set properly.
6. Return crown to position 1.
   Note: When the crown is in position 2, do not press the pushers. Otherwise the chronograph hands will move.

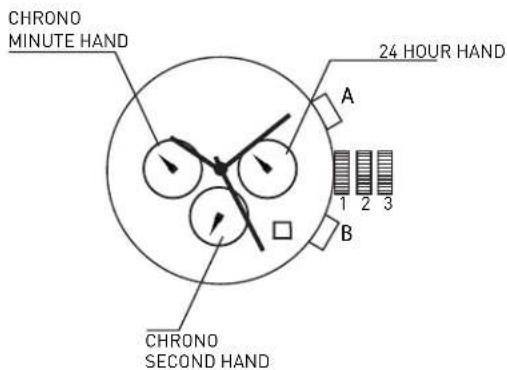

CHRONO MINUTE HAND 24 HOUR HAND A 1 2 3 B CHRONO SECOND HAND

CHRONOGRAPH

1. Press A to start/stop the chronograph.

2. Press B to reset to zero.

CHRONOGRAPH ZERO RESET

1. If either of the chronograph hands is not at the zero (12:00) position, pull crown out to position 3.

2. Press A to move hands clockwise; press B to move hands counter-clockwise.

3. Return crown to position 1.

CHRONOGRAPH 2 EYE WITH DATE (WITH OR WITHOUT DATE)

TIME AND DATE SETTING

1. Before setting the time, make sure the chronograph is stooped

and set to zero [12:00] position.

1. Pull crown out to position 2.

2. Turn crown clockwise until the previous day's date is displayed

3. Pull crown out to position 3 when the second hand is at the 12:00 position.

4. Turn crown to set time.

Note: 24-hour hand moves correspondingly with the hour and minute hands.

When setting the time be sure to check that the 24-hour hand is set properly.

1. Return crown to position 1.

Note: When the crown is in position 2, do not press the pushers. Otherwise the chronograph hands will move.

CHRONOGRAPH

1. Press B to start/slop the chronograph.

2. Press A for Split time, Press A again to restart

3. Press A to reset to zero.

CHRONOGRAPH ZERO RESET

1. If either of the chronograph hands is not at the zero (12:00) position, pull crown out to position 3.

2. Press A to move hands clockwise; press B to move hands counter-clockwise.

3. Return crown to position 1.

CALAGARY (QFL769BB/QFL873AC)

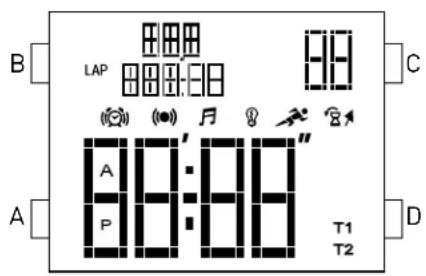

NORMAL TIME DISPLAY

1. Press A for EL

1. Press C to select T1 or T2 format.

2. Press D to toggle chime on/off.

TIME/CALENDAR SETTING

1. In time mode, press and hold D for 2 seconds to enter time setting; hour will begin flashing.

2. Press C to increase selling value. Press D to decrease selling value.

3. Press B to enter next setting field

4. Setting sequence is hour, minute, second, year month, date 12/24 Hr

5. Press A to exit setting mode

5A 5-18 12:38:56 ALM

CHRONOGRAPH MODE

1. Press B to enter chrono mode.

2. Press D to select split or lap mode. Split mode will display the full time of all records after

each split. Lap mode will display only the new lap time after each record has been recorded.

1. Press C to start chronp.

2. Press C again to split time.

3. Repeat step 4 until desired number of laps have been reached (maximum 10).

4. Press D to stop chrono.

5. To review, press B to enter recall mode before resetting.

6. Press D again to reset chrono.

RECALL MODE

1. Press C to recall each lap (10 maximum).

2. Press D to return to chrono.

ALARM MODE

1. Press B to enter alarm mode.

2. Press C to toggle alarm on/off.

3. Press D to select T1 Alarm 1 or T2 Alarm 2.

ALARM SETTING

1. Press and hold D for 2 seconds to enter alarm setting; hour will begin flashing.

2. Press C to increase setting value. Press D to decrease setting value.

3. Press B to set minutes.

4. Press A to exit setting mode.

NOTE: Alarm turns on automatically when exiting setting mode.

TIMER MODE

1. Press C to start countdown timer.

2. Press D to stop countdown timer. Press D again to reset timer.

TIMER SETTING

1. Press B to enter timer mode.

2. Press and hold D to enter setting mode; hour will begin flashing.

3. Press C to increase setting value. Press D to decrease setting value.

4. Press B to enter next setting field.

5. Setting sequence is hour, minute, second.

6. Press A to exit setting mode.

PEACHTREE (FL145GB)

NORMAL TIME DISPLAY

1. Press A for EL in any mode

2. Press C to toggle between Time 1 and Time 2

3. Press and hold C to set Time 1 or Time 2 as the default timer.

4. Press D to toggle chime on/off.

TIME/CALENDAR SETTING

1. In normal time display, press and hold A to enter setting mode; chime will begin flashing.

2. Press C to increase setting value. Press D to decrease setting value.

3. Press B to set and advance to next setting value

4. Setting sequence is chime, 12/24-hour time, hour, minute, second, year, month, date, Auto EL

5. Press A to save data and exit setting mode.

CHRONOGRAPH MODE

1. Press B to change to chronograph mode.

2. Press C to start chronograph; press D for lap when the chronograph is running.

3. Press D to change views while chronograph is running

4. Press C to stop chronograph.

NOTE: When running, there is a maximum of 10 laps, afterward last lap will be overwritten each time

additional lap is recorded.

RECALL MODE

1. Press A to recall the memory when the chronograph is stopped.

2. Press A to view the next lap.

3. Press C or D to exit Recall Mode and go back to chronograph mode.

TIMER MODE

1. Press B to change to timer mode.

2. Press C to start timer

3. Press C to stop timer. Press D to reset the timer when it is stopped.

TIMER SETTING

1. In timer mode, press and hold A to enter setting mode; timer type will begin flashing.

2. Press C and D to select count down stop, count down repeat, or count up timer.

3. Press B to advance to next setting field.

4. Press C to decrease and D to increase.

5. Press B In set and advance is next selling value

6. Setting sequence is timer type, hour, minute, second.

7. Press A to save data and exit setting mode

NOTE: Alarm will sound at 2 beeps per second, and will beep for 30 seconds after timer reaches zero.

ALARM MODE

1. Press B to change to alarm mode.

2. Press C to toggle between alarms 1, 2, 3, 4.

3. Press D to enable the alarm: press D again to disable the alarm

4. Press B to exit alarm mode.

ALARM SETTING

1. In alarm mode, press and hold A to enter setting mode, hour will begin flashing.

2. Press C to increase; press D to decrease.

3. Press B to set and advance to next setting value

4. Setting sequence is hour, minute.

5. Press A to exit setting mode.

DENVER/ CANDY / SYDNEY (UPCR-780A-P07 / QUPCR-823A-P03 / QUPCR-780A-3-P16)

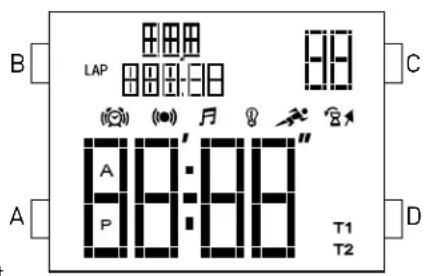

NORMAL TIME DISPLAY

1. Press A for EL

2. Press C to select T1 or T2 format

TIME/CALENDAR SETTING

1. In time mode, press and hold D for 2 seconds to enter time

setting: hour will begin flashing

1. Press C to increase setting value

2. Press R to enter next setting field

3. Setting sequence is hour, minute, day, year, month, date

4. Press D to exit setting mode

ALARM MODE

1. Press B to enter alarm mode.

2. Press C to toggle alarm/chime on/off

3. Press D to select Home Alarm or T2 Alarm.

ALARM SETTING

1. Press and hold D for 2 seconds to enter alarm setting; hour will begin flashing.

2. Press C to increase setting value

3. Press B to set minutes.

4. Press D to exit setting mode.

NOTE: Alarm turns on automatically when exiting setting mode.

CHRONOGRAPH MODE

1. Press B to enter chrono mode.

2. Press D to select split or lap mode. Split mode will display the full time of all records after each split.

Lap mode will display only the new lap time after each record has been recorded.

1. Press C to start chron

2. Press Canain to split lime

3. Repeat step 4 until desired number of laps have been reached (maximum 10).

4. Press D to stop chrono

5. In review, press B in enter recall mode before reselling.

6. Press Π again to reset chrono

RECALL MODE

1. Press C to recall each lap [10 maximum]

2. Press D to return to chrono.

TIMER MODE

1. Press C to start countdown timer

2. Press D to stop countdown timer. Press D again to reset timer.

TIMER SETTING

1. Press B to enter timer mode.

2. Press and hold 0 to enter setting mode; hour will begin flashing

3. Press C to increase setting value.

4. Press B to enter next setting field.

5. Setting sequence is hour, minute, second

6. Press D to exit setting mode

Seoul / Curitiba (QFL657)

NORMAL TIME DISPLAY

1. Press A to change mode. Mode sequence is normal time,

chronograph, timer, alarm.

1. Press B for E

2. Press C to flash time zone 2. Press and hold C 2 seconds

to toggle normal time display/time zone 2.

1. Press D to toggle key tone on/off.

NOTE: At any point in any setting mode, press B to exit setting mode.

NOTE: In any setting mode, if no number is operated for 30 seconds

all changes will be saved and the setting will automatically return

to normal time display

TIME/CALENDAR SETTING

1. In normal time display, press and hold B 2 seconds; auto EL

on/off will begin flashing.

1. Press C toggle auto EL on/off.

2. Press A to set and advance to next setting value

3. Press to increase dinit, press in decrease dinit. Press and held or for fact increment/decrement

4. Repeat steps 3 and 4 through setting sequence. Setting sequence is: auto E1, chime on/off

12/31-hour format: hour, minutes, second, year, month/daily or daily/month/month, month and date

1. Press B to exit setting mode

NOTE: Weekday is automatically updated upon exiting setting mode

TIME ZONE 2 SETTING

1. To sel Time Zone 2, press and hold C 2 seconds to change to Time Zone 2

2. Press and hold B 2 seconds: time difference between time zone 1 and time zone 2 will begin flashing.

3. Press C to increase value: press D to decrease value. Press and hold C or D for

fast increment/decrement

1. Press B to exit selling mode

CHRONOGRAPH MODE

1. Press A to change to chronograph mode.

2. Press B to recall lap data. Press B to scroll through laps.

3. Press C to start/stop the chronograph.

4. Press and hold D 2 seconds to reset to zero.

NOTE: Insert chronograph indicator here will flash in all modes if the chronograph is running.

LAP COUNTING

1. Press D while the chronograph is running for lap counting (up to 10 laps).

NOTE: After 8 seconds, display will show total chronograph time in the lower portion of the display; next lap running time will show in upper portion of the display.

1. Press C to stop chronograph

2. Press B when the chronograph is stopped to recall chronograph lap data.

3. Press C or D to exit recall mode and return to chronograph

TIMER MODE

1. Press A to change to timer mode.

2. Press C to start/stop timer.

3. Press D to reset the timer.

NOTE: Alarm will sound for 30 seconds when countdown reaches zero. Press any pusher to silence alarm.

TIMER SETTING

1. In timer mode, press and hold B 2 seconds to enter setting mode; timer type will begin flashing.

2. Press C to select countdown-stop ("CD-STP"), countdown-repeat ("CD-REP"), or countdown-then up timer ("CD-UP").

3. Press A to set and advance to next setting value.

4. Press C to increase digit, press D to decrease digit. Press and hold C or D for fast increment/decrement.

5. Repeat steps 3 and 4 through setting sequence. Setting sequence is: timer type, hour, minute, seconds.

6. Press B to exit setting mode.

ALARM MODE

1. Press A to change to alarm mode.

2. Press C to select alarm 1-4.

3. Press D to toggle alarm on/off.

ALARM SETTING

1. In alarm mode, press and hold B 2 seconds; hour will begin flashing.

2. Press C to increase digit; press D to decrease digit. Press and hold C or D for fast increment/decrement.

3. Press A to set and advance minute.

4. Repeat step 2

5. Press B to exit setting mode

NOTE: Alarm will sound for 30 seconds. Press any pusher to silence alarm.

ANALOG

(QFL769BB / QFL873AC)

LAP A B T1 KET CHM ALM T2 AEL CHR TMR C D

(UPCR-780A-P07 / QUPCR-823A-P03 / QUPCR-780A-3-P16)

B LAP C A P T1 T2 A D

B LAP A P T1 T2 C D

(QFL769BB / QFL873AC)

AFFICHAGE NORMAL DE L'HEURE

LAP A B T1 KET CHM ALM T2 AEL CHR TMR C D

RÉGLAGE DE L'HEURE ET DU CALENDRIER

(UPCR-780A-P07 / QUPCR-823A-P03 / QUPCR-780A-3-P16)

AFFICHAGE NORMAL DE L'HEURE

B LAP C A P T1 T2 A D

B LAP A P T1 T2 C D

RÉGLAGE DE L'HEURE ET DU CALENDRIER

(QFL769BB / QFL873AC)

PANTALLA DE HORA NORMAL

A LAP A B T1 KET CHM ALM T2 AEL CHR TMR C D

(UPCR-780A-P07 / QUPCR-823A-P03 / QUPCR-780A-3-P16)

B LAP C A P T1 T2 A D

B LAP A P T1 T2 C D

(QFL769BB / QFL873AC)

A LAP A B T1 KET CHM ALM T2 AEL CHR TMR C D

(UPCR-780A-P07 / QUPCR-823A-P03 / QUPCR-780A-3-P16)

VISUALIZZAZIONE ORARIO NORMALE

SCHERMO CON L'ORA STANDARD

B LAP C A P T1 T2 A D

B LAP A P T1 T2 C D

(QFL769BB / QFL873AC)

A LAP A B T1 KET CHM ALM T2 AEL CHR TMR C D

ACERTO DA HORA/CALENDÁRIO

(UPCR-780A-P07 / QUPCR-823A-P03 / QUPCR-780A-3-P16)

B LAP C A P T1 T2 A D

B LAP A P T1 T2 C D

(QFL769BB / QFL873AC)

A LAP A B T1 KET CHM ALM T2 AEL CHR TMR C D

(UPCR-780A-P07 / QUPCR-823A-P03 / QUPCR-780A-3-P16)

B LAP C A P T1 T2 A D

B LAP A P T1 T2 C D

(QFL769BB / QFL873AC)

正常时间显示

A LAP A B T1 KET CHM ALM T2 AEL CHR TMR C D

时间/日历设置

(UPCR-780A-P07 / QUPCR-823A-P03 / QUPCR-780A-3-P16)

正常时间显示

B LAP C A P T1 T2 A D

B LAP C A P T1 T2 D

闹钟模式

(QFL769BB / QFL873AC)

通常時刻表示

A LAP A B T1 KET CHM ALM T2 AEL CHR TMR C D

時刻/カレンダーの設定

(UPCR-780A-P07 / QUPCR-823A-P03 / QUPCR-780A-3-P16)

通常時刻モード

(QFL769BB / QFL873AC)

정상 시간 표시

A LAP A B T1 KET CHM ALM T2 AEL CHR TMR C D

시간/달력 설정

(UPCR-780A-P07 / QUPCR-823A-P03 / QUPCR-780A-3-P16)

표준 시간 표시

B LAP C A P T1 T2 A D

B LAP A P T1 T2 C D

타이머 설정
