USER MANUAL RHG 6 DD MX ROSIERES
MATERIALS IN COMPLIANCE WITH REQUIREMENTS OF EU DIRECTIVE 2002/95/CE + AMENDMENTS
ALL RIGHTS RESERVED, THE REPRODUCTION OF ANY PART
WITHOUT OUR WRITTEN CONSENT IS FORBIDDEN
| RELEASE LEVEL | ||||||||
| PRODUCTION RELEASED | ||||||||
| E | ||||||||
| D | ||||||||
| C | ||||||||
| B | ||||||||
| A | ||||||||
| CL N° REV. DATE | MODIFY DESCRIPTION | MODIFIED BY | ||||||
| SPECIFICATION | DATE SIGNATURE | PROPERTY OF CANDY·HOOVER GROUP | ||||||
| GENERAL TOLERANCE ISO 2768 - m | DRAWN 15.05.2018 | C.FIDANCI | ||||||
| NAME USER MANUAL R UH 14 DIL | ||||||||
| BASE CODE | CHECKED 15.05.2018 | A.KARADUMAN | ||||||
| (LOCAL LANGUAGE) KULLANMA KILAVUZU R UH 14 LAN | ||||||||
| - | FOR ROSIERES HOB | |||||||
| WEIGHT | SCALE | PART CODE | SHEET | |||||
| TREATMENT | Kg. | 1:1 | 4 2 8 2 5 6 3 6 | 1/1 | ||||
| - | ||||||||
| MATERIAL | SIZE | REPLACE No ORIGIN CL No Class Specification | ||||||
| - | A4 | FR | -------- | CL xxxxx | SC 000-000 | |||
| 35 | ||||||||
ROSIÈRES
HOBS
USERINSTRUCTIONS GB-IE
TABLES DE CUISSON
NOTICE D'EMPLOI FR
VARNÉ DESKY
NAVODPOUZITI CZ
BAPOUHbIE NOBEPXHOCTN
HHTPYKUNIPOJIb3OBATEJRA RO
NAVODILA ZA UPORABO
VGRADNJO IN PRIKLJU ITEVC SI
PIANI COTTURA
ISTRUZIONI PER L'USO IT
PLACAS
INSTRUÇ ES DE UTILIZAC OÖ A PT
TÜZHELYLAPOK

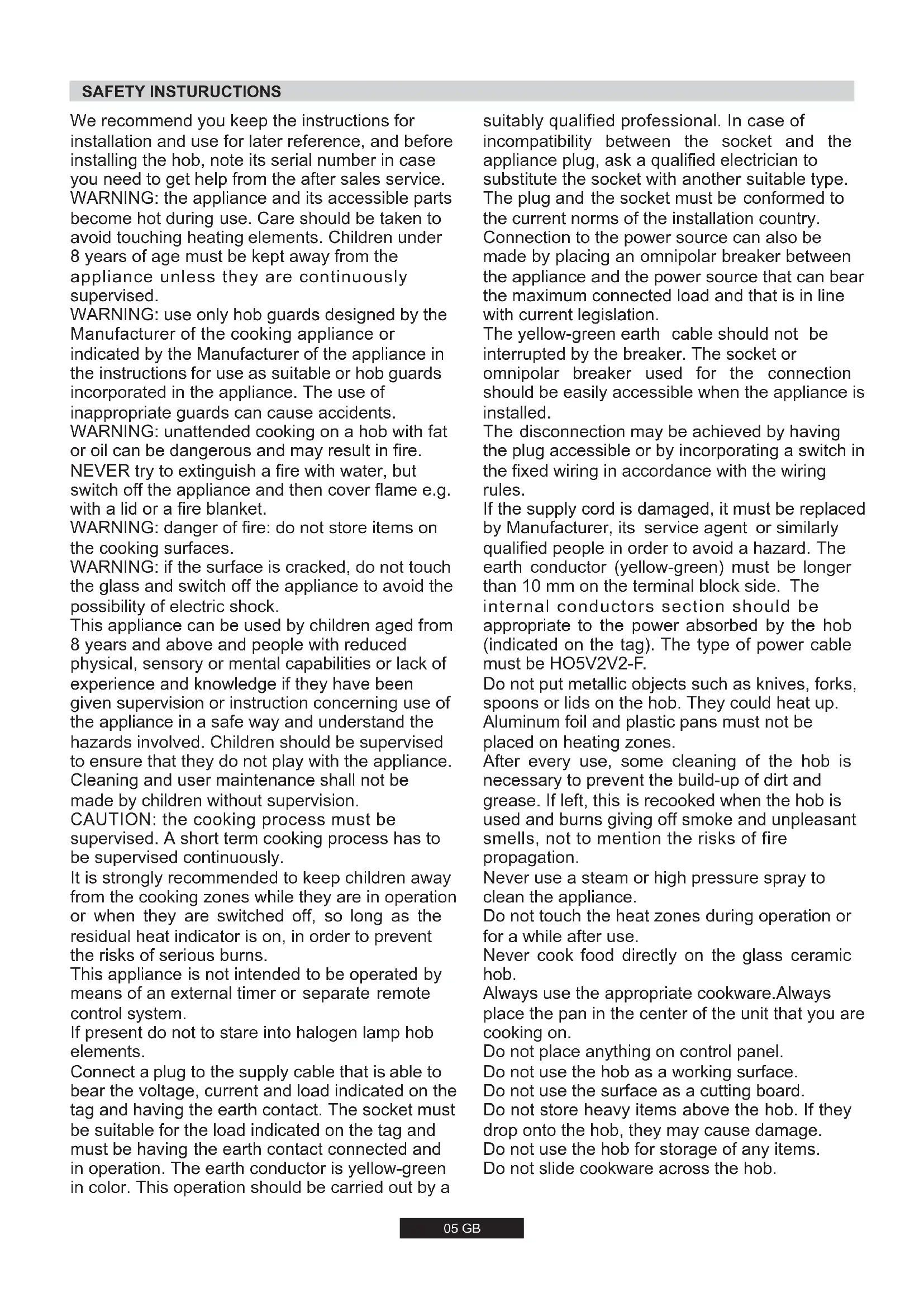

Safety Instructions 05
1. Instructions For The Installer.. 06
1.1. Building In .06
1.2. Suitable Location 06
2. Electrical Connection (For U.K. Only) .06
2.1. Electrical Connection .06
2.2. Gas Connection (For U.K. Only). 06
2.3. Adapting The Hob To Different Types Of Gas....07
2.4.Regulating The Minimum Flame 07
3.Use Of Hob-User Instructions. 07
3.1.Using The Gas Burner.. 07
4. Maintenance and Cleaning .07
5. Aftercare .08
6. Protection Of The Environment 08
OBSAH
CZ
Bezpečnostni Pokyny 13
1. Pokyny pro instalatéra 14
1.1 Vestavba 14
1.2 Vhodné misto instalace 14
2.1.Pripojeni k elektrické siti 14
2.2.Pripojeni plynu 14
2.3.Zmena varne desky na jiny druh plynu 15
2.4. Nastaveni minimaliho plamene 15
3. Použiti varné desky 15
3.1.Pouziti plynového ho áku 15
4.Udrzba a ciisteni 15
5.Servis. 15
6.Ochrana zivotniho prostfedi 16
CONTENIDO
ES
We recommend you keep the instructions for installation and use for later reference, and before installing the hob, note its serial number in case you need to get help from the after sales service. WARNING: the appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children under 8 years of age must be kept away from the appliance unless they are continuously supervised.
WARNING: use only hob guards designed by the Manufacturer of the cooking appliance or indicated by the Manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.
WARNING: unattended cooking on a hob with fat or oil can be dangerous and may result in fire.
NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.
WARNING: danger of fire: do not store items on the cooking surfaces.
WARNING: if the surface is cracked, do not touch the glass and switch off the appliance to avoid the possibility of electric shock.
This appliance can be used by children aged from 8 years and above and people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should be supervised to ensure that they do not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
CAUTION: the cooking process must be supervised. A short term cooking process has to be supervised continuously.
It is strongly recommended to keep children away from the cooking zones while they are in operation or when they are switched off, so long as the residual heat indicator is on, in order to prevent the risks of serious burns.
This appliance is not intended to be operated by means of an external timer or separate remote control system.
If present do not to stare into halogen lamp hob elements.
Connect a plug to the supply cable that is able to bear the voltage, current and load indicated on the tag and having the earth contact. The socket must be suitable for the load indicated on the tag and must be having the earth contact connected and in operation. The earth conductor is yellow-green in color. This operation should be carried out by a
suitably qualified professional. In case of incompatibility between the socket and the appliance plug, ask a qualified electrician to substitute the socket with another suitable type. The plug and the socket must be conformed to the current norms of the installation country. Connection to the power source can also be made by placing an omnipolar breaker between the appliance and the power source that can bear the maximum connected load and that is in line with current legislation.
The yellow-green earth cable should not be interrupted by the breaker. The socket or omnipolar breaker used for the connection should be easily accessible when the appliance is installed.
The disconnection may be achieved by having the plug accessible or by incorporating a switch in the fixed wiring in accordance with the wiring rules.
If the supply cord is damaged, it must be replaced by Manufacturer, its service agent or similarly qualified people in order to avoid a hazard. The earth conductor (yellow-green) must be longer than 10mm on the terminal block side. The internal conductors section should be appropriate to the power absorbed by the hob (indicated on the tag). The type of power cable must be HO5V2V2-F.
Do not put metallic objects such as knives, forks, spoons or lids on the hob. They could heat up. Aluminum foil and plastic pans must not be placed on heating zones.
After every use, some cleaning of the hob is necessary to prevent the build-up of dirt and grease. If left, this is recooked when the hob is used and burns giving off smoke and unpleasant smells, not to mention the risks of fire propagation.
Never use a steam or high pressure spray to clean the appliance.
Do not touch the heat zones during operation or for a while after use.
Never cook food directly on the glass ceramic hob.
Always use the appropriate cookware. Always place the pan in the center of the unit that you are cooking on.
Do not place anything on control panel.
Do not use the hob as a working surface.
Do not use the surface as a cutting board.
Do not store heavy items above the hob. If they drop onto the hob, they may cause damage.
Do not use the hob for storage of any items.
Do not slide cookware across the hob.
1. INSTRUCTIONS FOR THE INSTALLER
INSTALLING A DOMESTIC APPLIANCE CAN BE A COMPLICATED OPERATION WHICH IF NOT CARRIED OUT CORRECTLY, CAN SERIOUSLY AFFECT CONSUMER SAFETY. IT IS FOR THIS REASON THAT THE TASK SHOULD BE UNDERTAKEN BY A PROFESSIONALLY QUALIFIED PERSON WHO WILL CARRY IT OUT IN ACCORDANCE WITH THE TECHNICAL REGULATIONS IN FORCE. IN THE EVENT THAT THIS ADVICE IS IgnoredAND THE INSTALLATION IS CARRIED OUT BYAN UNQUALIFIED PERSON, THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR ANY TECHNICALFAILURE OF THE PRODUCT WHEHER OR NOT ITRESULTS IN DAMAGE TO GOODS ORINJURYTO INDIVIDUALS.
1.1 BUILDING IN
The hob may be installed in any worktop which is heat resistant to a temperature of 100^ , and has a thickness of 25 - 45mm . The dimensions of the insert to be cut out of the worktop are in shown in Figure 2.
If the Hob is fitted next to a cabinet on either side, the distance between the Hob and the cabinet must be at least 15cm (see Figure 4); while the distance between the hob and the rear wall must be at least .70 mm. The distance between the hob and any other unit or appliance above it (e.g.An extractor hood) must be no less than 70~cm . (Figure 4)
When there is an accessible space between the built-in hob and the cavity below, a dividing wall made of insulating material should be inserted (wood or a similar material) (Figure 3).
Metal objects in the drawer may reach high temperatures due to air recirculation. It is therefore recommended to use an intermediate wood panel.
Important - The diagram in figure 1 shows how the sealant should be applied.
The Hob unit is fitted by attaching the Fixing Clamps supplied, using the holes at the base of the unit.
If a hob of 60~cm is fitted above an oven which is not equipped with fan cooling system it is recommended that openings are created within the built in furniture to ensure correct air circulation.
The size of these openings must be at least 300cm^2 and placed as shown in Figure 5.
When a 75 cm hob is fitted over a built in oven, the latter must be fan cooled.
1.2. SUITABLE LOCATION
This appliance must be installed in accordance with the regulations in force and only used in a well ventilated space. Read the instructions before installing or using this appliance.
A gas-powered cooking appliance produces heat and humidity in the area in which it is installed. For this reason you should ensure good ventilation either by keeping all natural air passages open or by installing an extractor hood with an exhaust flue. Intensive and prolonged use of the appliance may require extra ventilation, such as the opening of a window or an increase in speed of the electric fan, if you have one.
If a hood can not be installed, an electric fan should be fitted to an outside wall or window to ensure that there is adequateventilation. The electric fan should be able to carry out a complete change of air in the kitchen 3-5 times every hour. The installer should follow the relevant national standards.
2. ELECTRICAL CONNECTION (FOR U.K. ONLY)
Warning - this appliance must be earthed
This appliance is designed for domestic use only. Connection to the main supply must be made by a competent electrician, ensuring that all current regulations concerning such installations are observed.
The appliance must only be connected to a suitably rated spur point, a 3 pin 13 amp plug/rod is not suitable. A double pole switch must be provided and the circuit must have appropriate fuse protection. Further details of the power requirement of the individual product will be found in the users' instruction and on the appliance rating plate. In the case of built-in product you are advised, should you wish to use a longer cable than the one supplied, that a suitably rated heat resistant type must be used.
The wiring must be connected to the mains supplyasfollows: CONNECT TO SPUR TERMINAL
Green & Yellow Wire
Blue Wire
Brown Wire
Earth Connection
Neutral Connection
Live Connection
Note: We do not advocate the use of earth leakage devices with electric cooking appliances installed to spur points because of the «nuisance tripping» which may occur. You are again reminded that the appliance must be correctly earthed, the manufacturer declines any responsibility for any event occurring as a result of incorrect electrical installation.
2.1. ELECTRICAL CONNECTION
Check the data on the rating plate, located on the outside of the unit, to ensure that the supply and input voltage are suitable.
Before connection, check the earthing system.
By Law, this appliance must be earthed. If this regulation is not complied with, the Manufacturer will not be responsible for any damage caused to persons or property. If a plug is not already attached, fit a plug appropriate to the load indicated on the rating plate. The earth wire is coloured yellow/green. The plug should always be accessible.
Where the Hob is connected direct to the electricity supply, a circuit breaker must be fitted.
If the power supply cord is damaged this is to be replaced by a qualified engineer so as to prevent any potential risk.
The earth wire (green and yellow coloured) must be at least 10mm longer than the live and neutral wires.
The section of the cable used must be of the correct size in relation to the absorbed power of the hob.
Please check rating plate for the power details and ensure that the power supply cord is of the type 3 × 0.75 ~mm^2 H05 V2V2-F.
| Mains Supply | LIVE | L | Brown Wire |
| EARTH | Green/Yellow Wire | ||
| NEUTRAL | N | Blue Wire |
If an appliance is not fitted with a supply cord and a plug, or with other means for disconnection from the supply mains having a contact separation in all poles that provide full disconnection under overvoltage category III conditions, the instructions shall state that means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
2.2. GAS CONNECTION
These instructions are for qualified personnel, installation of equipment must be in line with the relevant national standard. (For U.K. only: by law the gas installation\commissioning must be carried out by a "Gas Safe" installer)
All work must be carried out with the electricitysupplydisconnected. The rating plate on the hob shows the type of gas with which it is designed to be used. Connection to the mains gas supply or gas cylinder should be carried out after having checked that it is regulated for the type of gas with which it will be supplied. If it is not correctly regulated see the instructions in the following paragraphs to change gas setting.
For liquid gas (cylinder gas) use pressure regulators which comply with the relevant national standards.
Use only pipes, washers and sealing washers which comply with the relevant national standards.
For some models a conic link is furnished to outfit for the installation in the countries where this type of link is obligatory; in picture 8 it is pointed out how to recognize the different types of links (CY = cylindrical, CO = conic). In every case the cylindrical part of the link has to be connected to the hob.
When connecting the hob to the gas supply via use offlexible hoses please ensure that the maximum distance covered by the hose does not exceed 2 metres.
The flexible tube shall be fitted in such a way that it cannot come into contact with a moveable part of the housing unit (e.g. a drawer) and does not pass through any space where it may become crushed/ kinked or damaged in any way.
To prevent any potential damage to the hob please carry out the installation following this sequence (picture 6):
1)As illustrated, assemble parts in sequence:
A: 1/2 MaleAdaptor Cylindrical
B:1/2 Seal
C: 1/2 Female GasAdaptor Conical-Cylindrical or Cylindrical-Cylindrical
2) Tighten the joints with the spanner, remembering to twist the pipes into position.
3)Attach fitting C to mains gas supply using rigid copper pipe or flexible steel pipe.
IMPORTANT: carry out a final check for leaks on the pipe connections using a soapy solution. NEVER USE A FLAME. Also, make sure that the flexible pipe cannot come into contact with a moving part of the cabinet (eg.adrawer) and that it is not situated where it could be damaged.
Warning: If gas can be smelt in the vicinity of this appliance turn off the gas supply to the appliance and call the engineer directly. Do not search for a leak with a naked flame.
2.3. ADAPTING THE HOB TO DIFFERENT TYPES OF GAS
To adapt the Hob for use with different types of gas, carry out the following instructions:
- Remove the grids and burners
- Insert on hexagonal spanner (7 mm) into the burner support (Figure 7)
- Unscrew the injector and replace it with one suitable for the gas to be used (see gas type table)
2.4. REGULATING THE MINIMUM FLAME
After lighting the burners, turn the control knob to the minimum setting and then remove the knob (this can easily be removed by applying gentle pressure).
Using a small «Terminal» type screwdriver the regulating screw can be adjusted as in Figure 9. Turning the screw clockwise reduces the gas flow, whilst turning it anticlockwise increases the flow - Use this adjustment to obtain a flame of approximately 3 to 4mm in length and then replace the control knob.
When the gas supply available is LPG - the screw to set the idle flame must be turned (clockwise) to the end stop.
When you have carried out the new gas regulation, replace the old gas rating plate on your appliance with one (supplied with hob) suitable for the type of gas for which it has been regulated.
3. USE OF HOB - USER INSTRUCTIONS
This appliance must only be used for the purpose for which it is intended, domestic cooking, and any other use will be considered improper and could therefore be dangerous. The Manufacturer will not be responsible for any damage or loss resulting from improper use.

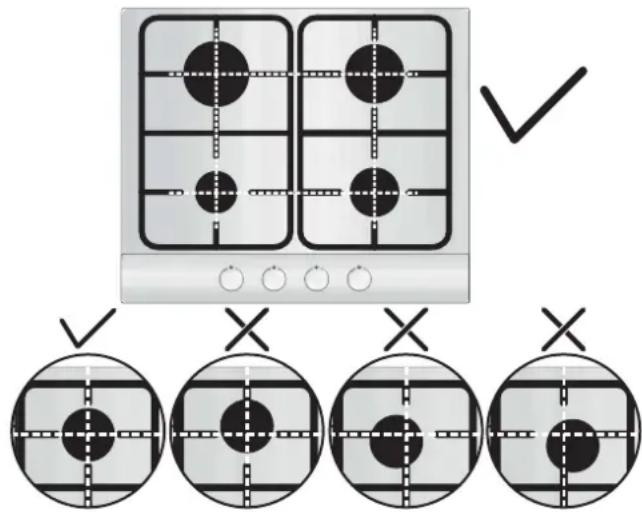

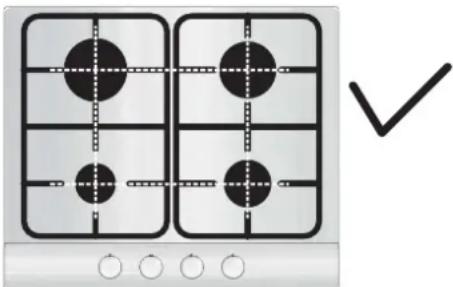

Before using burner, be sure, grid perimeters center the burner as below figure.
If you are using Cast Iron Grids; underneath the grid, position of it is stated. Be sure for the exact grid is used in correct position.
To ignite the burners, place a lighted taper close to the burner, press in and turn the control knob anti-clockwise.
If the burners have not been used for a couple of days, wait for a few seconds before lighting the burner, this will allow any air present in the pipes to escape.
For appliances fitted with electronic ignition carry out the following:
-
Push in and turn the knob anticlockwise to the ignition symbol.
-
Ignite the burner by pressing the sparker button.
For hobs fitted with automatic ignition simply push in and turn the knob to the ignition symbol.
The ignition system will continue to generate sparks as long as the control knob is being pressed.
If the burner has not ignited within 5 seconds, turn the knob to the 0 position and repeat the operation.
For models fitted with a safety tap (which cuts-off the flow of gas if the flame is accidentally extinguished) the burners are ignited and described above, but care must be taken.
Prior to switching on the gas hob ensure that the burners and burner caps are correctly placed within their position.
Warning: If there is no electricity on appliance, to ignite the burner a lighter should be used;
- Push in and turn the knob anti-clockwise to the ignition symbol,
- While pushing in the button ignite the burner by using a lighter and keep button pushed in 5 seconds after ignition.
GENERAL ADVISE
For best results, use cooking vessels with a flat surface. The size of the surface should match the gas burner side as follows. TableA.
| Burner Type | Ø pan/pot (cm) | Power (kW) | G20/20 mbar (methane) | G30/28-30 mbar (LPG) |
| AUX Auxiliary | 12 - 18 | 1,00 | 95 l/h | 73 g/h |
| SR Semi Rapid | 18 - 22 | 1,75 | 167 l/h | 127 g/h |
| R Rapid | 24 - 26 | 2,70 | 257 l/h | 196 g/h |
| DC 4 kW DUAL | 26 - 28 | 4,00 | 381 l/h | 291 g/h |
| DC 4,2 kW DUAL | 26 - 28 | 4,20 | 400 l/h | 306 g/h |
| DC 5 kW DUAL | 26 - 28 | 5 NG 4,6 LPG | 476 l/h | 364 g/h |
Table A
For smaller containers the gas burner should be regulated so that the flame does not overlap the base of the pan. Vessels with a concave or convex base should not be used.
WARNING: If a flame is accidentally extinguished, turn the knob to the off position and do not attempt to re-ignite if for at least 1 minute.
If over the years the gas taps become stiff to turn it is necessary to lubricate them.
Such operation must be carried out only by qualified Service Engineers.
4. MAINTENANCE AND CLEANING
Before cleaning the hob, ensure the appliance has cooled down. Remove the plug from the socket or (if connected directly) switch off the electricity supply.
Cleaning and user maintenance shall not be made by children without supervision
Never use abrasives, corrosive detergents, bleaching agents or acids. Avoid any acid or alkaline substances (lemon, juice, vinegar etc.) on the enamelled, varnished or stainless steel sections.
When cleaning the enamelled, varnished or chrome sections, use warm soapy water or a non caustic detergent. For stainless steel use an appropriate cleaning solution.
The burners can be cleaned with soapy water. To restore their original shine, use a household stainless steel cleaner. After cleaning, dry the burners and replace.
It is important the Burners are replaced correctly.
Chromed grids and burners
Chromed grids and burners have a tendency to discolour with use. This does not jeopardize the functionality of the hob.
Our After Sales Service Centre can provide spare parts if required.
5. AFTERCARE
Before calling out a Service Engineer please check the following:
- that the plug is correctly inserted and fused;
- that the gas supply is not faulty.
If the fault cannot be detected:
Switch off the appliance and call the After Service Centre. DO NOT TAMPER WITH THE APPLIANCE.
6. PROTECTION OF THE ENVIRONMENT
This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and
recover andrecycle all materials.
Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:
- WEEE shall not be treated as household waste.
- WEEE shall be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.
- When you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.
Declaration of compliance: This equipment, in the parts intended to come into contact with food, complies with the regulations laid down in EEC directives 89/109.
The appliance complies with European Directive 2009/142/EC (GAD) and starting from 21/04/2018 with Gas Appliances Regulation 2016/426 (GAR).
By placing the CE mark on this product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product.
The Manufacturer will not be responsible for any inaccuracy resulting from printing or transcript errors contained in this brochure. We reserve the right to carry out modifications to products as required, including the interests of consumption, without prejudice to the characteristics relating to safety or function.
Table 1
| Burner Plate | 3 Gas | 4 Gas | 4 Gas | 4 Gas | 4 Gas |
| Burner | Aux/R/DC 5 Dual | Aux/SR/R | Aux/SR/R/DC 4 Dual | Aux/SR/R/DC 4,2 Dual | Aux/SR/R/DC 5 Dual |
| Type | UH60MF | UH60MF | UH60MF | UH60MF | UH60MF |
| FFD | YES | YES | YES | YES | YES |
| Aux 1kW | 1 | 1 | 1 | 1 | 1 |
| Sr 1,75 kW | - | 1 | 1 | 1 | 1 |
| R 2,7 kW | 1 | 1 | 1 | 1 | 1 |
| Dc 4 kW Dual | - | - | 1 | - | - |
| Dc 4,2 kW Dual | - | - | - | 1 | - |
| Dc 5 kW Dual | 1 | - | - | - | 1 |
| Nominal Heat Input | 8,7 kW (NG)8,3 kW (LPG) | 7,2 kW | 9,45 kW | 9,65 kW | 10,45 kW10,05 kW |
| G20/20 mbar | 829 l/h | 686 l/h | 900 l/h | 920 l/h | 996 l/h |
| G30/28-30 mbar | 604 g/h | 524 g/h | 688 g/h | 702 g/h | 731 g/h |
| Installation Class | 3 | 3 | 3 | 3 | 3 |
| Voltage V/Frequency Hz | 220-240 V/ 50-60 Hz | 220-240 V/ 50-60 Hz | 220-240 V/ 50-60 Hz | 220-240 V/ 50-60 Hz | 220-240 V/ 50-60 Hz |
| Electrical Input Power | 1 | 1 | 1 | 1 | 1 |
| Electric Ignition | YES | YES | YES | YES | YES |
| Product Dimension | 595x510 | 595x510 | 595x510 | 595x510 | 595x510 |
This appliance has been designed for non-professional, i.e. domestic, use.
CONSIGNES DE SECURITÉ
1.2 VHODNÉ MISTO INSTALACE
Tento spotbrebi musi by instalovan v souladus platnymi prdepisy a pouzivat na dobre vetraned miste. Pfre instalaci a pouzitim spotbrebi ci prectete tekyny k pouziti.
Tel: 039.2086.1 Fax: 039.2086.403
www.candy-group.com
ROSIERES
GARANTI BELGESI
ANKASTRE OCAK
B cnyae ero haJnHna, He peKomeHdyetc CMOTpeTb Ha ranoreHHbIe3JIemEHTbl.
NoCoeHnHTe BNky K Hhpy nHTaHn, cnoc6Homy BbIepKaat HaPraJxHeH, TOK n Harpy3Ky, yka3aHHbIe Ha Ta6JIuYKe DaHHbIX, n IMeIOUeMy npOBOHNK 3a3emJIeHn. Po3ETKa DOJXHa 6blTb NoXoJaIeN
Длгнагузки, ука3анно на Таблчke, и дожногиметь NGравпьй KOHTAK 3a3emпеня. Пювднк 3a3emпеняяВлгЯТСЯКЛTO-3eJIeHbIM. ДанHyю onepaцию DoJжehnpOBODITb CneциалNT, ИмEOUП COOTBETCTBYUO KBAJIINФИКAUQUIO.В CNYuae HECOBMECTUMOCSTI МЖdy po3etKoи BUNIKO, NonpocITE 3NeKTPnka 3amEHITb po3etKy Ha Dpyrugno npneMmero Ttna. Bunka npo3etka DOJXHbI OTBeuHaTb HopMaM, DeiCTByUOuIM B CTpaHe MOHTaxka.
IopKnHoyehne K nCTOuyHKy NITaHnra TAKKe MOxHO BbIIOHNHTb NyTeM yCTaHOBKn ABTomATnueCKOROBbIKNouaTeJI MEXdy np6Opom N IcTOHnKOM NITAHn, CNOCOBHM BbIDepKaTb MaKcMaJIbHyo NOKNUeHHy IO Harpy3Ky I OTBeaIOuIM Tpe6OBaHnA MDeINCTByIOUeRO 3aKOHOdaTeJIbCTBa.KeITo-3eNEhB INPOBOHNK 3aEMLNeHn He DOJXeHpa3Mbikatbc BbIKNUOaTeJIem. INcNoJIb3yEmble dIra CoeINHeHn POzETKa NII aBTOMaTIueCKN BbIKNUOaTeJIb DOJXHbI HaxOINtBCR B yIO6HOH 3OHe DOCraEMOCTn pIn MOtaxe np6Opa.
Дя OTKIQUHEnMоKHO nIbO pa3MeCTnTb po3eTKy B 3OHe dOcraTaemocTn, JIbO yCTaHOBnTb nepeKIOUoateNb Ha QIKCnpOBaHHOM npoBOde corNaCHO npabuImam yctpoiCTBa 3JeKTPooyCTaHOBOK. B cnyae nobpekdeHnHaHypa 3JeKTPoNTAHn, NocJIeHN IOnJKeH 6bITb 3aMeHn HpON3BOJNTelem, erO cepBnCHbIM aReHTOM nIN nnucom, BbICTynaHOUsEM CxOXeM KaueCTBe, BO n36ExAHne pncOB. 3a3EmJHOuN INPOBOD (KeJITo-3eNEhB) DOJXeH 6bITb DInNHHee Ha 10 MM CO CTOpOH b KJIeMMHOK KOLOKn. BHyTpENHeE ceEHne NPOBODHKO DOJXHO COOTBEcTBOBaTb MOUHOCTN, NOTpeBNOReMOB BapOCHo NaHeNbIO (yKa3aHa Ha Ta6nue DaHHbIX). Whyp nITaHnRA DoJXeH 6bITb Tnna H05V2V2-F.
3anpeuetaetcnoMeuaTaHaBapouHyo naHeNb MeaJIInueckne npedMeTbI, TaKne, KaHoxN, BUNK, IOKKN ININ KpbIshKn, NCKOJIbKy OHN MOryT HarpeBaTbcra.
He KlaInte Ha 30HbI HarpBa aIOMnHneByo foIbry
H He CTaBbTe Ha HxNlNaCTMaCCOBYIOncOcydy.
Piocne KaJDoR NcNOJb3OBaHNr Heo6XoDMo
npOBOnTb ONUCTKy BapOuHO nAHeJI N c TeM, UTO6bl
Ha Hen He OCTaBaJInCb Tpr3b N JnP. B npOTNBHom
Cnyae npn CNeDyUoSeM BKNIOUeHNn BapOuHO
naHEJI MOrTy BbIJeJIaTBc Dblm HnepnraTHbIM
3anax.KpOME TORO,3TO MoKET pINBeCTn KNOkApy.
3anpeuaetc nCNoJIb3OBaTb nap nIIN cTpyn NOd
BbICOKIM DaBJIeHNEM dIg OUYCTKN I3DeJIINr.
3anpeaaetc npikacatbck 30HAMHarpeBa BO Bpempa60tblnHEKOTOpoeBpemnocJe 3aBepuHnpa60tbl.
HnkOrda He roTOBbTe Nnuy HenocpeDCTBeHNO Ha cTeKIOkepAMUeCKoB apOuHOI naHeJIi. Bcerda nCnoJb3yNe Ira 3TOrO noXODaYIO nocdy. Bcerda nomeuaite nocdy no ceHTpy HarpeBaTeNbHoro 3IemEnTa,Ha KOTOpOM Bbl roTOBte Nnuy. He nomeuaite Ha naHeJIb ynpabLeHnKaKnE-Nn60 npEdMeTbl.
He nCnoB3yIte BapOHyIO naHJIb B KaueCTBe pa6ooyeINOBepxHOCTN.
He nCnoJb3yIte NOBepxHocTb BapOCHoN naHeJIIN KaueCTBe pa3JeNoOH JOCKN.
He xpaHnTe HaB BapOuHo nHaHeNbTO TAgKeJIbIe npEIMetbl. B cnyae naDeHnO Hn MoYr NOBpeDntb BapOHyIO nAHeJIb.
He nCNoJIb3yIte BapOHyIO nAHeJIb B KaYeCTBe MecTaCKnAInpOBaHnI pEeMToB.
HeDbnraIte nocydy no BapouHOn naHeJI.
1. INHCTPYKUNI NO BbINOJIHEHNIO YCTAHOBKN
YCTAHOBKA BbITOBOI TEXHKN YBJIETCJ CIOXHOI PABOTOH, HENPABNJbHOE BbINOJIHEHNE KOTOPOI MOKET OTPNUATEJIbHO CKA3AtbCRA HA 6E3ONACHOCTI NOL3OBATEJI. NO 3TO IINPHINE YCTAHOBKA BbITOBOI TEXHKN DIONJHA BByIOJIHTCBa BICOKOKBAIINPHUPOBAHHbIMN CNEUAAHCTAMN, KOTOPBJE BblIOHNYT YCTAHOBKY C COBIOJEHMEM BCEX DEICTBYUOHNIPABNJI IN HOPM. B TOM CJIYAE, ECJN 3TO IPEIOCTEPEXEHNE BUDT IPOINTHOPBOAHO, N UCTAHOBKA BYDET BByIOJIHEHA JINOM, HE IMEOIUM DOCTATOHOR KBALINHKAUIN, IPOUN3BOIDNTB, HE BUDT IPNHUMATb HNKAKNX IPETEH3NI OTHOCINTeJIbHO BbIXODA OBOPUYOBAHNA I3 CTPOR N HAHECEHHGTO IPIN 3TOM UJIEPA A MUYUECTBY NII IN 3DOPOBBJIOJEI.
1.1.BCTPANBAEMbIE BAPOHbIE IOBEPXHOCTN
Bapouhna NOBepxHOCTb MOKeT yCTaHabINBaTbC H Na IIO6o pa6OeH NOBepxHOCTN KXOHHOrO CTOnA, KOtOpaa BbIDepKmBaET HarpeB Do TEMnepaTpyb 100°C, HmMeet TOnuMHy OT 25Do 40 MM. Pa3mepbl OTBepCTN, KOTOpoe DQJHXo BbIb BbPe3aHO B pa6OeH NOBepxHOCTN KXOHHOrO CTOnA, NOKa3AnbHa Ha pnc.2.
EcnB BapOHHnIOBExHOCTb YcTaHaBnBaETc TaK, Yo No Obe ee CTOpOHbI paoNlAraHTOa KAcBbI, To paccTOnHne MeKdY bAPoHNOI IOBEXHOCTbU IN u KkaFOM DoJNKHO 6blb He MeHbUe 15 cm (CM. PNC.4), a pacctOraHne MeKdy BApOHOH NOBEXHOCTbU H paCnIOJXeHHO C3aD nCTeHON DOJKHO 6blb He MeHbUe 70 mm.
PacctoHHe MeKdy BapOHHo NOBepxHocTbHO IN DpyTNM 3JIeKTPOpN6OpOM (HaNPmEep, BbITKHOI KOIIaK) DOJXHO 6bITb HE MeHbWe 70 CM (CM. pnc.4). EcnIOBAPOHo NOBEPXHOCTbHO IMeETc CBO6DHOe IpocCTpAHCTBO, TO NOBAPOHo NOBepxHOCTbHO HxHXO YCTaHOBtBa3DeIINTeBHyIO NaHElb, N3TOBENHHyIO I3 TEINON3OLIuHOHOro MATEpIAna (HaNPmEep, I3 DepeBa) (CM. pnc.3).
MeTannnueckne npEmTeB I B RAnuke MoTy DocThraIb Bbcoknx TemnepaTyp H3-3a peunpKnylanu BO3dyxa.PekomeHdyetcN cNoTb3OBaTp npOMexyTuOHy DEpeBraHHy Naenb.
Baxhna HcnpmaaHa pnc.1 noka3aHO, KaK HaHocnTcRepmetNK
BapOHHA NOBEPXHOCTb KpeNTcR C NOMOULbO FOHKCNpyOUx 3aKHMOB, KOToPbE BcABeHIOCTc B OTBepCTnIa, paCNOLOKeHHbIe Ha OCHOBAHM BApOHHoN NOBEPXHOCTnI.
EcnnBapouhna nobepxhoctb 60 cm yctahabnbaeTcra Hnd dyxOBKO.B KOTopoH HET CNTEMbl OXnAaKeHnC BEHTNlRTOPM, TO BO BCTPAnBaEMO MBeHn peKoMeHnyetcrCdTeNaTb OTBepCTn Dnro ObecneHn HOpMaIbHO LInpKyIaMn Bo3Dyxa.
IIOUaIb 3TNX OTBepCTNI DOJNHA 6bITb He MeHbue 300cm2 n 3TNOTBepCTNI DOJNKBI paONarTaT KAK NOKa3HO Ha pnc.5.
EcHn BapouHa HOBepxHOCTb 75 cm KpeNTcHn DaN dyXOBKO, TO B DyXOBKe DOJTKHa 6bIT CNTeMa OXNAJXDeHn C BEHTINrTOpOM.
1.2.BbIBOP MECTAДЛЯ YCTAHOBKNBAPOUHON NOBEPXHOCTN
AnHHb 6bTOBOI npBOp DOJKeH yCTaHaBJIbA bC B COOTBeTcBIM C DeCTByOuMMn pABUNAM, M TOIbKO XoPoIO NPOBETPBAeMBIX NOMeEHN. IpeD yTaHOBKO INN NcIOJIb3ObaHmE MoTOBOro npBOpA pOnITME INHCTpyKUHIO.
B MecTax, Ie yctaHOBnHeI r3oBBie pNtBi, BbIeJIeTeTENIO INBaNA. PO3OTMy BdoJHKnI o6cneHHTb XOPOUy BO BHTNIAuHO B NOMeueHH NIOO C NOMOUBO OTBepCTIN DRA ECTEBeHHNO BEHTNIAuIM, IINO C NOMOUBO 3NEKTPnecCKOBITAKKN. Pn IMTHeCNBHO H NPODJOHNTEbHO 3KcNJyATAuIM NIIb MOKeT NOtpeBOBaTCB DOONHNTbHaBnBEHTNIAuA, O6cneHuBAemAR, HApnPmEp, C NOMOUBO OKh, INPOBETPnuBAHn OMOeJeHHN IIN C NOMOUBHO YBENHEHnCKOPoCTN BpaSeHn 3NEKTPnecKORO BEHTNIAupoCnCTEmbI PNHyNTbHO BHTNIAuIN (ecJH ON YCTAHOBnEH).
ECN HET BO3MOXHOCTNU YCTAHOBNTB BbITRAKHO KOJINaK TO B CTHe NIM B OKOHNOI PPOE ME HYKHO YCTAHOBNTB 3NEKTPNHECKNI BTRAKHO BEHTTJTOP.
BbITKHOI BEHTNITTOP DOnJKeH IMeTb MOUHOCTB,IOCTaTOHYIO IJI TORO, YTO6bI BO3DyX B KXYHE NOJHOCTbO ZAMEHRCNc 3-5 pa3 B YAC. YoCTaHOBA,DOJHXBaIIOHNITCBa COOTBeTCTBNC TpeBOHaHRMM HauCHOHJIbHbIX PnABIN N HOPM.
2. NOДКПЮЧЕНЕ K ЗЛЕKTPOCETN (TOЛьКО ДЛЯ BEЛИКOBРТAHи)
BHMaHHe DaHHbI 3JIeKTPoPn6Op DoJIKeH 6bITb 3a3EmHe
AaHHbI 3JNEKtpoPn6Op npEHa3HaueH ToNbKO dJa 6bToBbIX nPIMHeHNI. POnkHouHeHKe 3JNEKtpocETM DOnKHO BblONHtbcra TOJIbKO ONbIHbIM 3JNEKtpOMC CO6nHOeHNEM BCEx DeNCTByIOUHX nPNBIN HOPM 3JNEKtpoBe3ONaCHOTcN.
JaHHb 3JIeKTPoRnBOp DoJKeH NOKJIIOUaTbC K OTBeTBJeHNO 3JIeKTPoCeTn C DOCTaOuHOH HArpy3OuHOH CNOCO6HOCTbO. 3- 1bIPbKOBAI BUNa/POSEtKa Ha 13 A He NOXoNIT DnA DAHORO NOKIIIOUeHNA BINHN 3JIeKTPoNITAHNA DOJKeH bYcTAHOBNE DBxNIOHCHBI BbIKIOUATENb, I cENb DOJNXa 6bIT 3aunuHa C NOMUIO NpAbaKOrO ppeOxApaHNTeRA COOTBEcTBcyIOeRO HOMHaNA. BoIee nOpO6Hra INΦopMaua OTHocHTeBO Tpe6oBaHNI, npEdbNReMbIX K 3JIeKTPoNITAAHO DnKHpTeHORIO hDneH, npEcdTabHeBA H NcTHpyKuNN IO kCNPiYatauN B NaCpTOH TaBmHKe, 3aKepeHHeHO H NcDEHNe, EcnDnHa Ka6BnI NtAHNA, NOCTaBEmoro B KomPKeTc B aPoOHHO NobepxHOCbIO, ABnAEcTc
HeoctaToHoi,TO CnEpyET NcNoB3ObTaB 60nee DInHHbIe TnnIOCToKni KaebN PINTAHIN C DoCTaTOHO HArpy3OHyOH CnOCo6HocTbO. PoKnKouHene K3JIeKtpocetTu DonJXHO 6bITb BByINOnHeHO CnEDyOuIM O6pa3OM:
IPOCOEINHITE KKJEMME OTBODA 3JEKTPOCETN
3eHeo-KeJbI npoBOD 3emn
CnHn npoBOn HeItpaNb
KopuHHeBbI npBOD a3a
PnmeuHHe He NOKIOaTe BapOHyIO NOBepxHOCTbYepe3
yCTPOCTBO OOBAPyKeHNA YTEcKN ToKa Ha 3EMNIO, TaK KaK 3TO MOKET
PnIBeNTK N "NOXbIM OTKIOueHnM". EJe pa3 HanOMHaem, YTO
3JEKTPoIPnOp6Op DoJNKeH 6bTb NpabINbHO 3a3EmJIe, H YTO
PnON3BOIteNB He PnINHMaET HNKaIKN pPeTeHNB C bcyae
NOBpExDEHn I HecAChTHbIX CnyaeB, BO3HNkUHX B pe3yblTaTe
HenpaBInbHOrO NOKIIIOueHnE 3JEKTPoIPnOp6Opa K 3JEKTPocEtN.
2.1. NOДКЛЮЧЕНЕ K 3ЛЕKTPOCETN
Пповерпдднгь,првбднгьВисноргТонтбнчke, 3крpenлнговсун Ha BPoHn NOBepxHOCrN,ДЯТTO,уTo6bl y6eNTbC8В TOM,чOxHOHoe HApRJaKeHHe BapOyHONOBepxHOCrN COOTBETCTBYeT HanPjaKeHNo 3IeKTPocETN.
Ipeep noKIOHHeHM BApOCHNOBepxHOCTN K 3JIeKTpocETn IpoBepbTe CNTcEMy 3a3EmnHn.
JaHbI 3aektpnp6op 063aTeNbHO DoJxKHe 6bTb 3a3EmnE. B Cnyae HecobDIOeHN 3TO TpeBOAHN PpOu3BODntB ChIMAet C Ce6o OTBeTcBEHHOCb 3a HaHECeHne BpeDa 3doOpBOBIO JIOJei N OPiBxDEHn IMUyCECTBa. EcnN K Ka6eIO NITaHn HE NoDcoEOINHe BUNka, NOCoEINHTe K Ka6eIO NITaHn BNky, Harpy3ouHa N CNOcO6HOCTb KOTopo COOTBETCTByET YkazAAHOB IN NaCnOPTHOJ Tabnueke. IPOBOID 3a3eMNEHn IMeET XeITo-3eJIeHb ICBET. K 3NeKTPnHecko PO3eTKe DoJxKHe BcerDa oBeceNeHbTaBcra Cbo6OHDh BoCTyn.
EcnB BapOyHn NOBepxHOCTb NODKNIOHAcTcR K ANEKTOPCeTN HAnpMyIO, TO DOnKeH 6bITb YcTaHOBnEH ABtOMaTHeCKN BbIKIOuYateJIb.
Ipy npdeTbpaueHnna onaCHOCTe 3aMeHa NOBpeKdEHHORO Ka6JIy INTAHNA DoJXHA BblIOJNHYbC TOnbKO KBaINΦuNPOBaHHbIM CNEUANCTOM.
PpOoD 3a3eMJIeHnna (XeJITo-3eneHbI) DOnJKeH 6bITb pIn6nNtTeBHO Ha 10 MM dnnHHee PpOBOOB pa3b HneTpaNN.
CeueHHe npOBdNIOB Ka6eI NITaHIN JOJTKHO COOTBeTCTBYET MOUHcTN, NOtpeBnE moB apOuHNO nobepxHocTBIO.
PpOBeBpTe 3NaHHeMe MOUHOCHTN, NOTpe6nREMoIeKTpOpnpoPOM, ykaaHaHO B NaCpOThIO TaBmHKe, aTaKc PpOBeBpTe, YTO mCOnbByeTc KaBEnPiTAnHra Tnna 3x0.75 mm H05 V2V2-F.
| ФАЗА | L | Корч新媒体 повOD |
| 3ЕМЛЯ | Женио-зениhood повOD | |
| НЕТРАЛь | N | Сини повOD |
I KJIACC 3aUHTbI OT NOpaxKeHnTOKOM.
3NeKtpnueckoe NoKnIOHcHHe 6bIToBOp np60pa DnKHO 6bITb BblNOJIHeH C nONJIb3OBAHNm P43BeIMHTeNbHO YcTPOIHCTBa COOTBETCTBnC DeIeCTByUOUMn PpABUNaMn HOPMaMn 3NeKtPo6e3oNacHocN.
Ecn3eKtpnpbOp nocTabnreTc 63 Ka6JIy nHTaHnC BnIKoN, Hn63 dpYnx yCTpOCTB dIy OTOcoEINHeHnO T3eKTPocETn C OTcoEINHeHm BCex pa3, YTO o6ecneHnaeT IOHoe OTCOeINHeHne 3eKTPnpbOpaOT 3eKTPocTeN B Cnyae BO3HNKHOBeHHn PepenapJxHKe H KateropnII IIO, To 3eKTPnpbOp DOJKeH NOKUaTbcrape3 pa3beDnHnooee yCTpOCTBO C JecTKoI 3eKTPnpOBdKO, CMOTNPobAHHO B COOTBCTBm C npabnAMn POKNaDN 3eKTPnpOBdKN.
2.2. NOДКЛIOUЧЕНК JIINHIN IAOCHABXEHNIA
HaHHbIe HNCTpyKUIN PpeHnHa3HaueHbI DnI CneuaJIInCTOB, IMHeOuNX DoCTaTOHyIO KBaJINΦKaUINo DnI BByIOJIHeHry YCTaHOBKn OobpyOBOAHIN B COOTBeTCTBnC Tpe6OBAHnM HAUHOHbHbIX npABUN HOPM.
Tolbko dIy BeNko6pTuHaHn. CornacHo 3aKohy, ycTaHOBka/BBOD B3KnnyatauNo DOJXHbI BbINOJHrTBcra ToIbKO cOTpydHnKOM Cnyx6bl "Gas Safe".
Bce pa6oTb DoJXHb BblnoHrTbc8 COTcoeUHeHHbIM 3JIeKTPoNTaHMe.
B 3akpenneHHo Ha BapOCH NoBepxHocTn NaCnpTHo Ta6nUKe yka3AH TIN RA3a, HA KOTOPOM DOJXHa pa60TaTB BapOHHa NOBepxHOCTb. Pered NODKIOHcHEm BapOCH NoBepxHOCTN K IINHN RaOCHAbKeHm INK K Ra3OBMy BaIIHOHy Heo6XoHMO npOBeptB, Yo BApOHa NoBepxHOCTb OTperyIIpObaHa Ha TOT TIN ra3a, KoTOpBb 6yDet B Hee noDaBaTbcA. EcnB BapOHHa NOBepxHOCTb HE OTperYIpObaHa Ha HyXhBn TIN RA3a, OpaTInTeCb K IHCTpyKzHM, PpNBedeHbIM B NocJeDyHoUHX naparpaPax, rde ONuCAHO, KaN3MeHHTb peryIpOBOKn.
PmpaOte Ha CxNKeHHOM r3e (ra3 B 6aIIOHe) cIeDyET nNoIb3oBaTbc peryLNaTOpOM dABNeHn,OTBeauIoero TpeBoAHnM HauOnHaBbIX CTaNapTOB.
Tpy6bl,waibbIyIINOTHnTeBhIe IPOKnaIKn DoJXhbI COOBETCTBOBaTb Tpe6bAHm HAIOHOJIbHbIX CTaHdApTOB. HeKOTOpBle MOeI NOCTABnIaTcR c KOHeNOM (nepexoHnKOM), MeoUIM KOHNecKyU pe3b6y.B HekToPbIX CTpaHax NCNoIb3OBAHne TaKxN nepeoxDnKOB RAJIaETcR o83aTeNBbIM.Ha PNC.8 NOKa3AHO,KAK OTNIuHTb NEpeoxDnK C UININHDpueckoi pe3b60n OT nepeoxOHaNka c KOHNueckoi pe3b60n (CY = UININHDpuecka,CO= KOHNuecka).B NIO6om cnyuae UININHDpuecka pe3b6aDOJNkHa 6b1b
B IIO6OB CnYyae, KOHeU nepexoHnka C uINHdpuecko pe3b60I DOnJKeHNODcoeHNrTbCk K BapOCHN IOBepxHOCTN.
Ecni noiknueHne BapOHHo nobepxHocn K nHnir ra3ocha6KeHn OcyuectBnpeTc n oMOsbu rKoro 7naHra, npOBepbTe, yTo dInHa r6Koro 7naHra He npBbIwaeT 2 M.
TpybKa MOHTnPyTe TaKIM O6pa30m, YTObO hA He KOHTaKtIPOBaJc NODBnKHeIMN YAcTAMe6enn (HAnpImep, RAnKOM) HnePOnJIeRaN BMeCTax, TRe MOnKet 6bItb NepeXkata. YTObHe NoBpeNTB BApouHy NOBepxHOctb, BblONHITe ee yCTaHOBky, KAK ONICaHO (CM.PNC.6).
1)PoiocoeHHHTeTeTaN,KaKnoka3aHOHApncyHKe:
A)IpeexoHmKc HapyKHOUINHHpuecko pe3b6o1/2DIOMa
B)Покладka 1/2 Дюма
C) Ra3OBbI NepexOHNK C BHyTpEnHNe pe3b601/2 DIOIMa, KOHNueckar LINNHDPUECKA, INL LNNHDPUECKA LINNHDPUECKA.
2)3aTAHNTe CoeHHeHne C NOMOuBIO raeuHbIX KINoUeI. PepeT EKAK 3aTAYb COeHNHeHne YcTaHOBnTE Tpy6bl B HyXHOE NOIOXeHne.
3)IoCoeINHTe KOneHO KJInnNIOaHrA3c NOMOuBIO JKeCTKo MeHOr Tpy6blnnr6kOcTaNbHoT py6bl.
BAXHOE 3AMEYAHNE: Nocne noDcoeHHe H BapOHHOBepxHOctN KINHN Ra0Ch6XHeH NPOBepbTe Ha OTCyTCTBnE yTEKep Ra3 BCE TpyHbIe CoeHHeHc NOMOULbMbIbHoropacTbopa.HNKoTDA HE NCIOJIb3yNTE DII NPOBEPKN YTEK
FA3A PIAAMr. PpOBepbTe TaKKe, QTo rN6kM uJAnHr He cOpnPKACAeTc C DnBxUyIMmCRACTaMn KxOHOH Me6eJIN (HaNPmEp, BbDnBHXoH JuaMK) Hne IPOXoHT B TAKOM MecTe, Ite OH MOKeT bbl NOBpeXeH.
Ppeynpexdne: EcnB6JnBapOHy NOBepxHocN Bbl NooybCTBye 3anax r3a, nepekpOte nOaHy r3a Ha BabOpHyo NOBepxHOCTb NbIOBtNE CNeuHaNCTa. He NsHTe MeCTo yTeKn Ra3c a NOMOuBo OTKpIbTO TnAmeHn.
2.3.AAANTAUBAPOUHOI NOBEPXHOCTN HA DPyTNE TINbI FA3A
IaIaIbBapOHHIOBepXHocTINpApoTbICpymMra3AMn BbINOHNTE ONNCAHHbIE HNKe INCTpyKUIN:
CHIMMTepeWetKIN KOHcOpKn
BCTABbTe WeeTnPaHHb KIOU (7 MM) B OCHOBaHne KOHΦOpKn (puc. 7)
BbIbePHTe fOpcyHKy N 3aMeHNTe ee fOpcyHKo, COOTBeTCTByOuSei TOMy TUNy Ra3a, KOtOpBb 6yDet NcONb3OBAbC8 (cm. ma6nuuy mun08 a2a3a).
2.4.PEYJINPOBKA MHHIMAJbHOro IJIAMEHN
Iocne 3axnraHHKoHcOpKn yTaHOBnTe pyky peryJrTOpa BbICOTbl
IIaMeHN B NOIOKeHHe, COOTBeTCTByHOUe e MmHMaJIbHOMy
IIaMeHN, a 3aTeM CHIMnTe pyky peryJrTOpa, npNIOxINB
He6Obluoe ycInne.
Perynipobka MNHmAbHoI PnAmEH BbINOHNReTc NOMOBo BNHTa MAneHbKOI OBePTKI, KaK NOKa3aHO Ha . NobopoTpuc. 9 BNHTa NO YacBOB CTpeJIke YMeHbJaaET NOTOK r3a, a NOBOPOT BNHTa npOTNB YacBOB CTpeKNYBEnuNBAeNToK r3a.C NOMOsbTOI peYiNPOBKN IOnyUHTE PnAMAB BbICOTOH 3-4 MM, a 3aTeM yCTaHOBtne Ha MeTo pyknypeYnTota.
Ecnn nCnoB3yeTc CxKHeHHn HeFTHHOra3 (CHΓ), NOBepHNTe BnHT do ynopa no YacOBoi CTpeJIke.
Iocne BbInonHeHnpeRynpoBOK IaAadTaaIN BapOHyo NOBepxHocTHHa DpyroTNr3a3aMeHnteCTapyu TaBnHyK, 3akpenHeHHyHO Ha BapOHyo NOBepxHocTH, B KOtOpO yKa3aH Tn r3a,Ha HOByO (IOCTaJIReTcB KOMIIeKeT C BapOHyo NOBepxHocTbO), B KOtOpO yKa3aH Tn r3a,Ha KOTOpB npeBeDeHa BapOhya NobepxHocTb.
3. INHCTPYKUNI NO 3KCNJYATAUINBAPOUHOI NOBEPXHOCTN
AaHHb 3eKtpnpn6op npedHa3HaueH TOIbKO IJIa NcNoIb3OBAHnno ERO npMOMy Ha3HaueHIO,TO eCTb,IJIa PnIroTobNEHnN BdoMAuHNxycNOBnx. JIO6OE dpyoe npIMHeHne BapOCHoINOBepXHOCTN CHTaTeCn HEPaBUNHbIM, INo3OMy MoKet 6bITbONaChbIM.Pon3BOJNTeNB He HeCet OTBeTCTBeHHOCTH 3aOBpeXdEHNi NOTEPi, ABJHOUInCeC nEDCTBnEM HePpaBnHbHOrONCNoIb3OBAHnB BApOCHoN NOBepXHOCTN.
Ipeud nCnoB3OBAHnEM KOHΦOpKn y6eDntEcB, yTO BHeUHne rpaHnCb peWeTkn paCNoJoxKeHb NO CEHTpy OTHocHTeNbHO KOHΦOpKn, KAc NkOa3aHo Ha pNCyHke HxKe. EcNn Bbl NCNoB3yeTe UyHyHbte peWeTkn; NOD peWeTkoYka3aHo ee NIOJoxKeHne. Y6eDntEcB, yTO COOTBeTCTByUo7aerpeWeTka NCNoB3yeTcB InpabnBHom NIOJoxKeHn.
3.1.NCNOJb3OBAHNE FA3OBOKOHΦOPKN
YTo6b3aKeey KOHΦOpKy, NOHeCnTe K HeN 3aXKeHHyO CnHcy, HaxMITE Ha pyKy peRyPiPoBKn BbICOTbl PnAmEHn, N NobepHnTe ee npOTNBACOBONCTpeKN.
EcnKoHOpKn He nCnOJb3OBAIINCB TeueHne DByx Nnn 60one DHe,TO npExJNe Yem 3aXeYb KOHOpKy NOOXNITe HECKoJIbKO cekyHdIgTOro,HTo6bl H3 Tpy6ok BblIeN BO3dyX.
Ttob3aeky KoHpopky BapOCHNO NobepxHocTN, Ch6KeHHyU yCTpoCTBOMAeKTPoONJXnra, BbINONHTe CNeIyHOuNE Opeaun: HaxMNTe Ha pykY peYIpOBKn BICOTb INaMeHN N NOBepHNTe ee npotNBacBOOICTpeKN BNoIOKeHne, 0603HaueHHoe NOxNra.
3axnTe KOHOpky C NMOUbHO HxKaTnK HONKn 3JKeTPONoJrA.
Ecnn BapOuHaN NOBepXHoCTb CHa6KeHa aBTOMaTuYeCKM 3JKeTPONoJrNOM, IpOCTo HxKmTe Ha pykY peyInpOBKn BILcOTb INaMeHN YcTaHOBHe ee B NoJIOKeHne, O603HaeHHoe 3HaqKOM PNOJrA.CntTeMa 3JKeTPONoJrA 6yDet NoctOHHo reHepePBOBaTB NcKpbI, Do Tex Nop, Noka pyka peyInpOBKn PnaMeHN 6yDeTHaOOnTbcBHAxAtOM NoJIOKeHn.
EcnKoHOpka He 3aropaTcB TeueHne 5 cekyH, yCTaHOBtpepypeRynipOBKn B noJoxKeHne O, nOBtOpTe ONuCaHHy BblIe onepauHIO.
B MoDJIaX, cHa6KeHHbIX 3aUHTbIM KlaNaHOM, KOtOpbIy ABToMaTmueckn NepeKpbIbAe TIOaUy Ra3a B CNYaae BHe3aHOrO IoracAHN IIaMeHNI, KOHΦopKN 3aKInrAHTcR, KaK ONiCAHO BblSe, HO npn 3OTM NOcNE 3aKInraHn KOnΦopKn Heo6xOJIMO co6JIIOdaTb OCTopoXHOCTb.
Ipeed BKIOUeHnEMra3OBoB BApOCHo NOBepxHocTn PNOBepbTe, Yo KOHOpKn I KpbIuKn KOHOpOK IpaBnIbHO yCTaHOBJIeHbI Ha BapOHyIO NobepxHocTb.
EcnHa yctpoCTBe HET HanpJxHn, cneIyET nCNOb3oBaTb 3aXnraNky, YTO6bl 3aXeYbropeNk;
-HaKMTe pyky nIOBepHnTe ee npOTNB YacOBn CTpeKN Do CmBOna 3axnraHHN;
NAVODILA ZA VARNO UPORABO
Efficiency Declaration 2016/426
| DIAMOND (L1) BIG REAR | (L3, L5) BIG FRONT (L2) | ||||||||||
| SINGLE BURNER EFFICIENCY | SINGLE BURNER EFFICIENCY | SINGLE BURNER EFFICIENCY | |||||||||
| AUX | SR | R | DC | AUX | SR | R | DC | AUX | SR | R | DC |
| - | 55% | 55,90% | 55,90% | - | 57,10% | 55,90% | 54,30% | - | 60% | 55,90% | 54,30% |
| MEDIUM %55,6 | MEDIUM %55,8 | MEDIUM %56,7 | |||||||||
GB-IE
The manufacturer will not be responsible for any inaccuracy resulting from printing or transcript errors contained in this brochure. We reserve the right to carry out modifications to products as required, including the interests of con sumption, without prejudice to the characteri stics relating to safety or function.
