USER MANUAL DEHS110UBB PIONEER

• In the following instructions, a USB memory or USB audio player are referred to as “USB device”. Table of Contents- 3 -- 3 - English DEH-S110UB/S110UBA/S110UBG/S110UBB/S111UB/S111UBG/ S11UB Remote Control NOTE Remote control is supplied only for DEH-S111UB/S111UBG. Frequently used operations The available buttons vary depending on the unit. Getting Started Basic operation Detach button Display window M.C. (multi-control) dial BAND/ USB port AUX input jack (3.5 mm stereo jack) (eject) Disc loading slot DISP (display) BASS SRC (source)/OFF

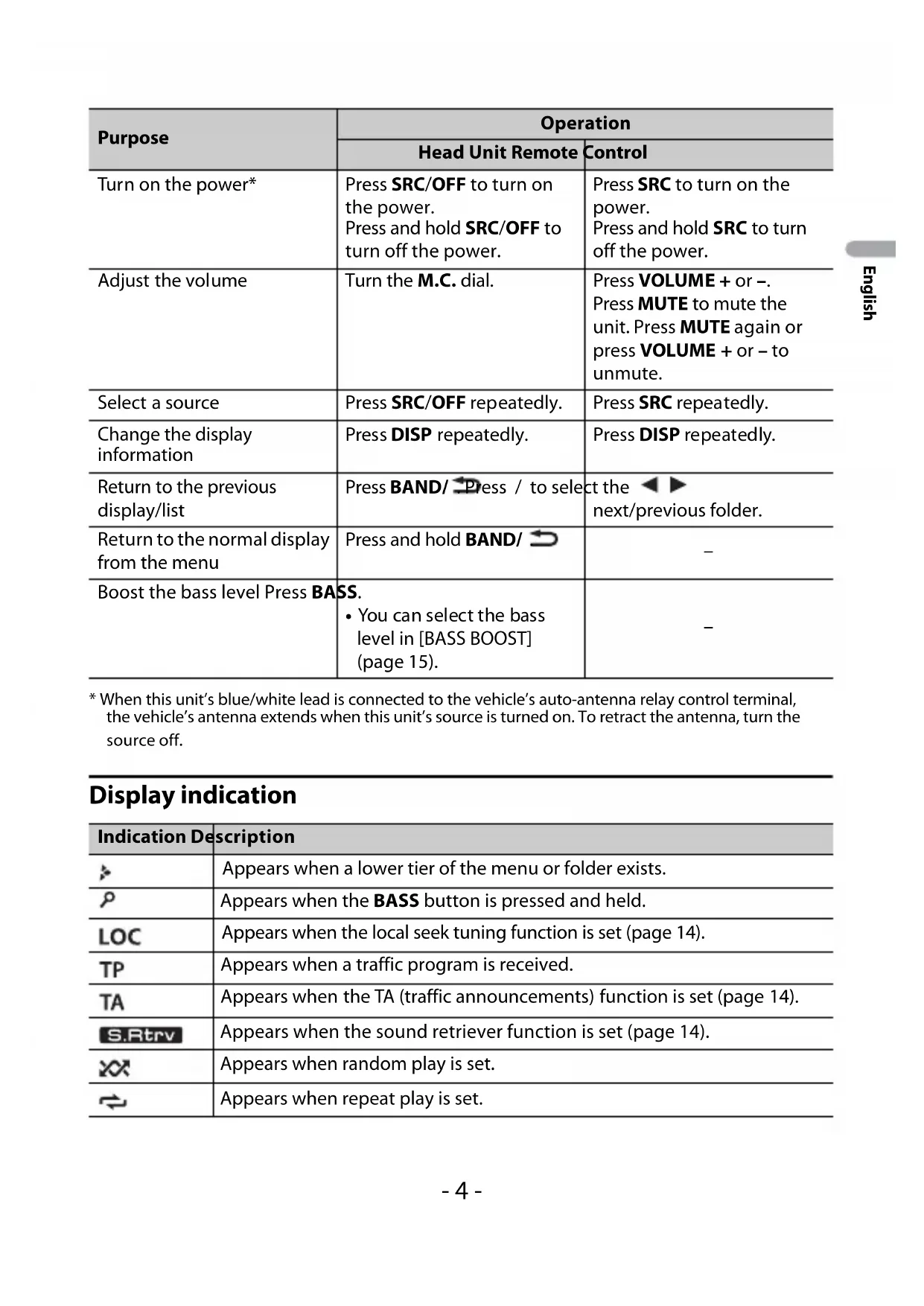

• When this unit’s blue/white lead is connected to the vehicle’s auto-antenna relay control terminal, the vehicle’s antenna extends when this unit’s source is turned on. To retract the antenna, turn the source off. Display indication Purpose Operation Head Unit Remote Control Turn on the power* Press SRC/OFF to turn on the power. Press and hold SRC/OFF to turn off the power. Press SRC to turn on the power. Press and hold SRC to turn off the power. Adjust the volume Turn the M.C. dial. Press VOLUME + or –. Press MUTE to mute the unit. Press MUTE again or press VOLUME + or – to unmute. Select a source Press SRC/OFF repeatedly. Press SRC repeatedly. Change the display information Press DISP repeatedly. Press DISP repeatedly. Return to the previous display/list Press BAND/ . Press / to select the next/previous folder. Return to the normal display from the menu Press and hold BAND/ .

Boost the bass level Press BASS.

• You can select the bass level in [BASS BOOST] (page 15).

Indication Description Appears when a lower tier of the menu or folder exists. Appears when the BASS button is pressed and held. Appears when the local seek tuning function is set (page 14). Appears when a traffic program is received. Appears when the TA (traffic announcements) function is set (page 14). Appears when the sound retriever function is set (page 14). Appears when random play is set. Appears when repeat play is set.- 5 -- 5 - English Detach the front panel to prevent theft. Remove any cables and devices attached to the front panel and turn off the unit before detaching it. Important

• Avoid subjecting the front panel to excessive shock.• Keep the front panel out of direct sunlight and high temperatures.• Always store the detached front panel in a protective case or bag. Remove the insulation sheet before use. WARNING Detaching the front panel Preparing the remote control Detach Attach How to replace the battery Insert the CR2025 (3 V) battery with the plus (+) and minus (–) poles orientated properly. (Symbol for equipment) (Symbol examples for batteries)- 6 - English Information for users on collection and disposal of old equipment and used batteries These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste.For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points in accordance with your national legislation.By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.These symbols are only valid in the European Union.For countries outside the European Union:If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.• Do not ingest the battery, Chemical Burn Hazard.(The remote control supplied with) This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.Keep new and used batteries away from children.If the battery compartment does not close securely, stop using the product and keep it away from children.If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
• Do not expose the battery or remote control to excessive heat such as direct sunlight or fire. CAUTION

• There is a potential danger of explosion if the battery is incorrectly replaced. When replacing the battery, replace it with the same type.• Do not handle or store the battery with metallic tools or objects.
• If the battery leaks, remove the battery and wipe the remote control completely clean. Then install a new battery.
• When disposing of used batteries, please comply with governmental regulations or environmental public institutions’ rules that apply in your country/area. Important
• Do not store the remote control in high temperatures or direct sunlight.
• Do not let the remote control fall onto the floor, where it may become jammed under the brake or accelerator pedal.When you turn the ignition switch to ON after installation, [SET UP :YES] appears in the display. 1 Press the M.C. dial. The setup menu disappears after 30 seconds of no operation. If you prefer not to set at this time, turn the M.C. dial to select [NO], then press to confirm. Setup menu- 7 -- 7 - English 2 Turn the M.C. dial to select the options, then press to confirm. To proceed to the next menu option, you need to confirm your selection. 3 [QUIT :YES] appears when all the settings have been made. To return to the first item of the setup menu, turn the M.C. dial to select [QUIT :NO], then press to confirm. 4 Press the M.C. dial to confirm the settings. NOTES

• You can cancel the menu setting by pressing SRC/OFF.

• These settings can be made at any time from the SYSTEM settings (page 16) and INITIAL settings (page 7). 1 Press the M.C. dial to display the main menu. 2 Turn the M.C. dial to select [SYSTEM], then press to confirm. 3 Turn the M.C. dial to select [DEMO OFF], then press to confirm. 4 Turn the M.C. dial to select [YES], then press to confirm. 1 Press and hold SRC/OFF until the unit turns off. 2 Press and hold SRC/OFF to display the main menu. 3 Turn the M.C. dial to select [INITIAL], then press to confirm. 4 Turn the M.C. dial to select an option, then press to confirm. Menu Item Description LANGUAGE Select the language to display the text information from a compressed audio file. [ENG](English), [РУС](Russian), [TUR](Turkish) CLOCK SET Set the clock. FM STEP Select the FM tuning step from 100 kHz or 50 kHz. [100], [50] Canceling the demonstration display (DEMO OFF) INITIAL settings- 8 - English NOTE The options vary depending on the unit. The tuner frequencies on this unit are allocated for use in Western Europe, Asia, the Middle East, Africa and Oceania. Use in other areas may result in poor reception. The RDS (radio data system) function only works in areas that broadcast RDS signals for FM stations. 1 Press SRC/OFF to select [RADIO]. 2 Press BAND/ to select the band from [FM1], [FM2], [FM3], [MW] or [LW]. Menu Item DescriptionFM STEP Select the FM tuning step from 100 kHz or 50 kHz.[100], [50]SP-P/O MODE Select when there is a full-range speaker connected to the rear speaker output leads and there is a subwoofer connected to the RCA output.[REAR/SUB.W][SUB.W/SUB.W] Select when there is a passive subwoofer connected directly to the rear speaker output leads and there is a subwoofer connected to the RCA output.[REAR/REAR] Select when there are full-range speakers connected to the rear speaker output leads and RCA output. If there is a full-range speaker connected to the rear speaker output leads, and the RCA output is not used, you may select either [REAR/SUB.W] or [REAR/REAR].S/W UPDATE Select to confirm the latest system information on the unit.[SYSTEM INFO][SYSTEM UPDATE] Select to update the unit to the latest software and initialize the unit settings. For details on the latest software and updating, visit our website.SYSTEM RESET Select [YES] to initialize the unit settings. The unit will be restarted automatically.(Some of the settings may be retained even after resetting the unit.)[YES], [NO] Radio Receiving preset stations- 9 -- 9 - English 3 Press a number button (1/ to 6/). TIP The / buttons can be also used to select a preset station when [SEEK] is set to [PCH] in the FUNCTION settings (page 14). The six strongest stations are stored on the number buttons (1/ to 6/). 1 After selecting the band, press the M.C. dial to display the main menu. 2 Turn the M.C. dial to select [FUNCTION], then press to confirm. 3 Turn the M.C. dial to select [BSM], then press to confirm. To seek a station manually

After selecting the band, press / to select a station. Press and hold / then release to seek an available station. Scanning stops when the unit receives a station. To cancel seek tuning, press / . NOTE [SEEK] needs to be set to [MAN] in the FUNCTION settings (page 14). To store stations manually

While receiving the station you want to store, press and hold one of the number buttons (1/ to 6/ ) until it stops flashing. The unit searches for a station by PTY (program type) information. 1 Press and hold BASS during FM reception. 2 Turn the M.C. dial to select a program type from [NEWS/INFO], [POPULAR], [CLASSICS] or [OTHERS]. 3 Press the M.C. dial. The unit begins to search for a station. When it is found, its program service name is displayed. NOTES

• To cancel the search, press the M.C. dial.

• The program of some stations may differ from that indicated by the transmitted PTY. Best stations memory (BSM) Using PTY functions- 10 - English

• If no station is broadcasting the type of program you searched for, [NOT FOUND] is displayed for about two seconds and then the tuner returns to the original station. Disconnect headphones from the device before connecting it to the unit.

1 Insert a disc into the disc loading slot with the label side up. To eject a disc, stop playback first then press . USB devices (including Android™)

Open the USB port cover. 2 Plug in the USB device using an appropriate cable. NOTE To automatically switch to [USB] source when a USB device is connected to the unit, set [USB AUTO] to [ON] in the SYSTEM settings (page 17). CAUTION Use a USB cable (sold separately) to connect the USB device as any device connected directly to the unit will protrude out from the unit, which could be dangerous. Before removing the device, stop playback. AOA connections For details on AOA connection, see page 12. MTP connection A device installed with Android OS 4.0 or most of later versions can be connected to the unit via MTP, using the cable supplied with the device. However, depending on the connected device, OS version or the numbers of the files in the device, audio files/songs may not be able to be played back via MTP. Note that MTP connection is not compatible with WAV and FLAC file formats. NOTE If you use an MTP connection, [ANDROID WIRED] needs to be set to [MEMORY] in the SYSTEM settings (page 16).

Playing back- 11 -- 11 - English AUX

Insert the stereo mini plug into the AUX input jack. 2 Press SRC/OFF to select [AUX] as the source. NOTE If [AUX] is set to [OFF] in the SYSTEM settings, [AUX] cannot be selected as a source (page 16). You can make various adjustments in the FUNCTION settings (page 13). Note that the following operations do not work for an AUX device. To operate an AUX device, use the device itself. Operations Purpose Operation Select a folder*1 Press 1/ or 2/. Select a track/song Press or . Fast forward or reverse*2 Press and hold or . Search for a file from a list 1 Press and hold BASS to display the list. 2 Turn the M.C. dial to select the desired file (folder) name or category, then press to confirm. 3 Turn the M.C. dial to select the desired file, then press to confirm. Playback starts. View a list of the files in the selected folder/ category*1 Press the M.C. dial when a folder/category is selected. Play a song in the selected folder/ category*1 Press and hold the M.C. dial when a folder/ category is selected. Repeat play Press 6/. Random play Press 5/. Pause/resume playback Press 4/PAUSE. Sound retriever*1 Press 3/S.Rtrv. [1]: Effective for low compression rates [2]: Effective for high compression rates Return to root folder (CD/USB only)*1 Press and hold 1/. Switch between compressed audio and CD- DA (CD only) Press BAND/. Change drives in USB device (Devices that support the USB mass storage device class protocol only) Press BAND/.- 12 - English *1 Compressed audio files only*2 When you use the fast forward or reverse function while playing a VBR file, the playback time may be not correct.You can operate the unit from Pioneer ARC APP installed on an Android device. In some cases, you can control aspects of the application, such as source selection, pause, etc., by using the unit.For details on what operations are available on the application, see the application’s help section. WARNING Do not attempt to operate the application while driving. Make sure to pull off the road and park your vehicle in a safe location before attempting to use the controls on the application.For Android device usersThis function is compatible with devices that have Android OS 4.1 or later installed and also support AOA (Android Open Accessory) 2.0.You can download Pioneer ARC APP on Google Play™. NOTE Some Android devices connected via AOA 2.0 may not work properly or emit sounds due to their own software design, regardless of the OS version. 1 Press the M.C. dial to display the main menu. 2 Turn the M.C. dial to select [SYSTEM], then press to confirm. 3 Turn the M.C. dial to select [ANDROID WIRED], then press to confirm. 4 Turn the M.C. dial to select [APP CONTROL], then press to confirm. 5 Turn the M.C. dial to select [P.APP AUTO ON], then press to confirm. 6 Turn the M.C. dial to select [ON], then press to confirm. 7 Connect this unit with the Android device via USB. Pioneer ARC APP on the device starts automatically. NOTE If Pioneer ARC APP has not been installed on your Android device yet, a message that prompts you to install the application will appear on your Android device. Select [OFF] in [P.APP AUTO ON] to clear the message (page 17). Using Pioneer ARC APP Making a connection with Pioneer ARC APP- 13 -- 13 - English 1 Press SRC/OFF to select [ANDROID]. Basic operations You can adjust various settings in the main menu. 1 Press the M.C. dial to display the main menu. 2 Turn the M.C. dial to select one of the categories below, then press to confirm.

• ILLUMINATION settings (page 17) 3 Turn the M.C. dial to select the options, then press to confirm. The menu items vary according to the source. Listening to music on Android Purpose OperationSelect a track Press or .Fast forward or reverse Press and hold or . Pause/resume playback Press 4/PAUSE. Sound retriever Press 3/S.Rtrv. [1]: Effective for low compression rates[2]: Effective for high compression rates Settings FUNCTION settings Menu Item DescriptionFM SETTING [TALK], [STANDARD], [MUSIC] Match the sound quality level with the broadcast signal conditions of the FM band signal. (Available only when FM band is selected.)- 14 - English BSM Store the six strongest stations on the number buttons (1/ to 6/ ) automatically. REGIONAL [ON], [OFF] Limit the reception to the specific regional programs when AF (alternative frequencies search) is selected. (Available only when FM band is selected.) LOCAL

Restrict the tuning station according to the signal strength.

[ON], [OFF] Receive current traffic information if available. (Available only when FM band is selected.)

[ON], [OFF] Allow the unit to retune to a different frequency providing the same station. (Available only when FM band is selected.) NEWS [ON], [OFF] Interrupt the currently selected source with news programs. (Available only when FM band is selected.) SEEK [MAN], [PCH] Assign or buttons to seek the stations one by one (manual tuning) or select a station from the preset channels. S.RTRV [1] (effective for low compression rates), [2] (effective for high compression rates), [OFF] Enhance compressed audio and restore rich sound. Not available when:

• CD-DA/CD-TEXT is played back.

• The FLAC file is played back. Menu Item Description USB- 15 -- 15 - English AUDIO settings Menu Item Description FADER*1 Adjust the front and rear speaker balance. BALANCE Adjust the left and right speaker balance. EQ SETTING [SUPER BASS], [POWERFUL], [DYNAMIC], [NATURAL], [VOCAL], [VIVID], [CUSTOM1], [CUSTOM2], [FLAT] Select an equalizer band and level for further customising. Equalizer band: [80HZ], [250HZ],

[800HZ], [2.5KHZ], [8KHZ]

Equalizer level: [+6] to [–6] Select or customise the equalizer curve. [CUSTOM1] can be set separately for each source. However, each of the below combinations are set to the same setting automatically. [CUSTOM2] is a shared setting used for all sources. You can also switch the equalizer by pressing repeatedly. LOUDNESS [OFF], [LOW], [MID], [HI] Compensate for clear sound at low volume. SUB.W*2 [NOR], [REV], [OFF] Select the subwoofer phase.

Cut-off frequency: [50HZ], [63HZ], [80HZ], [100HZ], [125HZ], [160HZ], [200HZ] Output level: [–24] to [+6] Slope level: [–12], [–24] Only frequencies lower than those in the selected range are output from the subwoofer. BASS BOOST [0] to [+6] Select the bass boost level. HPF SETTING Cut-off frequency: [OFF], [50HZ], [63HZ], [80HZ], [100HZ], [125HZ], [160HZ], [200HZ] Slope level: [–12], [–24] Only frequencies higher than the high-pass filter (HPF) cutoff are output from the speakers. SLA [+4] to [–4] Adjust the volume level for each source except FM.- 16 - English *1 Not available when [SUB.W/SUB.W] is selected in [SP-P/O MODE] in the INITIAL settings (page 8). *2 Not available when [REAR/REAR] is selected in [SP-P/O MODE] in the INITIAL settings (page 8). *3 Not available when [OFF] is selected in [SUB.W]. You can also access to these menus when the unit is turned off. SYSTEM settings Menu Item Description LANGUAGE [ENG](English), [РУС](Russian), [TUR](Turkish) Select the language to display the text information from a compressed audio file. CLOCK SET Set the clock (page 7). 12H/24H [12H], [24H] Select the time notation. SCROLL SET [ONCE], [LOOP], [OFF] Select the way to scroll the text in the display window. AUTO PI [ON], [OFF] Search for a different station with the same programming, even if using a preset station. AUX [ON], [OFF] Set to [ON] when using an auxiliary device connected to the unit. MUTE MODE [MUTE], [20dB ATT], [10dB ATT] Mute or attenuate sound automatically when a signal from equipment with a mute function is received. PW SAVE* [ON], [OFF] Reduce the battery power consumption. Turning on the source is the only operation allowed when this function is on. ANDROID WIRED [MEMORY], [APP CONTROL] Select the appropriate connection method for an Android device.- 17 -- 17 - English

• [PW SAVE] is canceled if the vehicle battery is disconnected and will need to be turned back on once the battery is reconnected. When [PW SAVE] is off, depending on connection methods, the unit may continue to draw power from the battery if your vehicle’s ignition does not have an ACC (accessory) position. P. AP P AU T O O N [ON], [OFF] Select [ON] to automatically launch Pioneer ARC APP when an Android device is connected to the unit via AOA. (Not available when [MEMORY] is selected in [ANDROID WIRED].) USB AUTO [ON], [OFF] Select [ON] to automatically switch to [USB] source when a USB device is connected to the unit. Select [OFF] when a USB device is being connected to the unit just for charging. ILLUMINATION settings Menu Item Description DIM SETTING [SYNC CLOCK], [MANUAL] Select the way to change the display brightness. BRIGHTNESS [1] to [10] Change the display brightness. The available setting ranges differ depending on [DIM SETTING]. Menu Item Description- 18 - English The display automatically returns to the normal display.

• No operations have been made for about 30 seconds. –Perform an operation. The repeat play range changes unexpectedly.

• Depending on the repeat play range, the selected range may change when another folder or track is being selected or during fast forwarding/reversing. –Select the repeat play range again. A subfolder is not played back.

• Subfolders cannot be played when [FLD] (folder repeat) is selected. –Select another repeat play range. The sound is intermittent.

• You are using a device, such as a cellular phone, that may cause audible interference. –Move electrical devices that may be causing the interference away from the unit. Common AMP ERROR

• This unit fails to operate or the speaker connection is incorrect.

• The protective circuit is activated. –Check the speaker connection. –Turn the ignition switch OFF and back to ON again. If the message remains, contact your dealer or an authorized Pioneer Service Station for assistance. NO XXXX (NO TITLE, for example)

• There is no embedded text information. – Switch the display or play another track/file. CD player ERROR-07, 11, 12, 17, 30

• The disc is dirty. –Clean the disc.

• The disc is scratched. –Replace the disc. ERROR-07, 10, 11, 12, 15, 17, 30, A0

• There is an electrical or mechanical error. –Turn the ignition switch OFF and back to ON, or switch to a different source, then back to the CD player. ERROR-15

• Sometimes there is a delay between the start of playback and when you start to hear any sound. –Wait until the message disappears and you hear sound. NO AUDIO

• The inserted disc does not contain any playable files. –Replace the disc. SKIPPED

• The inserted disc contains DRM protected files. –The protected files are skipped. Additional Information Troubleshooting Error messages- 19 - English PROTECT

• All the files on the inserted disc are embedded with DRM. –Replace the disc. USB device FORMAT READ

• Sometimes there is a delay between the start of playback and when you start to hear any sound. –Wait until the message disappears and you hear sound. NO AUDIO

• There are no songs. –Transfer the audio files to the USB device and connect.

• The connected USB device has security enabled. –Follow the USB device instructions to disable the security. SKIPPED

• The connected USB device contains DRM protected files. –The protected files are skipped. PROTECT

• All the files on the connected USB device are embedded with DRM. –Replace the USB device.

• The connected USB device is not supported by this unit. –Disconnect your device and replace it with a compatible USB device. HUB ERROR

• The USB device connected via a USB hub is not supported by this unit. – Connect the USB device directly to this unit using a USB cable. CHECK USB

• The USB connector or USB cable has short-circuited. –Check that the USB connector or USB cable is not caught in something or damaged.

• The connected USB device consumes more than maximum allowable current. –Disconnect the USB device and do not use it. Turn the ignition switch OFF and back to ACC or ON. Connect only compliant USB devices. ERROR-19

• Communication failed. –Perform one of the following operations, then return to the USB source.

• Disconnect the USB device.

• Change to a different source. ERROR-23

• USB device was not formatted properly. –Format the USB device with FAT12, FAT16 or FAT32. Discs and player

• Use only discs that feature either of the following two logos.

• Use only conventional, fully circular discs.

• The following types of discs cannot be used with this unit: –DualDiscs – 8-cm discs: Attempts to use such discs with an adaptor may cause the unit to malfunction. – Oddly shaped discs –Discs other than CDs – Damaged discs, including discs that are cracked, chipped or warped Handling guidelines- 20 - English – CD-R/RW discs that have not been finalized

• Do not write on or apply chemicals to the surface of the discs.

• To clean a CD, wipe the disc with a soft cloth outward from the center.

• Condensation may temporarily impair the player’s performance. Let it rest for about one hour to adjust to a warmer temperature. Also, wipe any damp discs off with a soft cloth.

• When using discs that can be printed on label surfaces, check the instructions and the warnings of the discs. Depending on the discs, inserting and ejecting may not be possible. Using such discs may result in damage to this equipment.

• Do not attach commercially available labels or other materials to the discs. – The discs may warp making the disc unplayable. – The labels may come off during playback and prevent ejection of the discs, which may result in damage to the equipment. USB storage device

• Connections via USB hubs are not supported.

• Firmly secure the USB storage device before driving. Do not let the USB storage device fall onto the floor, where it may become jammed under the brake or accelerator pedal.

• Depending on the USB storage device, the following problems may occur. –Operations may vary. –The storage device may not be recognized. – Files may not be played back properly. – The device may cause audible interference when you are listening to the radio.

• Only the first 32 characters can be displayed as a file name (including the file extension) or a folder name.

• The unit may not work properly depending on the application used to encode WMA files.

• There may be a slight delay at the start of the playback of audio files embedded with image data, or audio files stored on a USB device with numerous folder hierarchies.

• Russian text to be displayed on this unit should be encoded in one of the following character sets: – Unicode (UTF-8, UTF-16) – A character set other than Unicode that is used in a Windows environment and is set to Russian in the multi-language setting CAUTION

• Pioneer cannot guarantee compatibility with all USB mass storage devices, and assumes no responsibility for any loss of data on media players, smartphones, or other devices while using this product.

• Do not leave discs or a USB storage device in any place that is subject to high temperatures. WMA files Compressed audio compatibility File extension .wmaBit rate 48 kbps to 320 kbps (CBR), 48 kbps to 384 kbps (VBR)Sampling frequency 32 kHz, 44.1 kHz, 48 kHz- 21 - English MP3 files WAV files

• WAV file formats cannot be connected via MTP. FLAC files

• FLAC file formats cannot be connected via MTP.

• FLAC files may not be playable, depending on the encoder. Disc

• Regardless of the length of the blank section between the songs from the original recording, compressed audio discs play with a short pause between songs. USB device

• There may be a slight delay when starting playback of audio files on a USB storage device with numerous folder hierarchies. The user cannot assign folder numbers and specify playback sequences with this unit. Sequence of audio file depends on the connected device. Note that the hidden files in a USB device cannot be played back. Windows Media™ Audio Professional, Lossless, Voice/DRM Stream/Stream with video Not compatible File extension .mp3 Bit rate 8 kbps to 320 kbps (CBR), VBR Sampling frequency 8 kHz to 48 kHz (32 kHz, 44.1 kHz, 48 kHz for emphasis) Compatible ID3 tag version 1.0, 1.1, 2.2, 2.3, 2.4 (ID3 tag Version 2.x is given priority over Version 1.x.) M3u playlist Not compatible MP3i (MP3 interactive), mp3 PRO Not compatible File extension .wav Quantization bits 8 and 16 (LPCM), 4 (MSADPCM) Sampling frequency 16 kHz to 48 kHz (LPCM), 22.05 kHz and

File extension .flac Sampling frequency 8/11.025/12/16/22.05/ 24/32/44.1/48 kHz Quantization bit rate 16 bit Channel mode 1/2 ch Playable folder hierarchy Up to eight tiers (A practical hierarchy is less than two tiers.) Playable folders Up to 99 Playable files Up to 999 File system ISO 9660 Level 1 and 2, Romeo, Joliet Multi-session playback Compatible Packet write data transfer Not compatible Playable folder hierarchy Up to eight tiers (A practical hierarchy is less than two tiers.) Playable folders Up to 500 Playable files Up to 15 000 Playback of copyright- protected files Not compatible Partitioned USB device Only the first partition can be played. Sequence of audio files- 22 - English Example of a hierarchy WMA Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. This product includes technology owned by Microsoft Corporation and cannot be used or distributed without a license from Microsoft Licensing, Inc. FLAC Copyright © 2000-2009 Josh Coalson Copyright © 2011-2013 Xiph.Org Foundation Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: –Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. –Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. –Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

OR IMPLIED WARRANTIES, INCLUDING, BUT

LIABLE FOR ANY DIRECT, INDIRECT, Russian character chart FolderCompressed audio file to : Playback sequence01 to 05: Folder number D: Display C: Character Copyright and trademark- 23 - English

INCIDENTAL, SPECIAL, EXEMPLARY, OR

CONSEQUENTIAL DAMAGES (INCLUDING,
