Frequently Asked Questions - 10029352 Klarstein

How do I set the temperature on the Klarstein 10029352 freezer?

To set the temperature, use the control knob located inside the freezer. Turn the knob to the right to lower the temperature and to the left to increase it.

What should I do if the freezer is not working?

First, check that the freezer is properly plugged in and that the outlet is working. Also, make sure the door is properly closed and the thermostat is set to the correct temperature.

How do I clean the Klarstein 10029352 freezer?

Unplug the freezer before cleaning it. Use a mixture of warm water and mild soap to wipe the interior. Avoid abrasive products that could damage the surface.

Is it normal for the freezer to make noise?

A slight noise is normal, especially when the compressor is running. However, if the noise is very loud or unusual, check that the freezer is level and that no objects are touching the walls.

How do I defrost the Klarstein 10029352 freezer?

To defrost, unplug the freezer and leave the door open. Place towels to absorb the water that drips. Never force defrosting with sharp tools.

Can I store hot food in the freezer?

It is recommended to let food cool to room temperature before placing it in the freezer to avoid raising the internal temperature.

What is the capacity of the Klarstein 10029352 freezer?

The capacity of this freezer is 100 liters, allowing storage of a large amount of frozen food.

How do I know if the freezer is working properly?

Regularly check the temperature inside the freezer. It should stay below -18b0C. Also, make sure the light turns on when you open the door.

What should I do if ice builds up inside the freezer?

Ice buildup may indicate a door seal problem. Check the door gasket and remove ice if necessary. Regular defrosting can also help.

USER MANUAL 10029352 Klarstein

Row of white kitchen and appliance icons including blender, kettle, refrigerator, air conditioner, fan, and microwave (no text or symbols)

White rectangular oven with open lid and internal grating (no text or symbols visible)

Gefriertruhe

10029351 10029352 10029353 10030929

KLARSTEIN

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability.

Contents

Technical Data 7

safety Instructions 7

Product Description 8

Installation 8

Use and Operation 9

Cleaning and Care 10

Troubleshooting 11

Hints on Disposal 11

Declaration of Conformity 11

Technische Daten

Item number 10029351 10029352 10029353			10030929
Power supply 220-240 V ~ 50-60 Hz
Annual power consumption 213 kWh 188 kWh 166 kWh
Capacity 200 L 145 L 100 L

Safety Instructions

• Read all the safety and operating instructions carefully and retain them for future reference.
• Do not put hot food inside the freezer.
• Wrap all food items with a plastic protection film to avoid dehydration and lose food flavour.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Young children should be supervised to ensure that they do not play with the appliance.
• If the supply cord is damaged·it must be replaced by the manufacturer·its service agent or similarly qualified persons in order to avoid a hazard.
• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not damage the refrigerant circuit.
• Do not use flammable appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer
• If you do not use the freezer for a long period of time, disconnect power, clean the inside parts, put the freezer in a dry area and leave the door slightly open.
  • The product is for household use only.

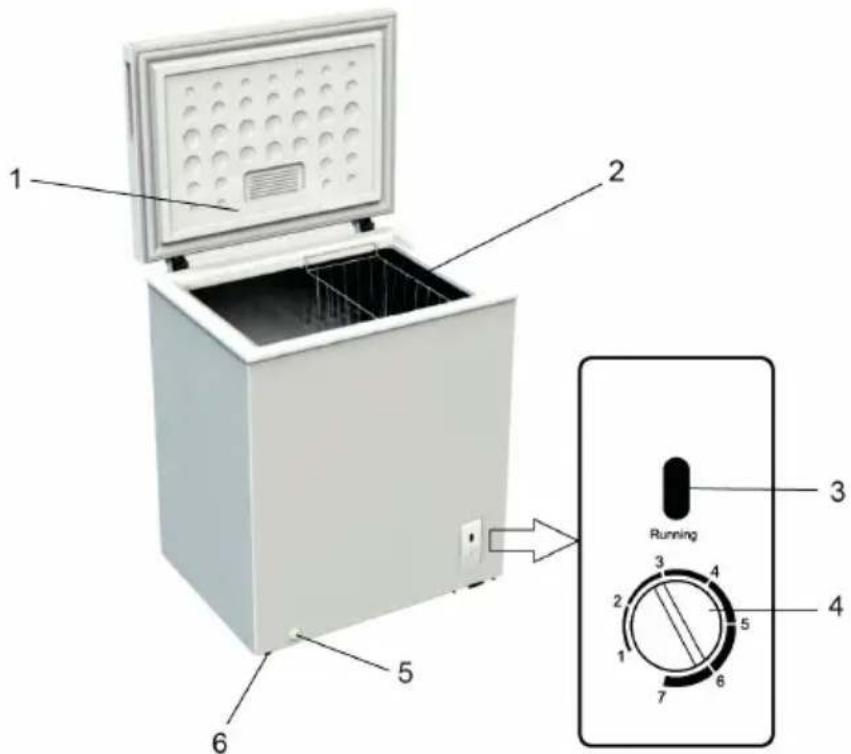

Product Description

1 Door
2 Basket
3 Running Indicator
4 Thermostat
5 Drain port
6 Wheels

1 2 Running 3 4 5 6

Installation

Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

Climate class SN N ST T
Ambient temperature 10-32 °C 16-32 °C 16-38	°C 16-43 °C

The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc. Ensure that air can circulate freely around the back of the cabinet. To ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabinet and the wall unit must be at least 100 mm. Ideally, however, the appliance should not be positioned below overhanging wall units. Accurate leveling is ensured by one or more adjustable feet at the base of the cabinet.

IMPORTANT: It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily accessible after installation.

Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply. The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.

Use and Operation

Before first Use

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly. Do not use detergents or abrasive powders, as these will damage the finish.

Temperature Setting

Set the temperature, on the temperature control knob.

• Position 1 – Cold Position
• Position 5 – Colder. Normally setting at this position
• Position 7 - Coldest

The appliance may not operate at the correct temperature if it is in a particularly hot or if you open the door often.

Freezing fresh food

The freezer is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time. Place the fresh food to be frozen in the bottom compartment. When first starting-up or after a period out of use. Before putting the product in the compartment let the appliance run at least 2 hours on the higher settings.

IMPORTANT: In the event of accidental defrosting, for example the power has been off for longer than the value shown in the technical characteristics chart under 8 hours, the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooked).

Thawing

Deep-frozen or frozen food, prior to be used, can be thawed in the freezer or at room temperature, depending on the time available for this operation. Small pieces may even be cooked still frozen, directly from the freezer. In this case, cooking will take longer.

Helpful hints and tips

• The freezing process takes 24 hours. No further food to be frozen should be added during this period.
• Only freeze top quality, fresh and thoroughly cleaned, foodstuffs.
• Prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required.
• Wrap up the food in aluminium foil or polythene and make sure that the packages are airtight.
• Do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter. Lean foods store better and longer than fatty ones; salt reduces the storage life of food.
• Water ices, if consumed immediately after removal from the freezer, can possibly cause the skin to be freeze burnt. It is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage time.

Hints for storage of frozen food

• Make sure that the commercially frozen foodstuffs were adequately stored by the retailer.
• Be sure that frozen foodstuffs are transferred from the food store to the freezer in the shortest possible time.
• Not open the door frequently or leave it open longer than absolutely necessary.
• Once defrosted, food deteriorates rapidly and cannot be refrozen.
• Do not exceed the storage period indicated by the food manufacture.

Cleaning and Care

Cleaning

• For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.
• Before cleaning switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse. Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical components. Hot vapors can lead to the damage of plastic parts. The appliance must be dry before it is placed back into service.
• Ethereal oils and organic solvents can attack plastic parts, e.g. lemon juice or the juice form orange peel, butyric acid, cleanser that contain acetic acid.
• Do not allow such substances to come into contact the appliance parts.
• Do not use any abrasive cleaners.
• Remove the food from the freezer. Store them in a cool place, well covered.
• Clean the appliance and the interior accessories with a cloth and lukewarm water.
  • After cleaning wipe with fresh water and rub dry.
  • After everything is dry place appliance back into service.

Defrosting of the freezer

The freezer, however, will become progressively covered with frost. This should be removed. Never use sharp metal tools to scrape off frost from the evaporator as you could damage it. However, when the ice becomes very thick on the inner liner, complete defrosting should be carried out as fellows:

• Unplug the unit. Remove the drain plug from the inside of the freezer. Defrosting usually takes a few hours. To defrost faster keep the freezer door open.
• For draining, place a tray beneath the outer drain plug.
• Pull out the drain dial.
• Rotate the drain dial 180 degree. This will let the water flow out in the tray.
• When done, push the drain dial in. Re-plug the drain plug inside the freezer.
• Note: Monitor the container under the drain to avoid overflow.
• Wipe the interior of the freezer and replace the electrical plug in the electrical outlet.
• Reset the temperature control to the desired setting.

Troubleshooting

Problem Possible	Cause Solution
Appliance dose not work.	Mains plug is not plugged in. Insert	mains plug.
	Fuse has blown or is defective. Check fuse, replace if necessary.
	Socket is defective. Malfunctions are to be corrected by an electrician.
Appliance freezes too much.	Temperature is set too cold or the appliance runs at “7” setting.	Turn the temperature regulator to a warmer setting temporarily.
The food is not frozen enough.	Temperature is not adjusted. Look in the initial Temperature Setting section.
	Door was open for an long period.	Open the door only as long as necessary.
	A large quantity of warm food was placed in the appliance within the last 24 hours.	Turn the temperature regulation to a colder setting temporarily.
	Appliance is near a heat source. Look in the installation location section.
Heavy build-up of frost on the door seal.	Door seal is not air-tight. Carefully warm the leaking sections of the door seal with a hair dryer (on a cool setting). At the same time shape the warm.
Unusual noises. Appliance is not level. Check the appliance and level it.

Hints on Disposal

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

According to the European waste regulation 2002/96/EC this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Declaration of Conformity

CE

Producer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)

643/2009/EC (ErP)

1060/2010/EU (ErP)
