10032330 - Kettle Klarstein - Free user manual and instructions

Product type	Electric kettle
Brand	Klarstein
Model	10032330
Article number	10032329, 10032330
Power supply	220-240 V ~ 50-60 Hz
Power	1800-2150 W
Capacity	Approx. 1.7 L
Dimensions (approx.)	22 x 15 x 24 cm
Weight (approx.)	1.2 kg
Housing material	Plastic
Base type	Base station with connector
Water level indicator	Yes, with scale
Temperature scale	Yes, graduated
Automatic shut-off function	Yes, after boiling
Overheating protection	Yes (dry run protection)
Operating indicator light	Yes
Lid opening	Manual, with locking
Cleaning and maintenance	Clean with a damp cloth, descale regularly with citric acid
Spare parts	Not specified, contact manufacturer
Repairability	Repair by authorized technician only
Compliance	CE (2014/30/EU, 2014/35/EU, 2011/65/EU)
Usage	Domestic only

Frequently Asked Questions - 10032330 Klarstein

What is the capacity of the Klarstein 10032330 kettle?

The kettle has a capacity of approximately 1.7 liters, suitable for heating water for several cups.

How to descale the kettle?

Use a descaling agent based on citric acid available in stores. Do not use vinegar. Follow the instructions of the descaling product.

What to do if the kettle turns off before the water boils?

This indicates significant scaling. Descale the appliance with a suitable descaling agent.

Can I immerse the kettle in water?

No, never immerse the kettle or its base in water. Clean only with a damp cloth.

How to use the kettle for the first time?

Boil fresh water without additives at least twice, then discard the water. This removes manufacturing residues.

What is the power of the kettle?

The power is between 1800 and 2150 W depending on the mains voltage.

Does the kettle have an automatic shut-off?

Yes, it turns off automatically when the water reaches boiling point. It also has dry run protection.

Can I heat liquids other than water?

No, the kettle is designed only for heating water. Do not put milk, loose tea, or other liquids in it.

How to clean the exterior of the kettle?

Unplug the appliance and wipe the housing with a damp cloth. Do not use abrasive products.

What to do if the power cord is damaged?

Have the cord replaced by the manufacturer or an authorized professional to avoid any risk.

USER MANUAL 10032330 Klarstein

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability.

CONTENT

Technical Data 7

Declaration of Conformity 7

Safety Instructions 8

Product Description 9

Before first Use 9

Operation 10

Care and Cleaning 10

Hints on Disposal 10

TECHNICAL DATA

Item number 10032329, 10032330
Power supply 220-240 V ~ 50-60 Hz
Power consumption 1800-2150 W

DECLARATION OF CONFORMITY

Producer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)

SAFETY INSTRUCTIONS

General Instructions

• Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.
• The appliance is not designed for commercial use. It is intended for use in domestic households and in similar working and residential environments, such as staff kitchen areas, farm houses, hotels, motels and bed and breakfast type environments.
• The appliance is designed exclusively for private use and for the envisaged purpose.
• This appliance is not fit for commercial use. Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Do not put it in water.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.
• Children should be supervised to ensure that they do not play with the appliance. Never leave the appliance unsupervised. To protect children from the dangers posed by electrical appliance, make sure that the cable is hanging low and that children do not have access to the appliance.
• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
• Use only original spare parts.
• Pay careful attention to the following "Special Safety Instructions".

Special Instructions

• Use only cold water when filling.
• The water level must be between the MAX. and MIN. marks! If the kettle is overfilled, boiling water may be ejected, which might arise a hazard to the user.
• Ensure that the kettle is switched off before removing it from its stand.

• The kettle is only to be used with the stand provided.
  The appliance must not be immersed.

• The appliance can only be used for household only.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  Always ensure that the lid is tightly closed.
• The base and exterior of the machine must not become wet.
• This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

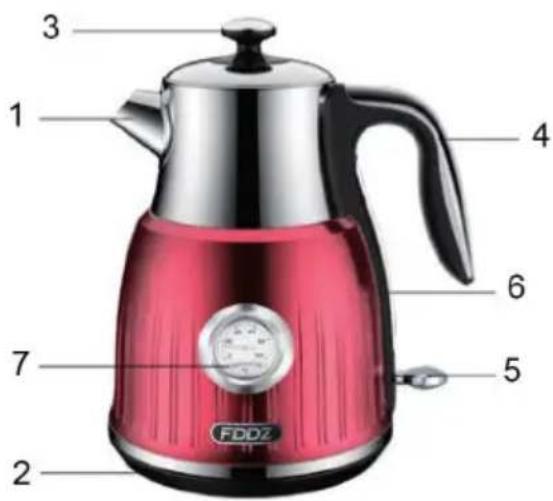

PRODUCT DESCRIPTION

1 Spout
2 Base station
3 Lid
4. Handle
5 On/Off switch
6 with indicator light
7 Water level
8 Temperature scale

BEFORE FIRST USE

Please read these operating instructions carefully and keep them in a safe place. Before using for the first time, boil fresh water at least twice in the appliance. Use only water without any additives or ingredients.

OPERATION

1 Place the machine on a flat surface.
2 Remove the lid. Then fill in some water. The water level can be read off using the water level indicator on the kettle. Please do not overfill the kettle.

3 Close the lid.

4 Place the kettle flush on the base.
5 Switch the kettle on with the switch in the handle bottom. The indicator light turns up.
6 The kettle switches off automatically when the water has boiled. Now dis- connect the kettle from the mains power supply. Always hold the lid closed when pouring the water out. Beware of scalding

CARE AND CLEANING

• Always pull out the plug from the socket before cleaning!
• The exterior of the machine should be cleaned, if necessary, with a slightly damp cloth without additives.

Decalcification

• The frequency of the decalcifying operation depends on the hardness of the water and on how often the appliance is used.
• If the machine switches off before the water boils, it probably needs to be decalcified.
• Please do not use vinegar but a commercially available decalcification agent on the basis of citric acid. Only use the quantities stated in the instructions.

HINTS ON DISPOSAL

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.
