USER MANUAL 10029178 Klarstein

Red and black studio-style kettle with a black handle, shown against a plain background (no text or symbols visible)

Wasserkocher

10029177

10029178

KLARSTEIN

Labeled diagram of a kettle with numbered parts for identification

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Congratulations on purchasing this Klarstein equipment. Please read this manual carefully and take care of the following hints on installation and use to avoid technical damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the operation and installation instructions are not covered by our warranty and any liability.

Contents

Technical Data 6

Safety Instructions 6

Product Description 7

Use and Operation 7

Use and Operation 7

Cleaning and Care 8

Environment Concerns 9

Declaration of Conformity 9

Technical Data

Item number 10029177, 10029178
Rated voltage 220-240 V ~ 50-60 Hz
Power 1850-2200 W
Capacity 1.7 Litres
Temperature (environment) > 5°C
Humidity (environment) < 80%

As the manufacturer is constantly working on improvement of its products, the design and technical specifications are subject to change without prior notice.

Safety Instructions

Read all the safety and operating instructions carefully and retain them for future reference.

• To protect against ceramical hazards do not immerse the mains plug, power base, or kettle in water or any other liquid.
• Do not use in the bathroom or near any source of water. Do not use outdoors.
• Do not touch hot surfaces. Use handles or knobs.
• Do not open the lid while the water is boiling.
  • Take care when pouring pour slowly, and do not overfill the kettle.
• Water can remain hot for a considerable time after boiling and can present a scald hazard. Keep the kettle, the power base, and the mains lead away from the edge of worktops and out of the reach of children.
• Do not allow the mains lead to hang over the edge of the table or worktop, or any where it may be accidentally caught or tripped over.
• Close supervision is necessary when any appliance is used near children.
• Unplug the power base from the wall socket when not in use, before repositioning and before cleaning. Allow the kettle to cool down fully before cleaning and before storing away.
• Ensure that the lid is closed before switching the kettle on, otherwise it may not switch off.
• Check that the kettle is properly located on the power base before switching it on.
• Do not switch on unless the kettle contains at least 1 cupful of water, otherwise you may damage it.

• Do not fill above the bottom of the max mark on the water level indicator (1.7 Liter)

• Remove the kettle from its power base before filling or pouring.

• Do not place the kettle, power base or mains lead on or near any hot surface, hotplate, hot hob or burner.
• Do not use the kettle for any purpose other than heating water.
• Use the kettle only with power base supplied (and vice versa)
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions. Or has been damaged in an manner. If the mains lead is damaged, it must be replaced by a special lead available from the Service department
• Ensure that the lid is closed before switch

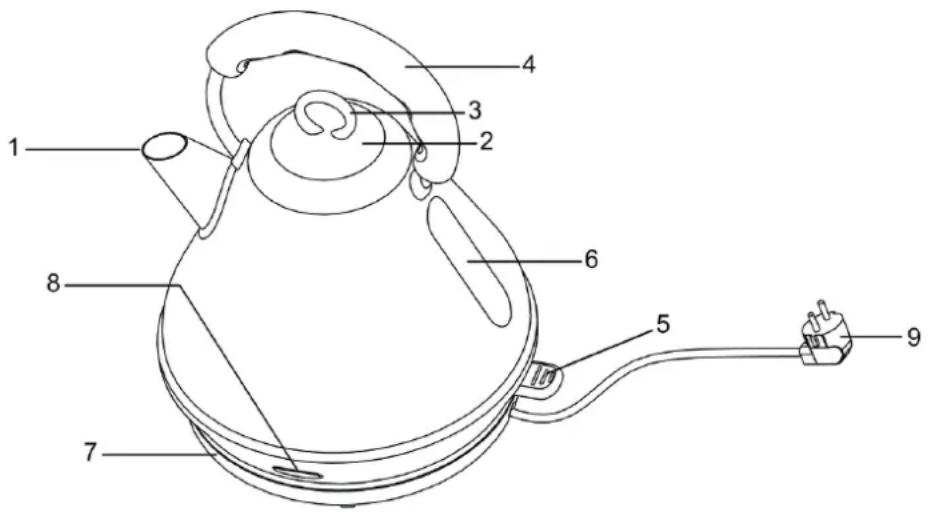

Product Description

1 Spout
2 Lid
3 Push Button of Lid
4 Handle
5 ON/OFF Switch
6 Water level Indicator
7 Cordless Power Base
8 Power Indicator
9 Power Cord

Technical diagram of a kettle with numbered parts labeled for identification

Before fi rst Use

Remove all packaging from the kettle and its power base. Before using the kettle for the first 'time, or if it has been out of use for a long time, fill to the max mark and boil, then discard the boiled water and rinse the kettle out with cold water.

Use and Operation

Position the power base as close to a wall socket as possible. Route the mains lead so that it does not overhang the work surface, and cannot be caught accidentally. Shorten the mains lead by winding it round the cord storage area under the power base, and bring it out of the cord exit cut into the base.

Opening the lid

• Remove the kettle from the power base (9).
• If the switch (7) has been pushed down inadvertently, it will spring up, into the position.

CAUTION

Risk of burns! If the kettle has just boiled, it will be full of steam, which will escape as soon as the lid is opened. Hold the handle firmly in one hand, grip the lid knob in the other, and pull the lid straight up. As soon as it separates from the kettle, move it out of the steam.

Filling

• Open the lid and fill the kettle via the lid aperture.
• Watch the level in the water level indicator. The water level must be below the max mark.
• Do not overfill the kettle. If the kettle is overfilled, there is a risk that boiling water may be ejected.
• Replace the lid and press it down. Check that it is fully closed; otherwise the kettle may not switch off when it boils.

Switching on

• Check that the switch is in the "OFF" position (lifts the kettle from the power base and set it down again).
• Plug the power base into the wall socket. If necessary, switch the socket on. Gently position the kettle on the power base, taking care not to spill any water.
• Press the switch down. The switch will light up, and the kettle will start to heat up.
• When the water has boiled the kettle will switch off automatically, the switch will return to the "OFF" position and the light will go out.

Switching off

If you need to switch the kettle off at any time before the water boils, simply lift it front the power base and set it down again. The switch will pop up, into the "OFF" position

General Hints on Use

• When you lift the kettle from the base, you may see moisture on the surface of the base. This is the steam used to switch the kettle off automatically, which then condenses and is allowed to escape via vents in the underside of the kettle, do not lift it backwards, as this may allow water to pass through the steam aperture on to the control area. Should this occur, the kettle must be allowed to dry before use.
• To avoid the risk of splashing, pour slowly and do not over-tilt the kettle.
• Do not switch the kettle on unless it contains at least one cup of water. Misuse of this kind will shorten the life of the element.
• If the kettle is accidentally switched on when it does not contain sufficient water, a boil-dry device will automatically switch it off. Wait until the kettle has cooled down before filling, as the element will be hot and spitting may occur

Cleaning and Care

Cleaning

• Switch the kettle off (lift it from the power base), unplug the power base from the wall socket and let the kettle cool down completely before cleaning.
• Wash the outside and inside surfaces of the kettle with a damp cloth. If necessary, you may use a little household detergent. To clean the filter, see "Water filter" below. If you use detergent inside the kettle, rinse thoroughly afterwards to remove all trace if the detergent.
• Ensure that all connectors and sockets are kept dry. Do not immerse the kettle or power base in water or any other liquid. Do not use harsh or abrasive cleaners or solvents.

Decaling

Scale build-up will cause the element to overheat, reducing its working life. It may also cause the safety cut out to operate prematurely, switching the kettle off before the water boils As the element is mounted beneath the kettle, there are no awkward nooks and crannies for the scale to get a foothold. It can build up only on the walls and floor of the kettle, where it can be seen and dealt with. To minimize scale build-up:

- Empty the kettle after each use; do not allow water to stand in the kettle overnight; use filtered water instead of ordinary tap water.

• Descale the kettle regularly using a proprietary brand of descaler suitable for use in plastic-bodied products. In areas of very hard water descaling may be necessary as often as once a month.
• When decaling, follow the instructions on the packet of descaler. When descaling has finished, empty the kettle and rinse it out several times with fresh water, then fill with fresh water, boil. And discard the water. This should ensure the no chemical residues are left in the kettle.

NOTE: Products returned during the guarantee period with faults that are directly related to scale built-up will be subject to a repair charge.

Water fi Iter

• The scale particles that remain suspended in the water may give it a cloudy or greasy appearance, depending on the hardness of the water. The fi Iter fi tted to your kettle will prevent these parties passing into your drink.
• You must ensure that the filter is kept clean and clear of deposits otherwise the performance of your kettle may be adversely affected, your drinks may contain scale particles, and the water inside the kettle may look cloudy.
• You should clean the filter whenever there are any noticeable deposits left on it, and especially if pouring is affected in any way.

Environment Concerns

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

According to the European waste regulation 2002/96/EG this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Declaration of Conformity

Producer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin.

CE

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)
