Thermacare Pro 2200 D5710 - Hair dryer REMINGTON - Free user manual and instructions

Brand	Remington
Model	Thermacare Pro 2200 D5710
Product type	Hair dryer
Power	2200 W
Temperature settings	3 settings (low, medium, high)
Speed settings	2 settings (low, high)
Cold air function	Yes, dedicated button
Included accessories	Concentrator, diffuser
Removable filter	Yes, removable inlet grille for cleaning
Safety	Automatic shut-off if grilles are blocked
Power supply	Mains, standard plug
Cord length	Approx. 1.8 m
Weight	Approx. 0.5 kg
Dimensions (L x W x H)	Approx. 20 x 10 x 30 cm
Hanging loop	Yes
Maintenance	Clean the air filter grille regularly
Use	Household use only
Recycling	Do not dispose of with household waste

Frequently Asked Questions - Thermacare Pro 2200 D5710 REMINGTON

How to use the diffuser to enhance curls?

Attach the diffuser to the hair dryer by screwing it clockwise. Tilt your head down, gently place your hair into the diffuser receptacle, and rotate the dryer slightly while drying.

How to set a hairstyle with cold air?

Once your hairstyle is complete, press the cold shot button while directing the airflow over your hair to set the style.

What to do if the hair dryer stops automatically?

This happens if the grilles are blocked. Turn off the appliance, let it cool down, then clear any obstruction from the inlet and outlet grilles.

How to clean the air filter?

Unplug the appliance and let it cool. Remove the inlet grille as shown (FIG A), clean it with a cloth or soft brush, then replace it.

Can I use styling sprays with this appliance?

No, styling sprays contain flammable substances. Do not use them while the appliance is in use.

What accessories are included?

The appliance comes with a concentrator for targeted drying and a diffuser for curls.

How to store the cord?

Do not wrap it around the appliance. Inspect the cord regularly and store it without excessive bending.

Can I use this hair dryer in my bathroom?

Yes, but with caution. Do not use it near a bathtub or sink filled with water. Unplug it after use and preferably use a 30 mA residual current device (RCD).

Is the hair dryer suitable for all hair types?

Yes, with its 3 temperature settings and 2 speeds, you can adapt the drying to your hair (fine, thick, curly, straight).

How to achieve fast drying?

Use the highest temperature and speed with the concentrator to direct air on one section at a time.

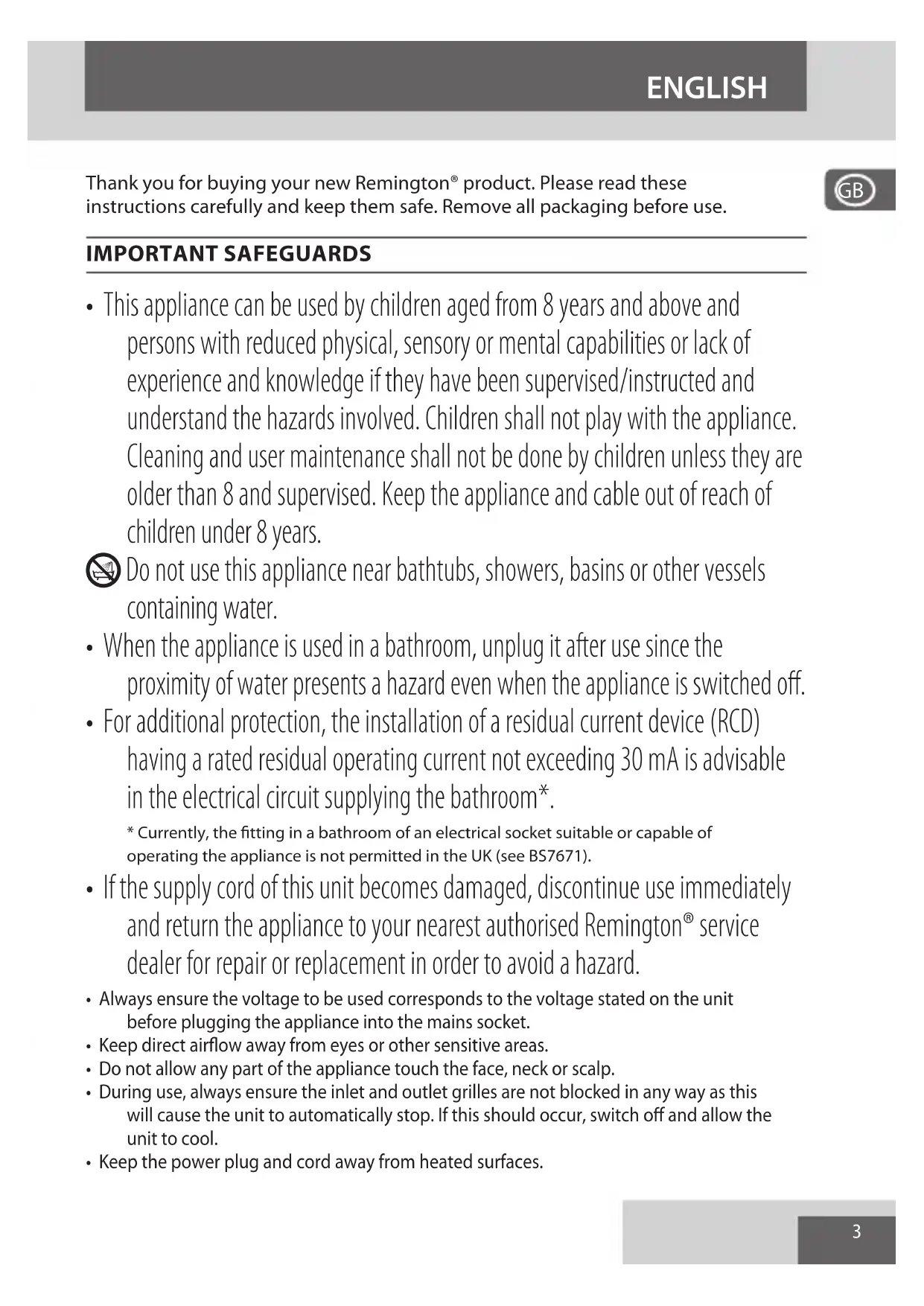

USER MANUAL Thermacare Pro 2200 D5710 REMINGTON

Thank you for buying your new Remington® product. Please read these instructions carefully and keep them safe. Remove all packaging before use.

IMPORTANT SAFEGUARDS

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/instructed and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children unless they are older than 8 and supervised. Keep the appliance and cable out of reach of children under 8 years.

Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

• When the appliance is used in a bathroom, unplug it after use since the proximity of water presents a hazard even when the appliance is switched off.

• For additional protection, the installation of a residual current device (RCD) having a rated residual operating current not exceeding 30mA is advisable in the electrical circuit supplying the bathroom*.

• Currently, the fitting in a bathroom of an electrical socket suitable or capable of operating the appliance is not permitted in the UK (see BS7671).

• If the supply cord of this unit becomes damaged, discontinue use immediately and return the appliance to your nearest authorised Remington® service dealer for repair or replacement in order to avoid a hazard.

• Always ensure the voltage to be used corresponds to the voltage stated on the unit before plugging the appliance into the mains socket.
• Keep direct airflow away from eyes or other sensitive areas.
• Do not allow any part of the appliance touch the face, neck or scalp.
• During use, always ensure the inlet and outlet grilles are not blocked in any way as this will cause the unit to automatically stop. If this should occur, switch off and allow the unit to cool.

• Keep the power plug and cord away from heated surfaces.

• Do not leave the appliance unattended while plugged in.

• Do not place the appliance on any soft furnishings.
• Do not use attachments other than those we supply.
• Do not set the appliance down while still on.
• Do not twist or kink the cable, or wrap it round the appliance.
• Do not use the appliance if it is damaged or malfunctions.
• Check the cord regularly for any sign damage.
• This appliance is not intended for commercial or salon use.

PARTS

1.Grille
5. Concentrator
2. Heat selector switch ( , , )
6. Inlet grille
3. Speed selector switch (0, x, y)
7. Hang up loop
4. Cool shot

INSTRUCTIONS FOR USE

1. Wash and condition your hair as normal.
2. Squeeze out excess moisture with a towel and comb through. Hairsprays contain flammable material - do not use while using this product.
3. Attach the concentrators or diffuser by fitting it to the front of the hairdryer and twisting clockwise to lock it.
4. Plug the product into the mains power supply.
5. Switch your hairdryer on and select the desired speed setting (low or high) using the speed selector switch.
6. Select the desired heat setting (low, medium or high) using the heat selector switch.
7. After use, turn the appliance off and unplug it.
8. Let the appliance cool down before cleaning or storing away.

TIPS

• For fast drying use the high heat / high speed function.
• To create smooth styles use the concentrator and a round hair brush (not included) whilst drying.
• To set your style, press the cool shot button whilst styling.

CLEANING AND MAINTENANCE

• Unplug the appliance and allow to cool.
• To maintain peak product performance and to prolong motor life, it is important to regularly remove any dust and dirt from the inlet grille.
• Remove the grille as shown (FIG A), clean with a cloth or soft brush, then replace it.

RECYCLING

To avoid environmental and health problems due to hazardous substances, appliances and rechargeable and non-rechargeable batteries marked with one of these symbols must not be disposed of with unsorted municipal waste. Always dispose of electrical and electronic products and, where applicable, rechargeable and non-rechargeable batteries, at an appropriate official recycling/ collection point.

NOBTOPHAR NEPEPABOTKA

Bo n36eXaHHe BO3DeIcTBnBpeiNbIX BeIeCTB Ha OkpyKaIOU cyepu I 3IOPOBBe np6Opbl 6batapeo OndopaoBOrO nn MHOropa3OBOrO nCpOJIb3OBAHn, PomeeHHbIe OndHM n3 3Tnx CmMBoJOB, Heo6xOIMo yTuIN3NpOBaTb OTJeBHOOT HecOPTnpOBaHHbIX 6bITOBbIX OTxOIOB. O6aTeJIbHO yTuIN3NpyTe 3JIeKTPnueckne I 3JIeKTPoHHbIe N3dEJIy, a TaKxe (ecIn 3TO npImeHMo) 6batapeo OndopaoBOrO nn MHOropa3OBORO nCpOJIb3OBAHn B COOTBeTCTByIOUX oΦNiuaJIbHbIX pYHKTaX NOBtOPHO nepepa6OTKn / c6opa OTxOIOB.

c( g + 1) = d

16 ÷ 52

J 1000000000000000000000000000000000000000000000000000000000000000000000000

S_ OBC = S_ COD + S_ BOC

Ref. No. D5710

Type No. D12A

Remington® is a Registered Trade Mark of Spectrum Brands, Inc.,

or one of its subsidiaries

VARTA Consumer Batteries GmbH & Co. KGaA, Alfred-Krupp-Str. 9, 73479 Ellwangen, Germany

www.remington-europe.com
