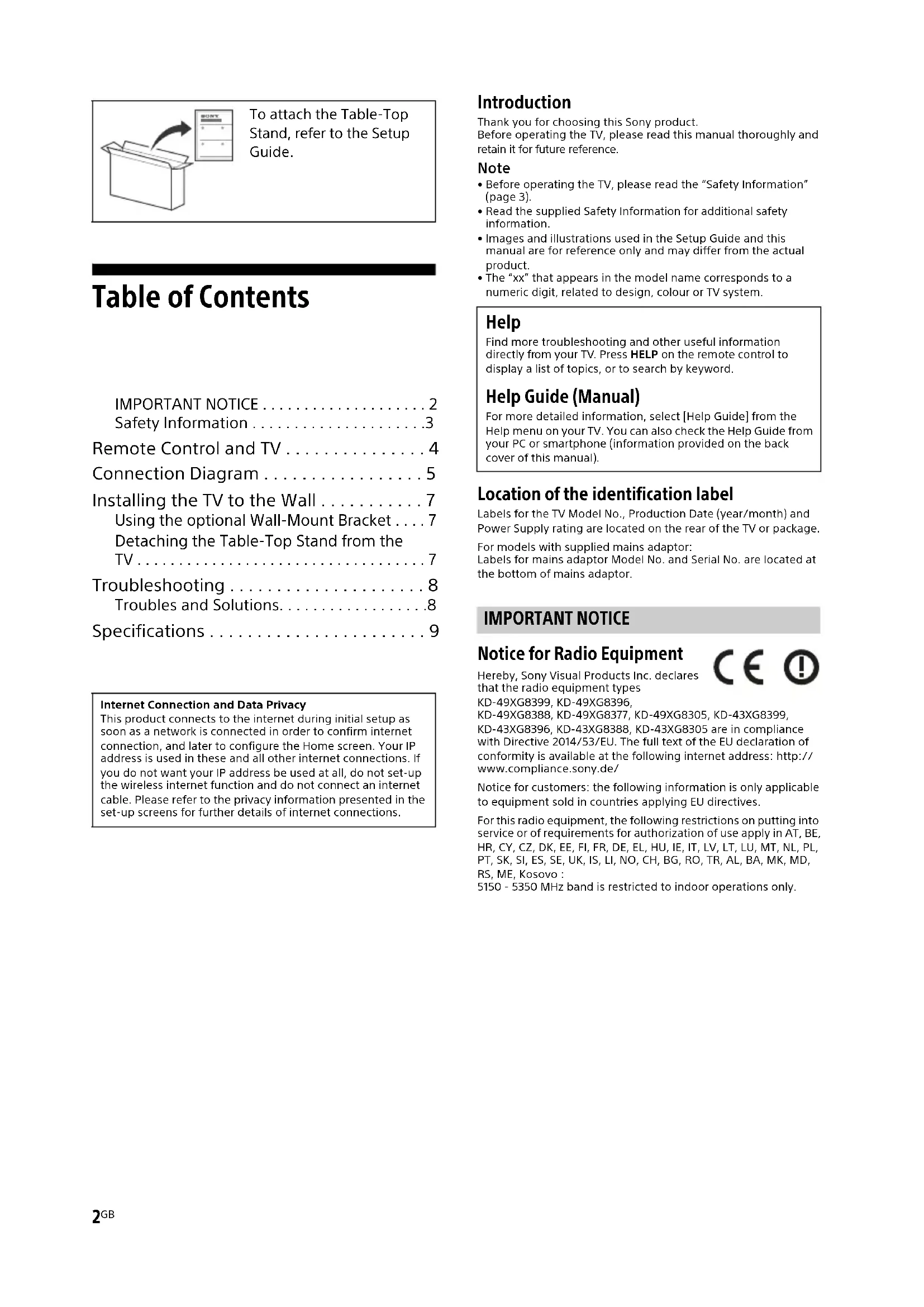

USER MANUAL Bravia KD49XG8399 SONY

• Before operating the TV, please read the “Safety Information” (page 3).• Read the supplied Safety Information for additional safety information.• Images and illustrations used in the Setup Guide and this manual are for reference only and may differ from the actual product.• The “xx” that appears in the model name corresponds to a numeric digit, related to design, colour or TV system. Location of the identification label Labels for the TV Model No., Production Date (year/month) and Power Supply rating are located on the rear of the TV or package.For models with supplied mains adaptor:Labels for mains adaptor Model No. and Serial No. are located at the bottom of mains adaptor. IMPORTANT NOTICE Notice for Radio Equipment Hereby, Sony Visual Products Inc. declares that the radio equipment types KD-49XG8399, KD-49XG8396, KD-49XG8388, KD-49XG8377, KD-49XG8305, KD-43XG8399, KD-43XG8396, KD-43XG8388, KD-43XG8305 are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.compliance.sony.de/Notice for customers: the following information is only applicable to equipment sold in countries applying EU directives.For this radio equipment, the following restrictions on putting into service or of requirements for authorization of use apply in AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, EL, HU, IE, IT, LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, UK, IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS, ME, Kosovo :5150 - 5350 MHz band is restricted to indoor operations only. To attach the Table-Top Stand, refer to the Setup Guide. Internet Connection and Data PrivacyThis product connects to the internet during initial setup as soon as a network is connected in order to confirm internet connection, and later to configure the Home screen. Your IP address is used in these and all other internet connections. If you do not want your IP address be used at all, do not set-up the wireless internet function and do not connect an internet cable. Please refer to the privacy information presented in the set-up screens for further details of internet connections. Help Find more troubleshooting and other useful information directly from your TV. Press HELP on the remote control to display a list of topics, or to search by keyword. Help Guide (Manual) For more detailed information, select [Help Guide] from the Help menu on your TV. You can also check the Help Guide from your PC or smartphone (information provided on the back cover of this manual).D:\_SONY TV\CHH2\SY19_CHH2_EU_RG_131\4748430131\4748430131_01GB\4748430131_01GB.fm master page: Right KD-49XG83xx / 43XG83xx 4-748-430-13(1)

Safety Information Installation/Set-up Install and use the TV set in accordance with the instructions below in order to avoid any risk of fire, electric shock or damage and/or injuries. Installation

• The TV set should be installed near an easily accessible mains socket.

• Place the TV set on a stable, level surface to prevent it from falling over and causing personal injury or property damage.

• Install the TV where it cannot be pulled, pushed, or knocked over.

• Install the TV so that the TV’s Table-Top Stand does not protrude out from the TV stand (not supplied). If the Table-Top Stand protrudes out from the TV stand, it may cause TV set to topple over, fall down, and cause personal injury or damage to the TV.

• Only qualified service personnel should carry out wall-mount installations.

• For safety reasons, it is strongly recommended that you use Sony accessories, including: Wall-Mount Bracket SU-WL450

• Be sure to use the screws supplied with the Wall-Mount Bracket when attaching the Wall-Mount Bracket to the TV set. The supplied screws are designed as indicated by illustration when measured from the attaching surface of the Wall-Mount Bracket. The diameter and length of the screws differ depending on the Wall-Mount Bracket model. Use of screws other than those supplied may result in internal damage to the TV set or cause it to fall, etc. Transporting

• Before transporting the TV set, disconnect all cables.

• Two or more people are needed to transport a large TV set.

• When transporting the TV set by hand, hold it as shown below. Do not put stress on the LCD panel and the frame around the screen.

• When lifting or moving the TV set, hold it firmly from the bottom.

• When transporting the TV set, do not subject it to jolts or excessive vibration.

• When transporting the TV set for repairs or when moving, pack it using the original carton and packing material. Topple prevention Screw (M6) Wall-Mount Bracket TV’s rear cover 8 mm – 12 mm

Screw (not supplied) 8 mm – 12 mm M6 screw (not supplied)

Remote Control and TV The remote control shape, location, availability and function of remote control buttons may vary depending on your region/ country/TV model. / (Input select/Text hold) In TV mode: Display and select the input source. In Text mode: Hold the current page. (Microphone): Use voice search. (e.g., Search various content by voice.) The voice search requires an Internet connection. (TV standby) DIGITAL/ANALOG: Switch between digital and analogue input. TV/RADIO: Switch between TV or RADIO broadcasts. EXIT

• For models with supplied IR Blaster, connect and set up the IR Blaster (page 6).

• The External Box menu may be displayed for some HDMI CEC compatible devices when the IR Blaster is not supplied/ connected. Number buttons / (Info/Text reveal): Display information. (Text): Display text information. Google Play NETFLIX (Only on limited region/ country/TV model) Colour buttons ACTION MENU: Display a list of contextual functions. GUIDE/ : Display the digital programme guide, or EPG of External Box (cable/satellite box) after setting [IR Blaster setup] (IR Blaster compatible models only). APPS: Access various services and applications. BACK/ HOME TV: Switch to a TV channel or input and display the TV Menu Bar. //// (Navigation D-Pad): On screen menu navigation and selection. +/– (Volume) (Jump) (Mute) PROG +/–// In TV mode: Select the channel. In Text mode: Select the next () or previous () page. AUDIO: Select the sound of multilingual source or dual sound (depend on programme source).

(Subtitle setting) HELP: Display the Help menu. REC: Record the currently viewed programme on the USB HDD. TITLE LIST: Display the Title list.

(Power) Remote Control sensor

• Do not place anything near the sensor. MIC

Connection Diagram For more information on connections, refer to the Help Guide by pressing HELP on the remote control.

• Provides access to pay TV services. For details, refer to the instruction manual supplied with your CAM.

• Do not insert the smart card directly into the TV CAM slot. It must be fitted into the Conditional Access Module provided by your authorised dealer.

• CAM is not supported in some countries/ areas. Check with your authorised dealer.

• Connecting a large USB device may interfere with other connected devices beside it.

• When connecting a large USB device, connect to the USB 1 port.

• Connect a USB HDD device to the USB 3 port (blue). AUDIO OUT /

• Supports 3-pole stereo mini jack only.

• To listen to the TV’s sound through the connected equipment, press HOME. Select [Settings] t [Sound] t [Headphone/Audio out] and then select the desired item. HDMI IN 1/2/3/4

• HDMI interface can transfer the digital video and audio on a single cable.

• HDMI IN 2/3 To enjoy high quality 4K 50p/60p contents, connect a Premium High Speed HDMI cable to the HDMI IN 2/3 and set the [HDMI signal format] to [Enhanced format]. For details of supported formats, refer to the “Specifications” in this manual (page 9-10).

• HDMI IN 3 ARC (Audio Return Channel) Connect your audio system to the HDMI IN 3 to route TV audio to your audio system. An audio system that supports HDMI ARC can send video to the TV, and receive audio from the TV via the same HDMI cable. If your audio system does not support HDMI ARC, an additional connection with DIGITAL AUDIO OUT (OPTICAL) is necessary. IR BLASTER*

• Use your Sony remote control to control your External Box (cable/satellite box). Connect the IR Blaster Cable*

to the IR Blaster port on your TV. Place one or both of the other two ends as shown below.

• To perform IR Blaster setup, press HOME and select [Settings] t [External inputs] t [IR Blaster setup]. (RF input), (Satellite input)

• Connections for terrestrial/cable and satellite. Connection steps: SUB. t MAIN t Antenna

• For SUB. jack, connect only when you are using twin tuner mode except for Single Cable Distribution EN50494. *1 When connecting mono equipment, connect to the L (MONO) audio jack (socket).*2 For an external device which has only SCART AV OUT, use a SCART-RCA adaptor.*3 Only on limited region/country/TV model.

Installing the TV to the Wall Using the optional Wall-Mount Bracket This TV’s instruction manual only provides the steps to prepare the TV for Wall-Mount installation before it is installed on the wall. To Customers: For product protection and safety reasons, Sony strongly recommends that installation of your TV be performed by Sony dealers or licensed contractors. Do not attempt to install it yourself. To Sony Dealers and Contractors: Provide full attention to safety during the installation, periodic maintenance and examination of this product. Use the Wall-Mount Bracket SU-WL450 (not supplied) to install the TV to the wall. When installing the Wall-Mount Bracket, also refer to the Operating Instructions and Installation Guide supplied with the Wall-Mount Bracket. Note

• Be sure to store the removed screws in a safe place, keeping them away from children.
• Place the TV with its screen facing down on a level and stable surface covered with a thick and soft cloth when removing the Table-Top Stand from the TV to prevent damaging the surface of the LCD display. Remove the screws from the rear of the TV. Detaching the Table-Top Stand from the TV Sufficient expertise is required for installing this product, especially to determine the strength of the wall for withstanding the TV’s weight. Be sure to entrust the attachment of this product to the wall to Sony dealers or licensed contractors and pay adequate attention to safety during the installation. Sony is not liable for any damage or injury caused by mishandling or improper installation. For instructions on Wall-Mount Bracket installation, see the Installation Information (Wall-Mount Bracket) on the product page for your TV model.www.sony.eu/support/ GBD:\_SONY TV\CHH2\SY19_CHH2_EU_RG_131\4748430131\4748430131_01GB\4748430131_01GB.fm master page: Left KD-49XG83xx / 43XG83xx 4-748-430-13(1)

Troubleshooting General troubleshooting for issues like: black screen, no sound, frozen picture, TV does not respond, or network is lost, do the following steps. 1 Restart your TV by pressing the power button on the remote control until a message appears. The TV will restart. If the TV does not recover, try unplugging the mains lead. Then press the power button on the TV and wait for two minutes, and plug in the mains lead. 2 Refer to the Help menu by pressing HELP on the remote control. 3 Connect your TV to the Internet and perform a software update. Sony recommends you to keep your TV software updated. Software updates provide new features and performance improvements. 4 Visit Sony support website (information provided on the front cover of this manual). When [A new TV system software update is available...] message is displayed. Sony strongly recommends you to update the TV software by selecting [Update Now]. These software updates improve your TV performance or add new features. The following screen with [Updating...] will appear and the illumination LED flashes white while software is updating. Do not unplug the mains lead during the software update. If you do, the software update may not finish completely, and it may cause a software malfunction. Software updates can take up to 15 minutes. When you plug in the TV, the TV may not be able to turn on for a while even if you press the power button on the remote control or the TV. It takes time to initialize the system. Wait for about one minute, then operate it again. Troubles and Solutions When the illumination LED is flashing in red.

• Count how many times it flashes (interval time is three seconds). Reboot the TV by disconnecting the mains lead until the illumination LED stopped flashing in red, then turn on the TV. If the problem persists, disconnect the mains lead, and contact your dealer or Sony service centre with the number of times the illumination LED flashes. Terrestrial/cable service cannot be received.

• Check the antenna (aerial)/cable connection and booster settings.

• Select terrestrial/cable service by pressing DIGITAL/ANALOG on the remote control. If the broadcasting service is not displayed, press TV and then press DIGITAL/ANALOG.

• Terrestrial signal might be suppressed if there is a strong signal supplied nearby. Set [LNA (CH ---)] to [Off] in digital tuning settings.

• After moving to a new house or trying to receive new services, attempt a service search by selecting [Digital tuning]. Satellite service cannot be received.

• Check the satellite cable connection.

• When [No signal. LNB overload detected...] message is displayed, unplug the mains lead. Then, ensure the satellite cable is not damaged and the satellite signal line is not short-circuited in the satellite connector. The remote control does not function.

• Replace the batteries. The EXT.BOX MENU button on the remote control does not work.

• Connect and set up the IR Blaster (models with supplied IR Blaster only) (page 6).

• Connect HDMI CEC compatible device (except models with supplied IR Blaster) and change to that input. The parental lock for broadcast password has been forgotten.

• Enter 9999 for the PIN code and select [Change PIN code]. The TV surrounds become warm.

• When the TV is used for an extended period, the TV surrounds become warm. You may feel hot when touching there by the hand. Updating...D:\_SONY TV\CHH2\SY19_CHH2_EU_RG_131\4748430131\4748430131_01GB\4748430131_01GB.fm master page: Right KD-49XG83xx / 43XG83xx 4-748-430-13(1)
