Features	Details
Type of hood	Decorative hood
Dimensions (W x D x H)	60 x 50 x 80 cm
Max air flow	600 m9/h
Power levels	3 power levels + intensive mode
Grease filter	Washable metal filter
Lighting	LED
Exhaust type	Exhaust or recirculation
Noise level	65 dB (max)
Installation	Wall-mounted
Energy consumption	Energy class C
Weight	10 kg
Warranty	2 years

Frequently Asked Questions - HCA62844GH BEKO

How do I clean the filters of the BEKO HCA62844GH hood?

To clean the filters, carefully remove them from the hood. Wash them in warm soapy water or in the dishwasher. Make sure they are completely dry before putting them back in place.

What should I do if the hood does not turn on?

Check that the hood is properly plugged in and that the circuit breaker has not tripped. If the problem persists, contact customer service.

How do I adjust the suction speed of the hood?

Use the control panel located at the front of the hood to select the desired suction speed. Options usually range from low to high.

The hood is making an unusual noise, what should I do?

An unusual noise may be caused by a dirty filter or an object stuck in the motor. Check the filters and remove any obstruction. If the noise persists, contact a technician.

How do I install the BEKO HCA62844GH hood?

Follow the installation instructions provided in the manual. Make sure to securely mount the hood to the wall and properly connect it to the exhaust or recirculation system.

What is the energy consumption of the hood?

The energy consumption of the BEKO HCA62844GH hood is indicated on the energy label provided with the product. Check this label for specific details.

How do I replace the bulb of the hood?

To replace the bulb, unplug the hood, remove the bulb cover, and replace the bulb with a new one of the same type. Replace the cover and plug the hood back in.

The hood does not filter odors well, what should I do?

Check that the grease filters and charcoal filters (if applicable) are clean and in good condition. Replace them if necessary to improve filtration efficiency.

USER MANUAL HCA62844GH BEKO

Please read this manual first!

Dear Customers!

Thank you for preferring a Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.

Remember that this user manual is also applicable for several other models. Differences between the models are explicitly described in the manual.

Meanings of the Symbols

Following symbols are used in the various section of this manual:

Important information and useful hints about usage.

WARNING:Warnings for dangerous situations concerning the safety of life and property.

Warning for electric shock.

Warning for hot surfaces.

This product has been manufactured in environmental friendly modern plants without giving any harm to the nature.

ENGLISH	5-17
DEUTSCH	18-34
БългарCKи	35-51
ČESKY 52-66
NEDERLANDS	67-83
ESTONIAN 84-98
FRANÇAIS 99-115
HRVATSKI 116-130
ITALIANO 131-146
LIETUVIU 147-162
POLSKI 163-178
PORTUGUES 179-195
PYCCKМ 196-213
SLOVAKIA 214-228
LATVIJAS	229-245

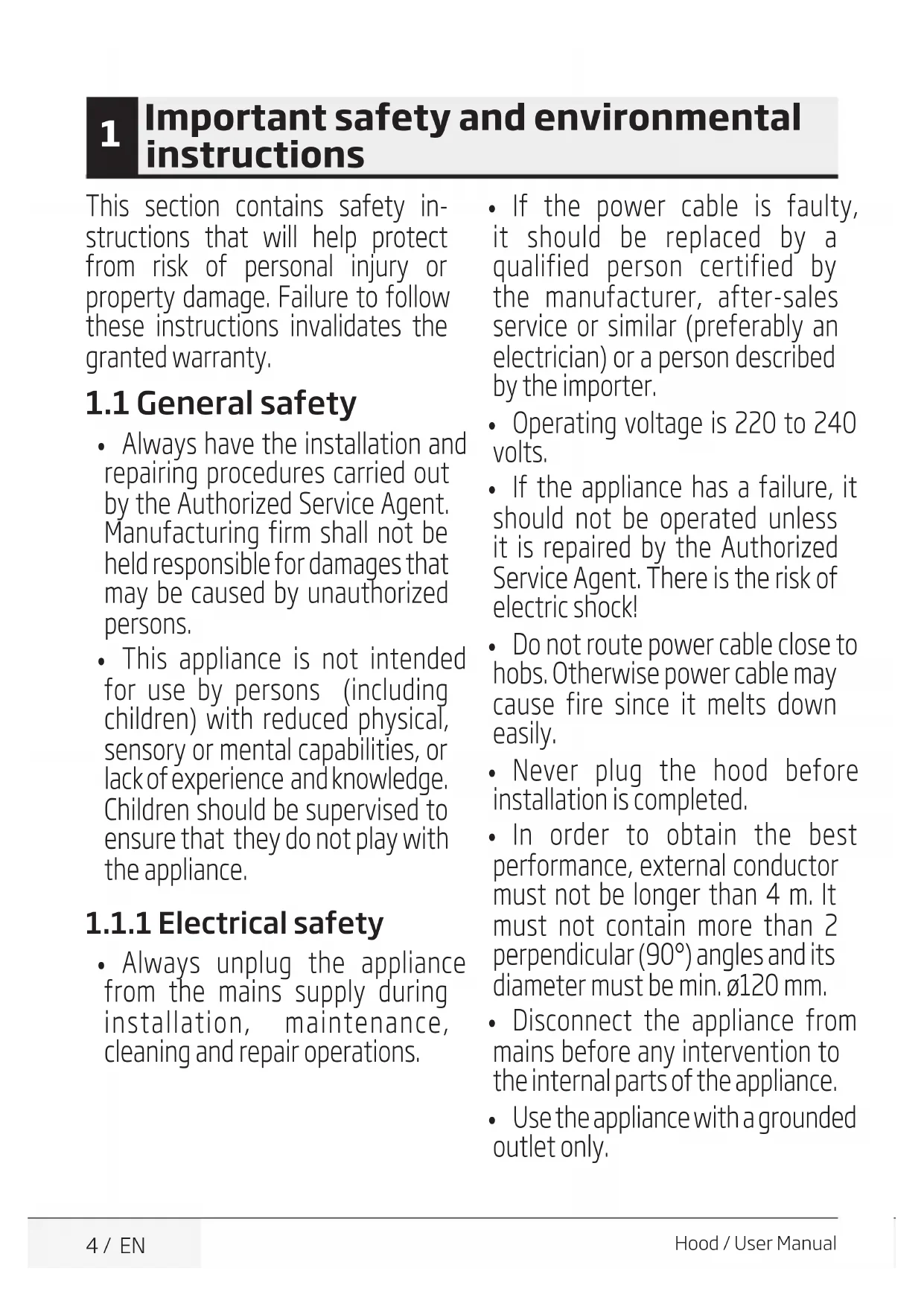

Important safety and environmental instructions

This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions invalidates the granted warranty.

1.1 General safety

• Always have the installation and repairing procedures carried out by the Authorized Service Agent. Manufacturing firm shall not be held responsible for damages that may be caused by unauthorized persons.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge. Children should be supervised to ensure that they do not play with the appliance.

1.1.1 Electrical safety

Always unplug the appliance from the mains supply during installation, maintenance, cleaning and repair operations.

• If the power cable is faulty, it should be replaced by a qualified person certified by the manufacturer, after-sales service or similar (preferably an electrician) or a person described by the importer.
• Operating voltage is 220 to 240 volts.
• If the appliance has a failure, it should not be operated unless it is repaired by the Authorized Service Agent. There is the risk of electric shock!
• Do not route power cable close to hobs. Otherwise power cable may cause fire since it melts down easily.
• Never plug the hood before installation is completed.
  In order to obtain the best performance, external conductor must not be longer than 4m . It must not contain more than 2 perpendicular (90^) angles and its diameter must be min. 120mm
• Disconnect the appliance from mains before any intervention to the internal parts of the appliance.
• Use the appliance with a grounded outlet only.

1

Important safety and environmental instructions

1.1.2 Product safety

• You can use a pipe with a diameter of 120mm or 150mm on the flue connection of the hood.
• Do not make connections to the flues connected with stoves, exhaust shafts or flues with rising flames. Observe the rules set by authorities on the discharge of exhaust air.
• The height between the lower surface of the hood and upper surface of the stove/oven should not be less than 50~cm for gas hobs and 45~cm for electric hobs.
• Do not operate the hood without aluminum filters and do not remove the filters while it is operated.
• Never touch the hood's lamps after they are operated for a long time. Hot lamps may burn your hand.
• Avoid large flames beneath the product. Otherwise, particles on oil filter may ignite and lead to a fire.

• Turn on the hobs after placing pans or pots on it. Otherwise, rising heat may deform certain parts of your product.

• Turn off the hobs before taking away pans or pots.

• Avoid inflammable materials under the hood.
• Oil may ignite while frying foods. Therefore, be careful about cloths and curtains.
• Never leave the cooker unattended when frying foods; otherwise hot oil may cause fire.
• There is the risk of fire if your hood is not cleaned in the specified periods.
• Be extremely careful and wear gloves when cleaning the hood.
• We advise you to operate the appliance a few minutes before starting to cook in order to increase the suction power. Thus, you shall have a continuous and stable suction power when the vapors arise.
• Operate your hood for 15 minutes more after the end of cooking or frying in order to remove the smell and cooking vapor in the kitchen.
• When the hood is in use, especially together with gas cookers, make sure that environment is ventilated with clean air.

1

Important safety and environmental instructions

• Pay attention not to connect the appliance to the flues used by non-electrical devices. (E.g.: Heater flue).
• Simultaneous and smooth operation of the hood and another device that require air is only possible when a low pressure of 4 Pa (0.04 mbar) is reached, and thus the reabsorption of the gas is avoided. This can only be achieved by means of air coming from uncovered openings (door, window, ventilation openings or other technical measures). Pay utmost attention to provide sufficient air flow. A flue that provides air ingress/egress is not enough for this purpose.

1.1.3 Children's safety

• Packaging materials are dangerous to children. Keep packaging materials in a safe place out of reach of children.

• Electrical appliances are dangerous to children. Keep children away from the product. Do not allow children play with the appliance.

• This appliance can be used by the children who are at the age of 8 or over and by the people who have limited physical, sensory or mental capacity or who do not have knowledge and experience, as long as they are supervised with regard to safe use of the product or they are instructed accordingly and understand the risks of using the product. Children should not play with the appliance.

• CAUTION: Accessible parts may heat up when used with a cooking device.

1.2 Intended use

• This appliance is intended for domestic use. It is not suitable for commercial use and it must not be used out of its intended use.
• The manufacturer shall not be liable for any damage caused by improper use or handling.
  Service life of your appliance is 10 years. This is the period required for availability of spare parts for proper functioning of the product.
• WARNING: Failure to fix the screws in concordance with the instructions provided in the manual may lead to electrical hazards.

1

Important safety and environmental instructions

1.3 Compliance with WEEE Directive and disposing of the waste product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

Compliance with RoHS Directive:

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Package information

Package of the product is made of recyclable materials in accordance with our National Legislation. Do not dispose of

the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2 Technical specifications of your appliance

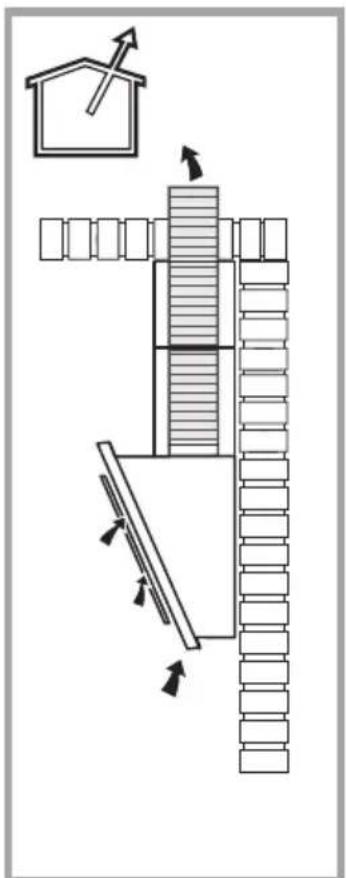

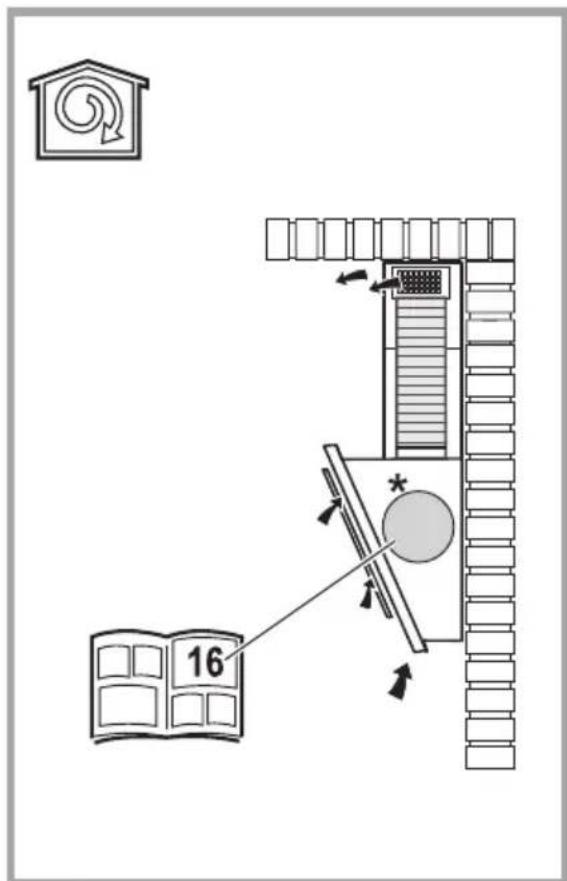

Usage with charcoal filterUsage with flue

Markings on the product or the values stated in other documents supplied with the product are values obtained under laboratory conditions as per relevant standards. These values may vary depending on operational and environmental conditions of the product.

B Installing your appliance

Please consult the nearest Authorized Service Agent for the installation of the hood.

*Preparation of location and electrical installation for the product is under customer's responsibility.

WARNING: Remove the protective film (if any) on the hood and flue surface after the installation.

The height between the lower surface of the hood and upper surface of a hob should not be less than 50~cm for gas hobs and 45~cm for electric hobs.

Have a qualified electrician make the electrical connection.

Install your product so that you can reach the power connection (plug, outlet) easily after installation.

Dimensions are given in mm.

3.1. Power connection

• Main power supply should comply with the values indicated on the plate inside the hood. Connect the hood to an outlet in compliance with current regulations by means of a plug and place it within an accessible area. After installation; if device doesn't have a plug (direct mains supply connection) or plug is out of reach, use a double-pole switch in line with standards, that enables disconnection of main plug under circumstances related to overcurrent category III.

WARNING: Before reconnecting the hood to main power source and checking if it functions correctly, ensure that main power cable is connected properly.

• The hood is equipped with a special power cable. Contact Authorised Service Agent if the the power cable is damaged.

3.2. Installation

3.2.1 Before you start installation:

• Check that the product purchased has appropriate sizes for installation location.
• Remove the active charcoal (*) filter if supplied (see also relative paragraph). That/those will only be installed if you want to use the hood as a filtered model.
• Check if any other material (such as screw package () , warranty card () etc.) is delivered in the hood and if available, remove them and keep elsewhere.
• If possible, remove freestanding or sliding hob and pull it aside in order to reach rear wall / ceiling easily. If not possible, cover the bench, hob or oven with a thick protective cloth in order to secure them against damage and dirt. Select a flat surface to install the appliance. Cover the surface with a protective cloth and place all awning hood parts and hardware in it.
• Besides; check if a plug is available on assembly area of hood (besides, on the accessible area after assembling the hood) and check if connecting the hood to outside (only for the model with aspiration) is possible.
• Finish all required operations related to wall (e.g. plugging power plug and/or opening a hole for discharge hose).

Wide dowels are available to allow for fixing the hood on a variety of wall/ceiling types. Additionally, conformity of material to wall/ceiling type should be confirmed by a qualified technician. Wall/ceiling should be able to sustain the hood. Do not assemble the appliance on tile, plaster or silicon surfaces. Assemble it only on to a wall.

If a panel and/or side wall and/or furniture exist, check that there is sufficient place for assembly of hood and that control panel is easily accessible.

3 Installing your appliance

3.2.2 Preparation for the Assembly of the Hood onto the Wall

Information required for the preparation of the installation place for your hood is given below.

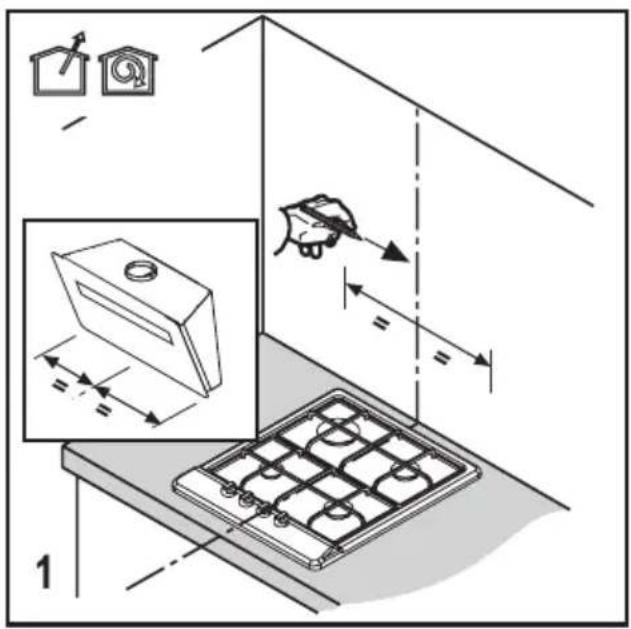

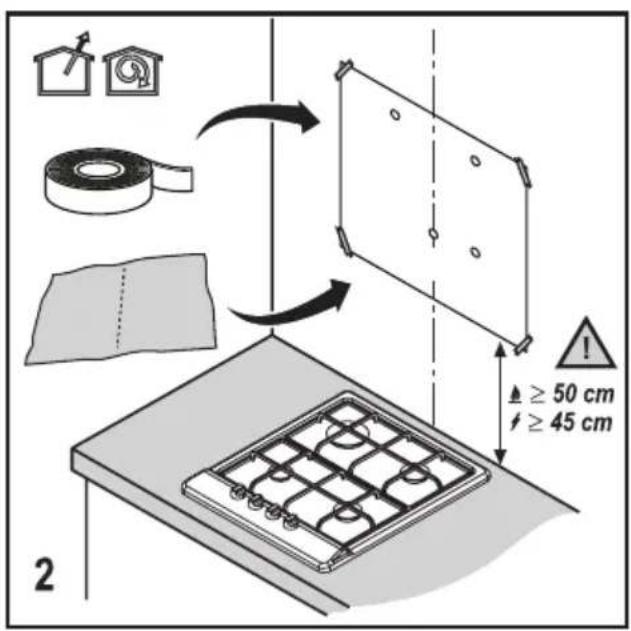

1. Mark the surface where assembly template is going to be hung. (Figure 1)

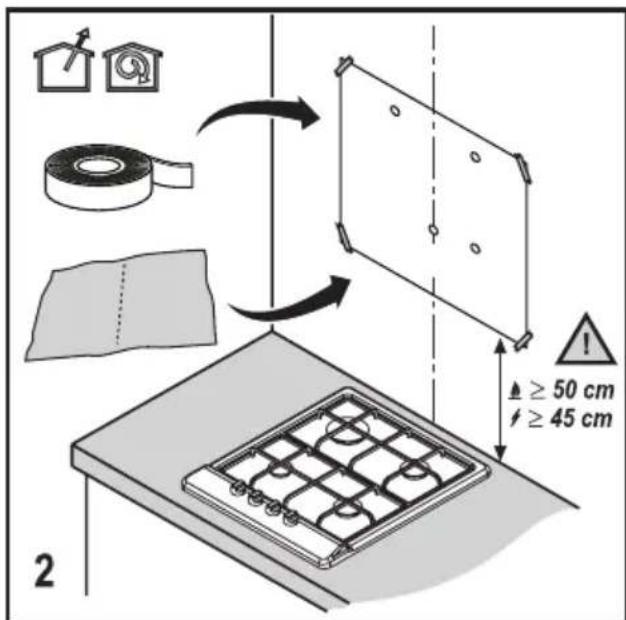

1. Affix the assembly template onto the installation place of the hood. (Figure 2)

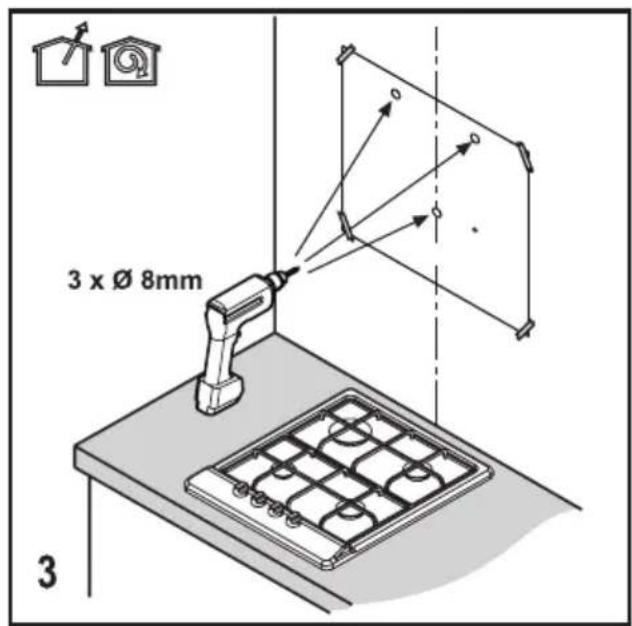

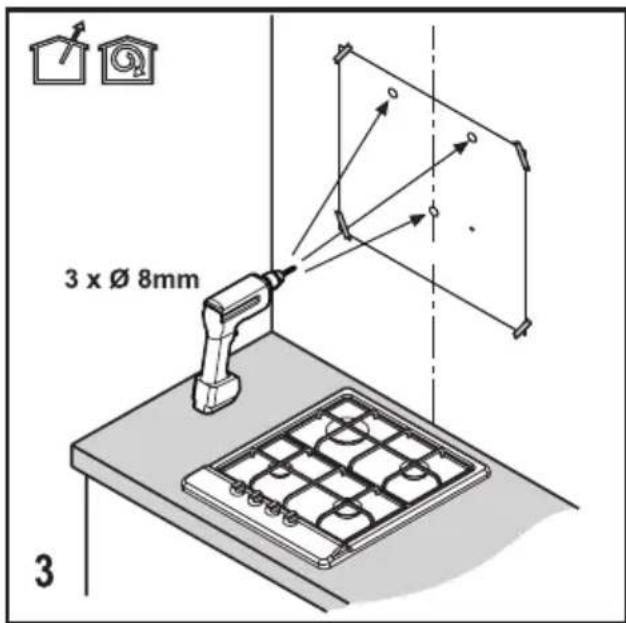

1. Drill a hole with 0 8 mm bit on marked points. (Figure 3)

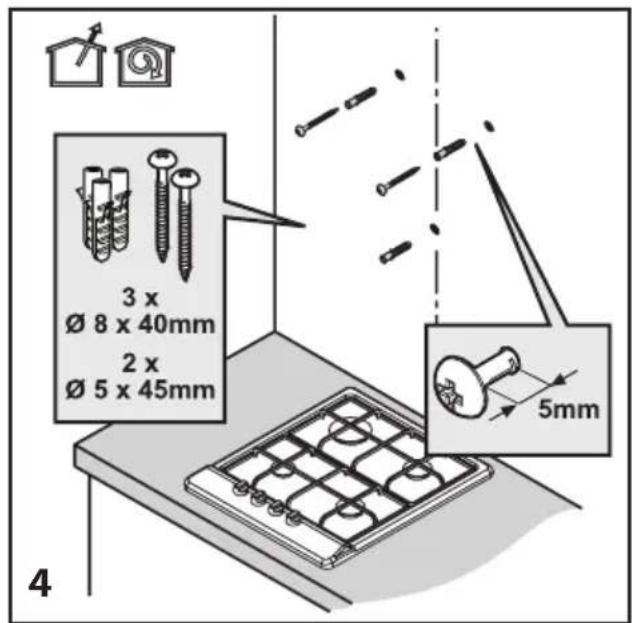

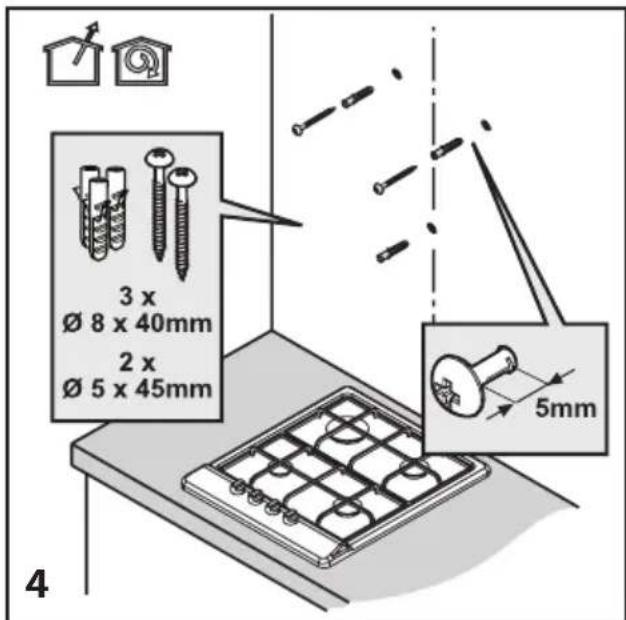

1. Hammer 3 pieces of 0.8 × 40 mm dowels in drilled holes. Screw 2 pieces of 0.5 × 45 mm hanging screws to dowels hammered above. There must be a gap of 5 ~mm between the screw head and the wall. (Figure 4)

3.2.3 Assembling the hood flue

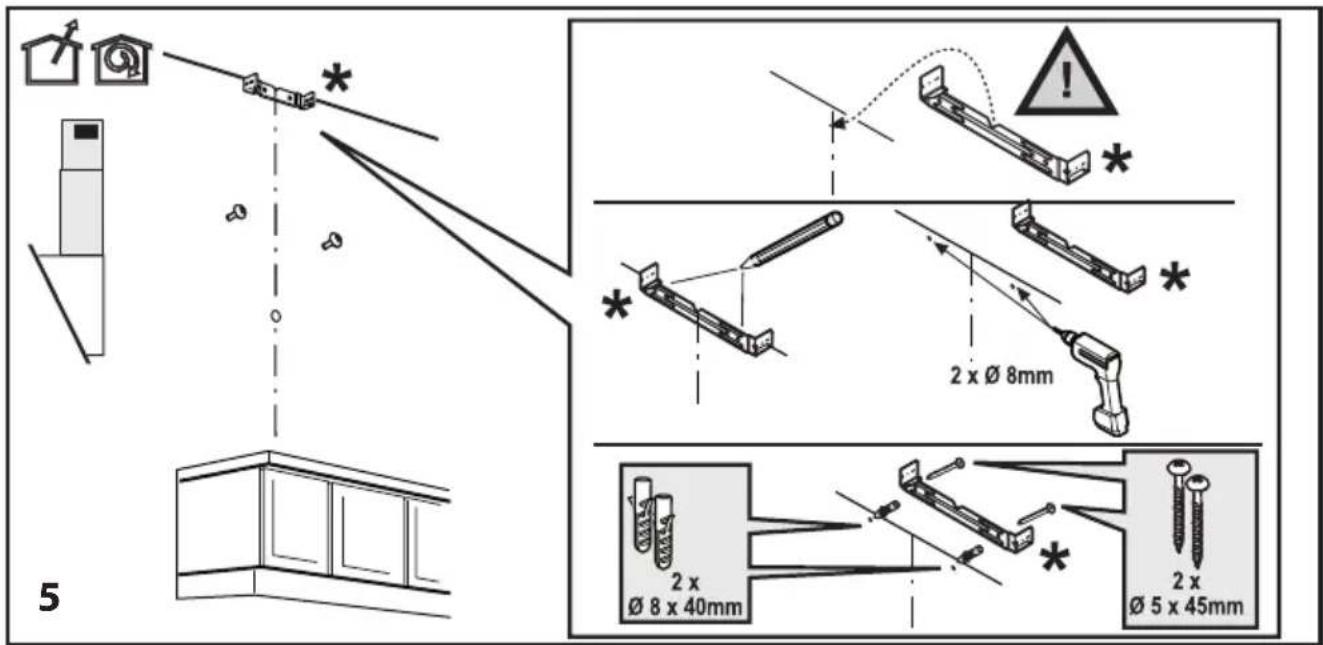

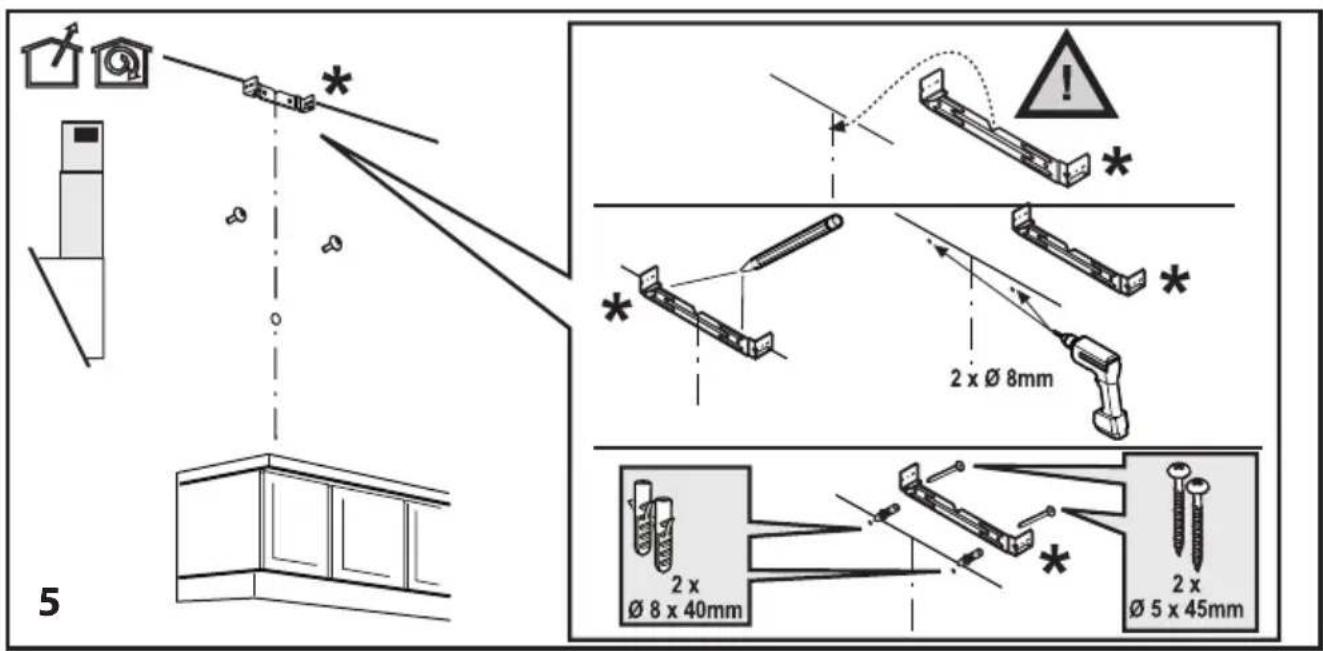

Drill holes on marked points with 08 mm bit in order to attach flue plate. Hammer 2 pieces of 8x40 mm dowels in drilled holes. Screw 2 pieces of 05x45 mm hanging screws to dowels hammered.

(Figure 5)

3.2.4 Assembly of the Hood onto the Wall

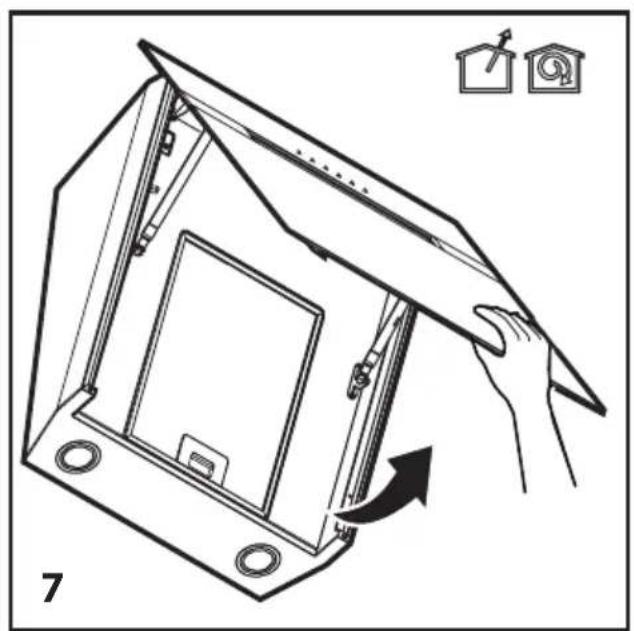

1. Remove front panel to attach the hood onto the wall. (Figure 7)

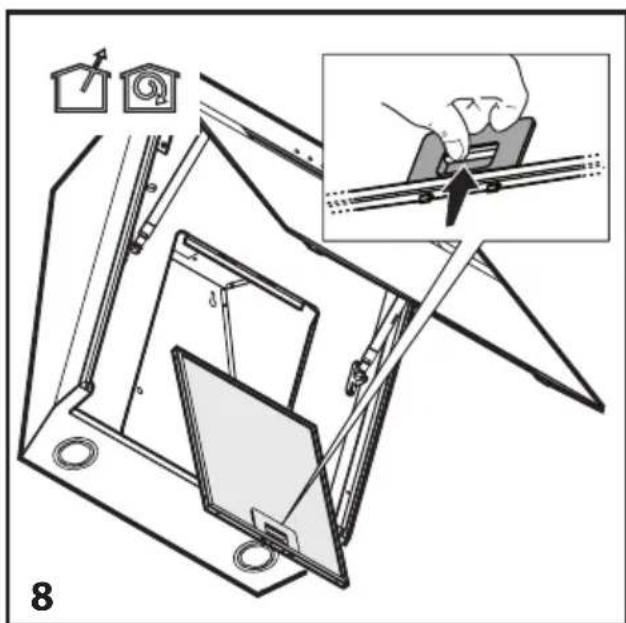

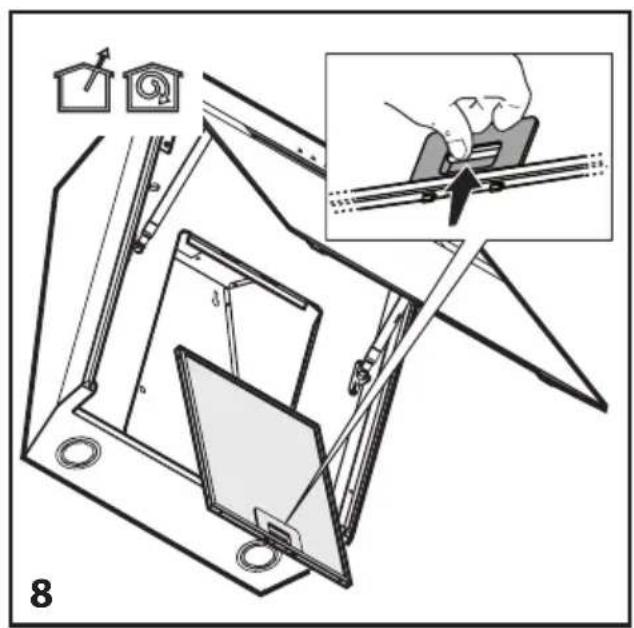

1. Remove the filters. (Figure 8)

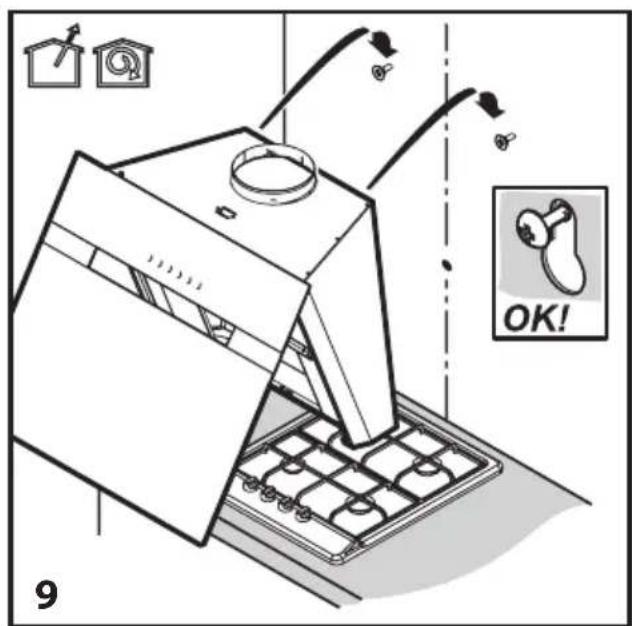

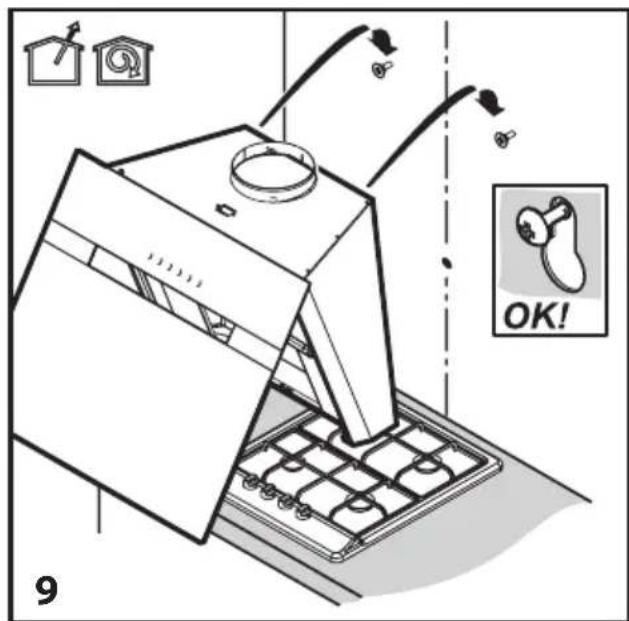

1. Place the hood in a way that screws match with screw heads. (Figure 9)

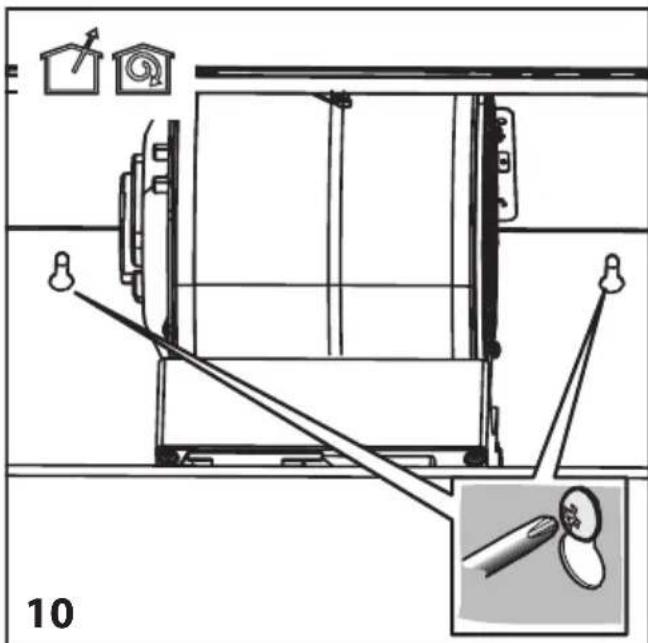

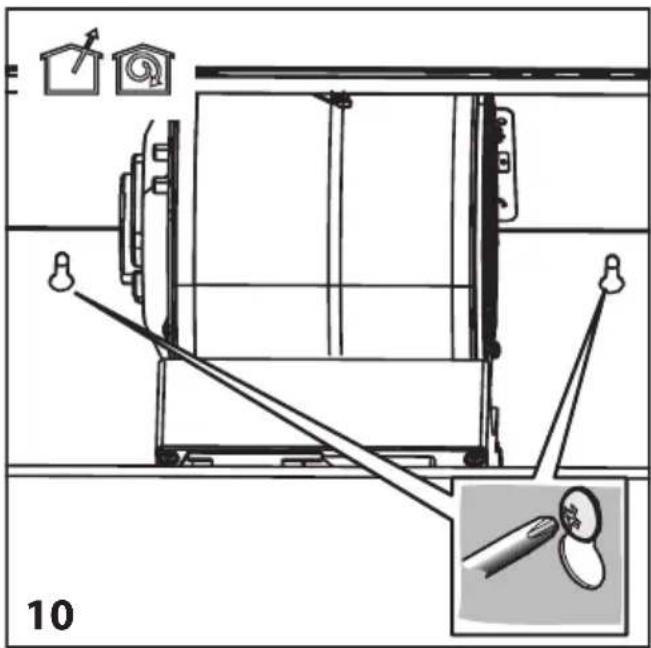

1. Tighten the screws to fasten the hood. (Figure 10)

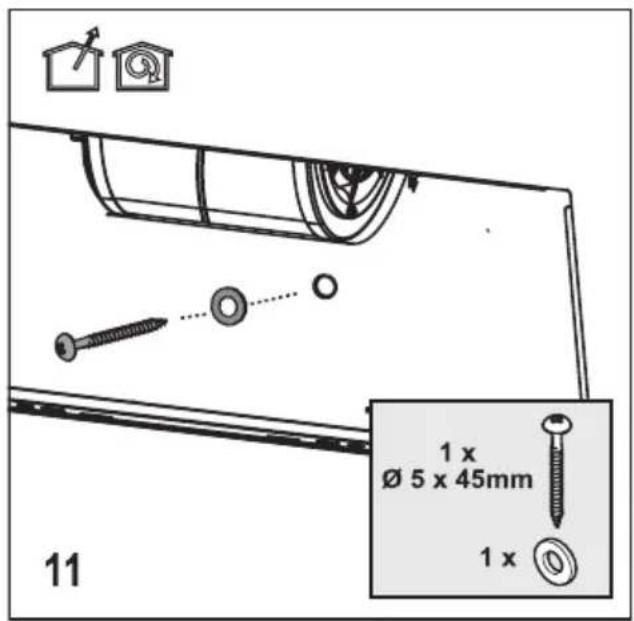

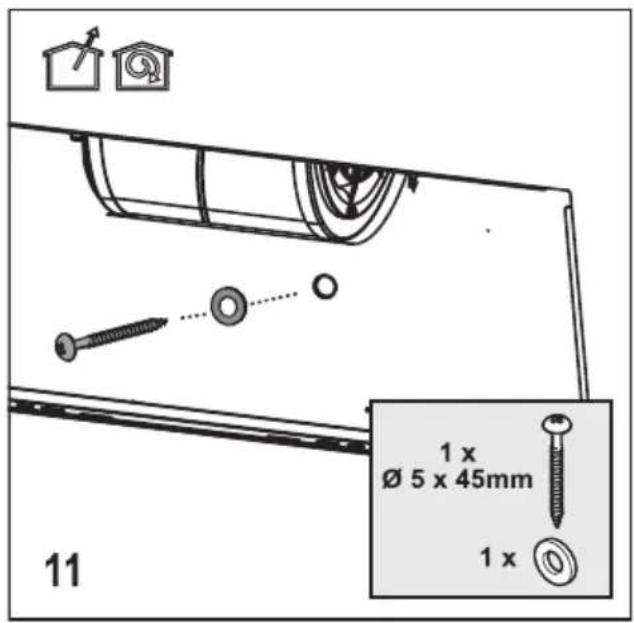

1. In order to fasten the hood, use washers and tighten with 0.5 × 45 screws.(Figure 11)

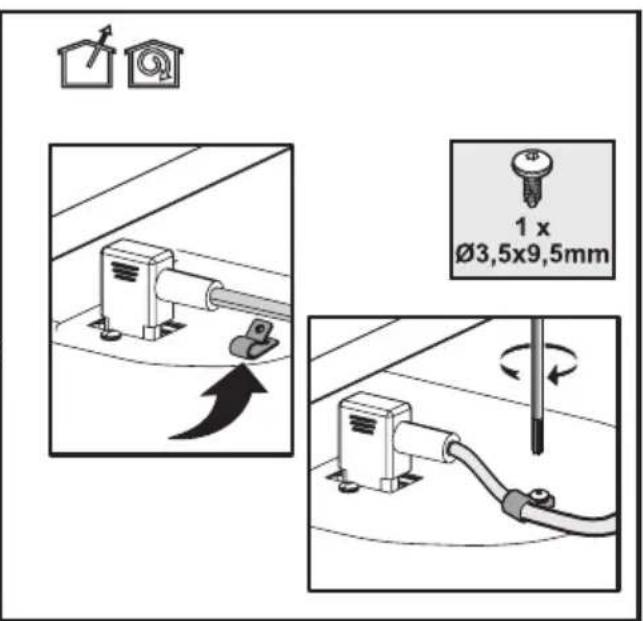

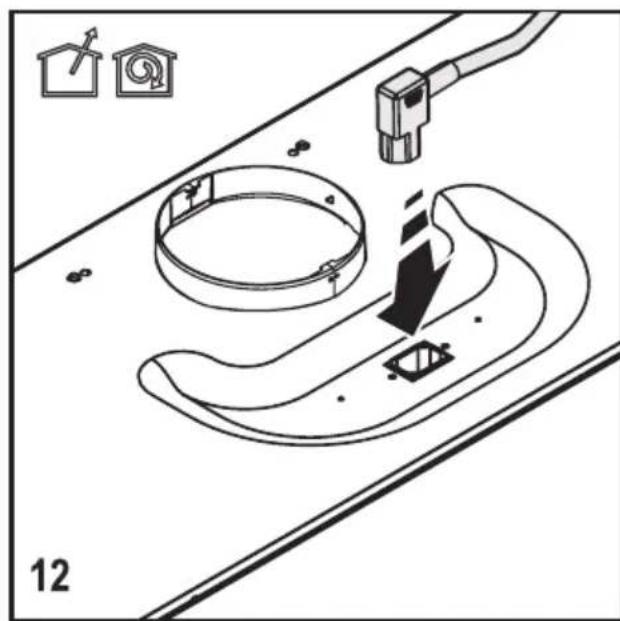

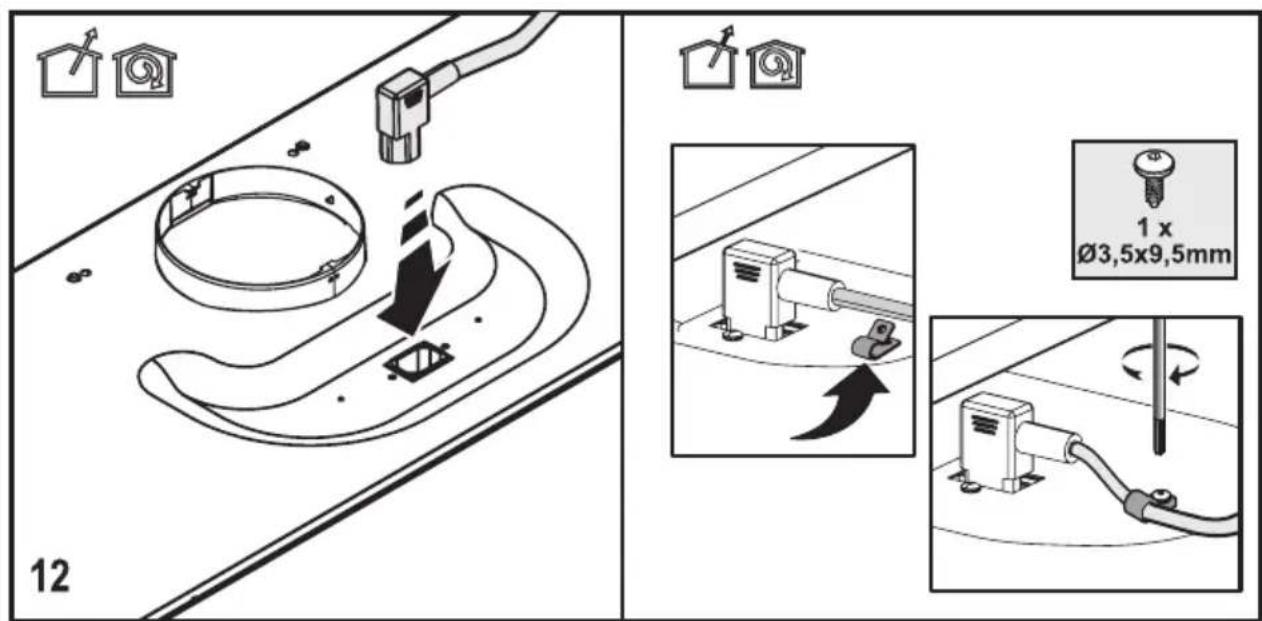

1. Plug in the power cable. Use 0 3.5x9.5 screw to fasten the cable.(Figure 12)

Bnstalling your appliance

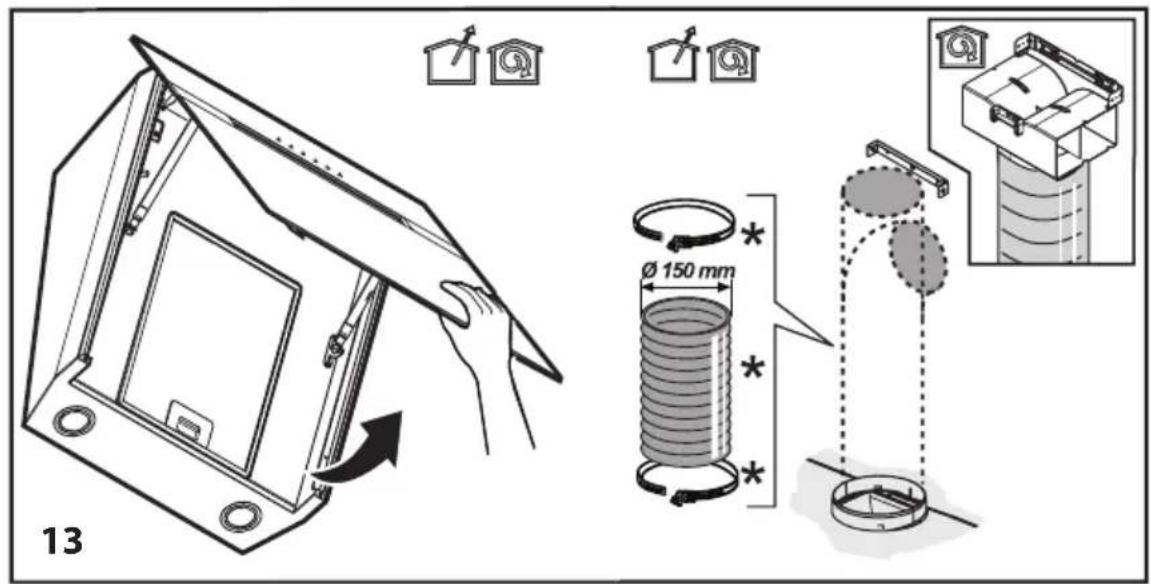

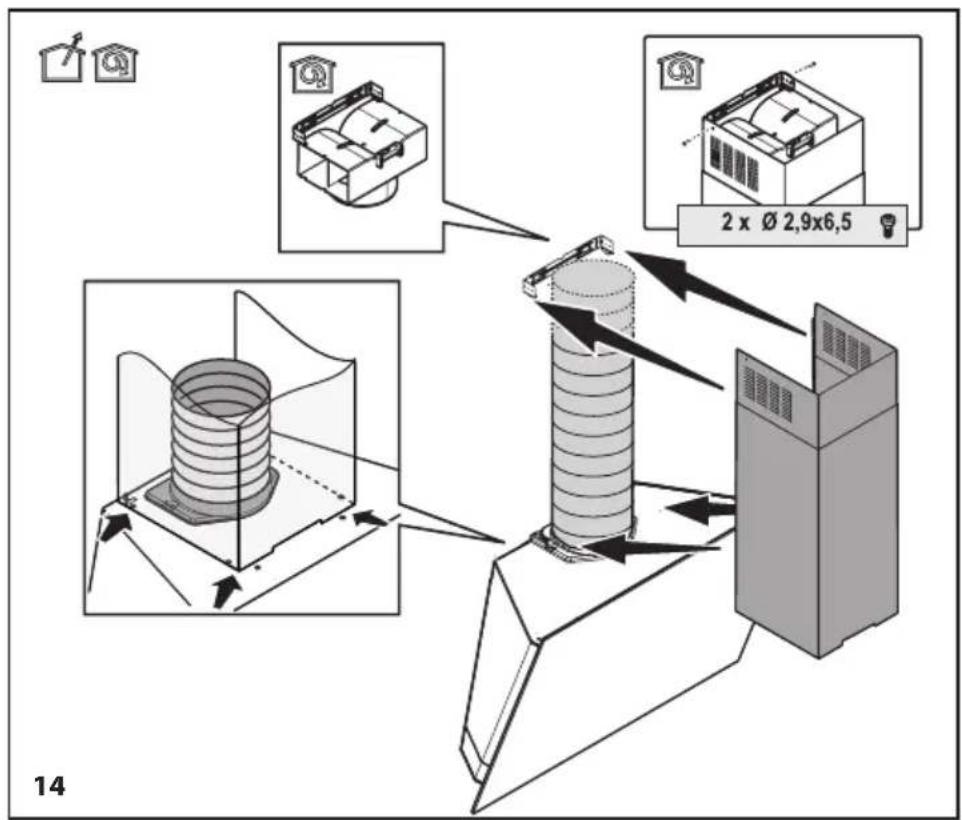

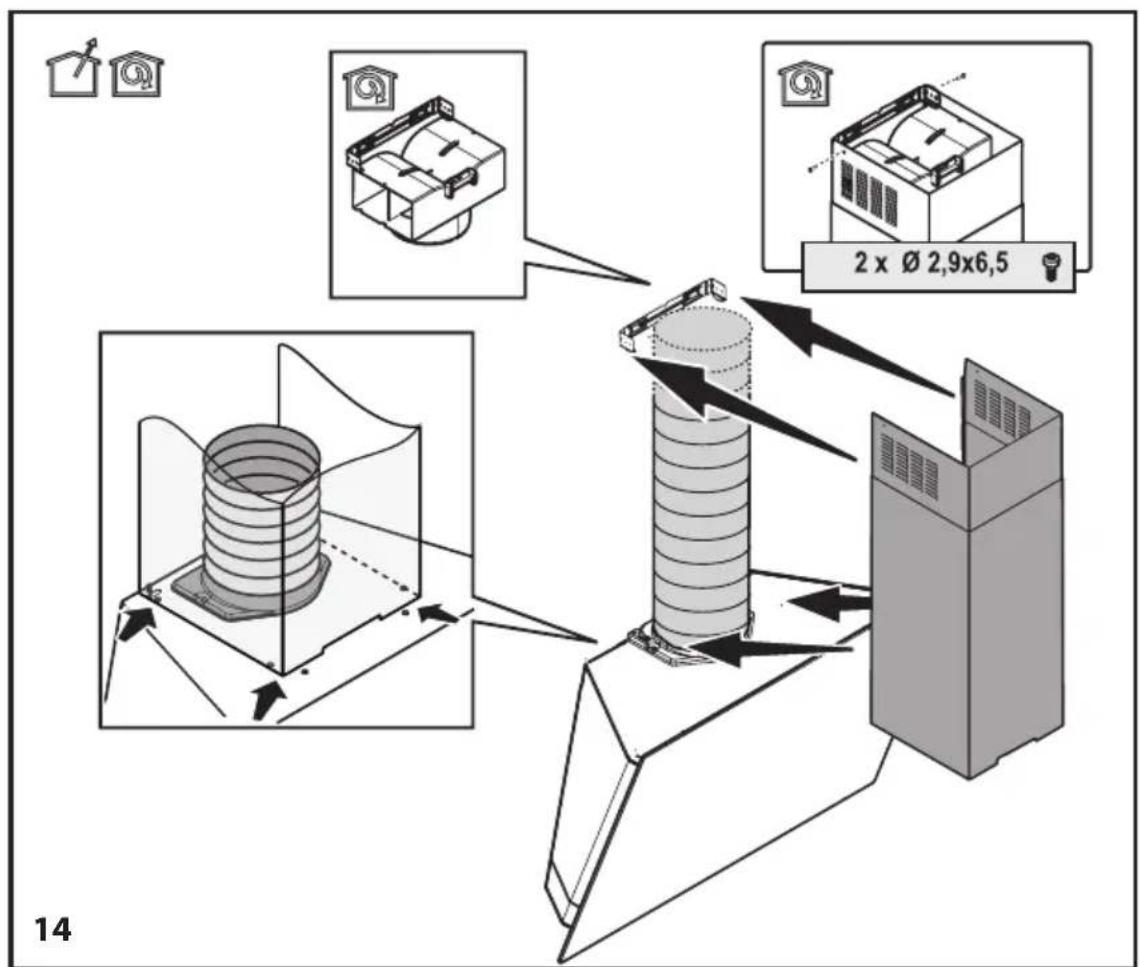

1. Place flue connection according to figures.

Figure 13,14

4 Operating your appliance

4.1 Operation

• Use high suction power if excessive vapor is formed in kitchen. It is recommended that hob hood suction unit is turned on 5 minutes before beginning cooking and is left in operation during and for 15 minutes after cooking.

4.2 Control with levels

T1. On/Off key. If the appliance is OFF, turns on the appliance. If the appliance is at any speed level, turns it OFF.
T2. Operates the appliance in speed levels 1, 2 and 3.

Operates the appliance in speed level 1. LED 1 lights.

Operates the appliance in speed level 2. LED 2 lights.

Operates the appliance in speed level 3. LED 3 lights.

T3. Operates the appliance at speed level 4 for 5 minutes. While the appliance is in operation in any level (1, 2, 3) if this key is pressed then the current speed LED will become steady and speed level 4 LED will flash. At the end of 5 minutes, speed level 4 LED will switch OFF and the product will exit max. speed mode. If speed level 4 key is pressed before 5 minutes is over, the product exits max. speed mode.
T4. Lamp On/Off key. Briefly press this key to turn ON/OFF the lamp. Press and hold for more than 1 second to select one of the 5 brightness levels.

4.3 Grease filter alarm

Flashing of LED 1 warns the user for cleaning the metal filter. When this alarm is given, it is time to clean the grease filter. Press and hold the ON/OFF key for 3 seconds to reset the warning while the product is in operation. LED 1 will stop flashing.

4.4 Charcoal filter alarm

The product is delivered with the charcoal filter alarm deactivated. Press and hold keys 1 and 2 for 3 seconds to activate the charcoal filter cleaning warning while the product is OFF. First LED 1 and then LED 1 and 2 light up and indicate that the warning is activated. Press and hold keys 1 and 2 for 3 seconds to deactivate the warning while the product is OFF. First LED 1 and 2 then LED 1 light up and indicate that the warning is deactivated.

Flashing of LED 2 warns the user for cleaning the charcoal filter. Press and hold the ON/OFF key for 3 seconds to reset the the warning while the product is in operation.

If both metal and charcoal filter warnings are activated simultaneously, resetting should be performed separately for each warning.

4.5 Energy efficient usage:

• When operating the hood, adjust the speed level according to the odour and vapour intensity in order to prevent unnecessary power consumption.
• Use low speeds in normal conditions (1-2), and high speeds (3-4) when smell and vapors are intensified.
• Lamps on the hood are intended for illuminating the cooking zone. Using them to illuminate the ambient/kitchen will result with unnecessary power consumption and inadequate illumination.

5 Cleaning and maintenance

5.1 Cleaning

• Prior to cleaning and maintenance, unplug the appliance or turn the main switch off or loosen/ switch off the fuse that supplies the hood.
• Hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the grease filters) internally and externally.
• Clean the hood using a clean cloth dampened with a mixture of warm water and neutral liquid detergent.
• Do not use abrasive products. DO NOT USE ALCOHOL!

WARNING: Failure to carry out the basic cleaning instructions of the hood and to replace the filters may cause fire.

• For this reason, we recommend you to follow mentioned instructions.
• Manufacturer cannot be held responsible for motor and fire damage caused by inappropriate maintenance or not following the above mentioned safety recommendations.

5.2 Cleaning the glass panel

• Glass panel and suction surfaces should be cleaned with the same interval valid for grease filters.
• Clean with a damp cloth and a neutral liquid detergent.
• Avoid using abrasive products. DO NOT CLEAN WITH ALCOHOL!

5.3 Charcoal filter (filtered models only)

• After a long usage period, charcoal filter may become full depending on cooking type and whether the oil filter is cleaned regularly.

• In any case, cartridge should be replaced at least every four months (or when filter fullness indicator system indicates that filter should be replaced if available in the model). (Figure 16)

• Charcoal filter cannot be washed and reused.

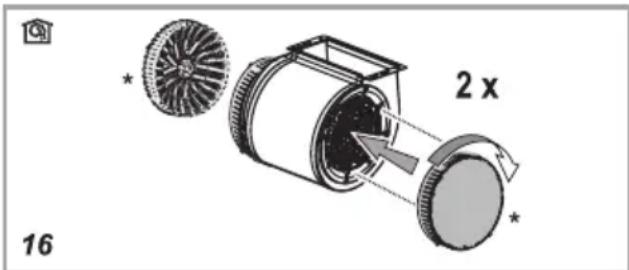

Circular charcoal filter

• Place one filter next to the protection cages of motor propeller, then turn the part clockwise.
• For disassembly, turn the part counterclockwise.

5.4 Grease filter

• Retains grease particles caused by cooking procedure.
• Grease filter should be cleaned monthly (or filter fullness indicator system - if available in purchased model - indicates when it is time) using acid-free detergent by hand or in a dishwasher with low temperature and short program.
• When washed in a dishwasher, color of grease filter may fade slightly, but this does not affect its filtering capacity.

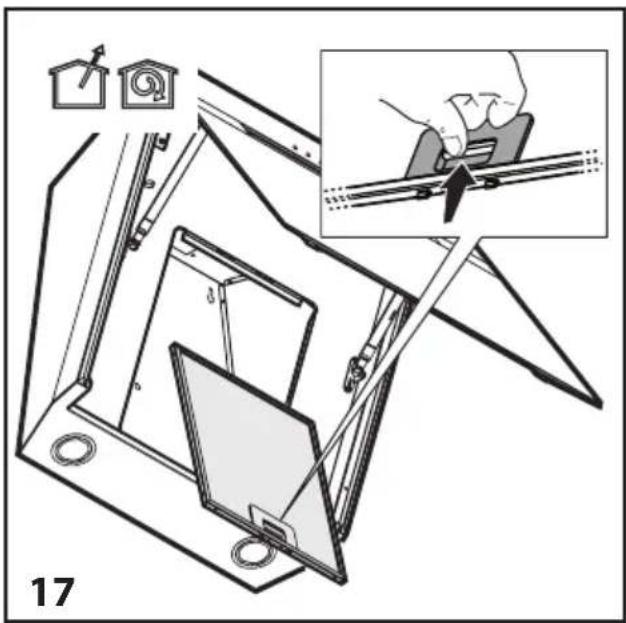

• Pull spring release lever in order to remove grease filter. (Figure 17)

5 Cleaning and maintenance

5.5 Cleaning

Particularly do not neglect to clean your hood immediately after you have made frying.
- Use a soft cloth soaked with liquid detergent to clean the outer surface of your hood.
- Never use abrasive or scratching materials for cleaning.
- You may use the cleaning agents commercially available for persistent grease etc. by following the warnings on the product. In order not the scratch the brushed steel body, wipe in the same direction with the bush trace.
- Do not use cleaning agents containing hydrochloric acid, bleach or abrasive powders in order to maintain the surface quality of your product. Use a cloth dampened in soapy water or special stainless steel cleaning spray for stainless steel surfaces. Remove the protective foil on the appliance.

Caution: You may cause a fire if you do not follow the instructions on the cleaning and replacement of the filters of your hood.

If you need to transport the appliance:

Keep the original packaging of the appliance. Transport the appliance with its original package, and follow the transport markings on the original package.

If you do not have the original package:

• Do not put heavy objects on the hood.
• Protect the outer surface from impacts.
• Pack the product so that it would not be damaged during transport.

5.6 Replacing the lamps

WARNING: Prior to touching the light bulbs, ensure that they are cooled down.

Contact Authorized Service Agent for lamp replacement.

4.4 Anapma Ha BbIeHnA ΦnTbp

IpoDyKTbT ce doCTaBc DeakTNBnPaHa anapMa Ha BblneH aNITbp. HATncHeTe 3aPbXte 6yToH 1 n 2 3a 3ceHydn, 3a da akTNBnPat e npedynpeJdeHneto 3a NOUcTBaHe Ha BblneH aNITbp, KOrato IpoDyKTbTe e N3KnUoyen. CBeTba NpBPBO CBETnHEn INnKAtop 1, a cNeT TOBa 1 n 2, 3a da nokKaT, ye anapMaTa e akTNBnPaHa. HATncHeTe 3aDPbXte 6yToHn 1 n 2 3a 3ceHydn, 3a da DeakTNBnPat e npedynpeJdeHneto, KOrato IpoDyKTbTe e N3KnUoyen. CBeTba NpBPBO CBETnHHn INnKAtopn 1 n 2, a cNeT TOBa 1, 3a Da nokKaT, ye anapMaTa e DeakTNBnPaHa.

PpIMnRbaHTo Ha CBeTlnHeH INdIkaTop 2 npedynpeKdaBa Notpe6nteJa NaocnTu BbIeHnAnpItbp.HaTncHte N3adpbXte ByToHa 3a Bk./n3Kn. 3a 3 cekyHdi, 3a Da HynpaTe npedynpeKdeHneTO, KOraTO nopdyKTbT pa6OTn.

Ako eHOBpemehno ca aKTHBn npedynpejdeHna 3a nouchTbaHe Ha BbIeH MeTaJeH cHJTbp, HnilpaheTo Tp6Ba Da ce N3BbPNI NOOTdEJIHO 3a BCaKO OT npedynpejdeHnra.

4.5 EHeprnHOb eΦeKTHBHa ynoTpe6a

• По врeme Ha pa6ota Ha abcop6aTopa perynpaIte HnBaTa Ha ckopoCT cnopei nHTeH3NBHOCTTa Ha Mnpu3MITE n napite, 3a Da npedOTbpaTtE HeKeJHa eHeproKOHcMaZna.
• I3noJ3BaIte HnCKn CkOpocTn (1-2) npn HopMaJIHn ycIOBn y BnCOKn CkOpocTn (3-4) npn rOJaMa nHTeH3NBHOCT Ha Mnpu3MnTe n napnte.
• Lamnnte Ha a6cop6aTopa ca npedHa3NaueHn 3a OCBETBaHe Ha 30HaTa 3a rOtBeHe. N3noJ3BaHTo IM 3a OCBETNeHne Ha KuxHra Ta Ie BOBeDe Do HeKeJaHa eHepROKcymaIg N HeAdekBatho OCBETNeHne.

5.1 Почистванe

• Прени поочьдами подрьхka ИЗкючeteураи ИЗкючete превкючbatеля назхранвано pa3хла6ete/N3кючeteпрениотеля Ha 3axpaHbaaata Beira Ha abcop6atopa.
• A6cop6aTopbT Tp86Ba Da ce nouuctBa peoOBHO (Pn BcRAKO NOUCTBAHe N NOIDpbXka Ha qHJTbpa 3a Ma3HHN) OTBbTpE N OTBbH.
  -Почиствашие abcopба_TOPа КATO ИЗпОЛЗВАТ -Натосяа В ТОПЛЯ BODA И HeyТрапЕ ТЕЧЕ -Почистваши пренир AT Kьрп.
  He n3noJ3BaIte a6pa3nBn npOdykTn. HE I3PON3BAITE CnIPT.

PPEyPExEHE:PiH HeCnA3BaHe Ha OCHOBHIne HNCTpyKz 3a NocHCTBaHe Ha a6cop6aTopa nako He CMeHrTeΦHTpTE, e Bb3MOxKeH NOxap.

• IopaI Na3n npuHa npenOpbVbMe da cneDbate cnomeHaTnte HNCTpyKcH.
• Поньодпелг He HOCN OTROBOPHOCT 3a DBnraTeJI N IeTN OT NOxap, npuynHeHn nopadn HnnpabUNHa NOdRpBXKa nIIN HeCneDbAHe Ha CnOmeHaTte No-rope npenopbKn 3a 6e3OnaCHOCT.

• Postavljanje i popravak uvijek mora obavljati samo ovlasteni servisni partner. Proizvodačnice odgovoran za štetu koju uzrokuju neovlaštene osobe.
• Urežaj不同程度 has been found in the region of the Czech Republic. The area is located in the Czech Republic, and it is also located in the Czech Republic. The area is located in the Czech Republic.

1.1.1 Elektricna sigurnost

3NeKtpnueckne coeHHeHnI DoJXHbI BblONHrTbcra KBaINΦuNpOBAHHbIM 3NeKtpNKOM.

I3dJIe NcIeIyET yCTaHaBnBaTb TaK, YTO6bl NO-TOM MOxHO 6bINO C JERKOCTbO DOTAHyTBcR Do CETN NITAHN (PO3ETKN, BbIXOda).

Pa3mepbipnBedeHbBMM.

3.1. Поклоченьптуня

XapakTePnCTnK n CETn DOJIxHbI COOTBeTCTBOBAtb 3NaueHnM, yKa3aHHbIM Ha Ta6nUke CBHyTpEHHen CTOpOHb BbITJkKN. NODKnIOuHTe BbITJkKy K PO3ETKe Pn NOMOuN I ObecneYbTe DOCTyn K MeCTy NODKnIOUHe COrLaCHO DeiCTByUoUm HopMaM. Iocne YcTaHOBKn: ecnNycTroNCTBO He NMeet BNKn (PpRMOe NODKnIOUHe H CETn) INN BNJa HaxOOnTCBHe DOCRAEMOCTN, INCNOB3yIte DByXNoIOHChbIN BbIKNIOUaTeNb B COOTBeTCTBnN CO CTAHdApTAMN, YTO NO3BOJAreT OCUSeCTBnTb OTKIOUeHHe OT CETn Pn BO3HnKHOBeHn CBepXTOKOB KaTEROpn III.

IPEIOCTEPEXHE: nepei noBTOPbIM NOKJIouHeNEM BbITJxKKNK NICTOuHnky nHTaHnY INPOBepKOfYHKUHOHPOBaHnY, yBeDuTEcB, YTO cTeBOI KaBJIb NOkLIoueH KoppeKTHO.

• BbITaKc OChaSeHa CneuJaIbHbIM Ka6eJIem nHTAHn. Ipr erO nobpeXdEHN CBXNTecb c ABTOPn3OBaHHbIM TexHnueCKM CneuaJIInCTOM.

3.2.YctaHObka

3.2.1. Перацноюустановки.

• Y6eIntecb, yTo pa3Mepbl n3dEInna COOTBeTCTByIO TnpoctpaHCTBy dIeero yCTaHOBKn.

• CHIMITE DeiCTByUOuN yroIbHbI ΦnIbTp (*), ecNI TAKOBON IMeTcR (CM. COOTBeTCTByUOuN pa3dEN). ΦnIbTp/ΦnIbTpbl 6ydyT yctaHaBnBaTbcr TOJbKO B TOM Cnyae, ecNI Bbl XOTNTe NcNOJIb3OBaTB BbITJkKBy BAueCTBe MoJeN C cyHKUne ΦnIbTpOBAHn.

• Y6eIITecb B HAIINuIN BCEX MaTePnaIOB, NOCTABJIeMbIX C BbITJxKoN (TakNX KAK yNAKOBA3JIeMeHToB KpeNExa (^) , rapaHTnHaJKarpTa (^) IN T. n.); ecNI OHN pncyTCTByOT, N3BNeKeNTe IN OTLOXKeTe.

• IIO BO3MOXHOCTN CHIMITE CTOIyU OTDeJIbHO IINI NpeEaEMU INIHTY INOTOBINHbTe ee B CTOPOHy, YTO6bl IONyUHTb yIO6HbIM DOCTyn K 3aIHeN CTHe IINI NOTOLKy. EcII TAKAIBO3-MOXHOCTb OTCYTCTByET, HAKPOITe RopeIKy, IINITy IINI DXYOBKY TOJCTOIN 3aUNTHOINTKAHbO IINIAuNTbI OT 3aRpa3HEHIN IN NOBPEKDeHINBbEpInTE PNOCKU IOBepxHOCTb IINY cTaHOBKn pIn6opa. YKPOITe NOBepxHOCTb 3aUnTHOIN TKaHbU IN pa3IOXnTE Ha HeN BCE DeTaN INPINCNOOCJIeHNA BbITJkKN.

3 yctaHOBka np6opa

Kpome TOrO, npOBepbTe DoCTyHnOCTb BnIKN B 30He yCTaHOBKn BbITXKKN (BKJIIOUaY 3OHy DOCTyNa NocIe C6OpKn BbITXKKN) IN BHeuHne NOkIIOUeHnnp6opa (ToJbKO JnJa MoJeNe C cyHKuEn BCacbIBaHn)
3akOHyTe BCE Heo6xOIMbIe npoceDypbI coCTeHoi (HaNPmep, POKJIIOUcHHe NITaHnI N/ INn OprAn3aUNIO OTBepCTNr DnI CNyCKHO 7nAHa).

Iupokne IIO6eIN DOnyckaHOT fNkcauHb BblTJK Kn Ha cMbIX pa3NJUHbIX TUNAX CTeH/NOTJIKOB. DOnOJIHTeJIbHO, KBaIINoIcUPoBaHHbI TEXHNueCKn CNEuaJIncT DOJIKeH NOITBepdntb COOTBETCTBHe MaTePnaIa TIny CTeHbI NII NOTJKA. CTeHa/NOTOK DoJIKbI BblEpeXNBaTb BEC BblTJKKn. He NODBeWNaIte npnbop Ha NNITke, PnactIKOBoi NII CNNIKOHOB IOBepxHOCTAx. Kpenite erO ToIbKO Ha CTeHy.

Iprn Hannu nn nane n/nnn 6okobon cTeHKn n/nn Me6e, npOBepbTe, yTo6bl XBaTao MeCTa dIra c6opKn u yctaHOBKn BbITJxKn, a TAKKe oBe- cneunBaIcra JeKni DoCTyn K naHei Yu npabNeHna.

3 yctaHOBka npn6opa

3.2.2. Повтовka к крpenлени Вытжк К CTHe

Hhopmaqna, Heo6xOImma Ira nOroTOBKe Me- cta yCTaHOBKn BbITJkN, npNbOuNTcHnke.

1. CdeNaIte OTMeTkn Ha NOBepXHOCTn COIIaCHO Ⅲa6NoH y dJa KpePHeHry. (PncyHok 1)

2.ПикpenTe MOHTaXHbI WAp6NoH K MeCTy InY yCTaHOBKn BbITaXKN.(PncyHok 2)

3.ПрocВерЛпЕ OTВерСТИ CBерПOM 8 MM B OTMeueHHbIX MeCTax.(PncyHOK3)

4.YctaHOBnTe 3IIO6eJ8x40MMBnpocBep- HHe BTE 3ABHTte 2 BNHTa IINoDBeWNBaHnO5x45MMB BbIweyka3AHhBe IIO6eHN.Mexdy rONOBKOBnBnHTa nCTeHOn DOnXKeH 6bITb 3a3Op B 5 MM (PncyHOK4)

3 yctaHOBka npn6opa

3.2.3. C6opka BbITJXHOn Tpy6bl

PpocBepnTe OTBepCTnB OTMeueHHbIX ToUkax CBepnOM 8MM DnI npKpeHnNn Pnactnbl DblMOxOda.YcTaHOBnTe 2 IIO6eN 8x40 MM B NpocBepnEHnBe OTBepCTn.3aBnHTne 2 BNHTa DnI NOBWeuBaHn 05x45 MM B 3a6ntbIe IIO6eJn.(PncyHok 5)

3 yctaHOBka npn6opa

1.YdaNte nepeHIO naneB,TO6bI npKpePNTb BbITXkKy Ha CTeHy. (PncyHok 7)

1. YdaJIte cHJIbTpbl. (PcCyHok 8)

1. NomeCTIte BbITXk Ky TaKIM 06pa3OM, yTO6bl FOIOBKN BnHTOB COBnaDAnN C COOTBETCTByH-UMN OTMeTKaMn. (PncyHok 9)

1. 3aTaNHTe BnHTbI DJIa QNKCaUN BbITJXKN. (PncyHok 10)

3 yctaHOBka npn6opa

5.ДЯЗAKPENJIeHn BbITJXKIN NcNoJIb3yIte WAn-6blN BnHTbl 05x45.(PncyHok11)

6.Поdkлочte kaбел nbntaHn.YIcnoь3yIte BnHT 3,5x9,5ДЯ Фикcaци Ka6eЯ. (PncyuHok 12)

3 yctaHOBka npn6opa

7.ПодкнчITE димoxOD,кak noka3aHo Ha pu-cyHKax.(PncyHOK 13,14)

4.1. 3ксплyaразия

• Пи образованни 3начnteьного колиесТВа Испарени на Кухнecи NGОь3уITE ВбICOKую мошноctь BCacbIBaHnia. PeKOMeHdyetcR,ЧTOБы BCacbIBaIOUsy y3eIN BbITJxKKn BKJIHOuaIcra 3a 5 MInHT nepeД HaayanOM nprirotOBJIeHЯ и pa6OtaI B TeueHne 15 MInHT nocNeERO OKOHuaHnia.

4.2.YnpaBJIeHne cKOpocTbIO pa60Tbl

T1. Khonka BkN./BbIKN. Ecnn npnbop BblKN., BknIOuHTe erO. Ecnn yctpoNCTBO pa6oTaET Ha IIObOM ypOBHe ckOpocTn, OTKJIIOUHTE erO.
T2. 3anyckaet yctpoiCTBO Ha ckopocT8x 1, 2 n 3.

3anyckaet yctpoiCTBO Ha ypOBHe cKOpocTn 1. 3aropntc CBeToNDo1
3anyckaet yctpoiCTBO Ha ypOBHe ckopocTn 2.3arOpntcBcTeOAnoD 2.
3anyckaet yctpoiCTBO Ha ypOBHe cKOpocTn 3.3aropntcBcTeOAnoD 3.

T3. 3anyckaet yctpoiCTBO Ha ypOBHe cKOPOCTn 4Ha5MnHy.T.Ecnn npnbop pa6oTaET HaIIO-6om ypOBHe cKOPOCTn (1,2,3),npn HaxaTnN 3TOH KHOKN CBeToND TeKyuJeN cKOPOCTn 3aRopaETCPOBbIM CBeTom,a CBeToNDOyOBHr cKOPOCTn 4 NaHnae TmraTb. IOnIcTeueHN 5 MInHyT pa6oTbHa ypOBHe cKOPOCTn 4 CBeToND BbIKJIOUHTCRA,a n3- DeJIne BbIeT n3 peXIMa MaKcImaJIbHOJ cKOPOCTn. Ecnn KHOkA ypOBHr cKOPOCTn 4 HaxaTdo NcTeueHn 5 MNHy,Tn3deJIne TaKxE BbIeT n3peXIMa MaKcImaJIbHOJ cKOPOCTn.

T4. KhoNka JAMNbI BKN./BbIKI. KopOTKO HaxMnte KhoNky DnRA BKJI./BbIKI. JAMNbI. HaxMnte n ydepXnBaIte DoJIbe 1 cekyHdbI dnn BblOpa OndHO r3 5 ypOBHeJrkoCTn.

4.3.CnHan cnIbTpap-KnpoyIOBNTeJIa

MiraHne cBeToOnoJa 1 npedynpeXdaet noIb-3OBaTeJЯ O HeO6xOIMOCn OChCTnTb MeTaJIInueckn fNtBp.CrHaN TpeBOrn O3HaayeT, YTO nopa NCTnTb fNtBp-JnpoyNoBHTe. Haxmnte uYdePxABaIte KhONky BKJ./BbIKJ. B TeueHne 3-x ceKHy dnn BO306HOBLeHnna npedynpeXdaIOUeero CnHana, kOrDa n3dJe ne pa6oTaET. CBeToOnoJ 1 npekpatNT mRaTb.

4.4.CnHaI yroJbHoro 1nIbTpTa

I3dJIeNoCTaBnEeTcC DeaKTbNPOBaHbIM yroIbHbIM pIbTpom. HaxMnte u YdepxBaIte KHOKN 1 n 2 B TeueHne 3-x CeKHyD dIy aKTbAun npEynpexdaiooero CnHaJa o6 OOHTke yroIbHoro pIbTpra, KorDa I3dJIeNe BblIOUcEO. Chayana 3arOpntcraTe cBeToOno1 1, a NotOM cBeToOno1 2, noka3bBaJ, yTO npEynpejdouoiu cnHaJ aKTbNPOBaH. HaxMnte u YdepXNBaiTe KHOKN 1 n 2 B TeueHne 3-x CeKHyD dIy deakTBAuui npEynpexdaiooero CnHaJ, KorDa I3dJIeNe BblIOUcEO. Chayana 3arOpTcraCTcBcToOno1 bI 2, a NotOM cBeToOno1, NOKa3bBaJ, yTO npEynpexdaiou cnHaJ deAKTNBOBaH.

MiraHne cBeToOnoJa 2 npEynpeJdaet noIb-3OBaTeJI O HeO6XoIMOCtN OUcTITb yroJIbHbI ΦnIbTp. Haxmnte N ydepKNaIte KhoNky BKJI./ BblKJI. B TeueHne 3-x ceKyHd dIy Bo306HOBHeHna npEynpeJdaIoUe RoHaHa, KOrDa n3deJIne pa6Otae.

Ecnn onoBueHnra OT metaannecknx n yroIbHbIX qnilbTpOB aKTNBbI OndHOBPemEHNO,TO IX c6pocdoJxeh OcyuieCTBnaTbcr OTdJIb-HO dJa KaJDoRnpeDynpexKeHnra.

4.5. ΘheproaΦΦeKTHBHOe NCNoJIb3OBAHne.

Bo Bpem 3KcNpyataun BbITJxKn CJeDyET OTPeryuHPOBaTb yPOBeHb CKOpOCTn B COOTBETCTBn C INTEHCNBHOCTbIO 3aIaxa N Obpa3OBaHn IcnapeHn, YTO6bl N36ExKaTb HeHyXHOro NOTpe6JIeHnA 3Heprn.
CneNyETNCNoJIb3OBaTb Hn3KHe yPOBHN CKOpOCTN B HopMaJIbHbIX YcNOBnJx (1-2) n BBICOKHe yPOBHN CKOPoCTn (3-4) npn noRbIeHn 6OJee INHTeHCINBHorO 3aNaXa n 6OJee BBICOKoK KOHcHTpaun napa.
- LamnbI Ha BbITJXKe npedHa3NaYeHb InI OCBeUeHn BapOuHO NOBepxHOCTn. Ix nCNoIb-3OBaHne InI OCBeUeHn pOcTpaHCTBa/KyxHn npBEdT K n3JIiShEmy 3HeprONOTpe6JIeHnIO n HeoCTaTOUHO OCBeUeHHOCTn.

5.1.Чистka

• Ipeed YnCTKoI nn OBCnyJbAHnem Heo6xO-DnMo OTKnIOHTb Pn6Op OT 3JeKTPocETn, INN BByIKIOHTb TlaABHbI BByIKIOUaTeJIb, INN OCJa6NTb/OTKnIOHTb PpeOxApaHnteJIb, KOTOpBIn NOdaet NITaHne K BblTJXKe.
• BbITaKa hyxdaeTcB peryIpaHOB BHeUHeN IN BHyTpENHeuOncTKe (no KpaHHeMpe, c aCTOTOn OuncTKn PnIbTPOB-KInpOyoNBoNTeNe).
  OuHaaTb BbITJxKc CneJyET npn NOMOuTKaHn, CMOueHHo pactBOPom TeNIOBBoI INHeITpaIbHOrO YNCTraIeO cpeCTBa.
  He nCNoJIb3yIte a6pa3nBHbIe MaTePnAJIb.IHE NCPOJIb3YITE AJIKOFOJIb!

IPEIOCTEPEXEHNE:Heo6JIO- DeHne 6a3OBbIX INCHpyKuIN NO OUNCtKe BbITRAKKN N 3aMeHe QnJIbTPOB MOKe IpNBecTN K Noxapy.

• PtoTomy peKOMeHnyem npNdepxnBaTbcra yka3aHHbIX INHCTpyKcun.
• ПОНЗВОДИТЕЛБ He HeCET OTBETCTBEHHOCTH 3a MEXAHUHECKN yUeP6 ИИ NуUeP6 OT Пламен, Bbl3BaHHbI HEnpaBnIbHbIM O6ClyXKNBaHNeM IIIN HeCO6JIIODeHNeM BblUeYka3aHHbIX peKOMHeHdaци.
