Product Type	Extractor hood with extraction and recirculation mode
Brand / Model	PKM / 6004W
Dimensions (H x W x D)	45.0 - 83.0 x 60.0 x 45.0 cm
Net / gross weight	7.5 kg / 9.0 kg
Installation width	60.0 cm
Material	Stainless steel
Power supply	220-240 V ~ 50 Hz
Connected power	107.0 W
Energy efficiency class	C
Annual energy consumption	51.0 kWh/a
Airflow (min / max)	221 / 365 m³/h
Maximum airflow (Qmax)	379 m³/h
Noise level (min / max)	60 / 69 dB
Integrated lighting	1 x 2.0 W LED, class A
Grease filter	2 dishwasher-safe aluminium filters
Charcoal filter (optional)	2 x CF 150, replace every 3-6 months
Controls	5 push buttons (off, 3 speeds, light)
Minimum distance from cooktop	65 cm (ceramic hobs) / 75 cm (gas) / 85 cm (coal, oil, wood)
Exhaust duct diameter	120 / 150 mm
Operating ambient temperature	Indoor only
Maintenance	Monthly cleaning of grease filter; replace LED bulb; replace charcoal filter if used
Repairability	Contact a qualified professional; do not repair yourself
Included accessories	Telescopic chimney, exhaust hose, installation hardware, user manual
Warranty	Ask your retailer

Frequently Asked Questions - 6004W PKM

What to do if the hood does not turn on?

Check that the power plug is properly inserted into a 220-240 V / 50 Hz mains socket. Check the fuse or circuit breaker. If the power cord is damaged, have it replaced by a qualified professional.

How to clean the grease filter?

The aluminium grease filters should be cleaned once a month by hand or in a dishwasher at 30 °C. Do not use abrasive, alkaline (pH > 7) or alcohol-containing detergents. Dry them thoroughly before reinstalling.

What distance should be between the hood and the cooktop?

Respect a minimum distance of 65 cm for ceramic hobs, 75 cm for a gas stove, and 85 cm for coal, oil or wood stoves.

How to change the LED bulb?

First disconnect the hood from the mains. Let the bulb cool down. Replace it with an LED bulb of the same power (2 W). Do not touch the bulb directly with your fingers, use a glove or cloth.

Do I need to use a charcoal filter?

The charcoal filter is only necessary in recirculation mode (without external exhaust). It cannot be cleaned and must be replaced every 3 to 6 months. In extraction mode, remove the charcoal filter.

Why is the hood making a strange noise?

Abnormal noise may be caused by a loose motor, a blocked exhaust duct, a dirty filter, or an incorrect duct diameter (minimum 120 mm). Check the fixings and the condition of the filters.

Why are there abnormal smells from the motor?

Abnormal smells may indicate a defective motor. If the smell persists after cleaning the filters, have the motor checked by a professional.

Why are oil stains appearing?

Oil stains may come from a leak at the non-return valve or a poorly sealed connection between the chimney and the hood. Check the seals and replace if necessary.

What to do if the hood vibrates excessively?

Check that the hood is properly fixed to the wall and the motor is securely attached. Tighten the mounting screws. Vibration may also come from a poorly installed exhaust duct.

Why does the extraction capacity seem insufficient?

Make sure the distance between the hood and the cooktop is not too large. Close doors and windows to avoid drafts. Check that the grease filters are clean and the exhaust duct is not blocked. In recirculation mode, replace the charcoal filter if used.

USER MANUAL 6004W PKM

Dear customer! We would like to thank you for purchasing a product from our wide range of domestic appliances. Read the complete instruction manual before you operate the appliance for the first time. Retain this instruction manual in a safe place for future reference. If you transfer the appliance to a third party, also hand over this instruction manual.

Index

1. Safety instructions.. 19
2. Installation 22

2.1 Main components 22
2.2 Installation steps 23
2.3 Carbon filter 26

1. Control panel. 27
2. Cleaning/maintenance 27

4.1 Grease filter 28
4.2 Replacing of the illuminant 28
4.3 Carbon filters 29

1. Trouble shooting 29
2. Technical data 30
   7.Waste management. 31
   8.Guarantee conditions 32
   A. Technical drawing/ 64

EU - Declaration of Conformity

The products, which are described in this instruction manual, comply with the harmonized regulations.
The relevant documents can be requested from the final retailer by the competent authorities.

The figures in this instruction manual may differ in some details from the current design of your appliance. Nevertheless follow the instructions in such a case.

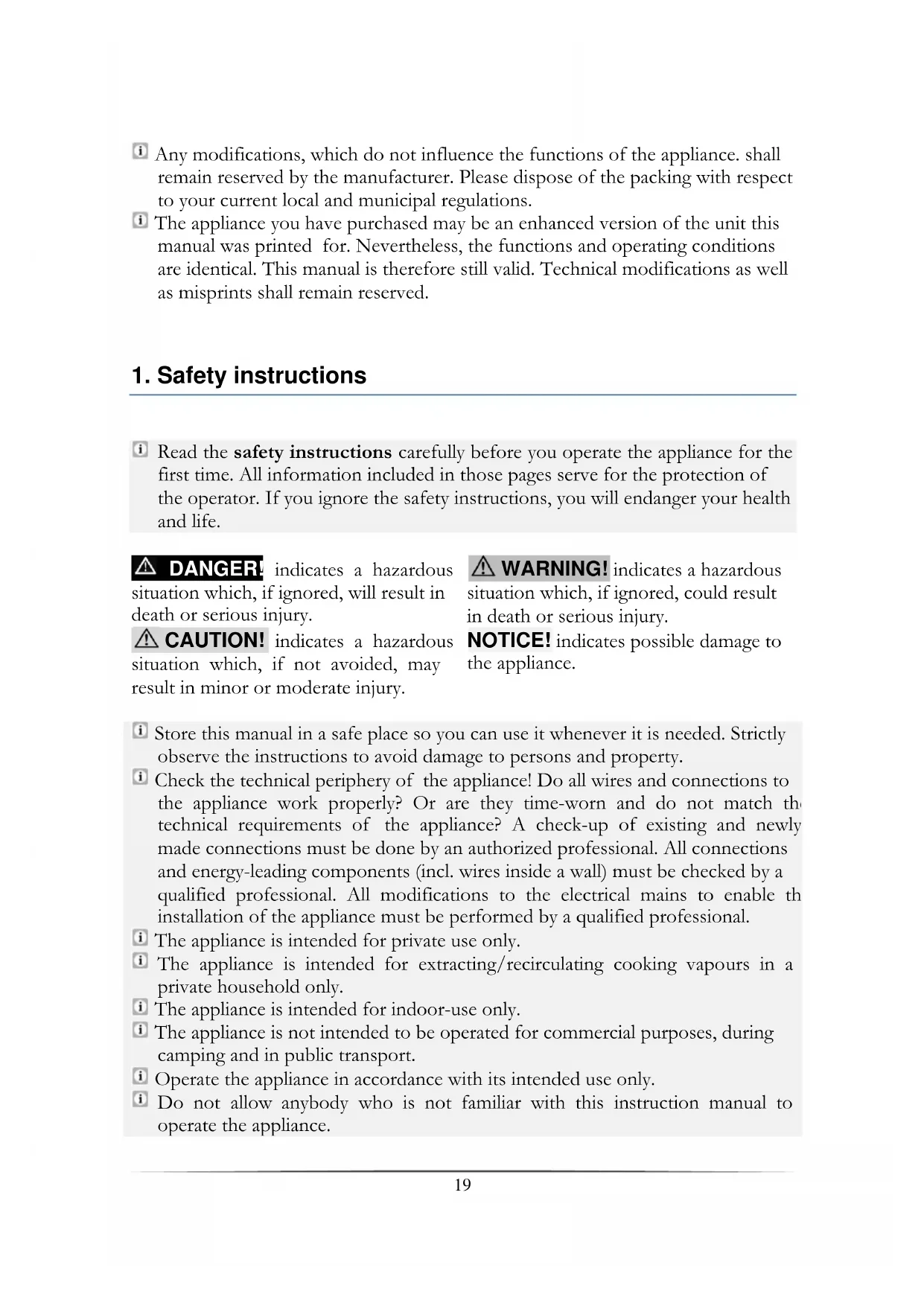

Any modifications, which do not influence the functions of the appliance, shall remain reserved by the manufacturer. Please dispose of the packing with respect to your current local and municipal regulations.
The appliance you have purchased may be an enhanced version of the unit this manual was printed for. Nevertheless, the functions and operating conditions are identical. This manual is therefore still valid. Technical modifications as well as misprints shall remain reserved.

1. Safety instructions

Read the safety instructions carefully before you operate the appliance for the first time. All information included in those pages serve for the protection of the operator. If you ignore the safety instructions, you will endanger your health and life.

DANGER! indicates a hazardous situation which, if ignored, will result in death or serious injury.

CAUTION! indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.

WARNING! indicates a hazardous situation which, if ignored, could result in death or serious injury.

NOTICE! indicates possible damage to the appliance.

Store this manual in a safe place so you can use it whenever it is needed. Strictly observe the instructions to avoid damage to persons and property.
Check the technical periphery of the appliance! Do all wires and connections to the appliance work properly? Or are they time-worn and do not match the technical requirements of the appliance? A check-up of existing and newly made connections must be done by an authorized professional. All connections and energy-leading components (incl. wires inside a wall) must be checked by a qualified professional. All modifications to the electrical mains to enable the installation of the appliance must be performed by a qualified professional.
The appliance is intended for private use only.
The appliance is intended for extracting/recirculating cooking vapours in a private household only.
The appliance is intended for indoor-use only.
The appliance is not intended to be operated for commercial purposes, during camping and in public transport.
Operate the appliance in accordance with its intended use only.
Do not allow anybody who is not familiar with this instruction manual to operate the appliance.

DANGER

1. Do not operate the appliance when it does not work properly, is visibly damaged, has dropped down or the power cord/plug are damaged.
2. The power cord must be replaced by a qualified professional only.
3. Never repair the appliance yourself.
4. Do not operate any room-air dependent fireplaces while operating the appliance; otherwise harmful gases will get from the fireplace into your home. Whenever the hood is operated together with chimney-vented fireplaces (e.g. coal furnace), ensure there is sufficient air supply in the room where the appliance is installed in. Always consult your local chimney-sweep master. When you operate the appliance in recirculating mode, you can simultaneously run room-air dependent fireplaces.

5. If gas is set free in your home:

Open all windows.
Do not unplug the appliance and do not use the control panel.
Do not touch the appliance until the gas has gone.
Otherwise sparks can be generated which will ignite the gas.

WARNING!

1. Whenever you use extractor hoods in combination with non electrically-operated appliances ( gas and oil-fired appliances ) , the negative pressure of the corresponding room must not be more than 4Pa( 4 * 10^-5. bar).
2. An electrical supply of 220 - 240V AC / 50Hz is required. Do not use a socket board or a multi socket or an extension cord when operating the appliance with 220 - 240V / 50Hz (AC). All electrical connections which may be damaged must be repaired by a qualified professional.
3. Only connect the appliance to a properly grounded and dedicated socket.
4. The appliance must be grounded. Only use a proper safety socket to minimize risk of electric shock. The technical data of your energy supply must meet the data on the rating label.
5. Your domestic circuit must be equipped with an automatic circuit breaker.
6. Strictly observe the minimum distance between hood and hob:

Minimum distance hood to

Ceramic-glass rings/hotplates	65 cm
Gas cooker	75 cm
Coal / oil / stove wood firing	85 cm

1. Do not cook a la flambe dishes below the extractor hood. The flames may damage your appliance and/or cause fire.

2. Do not operate the gas jets of a gas hob without cookware. The flames may damage your appliance and/or cause fire.

3. If you fry, permanently keep an eye on the oil as it can catch fire. The risk of auto-ignition rises when using the oil many times.
4. Do not carry out any procedures on the hob using naked light or fire. The flames may damage your appliance and/or cause fire.
5. The exhaust hose must not be made of flammable materials or contain any flammable materials.
6. The extracted air must not be conducted by an exhaust pipe of a heater or similar, not electrically-operated appliances.
7. Operate the appliance with inserted grease filters only. Otherwise recirculating-transported fat will deposit in the appliance and the exhaust system. RISK OF FIRE! Clean or replace the filters regularly.
8. Disconnect the appliance from the mains before cleaning and maintenance.
9. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children. CHOKING HAZARD!
10. This appliance may be operated by children aged from 8 years and above as well as by persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the appliance and do comprehend the hazards involved. Children must not play with the appliance. Cleaning and user-maintenance must not be carried out by children unless they are supervised.
11. Always supervise children so they will not play with the appliance.

CAUTION!

1. Accessible parts of the hood may become hot while cooking.
2. Carry out the installation of the appliance with at least two persons. Risk of damage. RISK OF INJURY!

NOTICE!

1. The appliance must be transported and installed by at least two persons.
2. Unpack the parts of the chimney very carefully; otherwise you will damage the chimney
3. Remove the complete packaging materials before initial operation. The appliance may be equipped with a transportation lock. Remove the transportation lock completely. When removing be very careful. Do not use any aggressive detergents to remove residues of the transportation lock.
4. Clean and maintain the appliance regularly to enable its proper operation and optimal performance.

5. Take the enclosed parts from the packaging and its polystyrene-components.

6. Check that the power cord and the appliance are not damaged before electrical connection.

2. Installation

1. The diameter of the exhaust hose must meet the diameter of the connecting ring.
2. If your appliance is equipped with a carbon filter, remove the carbon filter before you operate the appliance in the extraction mode. The carbon filter should be used in the recirculating mode only.
3. The exhaust duct should be as short and straight as possible. The diameter of the exhaust hose should be at least 120 / 150mm (look at chapter TECHNICAL DATA). Otherwise you have to expect increased noise and decreased performance of your appliance.
4. The proper maximum bending angle outwards is 120^ .
5. Use smooth tubes or flexible, non-inflammable exhaust hoses only.
6. When the exhaust duct is connected horizontally, a minimum falling gradient of 1cm / m or an inclination of 2^-0 is required. Otherwise condensate will get into the motor of the hood.
7. When an exhaust duct is used, the ending of the exhaust hose must be adjusted into the direction of flow.
8. If the exhaust duct passes through cool areas (e.g. an attic), a temperature gradient may occur in the different parts of the exhaust duct so condensate will be generated. Proper insulation of the corresponding parts of the exhaust duct will then be needed. Equip such an exhaust duct with a condensate trap if need be.
9. Depending on the model the hood is equipped with one (top) or two (top, back) outlets.
10. The idle outlet is covered by a plastic cap. You can remove this cap by turning it anticlockwise. Use the cap to cover the idle outlet.

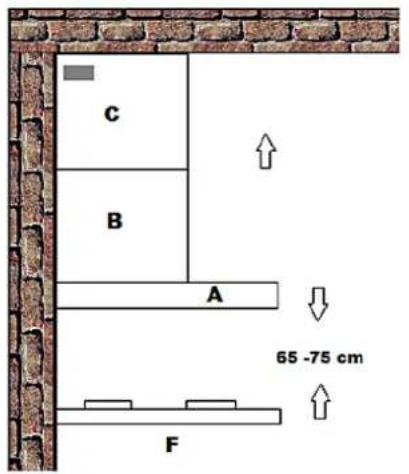

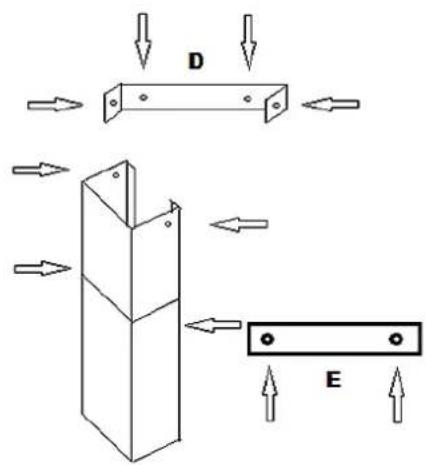

2.1 Main components

A	Hood
B	Base chimney
C	Telescopic chimney
D	Mounting rail
E	Flat bar
F	Hob

2.2 Installation steps

WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
WARNING! Do not damage the wiring in the wall while drilling

a) Hood

1. Install the 2 semi-circular valve flaps (a/b) into the air-outlet-opening of the appliance. Insert the axles of the valve flaps into the relevant openings (1b) by bending them carefully (1a). Both valve flaps shall open outwards (2).

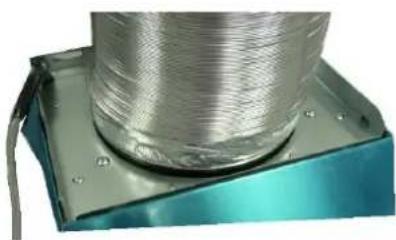

1. Now connect the exhaust hose to the air-outlet opening of the hood. Put the widened end of the exhaust hose over the air-outlet. Start at the back of the air-outlet then proceed from inside the exhaust hose by installing it (use your thumbs on the air-outlet.

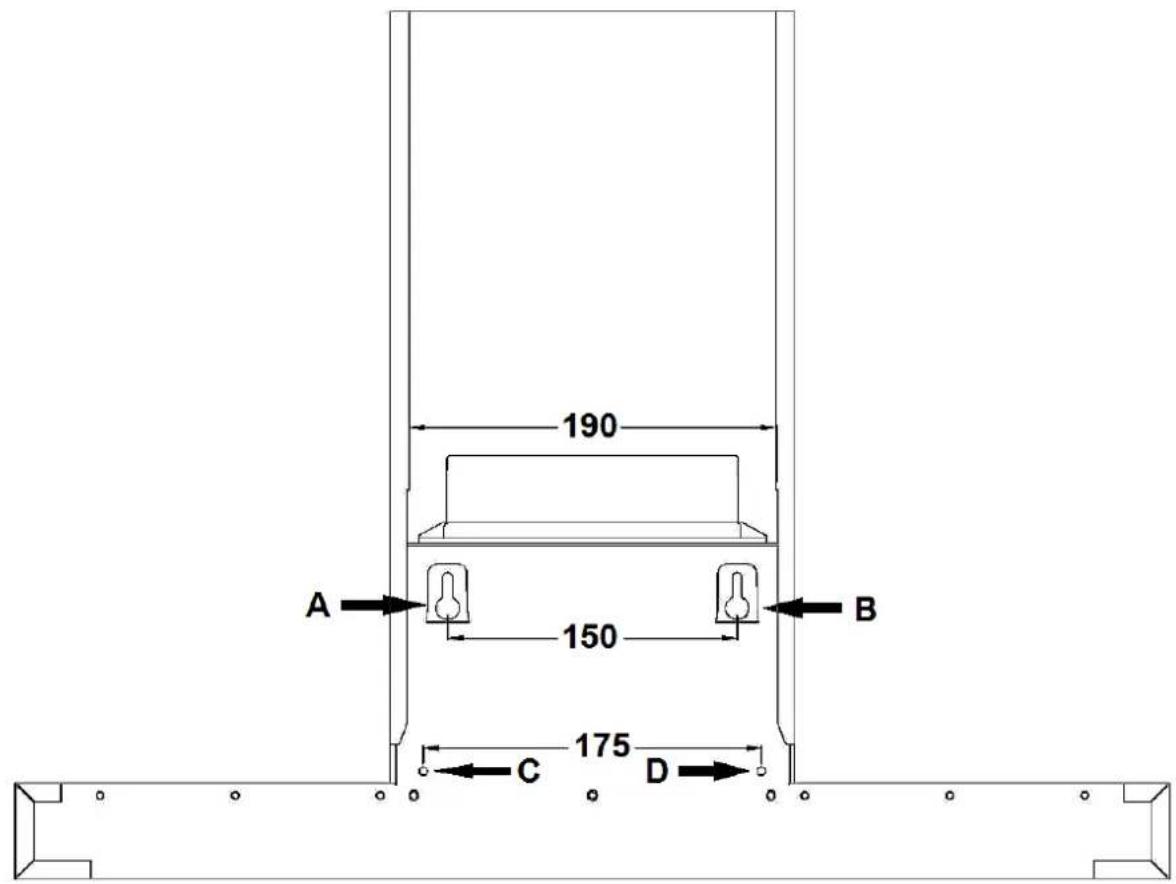

1. Locate the hood on the wall. Mark the positions of the support holes (A / B) to be drilled.

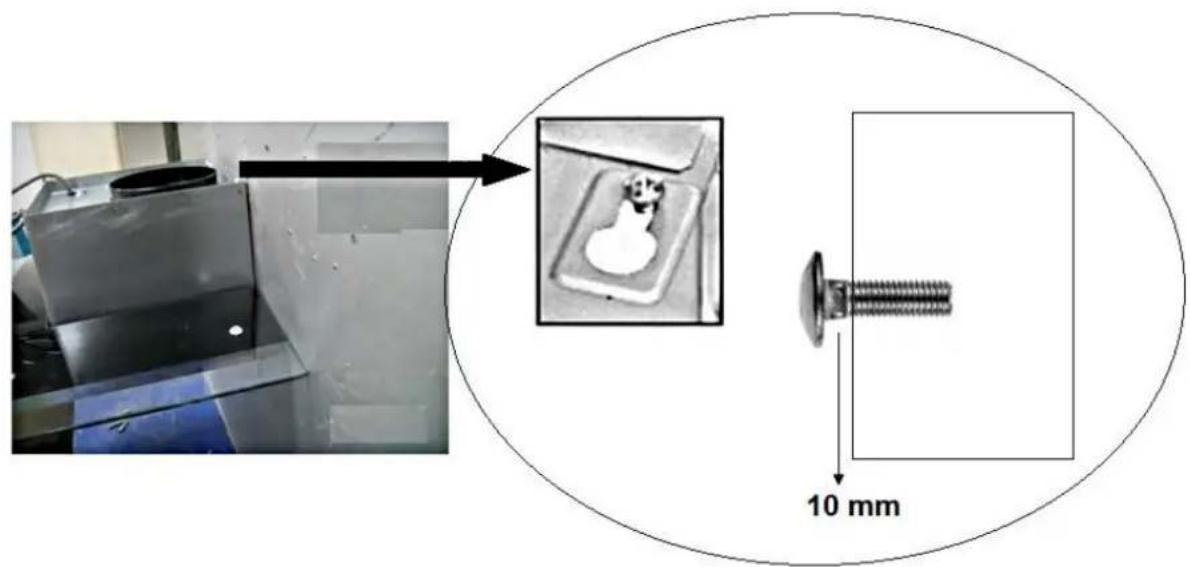

Note:

A/B Drill holes of the support openings.

C/D Drill holes of the anchor holes.

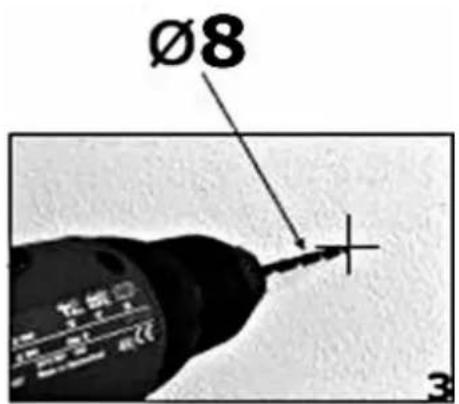

1. drill holes A/B = 8 mm

a) Drill the holes.
b) Insert the dowels.

1. Tighten the screws of the support openings (A/B), but leave free space of 10 mm between the screw head and the wall. Hang the hood on the screws.

1. Tighten the screws of the support openings (A/B) completely.
2. Screw the anchor screws (C/D) through the relevant openings completely into the wall.

b) Chimney

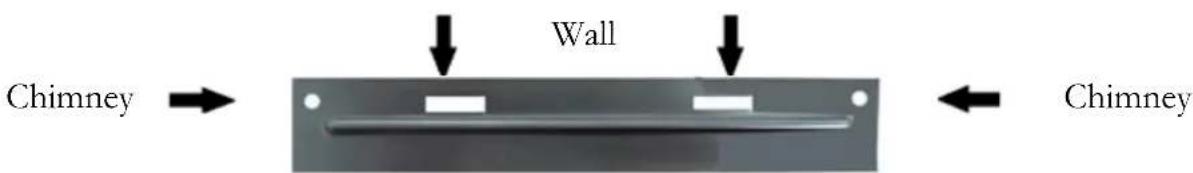

1. Install the flat bar on the bottom chimney first, then on the wall. You can carry out this step provisionally to mark the drillings of the wall mounting and drill the relevant holes.

1. Place the top and bottom chimney on the hood and fix the bottom one on it (look at the drawing connect chimney to hood).
2. Fix the chimney-installation bracket below the ceiling on the wall using the screws and dowels.

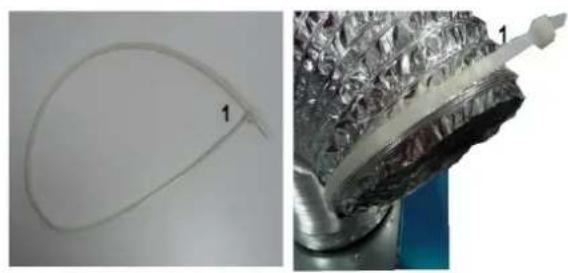

1. Lay the exhaust hose to the wall outlet. Fix the exhaust hose with the cable tie (1) on the wall-outlet.

1. Fix the top chimney on the installation bracket (look also on step 8).

2. Insert the grease filters and connect the appliance to the mains³.

Check the correct position of the hood from front and side perspective. Otherwise the appliance will not work properly.

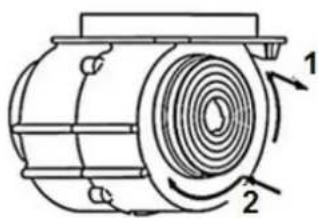

2.3 Carbon filter

1 open

Unplug the appliance before installing the carbon filter.

For recirculating mode only.

2 close

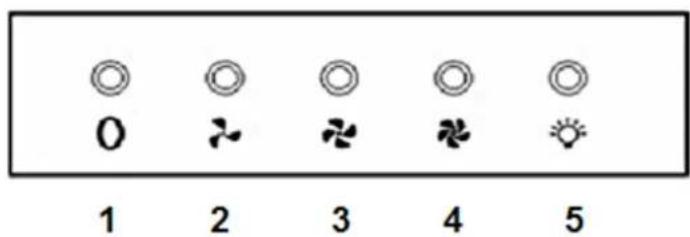

3. Control panel

1 Off
2 Lowest setting
3 Medium setting
4 Highest setting
5 Light on/off

NOTICE! Only switch on the lights while the appliance is operating. Do not switch on the lights to lighten the room.

4. Cleaning/maintenance

WARNING!

Disconnect the appliance from the mains before you clean or maintain it.
- Ignoring the cleaning and maintenance instructions will cause an increased risk of fire.

NOTICE!

Take off all rings and bracelets before cleaning or maintaining the appliance; otherwise you will damage the surface of the appliance.

1. Clean the housing of the appliance with a suitable detergent. Use such a product carefully and economically.
2. Do not clean the control panel with a detergent. Use a damp cloth. Otherwise you may damage the electronic components of the controls.
3. Never use any alcohol-containing detergents to clean matt black painted appliances as these detergents cause colour-changes.

4. Clean the glass panels with a suitable detergent only.

5. When you clean or replace the grease filters or the carbon filters also clean all visible components on the bottom of the appliance with a mild, non-acid and fat-dissolving detergent.

6. Do not damage the grid of metal-made grease filters. The colour of the metal surface may change due to frequent cleaning as well as the use of aggressive detergents.
7. Such changes do not influence the capacity of the appliance and are no reason for complaint.
8. Do not use a stcam clcancer. RISK OF ELECTRIC SHOCK!
9. Do not use any abrasive detergents.

4.1 Grease filter

Aluminium filter

Clean the aluminium filters once a month by hand or in a dishwasher (30^0) . Do not use any acrid or corrosive detergents. Do not use any abrasive detergents! Do not use any alkaline dishwasher-detergents! (ph more than 7). Do not put the filter in the dishwasher together with tableware Filters which are blocked with food debris do not carry a guarantee. Dry the filters properly before you reinstall them.

4.2 Replacing of the illuminant

Do not touch the illuminant with your hands. The sweat on your fingers will reduce the operating time of your new illuminant. Use a thin cloth or a thin glove.

1. WARNING! Disconnect the appliance from the energy supply.
2. The illuminant should have cooled down before you remove it.
3. Remove the old illuminant.
4. Replace it by a new one of the same kind and power.

$$ - - - \mathrm {m} = 0, 4 5 \mathrm {m} $$

Required minimum distance to surfaces such as pot lids, oven cloths etc. to avoid any hot parts and risk of fire.

Only use self shielded illuminants to avoid hot parts, risk of fire and exposure to UV-radiation.

4.3 Carbon filters

Conventional carbon filters cannot be cleaned. The capacity of these filters is limited. You can use such filters for about 3-6 months. Replace a depleted filter. Find further information on the filter packaging.

5. Trouble shooting

MALFUNCTION POSSIBLE CAUSE MEASURE

The appliance does not work at all.
► The plug of the appliance is not connected to the socket.	► Check the corresponding socket by connecting it with another appliance.
► The plug has become loose.	► Check the fuse.
► The socket is not supplied with energy.	► The voltage is too low. Compare the data on the model plate with the data of your energy supplier.
► The fuse is switched off.
Light is on but motor does not work.
► ventilation damper blocked.	► remove blockage.
► motor mounting defective.	► replace motor.
Abnormal motor-smells.
► motor defective	► replace motor
Smear of oil.
► one-way valve is leaky	► seal the valve
► connection base chimney-telescopic chimney is leaky	► seal the connection with a suitable material
Appliance vibrates.
► motor not properly fixed	► fix motor properly
► hood not properly fixed	► fix hood properly
Insufficient extracting capacity.
► too much distance hood-hob	► lower position of hood
► too much draught because of open doors and/or windows	► close the doors/windows
Appliance is unstable.
► mounting rail is not firmly fixed	► fix mounting rail properly
► screws are not firmly tightened	► tighten the screws

If the hood does not work properly and/or you can hear increased operating noise, check the schedule below:

Incorrect dimension of the air duct.
Obstruction in the air duct.
The diameter of the air duct from hood to wall-box inclusive should be 120 mm; otherwise the capacity of the motor may be decreased.
If you have installed a fly screen on the wall-box, the air vent may be obstructed. Check by removing the fly screen.
If the cover panel of the wall box is equipped with firm and slanted slats, the air vent may be obstructed. Check by removing the cover panel.
Install a cover panel with moveable slats, which do not obstruct the air vent.
Check condition and cleanliness of the filters.
- Check if the air which is extracted by the hood is replaced to avoid negative pressure.
- When you run your appliance in recirculating mode, check if the carbon filter has been replaced on time (min. every 3-6 months).

If the appliance has a malfunction not noted on the schedule or if you have checked all items on the schedule but the problem still exists, please contact the shop you purchased the appliance at.

6. Technical data

Type	Cooker hood
Material	Stainless steel
Installation-width in cm	60.00
Push buttons	5
Recirculation/extraction mode*	✓	✓
Annual energy consumption (AEChood)	51.0 kW/h
Energy efficiency category	C
Fluid dynamical efficiency (FDEhood)	12.3
Fluid dynamical efficiency category	E
Lighting efficiency (LEhood)	50,0 lux/W
Lighting efficiency category	A
Grease separation	77.8 %
Grease separation category	C
Air flow **	221 m³/h	365 m³/h
Maximum air flow Qmax	379 m³/h
Δ-rated noise emission **	60 dB	69 dB

Power consumption off (Po)	0.00 W
Power consumption standby (Ps)	0.00 W
Power consumption lighting system (Wj)	1*2,0 W LED)
Connected load	107,0 W
Voltage/frequency	220-240 VAC /50Hz
Grecase filter/material/dishwasher-proof	2 aluminum √
Carbon filter ***	2*CF 150
Exhaust hose	√
Installation material	√
Instruction manual	√
Telescopic chimney extractable from-to	40.00-78.00 cm
Dimensions appliance H*W*D in cm	45,00-83.00*60.00*45.00
Weight net/gross in kg	7.50/9.00

• Extraction mode: installation with ventilation stack or air duct outwards only, wall penetration = Ø 150 mm, drilling about Ø ca. 160 mm.

** Measured values at minimum/maximum motor speed.

*** Optional equipment.

7. Waste management

1. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children. CHOKING HAZARD!
2. Old and unused appliances must be send for disposal to the responsible recycling centre. Never expose to open flames.
3. Before you dispose of an old appliance, render it inoperative. Unplug the appliance and cut off the entire power cord. Dispose of the power cord and the plug immediately.
4. Disposc of any paper and cardboard into the corresponding containers.
5. Dispose of any plastics into the corresponding containers.
6. If suitable containers are not available at your residential area, dispose of these materials at a suitable municipal collection point for waste-recycling.
7. Receive more detailed information from your retailer or your municipal facilities.

Materials marked with this symbol are Please contact your local authorities to recyclable. receive further information.

for large electric appliances; PKM GmbH & Co. KG, Neuer Wall 2, 47441 Moers

This appliance includes a 24-month guarantee for the consumer given by the manufacturer, dated from the day of purchase, referring to its flawless material-components and its faultless fabrication. The consumer is accredited with both the dues of the guarantee given by the manufacturer and the vendor's guarantees. These are not restricted to the manufacturer's guarantee. Any guarantee claim has to be made immediately after the detection and within 24 months after the delivery to the first ultimate vendee. The guarantee claim has to be verified by the vendee by submitting a proof of purchase including the date of purchase and/or the date of delivery. The guarantee does not establish any entitlement to withdraw from the purchase contract or for a price reduction. Replaced components or exchanged appliances demise to us as our property.

The guarantee claim does not cover:

1. fragile components as plastic, glass or bulbs;
2. minor modifications of the PKM-products concerning their authorized condition if they do not influence the utility value of the product;
3. damage caused by handling errors or false operation;
4. damage caused by aggressive environmental conditions, chemicals, detergents;
5. damage caused by non-professional installation and haulage;
6. damage caused by non common household use;
7. damages which have been caused outside the appliance by a PKM-product unless a liability is forced by legal regulations.

The validity of the guarantee will be terminated if:

1. the prescriptions of the installation and operation of the appliance are not observed.
2. the appliance is repaired by a non-professional.
3. the appliance is damaged by the vendor, the installer or a third party.
4. the installation or the start-up is performed inappropriately.
5. the maintenance is inadequately or incorrectly performed.
6. the appliance is not used for its intended purpose.
7. the appliance is damaged by force majeur or natural disasters, including, but with not being limited to fires or explosions.

The guarantee claims neither extend the guarantee period nor initiate a new guarantee period. The geographical scope of the guarantee is limited with respect to appliances, which are purchased and used in Germany, Austria, Belgium, Luxembourg and the Netherlands.

DYSFONCTIONNEMENT CAUSE POSSIBLE CAUSE POSSIBLE

fixcz lc motcur correctment.

motor montage defect.

verrang motor.

Abnormale motorische-geur.

motor defect

verrang motor

Smeer van olie.

Apparaat is instabiel.

montagerail is nicht stevig vast

fix montagerail goed

screws are not firmly tightened

draai de schroeven vast

Please contact the shop you purchased the appliance at.

Subject to alterations

Sous reserve de modification
