USER MANUAL T12D20X0 NEFF

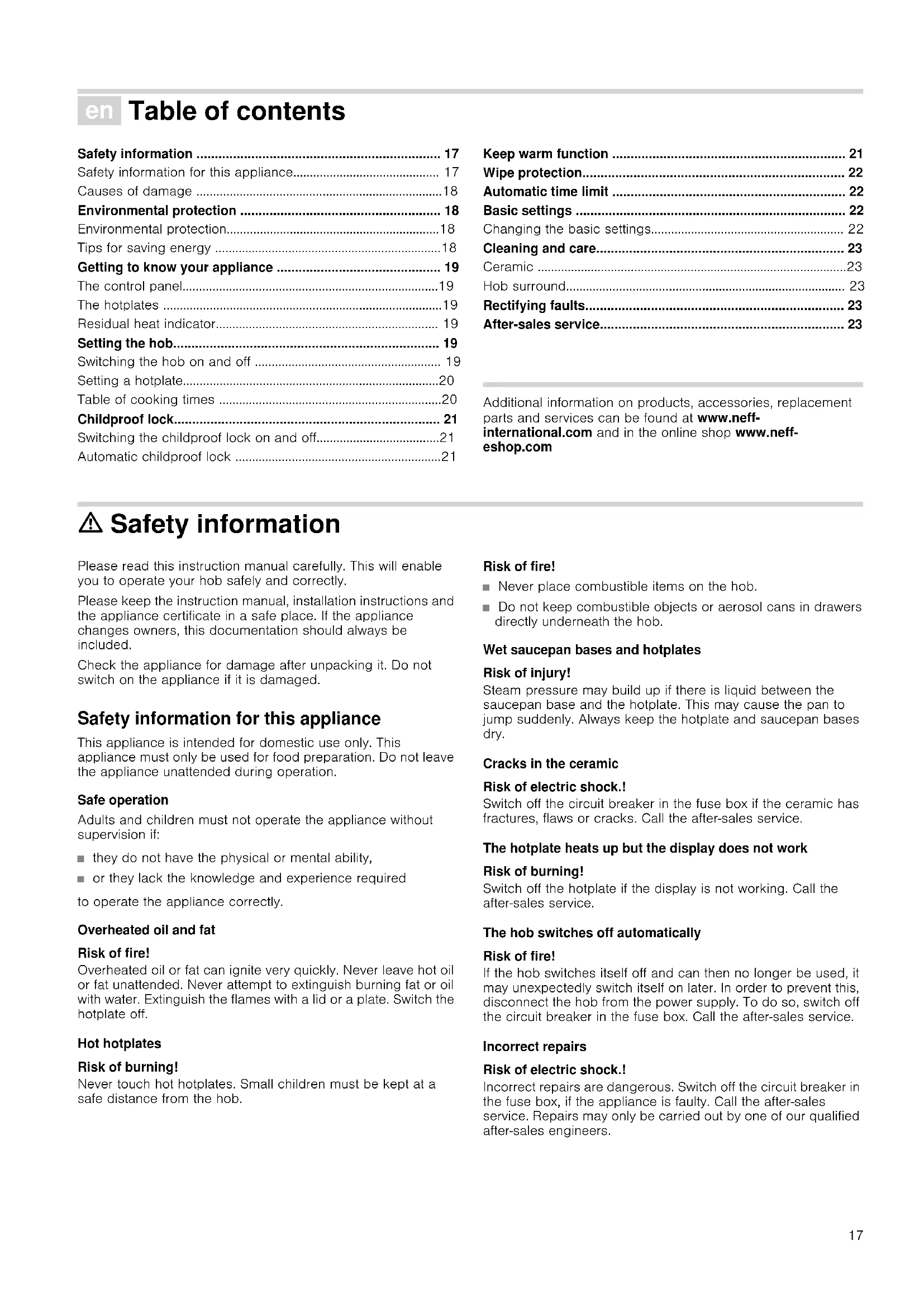

• Ne placez pas de casseroles chaudes près du bandeau de commande ou sur celui-ci B 070 222 143 FR 0 825 398 210 (0,15 € TTC/mn) CH 0848 840 04017 Ú Table of contents Safety information ................................................................... 17 Safety information for this appliance............................................ 17 Causes of damage ..........................................................................18 Environmental protection ....................................................... 18 Environmental protection................................................................18 Tips for saving energy ....................................................................18 Getting to know your appliance ............................................. 19 The control panel.............................................................................19 The hotplates ....................................................................................19 Residual heat indicator................................................................... 19 Setting the hob......................................................................... 19 Switching the hob on and off ........................................................ 19 Setting a hotplate.............................................................................20 Table of cooking times ...................................................................20 Childproof lock......................................................................... 21 Switching the childproof lock on and off.....................................21 Automatic childproof lock ..............................................................21 Keep warm function ................................................................ 21 Wipe protection........................................................................ 22 Automatic time limit ................................................................ 22 Basic settings .......................................................................... 22 Changing the basic settings.......................................................... 22 Cleaning and care.................................................................... 23 Ceramic .............................................................................................23 Hob surround.................................................................................... 23 Rectifying faults....................................................................... 23 After-sales service................................................................... 23 Produktinfo Additional information on products, accessories, replacement parts and services can be found at www.neff- international.com and in the online shop www.neff- eshop.com m Safety information Please read this instruction manual carefully. This will enable you to operate your hob safely and correctly. Please keep the instruction manual, installation instructions and the appliance certificate in a safe place. If the appliance changes owners, this documentation should always be included. Check the appliance for damage after unpacking it. Do not switch on the appliance if it is damaged. Safety information for this appliance This appliance is intended for domestic use only. This appliance must only be used for food preparation. Do not leave the appliance unattended during operation. Safe operation Adults and children must not operate the appliance without supervision if: ■ they do not have the physical or mental ability, ■ or they lack the knowledge and experience required to operate the appliance correctly. Overheated oil and fat Risk of fire! Overheated oil or fat can ignite very quickly. Never leave hot oil or fat unattended. Never attempt to extinguish burning fat or oil with water. Extinguish the flames with a lid or a plate. Switch the hotplate off. Hot hotplates Risk of burning! Never touch hot hotplates. Small children must be kept at a safe distance from the hob. Risk of fire! ■ Never place combustible items on the hob. ■ Do not keep combustible objects or aerosol cans in drawers directly underneath the hob. Wet saucepan bases and hotplates Risk of injury! Steam pressure may build up if there is liquid between the saucepan base and the hotplate. This may cause the pan to jump suddenly. Always keep the hotplate and saucepan bases dry. Cracks in the ceramic Risk of electric shock.! Switch off the circuit breaker in the fuse box if the ceramic has fractures, flaws or cracks. Call the after-sales service. The hotplate heats up but the display does not work Risk of burning! Switch off the hotplate if the display is not working. Call the after-sales service. The hob switches off automatically Risk of fire! If the hob switches itself off and can then no longer be used, it may unexpectedly switch itself on later. In order to prevent this, disconnect the hob from the power supply. To do so, switch off the circuit breaker in the fuse box. Call the after-sales service. Incorrect repairs Risk of electric shock.! Incorrect repairs are dangerous. Switch off the circuit breaker in the fuse box, if the appliance is faulty. Call the after-sales service. Repairs may only be carried out by one of our qualified after-sales engineers.18 Causes of damage Caution! ■ Rough pot and pan bases scratch the ceramic. ■ Avoid boiling pots dry. This may cause damage. ■ Never place hot pots or pans on the control panel, the display area or the surround. This may cause damage. ■ Damage can occur if hard or pointed objects fall on the hob. ■ Aluminium foil and plastic containers melt on hot hotplates. Oven protective foil is not suitable for your hob. Overview The following table provides an overview of the most frequent kinds of damage: Environmental protection Unpack the appliance and dispose of the packaging in an environmentally-responsible manner. Environmental protection Tips for saving energy ■ Always use the right lid for the pan in question. Cooking without the lid requires four times as much energy. ■ Use pots and pans with even bases. Using cookware with uneven bases increases energy consumption. ■ The diameter of the base of your pot or pan should match the size of the hotplate. In particular, if pots that are too small are placed on the hotplate, energy is wasted. Please note: Cookware manufacturers often specify the diameter of the top of the pan. This is usually bigger than the diameter of the base of the pan. ■ Use a small pan for small quantities of food. A larger, less full saucepan requires more energy. ■ Use only a little water when cooking. This saves energy. It also preserves vitamins and minerals in vegetables. ■ Switch to a lower heat setting as soon as possible. ■ Use the residual heat of the hob. For longer cooking times, you can switch the hotplate off 5 - 10 minutes before the end of the cooking time. Damage Cause Action Stains Food spills Remove spills immediately with a glass scraper. Unsuitable cleaning agents Only use cleaning agents which are suitable for ceramic Scratches Salt, sugar and sand Do not use the hob as a work surface or storage space. Rough pot and pan bases scratch the ceramic. Check your cookware. Discolouration Unsuitable cleaning agents Only use cleaning agents which are suitable for ceramic Pan abrasion (e.g. aluminium) Lift the pots and pans when moving them. Blisters Sugar, food with a high sugar content Remove spills immediately with a glass scraper. This appliance is labelled in accordance with the European Directive 2002/96/EU concerning used electrical and electronic appliances (WEEE – waste electrical and electronic equipment). The guideline determines the framework for the return and recycling of used appliances as applicable.19 Getting to know your appliance The instruction manual is the same for various different hobs. An overview of the models with their dimensions is given on page 2. The control panel Controls When you touch a symbol, the respective function is activated. Notes ■ The settings will remain unchanged if you touch several symbols at once. This allows you to wipe up spills on the control panel. ■ Always keep the controls dry. Moisture reduces their effectiveness. The hotplates Residual heat indicator The hob has a two-stage residual heat indicator for each hotplate. If • appears in the display the hob is still hot. It may be used, for example, to keep a small meal warm or to melt cooking chocolate. As the hotplate cools down further, the display changes to œ. The display remains lit until the hotplate has cooled sufficiently. Setting the hob This section informs you how to set the hotplates. The table shows heat settings and cooking times for various meals. Switching the hob on and off The main switch is used to switch the hob on and off. To switch on: touch the # symbol. The indicator above the main switch lights up. The hob is ready for use. To switch off: touch the # symbol until the display above the main switch goes out. All hotplates are switched off. The residual heat indicator remains on until the hotplates have cooled down sufficiently. Notes ■ The hob switches off automatically if all hotplates have been switched off for more than 15 seconds. ■ The settings remain stored for 4 seconds after the hob has been switched off. If you switch it on again during this time, the hob will operate using the previously stored settings. Displays for heat setting‚-Š residual heat •/œ operating readiness ‹ Control for hotplate selection Controls for # main switch " wipe protection L keep warm function L childproof lock Controls for adjustment Controls for activation of ð or ë Hotplate Activating and deactivating $ Single-circuit hotplate ð Dual-circuit hotplate Use the ( ) symbol to select the hotplate; touch the activation symbol ð or ë ç Extended cooking zone Use the ( ) symbol to select the hotplate; touch the activation symbol ð or ë When the hotplate is activated: the corresponding indicator lights up.20 Setting a hotplate Use the + and - symbols to set the desired heat setting. Heat setting 1 = lowest setting Heat setting 9 = highest setting There is an intermediate setting between each heat setting. This is identified by a dot. Set the heat setting The hob must be switched on.

1. Touch the ( ) symbol for the required hotplate. ‹ lights up in

2. Touch + or - within the next 5 seconds. The basic setting

appears. + symbol: heat setting 9 - symbol: heat setting 4

3. Changing the heat setting: touch the + or - symbol until the

desired heat setting appears. To switch off the hotplate: Use the ( ) symbol to select the hotplate. Touch the + or - symbol until ‹ appears. After about 5 seconds, the residual heat indicator appears. Note: Hotplate temperature is regulated by the heat switching on and off. The heat may also switch on and off at the highest setting. Table of cooking times The following table provides some examples. Cooking times and heat settings may vary depending on the type of food, its weight and quality. Deviations are therefore possible. When heating thick liquids, stir regularly. For bringing liquids to the boil, use heat setting 9.

Ongoing cooking setting Ongoing cooking time in minutes Melting Chocolate, cooking chocolate, butter, honey Gelatine 1-2 1-2

Heating and keeping warm Stew (e.g. lentil stew) Milk** Heating sausages in water** 1-2 1.-2. 3-4

• Continue cooking without a lid ** Without lid21 Childproof lock You can use the childproof lock to prevent children from switching on the hotplates. Switching the childproof lock on and off The hob must be switched off. To switch on: touch the L symbol for approx. 3 seconds. The F symbol lights up for 10 seconds. The hob is locked. To switch off: touch the L symbol for approx. 3 seconds. The hob is unlocked. Automatic childproof lock This function automatically activates the childproof lock every time you switch the hob off. Switching on and off You can find out how to switch the automatic childproof lock on and off in the Basic settings section. Keep warm function The keep warm function is suitable for melting chocolate or butter and for warming food and cookware. Switching on the keep warm function:

1. Use the ( ) symbol to select the hotplate.

2. In the next 5 seconds, touch the L symbol.

– appears in the heat setting display. The keep warm function is switched on. Switching off the keep warm function: Select the hotplate and touch the L symbol. ‹ appears in the heat setting display. After approximately 5 seconds, the hotplate is switched off, and the residual heat indicator appears. Frying** Escalope, plain or breaded Escalope, frozen Cutlet, plain or breaded Steak (3 cm thick) Poultry breast (2 cm thick) Chicken breast, frozen Fish and fish fillet, plain Fish and fish fillet, breaded Fish and fish fillet, breaded and frozen, e.g. fish fingers Scampi and prawns Stir fry, frozen Pancakes Omelette Fried eggs 6-7 6-7 6-7 7-8 5-6 5-6 5-6 6-7 6-7 7-8 6-7 6-7 3.-4. 5-6 6-10 mins 8-12 mins 8-12 mins 8-12 mins 10-20 mins 10-30 mins 8-20 mins 8-20 mins 8-12 mins 4-10 mins 6-10 mins continuous continuous 3-6 mins Deep-fat frying (fry 150-200g per portion continuously in 1-2 litres oil**) Frozen products, e.g. chips, chicken nuggets Croquettes Meat balls Meat, e.g. chicken portions Fish, breaded or battered Vegetables, mushrooms, breaded or battered Small items, e.g. doughnuts, fruit in batter 8-9 7-8 7-8 6-7 5-6 5-6 4-5

Ongoing cooking setting Ongoing cooking time in minutes

• Continue cooking without a lid ** Without lid22 Wipe protection If you wipe over the control panel while the hob is switched on, settings may be altered. To prevent this from happening, your hob has a wipe protection function. Touch the " symbol. A signal sounds. The control panel is locked for 30 seconds. You can now wipe over the control panel without altering any settings. Note: The main switch is excluded from the wipe protection function. You can switch off the hob at any time. Automatic time limit If a hotplate is in use for a long time without the setting being changed, the automatic time limit is activated. The hotplate stops heating. ” and ‰ flash alternately in the hotplate indicator. The display goes out when you touch any control. You can make new settings. When the time limit is activated depends on the heat setting selected (1 to 10 hours). Basic settings Your appliance has various basic settings. You can adapt these settings to your needs. Changing the basic settings The hob must be switched off.

ð for 4 seconds. ™ and ‚ flash alternately in the left-hand display; ‹ lights up in the right-hand display.

3. Touch the activation symbol, ë or ð, repeatedly until the

desired indicator appears in the left-hand display.

4. Touch the + symbol repeatedly until the desired setting

appears in the right-hand display.

5. Touch the activation symbol, ë or ð, for 4 seconds.

The setting is activated. Switching off To exit the basic setting, switch off the hob with the main switch and make new settings. Indicator Function ™‚ Automatic childproof lock ‹ Switched off.* ‚ Switched on. ™ƒ Audible signal ‹ Confirmation signal and operation error signal switched off. ‚ Only operation error signal switched on. ƒ Confirmation signal and operation error signal switched on.* ™ˆ Activation of the filament circuits ‹ Switched off.* ‚ Switched on. ƒ Last setting before the hotplate was switched off. ™‹ Reset to basic setting ‹ Switched off. ‚ Switched on. *Basic setting23 Cleaning and care The information in this section provides help on how best to care for your hob. Suitable maintenance and cleaning products can be purchased from the after-sales service or in our e-Shop. Ceramic Clean the hob after each use. This will prevent spills from burning onto the ceramic. Only clean the hob when it has cooled down sufficiently. Use only cleaning agents which are suitable for ceramic. Follow the cleaning instructions on the packaging. Never use: ■ Undiluted washing-up liquid ■ Detergent intended for dishwashers ■ Scouring agents ■ Harsh cleaning agents such as oven spray or stain remover ■ Abrasive sponges ■ High-pressure cleaners or steam jet cleaners Ground-in dirt can be best removed with a glass scraper, available from retailers. Please note the manufacturer's instructions. You can also obtain a suitable glass scraper from our after- sales service or from the e-Shop. Hob surround To prevent damage to the hob surround, please observe the following instructions: ■ Use only warm, soapy water. ■ Do not use harsh or abrasive agents. ■ Do not use the glass scraper. Rectifying faults Malfunctions often have simple explanations. Please read the following notes before calling the after-sales service. After-sales service Our after-sales service is there for you if your appliance should need to be repaired. We are committed fo find the best solution also in order to avoid an unnecessary call-out. E number and FD number: Please quote the E number (product number) and the FD number (production number) of your appliance when contacting the after-sales service. The rating plate bearing these numbers can be found on the appliance certificate. Please note that a visit from an after-sales service engineer is not free of charge, even during the warranty period. Please find the contact data of all countries in the enclosed customer service list. To book an engineer visit and product advice Trust the expertise of the manufacturer, and rest assured that the repair will be carried out by trained service technicians using original spare parts for your domestic appliance. Indicator Fault Action Blank There is no power supply. Check the household fuse for the appliance. Check whether there is a power cut by trying other electronic appliances. “ is flash- ing The controls are damp or an object is resting on them. Dry the controls or remove the object.

number Electronic fault. Switch the appliance off and back on again after about 30 seconds using either the household fuse or the circuit breaker in the fuse box. Contact the after-sales service if this appears in the display again. ”ƒ The electronics have overheated and have switched off the corresponding hotplate. Wait until the electronics have cooled down sufficiently. Then touch a control for the hotplate.* ”… The electronics have overheated and have switched off all hotplates. Wait until the electronics have cooled down sufficiently. Then touch any con- trol.* ”‰ The hotplate was in operation for too long and has switched itself off. You can switch the hotplate back on again immediately.
