USER MANUAL T18FD36X0 NEFF

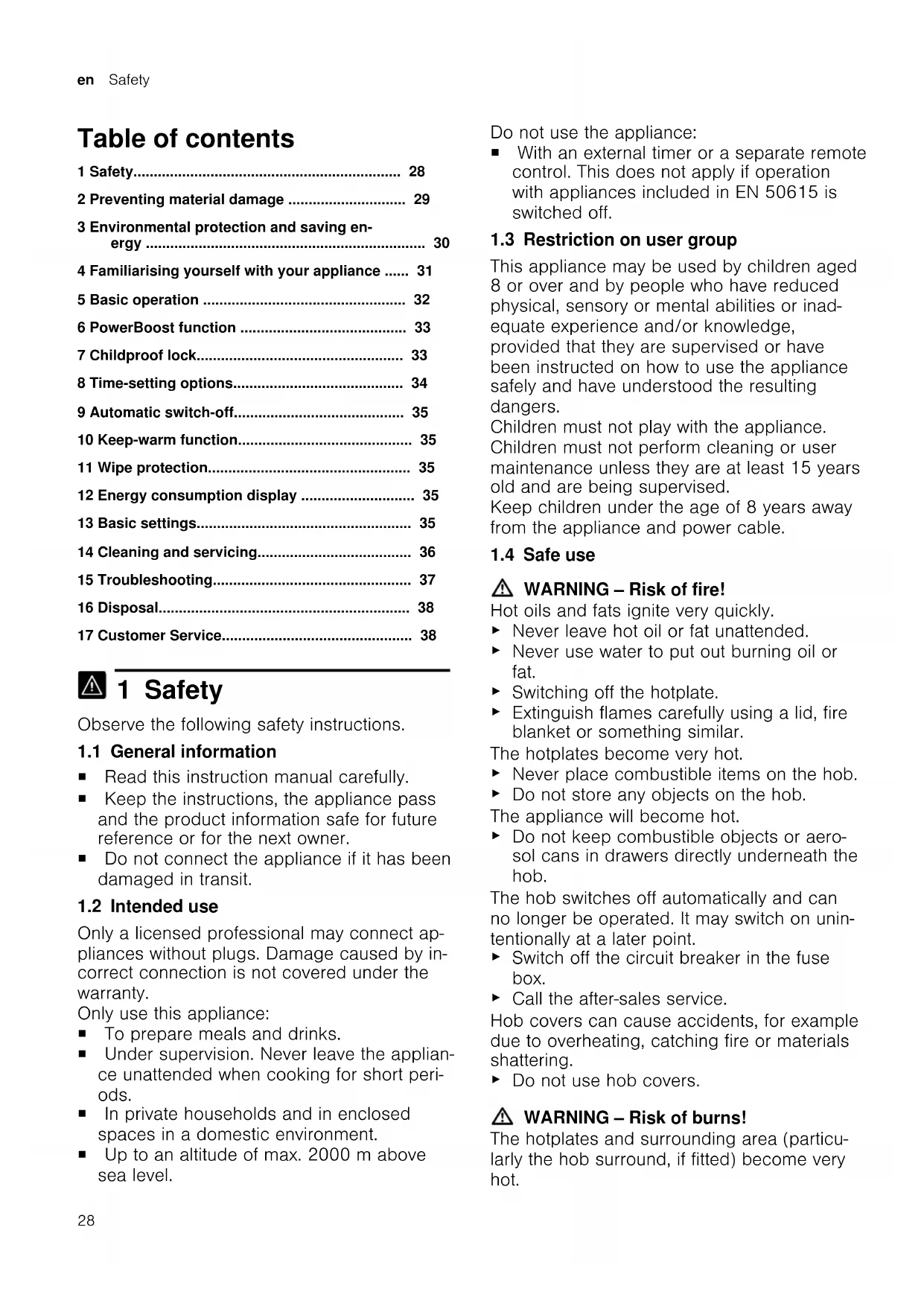

• Table of contents 1 Safety p. 28
• 2 Preventing material damage p. 29
• 3 Environmental protection and saving en- ergy p. 30
• 4 Familiarising yourself with your appliance p. 31
• 5 Basic operation p. 32
• 6 PowerBoost function p. 33
• 7 Childproof lock p. 33
• 8 Time-setting options p. 34
• 9 Automatic switch-off p. 35
• 10 Keep-warm function p. 35
• 11 Wipe protection p. 35
• 12 Energy consumption display p. 35
• 13 Basic settings p. 35
• 14 Cleaning and servicing p. 36
• 15 Troubleshooting p. 37
• 16 Disposal p. 38
• 17 Customer Service 1 Safety Observe the following safety instructions. 1.1 General information ¡ Read this instruction manual carefully. ¡ Keep the instructions, the appliance pass and the product information safe for future reference or for the next owner. ¡ Do not connect the appliance if it has been damaged in transit. 1.2 Intended use Only a licensed professional may connect ap- pliances without plugs. Damage caused by in- correct connection is not covered under the warranty. Only use this appliance: ¡ To prepare meals and drinks. ¡ Under supervision. Never leave the applian- ce unattended when cooking for short peri- ods. ¡ In private households and in enclosed spaces in a domestic environment. ¡ Up to an altitude of max. 2000m above sea level. Do not use the appliance: ¡ With an external timer or a separate remote control. This does not apply if operation with appliances included in EN 50615 is switched off. 1.3 Restriction on user group This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inad- equate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers. Children must not play with the appliance. Children must not perform cleaning or user maintenance unless they are at least 15 years old and are being supervised. Keep children under the age of 8 years away from the appliance and power cable. 1.4 Safe use WARNING‒Risk of fire! Hot oils and fats ignite very quickly. p. 38

Never leave hot oil or fat unattended.

Never use water to put out burning oil or fat.

Switching off the hotplate.

Extinguish flames carefully using a lid, fire blanket or something similar. The hotplates become very hot.

Do not store any objects on the hob. The appliance will become hot.

Do not keep combustible objects or aero- sol cans in drawers directly underneath the hob. The hob switches off automatically and can no longer be operated. It may switch on unin- tentionally at a later point.

Switch off the circuit breaker in the fuse box.

Call the after-sales service. Hob covers can cause accidents, for example due to overheating, catching fire or materials shattering.

Do not use hob covers. WARNING‒Risk of burns! The hotplates and surrounding area (particu- larly the hob surround, if fitted) become very hot.Preventing material damage en

Keep children at a safe distance. The hotplate heats up but the display does not work.

Switch off the circuit breaker in the fuse box.

Call the after-sales service. Unsuitable safety devices or child hob guards may result in accidents.

Only use safety devices, such as child hob guards, which have been approved by us. The appliance becomes hot during operation.

Allow the appliance to cool down before cleaning. WARNING‒Risk of electric shock! Incorrect repairs are dangerous.

Repairs to the appliance should only be carried out by trained specialist staff.

If the power cord of this appliance is dam- aged, it must be replaced with a special connection cable, which is available from the manufacturer or his Customer Service. If the appliance or the power cord is dam- aged, this is dangerous.

Never operate a damaged appliance.

Never operate an appliance with a cracked or fractured surface.

Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains.

If the appliance or the power cord is dam- aged, immediately unplug the power cord or switch off the fuse in the fuse box.

Call customer services. →Page38 An ingress of moisture can cause an electric shock.

Do not use steam- or high-pressure clean- ers to clean the appliance. The insulation on cables of electrical appli- ances may melt if it touches hot parts of the appliance.

Never bring electrical appliance cables into contact with hot parts of the appliance. WARNING‒Risk of injury! Saucepans may suddenly jump due to liquid between the saucepan base and the hotplate.

Always keep hotplates and saucepan bases dry. WARNING‒Risk of suffocation! Children may put packaging material over their heads or wrap themselves up in it and suffocate.

Keep packaging material away from chil- dren.

Do not let children play with packaging ma- terial. Children may breathe in or swallow small parts, causing them to suffocate.

Keep small parts away from children.

Do not let children play with small parts. 2  Preventing material damage ATTENTION! Rough pot and pan bases will scratch the ceramic.

Never place empty pans on a heated hotplate. Incorrectly positioned cookware can cause the elec- tronics to overheat.

Never place hot pots or pans on the controls or the hob frame. Damage can occur if hard or pointed objects fall onto the hob.

Do not let hard or pointed objects fall onto the hob. Aluminium foil and plastic containers will melt and ad- here to heated hotplates.

Do not use oven protective foil. 2.1 Overview of the most common damage Here you can find the most common types of damage and tips on how to avoid them. Damage Cause Measure Stains Food boiling over Unsuitable cleaning products Remove boiled-over food immediately with a glass scraper. Only use cleaning agents that are suitable for glass ceramic. Scratch

Salt, sugar or sand Rough pot or pan bases Do not use the hob as a work surface or storage space. Check your cookware.en Environmental protection and saving energy

Damage Cause Measure Discol- ouration Unsuitable cleaning products Pan abrasion, e.g. aluminium Only use cleaning agents that are suitable for glass ceramic. Lift pots and pans to move on the hob. Damage Cause Measure Blisters Sugar or food with a high sugar content Remove boiled-over food immediately with a glass scraper. 3  Environmental protection and saving energy Help protect the environment by using your appliance in a way that conserves resources and by disposing of reusable materials properly. 3.1 Disposing of packaging The packaging materials are environmentally compat- ible and can be recycled.

Sort the individual components by type and dispose of them separately. Information about current disposal methods are available from your specialist dealer or local author- ity. 3.2 Saving energy If you follow these instructions, your appliance will use less power. Select the cooking zone to match the size of your pan. Centre the cookware on the hob. Use cookware whose base diameter is the same dia- meter as the hotplate. Tip:Cookware manufacturers often give the upper diameter of the saucepan. It is often larger than the base diameter.

Unsuitable cookware or incompletely covered cook- ing zones consume a lot of energy. Cover saucepans with suitable lids.

Cooking without a lid consumes far more energy. Lift the lid as infrequently as possible.

When you lift the lid, a lot of energy escapes. Using a glass lid

You can see into the pan through a glass lid without having to lift it. Use pots and pans with flat bases.

Uneven bases increase energy consumption. Use cookware suited to the quantity of food.

Large items of cookware containing little food need more energy to heat up. Cook with little water.

The more water in cookware, the more energy is re- quired to heat it up. Turn down to a lower heat setting early on. Use a suit- able ongoing cooking setting to continue cooking. Take advantage of the hob's residual heat. With longer cooking times switch off the hotplate 5-10minutes before the end of cooking.

If you continue cooking with an ongoing cooking setting that is too high, you'll waste energy If you take advantage of residual heat, you'll save energy.Familiarising yourself with your appliance en

4  Familiarising yourself with your appliance 4.1 Control panel You can use the control panel to configure all functions of your appliance and to obtain information about the operating status. 4.2 Indicators/symbols The displays show selected values and functions. Display Name - Heat settings / Residual heat PowerBoost function Keep-warm function Timer 4.3 Touch fields Touch fields are touch-sensitive surfaces. To select a function, touch the relevant field. Touch field Name Main switch Wipe protection Childproof lock Hotplate selection Adjustment fields Automatic zone control PowerBoost function Keep-warm function Timer Notes ¡ Always keep the control panel dry. Moisture impairs the function. ¡ Do not pull pans close to the displays and touch fields. The electronics may overheat. 4.4 Hotplates You can find an overview of the different activations of the hotplates here. If you operate the activations, the relevant displays light up. If you switch on a hotplate, it will switch to the setting last selected. Hotplate Activating and deactivating Single-circuit hotplate Dual-circuit hotplate Select hotplate. Touch . Extended cooking zone Touch . Notes ¡ Dark areas in the glow pattern of the hotplate are part of the technical design. They do not affect the functionality of the hotplate. ¡ The hotplate regulates the temperature by switching the heat on and off. The heat may also switch on and off when on the highest setting. – This protects easily damaged components from overheating. – The appliance is protected from electrical over- load. – Better cooking results are achieved. ¡ With multi-circuit hotplates, the heating of the inner filament circuits and the heating of the activations may switch on and off at different times.en Basic operation

4.5 Residual heat indicator The hob has a two-stage residual heat indicator for each hotplate. Do not touch the hotplate while the re- sidual heat indicator is lit up. Display Meaning The hotplate is so hot that you can keep small dishes warm or melt cook- ing chocolate. The hotplate is hot. 5  Basic operation 5.1 Switching the hob on or off The main switch is used to switch the hob on and off. If you switch the appliance back on again within 4seconds after switching off, the hob will start up with the previously stored settings. 5.2 Switching on the hob

Touch . a The indicator lamp above lights up. a The displays light up. a The hob is ready for use. 5.3 Switching off the hob The hob will switch off automatically when all hotplates have been switched off for a while (10-60seconds).

Touch . a The indicator lamp above goes out. a The displays go out. a All hotplates are switched off. a The residual heat indicator remains on until the hot- plates have cooled down sufficiently. 5.4 Setting the hotplates To set a hotplate, it has to be selected. Select the required heat setting on the control panel. Heat setting 1 Lowest setting 9 Highest setting . Every heat setting has an intermediate setting, e.g. 4. . 5.5 Changing heat settings

Select the hotplate with .

Touch or until the required heat setting ap- pears. 5.6 Switching off the hotplate There are 2 ways to switch off the hob.

Touch twice. a appears on the heat setting display. a After approx. 10seconds the residual heat indicator appears.

Select the hotplate and touch or until ap- pears on the heat setting display. a After approx. 10seconds the residual heat indicator appears. Note:The hotplate last selected remains activated. You can adjust the hotplate without selecting it again. 5.7 Recommended cooking settings You can find an overview of different foods with appro- priate heat settings here. The cooking time will vary depending on the type, weight, thickness and quality of the food. The ongoing cooking setting depends on the cookware used. Cooking tips ¡ To bring food to the boil, use heat setting 9. ¡ Stir thick liquids occasionally. ¡ Food that needs to be seared quickly or that initially loses a lot of liquid during frying should be fried in small portions. ¡ Tips for saving energy when cooking. →Page30 Melting Food Ongoing cooking setting Ongoing cooking time in minutes Chocolate, cooking chocolate 1-1. - Butter, honey, gelatine 1-2 - Heating or keeping warm Stew, e.g. lentil stew 1-2 - Milk

1.-2. - Sausages in water

Bring the water to the boil with the lid on.

Continue to cook the dish without a lid. Boiling, steaming or stewing Rice with double the volume of water 2-3 15-30 Rice pudding 1.-2. 35-45

Bring the water to the boil with the lid on.

Bring the water to the boil with the lid on.

Continue to cook the dish without a lid. Braising Beef olives 4-5 50-60 Pot-roasting 4-5 60-100 Goulash 2.-3. 50-60 Frying with little oil Fry food without a lid. Escalope, plain or breaded 6-7 6-10 Escalope, frozen 6-7 8-12 Chops, plain or breaded

6-7 8-12 Steak, 3cm thick 7-8 8-12 Patties, 3cm thick

6-7 10-20 Poultry breast, 2cm thick

Turn the dish several times. Fish or fish fillet, breaded 6-7 8-20 Fish or fish fillet, breaded and frozen, e.g. fish fingers 6-7 8-12 Scampi, prawns 7-8 4-10 Vegetables or mushrooms, fresh, sautéing 7-8 10-20 Vegetables or meat in strips cooked Asian-style 7.-8. 15-20 Stir fry, frozen 6-7 6-10 Pancakes 6-7 one by one Omelette 3.-4. one by one Fried eggs 5-6 3-6

Turn the dish several times. Deep-frying Deep-fry food in 1-2l oil in batches, 150-200g per batch. Cook food without a lid. Frozen products, e.g. chips or chicken nuggets 8-9 - Croquettes, frozen 7-8 - Meat, e.g. chicken 6-7 - Fish, breaded or battered 5-6 - Vegetables or mushrooms, breaded or battered Tempura 5-6 - Small pastries, e.g. doughnuts, fruit in batter 4-5 - 6  PowerBoost function PowerBoost lets you heat up large volumes of water even faster than on heat setting 9. The PowerBoost function is only available on hotplates marked . 6.1 Switching on PowerBoost WARNING‒Risk of fire! Oil and fat heat up quickly with the PowerBoost func- tion. Oil and fat ignite quickly if overheated.

When cooking, never leave the hob unattended. Requirement:With dual-circuit hotplates, the second filament circuit has to be activated for use with the PowerBoost function.

Select the hotplate.

Touch . a The indicator lights up. 6.2 Switching off PowerBoost If you do not switch off the PowerBoost function, it will switch off automatically after a certain period of time. The hotplate switches back to heat setting 9.

Select the hotplate.

Select any ongoing cooking setting. a The display goes out. 7  Childproof lock You can use the childproof lock to prevent children from switching on the hob. 7.1 Activating the childproof lock Requirement:The hob is switched off.

Press and hold for approx. 4seconds. a lights up for approx. 10seconds. a The hob is locked. 7.2 Deactivating the childproof lock

Press and hold for approx. 4seconds. a The lock is released.en Time-setting options

7.3 Automatic childproof lock This function automatically activates the childproof lock when you switch off the hob. The automatic childproof lock can be activated in the basic settings. →Page35 8  Time-setting options Your appliance has different time-setting options which can be used to set a cooking time, an automatic timer or a kitchen timer. 8.1 Cooking time Enter a cooking time for the relevant hotplate. When the cooking time has elapsed, the hotplate switches off automatically. You can set a cooking time of up to 99 minutes. Setting the cooking time Requirement:The hotplate is selected.

Select the heat setting.

Touch . a The indicator for the hotplate lights up. lights up on the timer display.

The default value appears. – 30minutes. – 10minutes. a The cooking time counts down. If you have set a cooking time for more than one hotplate, the cook- ing time of the hotplate selected is displayed. a When the cooking time has elapsed, the hotplate switches off. A signal sounds and lights up on the display for one minute. The display lights up brightly. Changing or cancelling the cooking time

Select the hotplate.

Touch . a The display lights up brightly.

Change the cooking time using or or set to . Switching off the continuous signal You can switch the signal off manually.

Touch any symbol. a The displays will go out and the audible signal will stop. Automatic timer You can use this function to preselect a cooking time for all hotplates. Each time a hotplate is switched on, the preselected cooking time counts down. When the cooking time has elapsed, the hotplate switches off automatically. Switch on the automatic timer in the basic settings.

• Page35 Tip:The automatic timer is valid for all hotplates. You can reduce or delete the cooking time for individual hotplates. →Page34 8.2 Kitchen timer You can set a time of up to 99 minutes after which a signal will then sound. The kitchen timer runs inde- pendently of all other settings. Setting the kitchen timer

Switch on the kitchen timer. There are 2 different ways to switch the kitchen timer on. If a hotplate has been selected. Touch twice within 10seconds. If a hotplate has not been selected. Touch . a The indicator lights up.

Use or to set the time. a The time counts down. a When the time has elapsed, a signal sounds. lights up on the timer display. The indicator for the kitchen timer lights up brightly. It switches off after one minute. Displaying the time

Select the kitchen timer with . a The time is displayed for 10seconds. Setting the correct time

Select the kitchen timer with .

Set the required time with or . Switching off the timer signal You can switch the signal off manually.

9  Automatic switch-off If you do not change the settings of a hotplate for a long time, automatic switch-off will be activated. When the hotplate switches off depends on the heat setting selected (1to 10hours). The heat to the hotplate is switched off. and the re- sidual heat indicator / flash alternately on the hot- plate display. 9.1 Continuing cooking after automatic switch-off

Touch any control. a The display goes out.

Reset. 10  Keep-warm function The keep-warm function allows you to melt chocolate or butter and to keep food or cookware warm. 10.1 Switching on the keep-warm function

Select the hotplate.

Touch the symbol. a lights up on the heat setting display. 10.2 Switching off the keep-warm function

Select the hotplate.

Touch the symbol. a lights up on the heat setting display. 11  Wipe protection Wiping over the control panel while the hob is switched on may alter settings. Your hob has a wipe protection function to prevent this. The main switch is excluded from the wipe protection function. You can switch the hob off at any time. 11.1 Activating wipe protection

Touch . a A signal sounds. a The indicator lamp above lights up. a The control panel is locked for 30 seconds. 12  Energy consumption display This function indicates the total amount of energy con- sumed between switching the hob on and switching it off again. Once switched off, the energy consumption is dis- played in kilowatt hours, e.g. 1.08kWh, for 10seconds. The accuracy of the display depends on various factors such as the voltage quality of the power supply. The display can be activated in the basic settings.

• Page35 13  Basic settings You can configure the appliance to meet your needs. 13.1 Overview of the basic settings You can find an overview of the basic settings and the default factory settings here. Dis- play Selection Automatic childproof lock – Switched off

– Switched on – Manual and automatic childproof lock are switched off.

Factory setting Dis- play Selection Audible signal – Confirmation signal and operating error signal are switched off. The main switch sig- nal remains switched on. – Only the operating error signal is switched on. – Only the confirmation signal is switched on. – Confirmation signal and operating error signal are switched on.

Factory settingen Cleaning and servicing

Dis- play Selection Energy consumption display Ask your electricity supplier what the mains voltage is. – Consumption display is switched off.

– Consumption display at mains voltage of 230V. – Consumption display at mains voltage of 400V. – Consumption display at mains voltage of 220V. – Consumption display at mains voltage of 240V. Automatic timer – Switched off.

– Cooking time after which the hotplates switch off. Duration of the timer end signal – 10seconds. – 30seconds. – 1minute.

Activation of the heating elements – Switched off

– Switched on – The last setting before switching off the hotplate. Time for selecting hotplates – Unlimited: The last hotplate selected can always be adjusted without having to select it again.

– You can adjust the last hotplate selected within 10seconds after selecting it. After this time you have to select the hotplate again be- fore adjusting it. Resetting to the factory settings – Switched off.

Factory setting 13.2 Changing basic settings Requirement:The hob is switched off.

Within the next 10seconds press and hold for approx. 4seconds. a and flash alternately on the left-hand display. a lights up on the right-hand display.

Repeatedly touch until the required indicator ap- pears on the left-hand display.

Press and hold for 4seconds. a The setting is activated. Tip:To exit the basic settings, switch off the hob using . Switch the hob on again and reset. 14  Cleaning and servicing To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully. 14.1 Cleaning products You can obtain suitable cleaning products and glass scrapers from customer service, the online shop or a retailer. ATTENTION! Unsuitable cleaning products may damage the sur- faces of the appliance.

Never use unsuitable cleaning products. Unsuitable cleaning products ¡ Undiluted detergent ¡ Detergent intended for dishwashers ¡ Abrasive cleaners ¡ Aggressive cleaning products such as oven spray or stain remover ¡ Abrasive sponges ¡ High-pressure or steam jet cleaners 14.2 Cleaning the glass ceramic Clean the hob after every use to stop cooking residues from getting burnt on. Note:Note the information on unsuitable cleaning products. →Page36 Requirement:The hob has cooled down.

Remove heavy dirt using a glass scraper.

Clean the hob with a cleaning product for glass ceramic. Follow the cleaning instructions on the product packaging. Tip:You can achieve good cleaning results if you use a special sponge for glass ceramic.Troubleshooting en

Clean the hob frame with hot soapy water and a soft cloth. Wash new sponge cloths thoroughly before use.

Dry with a soft cloth. 15  Troubleshooting You can rectify minor faults on your appliance yourself. Read the troubleshooting information before contacting after-sales service. This will avoid unnecessary costs. WARNING‒Risk of injury! Improper repairs are dangerous.

Repairs to the appliance should only be carried out by trained specialist staff.

If the appliance is defective, call Customer Service. WARNING‒Risk of electric shock! Incorrect repairs are dangerous.

Repairs to the appliance should only be carried out by trained specialist staff.

Only use genuine spare parts when repairing the appliance.

If the power cord of this appliance is damaged, it must be replaced with a special connection cable, which is available from the manufacturer or his Cus- tomer Service.

15.1 Information on display panel

Fault Cause and troubleshooting None There has been a power cut.

Check the household fuse for the appliance.

Check whether there has been a power failure by trying other electrical appli- ances. All displays flash Controls are wet or objects are lying on top.

Dry the controls or remove the object. Several hotplates have been used over a prolonged period at high power set- tings. The hotplate has been switched off to protect the electronics.

Touch any control. a When the message no longer appears, the electronics have cooled down sufficiently. You can continue cooking. Despite being switched off by , the electronics have become hot again. All hotplates have therefore been switched off.

Touch any control. a When the message no longer appears, the electronics have cooled down sufficiently. You can continue cooking. and the heat setting flash al- ternately. A signal sounds. Hot pan near the control elements. There is a risk of the electronics overheating.

Remove the pan. a The display goes out shortly afterwards. and audible signal Hot pan near the control elements. The hotplate has been switched off to pro- tect the electronics.

Touch any control. a When the message no longer appears, the electronics have cooled down sufficiently. You can continue cooking. The hotplate was on for too long and has switched off automatically. You can switch the hotplate back on again immediately. and hotplates do not heat up Demo mode is activated.

Disconnect the appliance from the power supply for 30seconds by briefly switching off the circuit breaker in the fuse box.

Touch any control within the next 3minutes.en Disposal

Fault Cause and troubleshooting A message with "E" appears on the display, e.g. E0111. The electronics have detected a fault.

Switch the appliance off and on again. a If the fault was a one-off, the message disappears.

• "Customer Service", Page38 16  Disposal Find out here how to dispose of old appliances cor- rectly. 16.1 Disposing of old appliance Valuable raw materials can be reused by recycling.

Unplug the appliance from the mains.

Cut through the power cord.

Dispose of the appliance in an environmentally friendly manner. Information about current disposal methods are available from your specialist dealer or local author- ity. This appliance is labelled in accord- ance with European Directive 2012/19/EU concerning used elec- trical and electronic appliances (waste electrical and electronic equip- ment - WEEE). The guideline determines the frame- work for the return and recycling of used appliances as applicable throughout the EU. 17  Customer Service If you have any queries on use, are unable to rectify faults on the appliance yourself or if your appliance needs to be repaired, contact Customer Service. Function-relevant genuine spare parts according to the corresponding Ecodesign Order can be obtained from Customer Service for a period of at least 10 years from the date on which your appliance was placed on the market within the European Economic Area. Note:Under the terms of the manufacturer's warranty the use of Customer Service is free of charge. Detailed information on the warranty period and terms of warranty in your country is available from our after- sales service, your retailer or on our website. If you contact Customer Service, you will require the product number (E-Nr.) and the production number (FD) of your appliance. The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website. 17.1 Product number (E-Nr.) and production number (FD) You can find the product number (E-Nr.) and the pro- duction number (FD) on the appliance's rating plate. The rating plate is located on the appliance certificate. Make a note of your appliance's details and the Cus- tomer Service telephone number to find them again quickly.Veiligheid nl
