USER MANUAL B1422N0 NEFF

• system (Oven cleaning system) p. 63
• Removing/installing the oven door p. 65
• Heating elements p. 65
• Inset rack p. 66
• Service and Repair information p. 67

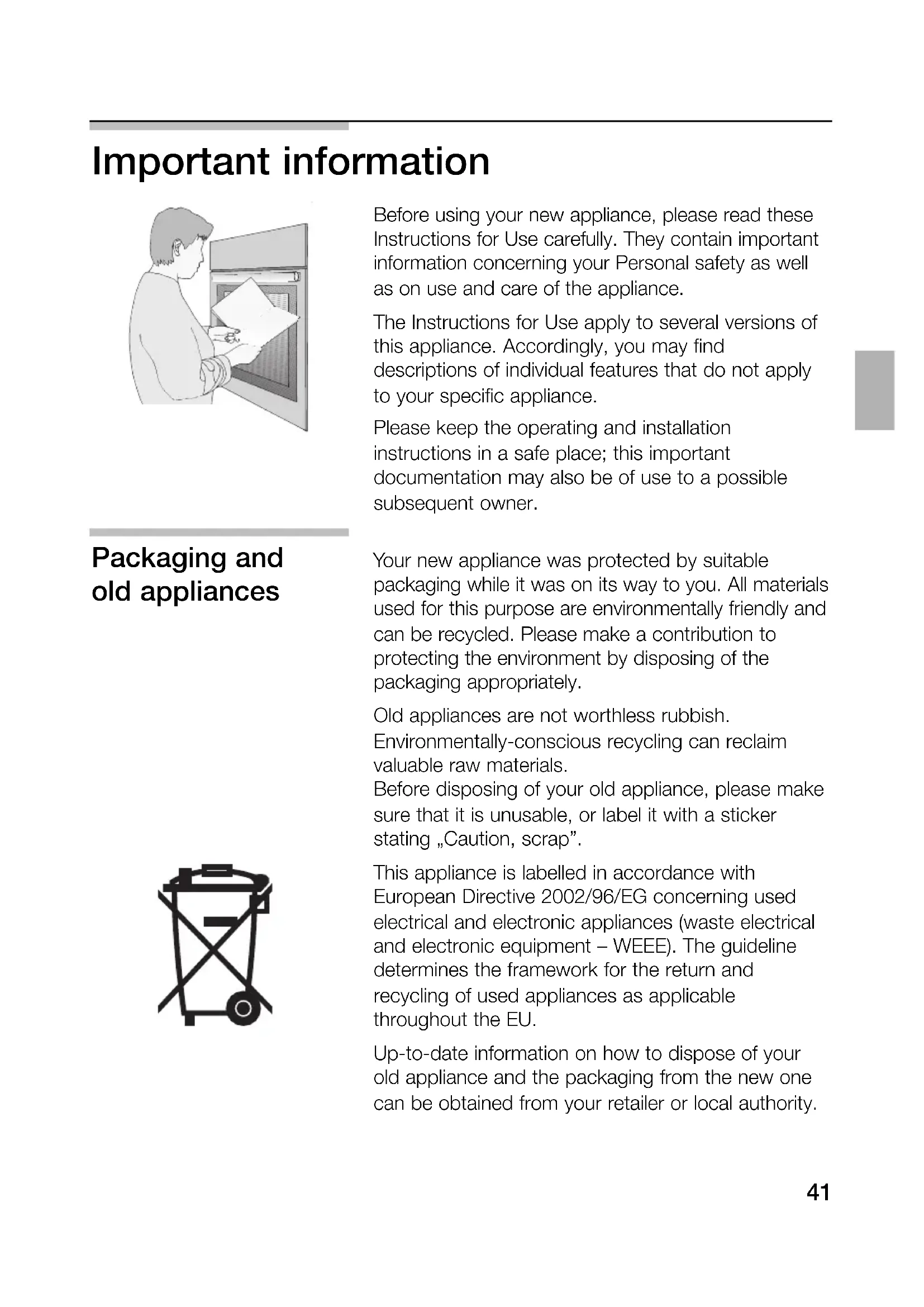

• Trouble-shooting Guide Important information Before using your new appliance, please read these Instructions for Use carefully. They contain important information concerning your Personal safety as well as on use and care of the appliance. The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance. Please keep the operating and installation instructions in a safe place; this important documentation may also be of use to a possible subsequent owner. Packaging and Your new appliance was protected by suitable old appliances packaging while it was on its way to you. All materials used for this purpose are environmentally friendly and can be recycled. Please make a contribution to protecting the environment by disposing of the packaging appropriately. Old appliances are not worthless rubbish. Environmentally-conscious recycling can reclaim valuable raw materials. Before disposing of your old appliance, please make sure that it is unusable, or label it with a sticker stating „Caution, scrap”. This appliance is labelled in accordance with European Directive 2002/96/EG concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU. Up-to-date information on how to dispose of your old appliance and the packaging from the new one can be obtained from your retailer or local authority.Before installation Transport damage Check the appliance after unpacking it. Do not connect the appliance if it has been damaged in transport. Electrical connection The cooker may only be connected by an approved specialist. Losses resulting from damage caused by incorrect connection will invalidate warranty claimes. Safety information This appliance is intended for domestic use only. Only use the cooker for food preparation. The appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance. Hot oven Open the oven door carefully. Hot steam may escape. Never touch the internal surfaces of the oven or the heating elements. There is a risk of burning. Children must be kept at a safe distance from the appliance. Never store combustible items in the oven. Risk of fire. Never place flammable objects onto the hot plates. Fire hazard! Never place cables of electronic devices onto the hot plates. Never clamp leads of electrical appliances in the hot oven door. The insulation on the leads could melt. There is a risk of short-circuiting. Remove all packaging remnants, e.g. polystyrene parts, from the oven. Repairs Incorrectly done repairs are dangerous. There is a risk of electrocution. Repairs may only be carried out by after-sales service technicians who have been fully trained by BSH. If there is a fault, switch off the oven fuse at the fuse box. Call the after-sales service. p. 6841

Reasons for damage Baking tray, aluminium foil Do not place the baking tray on the oven floor. or dishes on the oven floor Do not cover it with aluminium foil. Do not place dishes on the oven floor. This will cause heat accumulation. The baking and roasting times will no longer be correct and the enamel will be damaged. Slide-in accessories To avoid damage, insert slide-in accessories carefully. Baking paper If using hot air functions *, do not place greaseproof paper loosely in the oven (e.g. when heating the oven). The hot-air fan could draw in the paper which may damage the heater and fan. Water in the oven Never pour water directly into a hot oven. This could damage the enamel. Fruit juice When baking very moist fruit cakes, do not put too much on the baking sheet. Fruit juice dripping from the baking sheet leaves stains that cannot be removed. It is recommended that you use the deeper universal pan. Cooling with the oven door Only leave the oven to cool with the door closed. Do not allow anything to become trapped in the oven door. Even if you only leave the oven door open slightly, the fronts of adjacent units may become damaged over time. Very dirty oven seal If the oven seal is very dirty, the oven door will no longer close properly when the oven is in use. The fronts of adjacent units could be damaged. Keep the oven seal clean. Using the oven door as a Do not stand or sit on the oven door. seat Care and cleaning Do not use high-pressure cleaners or steam jets. Hotplates Please observe the separate operating instructions that came with your hob.44 Your new cooker Here you will learn more about your new oven. The control panel and its switches and indicators are explained here. The heating modes and the accessories included with your oven will be explained here. The control panel Function selector Use the function selector to select the type of heating for the oven. Settings

Circotherm intensive

system (Oven cleaning system)

Oven light Function selector Temperature selector with control lamp EasyClean

system (oven cleaning system)45 Temperature selector Settings 50 –275 Temperature in °C. Press-down To engage and disengage, depress the switch, switches making sure that it is in OFF position. Shelf positions Your oven features 4 shelf positions. The shelf positions are counted from bottom to top. The numbers are marked in the oven. When usung hot-air function *, do not use shelf position »2«, in order not to block air circulation.Accessories Your appliance is supplied with: Universal pan with wire shelf Wire shelf Baking tray, enamelled The following accessories can be obtained from a specialist dealer: Order no. Note: The baking tray or universal pan may distort while the oven is operating. This is cau- sed by major temperature differences on the utensil. These differences may occur if only one part of the utensil was covered or if deep-frozen food, e.g. pizza, was placed on the utensil. The distortion will subside again during baking, roasting or grilling. Universal pan, non-stick Soufflé pan Baking tray, aluminium Baking tray, enamelled Baking tray, non-stick Wire shelf, high/low Wire shelf, close mesh Roasting tray Upgrade set Clou, 3 pieces Upgrade set Clou, 4 pieces System steamer Pizza stone Universal pan Z 1232 X0 Z 1233 X0 Glass pan Z 12623 X0 Z 1272 X0 Z 1332 X0 Z 1342 X0 Z 1343 X0 Pizza tray Z 1512 X0 Z 1432 X0 Z 1442 X0 Z 1512 X0 Z 1742 X0 Z 1752 X0 N 8642 X0 Z 1912 X0 Universal oval roaster enamelled Z 9930 X0

Before using your appliance for the first time Preliminary Take the accessories out of the oven. cleaning Remove all packaging remnants, e.g. polystyrene parts, from the oven.

1. Clean the appliance exterior with a soft

2. Remove the insert racks from the oven.

3. Clean the oven and the accessories with a hot

detergent solution. Please observe the operating instructions furnished with the hob. Initial burn-in Heat the empty oven for approx. 30 minutes. Select top and bottom heat at a setting of 240° C. Subsequent cleaning Clean the oven with a hot detergent solution. Install the insert racks.48 Description of Oven Features Circotherm A fan system located in the rear oven wall circulates the hot air in the oven, achieving an especially effective heat transfer to the food being baked or roasted. Advantages: –Simultaneous baking and roasting possible on up to 3 levels –low soiling of oven interior – shorter preheating times –low oven temperatures Top and bottom heat The food being baked or roasted is exposed to heat (Conventional heating system) radiation from heating elements located at the top and bottom of the oven cavity. Baking and roasting is possible on one shelf position only. Advantages: – Baking of cake with moist filling, pizza, quiche. Surface grilling The food being prepared is exposed to heat radiation from the heating element at the top of the oven cavity. –Particularly effective with flat, small cuts of meat, i.e., steaks, sausages, fish, vegetables and toast. Large area grill Advantages: –the entire grilling surface heats up – especially useful with large amounts of food Small area grill Advantages: – only the centre area of the grilling surface heats

– especially useful with small amounts of food – energy-saving operation

)49 Circo-roasting With circo-roasting, the air circulating fan and the grilling radiators are activated in alternation. The heat generated by the grilling radiator is evenly distributed in the oven cavity. Advantage: –Particularly effective with poultry and larger cuts of meal. Bottom heat With this setting, only the heating element at the bottom of the oven cavity is activated. Advantage: – Particularly useful with dishes and baked goods that require a distinctive bottom crust or browning. Use just before the end of the baking or roasting time. Circotherm intensive The circotherm intensive adds the bottom heat to the circotherm. Advantages: –Fresh preparation with a high ”juice portion”, e.g. pizza and juicy cakes with crisp base. – Especially suited for frozen products, e.g. pizzas, chips etc. Defrost A fan in the rear wall of the oven circulates the air in the oven around the frozen food. The fan system is running without heating. Advantages: – Gentle defrosting. –Frozen pieces of meat, poultry, bread and cakes defrost evenly.

system The oven cleaning function featured in your oven is (oven cleaning system) intended to help you keep your oven neat and tidy. An amount of cleaning solution is vaporised automatically. The combined effects of heat and steam soften the soil deposits on the oven wall enamel and facilitate their removal. For more information on this function, see the section on ”Cleaning and Care” later in this booklet. Advantages: –takes the toil out of oven cleaning –protects the enamel on interior surfaces – constitutes an environmentally friendly cleaning method. d51 Switching the Oven ON and OFF Before switching on your oven, you should decide which heating system you wish to use. Switching the oven ON:

2. Set the temperature control knob to the desired

temperature. The selected temperature will be controlled automatically. The oven temperature control lamp illuminates when the oven is first switched on, and extinguishes when the required temperature has been reached. Switching the oven OFF: To switch the oven OFF, turn both the temperature selector and functions selector to the »0« position. Notes: The appliance features a cooling fan which runs until the oven has cooled down.52 Baking Using baking tins Always place baking tins in the centre of the baking wire shelf. We recommend dark metallic baking tins. Notes Light coloured baking tins made from thin-wall materials lead to longer baking times and uneven browning of the cake. You can influence the degree of browning by changing the temperature setting. If a cake collapses after removing it from the oven, consider using a longer baking time, or use a slightly lower temperature setting. Using baking sheets The slanted (handle) end of the baking sheet must always face the oven door. To avoid damage, insert slide-in accessories carefully. Always fully insert baking sheets into the oven. Use only original baking sheets. Using tinplate baking tins

• Circotherm Shelf position 1 / Top/bottom heat Shelf position 1 If the cake bottom gets too dark: Check the shelf position. Shorten the baking time, and possibly use a lower baking temperature. If the cake bottom stays too light: Check the shelf position. Increase the baking time, select a lower temperature, or use a dark metal baking tin. Do not place baking forms or high cakes too close to the rear oven wall.53 Cooking Tips and Helpful Hints The bottom of a cake baked Remove from the oven all baking tray or universal on a baking tray stays too pan currently not in use. light The bottom of a cake baked Use a wire grill and not a baking tray to support the in a tin stays too light cake tin during baking. The bottom of cake or Set cake or cookies into a higher set of slide-in cookies gets too dark levels. The cake gets too dry Select a slightly higher oven temperature, and shorter baking time. The cake is too moist Choose a slightly lower baking temperature. on the inside Note: Higher temperatures do not shorten baking times (done on the outside, raw on the inside). Choose a slightly longer baking time, allow the dough to rise slightly longer. Add less liquid to the dough. When baked with circotherm Avoid blocking the air vents at the rear wall of the circulation, cake baked in oven cavity with the cake tins. round or square tins gets too dark at the rear Very moist cake dough (e.g. You can let the steam escape from the oven and fruit cake) causes a lot of thereby reduce the forming of water droplets by steam to generate in the briefly and carefully opening the oven door (once or oven that condenses on the twice, in case of longer baking times more often). oven door. Very uneven browning when Check the shelf position. using circotherm circulation Cake collapses when taken Use less liquid. out of the oven To save energy Preheat only if expressly required by the recipe. Dark baking tins have a higher degree of heat absorption. Residual heat: In the case of longer baking times, you can switch off the oven 5-10 minutes before the full baking time has elapsed.54 Roasting Place the wire shelf in the universal pan and slide both into the oven at the same shelf position. Meat can be roasted in the oven in a particularly economical fashion if the weight of the cut exceeds 750 grams. Roasting in an uncovered Rinse the universal pan and/or the roaster with pot water, and place the meat into it. With fat meat and poultry, pour 125 to 250 ml of water (to suit the size and kind of roast) into the universal pan. At your discretion, baste lean meat with fat, or cover it with bacon strips. The roast drippings collecting in the universal pan make a tasty gravy. Dissolve the drippings with hot water, bring to a boil, thicken with corn starch, season to taste and, if required, pass it through a strainer. No preheating is required. Save energy by putting the roast into the oven while it is still cold. Roasting in a covered pot Place the meat into the roasting pot (or Dutch oven), cover it with a matching lid, and place it on the wire shelf in the oven. We recommend that beef roast be prepared in a covered roasting pot. Roasting on the roasting sheet Place the roasting sheet into the universal pan. (Optional accessory available The roasting sheet prevents soiling of the oven. from your dealer). Grease and juice drippings from the roast are collected in the universal pan.55 Tips Big, high roasts, goose, turkey, duck = Long roasting times, low temperatures Medium sized, low roasts = Medium roasting times, medium temperatures Small, flat roasts = Short roasting times, high temperatures Roasting time per cm of meat height without bones app. 13-15 minutes Roasting time per cm of meat height with bones app. 15-18 minutes We recommend using the lower of the stated temperatures first. In general, the lower temperature ensures a more even browning. We recommend turning the roast after half or two thirds of the roasting time have elapsed when using the setting

For roasting, use only cookware with oven-proof handles. Prepare large roast directly in the universal pan, without using the wire shelf. Smaller cuts of meat can be roasted on aluminium foil. To do so, bend the edges of the foil upward, as if to form a dish, and place it on the wire shelf. After the end of the selected roasting time and with the oven switched OFF, leave the roast in the closed oven for approx. 10 minutes. The roast is not done on Use a lower roasting temperature. the inside Note: Higher temperatures do not shorten roasting times (done on the outside, raw on the inside). Choose slightly longer roasting times. Very moist roasts (e.g. roasts You can let the steam escape from the oven and prepared with water) cause a thereby reduce the forming of water droplets by lot of steam to generate in briefly and carefully opening the oven door (once or the oven that condenses on twice, in case of longer roasting times more often). the oven door.56 Grilling Exercise CAUTION when grilling. Always keep children at a safe distance. Notes on grilling Always close the oven door when grilling. The grilling temperatures are variable. Always use the wire shelf and the universal pan. Always place food to be grilled in the centre of the wire shelf. If the grill element (heating element) switches OFF automatically, the overheating protection was activated. The radiator will be reactivated after a short period of time. Place the wire shelf into the universal pan and slide them together into the same shelf position.57 Circo-roasting , Use this method for particularly crispy poultry or roast (e.g., pork roast with rind). Use the wire shelf and universal pan together. Turn large roasts after about half of the total grilling time has elapsed. To prevent breakage after removing them from the oven, place glass utensils on a dry kitchen towel instead of cold or wet surfaces. Dependent on the type of food being prepared, combination hot-air and surface grilling can cause an increased degree of oven soiling. Therefore, to prevent burning-in of the soil, thorough cleaning of the oven is recommended after each use. Whole poultry should be turned after approx. two-thirds of the cooking time has elapsed. With duck and goose, pierce the skin under the wings to allow excess fat to drain off. After the end of the selected roasting time and with the oven switched OFF, leave the roast in the closed oven for approx. 10 minutes. Surface grilling Used for smaller dishes having little height/thickness.

Always use the wire shelf and universal pan together. Turn the food after approx. two-thirds of the grilling time has elapsed. At your discretion, lightly baste the wire shelf and the food with oil. )58 Defrosting and cooking Defrosting with circotherm * Important heating system For defrosting and cooking of frozen or deep- information frozen foods, use only the circotherm heating system. With all deep-frozen foods, follow the food processing company‘s instructions on the package. As a rule, defrosted frozen or deep-frozen foods (especially meats) require less cooking time than fresh products, since freezing has a pre-cooking effect. If frozen meat is placed in the oven, the defrosting time must be added to the required cooking time. Always defrost deep-frozen poultry before cooking because the giblets must be removed. For cooking deep-frozen fish, use the same temperatures as for fresh fish. Deep-frozen ready-to-eat meals in aluminium dishes may be placed into the oven several at a time. Shelf positions With 1 bakings sheet: Shelf position 1 With 2 baking sheets: Shelf positions 1 + 3. All stated times are approximate guidelines that vary with the shape and volume of deep-frozen products.59 Defrosting and cooking Raw deep-frozen products or foods from a freezer always defrost at 50° C. Higher defrosting temperatures may cause the food to dry out. Defrost deep-frozen meals packed in aluminium foil or closed aluminium containers at a setting of 130 – 140° C. Defrost and warm up deep-frozen baked goods at 100 – 140° C. Brush bread, rolls or yeast pastry lightly with water to make the crust more appealing. Defrost dry deep-frozen yeast cakes at 160 – 170° C for 20 – 30 minutes. Defrost moist deep-frozen yeast cakes (with fruit topping) at 160 – 170° C for 30 – 50 minutes after wrapping in aluminium foil to prevent cake from drying out. Defrost and toast deep-frozen toast (with topping) at 160 – 170° C for about 20 minutes. Frozen pizza: Please follow the manufacturers’ instructions. Defrosting position e Recommended for delicate pastries only (i.e., whipped-cream gateaus). Turn the function selector switch to the e position. Dependent on size and type of the baked goods, defrost 25 – 45 minutes, take out of the oven and allow to stand 30 – 45 minutes. With smaller amounts (pastries), the defrosting time is reduced to 15 – 20 minutes and the subsequent standing time to 10 – 15 minutes.60 Cleaning and Care Important cleaning For cleaning, do not use abrasives, no corrosive basics cleaners, and no sharp objects. Do not scratch off burnt-in food residues, but soak them off with a moist cloth and dishwashing detergent. Cleaning products we particularly recommend can be purchased from our customer service. Appliance exterior Stainless steel/ Use commercially available detergents applied to a aluminium front soft, moistened cloth or a chamois. Do not use aggressive cleaning agents, abrasive sponges, or coarse cleaning cloths. On heavy soiling use commercial cleaning agents on matted stainless steel/aluminium surfaces. Please observe the manufacturer’s instructions. Enamel and glass Use commercially available detergents applied to a soft, moistened cloth or a chamois. Oven door pane The temperature of the pane inside the oven door is reduced by a heat-reflecting coating. The reduced temperature ensures that visibility through the oven door window is not impaired. When the oven door is open, this coating may have a bright appearance. This is quite normal and does not indicate a quality defect. Oven interior Clean the oven after each use, especially after roasting or grilling. Food remnants burn in when the oven is reheated. The baked in remnants are very difficult to remove once burnt in.61 Note: To prevent soiling use:

• CircoTherm hot air. The CircoTherm hot air mode causes less soiling than the others.

• the universal pan to bake very moist cakes.

• suitable utensils (frying pan) for frying. For easier cleaning you can switch on the oven lamp and take off the oven door. For cleaning the mating surface of the oven door at the front of the oven, the door should be removed. Enamel areas in the oven Use hot soapy water or a vinegar solution. It is best to use oven cleaner if the oven is very dirty. Only use oven cleaner in a cold oven. We recommend cleaning gels because these can be applied with greater precision. Do not clean the warm oven with any of the cleaning products specifically designed for this purpose. Leave the oven open so that it can dry after cleaning. Note: Enamel is baked on at very high temperatures. This can cause some slight colour variation. This is normal and does not affect the function. Do not use coarse scouring pads or strong cleaning agents to remove such discolorations. The edges of thin trays cannot be completely enamelled. As a result, these edges can be rough. Anti-corrosion protection is guaranteed.62 Catalytic oven surfaces Cleaning the catalytic The rear wall of the oven is coated with self-cleaning surfaces of the oven enamel. The surface cleans itself while the oven is in operation. Large splashes sometimes only disappear after the oven has been used several times. Never use oven cleaner on the back wall of the oven. Should the enamel become slightly stained, this will not affect its self-cleaning properties.63 EasyClean

The oven cleaning function featured in your oven is System

intended to help you keep your oven neat and tidy. An amount of cleaning solution is vaporised automatically. The combined effects of heat and steam soften the soil deposits on the oven wall enamel and facilitate their removal. Caution: Never pour cold water into the oven while it is still hot. The cleaning system can only be activated when the oven has cooled down completely (room temperature). Use normal water only, and no distilled water. Activate oven cleaning:

1. Remove the baking sheet and the universal

pan from the oven. The wire shelf may remain in the oven.

2. Pour approx. 400 ml of water mixed with a little

dishwashing detergent into the floor pan of the oven cavity. In the case of heavy soil build-up, you may wish to allow the cleaning solution to soak in for a while before you activate the cleaning function.

3. Close the oven door.

4. Turn the function selector to the dposition.

The oven cleaning and the oven temperature control lamp are illuminated. After the initial heating time (approx. 4 minutes) the oven temperature control lamp extinguishes. After a further 17 minutes the program cycle is completed. A buzzer sounds. Switching the oven OFF: Turn the function selector to the 0 position. The oven cleaning control lamp extinguishes.64 After deactivating the oven Cleaning tips: cleaning function Never leave the residual water in the oven for any length of time, e.g. overnight.

1. Open the oven door and pick up the remaining

water with a large absorbent sponge cloth.

2. Using the detergent-soaked sponge cloth, a soft

brush or a plastic pot scrubber, wipe of the oven interior. Stubborn soil remnants can be removed with a cleaning scraper for glass-ceramic. Caution: Use the scraper carefully, and do not apply the tool at too flat an angle, because the enamel could be scratched!

3. Calciferous deposits may be removed with a cloth

4. Wipe clean with clear water and dry with a soft

cloth (do not forget to wipe under the oven door seal). Cleaning tips: If the oven is heavily soiled, the procedure may be repeated after the oven has cooled. If the oven is heavily soiled with grease, e.g. after roasting or grilling, we would recommend rubbing any stubborn dirt with detergent before activating the oven cleaning function. After cleaning, leave the oven door in its slanted detent position, i.e., at a 30-degree angle, to allow the interior enamel surfaces to dry thoroughly. Rapid drying

1. Place the oven door into the slanted detent

position, at an angle of approximately 30 degrees.

2. Turn the function selector to the * position, and

the temperature selector to the 50° C. Allow oven to heat for 5 minutes.

3. Afterwards return the function selector and the

temperature selector to the »0« position.65 Oven door Note: To make the manual cleaning steps following the automatic oven cleaning function more convenient, the appliance features the following options. Removing the oven door

1. Fully open the oven door.

2. Move the catch levers on the right and left-hand

sides to the fully open position.

3. Placing the door at an upward angle toward you,

grasp the door with both hands and lift it out of the hinges toward you. When pulling the door out, make sure that you do not reach into the hinge. There is a risk of injury. Hanging the oven door

1. Set both hinges into their respective receptacles

on the left and right, and swing the oven door downward.

2. Close the catch levers on the left and right.

3. Close the oven door.

Lowering the heating element In order to clean the oven ceiling more easily turn down the grill heating element.

Warning: The heating element must have cooled

1. Press the retaining clip upward until you hear the

2. Hold the heating element and fold it down.

After cleaning Fold the heating element back up. Pull the retaining clip forward and press it up until it clicks into place.66 Inset rack Removing You can remove the inset racks for cleaning.

1. At the front, press the rack up and take it off.

2. At the back, pull the rack forward and take it off.

Clean the rack using washing-up liquid and pan scrapers or brushes. Replacing The racks fit on the left and right side. The indentation (a) must always be at the bottom.

1. At the back, put the rack in as far as it goes.

2. Push the rack back.

3. Insert the front of the rack as far as it will go.

4. Push the rack down.67

Service and Repair Information In the event of problems or repairs that you cannot solve or perform yourself, our customer service will be happy to help. Check the customer service directory for a customer service facility in your area. Caution: Calling the customer service because of an operator error can be very costly! E No and FD No You can find this information on the appliance’s nameplate. The nameplate is located on the appliance, behind the oven door, on the left bottom edge of the oven. In the event of a customer service request, please have the following information handy: E-Number FD Replacing the oven light Caution: Unplug the appliance or remove the fuse! By actuating the miniature circuit-breaker or by unscrewing the fuses in the fuse box in your house.

1. To prevent damage, place a dish towel into the

2. Unscrew the lamp cover by turning it
