USER MANUAL B1644N0 NEFF

• system (Oven cleaning system) p. 90
• Removing/installing the oven door p. 92
• Heating elements p. 92
• Inset rack / Telescopic pull-outs p. 93
• Service and Repair information p. 94

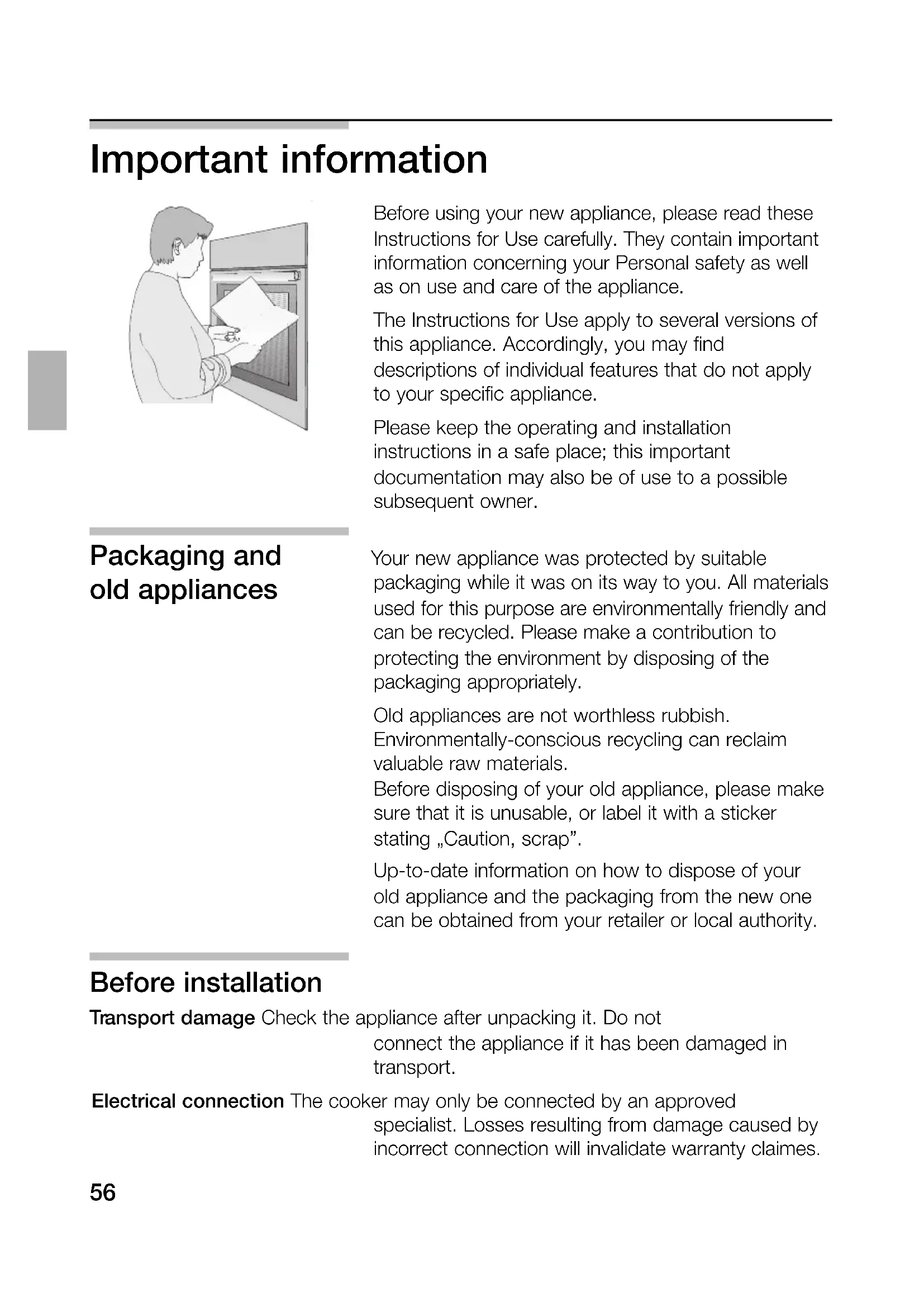

• Trouble-shooting Guide Important information Before using your new appliance, please read these Instructions for Use carefully. They contain important information concerning your Personal safety as well as on use and care of the appliance. The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance. Please keep the operating and installation instructions in a safe place; this important documentation may also be of use to a possible subsequent owner. Packaging and Your new appliance was protected by suitable old appliances packaging while it was on its way to you. All materials used for this purpose are environmentally friendly and can be recycled. Please make a contribution to protecting the environment by disposing of the packaging appropriately. Old appliances are not worthless rubbish. Environmentally-conscious recycling can reclaim valuable raw materials. Before disposing of your old appliance, please make sure that it is unusable, or label it with a sticker stating „Caution, scrap”. Up-to-date information on how to dispose of your old appliance and the packaging from the new one can be obtained from your retailer or local authority. Before installation Transport damage Check the appliance after unpacking it. Do not connect the appliance if it has been damaged in transport. Electrical connection The cooker may only be connected by an approved specialist. Losses resulting from damage caused by incorrect connection will invalidate warranty claimes.57 Safety information This appliance is intended for domestic use only. Only use the cooker for food preparation. Hot oven Open the oven door carefully. Hot steam may escape. Never touch the internal surfaces of the oven or the heating elements. There is a risk of burning. Children must be kept at a safe distance from the appliance. Never store combustible items in the oven. Risk of fire. Never place flammable objects onto the hot plates. Fire hazard! Never place cables of electronic devices onto the hot plates. Never clamp leads of electrical appliances in the hot oven door. The insulation on the leads could melt. There is a risk of short-circuiting. Caution: The extension rails heat up during oven operation. Use special care to avoid burns when extending the rails. Remove all packaging remnants, e.g. polystyrene parts, from the oven. Repairs Incorrectly done repairs are dangerous. There is a risk of electrocution. Repairs may only be carried out by after-sales service technicians who have been fully trained by BSH. If there is a fault, switch off the oven fuse at the fuse box. Call the after-sales service.58 Reasons for damage Baking sheet or aluminium Do not place baking sheets on the oven floor. Do not foil on the oven floor line the oven floor with aluminium foil. This causes heat to accumulate. Baking and roasting times will no longer be correct and the enamel will be damaged. Baking paper If using hot air *, do not place greaseproof paper loosely in the oven (e.g. when heating the oven). The hot-air fan could draw in the paper which may damage the heater and fan. Water in the oven Never pour water directly into a hot oven. This could damage the enamel. Fruit juice When baking very moist fruit cakes, do not put too much on the baking sheet. Fruit juice dripping from the baking sheet leaves stains that cannot be removed. It is recommended that you use the deeper universal pan. Cooling with the oven door Only leave the oven to cool with the door closed. Do not allow anything to become trapped in the oven door. Even if you only leave the oven door open slightly, the fronts of adjacent units may become damaged over time. Very dirty oven seal If the oven seal is very dirty, the oven door will no longer close properly when the oven is in use. The fronts of adjacent units could be damaged. Keep the oven seal clean. Using the oven door as a Do not stand or sit on the oven door. seat Care and cleaning Do not use high-pressure cleaners or steam jets. Hotplates Keep an eye on pressure cookers during the heat-up phase. As soon as the proper cooking pressure is reached, reduce the heat setting. Please observe the separate operating instructions that came with your hob.59 Your new cooker Here you will learn more about your new oven. The control panel and its switches and indicators are explained here. The heating modes and the accessories included with your oven will be explained here. The control panel Rapid heating for hot air mode andbread-baking setting Oven functions p. 9656

Special functions Steam cooking, for system steam cooker (option available from specialist dealers) Dough proving EasyClean

Oven light Electronic clock Note The oven light switches on for every oven function. Exception: Oven cleaning. The

on the display is backlit when the oven is heating up or a new temperature is selected. Rapid heating s can be selected for hot-air or bread-baking. Oven functionsFunction selector with settingfor prefered temperatureTemperature selector with oventemperature displayFunction selector Rotary knob60 Press-down To engage and disengage, depress the switch, switches making sure that it is in OFF position. Slide-in levels Your oven features 4 slide-in levels. The slide-in levels are counted from bottom to top. The numbers are marked in the oven. When usung hot-air baking

• or roasting, do not use slide-in level »2«, in order not to block air circulation. The hook-in grilles and telescopic rails can be inserted at your preferred slide-in level.61 NeffLight The oven features the additional lighting ”NeffLight”: Turn the function selector to the positio Oven light; NeffLight will be activated. Advantages: –Great illumination on all levels. – Illumination of the food from the front. –Your eyes will not be blinded by lamps when looking into the oven. Door contact switch NeffLight is activated/deactivated automatically when the oven door is opened/closed. Saving energy In order to save energy, you can deactivate NeffLight. Turn the door contact switch to the right. If you keep turning it to the right you re-activate NeffLight.62 Accessories Your appliance is supplied with: Universal pan with grid Grid Baking tray, enamelled The following accessories can be obtained from a specialist dealer: Order no. Note: The baking tray or universal pan may distort while the oven is operating. This is cau- sed by major temperature differences on the utensil. These differences may occur if only one part of the utensil was covered or if deep-frozen food, e.g. pizza, was placed on the utensil. The distortion will already subside again during baking, roasting or grilling. Universal pan, non-stick Soufflé pan Baking tray, aluminium Baking tray, enamelled Baking tray, non-stick Wire shelf, high/low Wire shelf, dose mesh Roasting tray Upgrade set – Single Telescope System steam cooker Pizza stone Universal pan Z 1232 X0 Z 1233 X0 Z 1272 X0 Z 1332 X0 Z 1342 X0 Z 1343 X0 Z 1432 X0 Z 1442 X0 Z 1512 X0 Z 1784 X0 N 8642 X0 Z 1912 X0 Radio antenna for electronic clock Z 1980 X0 Roasting tray63 Before using your appliance for the first time Select the language The display text is in German. for the text display You can choose one of seven languages for the the display text (see the section ”Basic settings”). Preliminary Take the accessories out of the oven. cleaning Remove all packaging remnants, e.g. polystyrene parts, from the oven.

1. Clean the appliance exterior with a soft

2. Clean the oven and the accessories with a hot

detergent solution. Please observe the operating instructions furnished with the hob. Initial burn-in Before using the appliance for the first time, you must set the current time on the electronic clock. Heat the empty oven for approx. 30 minutes. Select top and bottom heat at a setting of 240° C. During the initial burn-in phase, please open the kitchen windows to dissipate unpleasant odours. Time of day Setting the time After connecting to the mains, or after a power failure, the display 0:00 will blink. Press the

button and set the current time with the rotary knob (e.g. 15:00 Uhr). To correct the time, press the > button until the symbol flashes. Then set the time. Note: The time cannot be corrected if an automatic function or the timer has been set (to cancel see ”Electronic clock”).64 Electronic clock The electronic clock can be operated with one hand; after pressing the button, set the time with the rotary knob. Settings can be made for as long as the function display flashes (~4 seconds). The control panel Special functions Masking out the display 1. Press the > button for 7 seconds. After this time the display dims, the time and the display continue running in the background.

2. To switch on the display, briefly press the

> button. Setting the time See section ”Before using your appliance for the first time”. Dimming the display Between 22.00 and 6.00 the display is automatically dimmed. Radio antenna optional The electronic clock can be fitted with a radio accessory antenna (see Optional accessories). Minute timer Current oven temperature ON time OFF time Rotary knob To engage and disengage, depress gently Time of day Function selector65 Automatic timer You can switch the oven on and off via the electronic clock. Automatic switch off If you wish to bake or roast food immediately, it is only necessary to set the ON time.

1. Select the heating system and the oven

2. Press the > button until the ?

symbol flashes and set the ON time with the rotary knob (example: 1 hour and 30 minutes). When the setting has been made, the current time is displayed after approx. 4 seconds. The ? symbol signals automatic mode.

3. When the time has elapsed (example: 1 hour and

30 minutes), a signal is emitted and the ! display flashes. The oven switches off automatically. To stop the signal, press the > button.

4. Switch the oven off.

5. To end automatic mode, press the > button

again. Minute timer 1. Press the > button until the

symbol flashes, and set the time you want (e.g. 5 minutes). When the timer switches on, the remaining time is displayed.

2. When the time has elapsed, a signal is emitted

symbol flashes. To stop the signal, press the > button.66 Automatic switch on and If the food is to be baked or roasted later on, both switch off the ON time and OFF time must be set.

1. Select the heating system and the oven

2. Press the > button until the ?

symbol flashes and set the ON time with the rotary knob (example: 1 hour and 30 minutes).

3. Press the > button until the ! symbol flashes

and set the OFF time with the rotary knob (example: 12:30). When the setting has been made, the current time is displayed after approx. 4 seconds. The ! symbol signals automatic mode.

4. The oven is automatically switched on and off at

the preset times (e.g. 11:00 and 12:30).

5. When the time has elapsed, a signal is emitted

and the ! symbol flashes. To stop the signal, press the > button.

6. Switch the oven off.

7. To end automatic mode, press the > button.

Checking, correcting and

1. To check your settings, press the > button

cancelling settings until the symbol flashes.

2. If required, correct the settings with the rotary

3. If you want to cancel your settings, turn the set

time back to 0:00 and switch the oven off. Note The automatic timer is best used with dishes which require little attention. The minute timer and OFF time can be pre- programmed up to a max. 24 hours. The settings can be displayed at any time by pressing the > button.67 Description of Oven Features Circotherm A fan system located in the rear oven wall circulates the circotherm in the oven, achieving an especially effective heat transfer to the food being baked or roasted. Advantages: – Simultaneous baking and roasting possible on up to 3 levels –low soiling of oven inferior – shorter preheating times – low oven temperatures – gentile defrosting Defrost setting Advantage: – Gentle defrosting. Circotherm intensive The circotherm intensive adds the bottom heat to the hot air. Advantages: –Fresh preparation with a high ”juice portion”, e.g. pizza and juicy cakes with crisp base. – Especially suited for frozen products, e.g. pizzas, chips etc. Bread-baking setting Bread-baking setting with hot-air. Adjustable 180 – 220° C. Rapid heat up Note Can be selected for hot air or bread-baking setting. *68 Top and bottom heat The food being baked or roasted is exposed to heat (Conventional heating system) radiation from heating elements located at the top and bottom of the oven cavity. Baking and roasting is possible on one slide-in level only. Advantages: – Baking of cake with moist filling, pizza, quiche. Bottom heat With this setting, only the heating element at the bottom of the oven cavity is activated. Advantage: – Particularly useful with dishes and baked goods that require a distinctive bottom crust or browning. Use just before the end of the baking or roasting time. Large area grill The food being prepared is exposed to heat radiation from the heating element at the top of the oven cavity. Advantages: – Particularly effective with flat, small cuts of meat, i.e., steaks, sausages, fish, vegetables and toast. – the entire grilling surface heats up – especially useful with large amounts of food Small area grill Advantages: – only the centre area of the grilling surface heats

– especially useful with small amounts of food – energy-saving operation Circo-roasting With circo-roasting, the air circulating fan and the grilling radiators are activated in alternation. The heat generated by the grilling radiator is evenly distributed in the oven cavity. Advantage: – Particularly effective with poultry and larger cuts of meal.

)69 Special functions Steam cooking For system steam cooker (option available from specialist dealers) Dough-proving The dough proving function provides ideal conditions inside the oven for getting yeast dough to rise. Temperature: 35 – 38° C Humidity: 75 – 100% Advantages: – rapid and uniform increase in volume of dough – dough does not dry out – dough does not form a skin which means that it very easy to process and work into the required shape –exclusion of unfavourable external influences (e.g. draughts). –yoghurt can be made. EasyClean

The oven cleaning function featured in your oven is intended to help you keep your oven neat and tidy. An amount of cleaning solution is vaporised automatically. The combined effects of heat and steam soften the soil deposits on the oven wall enamel and facilitate their removal. For more information on this function, see the section on ”Cleaning and Care” later in this booklet. Use this function with a cold oven only. Advantages: –takes the toil out of oven cleaning –protects the enamel on interior surfaces – constitutes an environmentally friendly cleaning method (70 Basic settings The default setting for the display text is German. There are various languages you can choose from. Changing the basic settings The function selector must be switched OFF.

1. Keep the rapid heating s button pressed until

”Sprache Deutsch” appears on the display. Example: english

2. Turn the temperature selector until the language

you want appears. This language is activated after three seconds. Function selector Temperature selector Function selector Temperature selector71 Switching the Oven ON and OFF Example: Circotherm Before you switch on your oven, decide which heating system you would like to use. Switching on the oven Turn the function selector until the heating system you want appears on the display. The suggested temperature is displayed and the oven light switches on. You can increase or reduce the suggested temperature with the temperature selector in steps of 5° C. Indicator light The

on the display is backlit when the oven is heating up or a new temperature is selected. Steam cooking This is a fixed temperature and cannot be changed. for system steam cooker ”Steam cooking setting operating” appears on the (option available from display. specialist dealers). Dough-proving This is a fixed temperature and cannot be changed. ”Dough proving setting operating” appears on the display. EasyClean

This is a fixed temperature and cannot be changed. ”EasyClean ON” appears on the display. Defrost See the ”Defrosting and cooking” section for adjusting the ”defrost” setting. Temperature display Temperature selector Function selector72 When the oven is heating up, the temperature in the oven can be displayed for about five seconds. Press the :button. This does not apply to steam cooking, dough proving, EasyClean, oven lighting, and defrosting modes. Switching off the oven Turn the function selector to the 0 position. All functions are deleted. Note The appliance features a cooling fan which runs until the oven has cooled down. Hot display for the oven ä up Z 120° C. â 120° down to Z 80° C Current oven temperature Rapid heat up Switching on the oven When the oven is switched ON in hot air *or bread baking mode, you can activate rapid heating at the sbutton. ”Rapid heat up” then appears on the display when the oven is heating up. Rapid heat up OFF Press the sbutton to switch OFF rapid heating. ”Rapid heat up” disappears from the display.73 System Preferred Temperature temperature range in ° C in ° C Circotherm

– without temperature setting Circotherm intensive

200 180 – 220 Top/bottom heat / 170 50 – 275 Bottom heat / 200 50 – 225 Large area grill ) 220 50 – 275 Small area grill ) 180 50 – 275 Circo-roasting ) 170 50 – 250 Steam cooking ( – fixed setting Dough proving ( – fixed setting EasyClean ( – fixed setting Temperature ranges of the various heating systems74 Safety features Locking the oven Quickly turn the function selector anticlockwise from 0 to ”Oven lighting” and back again three times. ”Controls locked” appears on the display. The oven cannot be unintentionally switched on, e.g. by children. To enable the oven, quickly turn the function selector anticlockwise from 0 to ”Oven lighting” and back again three times. ”Controls locked” disappears from the display. Function selector75 Permanent lock Quickly turn the function selector anticlockwise from 0 to ”Oven lighting” and back again six times. ”Permanent lock” appears on the display. The oven cannot be switched on inadvertently or by unauthorised people (e.g. playing children). To unlock the oven, turn the function selector anticlockwise from 0 to ”Oven lighting” and back again three times. ”Permanent lock” disappears from the display. After being used, the oven is again permanently locked automatically when the function selector is at 0 for thirty seconds. To disengage the permanent lock, quickly turn the function selector anticlockwise from 0 to ”Oven lighting” and back again six times. ”Permanent lock” disappears from the display. Automatic safety off function Depending on the settings the oven is switched OFF automatically after six to thirty hours, and ”Automatic safety OFF” appears on the display. Safety off will not function if the setting on the appliance has been changed. Function selector76 Baking Using baking tins Always place baking tins in the centre of the baking grill. We recommend dark metallic baking tins. Using baking sheets The slanted (handle) end of the baking sheet must always face the oven door. Always fully insert baking sheets into the oven. Use only original baking sheets. Notes You can influence the degree of browning by changing the temperature setting. Light coloured baking tins made from thin-wall materials lead to longer baking times and uneven browning of the cake. If a cake collapses after removing it from the oven, consider using a longer baking time, or use a slightly lower temperature setting. Using tinplate baking tins

• Circotherm Shelf position 1 / Top/bottom heat Shelf position 1 If the cake bottom gets too dark: Check the slide-in level. Shorten the baking time, and possibly use a lower baking temperature. If the cake bottom stays too light: Check the slide-in level. Increase the baking time, select a lower temperature, or use a dark metal baking tin. Do not place baking forms or high cakes too close to the rear oven wall.77 Cooking Tips and Helpful Hints The bottom of a cake baked Remove from the oven all baking sheets or universal on a baking sheet stays too baking pan currently not in use. light The bottom of a cake baked Use a grill and not a baking sheet to support the in a tin stays too light cake tin during baking. The bottom of cake or Set cake or cookies into a higher set of slide-in cookies gets too dark levels. The cake gets too dry Select a slightly higher oven temperature, and shorter baking time. The cake is too moist Choose a slightly lower baking temperature. on the inside Note: Higher temperatures do not shorten baking times (done on the outside, raw on the inside). Choose a slightly longer baking time, allow the dough to rise slightly longer. Add less liquid to the dough. When baked with circotherm Avoid blocking the air vents at the rear wall of the circulation, cake baked in oven cavity with the cake tins. round or square tins gets too dark at the rear Very moist cake dough (e.g. You can let the steam escape from the oven and fruit cake) causes a lot of thereby reduce the forming of water droplets by steam to generate in the briefly and carefully opening the oven door (once or oven that condenses on the twice, in case of longer baking times more often). oven door. Very uneven browning when Check the slide-in level. using circotherm circulation Cake collapses when taken Use less liquid. out of the oven To save energy Preheat only if expressly required by the recipe. Dark baking tins have a higher degree of heat absorption. Residual heat: In the case of longer baking times, you can switch off the oven 5-10 minutes before the full baking time has elapsed.78 Roasting Place the grill into the universal baking pan and slide them together into the same slide-in level. Meat can be roasted in the oven in a particularly economical fashion if the weight of the cut exceeds 750 grams. Roasting in an uncovered Rinse the universal baking pan and/or the roaster pot with water, and place the meat into it. With fat meat and poultry, pour 125 to 250 ml of water (to suit the size and kind of roast) into the universal pan. At your discretion, baste lean meat with fat, or cover it with bacon strips. The roast drippings collecting in the universal pan make a tasty gravy. Dissolve the drippings with hot water, bring to a boil, thicken with corn starch, season to taste and, if required, pass it through a strainer. No preheating is required. Save energy by putting the roast into the oven while it is still cold. Roasting in a covered pot Place the meat into the roasting pot (or Dutch oven), cover it with a matching lid, and place it on the grill in the oven. We recommend that beaf roast be prepared in a covered roasting pot. Roasting on the roasting sheet Place the roasting sheet into the universal pan. The roasting sheet prevents soiling of the oven. Grease and juice drippings from the roast are collected in the universal pan. To render your roast more crispy when using the roasting sheet, you may wish to set a slightly higher temperature than indicated in the roasting table.79 Tips Big, high roasts, goose, turkey, duck = Long roasting times, low temperatures Medium sized, low roasts = Medium roasting times, medium temperatures Small, flat roasts = Short roasting times, high temperatures Roasting time per cm of meat height without bones app. 13-15 minutes Roasting time per cm of meat height with bones app. 15-18 minutes We recommend using the lower of the stated temperatures first. In general, the lower temperature ensures a more even browning. We recommend turning the roast after half or two thirds of the roasting time have elapsed when using the setting

For roasting, use only cookware with oven-proof handles. Prepare large roast directly in the universal pan, without using the grill. Smaller cuts of roast can be roasted on aluminium foil. To do so, bend the edges of the foil upward, as if to form a dish, and place it on the grill. After the end of the selected roasting time and with the oven switched OFF, leave the roast in the closed oven for approx. 10 minutes. The roast is not done on Use a lower roasting temperature. the inside Note: Higher temperatures do not shorten roasting times (done on the outside, raw on the inside). Choose slightly longer roasting times. Very moist roasts (e.g. roasts You can let the steam escape from the oven and prepared with water) cause a thereby reduce the forming of water droplets by lot of steam to generate in briefly and carefully opening the oven door (once or the oven that condenses on twice, in case of longer roasting times more often). the oven door.80 Grilling Exercise CAUTION when grilling. Always keep children at a safe distance. Notes on grilling Always close the oven door when grilling. The grilling temperatures are variable. Always use the grill and the universal pan. Always place food to be grilled in the centre of the wire grill. If the grilling radiator (heating element) switches OFF automatically, the overheating protection was activated. The radiator will be reactivated after a short period of time. Place the grill into the universal baking pan and slide them together into the same slide-in level.81 Circo-roasting Use this method for particularly crispy poultry or roast (e.g., pork roast with rind). Use the grill and universal pan together. Turn large roasts after about half of the total grilling time has elapsed. To prevent breakage after removing them from the oven, place glass utensils on a dry kitchen towel instead of cold or wet surfaces. Dependent on the type of food being prepared, combination hot-air and surface grilling can cause an increased degree of oven soiling. Therefore, to prevent burning-in of the soil, thorough cleaning of the oven is recommended after each use. Whole poultry should be turned after approx. two-thirds of the cooking time has elapsed. With duck and goose, pierce the skin under the wings to allow excess fat to drain off. After the end of the selected roasting time and with the oven switched OFF, leave the roast in the closed oven for approx. 10 minutes. Surface grilling

Used for smaller dishes having little height/thickness. Large area grill Always use the grill and universal pan together. Turn the food after approx. two-thirds of the grilling time has elapsed. At your discretion, lightly baste the grill and the food with oil. Small area grill82 Defrosting and cooking Defrosting and cooking using the circotherm

Important heating system For defrosting and cooking of frozen or deep- information frozen foods, use only the hot-air heating system. With all deep-frozen foods, follow the food processing company‘s instructions on the package. As a rule, defrosted frozen or deep-frozen foods (especially meats) require less cooking time than fresh products, since freezing has a pre-cooking effect. If frozen meat is placed in the oven, the defrosting time must be added to the required cooking time. Always defrost deep-frozen poultry before cooking because the giblets must be removed. For cooking deep-frozen fish, use the same temperatures as for fresh fish. Deep-frozen ready-to-eat meals in aluminium dishes may be placed into the oven several at a time. Slide-in levels With 1 bakings sheet: Slide-in level 1 With 2 baking sheets: Slide-in levels 1 + 3. All stated times are approximate guidelines that vary with the shape and volume of deep-frozen products.83 Defrosting Raw deep-frozen products or foods from a freezer always defrost at 50° C. Higher defrosting temperatures may cause the food to dry out. Defrost deep-frozen meals packed in aluminium foil or closed aluminium containers at a setting of 130 – 140° C. Defrost and warm up deep-frozen baked goods at 100 – 140° C. Brush bread, rolls or yeast pastry lightly with water to make the crust more appealing. Defrost dry deep-frozen yeast cakes at 160 – 170° C for 20 – 30 minutes. Defrost moist deep-frozen yeast cakes (with fruit topping) at 160 – 170° C for 30 – 50 minutes after wrapping in aluminium foil to prevent cake from drying out. Defrost and toast deep-frozen toast (with topping) at 160 – 170° C for about 20 minutes. Frozen pizza: Please follow the manufacturers’ instructions.84 Defrost Recommended for delicate bakeware only (i.e., whipped-cream gateaus).

1. Turn the function selector to position *.

2. Turn down the oven temperature at the

temperature selector until ”Defrost” appears on the display. The fan at the oven wall runs without heat being generated. Depending on size and type of bakeware, defrost for 25 – 45 minutes. After this time, remove the pastry from the oven. Let stand at room temperature for 30 – 40 minutes. With smaller amounts (pastries) the defrosting time is reduced to 15 – 20 minutes and the subsequent standing time to 10 – 15 minutes. Temperature selector Function selector85 Using the steam cooking setting Attention Can be operated with the system steam cooking only (Available as an optional accessory from specialist outlet). Do not use the steam cooking setting until the oven has cooled down completely (room temperature). Select only steam cooking mode for the heating system. Other settings are not permitted.

1. Turn the function selector until ”Steam cooking”

appears on the display.

2. The steam cooking process is now regulated

automatically. Note When ”Steam cooking” flashes on the display, the oven has not cooled down completely. For further information see the operating instructions for the system steam cooking. Using the dough-proving Warning Do not use the dough-proving until the oven has cooled down completely (room temperature). Use normal tap water only, not distilled water. Function selector Function selector86 Switching ON 1. Carefully pour 50 millilitres of water (

glass) onto the floor of the oven cavity.

2. Place the bowl containing the dough onto the

middle of a wire shelf inserted at level 1. Do not cover the dough.

3. Close the oven door.

4. Turn the function selector until ”Dough proving”

appears on the display. The indicator lamp lights up, and ”ON” appears on the display. The dough proving mode is now regulated automatically. When ”Dough proving” flashes on the display, the oven is too hot. Switch the oven off. Wait until the oven has cooled down to room temperature. Restart the dough-proving. Yeast dough Amount of flour Shelf level Proving period Cakes up to 0500 g. 1 20 – 25 min. Cakes up to 0500 – 750 g. 1 25 – 30 min. Dough for plaited loaf 0500 g. 1 30 – 35 min. Dough for plaited loaf 0750 g. 1 30 – 40 min. Dough for normal loaf 1000 g. 1 35 – 60 min. Jogurt 1 litre milk 1 6 hours Important When making yoghurt, do not put any water in the oven. The details given in the table above are average values. They can vary according to the type and amount of dough, as well as the condition of the ingredients, e.g. age and quality of the yeast. Please read the enclosed cookery book for suggestions on how to make subsequent use of the dough. Before you start baking, remove the water left inside the oven. If any traces of lime are left behind, they can be dissolved with a little vinegar and wiped off using clear water. Never pour cold water into the oven while it is still hot. Switching off Turn the function selector to the 0 position.87 Cleaning and Care Important cleaning For cleaning, do not use abrasives, no corrosive basics cleaners, and no sharp objects. Do not scratch off burnt-in food residues, but soak them off with a moist cloth and dishwashing detergent. Special cleaners, such as oven cleaning spray, must not be used on aluminium or plastic parts. Stainless steel front When using commercially available stainless steel cleaning agents, the lettering may become damaged. Do not use scouring sponges. Use commercially available detergents applied to a soft, moistened cloth or a chamois. Enamel and glass Use hot detergent suds for cleaning. For cleaning the mating surface of the oven door at the front of the oven, the door should be removed. Oven door pane The temperature of the pane inside the oven door is reduced by a heat-reflecting coating. The reduced temperature ensures that visibility through the oven door window is not impaired. When the oven door is open, this coating may have a bright appearance. This is quite normal and does not indicate a quality defect. Hob surface The hob is covered by a special set of operating instructions. Please observe all cleaning directions contained in the instructions.88 Oven interior Clean the oven after each use, especially after roasting or grilling. Food remnants burn in when the oven is reheated. The baked in remnants are very difficult to remove once burnt in. You can reduce the degree of soiling by frequent cleaning using the hot-air system. Do not clean the warm oven with any of the cleaning products specifically designed for this purpose. When baking very moist cake, use the universal baking pan. For roasting, use the appropriate utensils (Dutch oven). Clean the oven before soiling becomes too heavy. Wash out the oven cavity with hot detergent suds. Leave the door open until the interior has dried.89 Catalytic oven surfaces Cleaning the catalytic The rear wall of the oven is coated with self-cleaning surfaces of the oven enamel. The surface cleans itself while the oven is in operation. Large splashes sometimes only disappear after the oven has been used several times. Never use oven cleaner on the back wall of the oven. Should the enamel become slightly stained, this will not affect its self-cleaning properties. Cleaning the oven floor, Use hot soapy water or a vinegar solution. the oven ceiling and the It is best to use oven cleaner if the oven is very dirty. side walls Only use oven cleaner in a cold oven. Note: Enamel is baked on at very high temperatures. This can cause some slight colour variation. This is normal and does not affect the function. Do not use coarse scouring pads or strong cleaning agents to remove such discolorations. The edges of thin trays cannot be completely enamelled. As a result, these edges can be rough. Anti-corrosion protection is guaranteed.90 HydroClean

The oven cleaning function featured in your oven is intended to help you keep your oven neat and tidy. An amount of cleaning solution is vaporised automatically. The combined effects of heat and steam soften the soil deposits on the oven wall enamel and facilitate their removal. Caution: Use this function only after the oven has completely cooled (room temperature). Use normal water only, and no distilled water. Activate oven cleaning:

1. Remove the baking sheet and the universal

baking pan from the oven. The baking grill may remain in the oven.

2. Pour approx. 400 ml of water mixed with a little

dishwashing detergent into the floor pan of the oven cavity. In the case of heavy soil build-up, you may wish to allow the cleaning solution to soak in for a while before you activate the cleaning function.

3. Close the oven door.

The cleaning system can only be activated when the oven has cooled down completely.

4. Turn the function selector until ”EasyClean”

appears on the display. The ( indicator lamp lights up, and ”operating” appears on the display. When ”EasyClean” flashes on the display, the oven has not cooled down completely. When EasyClean has ended, an acoustic signal is emitted, and ”Ended” appears on the display. Switching the oven OFF: Turn the function selector to the 0 position. Function selector91 After deactivating the oven Cleaning tips: cleaning function Never leave the residual water in the oven for any length of time, e.g. overnight.

1. Open the oven door and pick up the remaining

water with a large absorbent sponge cloth.

2. Using the detergent-soaked sponge cloth, a soft

brush or a plastic pot scrubber, wipe of the oven interior. Stubborn soil remnants can be removed with a cleaning scraper for glass-ceramic. Caution: Use the scraper carefully, and do not apply the tool at too flat an angle, because the enamel could be scratched!

3. Calciferous deposits may be removed with a cloth

4. Wipe clean with clear water and dry with a soft

cloth (do not forget to wipe under the oven door seal). Cleaning tips: If the oven is heavily soiled, the procedure may be repeated after the oven has cooled. If the oven is heavily soiled with grease, e.g. after roasting or grilling, we would recommend rubbing any stubborn dirt with detergent before activating the oven cleaning function. After cleaning, leave the oven door in its slanted detent position, i.e., at a 30-degree angle, to allow the interior enamel surfaces to dry thoroughly. Rapid drying

1. Place the oven door into the slanted detent

position, at an angle of approximately 30 degrees.

2. Turn the function selector until ”Circotherm”

appears on the display.

3. Reduce the oven temperature with the

temperature selector until 50° C is displayed.

4. Duration: approximately 5 minutes.

5. Then switch the oven off.92

Oven door Note: To make the manual cleaning steps following the automatic oven cleaning function more convenient, the appliance features the following options. Removing the oven door

1. Fully open the oven door.

2. Move the catch levers on the right and left-hand

sides to the fully open position.

3. Placing the door at an upward angle toward you,

grasp the door with both hands and lift it out of the hinges toward you. Hanging the oven door

1. Set both hinges into their respective receptacles

on the left and right, and swing the oven door downward.

2. Close the catch levers on the left and right.

3. Close the oven door.

Lowering the heating element In order to clean the oven ceiling more easily turn down the grill heating element.

Warning: The heating element must have cooled

1. Press the retaining clip upward until you hear the

2. Hold the heating element and fold it down.

After cleaning Fold the heating element back up. Pull the retaining clip forward and press it up until it clicks into place.93 Inset rack Removing

1. Pull the inset rack out of its bearing bush.

2. Remove the inset rack.

Clean the rack using washing-up liquid and pan scrapers or brushes. Telescopic pull-outs Removing

1. Press the coach spring down.

2. Push the telescope upwards and remove it.

Clean the telescopic pull-outs using washing-up liquid and pan scrapers or brushes. Attaching Insert the telescopic pull-out at the rear. Insert the telescopic pull-out into the guide and press down until it locks into position. Always insert the telescopic pull-outs all the way. Do not close the oven door until all telescopic pull-outs have been inserted. Attention: The telescopic pull-outs become hot when the oven is on. Risk of burns when the telescopic pull-outs are pulled out94 Service and Repair Information In the event of problems or repairs that you cannot solve or perform yourself, our customer service will be happy to help. Check the customer service directory for a customer service facility in your area. Caution: Calling the customer service because of an operator error can be very costly! E No and FD No You can find this information on the appliance’s nameplate. The nameplate is located on the appliance, behind the oven door, on the left bottom edge of the oven. In the event of a customer service request, please have the following information handy: E-Number FD Replacing the oven light Caution: Unplug the appliance or remove the fuse! By actuating the miniature circuit-breaker or by unscrewing the fuses in the fuse box in your house.

1. To prevent damage, place a dish towel into the

2. Unscrew the lamp cover by turning it

–Type: Incandescent bulb E 14, 220 – 240 V, 40 W, heat-resistant to 300° C –You may obtain this bulb from your customer service or from your appliance dealer. Replacing the oven door seat Remove the defective oven door seal by simply unhooking it. You may obtain the new oven door seal from your customer service.95 Replacing the halogen bulb for NeffLight Replacement bulbs and Only a technician may work on the appliance auxiliary tool are available electronics. from customer service. Before starting such work, isolate the appliance: By actuating the automatic circuit breakers or unscrewing the fuses in the fuse box in your house. Before replacing the halogen bulb, detach the oven door. Halogen bulbs become very hot when switched on. Even some time after they have been switched off, there is a risk of burns. Attention: Bulb holder. Take hold of the halogen bulb with a clean cloth or the auxiliary tool.

1. Take the auxiliary tool, insert it into the slot and

prise out the cover.

2. Pull out the halogen bulb with the other auxiliary

– Halogen bulb type G4, 12 volts, 20 watts, heat-resistant up to 300 °C. –Halogen bulbs are available from customer service. Note If the light does not function, check whether the bulbs have been inserted correctly.96 Trouble-shooting Guide Calling the customer service is not always really necessary. In some cases, you can remedy the situation yourself. The following table may contain some helpful tips. Important general safety guidelines: Service or repair work on the electronic components may only be performed by a qualified expert. Without exception, prior to starting such repairs, the appliance must be disconnected from the mains. This may be accomplished by tripping the automatic fuse or by removing the fuse from the fuse box that controls your flat or apartment. Problem Possible cause Remedy . . . if there is a general failure of Defective fuse Check the fuse in the fuse box, and all electrical functions, i.e., the replace if required. control lamps have suddenly ceased to function. . . . if liquids or thin viscous The appliance has not Level the appliance using the leveling dough are distributed at a been placed or installed feet, or check the installation. visibly uneven thickness? plumb-and-level. . . . if the oven suddenly stop The electronic clock is Set electronic clock to operation functioning? set to an automatic without automatic timer: timing cycle. 1. Press the : button.
