Technical Features	Gas stove with 4 burners, convection oven, total power 8 kW
Dimensions	Width: 60 cm, Depth: 60 cm, Height: 85 cm
Weight	45 kg
Usage	Ideal for cooking various dishes, oven temperature control, automatic burner ignition
Maintenance	Regular cleaning of burners and oven, checking gas pipes, replacement of worn parts by a professional
Safety	Gas leak safety system, safety thermostat, insulated handles
General Information	2-year warranty, compliance with European safety standards, available in several colors

Frequently Asked Questions - Obscure PALSON

How do I light the PALSON Obscure stove?

To light the stove, turn the control knob of the desired cooking zone clockwise to the ignition position and hold it down for a few seconds.

What should I do if the stove does not heat up?

First, check that the stove is properly plugged in and that the outlet is working. Also make sure the control knob is activated. If the problem persists, contact customer service.

How do I clean the stove surface?

Use a soft cloth and a non-abrasive cleaner. Avoid rough sponges that could scratch the surface. Make sure the stove is off and cooled down before cleaning.

The stove emits a strange smell during first use, is this normal?

Yes, it is normal for a new stove to emit a smell during first use. This should disappear after a few uses. Make sure to ventilate the room well.

How do I adjust the cooking temperature on the stove?

Simply turn the control knob of the cooking zone up or down to adjust the temperature as needed.

Is the PALSON Obscure stove equipped with a safety function?

Yes, the stove is equipped with a safety device that automatically cuts off power in case of overheating.

How do I know if the cooking zone is hot?

The stove is equipped with a light indicator that turns on when the cooking zone is hot. Never touch the surface before the indicator turns off.

What is the power of the PALSON Obscure stove?

Power varies by cooking zone, but generally it offers a maximum power of 2000 W per zone.

Can I use stainless steel pots on this stove?

Yes, you can use stainless steel pots, but make sure they are compatible with the cooktops.

How do I contact PALSON customer service?

You can contact PALSON customer service via their website or by phone at the number indicated in the user manual.

USER MANUAL Obscure PALSON

Black-and-white photo of a cooking setup with a pan on an induction cooktop, surrounded by food and utensils (no visible text or symbols)

E ESPAÑOL.... 4

GB ENGLISH 8

F FRANÇAIS.... 12

ITALIANO 16

AR اللغة العربية 23

HU MAGYAR 24

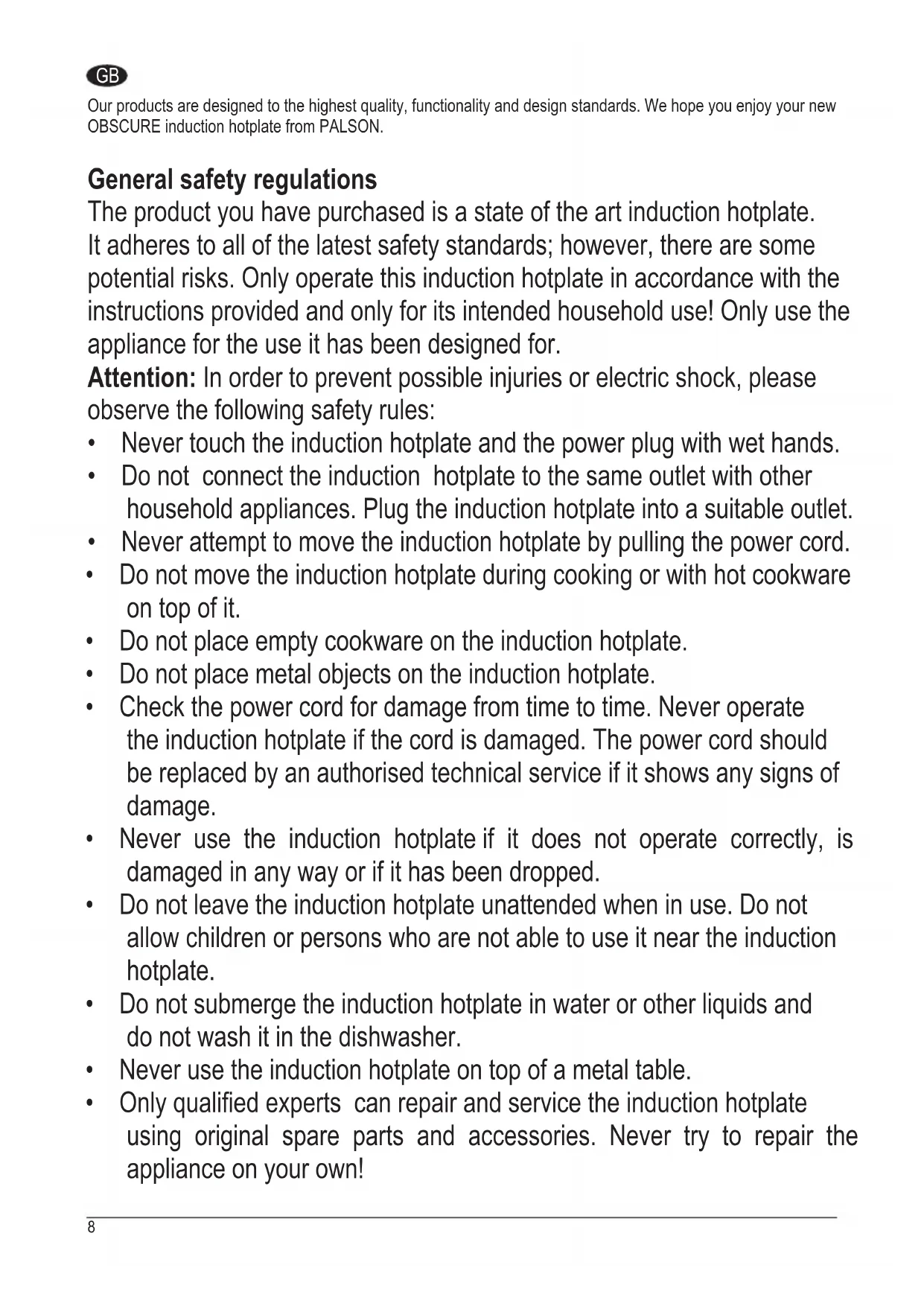

Our products are designed to the highest quality, functionality and design standards. We hope you enjoy your new OBSCURE induction hotplate from PALSON.

General safety regulations

The product you have purchased is a state of the art induction hotplate. It adheres to all of the latest safety standards; however, there are some potential risks. Only operate this induction hotplate in accordance with the instructions provided and only for its intended household use! Only use the appliance for the use it has been designed for.

Attention: In order to prevent possible injuries or electric shock, please observe the following safety rules:

• Never touch the induction hotplate and the power plug with wet hands.
• Do not connect the induction hotplate to the same outlet with other household appliances. Plug the induction hotplate into a suitable outlet.
• Never attempt to move the induction hotplate by pulling the power cord.
• Do not move the induction hotplate during cooking or with hot cookware on top of it.

- Do not place empty cookware on the induction hotplate.

- Do not place metal objects on the induction hotplate.

- Check the power cord for damage from time to time. Never operate the induction hotplate if the cord is damaged. The power cord should be replaced by an authorised technical service if it shows any signs of damage.

- Never use the induction hotplate if it does not operate correctly, is damaged in any way or if it has been dropped.

- Do not leave the induction hotplate unattended when in use. Do not allow children or persons who are not able to use it near the induction hotplate.

- Do not submerge the induction hotplate in water or other liquids and do not wash it in the dishwasher.

- Never use the induction hotplate on top of a metal table.

- Only qualified experts can repair and service the induction hotplate using original spare parts and accessories. Never try to repair the appliance on your own!

• Never heat up sealed foods, such as for example, tin cans, before opening them.
• The device cannot be used with an external timer or with a separate remote control system.
• If the power cord cable is damaged, it must be replaced by the manufacturer or its authorised technical service or by a qualified engineer to prevent dangerous situations.
• Adults or children must not operate this appliance without help or supervision if they are physically, sensorially or mentally incapable of doing so safely. Children should be supervised to ensure that they do not play with the appliance.
• Do not put anything on top of the cooking surface. Danger of fire.

PRECAUTION: Cooking with grease or oil when unattended may be dangerous as this could result in a fire.

PRECAUTION: The induction hotplate and its accessible parts may heat up during operation. Take care to avoid touching the heating elements. Keep children under 8 years of age away from it unless they are permanently supervised.

This appliance can be used by children over 8 years of age and people with physical, sensorial or mental disabilities or with a lack of experience and knowledge, if they are supervised or have been given suitable instructions on how to use the appliance safety and when they understand the dangers that this involves. Children should not be allowed to play with the induction hotplate. Cleaning and maintenance should not be carried out by unsupervised children.

Installing the induction hotplate

• Place the hotplate on a stable and level surface.
• Never place the hotplate on a flammable surface (e.g., tea towel, rug, etc.).
• Never use the hotplate on the surface of any other electrical device, such as for example an electric oven, a ceramic oven, etc.
• Never use the hotplate on a metal surface that is very thin and buckles easily.
• Do not block the ventilation slots of the induction hotplate. This may overheat it. Keep a minimum distance of 5 to 10 cm from walls and other objects.
• Do not place the induction hotplate near to devices or objects that are sensitive to magnetic fields (e.g., radios, TVs, cassette recorders, etc.).
• Do not place the induction hotplate near to fires, heaters or other sources of heat.
• Make sure that the power cord is not damaged or crushed underneath the induction hotplate.

GB

- Make sure that the power cord does not come into contact with sharp edges and/or hot surfaces.

Handling the induction hotplate

• Prior to connecting the induction hotplate, check whether the voltage indicated on the plate corresponds to the voltage supply in your home. An incorrect connection may lead to serious damage to the induction hotplate and injury to persons.
• The hotplate's surface is made of temperature-resistant Black Glass. If any damage to the unit is observed, disconnect the induction hotplate from the power supply immediately and contact the authorised technical service.
• We recommend not placing metal kitchen utensils, saucepan lids or frying pans, knives and other metal objects on top of the hotplate. They may heat up when the hotplate is turned on.
• Do not place any magnetised objects like credit cards, cassettes, etc. on the Black Glass surface while the induction hotplate is in operation.
• To avoid overheating, do not place any aluminium foil or metal plates on the induction hotplate.
• Do not insert any objects like wires or tools into the ventilation slots. Attention: this may cause electric shock.
• Do not touch the hot Black Glass surface. Bear in mind that the induction plate does not heat up during cooking, but the temperature of the kitchen utensils heat the hotplate up!
• Do not heat up any unopened tin cans on the induction hotplate. A heated tin can could explode, and that is why the lid always has to be taken off.
• Scientific tests have proven that induction hotplates do not pose any risks. However, persons with a pacemaker should keep a distance of at least two feet from the induction hotplate while it is operating.

Operating the induction hotplate

• Plug the power cord into a properly installed outlet.
• The control light of the “ON/STANDBY” switch will turn on and the temperature of the hotplate surface will appear. If the temperature of the hotplate surface is under 50 °C, the letter “L” will appear on the screen. If the temperature is over 50 °C, the letter “H” will appear. It will give off a beep. The hotplate is now in the standby mode.
• Place the pot or pan you are going to use in the middle of the hotplate.
• The, press the “ON/STANDBY” switch once to connect the induction hotplate. The “HEAT” and “TEMP” (temperature) control lights will flash and beep will be given off. (NOTE: if no more actions are carried out for 30 seconds after pressing the “ON/STANDBY”, the unit will automatically return to the standby mode and the letter “L” will appear on the screen. Press the “ON/STANDBY” and other function keys to restart the unit).
• Press the HEAT function key. Select the preset "5" power level to activate the device.
• Use the + / - keys to change the parameters at any time. Power levels range from 1 to 10.
• Press the “TEMP” button to select the temperature. Select the “120 °C” pre-selected temperature and the induction hotplate will turn itself on.
• Use the + / - keys to change the values any time, from 60 to 240^ . (Temperature values: 60, 80, 100, 120, 140, 160, 180, 200, 220 and 240^ )
• Timer Function. After selecting the temperature mode, press the “TIME” button. “0” appears on the screen. Use the + key to select the operating time in intervals of 5 minutes (up to a maximum of 180 minutes). Use the – key to reduce the time in intervals of 1 minute. Then the time will start to be deducted in minutes. When all of the minutes have been consumed, a beep will go off and the device will automatically go to the standby mode. Warning: during operation with the timer, you can change the duration at any time using the +/- keys. Using the hotplate’s memory function does not change the power or temperature settings.

You can also change the power or temperature, using the corresponding buttons, without changing the default time.

- When you have finished cooking or heating, unplug the power cord.

- Do not place empty kitchen utensils on the black glass surface. Heating empty saucepans or frying pans activates the overheating protection and the hotplate turns off.

• Do not operate the hotplate if it is damaged in any way or if it does not operate correctly.
• The use of accessories or spares not recommended by the appliance manufacturer can cause injuries.
• Power function: the maximum preset temperature is 170 °C, and therefore to steam food or boil water, select the power function.
• Temperature function: the maximum preset temperature is 240 °C, and therefore to gratiné or fry food, select the temperature function.
• Use frying pans/sauce pans with a base with a minimum thickness of 1.53 mm.
• When you use the hotplate, first place the frying pan/sauce pan. Never place them empty.

Cleaning and maintenance

• Unplug the hotplate before cleaning it. Never use caustic cleaning products and make sure that no water seeps into the hotplate.
• To protect yourself from electric shocks, never submerge the hotplate, its cords or the plug in water or any other liquid.
• Clean the black glass surface with a damp cloth or use a mild, non-abrasive soap solution.
• Do not use a steam cleaner
• Clean the casing and control panel with a soft cloth or mild detergent.
• Do not use products that contain gasoline in order not to damage the plastic parts, nor the control casing or panel.
• Do not use inflammable acid or alkaline materials or substances near to the hotplate, as this could reduce the hotplate's useful life and cause an explosion when it is turned on.
• Make sure that the bottom part of the kitchen utensils does not scratch the Black Glass surface.
• Make sure that the hotplate is clean before putting it away in a dry place.
• Cleaning and maintenance should be carried out by an adult.

NOTE: If a code ranging from E01 and E08 appears on the display, please contact your authorised technical service.

PROTECTING THE ENVIRONMENT

Electric products should not be thrown away with domestic rubbish. This appliance should be taken to a local recycling centre for safe treatment.

Thank you for choosing one of our products.

F

Disposal of old Electrical & Electronic Equipment (Applicable throughout the European Union and other European countries with separate collection programs)

This symbol, found on your product or on its packaging, indicates that this product should not be treated as household waste when you wish to dispose of it. Instead, it should be handed over to an applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent negative consequences to the environment and human health, which could otherwise be caused by inappropriate disposal of this product. The recycling of materials will help to conserve natural resources. For more detailed information about the recycling of this product, please contact your local city office, household waste disposal service or the retail store where you purchased this product.
