Product type	Blender
Brand	Domo
Model	XPower DO9184BL
Package contents	Base, removable blade assembly, additional gasket, lid with pouring spout, 530 ml bottle, 710 ml bottle, container, container lid with filling opening and measuring cup, citrus press
Bottle capacity	530 ml and 710 ml
Container capacity	MAX level (not specified, approx. 1 L)
Main functions	Blend, crush ice (with liquid), press citrus fruits
Allowed food types	Vegetables and fruits cut into pieces of max 2.5 cm, cold ingredients, ice with liquid
Prohibited use	Hot liquids, dough, mashed potatoes, minced meat
Cleaning the base	Damp cloth, do not immerse in water
Cleaning accessories	Washable in water (lid, bottle, blades)
Starting safety	The bottle must be properly attached to the base to start
Overheat protection	Automatic shut-off if the motor stalls, let cool for 10 minutes
Spare parts available	Blade assembly, gasket, lids, bottles, container, citrus press
Appliance warranty	2 years from purchase date
Accessories warranty	6 months
Recommended use	Domestic or similar environments (staff kitchen, farms, bed & breakfasts)
Minimum age of use	16 years (with supervision) or under adult supervision
Blade material	Stainless steel (not specified, estimate)
Country of manufacture	Not specified

Frequently Asked Questions - XPower DO9184BL DOMO

How to use the mixing bottle?

Fill the bottle up to 710 ml (or 530 ml for the small one). Screw the blade assembly onto the opening. Place the base on a flat surface and plug it in. Turn the bottle upside down, align it on the base and turn clockwise to lock. Press the button to blend. Release to stop. Unscrew the bottle, remove the blades and screw on the lid with pouring spout for takeaway.

How to use the container?

Screw the blade assembly onto the container. Place the container on the base and turn clockwise to lock. Add ingredients without exceeding the MAX level. Put on the lid. Press the button to blend. Release to stop. Turn the container counterclockwise and remove it.

How to use the citrus press?

Attach the citrus press to the small or large container. Cut the orange or lemon in half. Place the half fruit on the press and turn until the juice flows. Remove the press and put the lid on the container.

Can I blend hot liquids?

No, the blender is only designed for cold ingredients. Never blend hot liquids as this could damage the appliance or cause burns.

How to clean the appliance?

Unplug the appliance. Clean the base with a damp cloth, do not immerse in water. The accessories (lid, bottles, blades) are washable in water. Caution, the blades are very sharp.

What to do if the motor stalls or stops?

Turn off the appliance immediately, unplug it and let it cool for at least 10 minutes. This can happen if the motor is overloaded or too many ingredients were added.

What is the warranty on this blender?

The appliance is warranted for 2 years from the date of purchase. Accessories and wear parts have a 6-month warranty. The warranty does not cover damage due to misuse or repair by an unauthorized third party.

Can I mince meat with this blender?

No, the blender is not designed for mincing meat. It is intended for blending fruits and vegetables in pieces, crushing ice or pressing citrus fruits.

Can I use an extension cord?

No, using an extension cord is not recommended. The appliance is supplied with a short cord for safety reasons.

How to properly assemble the blade assembly?

Hold the blade assembly by the underside, blades away from you. Screw it onto the opening of the bottle or container by turning clockwise. Make sure it is securely attached before placing the bottle on the base.

USER MANUAL XPower DO9184BL DOMO

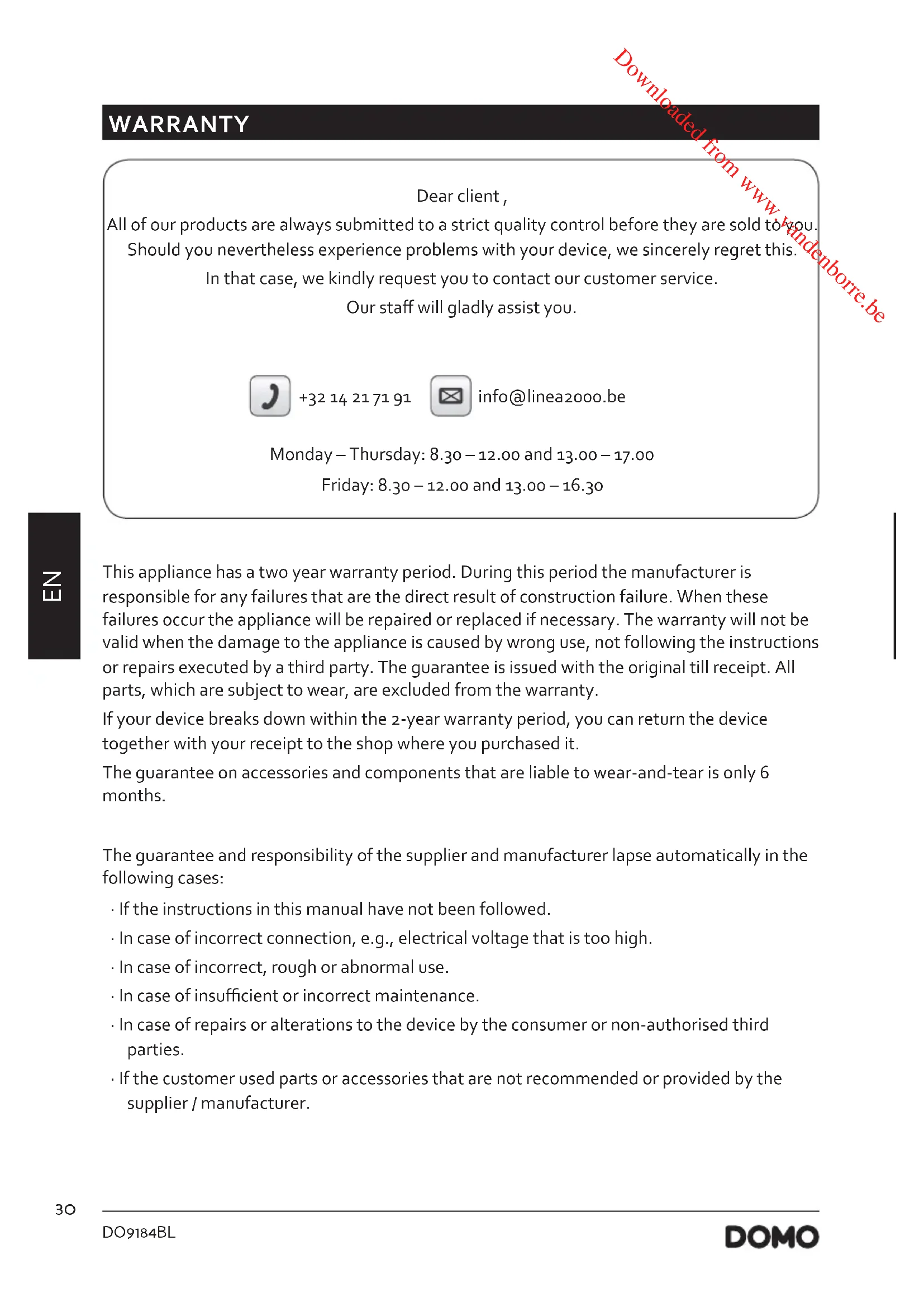

All of our products are always submitted to a strict quality control before they are sold to you. Should you nevertheless experience problems with your device, we sincerely regret this.

In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday - Thursday: 8.30 - 12.00 and 13.00 - 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty.

If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
  In case of incorrect connection, e.g., electrical voltage that is too high.
  In case of incorrect, rough or abnormal use.
  In case of insufficient or incorrect maintenance.
• In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time.

• Make sure children cannot play with the packaging material.
  This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
  -farm houses;

• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

Children should be supervised to ensure that they do not play with the appliance.

• This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 16 and supervised.
• Keep the appliance and its cord out of reach of children younger than 16 years.
• The appliance must be disconnected from its power source when not in use, during service and when replacing parts. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• CAUTION: In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
• Never leave the appliance unattended while it is functioning.
• Do not use or store this appliance outdoors.
• Do not use this appliance for other than intended use.
• Check carefully that the voltage and frequency of the power net match the indications on the rating label of the appliance.
• The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local standards and requirements.
• Only use the utensils delivered with the appliance.
• Do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.

• Do not operate the appliance with wet hands.

• A short power supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. DO NOT USE WITH AN EXTENSION CORD.
• Unwrap the cord completely to prevent overheating of the cord.
• Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.
• Do not allow the power cord supply to run underneath or around the unit.
• Do not use the appliance if there is any water in it or the parts are still wet after cleaning.
• Do not use the appliance without ingredients.

• Handle with great care when using sharp accessories like knives. Only touch the accessories when they stopped moving inside the appliance.

• Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

• Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

PARTS

1. Blender base
2. Detachable blade assembly
3. Extra sealing ring for the drinking lid (spare part)
4. Spill-proof drinking lid
5. Blending bottle / drinking bottle 530 ml
6. Blending bottle / drinking bottle 710 ml
7. Blender jug
8. Blender jug lid with built-in measuring cup in filling opening
9. Fruit press

USE

1. Cut all solid vegetables and fruit into pieces no larger than 2,5cm.
2. Do not use the blender for making dough, puree, for grinding meat, etc.
3. Do not use the blender to blend warm fluids or other warm ingredients. The blender is only suited for blending cold ingredients. Also, do not put the blender or the blender bottle into the microwave oven. Do not use them to heat up something.
4. The blender can also crush ice. However, always add enough liquid when crushing ice.
5. The blender has a built-in safety at the start-up. The blending bottle has to be placed correctly into the base before you can start the blender.
6. Do not overload the blending bottle. If the engine sputters, switch off the blender immediately, pull the plug from the socket and let the appliance cool down for at least 10 minutes.
7. Clean the blender according to the instructions in the 'Cleaning and maintenance' section.

BLENDING BOTTLE / DRINKING BOTTLE

STEP 1: Fill the bottle with your favorite ingredients. Make sure that the ingredients do not exceed the 710 ml indication on the bottle, or the 530 ml indication in case of the smaller bottle.

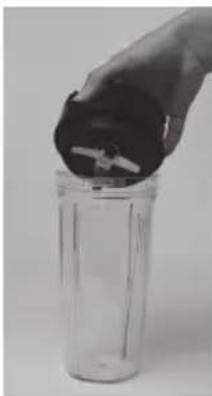

STEP 2: Carefully grab the blade assembly by the bottom of the piece, the blades turned away from you, and secure it on the opening of the blending bottle by screwing it on.

STEP 3: Place the blender base on a flat surface and plug it in.

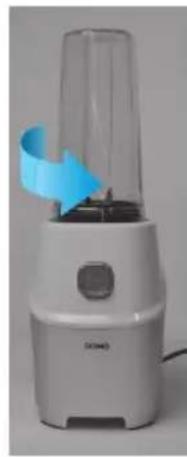

STEP 4: Turn the bottle, with the blade assembly attached to it, upside down, line it up on the base and push the bottle into the base. Turn the bottle clockwise to lock it into the base.

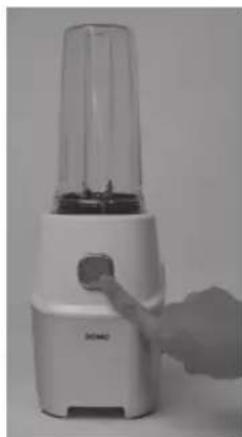

STEP 5: Push the button to start blending. Release the button to stop blending.

Z3

STEP 6: Stop the blender when everything is mixed properly. Turn the bottle counterclockwise and take the bottle from the base.

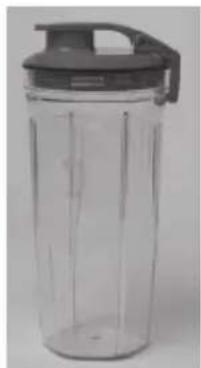

STEP 7: Turn the bottle upside down, remove the blade assembly from the bottle and screw the drinking lid on to the bottle. This way you can take the bottle with you as a drinking bottle.

BLENDER JUG

STEP 1: Carefully grab the blade assembly by the bottom of the piece, the blades turned away from you, and secure it on the opening of the blending jug by screwing it on.

STEP 2: Place the blender base on a flat surface and plug it in.

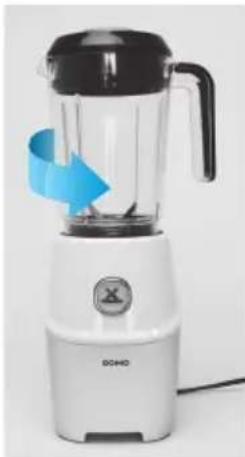

STEP 3: Place the jug with the blades on the base and push it down on the base. Turn the jug clockwise to lock it in position.

STEP 4: Fill the blender with your favourite ingredients. Make sure that the level of ingredients does not exceed the MAX mark on the blender jug. Put the lid on the jug.

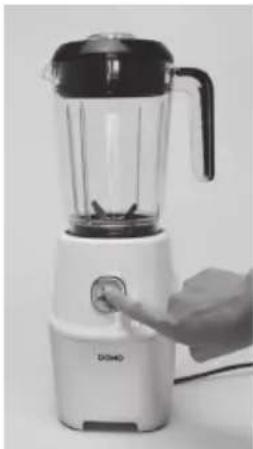

STEP 5: Push the button to start blending. Release the button to stop blending.

STEP 6: Stop the blender when everything is mixed properly. Turn the jug counterclockwise and take the jug from the base.

Z3

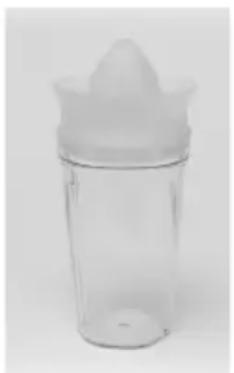

FRUIT PRESS

STEP 1: Position the fruit press on the small mixing bottle or the large one.

STEP 2: Cut your orange or lemon in half. Place the half of the fruit to be squeezed on the fruit press and squeeze it by hand until no more juice comes out.

STEP 3: Once you have enough juice, remove the fruit press from the mixing bottle and replace the lid.

CLEANING AND MAINTENANCE

Attention:

The edges of the blades are very sharp. Cleaning the blender has to be done carefully.

1. Pull the plug from the socket and disassemble the accessories before cleaning the appliance.
2. Use a damp cloth to clean the outside of the blender base. Never immerse the blender base in water or other liquids.
3. Except for the base, you can clean all parts in water: the drinking lid, the blending bottle and the blade assembly.
4. When not using the blender for a longer period of time, save it in a well ventilated, dry place to prevent the engine of the appliance from being affected by humidity.

ENVIRONMENTAL GUIDELINES

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat the packaging ecologically.
