My Vegetable DO9165SP - Food Processor DOMO - Free user manual and instructions

Product Type	Food processor (vegetable spiralizer)
Brand	Domo
Model	My Vegetable DO9165SP
Power supply	Electric, mains voltage (220-240 V~)
Material	Plastic and stainless steel (blades)
Cutting types	Capellini (extra fine), spaghetti (fine), tagliatelle (thick)
Number of cones	3 interchangeable cones
Drive mechanism	Motorized gear wheel
Food pusher	With prongs for securing fruits/vegetables
Collection container	Removable bowl
Switch	On/Off (I/O)
Cord storage	Bottom compartment
Recommended use	Round/cylindrical fruits and vegetables from 2.5 to 6 cm
Maximum usage time	1 minute continuous
Care and cleaning	Detachable parts dishwasher safe; wipe motor with a damp cloth; do not immerse
Safety	Sharp blades; do not touch while operating; do not use unsupervised; do not use for meat or hard foods
Warranty	2 years
Spare parts available	Online at Domo webshop
Included accessories	3 cones, pusher, bowl, lid

Frequently Asked Questions - My Vegetable DO9165SP DOMO

Which types of vegetables can I use with the Domo My Vegetable spiralizer?

Use round or cylindrical fruits and vegetables, peeled or not, with a diameter between 2.5 cm and 6 cm. Vegetables that are too hard (e.g., raw beets) or too soft are not suitable.

How to install a cone in the appliance?

Turn the lid with the filling opening counterclockwise to remove it. Place the desired cone into the gear wheel ensuring it fits properly, then replace the lid.

Can I wash the parts in the dishwasher?

Yes, all detachable parts (lid, cones, gear wheel, pusher, and container) can be washed in the dishwasher. Beware of sharp blades when cleaning.

What to do if the appliance does not work?

Check that the switch is in the on (I) position and that the plug is properly connected. Ensure the cone is correctly installed and the food is not too large. If the problem persists, contact customer service.

Is it possible to cut hard foods like meat?

No, never use the appliance to cut or grind meat, sugar, or too hard foods. This could damage the appliance and pose a danger.

What is the warranty period?

The appliance comes with a 2-year warranty from the purchase date against manufacturing or material defects, upon presentation of the original receipt.

How to clean the motor?

Clean the exterior of the motor with a soft, damp cloth, then dry it thoroughly. Never immerse the motor in water or any other liquid.

Where to find spare parts?

Accessories and spare parts are available online at the Domo webshop (http://webshop.domo-elektro.be) or at the point of sale.

Is the appliance safe for children?

This appliance can be used by children over 16 years of age under supervision. Cleaning and maintenance may only be performed by children over 16 under supervision. Keep the appliance out of reach of younger children.

What to do if the cone is damaged?

Do not use the appliance if cones are damaged or incomplete. Replace them with original cones available at the Domo webshop or from the retailer.

USER MANUAL My Vegetable DO9165SP DOMO

White and green cleaning brush maker with clear glass and red button (no text or symbols visible)

DO9171SP-DO9172SP

PRODUCT OF LINEA 200

GARANTIEVOORWAARDEN

CONDITIONS DE GARANTIE

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty.

If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

CONDICIONES DE GARANTÍA

RECYCLAGE-INFORMATIE

Symbol of a trash bin crossed with no visible text or labels

INFORMATION DE RECYCLAGE

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

RECYCLING INFORMATIONEN

RECYCLING INFORMATION

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. The packaging is recyclable. Please treat the packaging ecologically.

Symbol of a trash bin crossed with two crossed lines, representing waste sorting or disposal (no text or labels)

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

INFORMACE O RECYKLACI ODPADU

From now on, accessories and parts of Domo appliances can also be ordered online from the Domo webshop*:

http://webshop.domo-elektro.be

You can reach the webshop through the Domo website as well: www.domo-elektro.be. The accessories and parts can also still be obtained at the store where you bought the appliance.

CZ

If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.

Diagram of a blender with numbered parts for identification and assembly reference.

Top-down view of a white plastic tray with cylindrical and roller handles, no visible text or symbols

3 verschillende messenkegels

Close-up of a metallic thermometer inside a circular frame (no text or symbols visible)

Close-up of a metallic thermometer inside a circular frame (no text or symbols visible)

Close-up of a metallic cylindrical object inside a circular frame (no visible text or symbols)

GEBRUIK

Close-up of a circular mechanical component with a central shaft and concentric rings (no visible text or symbols)

Diagram of a food organizer with numbered parts for identification and assembly reference.

Top-down view of a white appliance drawer with plastic bottles and a hand holding a tool (no text or symbols visible)

3 cônes différents

Three identical circular images showing a thermometer inside a cylindrical opening (no text or symbols visible)

UTILISATION

Close-up of a circular mechanical component with a central shaft and textured outer ring (no visible text or symbols)

Diagram of a food organizer with numbered parts for identification and assembly reference.

Top-down view of a white plastic tray with rolled rollers and a hand placed inside (no text or symbols visible)

Close-up of a metallic thermometer inside a circular container (no text or symbols visible)

Close-up of a metallic thermometer inside a circular container (no visible text or symbols)

Close-up of a cylindrical object inside a circular frame, possibly a lens or sensor (no visible text or symbols)

VERWENDUNG

Close-up of a circular mechanical component with a central shaft and flange (no visible text or symbols)

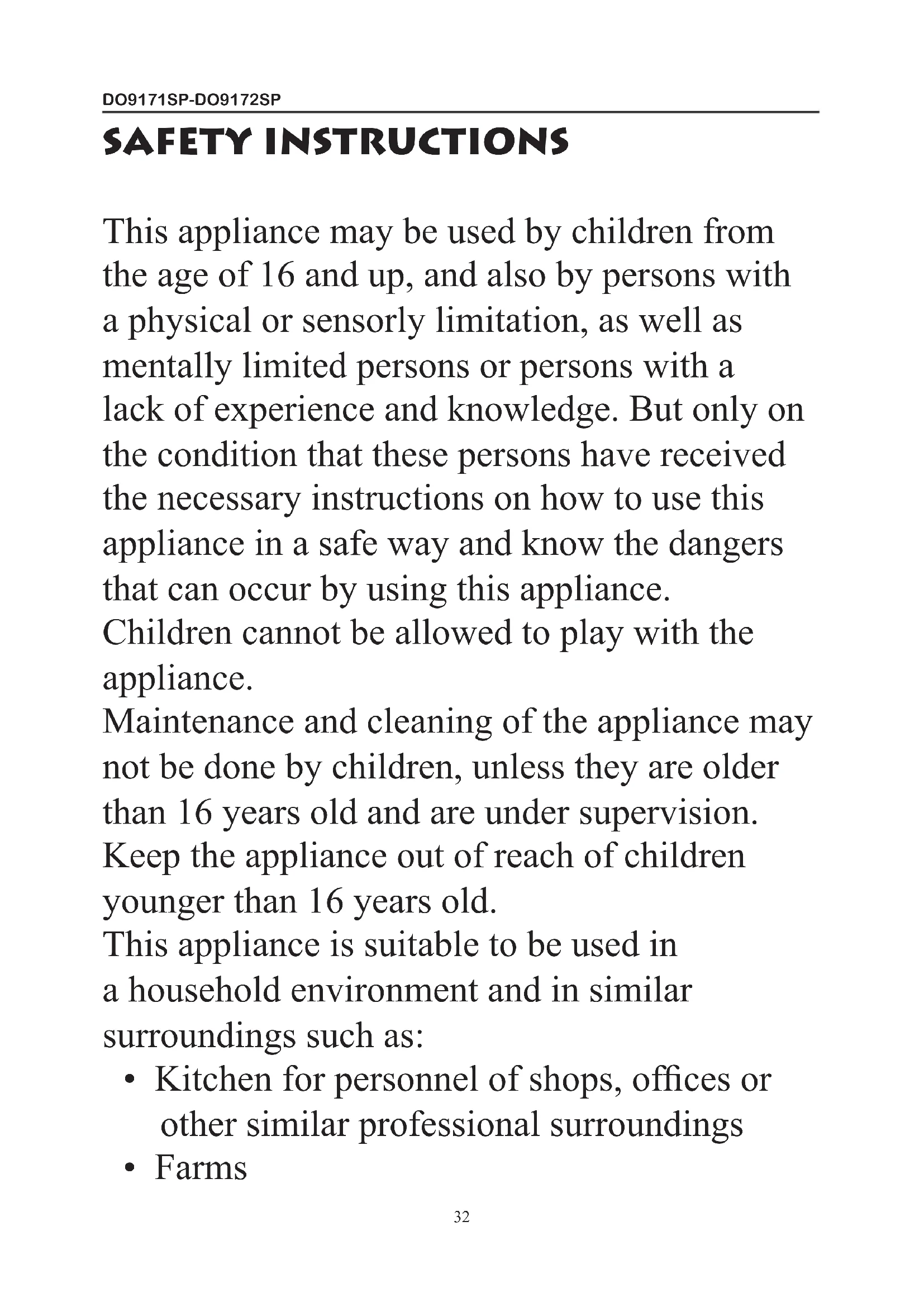

This appliance may be used by children from the age of 16 and up, and also by persons with a physical or sensory limitation, as well as mentally limited persons or persons with a lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and know the dangers that can occur by using this appliance.

Children cannot be allowed to play with the appliance.

Maintenance and cleaning of the appliance may not be done by children, unless they are older than 16 years old and are under supervision. Keep the appliance out of reach of children younger than 16 years old.

This appliance is suitable to be used in a household environment and in similar surroundings such as:

• Kitchen for personnel of shops, offices or other similar professional surroundings
• Farms

• Hotel or motel rooms and other surroundings with a residential character
- Guest rooms or similar

Attention: This appliance cannot be used with an external timer or a separate remote control.

• Read all instructions before use.
• Before use, check if the voltage stated on the appliance corresponds with the voltage of the power net at your home.
• Do not let the cord hang on a hot surface or on the edge of a table or counter top.
• Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, take the appliance to the nearest qualified service center for check-up and repair.
• Close supervision is necessary when the appliance is used near or by children.
• The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries.
• Unplug the appliance when it is not in use, before assembling or disassembling any parts

and before cleaning the appliance. Put all buttons and knobs into the ‘off’ position and unplug the appliance by grasping the plug. Never unplug by pulling the cord.

• Do not leave a working appliance unattended.
• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.
• Do not use the appliance outdoors.
• Only use the appliance for its intended use.
• Always use the appliance on a steady, dry and level surface.
• Only use the appliance for domestic use. The manufacturer can not be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.
• All repairs should be carried out by the manufacturer or its aftersales service.
• Never immerse the appliance, the cord or the plug in water or any other liquid.
• Make sure that children do not touch the cord or appliance.
• Keep the cord away from sharp edges and

hot parts or other heat sources.

• Before use, remove all packaging materials and any promotional stickers.
• Keep hands and utensils away from the blades and the moving blade cones.
• Do not use the appliance for longer than 1 minute continuously.
• Do not use the appliance to cut/grind meat.
• Never remove the blade cones before the appliance has stopped completely.
• Never push the food into the appliance with your hands. Always use the food pusher.
• Do not use the appliance with food that is too hearty (sugar, meat,...)
• Do not use the appliance when it has fallen or when the blade cones are damaged or incomplete.

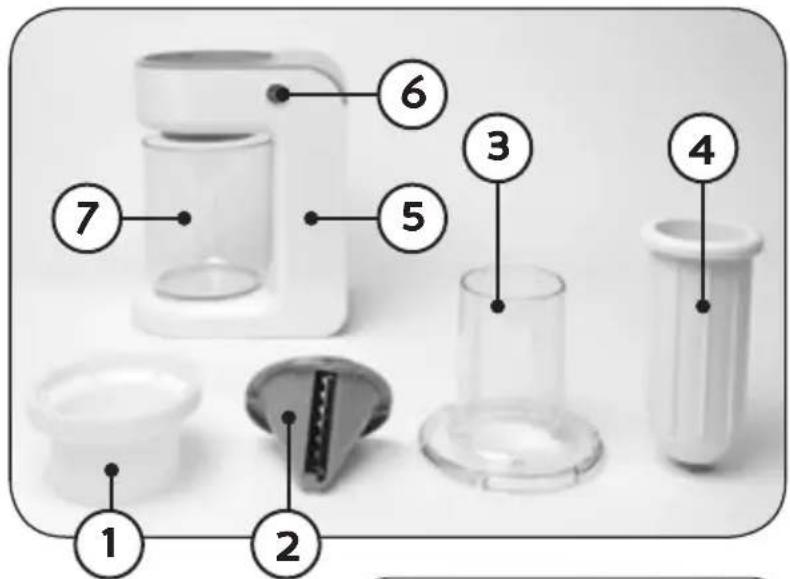

PARTS

1. Gear wheel
2. Blade cone
3. Lid with fill opening
4. Food pusher
5. Motor unit
6. On/off switch
7. Bowl

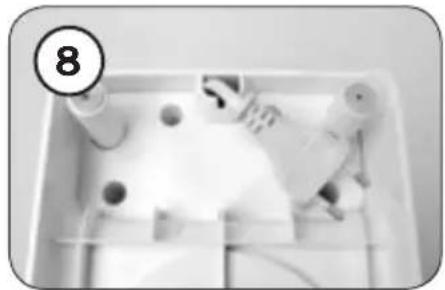

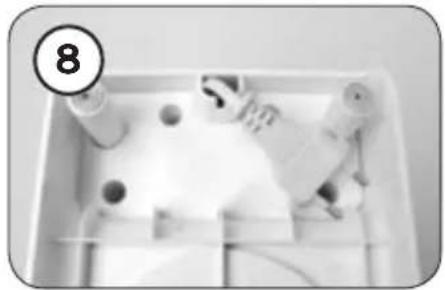

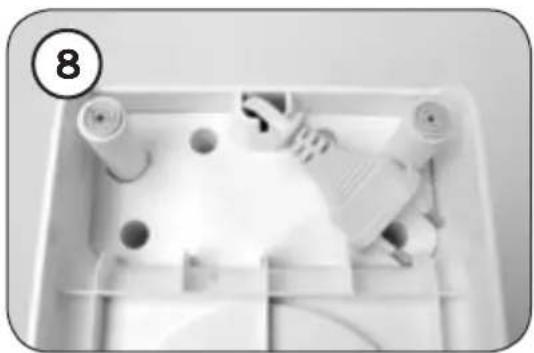

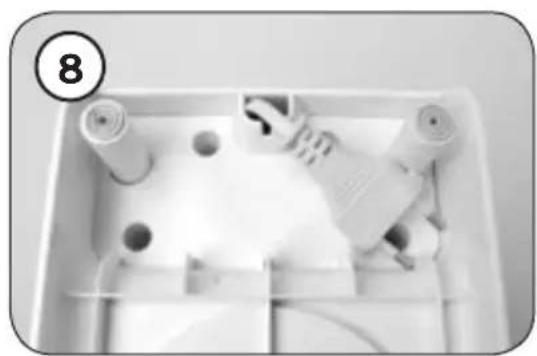

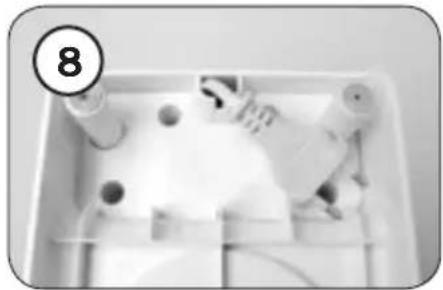

8. Cord storage in the bottom of the appliance

Diagram of a food cleaning device with numbered parts for identification

Interior view of a kitchen sink with plastic bottles and a hand holding a tool (no text or symbols visible)

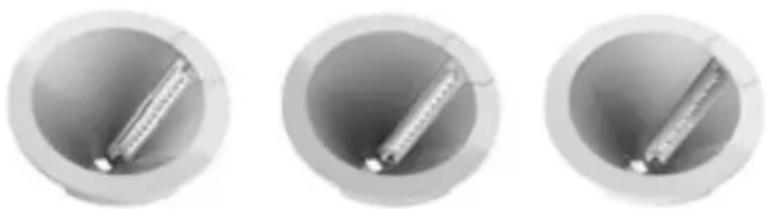

3 different blade cones

1. Extra thin: cappellini
2. Thin: spaghetti
3. Wider: tagliatelle

123

Close-up of a thermometer inside a circular container (no visible text or symbols)

Close-up of a thermometer inside a circular frame (no visible text or symbols)

Close-up of a cylindrical object inside a circular frame, possibly a lamp or tool, with no visible text or symbols.

USE

1. Place the appliance on a flat, stable surface.

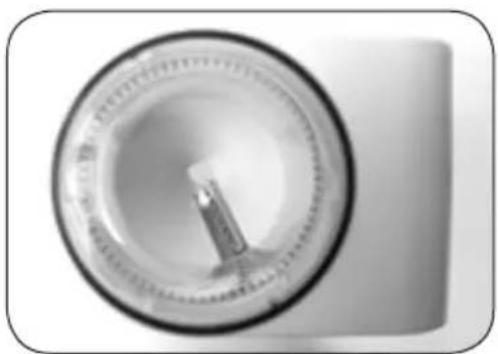

2. Place the desired blade cone into the appliance. To do this, remove the lid with fill opening by turning it counterclockwise, and place the blade cone into the gear wheel in the appliance. Make sure that the cone and gear wheel are well placed. The blade cone should nicely fit into the gear wheel. Place the lid with fill opening back onto the appliance and turn clockwise to fasten.

Close-up of a circular mechanical component with a central rod, no visible text or symbols

1. Place the bowl onto the platform below the opening.

2. Make sure that the on/off switch is set to 'O' (= off). Plug in the appliance.

3. Prick the vegetable or fruit - peeled or not - onto the cross at the bottom of the food pusher.

Caution: the vegetable or fruit has to be min. 2,5 cm and max. 6 cm wide. To make nice, long spaghetti it should also have a round or cylinder shape.

1. Now put the food pusher with the vegetable or fruit attached to it into the opening in the lid - with the vegetable/fruit downwards, so that the food touches the blade cone.
2. Apply pressure on the food pusher and simultaneously switch the on/off swith to 'I' (= on). The blade cone will now start spinning, and the food will be cut into spaghetti. Push the food pusher downwards during this process, with an even force, so that the food is pushed through the blade cone. Make sure that the vegetable or fruit - and thus also the food pusher - does not spin. The spaghetti will fall into the bowl.
3. Switch the on/off switch to 'O' (= off) when the vegetable or fruit is entirely cut.
4. A small vegetable or fruit cone will now be left behind on the bottom of the food pusher. Remove the cone from the food pusher and add it to your dish or already eat it as an appetizer for the meal.

CLEANING AND MAINTENANCE

• Switch off and unplug the appliance before removing any parts and before cleaning.
• Clean all removable accessories after each use: lid with fill opening, blade cones, gear wheel, food pusher and bowl. These parts can also be cleaned in the dishwasher.

Caution: the blades are sharp. Be very careful during cleaning.

• Wipe the housing of the appliance clean with a soft, damp cloth. Dry thoroughly.
• Caution: never immerse the motor unit in water.

PRECAUCIONES IMPORTANTES

Diagram of a food organizer with numbered parts for identification and assembly reference.

Top-down view of a white plastic tray with circular markers and a numbered circle (8) in the top-left corner, containing no visible text or symbols.

Tres cono portacuchillas diferentes

1. Tiras extrafinas: capellini
2. Tiras finas: spaghetti
3. Tiras gruesas: tagliatelle

123

Three circular objects with metallic cylindrical elements inside, no visible text or symbols

Uso

Close-up of a circular mechanical component with a central shaft (no visible text or symbols)

Diagram of a food organizer with numbered parts for identification

Interior view of a kitchen sink with plastic bottles and a numbered label (8) in the top-left corner, no visible text or symbols on the main objects.

Close-up of a thermometer inside a circular frame (no visible text or symbols)

Close-up of a thermometer inside a circular frame (no visible text or symbols)

Close-up of a cylindrical object with a pointed tip, possibly a tool or component (no visible text or symbols)

POUŽITÍ:

Close-up of a circular mechanical component with a central shaft and concentric rings (no visible text or symbols)

Diagram of a handwashing device with numbered parts for identification

Top-down view of a kitchen sink with cutlery and a numbered label (8) in the corner, no visible text or symbols on the sink itself.

Close-up of a metallic thermometer inside a circular container (no text or symbols visible)

Close-up of a thermometer inside a circular frame (no visible text or symbols)

Close-up of a cylindrical object inside a circular frame, possibly a pen or tool, with no visible text or symbols.

POUŽITIE

Close-up of a circular mechanical component with a central shaft (no visible text or symbols)
