DO709K - Coffee machine DOMO - Free user manual and instructions

Technical Specifications	Filter coffee machine, 1000W power, 1.25 litre capacity
Usage	Simple operation with an on/off button, water level indicator, permanent filter included
Maintenance and Repair	Easy to clean, removable tank, washable filter, descaling recommended every 3 months
Safety	Automatic shut-off system, overheating protection
General Information	Compact dimensions, modern design, 2-year warranty

Frequently Asked Questions - DO709K DOMO

How do I clean the DOMO DO709K coffee machine?

To clean the machine, unplug it and let it cool down. Remove the filter holder and water tank, then wash them with lukewarm water. Use a damp cloth to clean the outside of the machine. Do not immerse the machine in water.

Why is my DOMO DO709K coffee machine not working?

Make sure the machine is properly plugged in and the power button is in the ON position. Also check that the water tank is full and correctly installed.

How do I make coffee with the DOMO DO709K machine?

Fill the water tank, add ground coffee to the filter holder, then place the filter holder into the machine. Press the power button to start the brewing process.

The DOMO DO709K coffee machine makes noise, is this normal?

Some noise is normal during operation, especially during brewing. If the noise seems excessive or unusual, check that the machine is on a stable surface and that no objects are blocking it.

How do I adjust the coffee strength on the DOMO DO709K?

The coffee strength depends on the amount of ground coffee you use. For stronger coffee, add more ground coffee to the filter holder. For lighter coffee, reduce the amount.

Can I use pre-packaged ground coffee in the DOMO DO709K?

Yes, you can use pre-packaged ground coffee, just make sure it is compatible with the machine's filter holder.

How do I descale the DOMO DO709K coffee machine?

To descale, mix a solution of white vinegar and water (1:1) and fill the tank. Run a brewing cycle without coffee. Then rinse the tank and run clear water through the machine to remove any residue.

Does the DOMO DO709K have an automatic shut-off function?

Yes, the machine has an automatic shut-off function that activates after a certain period of inactivity for safety reasons.

What type of filter should I use with the DOMO DO709K?

Use paper filters of the appropriate size for the machine's filter holder. You can also use a permanent filter if the machine is equipped with one.

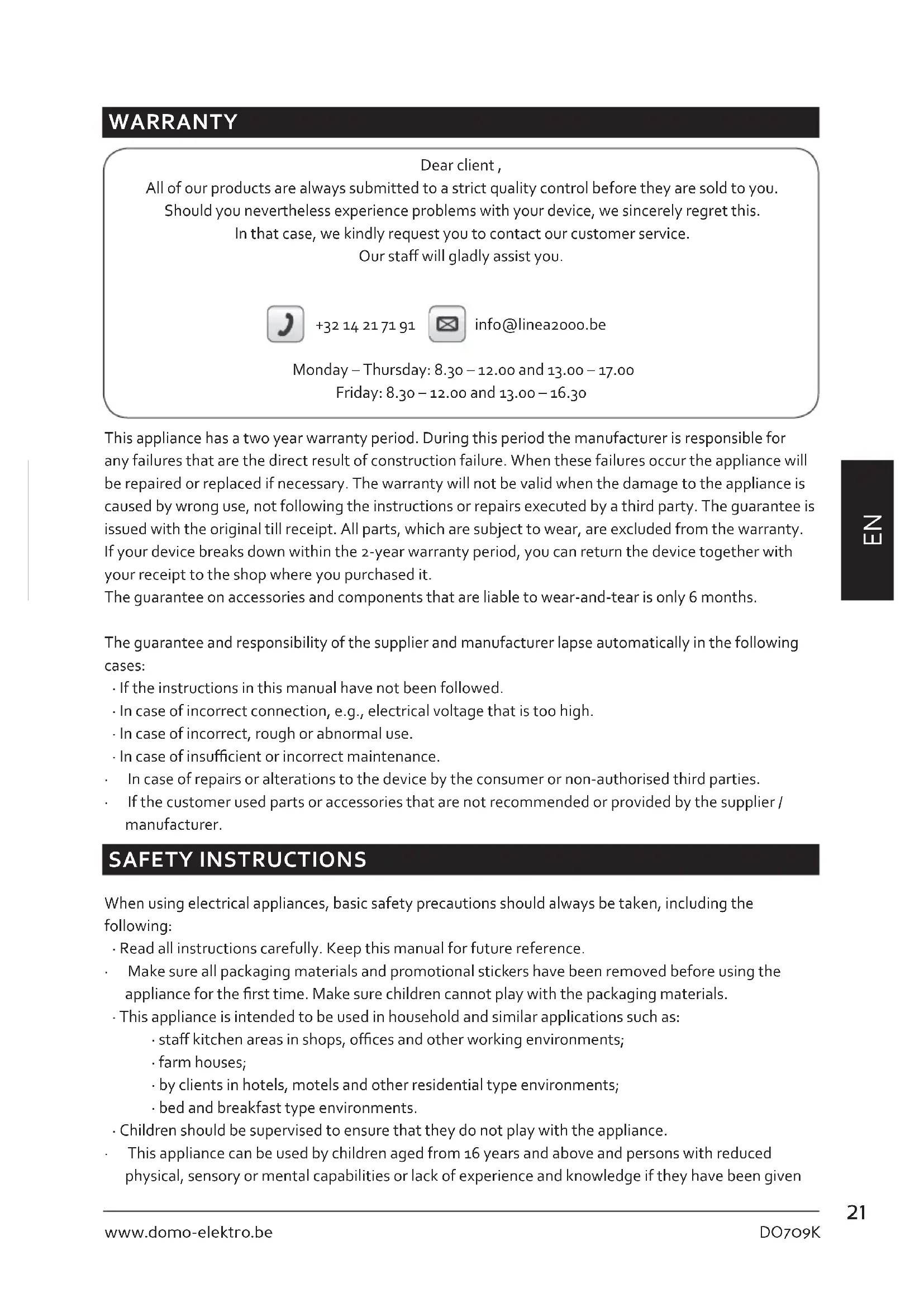

USER MANUAL DO709K DOMO

All of our products are always submitted to a strict quality control before they are sold to you.

Should you nevertheless experience problems with your device, we sincerely regret this.

In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday-Thursday:8.30-12.oo and 13.oo-17.oo

Friday: 8.30 - 12.00 and 13.00 - 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

If the instructions in this manual have not been followed.
- In case of incorrect connection, e.g., electrical voltage that is too high.
In case of incorrect, rough or abnormal use.
In case of insufficient or incorrect maintenance.

In case of repairs or alterations to the device by the consumer or non-authorised third parties.

If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETYINSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.

• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.
  This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
  -farm houses;

• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

Children should be supervised to ensure that they do not play with the appliance.

This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given

supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 16 and supervised.

• Keep the appliance and its cord out of reach of children younger than 16 years.
  The appliance must be disconnected from its power source when not in use, during service and when replacing parts. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
  If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• CAUTION: In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
  The surfaces of the appliance are likely to get hot during use. It is advised not to touch the surfaces of the appliance other than the handles to avoid burns.
• Never leave the appliance unattended while it is functioning.
• Do not use or store this appliance outdoors.
• Do not use this appliance for other than intended use.
• Check carefully that the voltage and frequency of the power net match the indications on the rating label of the appliance.
• The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local standards and requirements.
• Do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.
  To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.
• Do not operate the appliance with wet hands.
• A short power supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. DO NOT USE WITH AN EXTENSION CORD.
• Unwrap the cord completely to prevent overheating of the cord.
• Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.
• Do not allow the power cord supply to run underneath or around the unit.
• Do not place on or near a hot gas or electric burner or sink, or in a heated oven.
• Do not place near flammable materials, gases or explosives.
• Make sure the appliance is correctly assembled, then plug the cord in the wall outlet. To disconnect, turn controls to "OFF" or "o" position, then remove the plug from the wall. Never pull the cord or appliance to remove the plug from the socket.
• Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.
• During boiling, hot steam may come through the filter or any other opening. Keep hands and face at a safe distance during operation.
  Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.
• Do not overfill the kettle. Never add water above the maximum level marked on the appliance.
• Do not spill any liquid on the connector.
• The appliance must not be immersed in water or any other liquid for cleaning

• Only use the utensils delivered with the appliance.
  Do not move the appliance while in use or when still hot. Allow to cool before moving the appliance.

• Never use the coffee maker when it is empty. Always make sure that there is water in the water tank when you switch on the appliance.

• Do not use the appliance when it shows signs of damage.
• Do not put a hot carafe on a wet or cold surface.
• Never use the coffee maker without the lid on the carafe.
• Never leave an empty carafe on a hot keep-warm plate.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

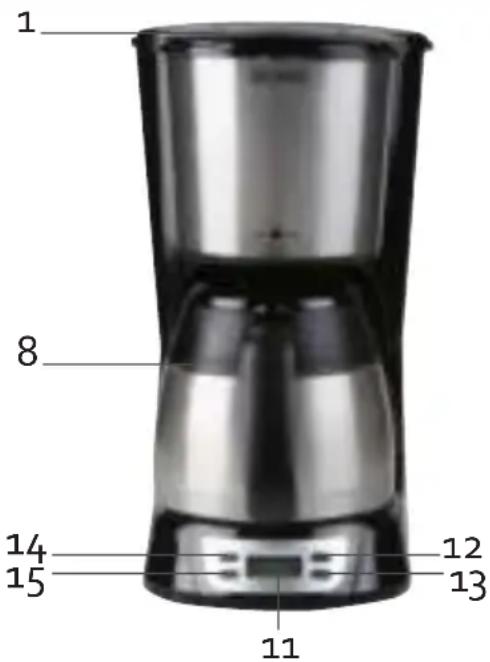

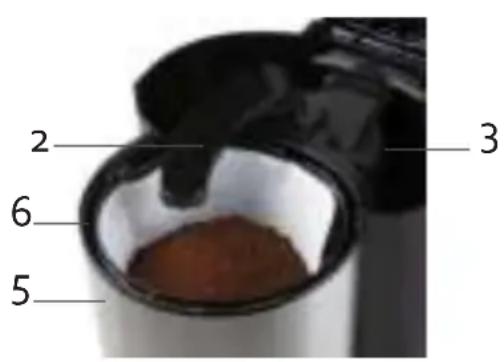

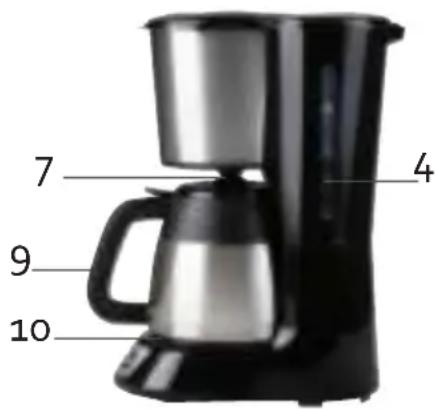

PARTS

1. Top cover
2. Water outlet
3. Water tank
4. Water level indications
5. Filter holder
6. Removable filter
7. Drip stop
8. Thermo jug
9. Handle
10. Keep-warm plate
11. Control panel with LCD display
12. On/off button with indicator light
13. Programming button with indicator light
14. Hours button
15. Minutes button

BEFORE THE FIRST USE

• Check if all accessories are included and if the appliance is not damaged.
• First let water run through the appliance, without adding coffee. To do so, fill the water tank up to the maximum level, switch on the coffee maker and let the water run through completely. Dispense of the water and repeat one or two times. Afterwards, clean the filter, filter holder, carafe and lid of the carafe thoroughly with warm water.

USE

1. Open the lid of the appliance, and use the thermo jug to add the required amount of water to the water reservoir. Do not exceed the maximum mark.
2. Insert a paper filter into the removable filter.
3. Add the desired amount of coffee to the filter and move the water discharge tube so that it is positioned above the filter. Close the lid.
4. Place the lid on the thermo jug. Make sure the little arrow on the lid corresponds to the middle icon on the jug. Insert the glass carafe horizontally into the coffee maker. Put it on the keep-warm plate, under the drip stop.
5. Plug the power cord into the outlet and press the on/off button. The indicator light will light up and the coffee maker will start brewing. You can remove the carafe from the coffee maker at any chosen time for a maximum of 30 seconds to pour coffee. The appliance will stop dripping automatically.
6. The coffee is ready about one minute after the coffee stops dripping from the appliance.
7. The final amount of coffee will always be a little less than the amount of water you put in, because the coffee absorbs water.
8. To pour the coffee, make sure the little arrow on the lid corresponds to the icon that pours coffee on the jug (closest to the pouring spout). Be careful while pouring, the coffee is hot right after brewing.
9. For safety reasons it is considered wise to keep the lid on the carafe. This way the coffee also stays warm.
10. The device will keep the coffee warm for up to 40 minutes. Afterwards, the device will shut off automatically. To maintain an optimal coffee taste, it is best to serve the coffee right after brewing.
11. Always make sure that the coffee maker is switched off and unplug the power cord from the outlet when the appliance is not in use.

POINTERS FOR GREAT COFFEE

• A clean coffee maker is essential to make great tasting coffee. Clean the appliance regularly according to the guidelines. Always use fresh, cold water in the coffee maker.
• Store coffee in a dry and cool place.
• Do not reuse any coffee, as this will greatly affect the taste of your coffee. We also do not recommend reheating coffee.

SETTING THE TIME

1. Put the plug in the socket. The display will show "12:00".
2. Press the program button to set the time. The display will show "CLOCK".
3. To set the correct time, press the hours button and the minutes button.
4. Once the time has been set, press the program button three times to confirm the time.

SETTING THE TIMER

1. Prepare the appliance to set coffee as indicated under "use" but do not press the on/off button yet.
2. Press the program button twice to set the timer. The display will show "TIMER".
3. To set the timer, press the hours button and the minutes button.
4. Press the program button to confirm the timer. The time and the set timer will appear on the display alternatively. The indicator light will now turn green.
5. The coffee will begin to run at the time that has been set using the timer.

CLEANING AND MAINTENANCE

Caution: Unplug the appliance and let it cool down before cleaning it. Never immerse the cord, the plug or the appliance in water or other fluids in order to avoid the risk of electrical shock. After each use, make sure the plug is removed from the outlet.

Clean the thermo jug and removable filter in hot water using a gentle detergent.
- Wipe the product's exterior body with a soft, damp cloth to remove stains.
- Wipe off water droplets after using the appliance.
Use a damp cloth to wipe the keep-warm plate clean. Never use abrasive cleaning materials to do so.

DECALCIFICATION

When?

Regularly decalcify your coffee maker. Regular decalcification contributes to a constant coffee quality, a lower energy use and prolongs the durability of your coffee maker.

At normal use we recommend to decalcify the appliance every 3 to 4 weeks.

How?

1. Fill the carafe with 1/4 of vinegar and 3/4 of cold water.
2. Pour the mixture into the water tank and turn on the coffee maker. Let the mixture run through - without adding coffee - and repeat until the liquid dripping out has lost its yellow colour.
3. Pour out the mixture.
4. Now let the coffee maker run at least twice with only water, until the vinegar smell has disappeared.

ENVIRONMENTAL GUIDELINES

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat the packaging ecologically.
