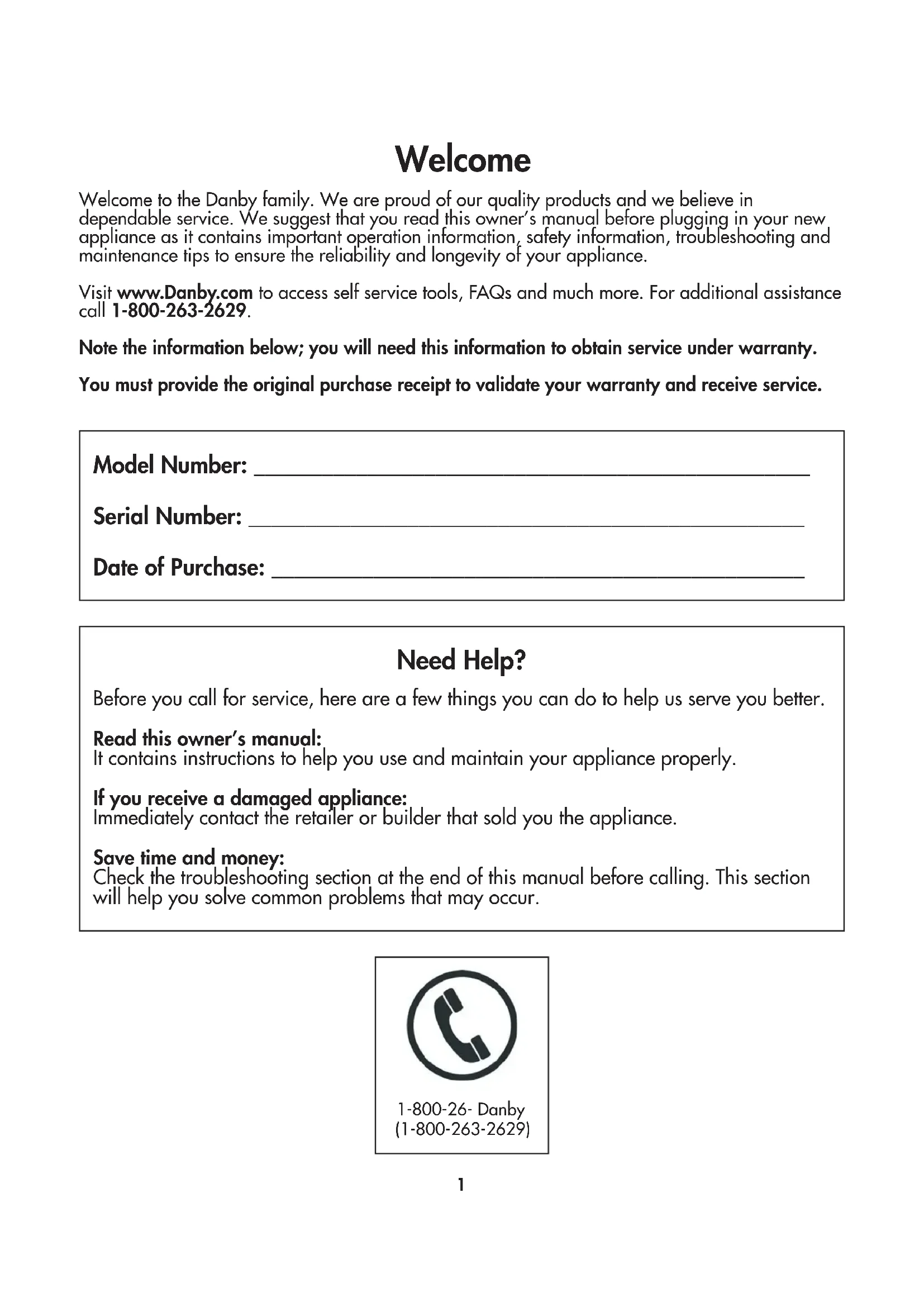

DPA100EAUWDB DPA100EAUBDB DPA120EAUWDB DPA120EAUBDB 2017.11.21Welcome Welcome to the Danby family. We are proud of our quality products and we believe in dependable service. We suggest that you read this owner’s manual before plugging in your new appliance as it contains important operation information, safety information, troubleshooting and maintenance tips to ensure the reliability and longevity of your appliance. Visit www.Danby.com to access self service tools, FAQs and much more. For additional assistance call 1-800-263-2629. Note the information below; you will need this information to obtain service under warranty. You must provide the original purchase receipt to validate your warranty and receive service. Model Number: _________________________________________________ Serial Number: _________________________________________________ Date of Purchase: _______________________________________________ Need Help? Before you call for service, here are a few things you can do to help us serve you better. Read this owner’s manual: It contains instructions to help you use and maintain your appliance properly. If you receive a damaged appliance: Immediately contact the retailer or builder that sold you the appliance. Save time and money: Check the troubleshooting section at the end of this manual before calling. This section will help you solve common problems that may occur. 1-800-26- Danby(1-800-263-2629) 1SAFETY REQUIREMENTS This appliance is not intended for use by persons (including children) whose physical, sensory or mental capabilities may be different or reduced, or who lack experience or knowledge, unless such persons receive supervision or training to operate the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. To avoid risk of electric shock, do not operate this appliance in an area that is likely to accumulate standing water. If this condition develops, disconnect the power supply before stepping into the water. Do not store or use combustible materials such as gasoline or other fl ammable vapors or liquids in the vicinity of this or any other appliance. Do not insert fi ngers or other objects into grills or openings in the appliance. Do not cover or block the intake and exhaust openings. Do not operate the appliance without the fi lter installed. Do not operate the appliance near heat sources. This appliance is intended for indoor, residential applications only. Do not use this appliance outdoors. Do not use this appliance for commercial or industrial applications. If the air conditioner is transported on its back or side, it must be allowed to stand upright for 6 hours before plugging in to avoid damage to internal components. Keep the appliance away from walls, furniture and curtains with a clearance of at least 30 cm (12 inches) on all sides. GROUNDING INSTRUCTIONS This appliance must be grounded. Grounding reduces the risk of electrical shock by providing an escape wire for the electrical current. This appliance has a cord that has a grounding wire with a 3-prong plug. The power cord must be plugged into an outlet that is properly grounded. If the outlet is a 2-prong wall outlet, it must be replaced with a properly grounded 3-prong wall outlet. The serial rating plate indicates the voltage and frequency the appliance is designed for. WARNING - Improper use of the grounding plug can result in a risk of electric shock. Consult a qualifi ed electrician or service agent if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded. Do not connect the appliance to extension cords, adapters or together with another appliance in the same wall outlet. Do not splice the power cord. Do not under any circumstances cut or remove the third ground prong from the power cord. If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualifi ed person in order to avoid hazard. Important Safety Information

1. Attach the air outlet adapter and the window

slider adapter onto either end of the exhaust hose.

2. Insert the air outlet adapter into the lower

groove of the air outlet on the back of the appliance. Ensure that the hook of the adapter is aligned with the hole seat of the air outlet and then slide down

3. Measure the window opening where the window

kit will be installed. Assemble as many sliders as necessary to fi t the window.

4. If the length of the window requires all three

sliders, use two bolts to fasten the sliders at the correct length.

5. If the window opening is less than the minimum

length of a single slider, use the slider that has the hole in it and cut it to the correct length. Make sure not to cut the end that has the hole as this is necessary to attach the exhaust hose adapter.

1. Medium sized Phillips screwdriver

2. Tape measure or ruler

3. Knife or scissors

4. Saw (in the event that the window sliders need to

be cut to size) ACCESSORIES

8. Foam seal A (adhesive)

9. Foam seal B (adhesive)

10. Foam seal C (non-adhesive)

11. Security bracket and 2 screws

There are two possible installation methods depending on the available window type. Hung Window Installation

1. Cut the adhesive foam seals A and B to the

correct length for the window. Attach them to the window sash and frame as shown.

2. Insert the assembled window slider kit into the

3. Cut the non-adhesive foal seal C to match

the width of the window. Insert the foam seal between the glass and the window frame to prevent air and insects from getting into the room.

4. Install the security bracket in the window frame

with the two provided screws.

5. Attach the window slider adapter to the hole in

Note: Do not over extend or bend the hose as this will impede air fl ow.5 INSTALLATION INSTRUCTIONS Sliding Window Installation

1. Cut the adhesive foam seals A and B to the

correct length for the window. Attach them to the window sash and frame as shown.

2. Insert the assembled window slider kit into the

3. Cut the non-adhesive foal seal C to match

the width of the window. Insert the foam seal between the glass and the window frame to prevent air and insects from getting into the room.

4. Install the security bracket in the window frame

with the two provided screws.

5. Attach the window slider adapter to the hole in

Note: Do not over extend or bend the hose as this will impede air fl ow.OPERATING INSTRUCTIONS FEATURES Front

4. Handle (both sides)

LOCATION Place the air conditioner on a smooth, level fl oor that is strong enough to support it and all included accessories. Make sure the appliance is level to minimize noise and vibration. The appliance must be installed near a grounded receptacle and the overfl ow drain outlet on the rear of the appliance must be accessible. Do not cover air inlets or outlets or the remote control receiver on the control panel. The appliance requires 30 cm (12 inches) of clearance on the front and sides. The appliance requires at least 50 cm (20 inches) of clearance on the back.

Modes will cycle in sequence with each press of the button; cool, dry, fan.

3. Power Button: Press to turn the appliance on or

4. Up and Down Buttons:

• Used to adjust the set temperature in 1° increments.

• Press and hold both up and down buttons for 3 seconds to change the temperature display from °C to °F.

1. Temperature and Timer Display: Shows the set

temperature of the timer setting.

2. Temperature Scale: Indicates whether the

temperature scale is set to °C or °F.

3. Timer Indicator: Illuminates if the timer is

setting; low, med, high.

5. Mode Display: Shows the current mode; cool,

feature. When auto swing is activated, press again to stop the louver at the desired angle.

3. Sleep: Press to start the sleep function.

4. Up and Down Buttons: Used to set the

temperature and timer.

5. Power Button: Press to turn the appliance on or

Modes will cycle in sequence with each press of the button; cool, dry, fan.

7. Timer Button: Press to set the timer function.

8. °C/°F Button: Press to change the temperature

display from °C to °F.

• Cool Mode Choose cool mode to set the cooling function. Use the up and down Arrows to choose the desired temperature. Press the fan button to adjust the fan speed. The temperature can be set within a range of 18 - 32°C (64 - 90°F). The exhaust hose should be installed during cool mode to ensure the best results.

• Dry Mode Choose dry mode to remove excess moisture from the air during periods of high humidity. All water pulled from the air will collect inside the appliance and evaporate due to the heat from the compressor. In especially humid conditions, it may be necessary to empty the drain pan when it becomes full. Press the fan button to adjust the fan speed. The exhaust hose should be installed during dry mode to ensure the best results.

• Fan Mode Choose fan mode to run the internal fan without engaging the cooling function. Press the fan button repeatedly to choose the fan speed, low, med, high. OPERATING INSTRUCTIONS Timer Function To set the turn off timer:

• Ensure the appliance is turned on.

• Press the timer button, the time on the display will fl ash.

• Press the timer button to select the desired amount of hours before the unit turns off. To set the turn on timer:

• Ensure the appliance is turned off.

• Press the timer button, the time on the display will fl ash.

• Press the timer button to select the desired amount of hours before the unit turns on. Notes:

• The display will revert back to showing the temperature setting if the appliance does not receive a signal within a 5 second period during programming.

• Turning the appliance on or off at any time or adjusting the timer setting to 0.0 hours will cancel the timer settings.

• The timer can be set between 1 - 24 hours. Sleep Function The Sleep Function can be used to conserve energy during sleeping hours. When selected, the set temperature will increase by 2 degrees over a 2 hours period. The appliance will hold the new set temperature for 7 hours before automatically returning to normal operation. The Sleep Function can be canceled at any time by pressing the Sleep Button. 8OPERATING INSTRUCTIONS

REPLACING THE REMOTE BATTERIES

The remote control will arrive with a CR2025 coin battery pre-installed. It may be necessary to remove a clear, plastic insulating strip before fi rst use of the remote control. Follow the steps below to replace the battery.

1. Use a screwdriver to remove the screw that

secures the battery cover.

2. Push the battery cover hook to the right to

release it from the remote control. Pull the battery cover out.

IMPORTANT Do not dispose of batteries as unsorted municipal waste. Refer to local laws for proper disposal of batteries. Notes:

• The air conditioner will not respond if curtains, doors or other materials block the signal from the remote control to the appliance.

• If the infrared signal receiver on the indoor unit is exposed to direct sunlight, the air conditioner may not function properly. Use curtains to prevent the sunlight from falling on the receiver.

• Do not allow the remote control to get wet.

• Do not expose the remote control to direct sunlight or heat.

• Do not leave the battery in the remote control if it is not going to be used for more than 2 months.

WATER DRAINAGE When the internal drain pan becomes full the appliance will beep 8 times and the digital display will show error code P1. The air conditioning or dehumidifying action will stop but the fan may continue to operate. Follow the steps below to drain the appliance.

1. Turn the appliance off and unplug it from the

2. Carefully move the appliance to a location

where the water can be drained.

3. Remove the drain plug and allow the water to

4. Replace the bottom drain plug, pressing fi rmly to

ensure a tight fi t and no leaks.

5. The P1 error symbol will disappear and the

appliance will resume regular function once power is restored.10 CLEANING

• Unplug the appliance before cleaning or servicing.

• Clean the cabinet with a lukewarm damp cloth and neutral detergent. Dry the cabinet with a lint-free dry cloth.

• Do not use gasoline, paint thinner or other chemicals to clean the appliance.

• Do not wash the appliance directly under a tap or using a hose. It may cause electrical damage. LONG-TERM STORAGE

1. Drain all water from the appliance.

2. Run the appliance on fan mode for half a day in

a warm room to dry the inside of the appliance and prevent mold formation.

3. Turn off the appliance and unplug it, wrap the

cord and bundle it with tape.

4. Remove the battery from the remote control.

5. Clean the air fi lters and reinstall them.

6. Store the appliance in a cool, dark place.

Prolonged exposure to direct sunlight or extreme heat can shorten the lifespan of the appliance. DISPOSAL This appliance should not be treated as regular household waste. Check for local regulatory compliance regarding the approved and safe disposal of this appliance. ERROR CODES E1 - room temperature sensor error E2 - evaporator temperature sensor error E3 - condenser temperature sensor error E4 - display panel communication error E7 - zero crossing malfunction P1 - water tray is full - attach drain hose and drain excess water CARE & MAINTENANCE AIR FILTERS There are three air fi lters in this appliance. Air fi lters should be cleaned every two weeks to ensure effi cient performance. In households with animals, the air fi lters may need to be cleaned more often and the external grills may need to be wiped to prevent blocked air fl ow.

3TROUBLESHOOTING Danby Consumer Care: 1-800-263-2629 Hours of operation: Monday to Thursday 8:30 am - 6:00 pm Eastern Standard Time Friday 8:30 am - 4:00 pm Eastern Standard Time Information in this manual is subject to change without notice.

PROBLEM POSSIBLE CAUSE

Appliance will not operate • Plug is not fully inserted into the wall outlet

• Blown fuse or circuit breaker Insuffi cient cooling • Air fi lters are dirty

• Appliance size is too small for application Noise • The ground is not level

• Air fi lters are dirty

• Gurgling sounds are normal; this is the refrigerant moving inside the appliance Odors • Formation of mold or mildew on internal wet surfaces

• Place an algaecide tablet in base pan; push the tablet through the grill on the back of the appliance

Remote Control Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna

2. Increase the separation between the equipment

3. Connect the equipment into an outlet on a

circuit different from that to which the receiver is connected

4. Consult the dealer or an experienced radio/TV

technician for help Changes or modifi cations not approved by the party responsible for FCC compliance could void the user’s authority to operate the equipment. This appliance complies with Part 15 of the FCC Rules. Operation is subject to the following conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference

received, including interference that may cause undesired operation. This device complies with Canadian CAN ICES-3 (B) / NMB-3 (B)LIMITED IN-HOME APPLIANCE WARRANTY This quality product is warranted to be free from manufacturer’s defects in material and workmanship, provided that the unit is used under the normal operating conditions intended by the manufacturer. This warranty is available only to the person to whom the unit was originally sold by Danby Products Limited (Canada) or Danby Products Inc. (U.S.A.) (hereafter “Danby”) or by an authorized distributor of Danby, and is non-transferable.TERMS OF WARRANTY Plastic parts, are warranted for thirty (30) days only from purchase date, with no extensions provided. First Year During the rst twelve (12) months, any functional parts of this product found to be defective, will be repaired or replaced, at warrantor’s option, at no charge to the ORIGINAL purchaser. To obtain Danby reserves the right to limit the boundaries of “In Home Service” to the proximity of an Authorized Service Depot. Any app liance Service requiring service outside the limited boundaries of “In Home Service” , it will be the consumer’s responsibility to transport the appliance (at their own expense) to the original retailer (point of purchase) or a service depot for repair. See “Boundaries of In Home Serv ice” below. Contact your dealer from whom your unit was purchased, or contact your nearest authorized Danby service depot, where service must be performed by a qualied service technician. If service is performed on the units by anyone other than an authorized service depot, or the unit is used for commercial appli cation, all obligations of Danby under this warranty shall be void. Boundaries of If the appliance is installed in a location that is 100 kilometers (62 miles) or more from the nearest service center your unit must be In Home Service delivered to the nearest authorized Danby Service Depot, as service must only be performed by a technician qualied and certif ied for warranty service by Danby. Transportation charges to and from the service location are not protected by this warranty and are t he responsibility of the purchaser. Nothing within this warranty shall imply that Danby will be responsible or liable for any spoilage or damage to food or other c ontents of this appliance, whether due to any defect of the appliance, or its use, whether proper or improper.EXCLUSIONS Save as herein provided, Danby, there are no other warranties, conditions, representations or guarantees, express or implied, m ade or intended by Danby or its authorized distributors and all other warranties, conditions, representations or guarantees, including any warranties, conditio ns, representations or guarantees under any Sale of Goods Act or like legislation or statue is hereby expressly excluded. Save as herein provided, Danby shall no t be responsible for any damages to persons or property, including the unit itself, howsoever caused or any consequential damages arising from the malfunction o f the unit and by the purchase of the unit, the purchaser does hereby agree to indemnify and hold harmless Danby from any claim for damages to persons or propert y caused by the unit. GENERAL PROVISIONS No warranty or insurance herein contained or set out shall apply when damage or repair is caused by any of the following:

2) Damage in transit or when moving the appliance.

3) Improper power supply such as low voltage, defective house wiring or inadequate fuses.

4) Accident, alteration, abuse or misuse of the appliance such as inadequate air circulation in the room or abnormal operating con ditions (extremely high or low room temperature).

5) Use for commercial or industrial purposes (ie. If the appliance is not installed in a domestic residence).

6) Fire, water damage, theft, war, riot, hostility, acts of God such as hurricanes, oods etc.

7) Service calls resulting in customer education.

8) Improper Installation (ie. Building-in of a free standing appliance or using an appliance outdoors that is not approved for out door application). Proof of purchase date will be required for warranty claims; so, please retain bills of sale. In the event warranty service is required, present this document to our AUTHORIZED SERVICE DEPOT.Danby Products LimitedPO Box 1778, Guelph, Ontario, Canada N1H 6Z9Telephone: (519) 837-0920 FAX: (519) 837-0449Danby Products Inc.PO Box 669, Findlay, Ohio, U.S.A. 45840Telephone: (419) 425-8627 FAX: (419) 425-862904/09 1-800-263-2629 Warranty ServiceIn-home Danby reserves the right to limit the boundaries of “In Home Service” to the proximity of an authorized service depot. Any appliance requiring service outside the limited boundaries of “In Home Service”, will be the consumer’s responsibility to transport at their own expense to the original point of purchase or a service depot for repair. If the appliance is installed in a location that is 100 kilometers (62 miles) or more from the nearest service center, it must be delivered to the nearest authorized Danby Service Depot by the purchaser. Transportation charges to and from the service location are not protected by this warranty and are the responsibility of the purchaser. During the first twelve (12) months, any functional parts of this product found to be defective, will be repaired or replaced, at warrantor’s option, at no charge to the original purchaser. Contact the dealer where the unit was purchased, or contact the nearest authorized Danby service depot, where service must be performed by a qualified service technician. If service is performed on the unit by anyone other than an authorized service depot, all obligations of Danby under this warranty shall be void.First 12 monthsTo obtain service Boundaries ofin-home service

LIMITED “IN HOME” WARRANTY

MODE FAN LED SLEEPSWING
