DAC060BHUWDB - Air Conditioning DANBY - Free user manual and instructions

Cooling Capacity	6,000 BTU
Recommended Covered Area	Up to 23 m² (250 sq ft)
Type of Appliance	Window Air Conditioner
Quiet Technology	Silencer Technology - 41 dB
Energy Efficiency Ratio (EER)	12.10
Energy Certification	Energy Star
Power Supply	115 V / 60 Hz / 4.3 A
Refrigerant	R410A
Fan Speeds	3 speeds
Adjustable Air Direction	4 directions
Temperature Range	17°C to 30°C (62°F to 86°F)
Programmable Timer	24 hours
Remote Control	Included (batteries provided)
Sleep Mode	Yes
Energy Saver Mode	Yes
Display	Electronic Blue LED
Air Filter	Washable and Reusable
Dimensions (W x D x H)	53.34 x 45.72 x 33.02 cm
Weight	24.80 kg
Color	White

Frequently Asked Questions - DAC060BHUWDB DANBY

What area can the DANBY DAC060BHUWDB air conditioner cool?

The DAC060BHUWDB is designed to cool rooms up to 250 sq. ft. (approximately 23 m²), making it ideal for a bedroom, office, or small living room. For best results, ensure the room is isolated by closing doors and windows.

What is Danby's Silencer technology?

Silencer technology is a patented system by Danby that reduces the unit's noise level to just 41 dB. This makes it particularly suitable for bedrooms, as this noise level is comparable to a quiet conversation. The compressor and fan are optimized to minimize vibrations.

How do I set the 24-hour timer on the DAC060BHUWDB?

Press the Timer button on the remote control or the control panel to access the programmable timer. Set the desired start and/or stop time using the arrow keys. The timer allows you to program the unit up to 24 hours in advance, helping you save energy by avoiding unnecessary operation.

How do I clean the air filter on the DAC060BHUWDB?

Remove the filter by pulling the front panel of the unit. Rinse the filter with lukewarm water and a bit of mild soap, then let it dry completely in the air before reinstalling it. Cleaning every 2 to 4 weeks is recommended to maintain cooling performance and air quality.

The unit is no longer cooling sufficiently, what should I do?

First, check that the air filter is clean, as a clogged filter greatly reduces efficiency. Ensure that the set temperature is lower than the ambient temperature, and that the room does not exceed 23 m². Also, check that the air intake and outlet are not blocked. If the problem persists, the R410A refrigerant may need to be checked by a certified technician.

Why is water leaking from the unit?

Slight condensation and water drainage to the outside are normal: it is the result of moisture extracted from the indoor air. Ensure that the unit is slightly tilted outward (about 1 cm) to facilitate drainage. If water leaks inside, readjust the tilt during window installation.

What electrical supply do I need for the DAC060BHUWDB?

The unit operates on a standard 115 V / 60 Hz outlet and consumes 4.3 A. It is recommended to plug it into a dedicated circuit or at least not share the outlet with other high-power appliances. Do not use an extension cord, as this could pose an overheating risk.

How do I activate Sleep Mode?

Press the Sleep button on the remote control or the control panel. In sleep mode, the unit gradually increases the set temperature by 1°C every hour for 2 hours, allowing for energy savings while maintaining optimal comfort during the night.

What is the adjustable temperature range?

The temperature can be set between 17°C and 30°C (62°F to 86°F). Use the + and - keys on the remote control or the panel to adjust in 1°C increments. The blue LED display indicates the selected temperature in real-time.

How does the Energy Saver switch work?

When the Energy Saver mode is activated, the compressor and fan automatically stop once the set temperature is reached. They restart only when the room temperature rises. This mode can significantly reduce electrical consumption compared to continuous operation.

Is the remote control included and how do I use it?

Yes, a wireless remote control is provided with batteries. It allows you to control all functions: cooling mode, fan speed (3 speeds), temperature, 24-hour timer, sleep mode, and energy saver switch. Point the remote at the infrared receiver located on the front panel of the unit.

What is the minimum window height required for installation?

Installation requires a sash window with a minimum opening height of 14 inches (approximately 35.5 cm). The included mounting kit helps fill the side gaps. For secure installation, attach the unit using the provided brackets and ensure the window sill can support the 24.80 kg weight of the unit.

USER MANUAL DAC060BHUWDB DANBY

Owner's Manual. 1-11

CLIMATISEUR

Welcome to the Danby family. We are proud of our quality products and we believe in dependable service. We suggest that you read this owner's manual before plugging in your new appliance as it contains important operation information, safety information, troubleshooting and maintenance tips to ensure the reliability and longevity of your appliance.

Visit www.Danby.com to access self service tools, FAQs and much more. For additional assistance call 1-800-263-2629.

Note the information below; you will need this information to obtain service under warranty.

You must provide the original purchase receipt to validate your warranty and receive service.

Model Number:

Serial Number:

Date of Purchase:

Need Help?

Before you call for service, here are a few things you can do to help us serve you better.

Read this owner's manual:

It contains instructions to help you use and maintain your appliance properly.

If you receive a damaged appliance:

Immediately contact the retailer or builder that sold you the appliance.

Save time and money:

Check the troubleshooting section at the end of this manual before calling. This section will help you solve common problems that may occur.

1-800-26-Danby (1-800-263-2629)

Important Safety Information READ AND FOLLOW ALL SAFETY INSTRUCTIONS

ELECTRICAL REQUIREMENTS

All wiring must comply with local and national codes and must be installed by a qualified electrician. Check the available power supply and resolve any wiring problems before installing and operating this appliance.

The rating plate located on the right side of the appliance just above the power cord contains electrical and other technical data.

This appliance is not designed for "through the wall" installation.

GROUNDING INSTRUCTIONS

This appliance must be grounded. Grounding reduces the risk of electrical shock by providing an escape wire for the electrical current.

This appliance has a cord that has a grounding wire with a 3-prong plug. The power cord must be plugged into an outlet that is properly grounded. If the outlet is a 2-prong wall outlet, it must be replaced with a properly grounded 3-prong wall outlet.

WARNING - Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or service agent if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.

Do not connect your appliance to extension cords or together with another appliance in the same wall outlet. Do not splice the power cord. Do not under any circumstances cut or remove the third ground prong from the power cord. Do not use extension cords or ungrounded (two prongs) adapters.

If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified person in order to avoid hazard.

SAVE THESE INSTRUCTIONS!

LOCATION

This air conditioner is designed for easy installation in single or double hung windows. Since window designs vary, it may be necessary to make some modifi cations for safe installation.

This air conditioner is not designed for vertical, slider type windows or "through the wall" installation.

Ensure that the window and frame are structurally sound and free from dry or rotted wood.

Install the air conditioner in a window on a side of the building which favors more shade than sunlight. If the appliance must be in direct sunlight, it is advisable to provide a shade awning over the appliance to ensure effcient functioning.

Do not install the appliance where leakage of combustible gas is suspected.

This appliance is designed to evaporate condensation under normal conditions. Under extremely hot or humid conditions, excess condensation may overflow to the outside. The appliance should be installed where condensation cannot drip on pedestrians or neighboring properties.

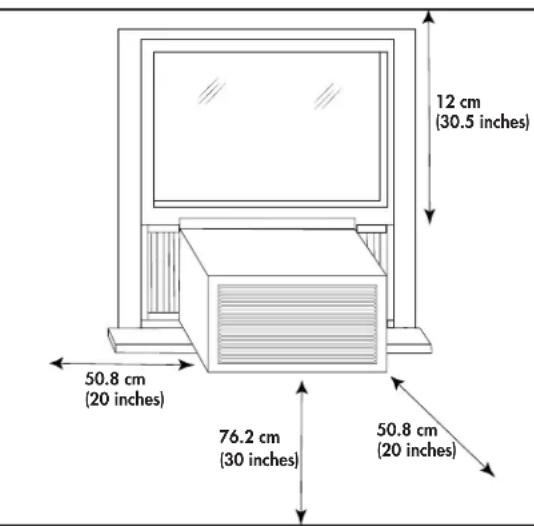

Provide suffi cients clearance around the appliance to allow ample air circulation. The rear of the appliance should be outdoors, it should not be in a garage or another room. Keep the appliance away from obstacles and at least 76~cm (30 inches) above the ground. Ensure that curtains and other obstructions do not block air flow to the appliance.

INSTALLATION INSTRUCTIONS

REQUIRED TOOLS

• Screwdrivers: Phillips and fl at head.
• Power Drill: 3.2mm (1/8in.) diameter drill bit
  Pencil
• Measuring Tape
• Scissors
  Carpenter's Level

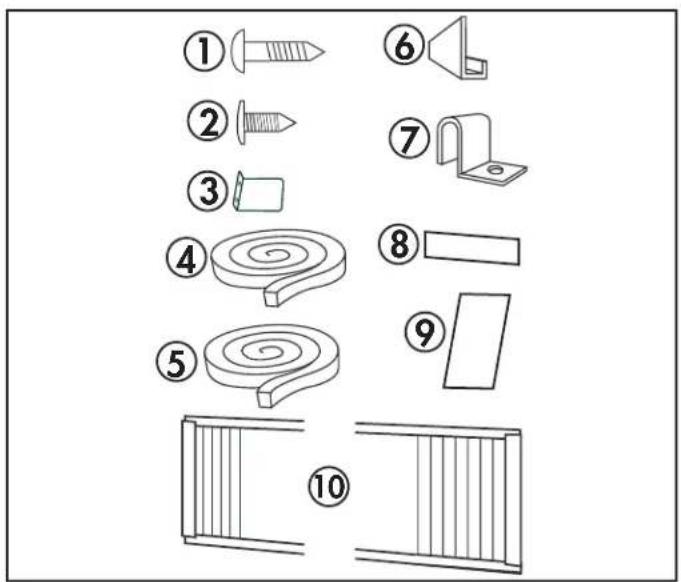

ACCESSIONS

The following accessories are included with the appliance and should be used during the installation.

1. 13 mm( 1/2inch) screws (x7)
2. 9.5mm (3/8 inch) screws (x4) (Factory installed on some models.)
3. Safety Lock (x1)
4. Adhesive Foam Seal (x1)
5. Regular Foam Seal (x1)
6. "L" shaped mounting bracket (x1) (Factory installed on some models.)
7. Curtain Bracket (x2)
8. Weather Stripping (x5)
9. Foam Insert (x2)
10. Side Curtains (x2)

ASSEMBLY

Note: Images in this manual are for instructional purposes only. The actual shape of the appliance may vary slightly.

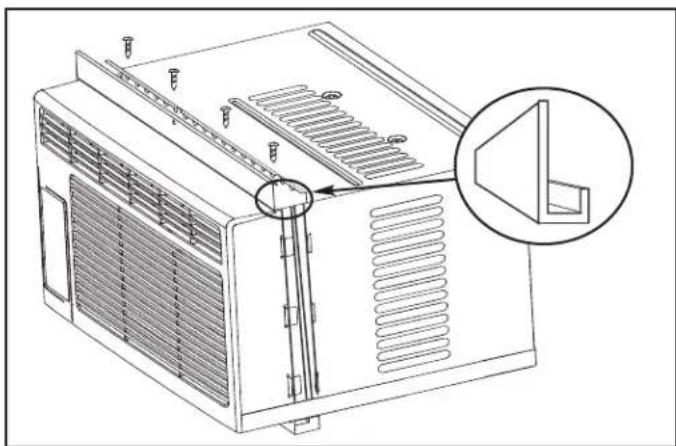

Install the "L" Shaped Bracket

Attach the "L" shaped bracket to the top of the cabinet as shown below using the provided 9.5 mm (3/8 inch) screws (x4).

Note: The "L" shaped bracket may come factory installed on some models.

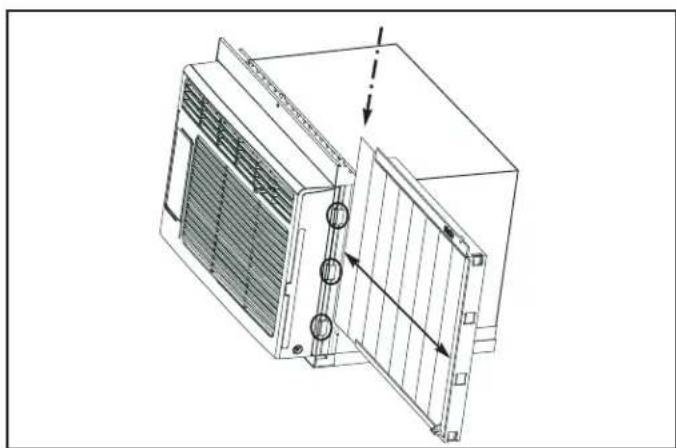

Install the Side Curtains

Attach the side curtains to the cabinet by sliding the curtain frame into the side channel of the cabinet as shown below.

The curtains are labeled "left" and "right on the frames. This refers to the left and right sides of the appliance when facing the front of the appliance.

INSTALLATION INSTRUCTIONS

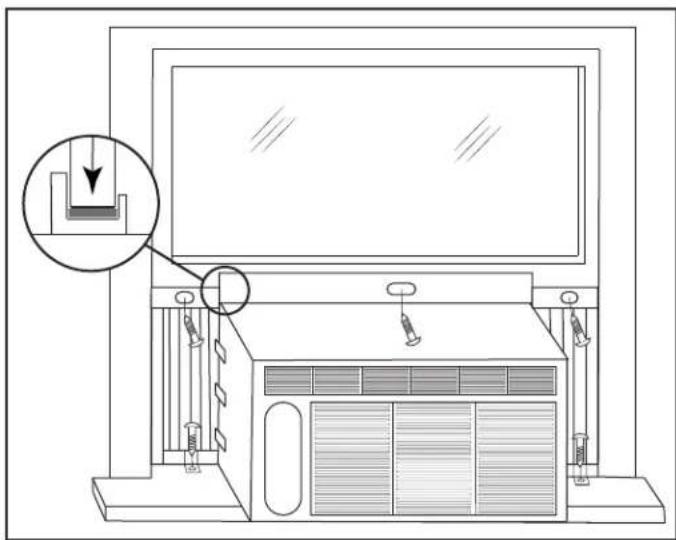

INSTALLATION

Cut the regular foam seal to fit the area of the window sill that the air conditioner will rest on.

Place the air conditioner into the window with the "L" shaped mounting bracket positioned in front of the upper sash. The bottom of the cabinet should be positioned on the recessed portion of the window frame. Pull the upper window sash down until it rests just behind the front flange of the "L" shaped mounting bracket.

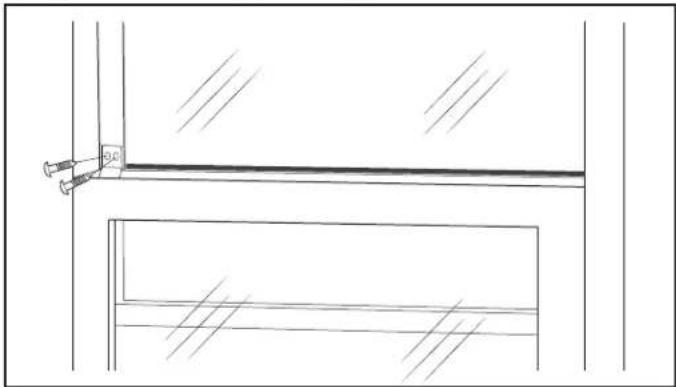

Expand the side curtains on each side and secure the top of the frames to the window sash using one 13mm (1/2 inch) screw on each side of the "L" shaped mounting bracket.

Attach the clamps on the lower part of each curtain to the window sill using one 13mm (1/2 inch) screw on each side of the cabinet.

Place the adhesive foam seal into the opening between the inside and outside windows and attached the safety lock to the outside window frame using two 13mm (1/2 inch) screws.

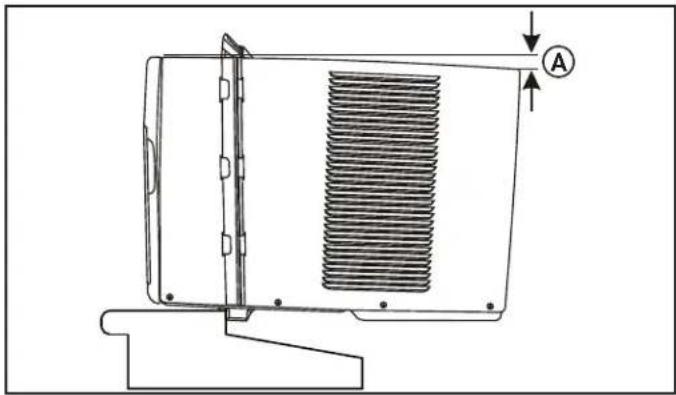

Check the Tilt Angle

The air conditioner should be tilted downward towards the outside approximately 3^ to 4^ . This tilt will encourage any condensed water to drain to the outside. If any condensed water leaks to the inside of the house, check the tilt angle and adjust as necessary.

Measure the tilt angle from the front of the cabinet's edge. The difference in height between the front and the back of the appliance, labeled "A" on the image below, should be approximately 19mm - 2.5cm (3/4 inch - 1 inch).

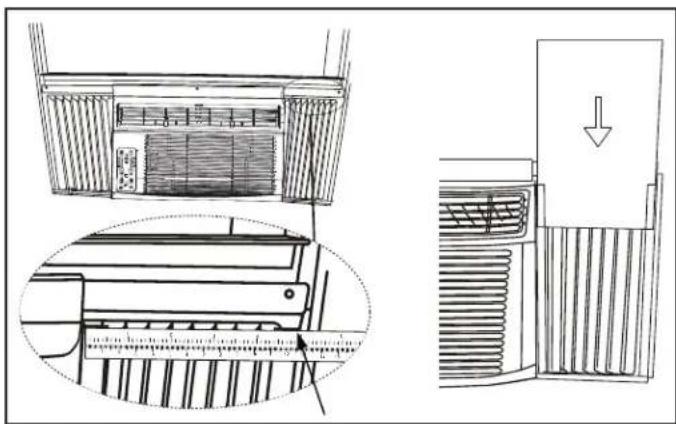

Install the Foam Inserts

The foam inserts can block any cracks or spaces in the side curtains and help maintain the energy efficiency of the appliance.

After the appliance is installed in the window, measure the width of the side curtains from the side of the appliance to the edge of the curtain.

If necessary, cut the foam insert to the correct size and then slide the foam insert into the slots in the side curtain. The supplied weather stripping can be used to block any other cracks or spaces as required.

OPERATING INSTRUCTIONS

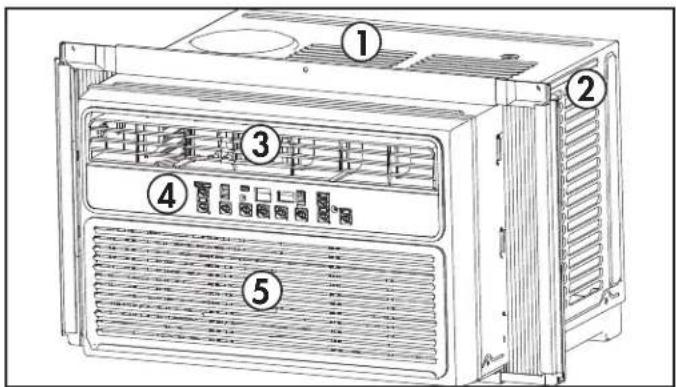

FEATURES

1. Cabinet
2. Exterior Air Inlet
3. Interior Air Outlet
4. Control Panel
5. Interior Air Inlet
6. Air Filter (not pictured)

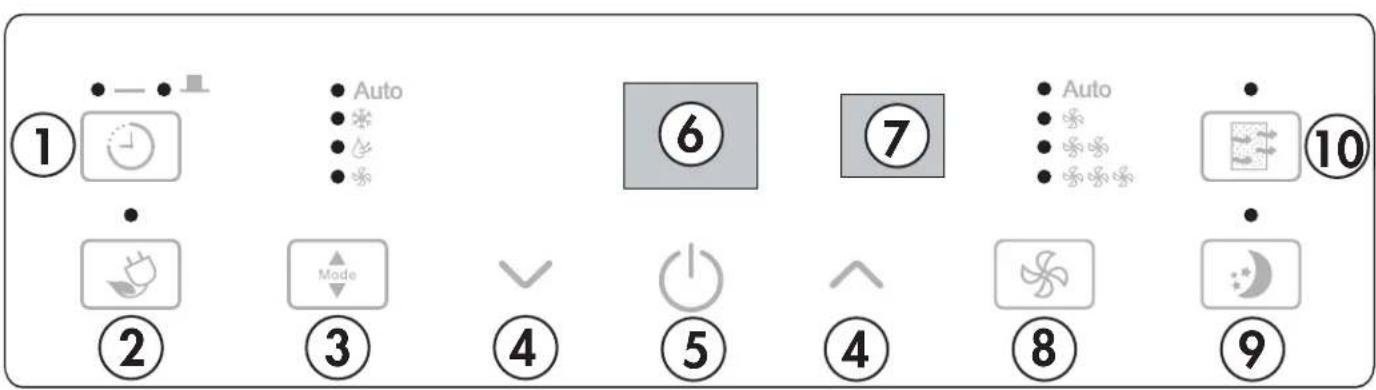

CONTROL PANEL

1. Timer Button: Used to set the auto on and auto off timer.
2. Energy Saver Button: Used to set the energy saver function.
3. Mode Button: Used to choose the operating mode.
4. Up and Down Arrows: Used to adjust the set temperature in 1^ increments and the timer function in 30 minute increments up to 10 hours and then in 1 hour increments up to 24 hours.
5. Power Button: Used to turn the appliance on or off.

6. Display Panel: Displays the set temperature, the ambient temperature and the timer settings. To change the temperature scale being displayed, press the up and down buttons at the same time.

7. Remote Control Receiver: Ensure this receiver is not obscured by curtains or other items as it could impact remote control functioning.

8. Fan Button: Used to set the fan speed. The fan can be set to Low, Medium, High and Auto.
9. Sleep Button: Used to set the Sleep function.
   10.Filter Button: The indicator light will illuminate as a reminder to check the filter. Once the filter has been cleaned, use this button to resume operation.

OPERATING INSTRUCTIONS

REMOTE CONTROL

1. Mode Button: Used to choose the operating mode.
2. Energy Saver Button: Used to set the energy saver function.
3. Up and Down Arrows: Used to adjust the set temperature in 1^ increments and the timer function in 30 minute increments up to 10 hours and then in 1 hour increments up to 24 hours.
4. Default Button: Press to restore the remote control default settings.
5. Lock Button: Press this button to lock the remote control and prevent the settings from being inadvertently changed.
6. Sleep Button: Used to set the Sleep function.
7. LED Button: Press to turn the LED back light on or off.
8. Clock Button: Press and hold the button for 3 seconds in order to set the clock. Press the Up and Down Arrows to adjust the time in 10 minute intervals

Note: The clock feature is only available on the remote, the appliance does not have a clock. The remote clock is a 24 hour clock only.

1. Cancel Button: Cancels current Timer settings.
2. Timer Button: Used to set the auto on and auto off timer.
   11.Fan Button: Used to set the fan speed. The fan can be set to Low, Medium, High and Auto.

REMOTE CONTROL BATTERIES

The remote control requires two AAA alkaline batteries (included). Batteries should be replaced when:

a) No sound is heard when attempting to program the appliance.
b) The appliance does not respond to a command issued by the remote control.

Battery replacement:

1. Slide the rear cover on the remote in the direction of the arrow.
2. Insert two AAA batteries following the same orientation depicted inside the battery chamber (+ / -)
3. Reinstall the rear cover.
4. If the remote control will not be used for extended periods of time, the batteries should be removed.

Notes:

• Protect the remote control from high temperatures, and keep it away from radiation exposure.
• Keep the control panel receiver out of direct sunlight.
• Do not mix old and new batteries.
• Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh,etc) batteries.
• The remote operates within a range of 8 meters (26 ft.) from the receiver located inside the main appliance. Any obstruction between the receiver and remote may cause signal interference, limiting the ability to program the main unit.

OPERATING INSTRUCTIONS

FUNCTION INSTRUCTION

Operating Modes

There are four operating modes to choose from. Press the Mode Button repeatedly to choose the desired mode. The adjacent indicator light will illuminate to show which mode has been selected.

Cool Mode

Choose Cool Mode to set the cooling function. Use the Up and Down Arrows to choose the desired temperature. When Cool Mode is selected, the fan speed can be adjusted by pressing the fan button.

- Dry Mode

Choose Dry Mode to remove excess moisture from the air during periods of high humidity. All water pulled from the air will condense inside the appliance and drain out the back. The fan speed will be automatically set and cannot be modifi ed in Dry Mode.

- Fan Mode

Choose Fan Mode to run the internal fan without engaging the cooling function. Press the fan button repeatedly to choose the fan speed, Low, Med, High or Auto.

- Auto Mode

Auto Mode is a pre-set factory program that automatically defi nes the mode (Cool or Dry) and fan speed based on the set temperature, the ambient temperature and the ambient humidity.

Energy Saver Function

The Energy Saver Function will automatically cycle the fan on and off when the compressor is not in use to minimize how often the compressor needs to turn on. This function is available in Cool, Dry, Auto Cool and Auto Fan modes.

The fan will continue to run for 3 minutes after the compressor turns off. The fan will then cycle on for 2 minutes in 10 minute intervals until the ambient temperature is above the set temperature, at which point the compressor will turn on and cooling will resume.

Sleep Function

The Sleep Function can be used to conserve energy during sleeping hours.

When selected, the set temperature will increase by 1^ / 2^ every half hour for one full hour. The appliance will hold the new set temperature for 6 hours before automatically returning to normal operation.

The Sleep Function can be canceled at any time by pressing the Sleep Button.

OPERATING INSTRUCTIONS

Timer Function

The Timer Function can be used to turn the appliance on or off after a set period of time.

Auto On Function

1. Press the Timer Button once and the Auto On indicator light will illuminate.
2. Use the Up and Down Arrows to select the desired amount of time before the appliance should turn on. The Up and Down Arrows will add or subtract time in 30 minute increments up to 10 hours and then in 1 hour increments up to 24 hours.
3. Use the Mode Button to select the desired mode.
4. Use the Fan Button to select the desired fan speed.
5. The time selected will appear on the display panel and will count down until the appliance turns on.

Auto Off Function

1. Press the Timer Button twice and the Auto Off indicator light will illuminate.
2. Use the Up and Down Arrows to select the desired amount of time before the appliance should turn off. The Up and Down Arrows will add or subtract time in 30 minute increments up to 10 hours and then in 1 hour increments up to 24 hours.
3. The time selected will appear on the display panel and will count down until the appliance turns off.

Using Auto On and Auto Off Simultaneously

The Auto On and Auto Off functions can be used at the same time by setting first one and then the other.

Both indicator lights will illuminate and the display will count down to the appliance either turning off or on, whichever function was set first.

Note: The timer will not cycle the appliance on and off indefinitely. The Auto On and Auto Off timers will function one time and then the appliance will return to regular functioning.

Turning the appliance off, pressing the default button on the remote or unplugging the appliance will clear all memory settings, including the timer.

CARE & MAINTENANCE

AIR FILTER

The air fi liter should be cleaned approximately every 2 weeks. The air fi liter may require more frequent cleaning if there is signifi cant dander or fur in the air.

Approximately every two weeks, the fi liter indicator light on the control panel will illuminate as a reminder to clean the fi liter. Follow the steps below to clean the fi liter and return the appliance to normal functioning.

1. The air fi liter is located behind the front intake grill. To remove the air fi liter, grasp the fi liter tab on the right side of the grill and slide it out to the right. If the front intake grill has two indents, pull the grill forward to remove the air fi liter.
2. Use a vacuum cleaner with a soft brush attachment to remove any large debris or dust build up from the air filter.
3. Wash the filter in lukewarm, soapy water, below 40^ (104^) , or use a neutral cleaning agent.
4. Rinse the filter with clean water and dry thoroughly before reinstalling in the appliance.
5. Press the fi lter button on the control panel to resume normal functioning.

Note: Do not operate the appliance without the air fi iter installed.

ERROR CODES

If the display panel shows any of the below error codes, unplug the appliance, let it stand for 5-10 minutes and then plug it back in. If the error persists, call for service.

AS - Room temperature sensor error

HS - Electric heating sensor error

• Evaporator temperature sensor error

CLEANING

To avoid possible electric shock, ensure that the appliance is unplugged before performing any cleaning or maintenance.

The outside of the appliance can be wiped clean with a soft cloth or with a lukewarm, damp cloth if necessary.

Do not use gasoline, benzene, thinner or any other chemicals to clean this appliance as these substances can cause damage to the finish and deformation of plastic parts.

Never pour water directly onto the appliance as this will cause deterioration of electrical components and wiring insulation.

END OF SEASON CARE

Before removing the appliance from service for the year, operate the appliance on high fan mode for half a day to ensure the inside of the appliance is dry. This will help avoid the growth of mold or mildew inside the appliance. Ensure the fi liter is clean and dry. Store the appliance covered in a dry location.

Note: When installing or removing the appliance from the window, ensure that caution is taken to prevent it from falling backward. It is recommended that installation or removal is completed with assistance to prevent injury to persons or damage to property or the appliance.

DISPOSAL

Check for local regulatory compliance regarding approved and safe disposal of this appliance.

TROUBLESHOOTING

Danby Consumer Care: 1-800-263-2629

Hours of operation:

Monday to Thursday 8:30 am - 6:00 pm Eastern Standard Time

Friday 8:30 am - 4:00 pm Eastern Standard Time

Information in this manual is subject to change without notice.

PROBLEM POSSIBLE	CAUSE
Appliance will not operate • Plug	is not fully inserted into the wall outlet • Blown fuse or circuit breaker
Insufficient cooling	• Air filter is dirty • Restricted air flow • Appliance size is too small for application
Noise • Inadequate support in window	low installation
Odors • Formation of mold or mildew	ew on internal wet surfaces • Place an algaecide tablet in base pan; push the tablet through the grill on either side of the appliance
Water dripping inside • Appliance	is not properly angled to allow water to drain to the outside
Water dripping outside • On very hot	hot or humid days dripping water from the back of the appliance is normal
Frost build up • When outdoor temperature	peratures are below 18.3°C (65°F) frost may form when the appliance is in cooling mode • Switch the appliance to fan only mode until the frost melts

LIMITED "CARRY IN" WARRANTY

This quality product is warranted to be free from manufacturer's defects in material and workmanship, provided that the unit is used under the normal operating conditions intended by the manufacturer.

This warranty is available only to the person to whom the unit was originally sold by Danby Products Limited (Canada) or Danby Products Inc. (U.S.A.) (hereafter "Danby") or by an authorized distributor of Danby, and is non-transferable.

TERMS OF WARRANTY

Plastic parts are warranted for thirty (30) days from the date of purchase, with no extensions provided.

First 12 months During the first twelve (12) months, any functional parts of this product found to be defective, will be repaired or replaced, at warrantor's option, at no charge to the original purchaser.

To obtain service Contact the dealer where the unit was purchased, or contact the nearest authorized Danby service depot, where service must be performed by a qualified service technician. If service is performed on the unit by anyone other than an authorized service depot, all obligations of Danby under this warranty shall be void.

It is the responsibility of the purchaser to transport the appliance to the nearest authorized service depot.

Transportation charges to and from the service location are not protected by this warranty and are the responsibility of the purchaser.

Nothing within this warranty shall imply that Danby will be responsible or liable for any spoilage or damage to food or other contents of this appliance, whether due to any defect of the appliance, or its use, whether proper or improper.

EXCLUSIONS

Save as herein provided, by Danby, there are no other warranties, conditions, representations or guarantees, express or implied, made or intended by Danby or its authorized distributors and all other warranties, conditions, representations or guarantees, including any warranties, conditions, representations or guarantees under any Sale of Goods Act or like legislation or statute is hereby expressly excluded. Save as herein provided, Danby shall not be responsible for any damages to persons or property, including the unit itself, howsoever caused or any consequential damages arising from the malfunction of the unit and by the purchase of the unit, the purchaser does hereby agree to indemnify and hold harmless Danby from any claim for damages to persons or property caused by the unit.

GENERAL PROVISIONS

No warranty or insurance herein contained or set out shall apply when damage or repair is caused by any of the following:

1) Power failure.
2) Damage in transit or when moving the appliance.
3) Improper power supply such as low voltage, defective house wiring or inadequate fuses.
4) Accident, alteration, abuse or misuse of the appliance such as inadequate air circulation in the room or abnormal operating conditions (ie. extremely high or low room temperature).
5) Use for commercial or industrial purposes (ie. If the appliance is not installed in a domestic residence).
6) Fire, water damage, theft, war, riot, hostility, acts of God such as hurricanes, floods etc.
7) Service calls resulting in customer education.
8) Improper Installation (ie. Building-in of a free standing appliance or using an appliance outdoors that is not approved for outdoor application, including but not limited to: garages, patios, porches or anywhere that is not properly insulated or climate controlled).

Proof of purchase date will be required for warranty claims; retain bills of sale. In the event that warranty service is required, present the proof of purchase to our authorized service depot.

Warranty Service

Carry In

Danby Products Limited

PO Box 1778, Guelph, Ontario, Canada N1H 6Z9

Telephone: [519] 837-0920 FAX: [519] 837-0449

1-800-263-2629

04/17

Danby Products Inc.

PO Box 669, Findlay, Ohio, U.S.A. 45840

Telephone: [phone] FAX: [phone]

Bienvenue

PROBLEM CAUSE POSSIBLE

Danby Products Limited

PO Box 1778, Guelph, Ontario, Canada N1H 629

Telephone: [phone] Telecopier: [phone]

1-800-263-2629

04/17

Danby Products Inc.

PO Box 669, Findlay, Ohio, U.S.A. 45840

Telephone: [phone] Telecopieur: 419425-8629

Bienvenido

Danby Products Limited

PO Box 1778, Guelph, Ontario, Canada N1H 6Z9

Telephone: [phone] FAX: [phone]

1-800-263-2629

04/17

Danby Products Inc.

PO Box 669, Findlay, Ohio, U.S.A. 45840

Telephone: [phone] FAX: [phone]

NOTES / REMARQUES / NOTAS :

MODEL • MODELE • MODELO

DAC060BHUWDB
