Brand	Danby
Model	DFC40C1SSDB
Product Type	Electric Chopper (Food Processor)
Maximum Meat Capacity	120 g
Maximum Number of Biscuits/Crackers	12 medium-sized units
Functions	Chopping, Pulse, Stop
Plug Type	Polarized Plug (Safety)
Safety	Lid lock, complete blade stop before removal, do not immerse motor
Bowl Material	Plastic
Blade Material	Stainless Steel (estimated)
Care of Bowl, Lid and Blade	Dishwasher safe
Motor Care	Wipe with a damp cloth, never immerse
Recommended Use	Intermittent: do not exceed 20 seconds continuous, let rest between cycles
Functional Parts Warranty	12 months
Plastic Parts Warranty	30 days
Included Accessories	Bowl, lid, blade, bowl mat

Frequently Asked Questions - DFC40C1SSDB DANBY

How to use the Danby DFC40C1SSDB chopper?

Before first use, wash the lid, bowl, blade and bowl mat in warm soapy water. Place the bowl on a flat surface. Carefully insert the blade onto the central shaft (it is very sharp). Add the food cut into pieces. Put the lid on and attach the motor by aligning the holes. Press the On/Off switch or use the Pulse function to chop. Wait for the blades to stop completely before removing the motor.

Can I wash the bowl in the dishwasher?

Yes, the bowl, blade and lid can be washed in the dishwasher. Never place the motor in the dishwasher or in water.

How to clean the motor?

The motor should never be immersed in water. Simply wipe it with a clean damp cloth. Ensure no moisture enters the motor.

What types of food can I chop?

You can chop bread (fresh, toasted or stale), fruits and vegetables (canned or cooked), herbs, nuts, biscuits, crackers and fresh meat (up to 120 g). For fruits and vegetables, preferably use the Pulse function.

What is the maximum meat capacity?

The maximum capacity for fresh meat is 120 g per cycle. For best results, cut the meat into small cubes before chopping.

What to do if the plug does not fit into the outlet?

This appliance has a polarized plug (one blade wider). If it does not fit, try reversing it. If it still does not fit, contact a qualified electrician to replace the outlet. Never modify the plug.

How to avoid injuries with the blade?

The blades are very sharp. Handle them with caution. Keep hands and utensils away from the blades during operation. Only remove the lid after the blades have completely stopped.

Can the appliance run continuously?

No, this appliance is designed for intermittent operation. Do not exceed 20 seconds of continuous use. Let the motor rest between cycles to allow food to settle.

What is the Pulse function?

The Pulse function consists of briefly pressing the On/Off switch in bursts. It allows you to control the texture of food and avoid over-chopping. It is recommended for herbs, nuts, fruits and vegetables.

What is the warranty of this chopper?

The Danby limited warranty covers functional parts for 12 months from the date of purchase. Plastic parts are warranted for 30 days. The warranty is valid only for the original purchaser and in domestic conditions.

USER MANUAL DFC40C1SSDB DANBY

1-800-263-2629 (1-800-26-DANBY)

DO NOT RETURN THIS UNIT TO THE RETAILER WITHOUT FURTHER INSTRUCTIONS

Dear valued customer, we hope your Danby product purchase fulfills all your requirements. Your satisfaction is our priority! Please contact us at our toll free consumer service number for any inquiries you may have about your new unit.

DO NOT RETURN THIS APPLIANCE TO THE RETAILER WITHOUT FURTHER INSTRUCTIONS

• Welcome • Important Safety Information
• Features • Operation Instructions • Care and Maintenance
• Warranty

HACHOIR....7-12

Read and follow all safety rules and operating instructions before first use of this product.

CAUTION:

Thank you for choosing Danby

We know you're excited. We are too! However, the more familiar you are with your new appliance, the better experience you will have. We therefore strongly suggest that you read this Owner's Manual before plugging in your new appliance. It contains important operational information that will help you make full use of the technical features available in your Danby appliance. The manual also contains information designed to enhance operating reliability and safety, as well as tips to maintaining your new appliance so that it brings you happiness for years to come.

Please visit www.danby.com to access self-service tools, FAQs and more. Should you need additional assistance, please call 1-800-26-DANBY (1-800-263-2629).

Note: You will need the below information to obtain service under warranty.

To receive service, you must provide the original receipt.

Model Number: ____

Serial Number: ____

Date of Purchase: ____

NEED HELP?

Before you call for service, here are a few things you can do to help us serve you better:

Read this Owner's Manual:

It contains instructions to help you use and maintain your appliance properly.

If you received a damaged appliance:

Immediately contact the retailer (or builder) that sold you the appliance.

Save time and money:

Check the Troubleshooting section at the end of the guide before calling. This section helps you solve common problems that may occur.

If you do need service, you can relax, knowing help is only a phone call away.

1-800-26-Danby

(1-800-263-2629)

Important Safety Information READ AND FOLLOW ALL SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury.

1. Read all instructions.
2. To protect against risk of electrical shock do not put the cord, plug, or motor base in water or other liquid.
3. Close supervision is necessary when any appliance is used by or near children.
4. Unplug from the outlet when not in use, before putting or taking off parts and before cleaning.
5. Avoid contacting moving parts.
6. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions, or has been dropped or damaged in any manner. Call our toll-free number for information on examination, repair, or electrical or mechanical adjustment.
7. The use of attachments is not recommended.
8. Do not use outdoors.
9. Do not let the cord hang over the edge of the table or counter, or touch hot surfaces including the stove.
10. Keep hands and utensils away from cutting blades while chopping food to reduce the risk of severe injury to persons or damage to the chopper. A food scraper (spatula) can be used, but must be used only when the chopper is not running.
11. Blades are sharp. Handle carefully.
12. This appliance is intended for processing small quantities of food for immediate consumption. This appliance is not intended to prepare large quantities of food at one time.
13. Be certain the motor and cover are securely locked in place before operating the appliance. Do not attempt to defeat the cover on this unit.

SAVE THESE INSTRUCTIONS!

Important Safety Information: READ AND FOLLOW ALL SAFETY INSTRUCTIONS

1. The attached motor cannot be used for other than its intended use.
2. Do not remove the lid until the blades have come to a complete stop.
3. Do not make contact with any moving parts.
4. Do not use the appliance for anything other than its intended use (to chop small amounts of food).
5. This unit is intended for intermittent or short-term operation only.
6. When you pulse the unit for more than 20 seconds at a time, we recommend stopping the motor for a short period to allow the contents of the chopper to settle. This ensures the contents are chopped to a desired result.

This appliance is intended for household use only. This appliance is equipped with a polarized plug. This type of plug has one blade wider than the other. The plug will fit into an electrical outlet only one way. This is a safety feature intended to help reduce the risk of electrical shock. If you are unable to insert the plug into the outlet, try reversing the plug. If the plug should still fail to fit, contact a qualified electrician to replace the obsolete outlet. Do not attempt to defeat the safety purpose of the polarized plug by modifying the plug in any way.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in, or tripping over a longer cord. Do not use an extension cord with this appliance.

SAVE THESE INSTRUCTIONS!

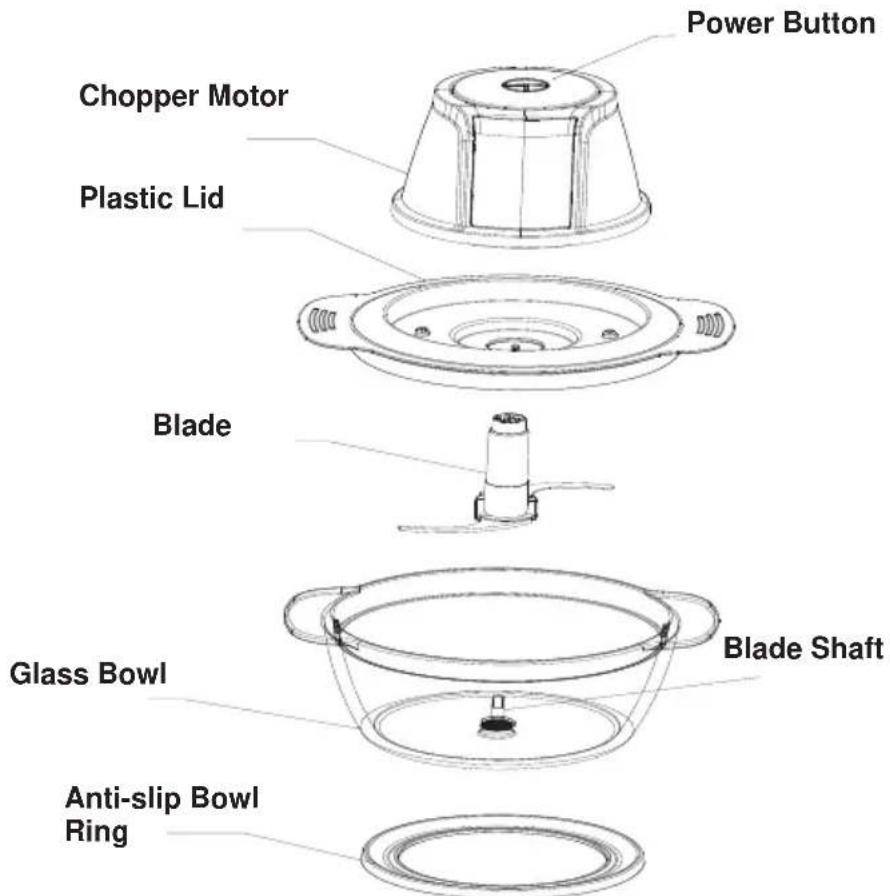

FEATURES

USING YOUR CHOPPER

Before First Use:

Wash lid, bowl, blade and bowl mat in hot soapy water and rinse well. The blade is sharp; handle with extreme care. Make sure the lid, bowl, blade and bowl mat have dried completely before using the appliance.

1. Place the bowl on a counter or flat level surface. Carefully slide the blade down over the shaft in the bowl. Be careful not to touch the blade as it is extremely sharp.
2. Place food in the bowl. Certain foods may need to be cut to fit in the chopping bowl.
3. Place the bowl lid onto the bowl, then position the motor onto the bowl. The embossment on the bowl cover is linked with the hole on the motor. It is very important that the holes in the motor and the top of the blade line up completely or the motor will not lock in place. The unit will not operate properly if the motor is not locked in place.
4. Press the power button to activate the chopper. NOTE: It is recommended that you "pulse" the power button while chopping for certain foods. Holding down the power button will cause certain foods to over chop.
5. Make sure the blade stops moving COMPLETELY before removing the motor. You may need to grasp the plastic blade hub to remove the motor and bowl cover. Unplug the unit. Carefully remove the blade from the bowl prior to removing the processed food. Do not use the bowl for storing food.

CHOPPING GUIDE

Food Type Preparation Tips
Bread (Fresh, toasted or stale)	• Rip the bread into several pieces. Chop only 1 slice at a time.
Fruit and Vegetables (Canned or Cooked)	• If using canned fruit, drain the can of liquid fi rst.• It is recommended that you pulse fruit and vegetables as op-posed to holding the power switch down.
Herbs • Wash and dry thoroughly.• It is recommended that you pulse herbs.
Nuts • It is recommended that you pulse nuts.
Cookies and Crackers	• Pulse or process up to 12 average sized cookies or crackers at a time.
Fresh Meat • Pulse or process up to 120g of fresh meat at at time. For best results, please cut the meat into small cubes prior to chopping.

Care and Maintenance

CLEANING YOUR CHOPPER

• Always disconnect the appliance from the power outlet before cleaning. - Wash the bowl and blade assembly immediately after each use. The bowl, blade and lid can be washed in the dishwasher. DO NOT PUT THE MOTOR IN THE DISHWASHER OR SUBMERGE IT IN WATER. If the motor becomes dirty, simply wipe it clean with a damp cloth, making sure you do not get moisture in the motor. - Do not use chemicals, steel wool or sharp objects to clean the unit, this can result in scratching the appliance or damaging the finish.

LIMITED APPLIANCE WARRANTY

This quality product is warranted to be free from manufacturer's defects in material and workmanship, provided that the unit is used under the normal operating conditions intended by the manufacturer.

This warranty is available only to the person to whom the unit was originally sold by Danby Products Limited (Canada) or Danby Products Inc. (U.S.A.) (hereafter "Danby") or by an authorized distributor of Danby, and is non-transferable.

TERMS OF WARRANTY

Plastic parts are warranted for thirty (30) days only from purchase date, with no extensions provided.

First Year

During the first twelve (12) months, any functional parts of this product found to be defective will be repaired or replaced, at warrantor's option, at no charge to the ORIGINAL purchaser.

To obtain service

It will be the consumer's responsibility to transport the appliance (at their own expense) to the original retailer (point of purchase) or a service depot for repair. Contact your dealer from whom your unit was purchased, or contact your nearest authorized Danby service depot, where service must be performed by a qualified service technician. If service is performed on the unit by anyone other than an authorized service depot, or the unit is used for commercial application, all obligations of Danby under this warranty shall be void.

Nothing within this warranty shall imply that Danby will be responsible or liable for any spoilage or damage to food or other contents of this appliance, whether due to any defect of the appliance, or its use, whether proper or improper.

EXCLUSIONS

Save as herein provided, by Danby, there are no other warranties, conditions, representations or guarantees, express or implied, made or intended by Danby or its authorized distributors and all other warranties, conditions, representations or guarantees, including any warranties, conditions, representations or guarantees under any Sale of Goods Act or like legislation or statute is hereby expressly excluded. Save as herein provided, Danby shall not be responsible for any damages to persons or property, including the unit itself, howsoever caused or any consequential damages arising from the malfunction of the unit and by the purchase of the unit, the purchaser does hereby agree to indemnify and hold harmless Danby from any claim for damages to persons or property caused by the unit.

GENERAL PROVISIONS

No warranty or insurance herein contained or set out shall apply when damage or repair is caused by any of the following:

1) Power failure. 2) Damage in transit or when moving the appliance. 3) Improper power supply such as low voltage, defective house wiring or inadequate fuses. 4) Accident, alteration, abuse or misuse of the appliance such as inadequate air circulation in the room or abnormal operating conditions (extremely high or low room temperature). 5) Use for commercial or industrial purposes (ie. If the appliance is not installed in a domestic residence). 6) Fire, water damage, theft, war, riot, hostility, acts of God such as hurricanes, floods etc. 7) Service calls resulting in customer education. 8) Improper Installation (ie. Building-in of a free standing appliance or using an appliance outdoors that is not approved for outdoor application).

Proof of purchase date will be required for warranty claims; so, please retain bill of sale. In the event warranty service is required, present this document to our AUTHORIZED SERVICE DEPOT.

Warranty Service

Carry-In

Danby Products Limited

PO Box 1778, Guelph, Ontario, Canada N1H 6Z9

Telephone: [phone] Fax: [phone]

1-800-263-2629

03/14

Danby Products Inc.

PO Box 669, Findlay, Ohio, U.S.A. 45840

Telephone: [phone] Fax: [phone]

Danby Products Limited

PO Box 1778, Guelph, Ontario, Canada N1H 6Z9

Telephone: [phone] FAX: [phone]

1-800-263-2629

07/13

Danby Products Inc.

PO Box 669, Findlay, Ohio, U.S.A. 45840

Telephone: [phone] FAX: [phone]

All repair parts are available for purchase or special order when you visit your nearest service depot. To request service and/or the location of the service depot nearest you, call the TOLL FREE number.

When requesting service or ordering parts, always provide the following information:

• Product Type
• Model Number
• Part Number
• Part Description
