USER MANUAL DWC106A1BPDD DANBY

Owner's Use and Care Guide

Owner's Use and Care Guide 1-7

• Important Safety Information
• Installation Instructions
• Operating Instructions
  Care and Cleaning
• Troubleshooting
  Warranty

REFROIDISSEUR A VIN

Read and Follow All Safety Rules and Operating Instructions Before First Use of This Product.

ATTENTION:

Welcome to the Danby family. We're proud of our quality products and we believe in dependable service. You'll see it in this easy-to-use manual and you'll hear it in the friendly voices of our consumer service department.

1-800-26-Danby

(1-800-263-2629)

Best of all, you'll experience these values each time you use your Wine cooler. That's important, because your new appliance will be part of your family for a long time.

BEFORE USING YOUR WINE COOLER

Write down the model and serial numbers here. They are on a label located on the back of the unit. Staple your receipt to this manual; you will need it to obtain service under warranty.

Model Number:

Serial Number:

Date Purchased:

NEED HELP?

Before you call for service, there are a few things you can do to help us serve you better...

Read this manual

It contains instructions to help you use and maintain your appliance properly.

If you received a damaged appliance

Immediately contact the dealer (or builder) that sold you the wine cooler.

Save time and money

Check the Trouble Shooting section before calling. This section helps you solve common problems that may occur.

If you do need service, you can relax knowing help is only a phone call away:

Tel: 1-800-26-Danby

(1-800-263-2629)

IMPORTANT SAFETY INFORMATION

READ ALL SAFETY INFORMATION BEFORE USING

WARNING

DANGER, RISK OF CHILD ENTRAPMENT!

An empty refrigerator is a very dangerous attraction to children. Remove either the gasket, latches, lids, lock and/or doors from unused or discarded appliances, or take some other action to guarantee it harmless.

DON'T WAIT, DO IT NOW!

To reduce the risk of fire, burns, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following sections;

SAFETY PRECAUTIONS

• This appliance must be grounded. Connect only to a properly grounded outlet. See "Grounding Instructions" section below.

• Do not operate this appliance if it has a damaged power cord or plug, if it is not working properly, or if the appliance has been damaged or dropped.

• Do not splice the power cord that is equipped with this appliance.
• Keep power cord away from heated surfaces.
• Do not immerse power cord, plug or the appliance itself in water.
• Do not use this product near water- for example, in a wet basement, near a swimming pool or near a sink.
• Do not use corrosive chemicals or vapors in this appliance.

• Use this appliance only for its intended use, as described in this manual.

• Do not store perishable food items such as (but not limited to) meats and dairy products in your Wine cooler.

• Store wine in sealed containers only.
• See door surface cleaning instructions in the "Care and Cleaning" section of this manual.
• Do not cover or block any openings on the appliance.
• This appliance is intended for household use only. Do not attempt to operate or store this appliance outdoors.
• This appliance should be serviced only by qualified service personnel. Contact nearest authorized service facility for examination, repair or adjustment.

GROUNDING INSTRUCTIONS

WARNING: Improper use of the grounding plug can result in a risk of electric shock.

• This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current.
• This appliance is equipped with a power cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.
• Consult a qualified electrician or service technician if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.

• If the outlet is a standard 2-prong wall outlet, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.

• For best operation, plug this appliance into its own electrical outlet to prevent flickering of lights, blowing of fuse or tripping of circuit breaker.

• Do not under any circumstances cut or remove the third (ground) prong from the power cord.
• Do not use an adapter plug with this appliance.
• Do not use an extension cord with this appliance. If the power cord is too short, have a qualified electrician or service technician install an outlet near the appliance.

INSTALLLION INSTRUCTIONS

PREPARATION

ELECTRICAL REQUIREMENTS: The appliance must be connected to an individual, properly grounded electrical outlet, protected by a 15 or 20 ampere circuit breaker or time delay fuse.

• It is recommended that you do not install the wine cooler into a corner (i.e. directly beside a wall). This is to allow the door to have a greater then 90^ opening swing. A limited door swing may lead to damaging the door gasket.

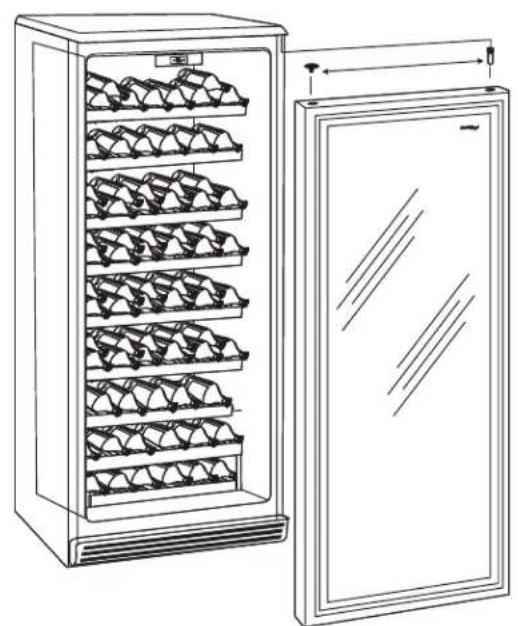

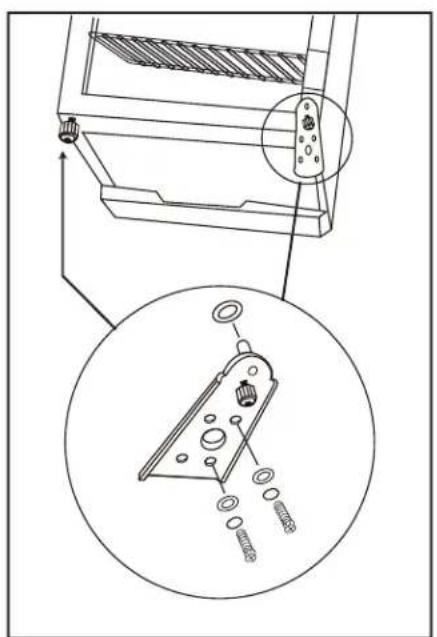

DOOR REVERSAL INSTRUCTIONS

NOTE: Unplug the unit from electrical oulet.

OPERATING INSTRUCTIONS

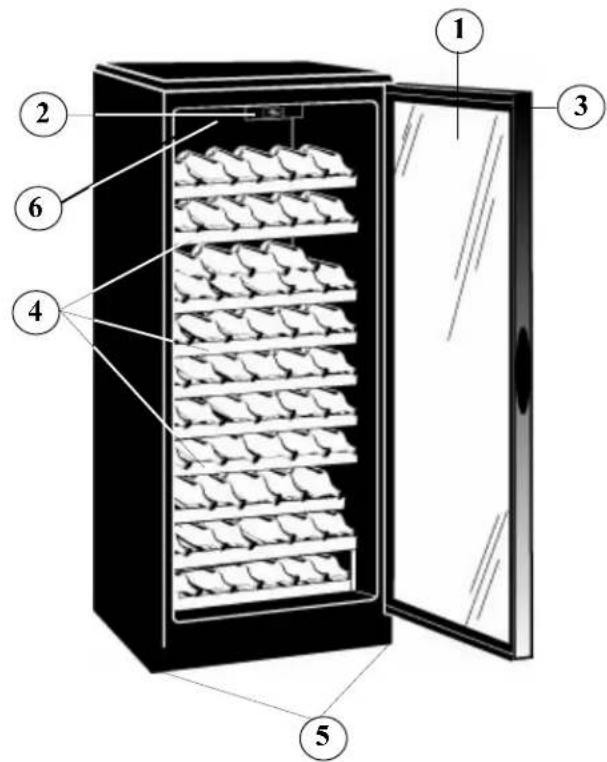

FEATURES OF YOUR WINE COOLER

1) Tempered Glass Door: Tinted for UV protection while still allowing for easy interior viewing.
2) Electronic Display and Controls: For viewing and regulating the temperature of the wine cooler.
3) Magnetic Door Gaskets: Tight fitting seals retain all the cooling power and humidity levels.
4) Wood shelves
5) Leveling Legs.
6) Interior Light: Illuminates the compartment when the door is opened.

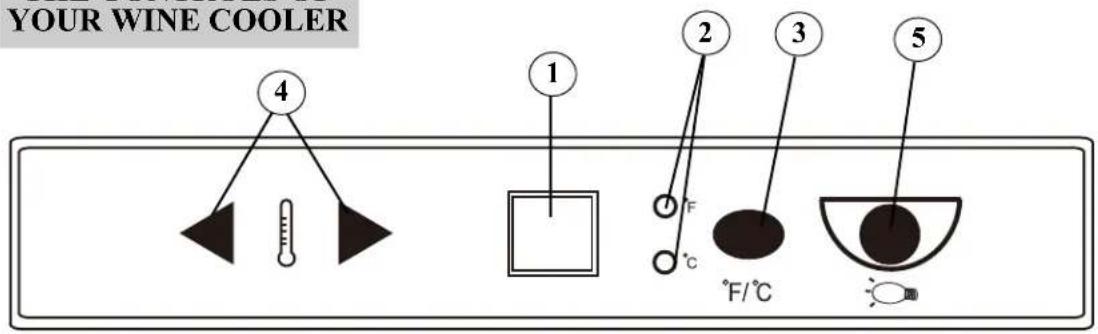

THE CONTROLS OF YOUR WINE COOLER

1) Temp. Set Display: Display screen shows current set temperature you've selected for the cabinet.
2) ^ / ^ : Adjacent indicator light denotes which scale of temperature is displayed.
3) ^ / ^ button

4) 'UP' Button: Used to raise the temperature (warmer) in 1^ degree increments.
DOWN' Button: Used to decrease the temperature (cooler) in 1^ degree increments.
5) Interior Lights ON/OFF button

OPERATING INSTRUCTIONS (cont'd)

SETTING THE TEMPERATURE

Important: In the event of a power failure, wait 3 to 5 minutes before restarting.

• To switch the display between the Fahrenheit (°F) and Celsius (°C) scale, depress the 'UP' and 'DOWN' control buttons simultaneously for approximately five (5) seconds.
• The temperature range can be set as low as 43^ (6^) or as high as 57^ (14^) to suit your specific wine storage requirements. Each depression of the 'UP' or 'DOWN' buttons will allow you to adjust the temperature in 1^ increments within the aforementioned range.
• You may view your 'set' temperature at any time by briefly depressing either the 'UP' or 'DOWN' button.

WINE STORAGE

The DWC106A1BPDD has a maximum* capacity of 75 (750mL) bottles of wine.

• when stocked as per the below instructions.

To accommodate 75 bottles it will be necessary for you to stock your wine cooler in the following way:

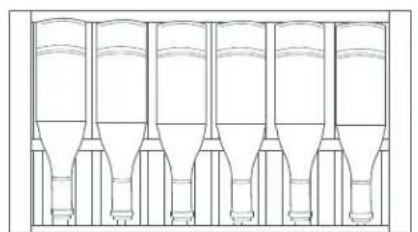

• The first shelf holds 6 bottles arranged as per Fig. 3, with an additional bottle stacked on either side of the controls, for a total of 8 bottles per the first shelf.
  The second shelf holds 6 bottles arranged as per Fig. 3.

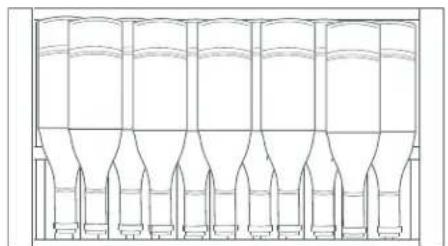

  The third shelf holds 11 bottles when stacked as per Fig.4;6 bottles across the shelf, with 5 bottles

stacked alternately on top.

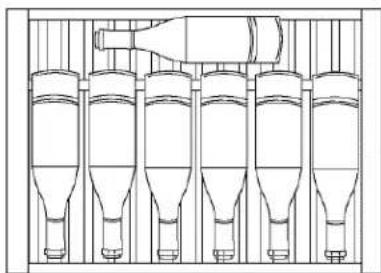

• The fourth and fifth shelves hold 6 bottles with one bottle stored horizontally behind, as in Fig. 5.
  The sixth through ninth shelves hold 6 bottles arranged as per Fig.3
• The bottom of your wine cooler contains a 2-tier wooden rack which accommodates 6 bottles per rack, arranged as per Fig. 3; this allows for a total of 75 (750mL) bottles of wine.

Fig. 3

Fig. 4

Fig.5

SHELF INSTRUCTIONS

IMPORTANT!

Do not cover any part of the shelves with aluminum foil or any other material that will prevent adequate air circulation within the cabinet.

To Remove a Shelf:

To remove a shelf from its locked position, tilt the shelf as shown in Fig. 6 and pull outward.

To Reinstall a Shelf:

To reinstall, ensure the shelf is resting securely on the support brackets and push the shelf inward until it locks in place.

CARE AND CLEANING

HELPUL HINTS

Allow the wine cooler to remain open for a few minutes after manual cleaning to air out and dry the inside of the wine cooler cabinet

NOTE: Be certain the power is off before cleaning any part of this appliance.

HOW TO CLEAN THE INSIDE

Never use any commercial or abrasive cleaners or sharp objects on any part of the wine cooler.

Walls, Floors, Inside Window and Shelves:

Some water deposits and dust can be removed with a dry paper towel, others may require a damp cloth.

HOW TO CLEAN THE OUTSIDE

Do not use cleaners containing ammonia or alcohol on the wine cooler. Ammonia or alcohol can damage the appearance of the appliance.

Outer Case:

It's important to keep the area clean where the door seals against the cabinet. Clean this area with a sudsy cloth. Rinse and then dry.

Door surface:

Use only mild, non-abrasive detergents applied with a clean sponge or soft cloth. Rinse well.

Control Panel and Door:

Wipe with a damp cloth and dry thoroughly. Do not use cleaning sprays, large amounts of soap and water, abrasive or sharp objects on the panel- they can damage it. Some paper towels may also scratch the control panel and door glass.

TROUBLESHOOTING

BEFORE YOU CALL FOR SERVICE

PROBLEM POSSIBLE CAUSE SOLUTION
1) No power.	·A fuse in your home may be blown or a circuit breaker tripped ·Power surge ·Plug is not fully inserted into wall outlet.	·Replace fuse or reset circuit breaker. ·Unplug the wine cooler, wait a few seconds and plug back in. ·Make sure the 3-prong plug is fully inserted into outlet.
2) Cabinet temperature too high.	·Temperature Setting. ·Door not shut properly or opened excessively. ·Interior lights toggled on. ·Exhaust vent is obstructed. ·Recently added large quantity of warm bottles to cabinet.	·Verify the temperature control setting; adjust if necessary. ·Ensure door is fully closed and the gasket is sealing against the cabinets. Open door only as needed and for short periods of time. ·The interior lights are intended for temporary lighting of cabinets for display purposes only. They are not intended to be left on for prolonged periods of time. ·Verify that nothing is blocking front-mounted exhaust vent. ·Limit quantity of warm bottles introduced at the same time. Stagger the load introduction if possible.
3) Condensation on the cabinet and/or doors.	·High humidity conditions in the home.	·Ensure door is fully closed and gasket is sealing against the cabinet. Open the door only as needed and for short periods of time.

If none of the above rectify the situation please contact our customer care department at

1-800-26-(1800263-2629)

Danby Designer

LIMITED IN-HOME APPLIANCE WARRANTY

This quality product is warranted to be free from manufacturer's defects in material and workmanship, provided that the unit is used under the normal operating conditions intended by the manufacturer.

This warranty is available only to the person to whom the unit was originally sold by Danby Products Limited (Canada) or Danby Products Inc. (U.S.A.) (hereafter "Danby") or by an authorized distributor of Danby, and is non-transferable.

TERMS OF WARRANTY

Plastic parts, are warranted for thirty (30) days only from purchase date, with no extensions provided.

First 18 Months During the first eighteen (18) months, any functional parts of this product found to be defective, will be repaired or replaced, at warrantor's option, at no charge to the ORIGINAL purchaser.

To obtain Danby reserves the right to limit the boundaries of "In Home Service" to the proximity of an Authorized Service Depot. Any appliance requiring service outside the limited boundaries of "In Home Service", it will be the consumer's responsibility to transport the appliance (at their own expense) to the original retailer (point of purchase) or a service depot for repair. See "Boundaries of In Home Service" below. Contact your dealer from whom your unit was purchased, or contact your nearest authorized Danby service depot, where service must be performed by a qualified service technician. If service is performed on the unit by anyone other than an authorized service depot, or the unit is used for commercial application, all obligations of Danby under this warranty shall be void.

Boundaries of If the appliance is installed in a location that is 100 kilometers (62 miles) or more from the nearest service center your unit must be delivered to the nearest authorized Danby Service Depot, as service must only be performed by a technician qualified and certified for warranty service by Danby. Transportation charges to and from the service location are not protected by this warranty and are the responsibility of the purchaser.

Nothing within this warranty shall imply that Danby will be responsible or liable for any spoilage or damage to food or other contents of this appliance, whether due to any defect of the appliance, or its use, whether proper or improper.

EXCLUSIONS

Save as herein provided, Danby, there are no other warranties, conditions, representations or guarantees, express or implied, made or intended by Danby or its authorized distributors and all other warranties, conditions, representations or guarantees, including any warranties, conditions, representations or guarantees under any Sale of Goods Act or like legislation or statue is hereby expressly excluded. Save as herein provided, Danby shall not be responsible for any damages to persons or property, including the unit itself, howsoever caused or any consequential damages arising from the malfunction of the unit and by the purchase of the unit, the purchaser does hereby agree to indemnify and hold harmless Danby from any claim for damages to persons or property caused by the unit.

GENERAL PROVISIONS

No warranty or insurance herein contained or set out shall apply when damage or repair is caused by any of the following:

1) Power failure.
2) Damage in transit or when moving the appliance.
3) Improper power supply such as low voltage, defective house wiring or inadequate fuses.
4) Accident, alteration, abuse or misuse of the appliance such as inadequate air circulation in the room or abnormal operating conditions (extremely high or low room temperature).
5) Use for commercial or industrial purposes (ie. If the appliance is not installed in a domestic residence).
6) Fire, water damage, theft, war, riot, hostility, acts of God such as hurricanes, floods etc.
7) Service calls resulting in customer education.
8) Improper Installation (ie. Building-in of a free standing appliance or using an appliance outdoors that is not approved for outdoor application).

Proof of purchase date will be required for warranty claims; so, please retain bills of sale. In the event warranty service is required, present this document to our AUTHORIZED SERVICE DEPOT.

Warranty Service In-home

Danby Products Limited

PO Box 1778, Guelph, Ontario, Canada N1H 6Z9

Telephone: [phone] FAX: [phone]

1-800-263-2629

Danby Products Inc.

PO Box 669, Findlay, Ohio, U.S.A. 45840

Telephone: [phone] FAX: [phone]

BIENVENUE

Danby Products Limited

PO Box 1778, Guelph, Ontario, Canada N1H 6Z9

Telephone: [phone] FAX: [phone]

1-800-263-2629

10/12

Danby Products Inc.

PO Box 669, Findlay, Ohio, U.S.A. 45840

Telephone: [phone] FAX: [phone]

WINE COOLER
- REFROIDISSEUR A VIN
HELADERA PARA VINOS

Model · Modèle · Modelo DWC106A1BPDD

WINE COOLER

The model number can be found on the serial plate located on the back panel of the unit.

All repair parts are available for purchase or special order when you visit your nearest service depot. To request service and/or the location of the service depot nearest you, call the TOLL FREE NUMBER.

When requesting service or ordering parts, always provide the following information:

Product Type
- Model Number
- Part Description

REFROIDISSEUR A VIN
