USER MANUAL Aurora BE 1711 ADE

Bathroom Scales BE 1620 | BE 1711 | BE 1712 Dear Customer! You have chosen to purchase a high-quality product from the brand ADE, which combines intelligent functions with an exceptional design. These bathroom scales make it possible for you to determine and monitor your body weight. The many years of experience of the brand ADE ensures a high technical standard and proven quality. We hope you enjoy weighing yourself and wish you success in reaching your goal weight! Your ADE Team General Information About this manual This operating manual describes how to safely use and care for your products. Keep this operating manual in a safe place in case you would like to refer to it later. If you pass this item on to someone else, pass on this manual as well. Failure to observe the recommendations in this operating manual can lead to injuries or damage to your products. Explanation of symbols This symbol, combined with the word DANGER, warns against serious injury. This symbol, combined with the word WARNING, warns against moderate and mild injuries. This symbol, combined with the word NOTE, warns against material damage. This symbol signifies additional information and general advice. Druckbuch Personenwaage Div.indb 12 14.03.2017 12:28:03Table of Contents

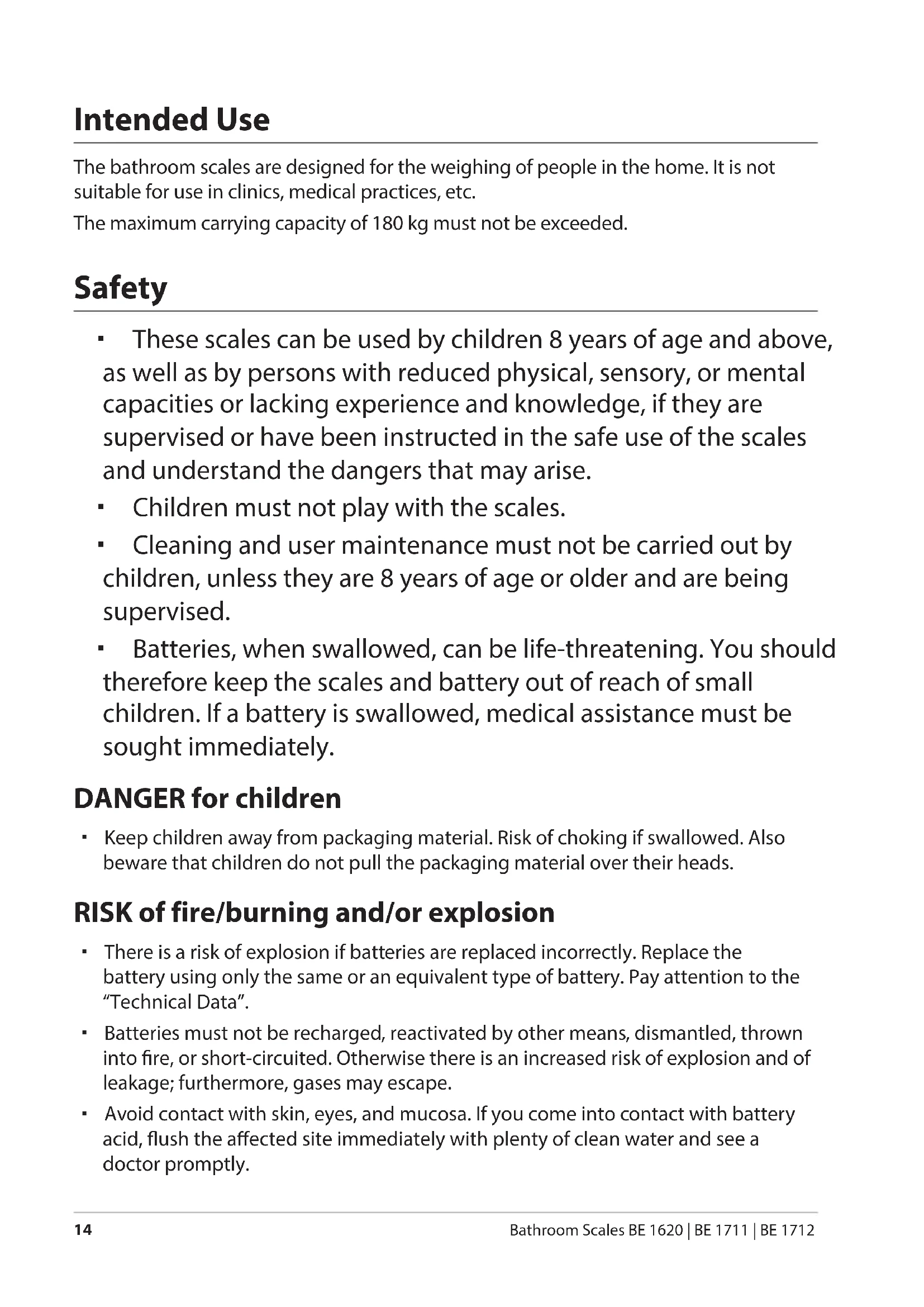

Bathroom Scales BE 1620 | BE 1711 | BE 1712 Intended Use The bathroom scales are designed for the weighing of people in the home. It is not suitable for use in clinics, medical practices, etc. The maximum carrying capacity of 180 kg must not be exceeded. Safety These scales can be used by children 8 years of age and above, as well as by persons with reduced physical, sensory, or mental capacities or lacking experience and knowledge, if they are supervised or have been instructed in the safe use of the scales and understand the dangers that may arise. Children must not play with the scales. Cleaning and user maintenance must not be carried out by children, unless they are 8 years of age or older and are being supervised. Batteries, when swallowed, can be life-threatening. You should therefore keep the scales and battery out of reach of small children. If a battery is swallowed, medical assistance must be sought immediately. DANGER for children Keep children away from packaging material. Risk of choking if swallowed. Also beware that children do not pull the packaging material over their heads. RISK of fire/burning and/or explosion There is a risk of explosion if batteries are replaced incorrectly. Replace the battery using only the same or an equivalent type of battery. Pay attention to the “Technical Data”. Batteries must not be recharged, reactivated by other means, dismantled, thrown into re, or short-circuited. Otherwise there is an increased risk of explosion and of leakage; furthermore, gases may escape. Avoid contact with skin, eyes, and mucosa. If you come into contact with battery acid, ush the aected site immediately with plenty of clean water and see a doctor promptly. Druckbuch Personenwaage Div.indb 14 14.03.2017 12:28:03Safety

Bathroom Scales BE 1620 | BE 1711 | BE 1712 English WARNING against risk of injury Do not step onto the outer edge of any one side of the scales. Risk of tipping! Do not step onto the scales with wet feet or when its surface is damp. Risk of slipping! If the scales fall and shatter, there is a risk of injury from glass splinters. BEWARE of material damage Do not submerge the scales in water or other liquids. Place the scales on a stable, even surface. Do not overload the scales. Pay attention to the “Technical Data”. Place yourself on the scales exclusively for weighing purposes. Protect the scales from sharp jolts and vibrations. Remove the battery from the item once it has been used up or if you are no longer using the scales. You will thus avoid damage that may result from the leakage of battery acid. Pay attention to the correct polarity (+/-) when inserting or changing the battery. Do not expose the battery to any extreme conditions, e.g., by storing it on a heater or in direct sunlight. Increased risk of leakage! Clean the battery and device contacts, as needed, before inserting the battery. Do not make any modications to the scales. Only allow repairs to be carried out at a specialist workshop. Repairs carried out incorrectly can considerably endanger the user. Do not place the scales in the vicinity of devices which may emit electromagnetic radiation, such as mobile phones, wireless devices, or the like. Doing so may lead to incorrect display indicators or malfunctions. There are feet on the underside of the scales. Since oor surfaces are made from various materials and are treated with diverse care products, the possibility cannot be completely excluded that some of these substances contain constituents that attack and soften the feet of the device. If necessary, place an anti-slip underlay beneath the scales. Druckbuch Personenwaage Div.indb 15 14.03.2017 12:28:03At a glance (scope of delivery)

Bathroom Scales BE 1620 | BE 1711 | BE 1712 At a glance (scope of delivery) 1 UNIT button (underside): Changing the unit of measurement 2 Battery compartment (underside)

Display 4 Weighing surface Scope of delivery Bathroom scales 1 Battery type CR2032, 3 V Operating Manual

Bathroom Scales BE 1620 | BE 1711 | BE 1712 English Start-up Remove the iso-strip The battery is already inserted at delivery and furnished with an iso-strip to protect it from discharging prematurely. In order to activate the scales, you must remove the iso- strip. The battery compartment is located on the underside of the device.

1. Push the locking tab slightly towards the middle of the scales and remove the

battery compartment cover.

2. Pull the iso-strip out.

3. Replace the battery compartment cover.

Inserting/changing battery To use the scales, a type CR2032, 3V battery is required.

1. Push the locking tab slightly towards the middle of the scales and remove the

battery compartment cover.

2. Push the battery against the contact spring and slide it under the large, square

retaining tab. The battery then snaps into place under the opposite retaining tab. Pay attention to the correct polarity (+/-). The plus pole (+) must point upwards.

3. Put the battery compartment cover back in place. The locking tab must snap

securely into place. Notes on changing the battery: A change of batteries becomes necessary when “LO” appears on the display, or when nothing at all is displayed. Only use the type of battery that is specied in the “Technical Data”. Dispose of batteries in an environmentally appropriate way (see “Disposal”) Choosing the unit of measurement When the scales are delivered, the unit of measurement is set to “kg” as standard. However, the measurement result can also be displayed in the English units of measurement, “lb” (pound) or “st:lb” (stone:pound). − Press the UNIT button next to the battery compartment on the rear-side of the scales repeatedly. Pay attention to the display indicator. Positioning the scales − Place the scales on an even, rm, and dry surface. Do not place the scales on carpet. Druckbuch Personenwaage Div.indb 17 14.03.2017 12:28:04Weighing

Bathroom Scales BE 1620 | BE 1711 | BE 1712 Weighing WARNING against injuries − Do not step onto the scales with wet feet or when its surface is damp. Risk of slipping!

1. Step once with a little force on the weighing surface (tap-on function).

In the illuminated display “0.0”, as well as the set measuring unit e.g. “kg”, is shown.

2. Position yourself on the scales. Remain standing still and do not hold on to

anything. The measured weight will be displayed shortly thereafter. A few seconds after you step off the weighing surface, the scales will switch off automatically. Weigh yourself with as little clothing on as possible. Try to weigh yourself always at the same time and under consistent conditions in order to obtain comparable values. Resetting the scales Reset the scales to factory settings if unusual or obviously incorrect values are shown on the display.

1. Remove the battery from the battery compartment and wait a moment.

2. Re-insert the battery. Pay attention to the correct polarity of the batteries (+/-). The

plus pole (+) must point upwards. After switching the scales on, you can weigh yourself as usual. Cleaning NOTE on material damage − Do not immerse the scales in water or other liquids. − Do not under any circumstances use harsh, scraping, or abrasive clean- ing agents or the like to clean the scales. If you do, the surface could be scratched. − Wipe down the scales as needed using a lightly dampened, soft cloth. − Disinfect the weighing surface from time to time using a suitable disinfecting agent (available at specialist retailers and pharmacies). Druckbuch Personenwaage Div.indb 18 14.03.2017 12:28:05Fault/Remedy

Bathroom Scales BE 1620 | BE 1711 | BE 1712 English Fault/Remedy Fault Possible Cause No function Is the battery empty or has it been inserted incorrectly? The scales appear to be displaying false weighing results Are the scales standing on a rm, even surface? Is a device that can cause electromagnetic disturbances located in the vicinity of the scales? Remove the battery from the battery compartment and wait a moment. “Err” is shown on the display The maximum capacity of the scales (180kg) has been exceeded. “LO” is shown on the display. The battery is empty (see “Inserting/ changing battery”). Technical Data Model: Bathroom Scales BE 1620 „Amina“, BE 1711 „Aurora“, BE 1712 „Selene“ Battery: 1x CR2032/3 V Rated current: 10 mA Measuring range: max. 180 kg Variance: 1 % +/- 100g Indicator division: 100 g Weight: approx. 1.6 kg Dimensions of scales: approx. 300 x 300 x 17,5 mm Distributor (no service address): Waagen-Schmitt GmbH Hammer Steindamm 27-29 22089 Hamburg, Germany Our products are constantly being developed and improved. For this reason, design and technical modifications are possible at any time. Druckbuch Personenwaage Div.indb 19 14.03.2017 12:28:05Declaration of Conformity

Bathroom Scales BE 1620 | BE 1711 | BE 1712 Declaration of Conformity These scales have been manufactured in accordance with the harmonised European standards. It conforms to the provisions of the EC directives cited below: EMC Directive 2014/30/EU RoHS Directive 2011/65/EU in the currently valid versions. This declaration loses its validity if modifications are made to the products without our approval. Hamburg, March 2017 Waagen-Schmitt GmbH Hammer Steindamm 27-29 22089 Hamburg, Germany Guarantee The company Waagen-Schmitt GmbH guarantees for 3 years from the purchase date the cost-free rectification of defects on the basis of material or fabrication errors through repair or exchange. In the event of a guarantee claim, please return the product with the proof of purchase (stipulating the reason for claim) to your dealer. Druckbuch Personenwaage Div.indb 20 14.03.2017 12:28:05Disposal

Bathroom Scales BE 1620 | BE 1711 | BE 1712 English Disposal Disposing of the packaging Dispose of the packaging with similar materials. Put cardboard with waste paper, films with recyclable materials. Disposing of the product Dispose of the product in accordance with the regulations that apply in your country. Devices must not be disposed of in normal household waste. At the end of their life, the products must be disposed of in an appropriate way. In this way, valuable materials contained in the device will be recycled and the burden on the environment avoided. Hand in the old device at a collection point for electronic waste or at a recycling depot. For more information, contact your local waste disposal firm or your local administrative body. Recyclable and disposable batteries do not belong in household waste. All batteries must be handed in at a collection point in your community, suburb, or at the retailer. Such batteries can thus be disposed of in an environmentally friendly way. Druckbuch Personenwaage Div.indb 21 14.03.2017 12:28:05Información general
