USER MANUAL Proof 28 Vaude

bike hardWare backpacks

deuTsch....1

ENGLISH....9

Français....17

iTaliano....25

español....33

中文....41

INHALT

Simple line drawing of a bag with a rope tied around it (no text or symbols)

Simple line drawing of a container with a lid and handle (no text or symbols)

Line drawing of a backpack with straps and straps (no text or symbols)

Simple line drawing of a cylindrical object with a handle, no text or symbols present

DEUTSCH

Line drawing of a folded garment with a pink zipper (no text or symbols)

DEUTSCH

Line drawings of two different types of backpacks, one open and one closed, with no text or symbols present.

General Instructions 9

How to pack your backpack correctly....9

Hydration system....10

F.L.A.S.H. strap length adjustment .....11

Carrying system settings and adjustment....12

Features ....13

Helmet carriers....13

Features....13

Blinker holder....14

Tool compartment / Pump compartment .....14

Rain cover....15

Volume expansion 15

Map compartment / Inner compartment Moab....16

Securing protective gear....16

GENERAL INSTRUCTIONS HOW TO PACK YOUR BACKPACK CORRECTLY

The rule of thumb is to make sure the loaded pack's center of gravity lies directly above your own. Heavy items should therefore be packed as close to your back as possible.

1. Lid Compartment: small, lightweight items of gear that need to be close at hand, e.g. mobile phones, GPS, compass.

ENGLISH

HYDRATION SYSTEM

Hydration tube port with top lid closure

Line drawing of a stylized backpack with a curved arm and loop (no text or symbols)

Hydration bladder attachment: velcro

Hydration tube port with front zip closure

Line drawing of a backpack with straps and straps (no text or symbols)

Hydration bladder attachment: hook

1. Main Compartment: Lighter items such as clothing should be packed at the bottom, top and on the sides. Heavier items such as climbing equipment (carabiners, wedges, quickdraws), the tent, tinned food or water supplies should be packed in the middle, close in to your back.

2. Bottom Compartment: This is the best place to store lightweight, bulky items that would take up too much room in the main compartment (sleeping bag, dirty laundry bag).

3. Outer Pockets and Mesh Pockets: Room for smaller items (rain jacket, cap, tissues, gloves etc.). Each side should weigh about the same.

4. Map Pocket: Flat outer pocket for easy access to maps, climbing topos and hiking guides.

5. Hydration System: The pocket for the hydration bladder always lies close to your back so that it doesn't offset your center of gravity. The hydration tube port in backpacks with top lids is located underneath the top lid closure. In backpacks with front zip closures, the hydration tube port is found above the shoulder straps.

f.l.a.s.h. straP lenGth adJustment

Some VAUDE Bike backpacks are equipped with the F.L.A.S.H. strap length adjustment system. Every person has an individual back length and shape, and this strap system can be adjusted to optimally fi t any upper body proportions: the backpack fi ts as if it were custom tailored.

For an optimal fit, the end of the shoulder strap should be just below the chest (see figure).

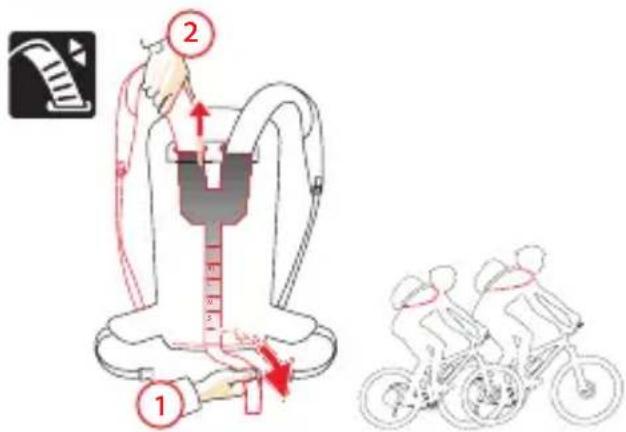

adJustment: You can adjust the length of the shoulder straps quickly and conveniently to any body size using the Velcro strip at the rear of the back system. By opening the Velcro, you release the shoulder strap lock (1). Pull out the shoulder strap or push it in to adjust its length (2). When the shoulder straps are the ideal length, close the Velcro again. Mark the position on the outer side of the Velcro to correct the shoulder strap length in future.

Quick Guide

ENGLISH

carrYinG sYstem settinGs and adJustment

If your VAUDE Bike backpack is equipped with strap length adjustment, adjust it first.

Shoulder the packed backpack and adjust as follows:

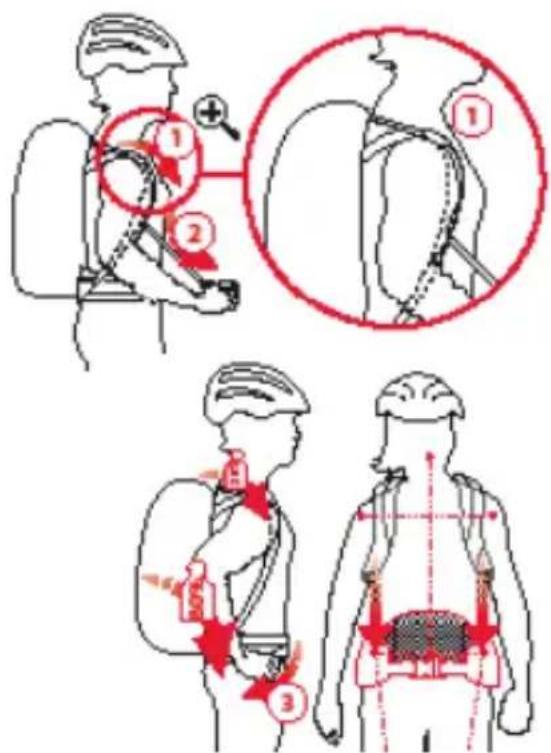

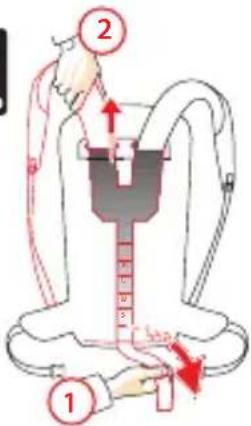

1. Gently tighten the shoulder straps and load adjustment straps (1 and 2). The ladder-lock buckles and the load adjustment straps must be positioned between your collar bone and the bony prominence at the top of your shoulder blade.

2. Lift your shoulders, then close and pull the hip belt to create a snug fit (3). The hip belt must ride on the upper edge of your pelvic bone. Your hips should bear approx. 80% of the load.

3. Loosen the shoulder straps until all of the weight is resting on your hips. Gently tighten the shoulder straps again to stabilize the backpack on your shoulders.

FEATURES

HELMET CARRIERS

Every VAUDE Bike backpack is equipped with a helmet carrier. We use a few different systems.

Variant 1: Brackets with hooks allow you to hook the helmet chin band to the backpack, or you can loop the straps behind the brackets and close them.

Variant 2: Use the two loops on the upper section of the backpack as the helmet carrier. To do this, simply open the helmet chin band, thread each side through a loop and close the chin band again.

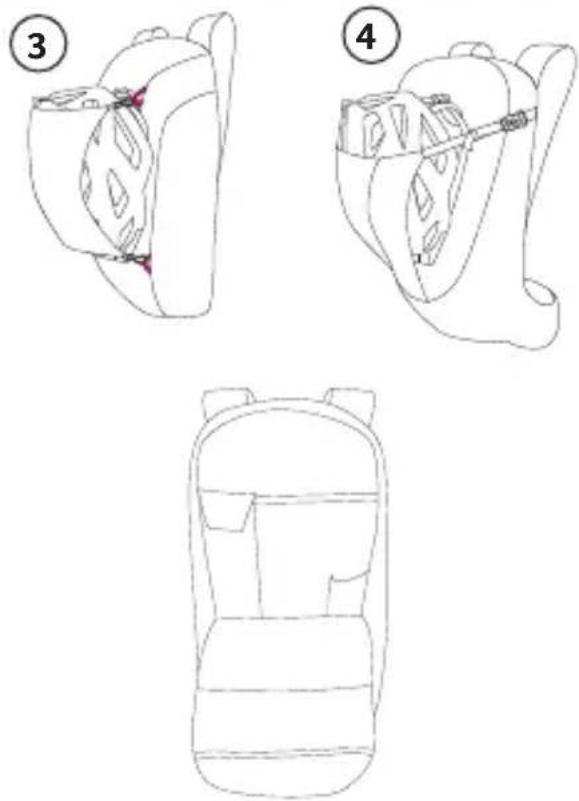

Variant 3: Fasten the helmet net included to the two loops on both the upper and lower sections of the backpack. To do this, place the helmet on the backpack, place the net on top of it and put the plastic hooks through the loops.

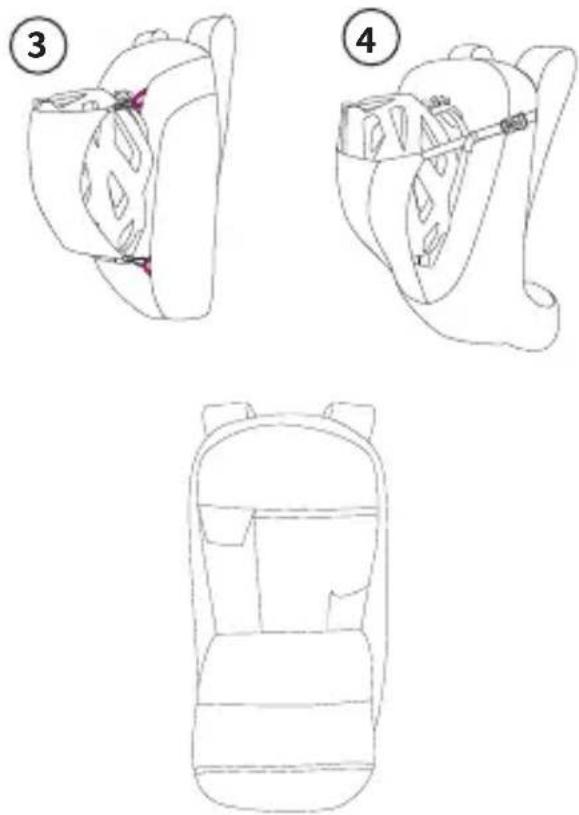

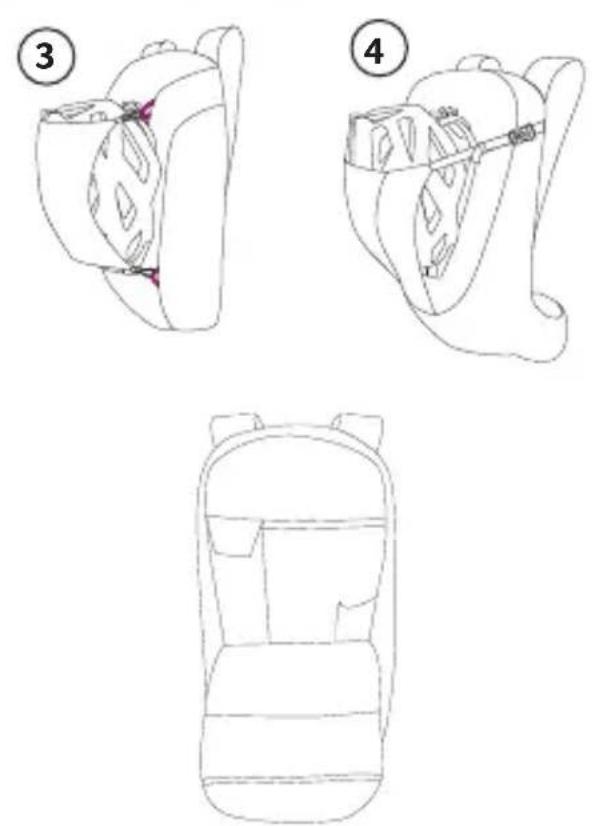

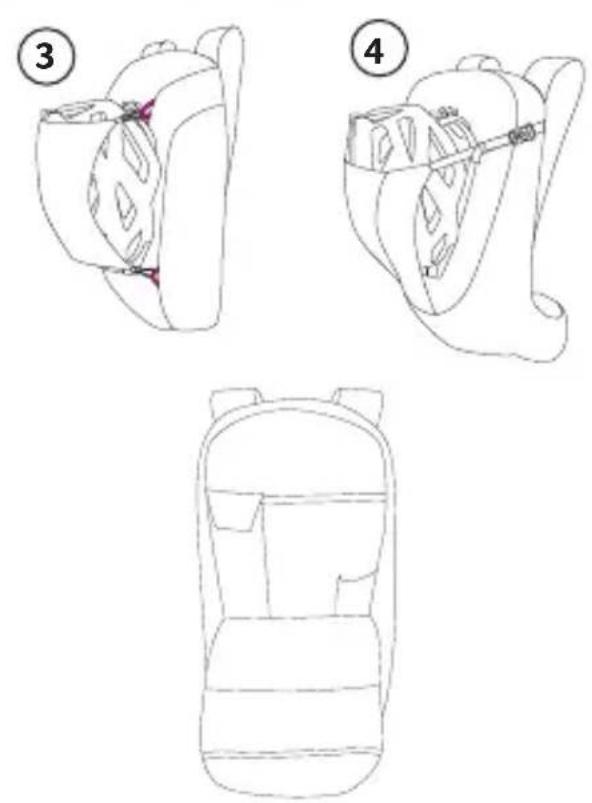

Variant 4: Integrated helmet straps provide room for cross country and full face helmets. To use them, re-

QUICK GUIDE

Line drawing of a medical device with a patterned cap and a red mark, labeled with number 2 (no text or symbols on the diagram itself)

Simple line drawing of a bag with patterned lid and handle, no text or symbols present

ENGLISH

lease the two buckles on the upper section of the back-pack, push the helmet into the pocket and close the buckles again. For full face helmets, simply loop the straps and buckles through the chin guard, close them again and pull them tight.

Blinker holder

Every VAUDE Bike backpack is equipped with a blinker holder in the lower section. You can either clip the blinker to the attached piece of webbing or a cutout in the material. There is also a piece of webbing for this on the lower section of the rain cover.

tool comPartment / PumP comPartment

Some VAUDE Bike backpacks are equipped with extra tool compartments. Applied to the front of the back-pack, they provide you with quick, convenient access to key tools. An extra loop even keeps larger pumps firmly in place.

rain coVer

Every VAUDE Bike backpack is equipped with a rain cover. It is located in a zip compartment under the floor of the backpack. To allow the rain cover to enclose the backpack as completely as possible, it has small cutouts on the bottom for the carrier system hip fins.

Volume exPansion

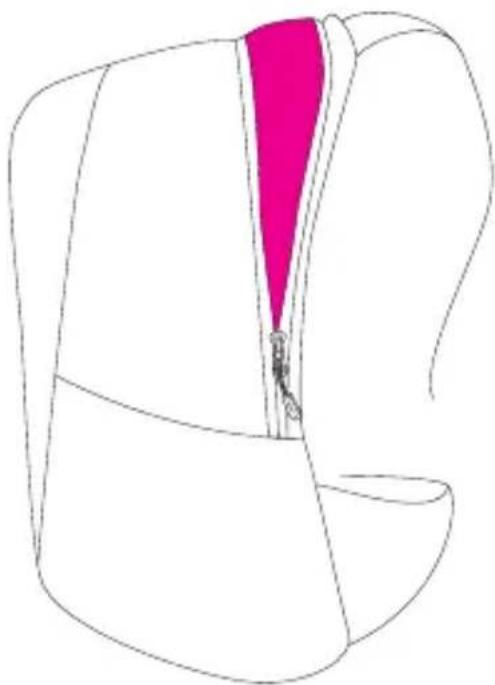

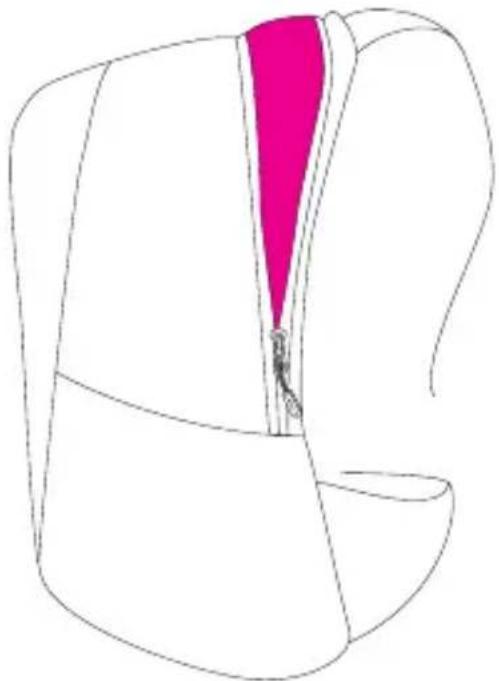

Some VAUDE Bike backpacks have a volume expansion function that enlarges the backpack by approx. 3-5 l.

Line drawing of a backpack with a pink vertical stripe inserted into the pocket (no text or symbols)

ENGLISH

Line drawings of two different types of car seat designs, one closed and one open, with no text or symbols present.

maP comPartment / inner comPartment moaB

The touring backpacks in the VAUDE Bike collection are equipped with an easy-access map compartment at the front. Use it to store your maps securely.

The backpacks in the Moab series have an extra 3-way inner compartment. In it, you can stow key pieces of equipment separately from the main compartment.

securinG ProtectiveGear

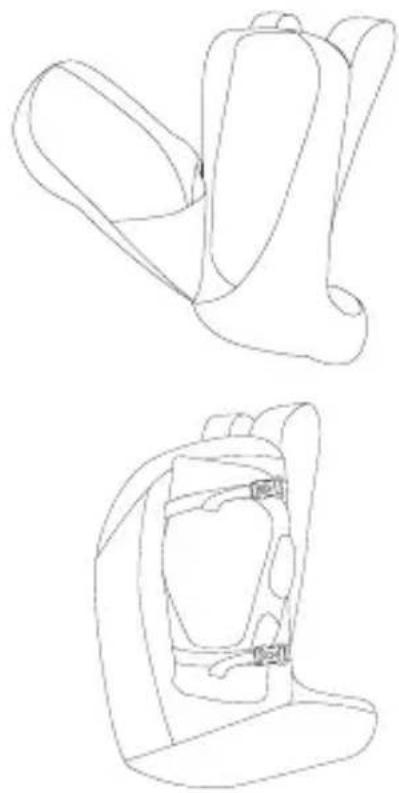

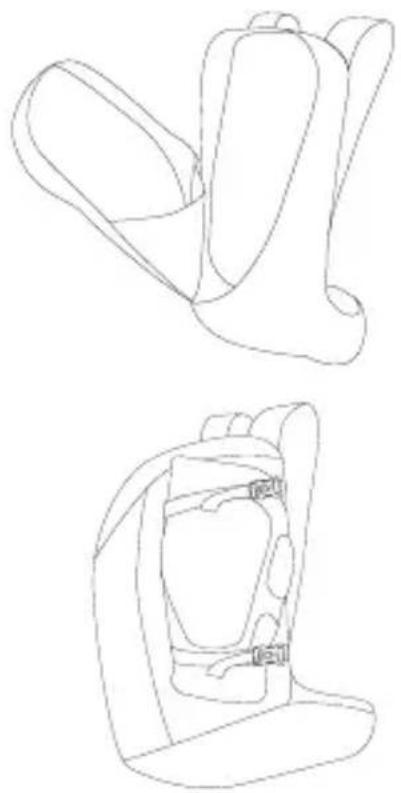

With some of the All Mountain backpacks in the VAUDE Bike collection, you can use the compression straps at the sides to secure your protective gear.

SOMMAIRE

Réglage de base 17

Simple line drawing of a bag with a rope tied around it (no text or symbols)

Line drawing of a person wearing a backpack with straps and straps (no text or symbols)

FRANÇAIS

Line drawing of a hand holding a bag with patterned fabric, no text or symbols present

Simple line drawing of a backpack with patterned cushion and a numbered label (1) in the top left corner, no text or symbols present.

FRANÇAIS

Line drawing of a folded garment with a pink zipper (no text or symbols)

FRANÇAIS

Line drawings of two car seat designs, one open and one closed, both without any text or symbols.

Line drawing of a backpack with straps and feet (no text or symbols)

Simple line drawing of a backpack with a curved arm (no text or symbols)

ITALIANO

Line drawing of a hand holding a bag with patterned fabric, no text or symbols present

Simple line drawing of a bag with patterned lid and label 1 (no text or symbols on the bag itself)

ITALIANO

Line drawing of a folded garment with a pink zipper (no text or symbols)

ITALIANO

Line drawings of two different types of backpacks, one open and one closed, with no text or symbols present.

scomParto Per maPPe / scomParto interno moaB

Simple line drawing of a bag with a rope tied around it (no text or symbols)

Line drawing of a backpack with straps and straps (no text or symbols)

ITALIANO

Line drawing of a mechanical component with a textured base and circular label (no text or symbols)

Simple line drawing of a backpack with a patterned blanket and a red tag, no text or symbols present.

ESPAÑOL

Line drawing of a backpack with a pink vertical stripe inserted into the pocket (no text or symbols)

ESPAÑOL

Line drawings of two different car seat designs, one open and one closed, both without any text or symbols.

Bolsillo Para maPas / Bolsillo interior moaB

Line drawing of two cyclists in motion, no text or symbols present

如水袋、洗衣袋。

德语

Quick Guide

Video

料钩挂在规定的搭环上。

Line drawing of a mechanical component with a textured surface and a red mark (no text or symbols)

1

Simple line drawing of a bag with patterned lid and handle, no text or symbols present

3

Simple line drawing of a mechanical component with no text or symbols

4

Line drawing of a helmet with a belt and seatbelt (no text or symbols)

工具格层 / 打气筒格层

Line drawing of a backpack with front panel and side panels (no text or symbols)

德语

Line drawing of a backpack with a pink vertical stripe on the chest (no text or symbols)

容量扩增

Line drawings of two different backpacks, one open and one closed, with no text or symbols present.
