USER MANUAL DO704K DOMO

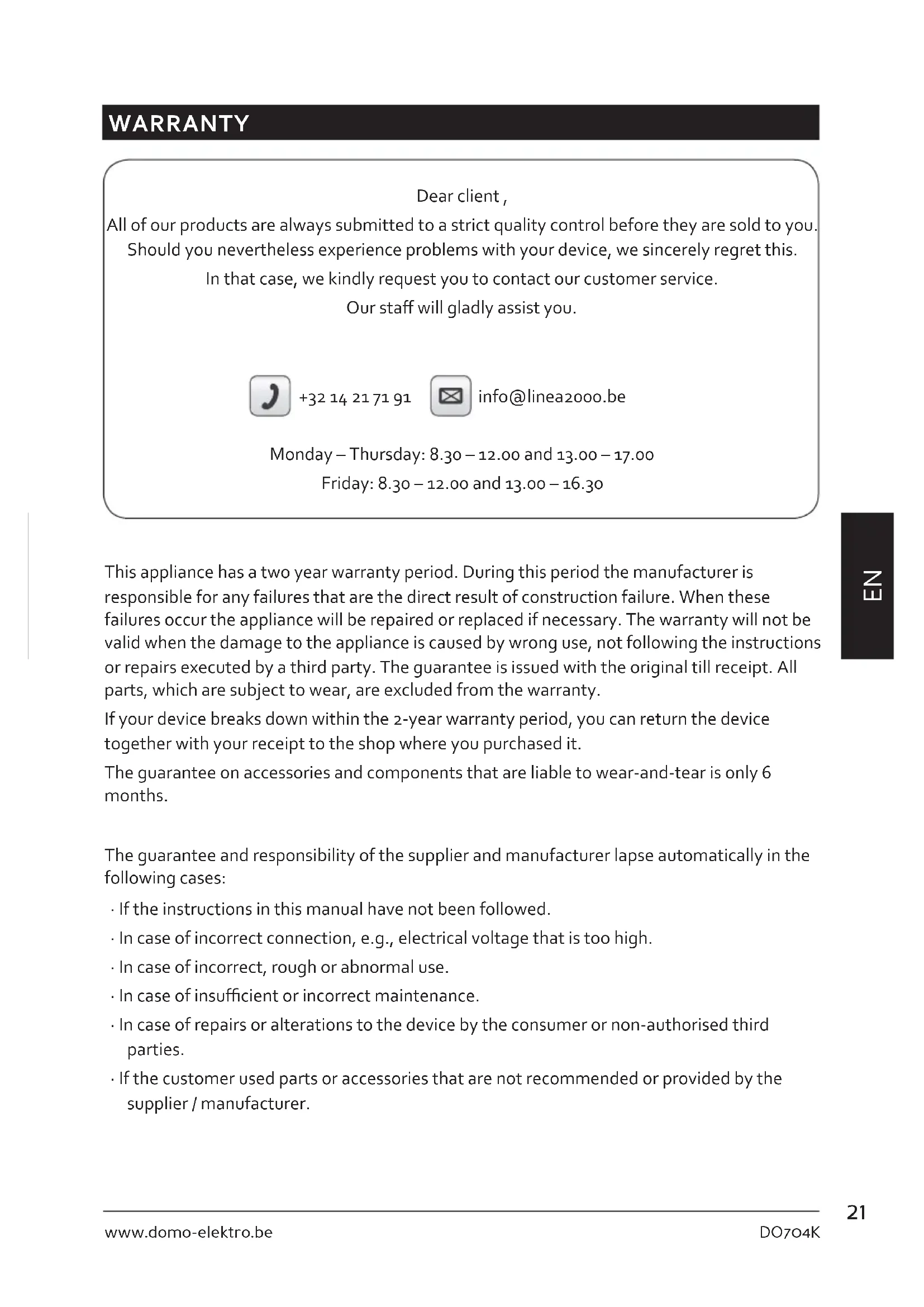

WARRANTY Dear client , All of our products are always submitted to a strict quality control before they are sold to you. Should you nevertheless experience problems with your device, we sincerely regret this. In that case, we kindly request you to contact our customer service. Our sta will gladly assist you. +32 14 21 71 91 info@linea2000.be Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00 Friday: 8.30 – 12.00 and 13.00 – 16.30 This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it. The guarantee on accessories and components that are liable to wear-and-tear is only 6 months. The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.

• In case of incorrect connection, e.g., electrical voltage that is too high.

• In case of incorrect, rough or abnormal use.

• In case of insucient or incorrect maintenance.

• In case of repairs or alterations to the device by the consumer or non-authorised third parties.

• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.22 DO704K

SAFETY INSTRUCTIONS When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.

• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the rst time. Make sure children cannot play with the packaging material.

• This appliance is intended to be used in household and similar applications such as:

• sta kitchen areas in shops, oces and other working environments;

• by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

• This appliance can be used by children aged from 16 years and above if they are continuously supervised. This appliance can be used by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Keep the appliance and its cord out of reach of children aged less than 16 years. Cleaning and user maintenance shall not be done by children.

• The appliance must be disconnected from its power source when not in use, during service and when replacing parts. Allow to cool before putting on or taking o parts, and before cleaning the appliance.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard.

• CAUTION: In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and o by the utility.

• The surfaces of the appliance are likely to get hot during use. It is advised not to touch the surfaces of the appliance other than the handles to avoid burns.

• Never leave the appliance unattended while it is functioning.

• Do not use or store this appliance outdoors.

• Do not use this appliance for other than intended use.

• Check carefully that the voltage and frequency of the power net match the indications on the rating label of the appliance.

• The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local standards and requirements.23 DO704K www.domo-elektro.be

• Do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.

• Do not operate the appliance with wet hands.

• A short power supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. DO NOT USE WITH AN EXTENSION CORD.

• Unwrap the cord completely to prevent overheating of the cord.

• Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

• Do not allow the power cord supply to run underneath or around the unit.

• Do not place on or near a hot gas or electric burner or sink, or in a heated oven.

• Do not place near ammable materials, gases or explosives.

• Make sure the appliance is correctly assembled, then plug the cord in the wall outlet. To disconnect, turn controls to “OFF” or “0” position, then remove the plug from the wall. Never pull the cord or appliance to remove the plug from the socket.

• Failure to maintain this appliance in a clean condition could adversely aect the life of the appliance and possibly result in a hazardous situation.

• During boiling, hot steam may come through the lter or any other opening. Keep hands and face at a safe distance during operation.

• Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

• Do not overll the kettle. Never add water above the maximum level marked on the appliance.

• Do not spill any liquid on the connector.

• The appliance must not be immersed in water or any other liquid for cleaning

• Only use the utensils delivered with the appliance.

• Do not move the appliance while in use or when still hot. Allow to cool before moving the appliance.

• Never use the coee maker when it is empty. Always make sure that there is water in the water tank when you switch on the appliance.

• Do not use the appliance when it shows signs of damage.

• Do not put a hot carafe on a wet or cold surface.

• Never use the coee maker without the lid on the carafe.

• Never leave an empty carafe on a hot keep-warm plate. The carafe could crack.

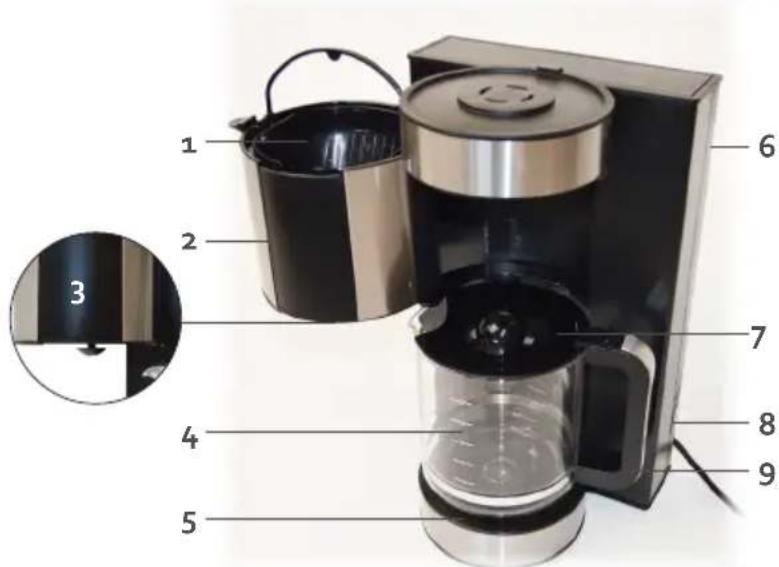

6. Water tank with water level

8. On/o button with indicator

• Check if all accessories are included and if the appliance is not damaged.

• First let water run through the appliance, without adding coee. To do so, ll the water tank up to the maximum level, switch on the coee maker and let the water run through completely. Dispose of the water and repeat one or two times. Afterwards, clean the lter, lter holder, carafe and lid of the carafe thoroughly with warm water. USE

1. Open the lid of the water tank, and use the glass jug to add the required amount of

water. The amount of water should not exceed the maximum indication.

2. Pull the handle on the swivel lever so that it swings open to the left.

3. Place the lter holder back in the machine so that the handle is

4. Put a paper lter into the lter holder.

5. Pour the desired amount of coee into the lter. Close the swivel

6. Insert the glass carafe horizontally into the coee maker. Put it on the keep-warm plate,

under the drip stop.

7. Plug the power cord into the outlet and press the on/o button. The indicator light

will light up and the coee maker will start brewing. You can remove the carafe from the coee maker at any chosen time for a maximum of 30 seconds to pour coee. The appliance will stop dripping automatically.

8. The coee is ready about one minute after the coee stops dripping from the appliance.

• The nal amount of coee will always be a little less than the amount of water you put in, because the coee absorbs water.25 DO704K www.domo-elektro.be

• Be careful while pouring, the coee is hot right after brewing.

• For safety reasons it is considered wise to keep the lid on the carafe. This way the coee also stays warm.

• The appliance will automatically shut o after 40 minutes.

9. The device will keep the coee warm for up to 40 minutes. Afterwards, the device will

shut o automatically. To maintain an optimal coee taste, it is best to serve the coee right after brewing.

10. Always make sure that the coee maker is switched o and unplug the power cord from

the outlet when the appliance is not in use.

POINTERS FOR GREAT COFFEE

• A clean coee maker is essential to make great tasting coee. Clean the appliance regularly according to the guidelines. Always use fresh, cold water in the coee maker.

• Store coee in a dry and cool place.

• Do not reuse any coee, as this will greatly aect the taste of your coee. We also do not recommend reheating coee.

CLEANING AND MAINTENANCE

DECALCIFICATION When? Regularly decalcify your coee maker. Regular decalcication contributes to a constant coee quality, a lower energy use and prolongs the durability of your coee maker. At normal use we recommend to decalcify the appliance every 3 to 4 weeks. How?

• Fill the carafe with 1/4 of vinegar and 3/4 of cold water.

• Pour the mixture into the water tank and turn on the coee maker. Let the mixture run through - without adding coee - and repeat until the liquid dripping out has lost its yellow colour.

• Pour out the mixture.

• Now let the coee maker run at least twice with only water, until the vinegar smell has disappeared.26 DO704K

ENVIRONMENTAL GUIDELINES This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city oce, your household waste disposal service or the shop where you purchased the product. The packaging is recyclable. Please treat the packaging ecologically.27 DO704K www.domo-elektro.be
