Product type	Range hood
Model	AW270192
Brand	Gaggenau
Dimensions (L x D x H)	90 cm x 50 cm x 70 cm (estimate)
Weight	Approximately 25 kg
Power supply	230 V ~ 50 Hz
Motor power	300 W (estimate)
Noise level	55 dB (estimate)
Lighting	Integrated LED
Material	Stainless steel
Control	Touch panel
Connectivity	Wi-Fi (Home Connect)
Filters	Washable metal grease filter
Airflow	600 m³/h (estimate)
Energy class	A+ (estimate)
Maintenance	Regular filter cleaning
Cleaning	Surface: damp cloth; filters: dishwasher
Safety	Automatic shutdown in case of overheating
Repairability	Spare parts available via after-sales service
Included accessories	Mounting kit, installation manual

Frequently Asked Questions - AW270192 GAGGENAU

How to install the Gaggenau AW270192 range hood?

Refer to the provided installation manual. Make sure the hood is within Wi-Fi range for the Home Connect function.

How to connect the hood to the Home Connect app?

Download the Home Connect app, create an account, then follow the steps in the app. You will need to connect the hood to your Wi-Fi network via WPS or manually.

How to clean the hood filters?

The metal grease filters can be cleaned in the dishwasher or by hand with mild detergent. Let them dry before replacing.

What to do if the hood does not connect to Wi-Fi?

Check that the hood is within range of the router, that Wi-Fi is enabled, and that you are using the correct password. Retry the connection procedure.

How to adjust the suction speed?

Use the touch buttons to select speeds 1 to 4. Some models offer an intensive mode.

Can the LED lighting be replaced?

Yes, contact Gaggenau after-sales service to order a compatible replacement bulb.

Is the hood compatible with recirculation mode?

Yes, it can be used in recirculation mode with an activated carbon filter (not included).

What regular maintenance is required?

Clean the grease filters every 4 to 6 weeks and check the general condition of the appliance. Wipe the surface with a soft cloth.

How to reset the hood to factory settings?

Press and hold the stop button for 10 seconds until the indicators flash. The hood will restart.

Where to find spare parts for the AW270192?

Contact Gaggenau customer service or visit the official website to order original parts.

USER MANUAL AW270192 GAGGENAU

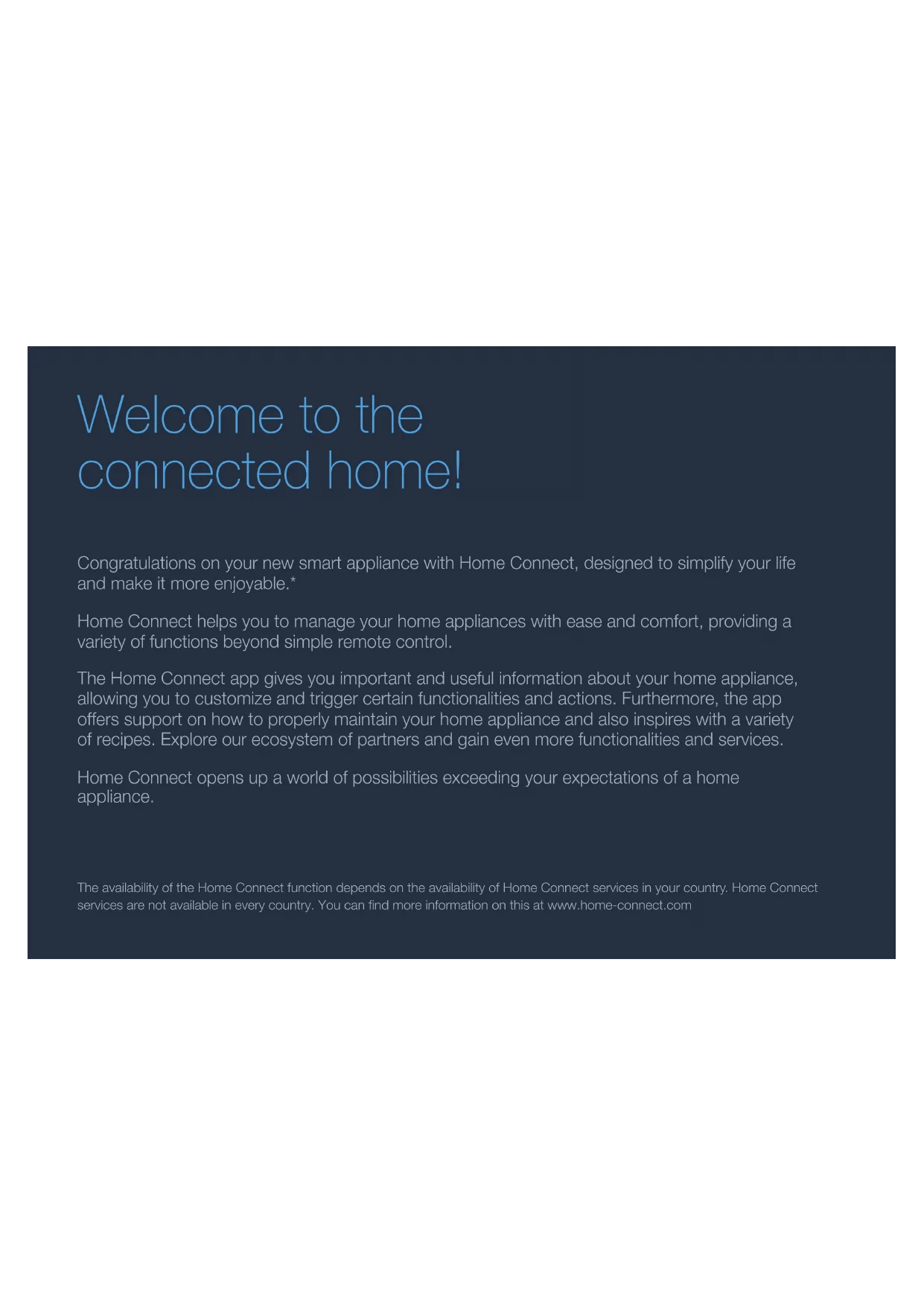

Welcome to the connected home!

Congratulations on your new smart appliance with Home Connect, designed to simplify your life and make it more enjoyable.*

Home Connect helps you to manage your home appliances with ease and comfort, providing a variety of functions beyond simple remote control.

The Home Connect app gives you important and useful information about your home appliance, allowing you to customize and trigger certain functionalities and actions. Furthermore, the app offers support on how to properly maintain your home appliance and also inspires with a variety of recipes. Explore our ecosystem of partners and gain even more functionalities and services.

Home Connect opens up a world of possibilities exceeding your expectations of a home appliance.

The availability of the Home Connect function depends on the availability of Home Connect services in your country. Home Connect services are not available in every country. You can find more information on this at www.home-connect.com

Explore: With the Home Connect app you can...

Manage your appliance

In the app's appliance section you have an overview of your connected home appliances, offering a variety of functions beyond simple remote control. Monitor the home appliance's progress, change or pause programs, change settings, trigger actions, and receive notifications.

Be inspired

The recipe section provides a variety of inspiring recipes, tips and videos, that will make cooking and baking even more enjoyable.

Get support

The service section gives helpful information on how to maintain and operate your home appliance properly.

Discover even more benefits

We are constantly expanding our ecosystems of partners. Please refer to www.home-connect.com for an overview of all partners.

Let's get started: What you need

1 | Your extractor hood must be installed properly and plugged in.
2 | A smartphone or tablet equipped with a current version of iOS or Android operating system.
3 | Your extractor hood within the Wi-Fi signal of your home network.
4 | The name of your Wi-Fi network (SSID) and its password (key).
5 | This installation guide.

Important Information:

Data security: Home Connect values customer data, ensuring the transfer of data is encrypted. Home Connect utilizes a variety of security measures, which are periodically reviewed. For further information visit www.home-connect.com.

Appliance safety: To ensure safe operation of your appliance with Home Connect functionality, please consult the safety information in the appliance instruction manual.

Step 1: Download the Home Connect app and create a user account

1 | Open the App Store (Apple devices) or Google Play Store (Android devices) on your smartphone or tablet.
2 | Search for "Home Connect" in the Store and install the app.

Home Connect app:

Home connect

3 | Open the app and register yourself so that you can create a Home Connect user account.
4 | Make a note of your Home Connect access data (user account and password) - you will need this later.

• The app will take you through the necessary steps for linking your appliance with Home Connect. If necessary, the app will refer to these instructions.

Step 2: Connect your extractor hood to your home network

1 | Your extractor hood must be installed properly and plugged in.
2 | Open your Home Connect app to add your extractor hood.
3 | Please follow the directions in the app and refer to this guide only when prompted to by the app.

Information:

We are constantly working to improve the Home Connect app, which may lead to differences in the setup steps. Please rely on the instructions in the latest version of the Home Connect app to guide you through the setup process.

Step 2.1: Connect your extractor hood to your home network with WPS

Please enter step 2.1 only when prompted to by the app. The following steps describe operations at the home appliance itself.

Note:

To connect the extractor hood to your home network, the hood and the light must be switched off. You can cancel the process at any time by pressing ①

1 | Press and hold the symbol on your extractor hood until it starts flashing.

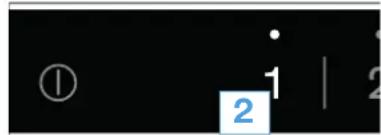

2 | Press 1 to start automatic login to your home network.

The LED for fan setting 1 and flash.

3 Activate the WPS function on your home network router within the next 2 minutes.

If connection to the home network is successful, and the LED for fan setting 3 flash.
The app will get notified once your extractor hood has been successfully connected to your Wi-Fi network.

4 | Follow the instructions in the app.

Information:

If the connection could not be established within 2 minutes, make sure your extractor hood is within the range of your Wi-Fi network.

For some appliances the WPS mode is also called "automatic mode".

Step 2.2: Connecting the extractor hood to your home network, step by step

Follow the instructions in Step 2.2 only if the app tells you to. The following steps set out how to perform this operation on the appliance itself.

Note:

To connect the extractor hood to your home network, the hood and the light must be switched off. You can cancel the process at any time by pressing ① .

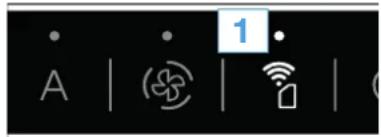

1 | Press and hold the symbol on your extractor hood until it starts flashing.

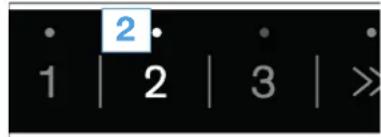

2 | Press 2to start manual login to your home network.

The LED for fan setting 2 and flash.
The appliance will open a temporary Wi-Fi network, "Home Connect", for a few minutes with the password "HomeConnect".
Using this temporary Wi-Fi network, the app will transfer the name (SSID) and the password of your home network to the extractor hood, thereby enabling the extractor hood to connect to your home network.
If connection to the home network is successful, and the LED for fan setting 3 flash.
3 | Follow the instructions in the app.

Information:

For some appliances the step-by-step mode is also called "SAP mode" or "manual mode". If the step-by-step mode does not work please check:

• Your appliance is in the range of the Wi-Fi network.
• Your smartphone/tablet is connected to your home Wi-Fi network.
• Your smartphone/tablet and appliance are connected to the same home Wi-Fi network.

Step 3: Connecting the extractor hood to the Home Connect app

Follow the instructions in Step 3 only if the app tells you to. The following steps set out how to perform this operation on the appliance itself.

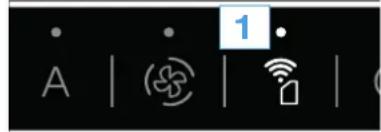

1 | Press and hold the a symbol on your extractor hood until the LED for fan setting 3 and start to flash.

2 | Follow the instructions in the app.

stops flashing on the display's control panel. The login process is now complete.

Information:

If the connection could not be established make sure your smartphone/tablet is within range of your Wi-Fi network.

A工程技术, design and development of a home connective network. It is the combination of a number of components that are designed to support the needs of people living in the community. The main components of this technology include:

Home Connectinaugura un mundo de multiples posibilidades que no espera de un electrodomestico.

Home Connect opens up a world of possibilities, exceeding your expectations of a home appliance.

To learn more about smart home appliances with Home Connect and our partner ecosystem, visit www.home-connect.com

Installation instructions in other languages can be found under "Home Connect" in the instruction manual supplied with your home appliance.
