USER MANUAL 10012350 Klarstein

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability.

CONTENT

Technical Data 14

Declaration of Conformity 14

Safety Instructions 15

Product Description 17

Care and Cleaning 23

Hints on Disposal 24

TECHNICAL DATA

Item number 10012350
Power supply 230-240 V ~ 50 Hz

DECLARATION OF CONFORMITY

Producer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)

SAFETY INSTRUCTIONS

Read all the safety and operating instructions carefully and retain them for future reference. Make sure the voltage in your living area corresponding to the one shown on the rating label of the appliance. And the wall socket is properly grounded.

To reduce the risk of fire in the oven cavity:

• Do not overcook the food.
• Remove wire twist ties from paper or plastic bags before placing bags in the oven.
• Do not heat oil or fat for deep drying as the temperature of oil cannot be controlled.
• After use wipe the waveguide cover with a damp cloth, followed by dry cloth to remove any food splashes and grease.
  Built up grease may overheat and begin to cause smoke or catch fire.
• If materials inside the oven should smoke or ignite, keep oven door closed, turn oven off and disconnect the power supply.
• When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

To reduce the risk of explosion and sudden boiling:

• Liquids and other foods must not be heated in sealed container since they are liable to explode; Baby bottles fitted with a screw cap or teat are considered to be sealed containers.
• Use the wide mouthed container to cook liquid, and the cooked liquid should not be removed out immediately. Several moments should be waited before removing. In order to avoid possible hazards caused by delayed eruptive boiling of liquids.
• Potatoes, sausage and chestnut should be peeled or pierced before cooking. Eggs in their shell, whole hard boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
• The contents of feeding bottles and baby food jars are to be stirred or shaken and the temperature is to be checked before consumption, in order to avoid burns.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a qualified technician in order to avoid a shock hazard.
• After cooking, the container is very hot. Using gloves to take out the food and avoid steam burns by directing steam away from the face and hands.
• Slowly lift the furthest edge of dishes cover and microwave plastic wrap and carefully open popcorn and oven cooking bags away from the face.

To prevent the turntable from breaking:

• Let the turntable cool down before cleaning.
• Do not place hot foods or utensils on the cold turntable.
• Do not place frozen foods or utensils on the hot turntable.

General Instructions

• Make sure the utensils do not touch the interior walls during cooking. Only use utensils that are suitable for use in microwave ovens. Do not store food or any other things inside the oven.
• Do not operate the oven without any liquid or food inside the oven. This would do damage the oven.
• When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.
• Any accessories not recommended by the manufacturer may cause injuries to persons.
• Do not use outdoors.
• If the door or door seals are damaged or the oven is malfunctioned, the oven must not be operated until it has been repaired by a competent person;
• It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
• If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
• Microwave heating of beverages can result in delayed eruptive boiling; therefore care must be taken when handling the container.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
• The appliances are not intended to be operated by means of an external timer or separate remote control system.
• This appliance is intended to be used in household and similar applications, such as: Staff kitchen areas in shops, offices and other working environments; Farm houses; By clients in hotels, motels and other residential environments; Bed and breakfast type environments.
• The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.
  A steam cleaner is not to be used.
• The door or the outer surface may get hot when the appliance is operating.
• During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

PRODUCT DESCRIPTION

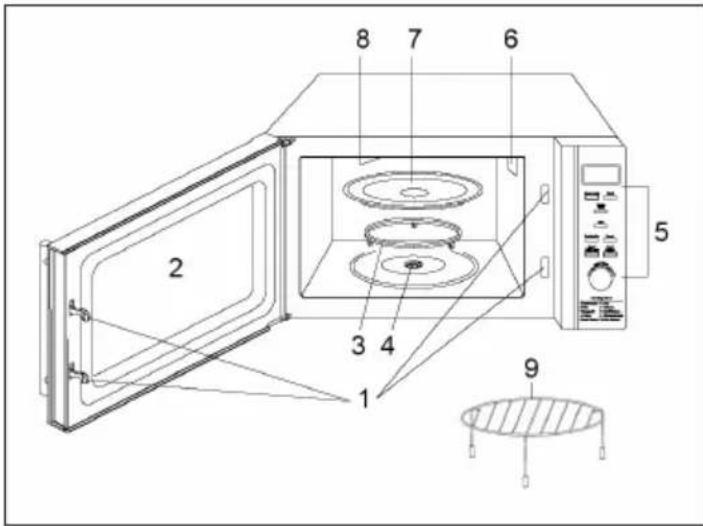

Mikrowave

1 Door Lock System
2 Oven Window
3 Roller Ring
4 Shaft
5 Control Panel
6 Wave Guide
7 Glass Tray
8 Grill Heater
9 Metal Rack

Control Panel

• Menu Action Screen: Cooking time, power, action indicators, and clock time are displayed.
• Power Level: Touch this button a number of times to set microwave cooking power level.
• Clock: Start setting the oven clock and ending by touching it again.
  Weight Adjust: After choosing an auto-cooking menu, use it to specify food weights or number of servings.
• Grill: Set a grill-cooking program.
  Combination: Cooking with combined microwave and grill power.
• Preset: Touch to set the preset feature.
• Start/Quick Start: Touch to start a cooking program. Simply touch it a number of times to set cooking time and cook immediately at full power level.
• Stop/Cancel: Press to cancel setting or reset the oven before setting a cooking program. Press once to temporarily stop cooking, or twice to cancel cooking altogether. It is also used for setting child lock.
• Menu/Time: Turn the dial to set the oven clock time and input cooking time. Turn the dial to select an auto cook menu.

Cooking Menu

1.Wilk/Cooffce 6.Fish
3.Rice 7.Chicken
3. Spaghetti 8, Beef/Murton
4. Potato 9. Shawed Meat
5.AutoReheat 10,Auto Defrost

UTENSILS GUIDELINE

It is strongly recommended to use the containers which are suitable and safe for microwave cooking. Generally speaking, the containers which are made of heat-resistant ceramic, glass or plastic are suitable for microwave cooking. Never use the metal containers for microwave cooking and combination cooking as spark is likely to occur. You can take the reference of below table.

Cookware Microwave Grill Combination
Heat-Resistant Glass Yes Yes Yes
Non Heat-Resistant Glass No No	No
Heat-Resistant Ceramics Yes Yes Yes
Microwave-Safe Plastic Dish Yes No	No No
Kitchen Paper Yes No No
Metal Tray	No Yes No
Baking plate	No Yes No
Aluminum Foil & Foil Container	No	Yes	No

OPERATION

Note: Each time a button is touched, a beep will sound to acknowledge the touch.

Setting Clock Time

The clock works in 12- or 24-hour cycle, just press the CLOCK button to select.

Suppose you want to set the oven clock time to 8:30.

1 In standby mode, press CLOCK button once or twice to set the clock in 12- or 24-hour cycle.
2 Turn MENU/TIME to set 8 o'clock.
3 Press CLOCK button.
4 Turn MENU/TIME to set 30 min.
5 Press CLOCK to confirm the setting.

Note: You can check the clock time during cooking by pressing CLOCK button.

Microwave Cooking

For microwave cooking, the longest cooking time is 95 minutes. You can select power level by pressing the POWER LEVEL button.

Press Power Level Power
1 time 100%
2 times 80%
3 times 60%
4 times 40%
5 times 20%
6 times 00%

For example, suppose you want to cook for 1 minute at 60% of microwave power.

1 In standby mode, press POWER LEVEL repeatedly to select cooking power.
2 Turn MENU/TIME to 1:00.
3 Press START/QUICK START button.

Note: You can check the cooking power during cooking by pressing POWER LEVEL.

Grill

The longest cooking time is 95 minutes. The grill cooking is particularly useful for thin slices of meat, steaks, chops, kebabs, sausages of piece of chicken. It is also suitable for hot sandwiches and au gratin dishes. For example, suppose you want to grill for 12 minutes:

1 In standby mode, press GRILL button.
2 Turn the MENU/TIME to 12:00.
3 Press START/QUICK START button.

Combination 1

The longest cooking time is 95 minutes. 30% of time for microwave cooking, 70% for grill cooking. Use for fish or au gratin. Suppose you want to set combination 1 cooking for 25 minutes:

1 In standby mode, press COMBINATION button once.
2 Turn MENU/TIME to 25:00.
3 Press START/QUICK START button.

Combination 2

The longest cooking time is 95 minutes. 55% of time for microwave cooking, 45% for grill cooking. Use for puddings omelettes, baked potatoes and poultry. Suppose you want to set combination 2 cooking for 12 minutes:

1 In standby mode, press COMBINATION button twice.
2 Turn MENU/TIME to 12:00.
3 Press START/QUICK START button.

Auto Defrost

The oven can be used to defrost food based on the weight you entered. The defrosting time and power level are automatically set once the food category and the weight are programmed. The frozen food weight ranges from 100g to 1800g. Suppose you want to defrost 600g of shrimp:

1 In standby mode, turn MENU/TIME counterclockwise to select "10".
2 Press WEIGHT ADJUST repeatedly to indicate weight 600g.
3 Press START/QUICK START button.

Note: The oven will pause and signal during defrosting process to remind user to turn over food.

Multistage Cooking

Your oven can be programmed for up to 2 automatic cooking sequences. Suppose you want to set the following cooking program:

1 Touch STOP/CANCEL pad to reset the system.
2 Input Microwave-cooking program.
3 Input Grill-cooking program.
4 Touch START/QUICK START pad.

Note: Quick Start, Auto Defrost and Auto Cook can not be set in the multistage cooking mode. The respective lights will turn on to indicate which stage the oven is operating in. After total time has elapsed, beeps will sound.

Preset

Preset function allows the oven to start up in a later time. Suppose now the clock running at 11:10 and you want the oven to start cooking at 11:30.

1 In standby mode, set a cooking program.
2 Touch PRESET button.
3 Rotate MENU/TIME to set hour digit 11.
4 Touch PRESET button again.
5 Rotate MENU/TIME to set minute digit 30.
6 Press START/QUICK START.

Quick Start

The oven will operate at 100% power output for Quick Start program. The longest cooking time is 10 minutes. In standby mode, press the START/QUICK START button a number of times to set cooking time, the oven starts working automatically at full power.

Child Lock

The child lock prevents unsupervised operation by children.

• To set the child lock: In standby mode, without any operation within one minutes the oven will enter child lock mode. In the lock state, the oven can't be operated.
• To cancel the child lock: In child lock mode, open or close the oven door can cancel the program.

AUTO COOK MODE

For the following foods or cooking operation, you do not need to input cooking power and time. Try to focus on telling the oven what you want to cook and how much the food weighs. Steps:

1 In standby mode, turn MENU/TIME dial counterclockwise to select food code.
2 Press WEIGHT ADJUST button a number of times to indicate food weight or number of servings.
3 Press START/QUICK START button.

Code Program Notes
1 Milk/Coffee (200 ml)	1 The result of auto cook depends on factors such as the shape and size of food, your personal preference as to the doneness of certain foods and even how well you happen to place food in the oven. If you find the result at any rate not quite satisfactory, please adjust the cooking time a little bit accordingly.
2 Rice (g)
3 Spaghetti (g)
4 Potato (each 230g)
5 Auto Reheat (g)
6 Fish (g)	2 For milk/coffee and potato, parameters on display are not weight but number of servings.
7 Chicken (g)	3 For chicken, beef/mutton and steaks, the oven pauses and beeps during cooking to remind you to turn food over for uniform cooking.
8 Beef/Mutton (g)
9 Skewered Meat (g)

CARE AND CLEANING

• The oven should be cleaned regularly and any food deposits removed.
• Remove the power cord from the wall outlet before cleaning. Don't immerse the appliance in water or other fluids when cleaning.
• Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation
• Never use hard detergent, gasoline, abrasive powder or metal brush to clean any part of the appliance
• Do not remove the waveguide cover

How get rid of strange odors

When the microwave oven has been used for a long time, there may be some strange odors exist in oven, Following 3 methods can get rid of them:

1 Place several lemon slices in a cup, then heat with high Micro Power for 2-3 min.
2 Place a cup of red tea in oven, then heat with high micro power.
3 Put some orange peel into oven, and then heat them with high Micro Power for 1 minute.

Exterior:

Wipe the enclosure with a dampened soft cloth

Door:

Using a dampened soft cloth, wipe clean the door and window Wipe the door seals and adjacent parts to remove any spill or spatter.

Control panel:

Wipe the control panel with a slightly dampened soft cloth

Interior walls:

Wipe clean the cavity with a dampened soft cloth. Wipe clean the waveguide cover to remove any food splashed

Turntable / Rotation ring / Rotation axis:

Wash with mild soap water. Rinse with clean water and allow drying thoroughly.

HINTS ON DISPOSAL

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.
