USER MANUAL PG 8542 SEVERIN

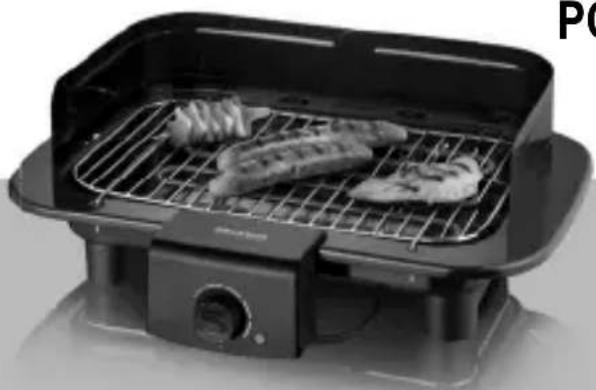

Black outdoor grill with grating and kitchen equipment, no visible text or symbols

Exterior view of a modern kitchen grater with two fried food items on the grille (no text or symbols visible)

PG 8538

PG 8539

PG 8542

PG 8544

PG 9710

GB Instructions for use Barbecue grill 11

Technical line drawings of two outdoor furniture setups with vertical supports and a small inset showing a folding table (no text or symbols)

Barbecue-Grill

Before using the appliance, please read the following instructions carefully and keep this manual for future reference. The appliance must only be used by persons familiar with these instructions.

General information

The barbecue grills are available in different confi gurations.

Check which of the diagrams (I - III) corresponds to your grill before fi tting any accessories.

Depending on the model, the grill may be provided with a wind shield, and the grill rack with a separate handle

Grill models with additional base stand:

Assemble the base stand according to the schematic diagram IV. Depending on the model, a warming rack may be included with your grill.

Then place the grill onto the stand. The small feet under the grill connect with the tops of the vertical legs of the base stand.

Ensure that the grill and base stand are placed in a safe and stable position.

The power cord should be routed in such a way that no one is likely to trip over it.

Important safety instructions

- This appliance is designed for outdoor use only; it must not be operated within enclosed spaces.

- The equipment should only be connected to an earthed socket installed in accordance with the regulations. It must be operated with an additional earth-leakage circuit-breaker with a rated tripping current not exceeding 30mA.

• Make sure that the supply voltage corresponds with the voltage marked on the rating label.

- The power cord should be regularly examined for any signs of damage. In the event of such damage being found, the appliance must no longer be used.

• Before cleaning the grill, ensure it is disconnected from the power supply and has completely cooled down.
• To avoid the risk of electric shock, the heating element and the power cord must not be immersed in liquid or even allowed to come into contact with it.
• Clean the grill rack with hot soapy water. For detailed information on cleaning the appliance, please refer to the section Cleaning and care.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system
• Do not, under any circumstances, use charcoal or any other solid or liquid fuel to operate the grill.

- Caution: Do not cover the grill rack with aluminium foil, barbecue dishes or other items, as the resulting build-up of heat could seriously damage the grill.

• The picture shows how much water should be put into the grill pan.
• This appliance may be used by children (at least 8 years of age) and by persons with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, provided they have been given supervision or instruction concerning the use of the appliance and fully understand all dangers and safety precautions involved.
  • Children must not be permitted to play with the appliance.
• Children must not be

permitted to carry out any cleaning or maintenance work on the appliance unless they are supervised and at least 8 years of age.

- The appliance and its power cord must be kept well away from children under 8 at all times.

• Caution: Keep any packaging materials well away from children – these are a potential source of danger, e.g. of suffocation.
• Before the appliance is used, the main body as well as any attachment fitted should be checked thoroughly for any defects. Should the appliance, for instance, have been dropped onto a hard surface, it must no longer be used: even invisible damage may have adverse effects on the operational safety of the appliance.
• During operation, the barbecue grill must be placed on a level, heat-resistant surface, impervious to splashes and stains. When grilling food with a high fat or moisture content, splashes are not always avoidable.
• Do not position the grill next to a wall or corner, and ensure that no infl ammable materials are stored near it.
• Remember that food with a high fat or moisture content may tend to ignite; therefore always fi ll the grill pan with

water before use. Do not connect the grill to mains power until the grill pan has been fi lled with water.

• The water helps to cool down the grill pan, reduces the build-up of smoke, and also facilitates cleaning.
• Ensure that the water level inside the grill pan is kept between the ‘Min.’ and ‘Max.’ markings at all times during use.

Max. water level indicator
Min. water level indicator

Always ensure that the water level is kept above the 'Min.' mark. Water should be added in good time, while ensuring that it does not come into contact with the heating element. Caution: Disconnect the grill from the mains before adding water.

• Before the grill is used, always check that the heating element is correctly fitted in the housing and grill pan.
• The barbecue grill must be supervised at all times during operation.
• Always bear in mind that the housing surfaces as well as the heating element and the grill rack become very hot during operation. Even after the heating element is switched off, it must not be touched until it has sufficiently cooled down - there is otherwise a severe danger of burns.
• To avoid the risk of electric shock, the heating element and the power cord must not be immersed in liquid or even allowed to come into contact with it.
• Do not allow the power cord to touch any hot parts of the appliance.

• Always remove the plug from the wall socket

• before filling the grill pan with water,
• after use,
• in case of any malfunction, and

• during cleaning.

• The use of an extension-lead reel causes a loss of power, possibly combined with a subsequent heat build-up in the cable. It is therefore necessary to unwind the cable completely if a cable reel is used. Make sure that the reel is approved for outdoor use by the manufacturer.

• Caution: Do not move the grill when it is in use. Before carrying, transporting or storing the grill, ensure that is has sufficiently cooled down. Pour out any remaining water after use.
• Ensure that the grill is not stored outdoors, or in any other location where it might be subjected to extremes of temperature or high humidity.
• No responsibility is accepted if damage results from improper use, or if these instructions are not complied with.
• This barbecue grill is intended for domestic use only and not for commercial applications.
• In order to avoid hazards, and to comply with safety requirements, repairs to this electrical appliance or its power cord must be carried out by our customer service. If repairs are needed, please send the appliance to our customer service department (see appendix).
• This product complies with all binding CE labelling directives.

Heating element

The junction box contains a safety switch. Place the heating element into the grill pan. The safety switch is activated automatically when the heating element has been properly fitted. If not fitted correctly, the appliance can not be switched on.

Before using for the first time

• Remove any packaging materials from the appliance.
• Clean the grill rack and grill pan with warm soapy water; wipe thoroughly dry afterwards.
• Grillassembly:
• Place the heating element into the grill pan.
• Fit the grill rack on top.
• If required, additional accessories may be fitted according to the diagram.
• Fill the grill pan with water up to the 'Max' marking.
• Insert the plug into a suitable earthed power-outlet.
• Let the grill heat up for approximately 10 minutes without any food on the rack. This will lessen the smell typically encountered when first switching on a new grill (a slight smell and a little smoke may be emitted).

Grilling

• The grill pan must be felled with water up to the 'Max' marking.

• Height-adjustable models: When cooking delicate foods, the rack should be adjusted to its highest position.

• Insert the plug into a suitable earthed power-outlet.

• Thermostat-controlled models: Turn the thermostat control knob clockwise all the way. The indicator light comes on, and the heating element is permanently switched on.
  • After approximately 10 minutes, the heating element reaches the right temperature for grilling.
• The grill can also be used to keep the food warm: by turning the thermostat control back, the intervals between the heating element switching on and off can be reduced to a minimum.
• Caution: To prevent a possible build-up of heat and subsequent damage to the appliance, the food to be cooked must be placed directly onto the grill rack. Do not place any objects (e.g. aluminium foil, barbecue plates or other items) between the food and the heating element.
• As the water in the grill pan evaporates during grilling, it must be topped up in good time. When adding water, ensure that the water does not come into contact with the heating element. Caution:

Disconnect the grill from the mains before adding water.

- Once the grilling process is finished:

• Set the thermostat control knob back to ‘●’.
• Remove the plug from the power outlet and allow the grill to cool down.

Cleaning and care

• Ensure that the grill is thoroughly cleaned after use.
• Before cleaning the grill, ensure it is disconnected from the power supply and has completely cooled down.
• Do not use metallic pads or abrasive cleaning agents.
• Remove the grill rack and clean it with warm soapy water. To remove persistent food residues, it can be left soaking for a while.
• The cast rack may also be cleaned in a dish-washer.
• The heating element can be removed for cleaning. To avoid the risk of electric shock, do not clean the heating element with water and do not immerse it in water. The junction box may be wiped with a slightly damp lint-free cloth.
• All other parts can be cleaned with a cloth soaked in soapy water, and should be wiped completely dry afterwards.

Disposal

Devices marked with this symbol must be disposed of separately from your household waste, as they contain valuable materials which can be recycled. Proper disposal protects the environment and human health. Your local authority or retailer can provide information on the matter.

Guarantee

This product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not been modified, repaired or interfered with by any unauthorised person, or damaged through misuse.

This guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. This guarantee does not affect your statutory rights, nor any legal rights you may have as a consumer under applicable national legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase.
