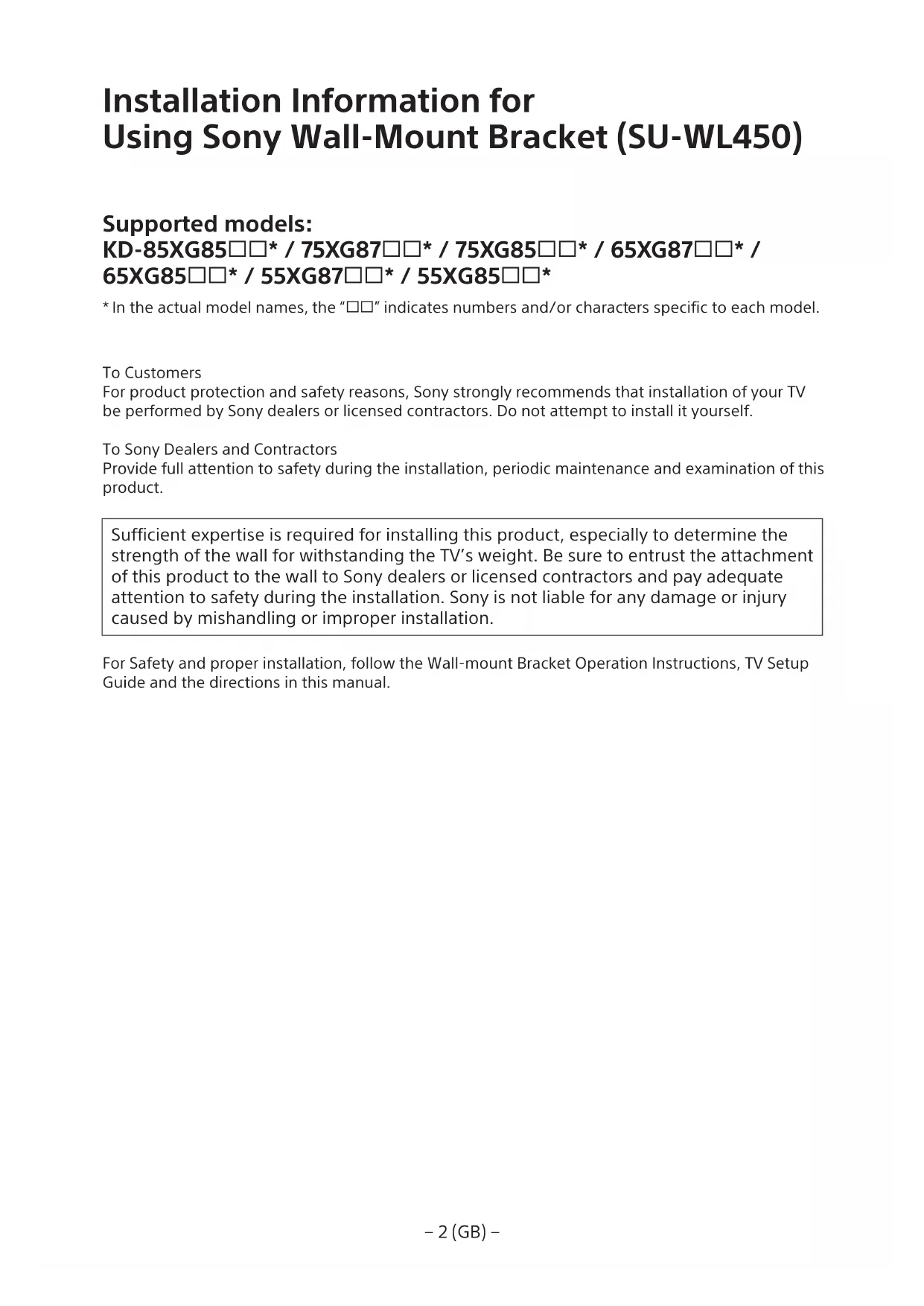

USER MANUAL Bravia KD65XG8588 SONY

* In the actual model names, the “☐☐” indicates numbers and/or characters specific to each model.

To Customers

For product protection and safety reasons, Sony strongly recommends that installation of your TV be performed by Sony dealers or licensed contractors. Do not attempt to install it yourself.

To Sony Dealers and Contractors

Provide full attention to safety during the installation, periodic maintenance and examination of this product.

Sufficient expertise is required for installing this product, especially to determine the strength of the wall for withstanding the TV's weight. Be sure to entrust the attachment of this product to the wall to Sony dealers or licensed contractors and pay adequate attention to safety during the installation. Sony is not liable for any damage or injury caused by mishandling or improper installation.

For safety and proper installation, follow the Wall-mount Bracket Operation Instructions, TV Setup Guide and the directions in this manual.

On Safety

Thank you for purchasing this product.

To Customers

Sufficient expertise is required for installing this product. Be sure to subcontract the installation to Sony dealers or licensed contractors and pay special attention to safety during the installation. Sony is not liable for any damages or injury caused by mishandling or improper installation, or installing any other than the specified product. Your Statutory Rights (if any) are not affected.

To Sony dealers

Sufficient expertise is required for installing this product. Be sure to read this instruction manual thoroughly to do the installation work safely. Sony is not liable for any damages or injury caused by mishandling or improper installation. Please give this manual to the customer after installation.

This instruction manual shows the correct handling of the product and important precautions necessary to prevent accidents. Be sure to read this manual thoroughly and use the product correctly. Keep this manual available for future reference.

Products by Sony are designed with safety in mind. If the products are used incorrectly, however, it may result in a serious injury through fire, electric shock, the product toppling over, or the product dropping. Be sure to observe the precautions for safety to prevent such accidents.

CAUTION

Specified products

This Wall-Mount Bracket is designed for use with the specified products (TVs). For TVs, refer to their Reference Guide to verify that the Wall-Mount Bracket can be used.

To Customers

WARNING

If the following precautions are not observed, serious injury or death through fire, electric shock, or the product dropping can result.

Be sure to subcontract the installation to licensed contractors and keep small children away during the installation.

If the Wall-Mount Bracket or the TV is not installed correctly, the following accidents may occur. Be sure licensed contractors carry out installation.

  • The TV may fall and cause a serious injury such as a bruise or a fracture.
  • If the wall on which the Wall-Mount Bracket is installed is unstable, uneven, or not perpendicular to the floor, the unit may fall and cause injury or property damage. The wall should be capable of supporting a weight of at least four times the TV weight. (Refer to your TV's Reference Guide for its weight.)
  • If the installation of the Wall-Mount Bracket on the wall is not sufficiently sturdy, the unit may fall and cause injury or property damage.

Be sure to subcontract moving or dismounting of the TV to licensed contractors.

If persons other than licensed contractors transport or dismount the TV, it may fall and cause injury or property damage. Be sure that two or more persons (three or more persons for 75 inches and above TV set) carry or dismount the TV.

Do not remove screws, etc., after mounting the TV.

If you do so, the TV may fall and cause injury or property damage.

Do not make alterations to the parts of the Wall-Mount Bracket.

If you do so, the Wall-Mount Bracket may fall and cause injury or property damage.

Do not mount any equipment other than the specified product.

This Wall-Mount Bracket is designed for use with the specified product only. If you mount equipment other than specified, it may fall or break, and cause injury or property damage.

Do not apply any load other than the TV on the Wall-Mount Bracket. Do not shake the TV left/right, up/down.

If you do so, the TV may fall and cause injury or property damage.

Do not lean on or hang from the TV.

Do not lean on or hang from the TV as it may fall on you and cause serious injury.

CAUTION

If the following precautions are not observed, injury or property damage may occur.

Do not handle the product with excessive force during cleaning or maintenance.

Do not apply excessive force on the topside of the TV. If you do so, the TV may fall and cause injury or property damage.

Precautions

  • If you use the TV installed on the Wall-Mount Bracket for a long time, the wall behind or above the TV may become discolored or the wallpaper may come unstuck, depending on the material of the wall.
  • If the Wall-Mount Bracket is removed after installing it on the wall, the screw holes are left.
  • Do not use the Wall-Mount Bracket in a place where it is subjected to mechanical vibrations.

Installing the Wall-Mount Bracket

To Sony Dealers

WARNING

The following instructions are for Sony dealers only. Be sure to read the safety precautions described above and pay special attention to safety during the installation, maintenance, and checking of this product.

Do not install the Wall-Mount Bracket on wall surfaces where the corners or sides of the TV protrude away from the wall surface.

Do not install the Wall-Mount Bracket on wall surfaces such as a pillar, where the corners or sides of the TV protrude away from the wall surface. If a person or object happens to hit the protruded corner or side of the TV, it may cause injury or property damage.

SONY Bravia KD65XG8588 - Do not install the Wall-Mount Bracket on wall surfaces where the corners or sides of the TV protrude away from the wall surface. - 1

Do not install the TV over or under an air conditioner.

If the TV is exposed to water leaks or air current from an air conditioner for a long time, it may cause a fire, an electric shock, or a malfunction of the TV.

Be sure to install the Wall-Mount Bracket securely to the wall following the instructions in this instruction manual.

If any of the screws are loose or fall out, the Wall-Mount Bracket may fall and cause injury or property damage. Be sure to use the appropriate screws for the material of the wall and install the unit securely using four or more screws of 8 mm diameter (or equivalent).

SONY Bravia KD65XG8588 - Be sure to install the Wall-Mount Bracket securely to the wall following the instructions in this instruction manual. - 1

Be sure to use the supplied screws and attachment parts properly following the instructions given in this instruction manual. If you use substitute items, the TV may fall and cause bodily injury to someone or damage to the TV.

Be sure to assemble the bracket properly following the instructed procedure explained in this instruction manual.

If any of the screws are loose or fall out, the TV may fall and cause bodily injury to someone or damage to the TV.

Be sure to tighten the screws securely in the designated position.

If you fail to do so, the TV may fall and cause bodily injury to someone or damage to the TV.

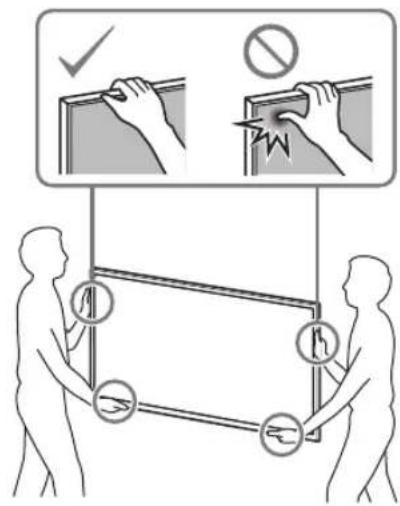

Be careful not to subject the TV to shock during installation.

If the TV is exposed to shock, it may fall or break apart. This may cause injury.

Be sure to install the TV on a wall that is both perpendicular and flat.

If you fail to do so, the TV may fall and cause injury.

After proper installation of the TV, secure the cables properly.

If people or objects get tangled with cables, this may result in injury or damage to the TV.

Do not allow the mains lead or the connecting cable to be pinched.

If the mains lead or the connecting cable is pinched between the unit and the wall or is bent or twisted by force, the internal conductors may become exposed and cause a short circuit or an electrical break. This may cause a fire or an electric shock.

SONY Bravia KD65XG8588 - Do not allow the mains lead or the connecting cable to be pinched. - 1

The screws needed to secure the Wall-Mount Bracket to the wall are not supplied.

Use the appropriate screws for the wall material and structure when mounting the Wall-Mount Bracket.

Table of Contents

Preparing for installation....5

Checking the parts....5

Deciding on the installation location ...... 6

Installing the Base on the wall 8

Preparing for the installation of the TV....9

KD-85/75XG85□□, KD-75XG87□□ 9

KD-65/55XG87□□, KD-65/55XG85□□....11

Installing the TV on the wall....13

KD-85/75XG85□□, KD-75XG87□□ ....13

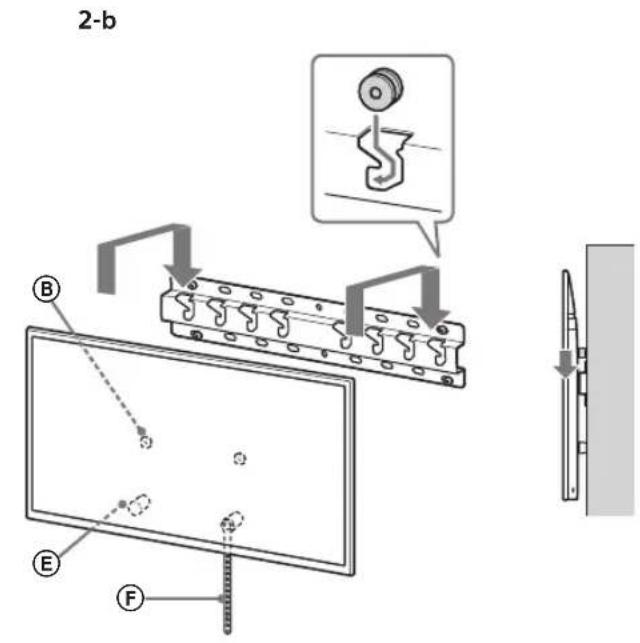

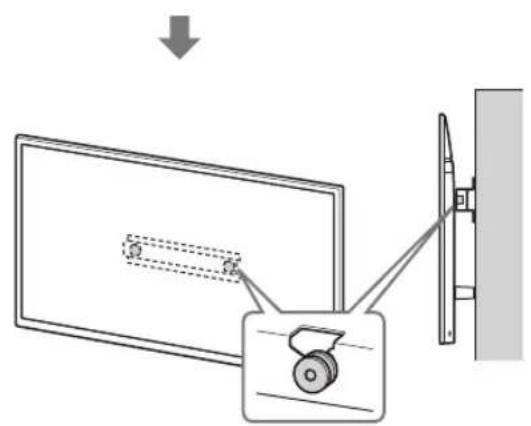

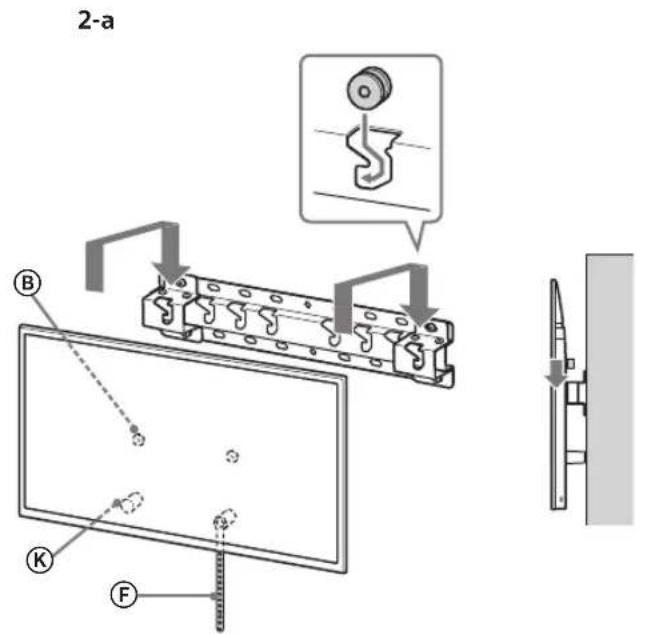

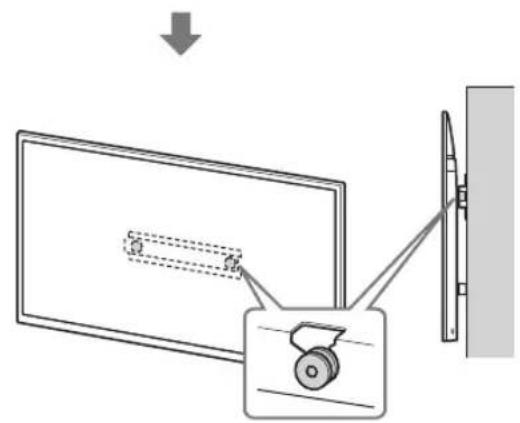

KD-65/55XG87□□, KD-65/55XG85□□....15

Confirming the completion of the installation ....18

Other information....18

Specifications....18

Installing the TV onto the wall

Installation procedure differs, depending on your TV.

Use the Wall-Mount Bracket SU-WL450 to install the TV to the wall.

Note

- Be sure to store the removed screws in a safe place, keeping them away from children.

Preparing for installation

  • Have the TV's Reference Guide and Setup Guide at hand before installation.
  • Be sure to have a Phillips screwdriver that fits the screws prior to the assembly.
  • Confirm the installing position of your TV.
  • Prepare four or more screws of 8 mm diameter and one screw of 5 mm or equivalent (not supplied). Select screws suitable for the material of the wall.

Checking the parts

Supplied with SU-WL450

- Verify that all the parts are included.

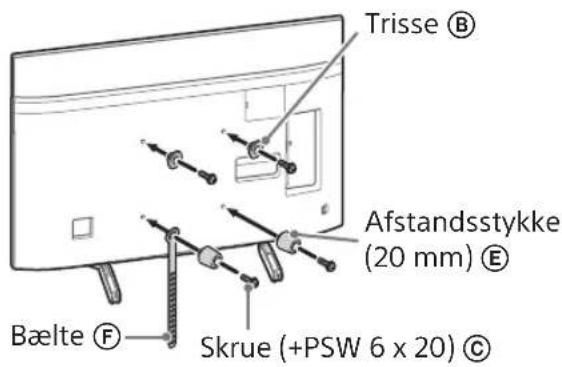

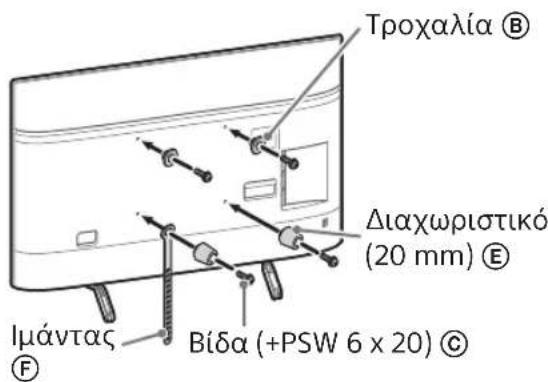

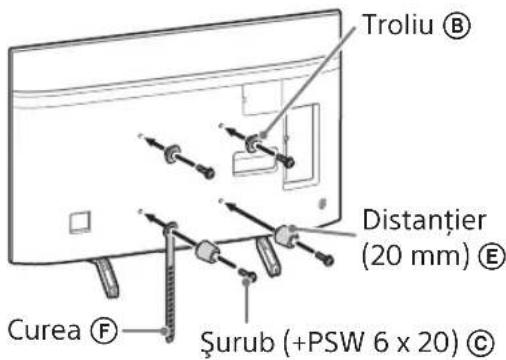

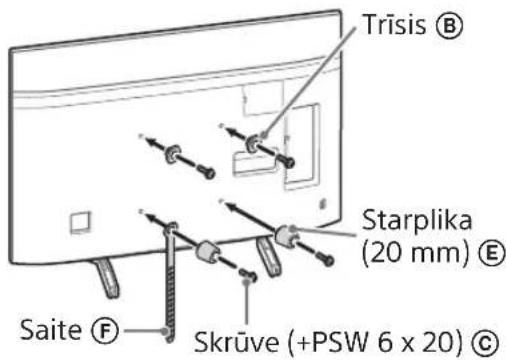

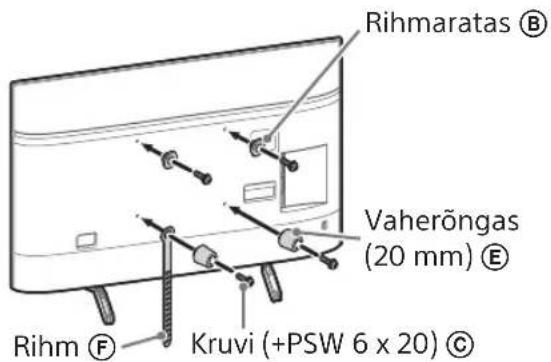

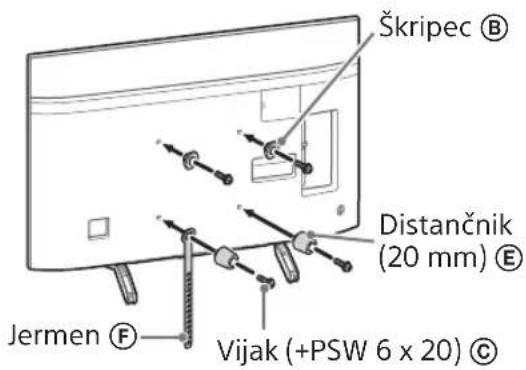

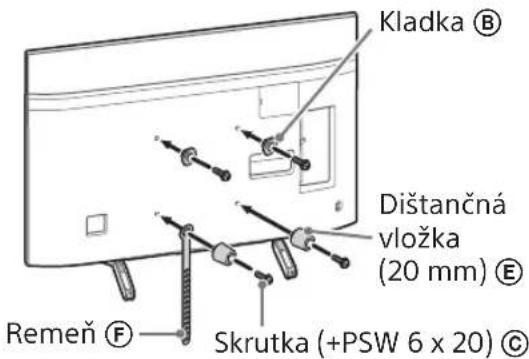

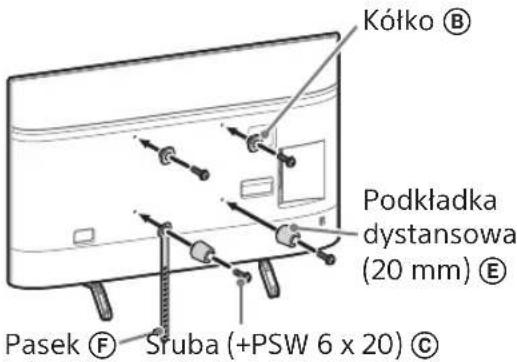

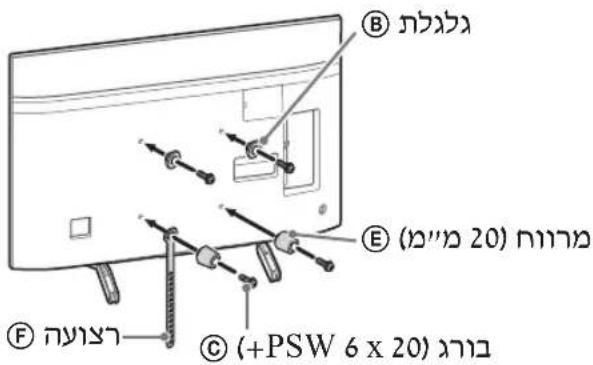

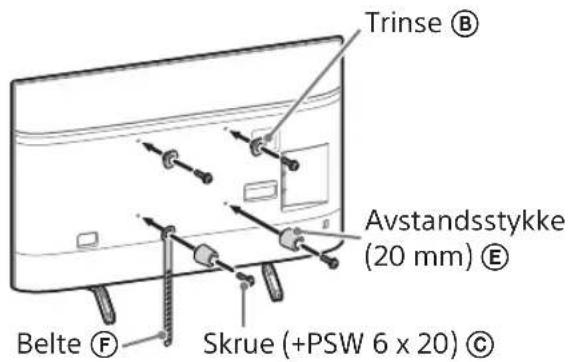

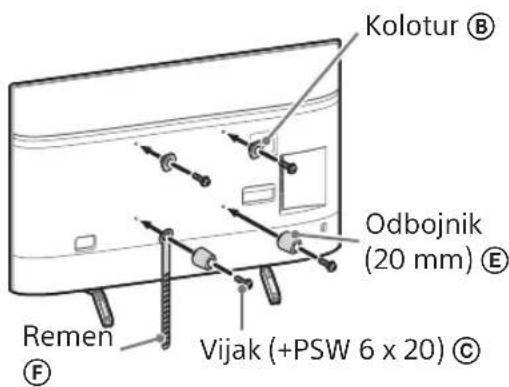

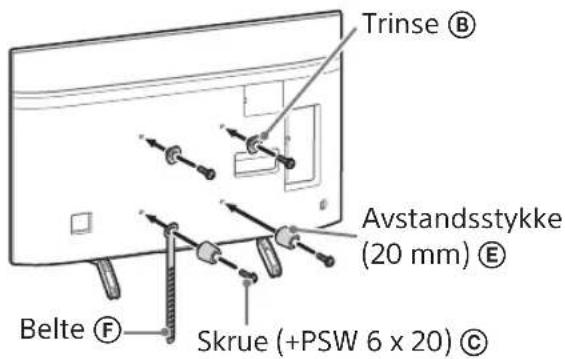

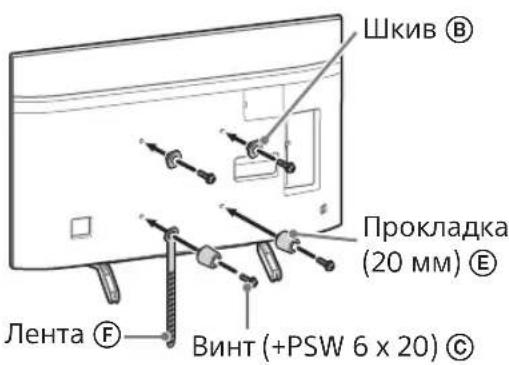

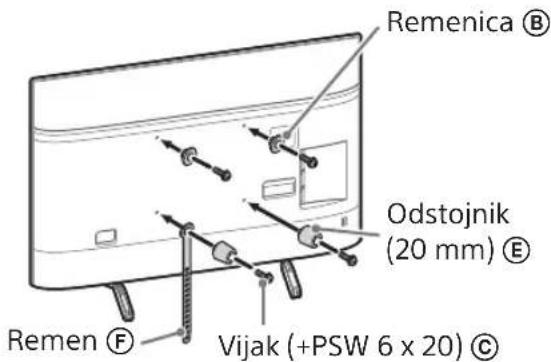

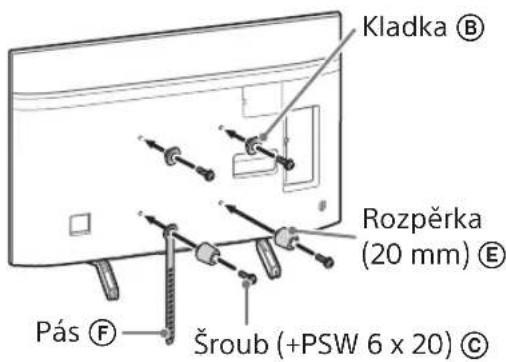

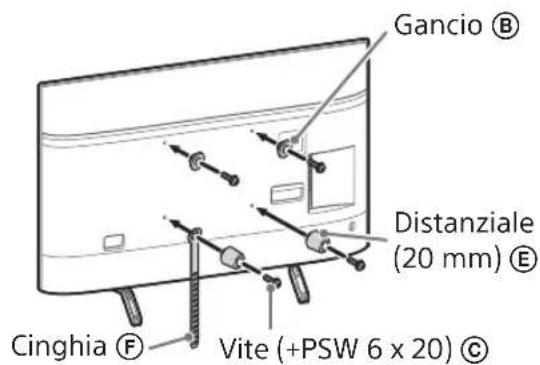

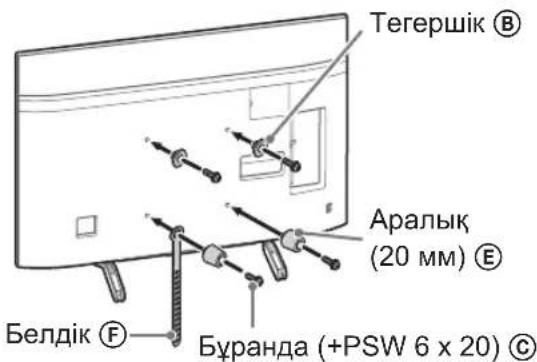

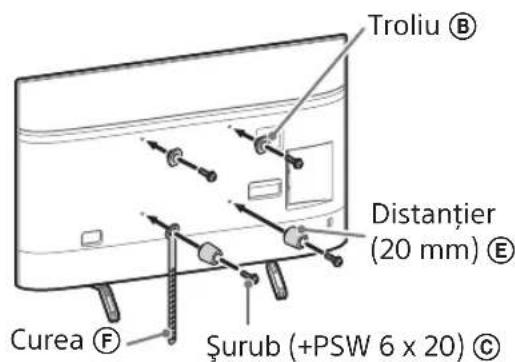

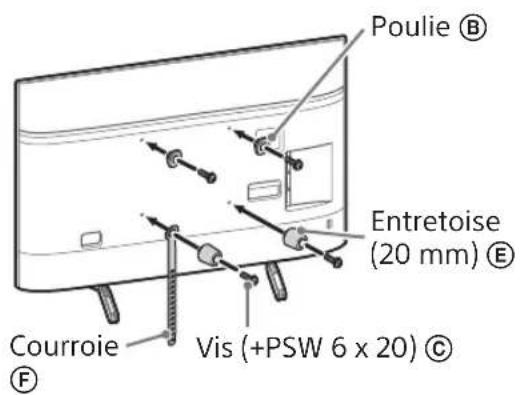

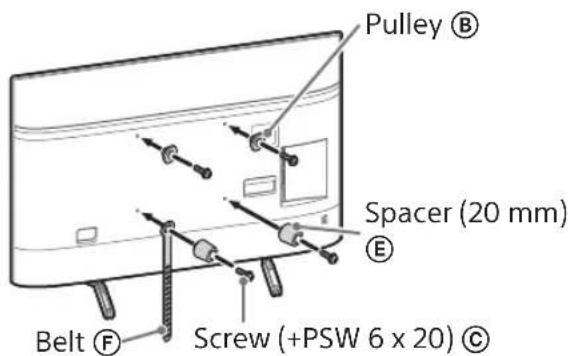

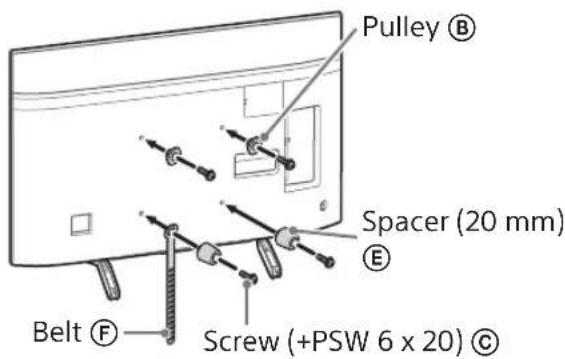

A Base (20) (1) B Pulley (2)SONY Bravia KD65XG8588 - Supplied with SU-WL450 - 1SONY Bravia KD65XG8588 - Supplied with SU-WL450 - 2
C PSW 6x20 (4) D PSW 4x20 with Bush (2)SONY Bravia KD65XG8588 - Supplied with SU-WL450 - 3SONY Bravia KD65XG8588 - Supplied with SU-WL450 - 4
E Spacer (20) (2) F Belt (1)SONY Bravia KD65XG8588 - Supplied with SU-WL450 - 5SONY Bravia KD65XG8588 - Supplied with SU-WL450 - 6
G Bush (20) (M4) (2) H PSW 4x20 (2)SONY Bravia KD65XG8588 - Supplied with SU-WL450 - 7SONY Bravia KD65XG8588 - Supplied with SU-WL450 - 8
I Base Adaptor (2) J PSW 4x10 (8)SONY Bravia KD65XG8588 - Supplied with SU-WL450 - 9SONY Bravia KD65XG8588 - Supplied with SU-WL450 - 10
K Spacer (60) (2) L PSW 6x50 (2)SONY Bravia KD65XG8588 - Supplied with SU-WL450 - 11SONY Bravia KD65XG8588 - Supplied with SU-WL450 - 12
M Bush (M4) (2) N PSW 4x50 (2)SONY Bravia KD65XG8588 - Supplied with SU-WL450 - 13SONY Bravia KD65XG8588 - Supplied with SU-WL450 - 14

Deciding on the installation location

1 Decide on the installation location.

Make sure that the wall has enough space for the TV and is capable of supporting a weight of at least four times that of the TV.

Refer to the following table on installing the TV to the wall. Refer to your TV's Reference Guide for the TV's weight.

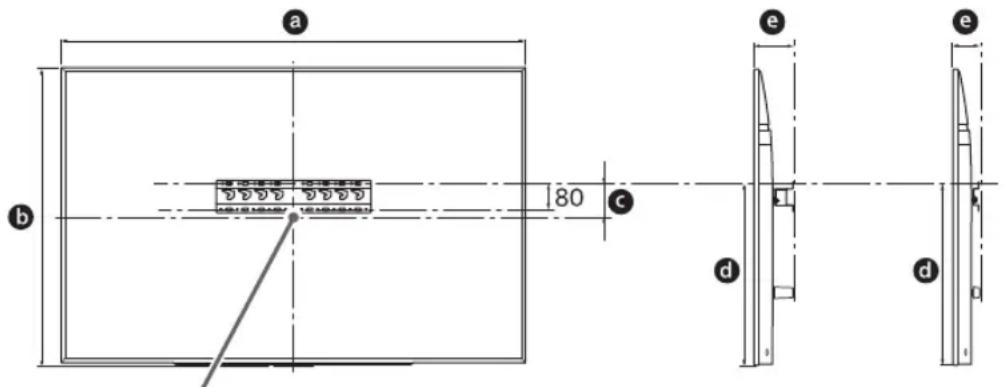

Standard mounting Slim mountinga b 80 c d e d e

Screen centre point

Unit: mm

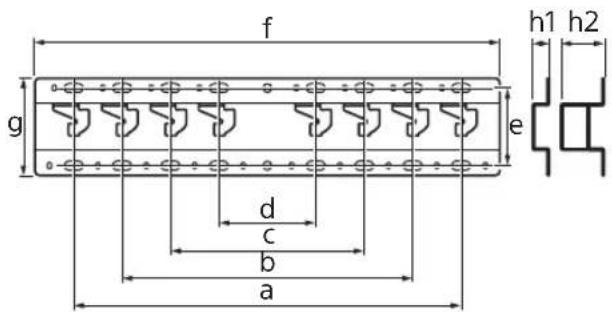

Model NameDisplay dimensionsScreen centre dimensionLength for mounting
abcde
Standard mountingSlim mounting
KD-85XG85□□1,9091,097251803142100
KD-75XG87□□KD-75XG85□□1,67396310759511675
KD-65XG87□□KD-65XG85□□1,4508369952311573
KD-55XG87□□KD-55XG85□□1,23171310646811573

Note

  • Figures in the table may differ slightly depending on the installation.
  • When your TV is installed on the wall, the upper side of the TV slightly leans forward.

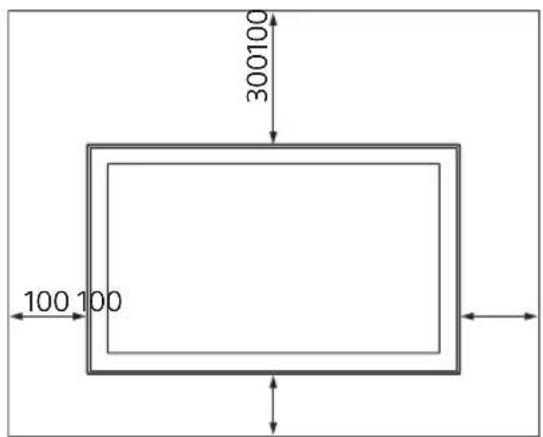

Allow for suitable clearance between the TV and the ceiling and protruding parts of the wall as shown below.

Unit: mm

300100 100 100

• To ensure proper ventilation and prevent the collection of dirt or dust:

— Do not lay the TV set flat, install upside down, backwards, or sideways. — Do not place the TV set on a shelf, rug, bed or in a closet. — Do not cover the TV set with a cloth, such as curtains, or items such as newspapers, etc. — Do not install the TV set as shown below.

Air circulation is blocked.

Architectural cross-section diagram of a wall with decorative elements and no visible text or symbols

Note

- If you intend to route the cables in the wall, make a hole in the wall to insert the cables before beginning the installation.

To prevent pinching the cables, prepare a hole in the wall somewhere outside the perimeter of the Base (20) Ⓐ, Base Adaptor ① and Spacer (20) Ⓔ, Spacer (60) Ⓗ.

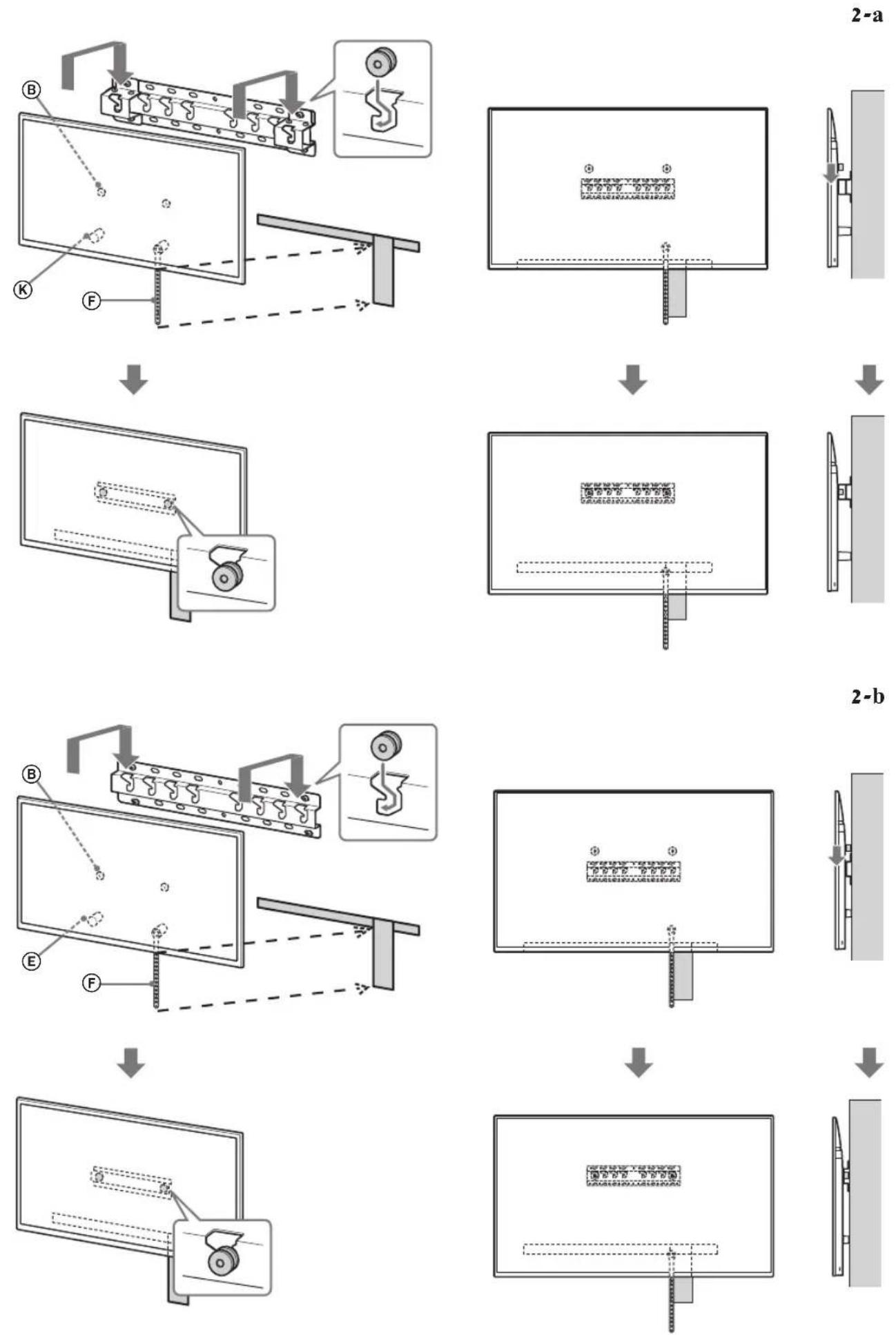

2 Select Wall mounting style. It is selectable as shown below.

2-a Standard mount

2-b Slim mount

Refer to the table of step 1.

WARNING

- When 2-b is selected, rear terminal access is limited.

2-a 2-b

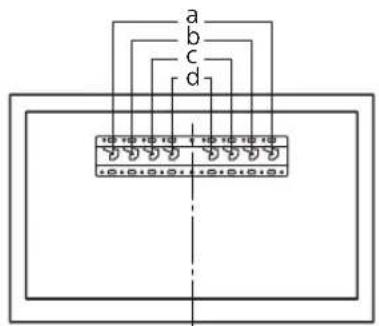

3 Refer to the below table about the Base Adaptor fitting location. In case of selecting 2-b, then skip this step.

Model Name Hook location
KD-85XG85□□
KD-75XG87□□a
KD-75XG85□□
KD-65XG87□□
KD-65XG85□□b
KD-55XG87□□
KD-55XG85□□

a b c d

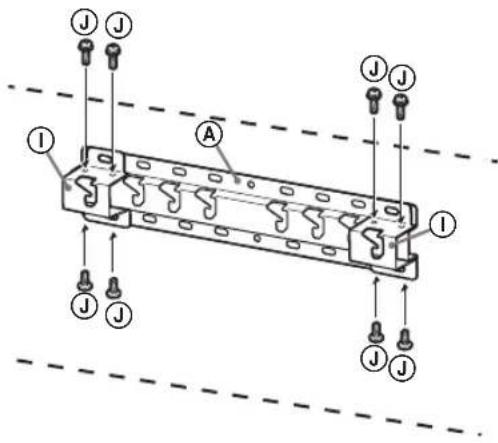

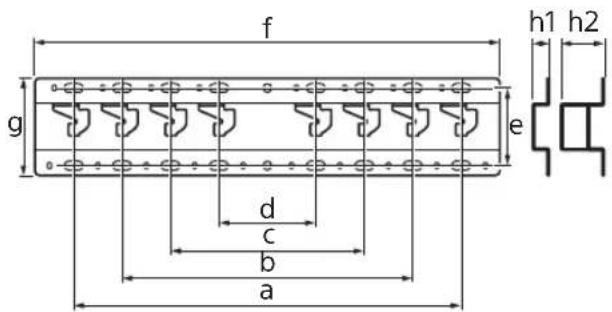

Fit Base Adaptor ① by using Screw (PSW 4x10) ② to Base (20) ③ when selecting 2-a.

Technical diagram of a mechanical or electrical component with labeled parts and connectors

4 Decide the positions of the screws for installing the Base (20) Ⓐ.

Refer to the specifications on page 18. When selecting 2-a, please use the hole positions of Base Adaptor ①.

WARNING

  • The wall that the TV will be mounted on should be able to support a weight of at least four times that of the TV (Refer to your TV's Reference Guide for its weight.).
  • Determine the strength of the wall the TV will be mounted on. Reinforce the wall sufficiently, if necessary.

Installing the Base on the wall

  • Use four or more screws of 8 mm diameter or equivalent (not supplied).

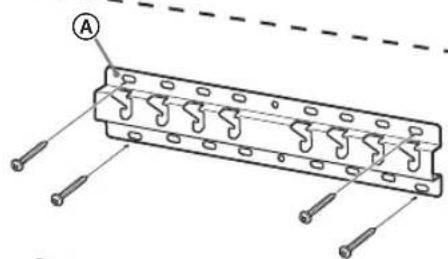

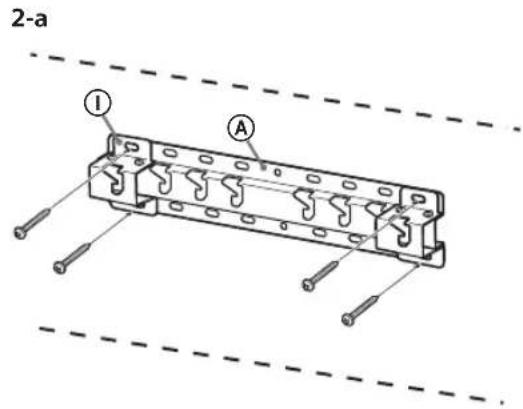

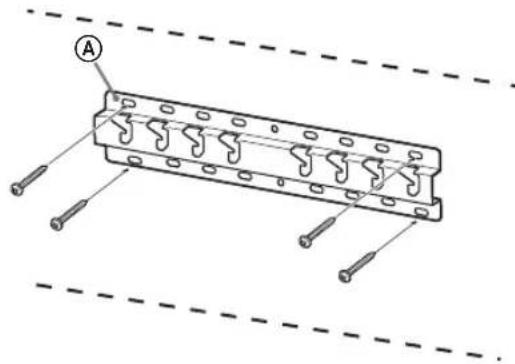

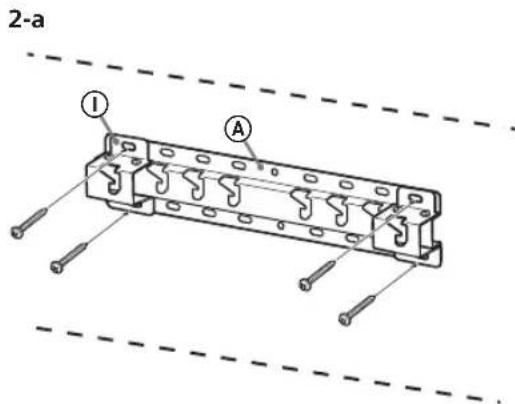

  • Fit four screws to the holes of Base Adaptor ① with Base (20) Ⓐ (2-a only). • Install the Base (20) Ⓐ on the wall horizontally.

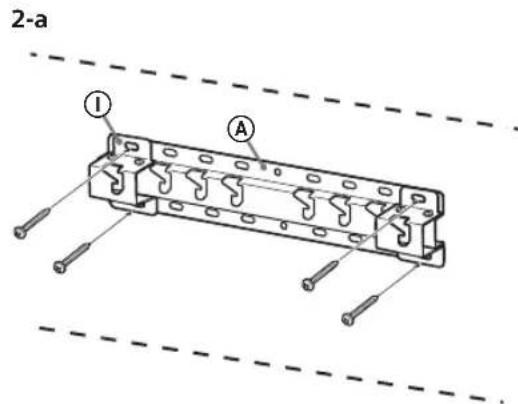

2-a ① A

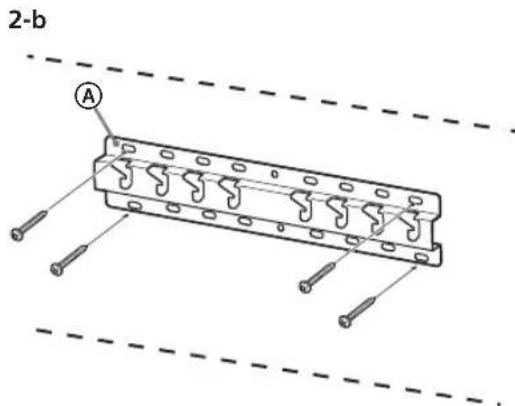

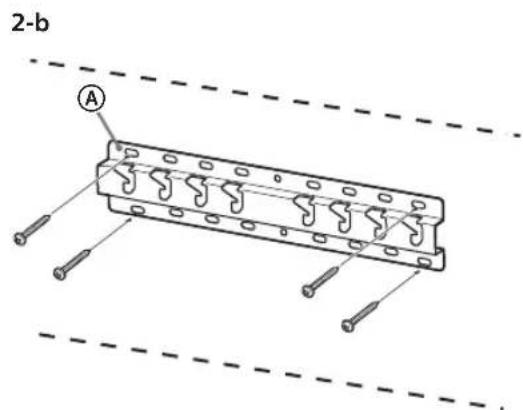

2-b A

Preparing for the installation of the TV

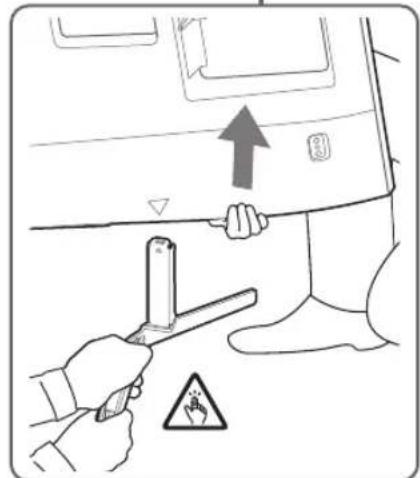

Refer to the Setup Guide for stand installation.

KD-85/75XG85□□, KD-75XG87□□

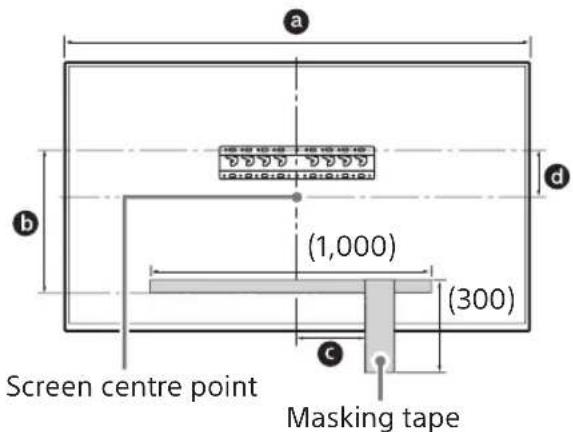

1 Mark the installation location on the wall.

- Use masking tape, etc. (not supplied) to mark the location of the TV near the Base or Base Adaptor. Refer to the following table.

Screen centre point Masking tape (1,000) (300) a b c d

Unit: mm
Model NameLength for markingScreen centre dimension
abc

KD-85XG85□□ 1,909 683 200 251

KD-75XG87□□ 1,673 468 200 107 KD-75XG85□□

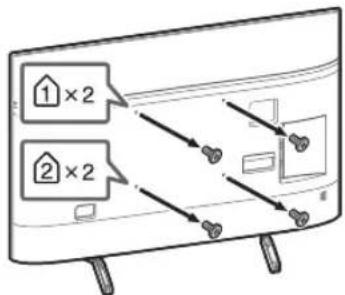

2 Remove the screws from the rear of the TV.

3 Attach the Attachment parts for Wall-Mount Bracket. Check the Attachment parts by referring to "Supplied with SU-WL450" in "Checking the parts" on page 5.

Note

  • Firmly secure the Attachment parts using screws.
  • When using an electric screwdriver, set the torque setting to approximately 1.5 N·m {15 kgf·cm}.
  • Be sure to store the used or unused parts in a safe place for future use. Retain this manual for future reference.

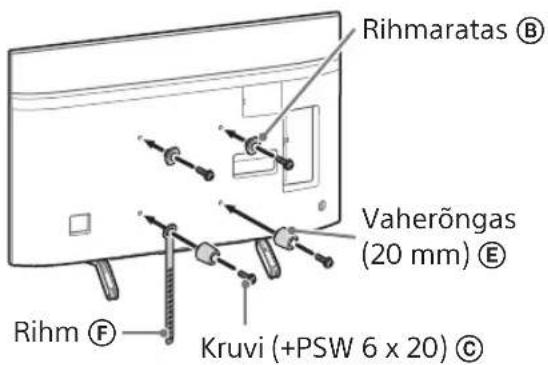

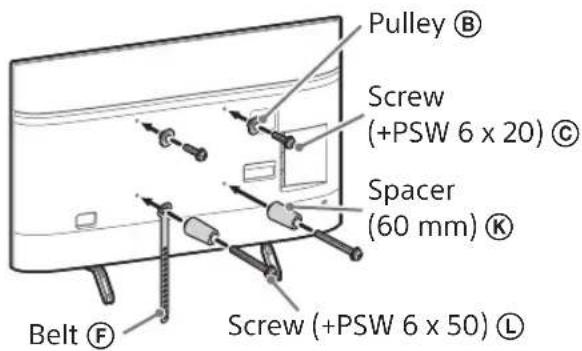

Standard mounting (2-a)Pulley Ⓑ Screw (+PSW 6 x 20) Ⓓ Spacer (60 mm) Ⓔ Belt Ⓕ Screw (+PSW 6 x 50) Ⓙ

Slim mounting (2-b)

Note

- You cannot use some of the terminals on the rear of the TV when using this mounting style.

Diagram of a refrigerator with a prohibition symbol (no text or labels)

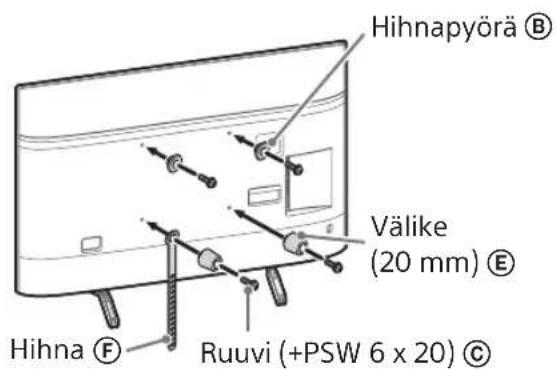

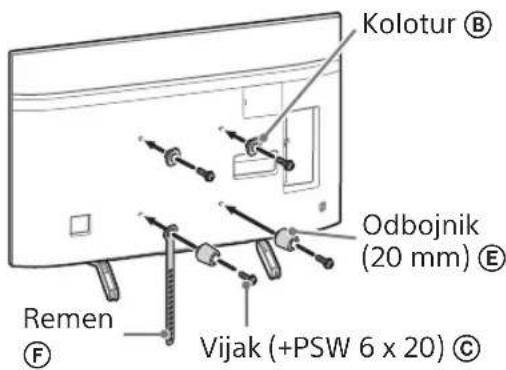

Pulley Ⓑ Spacer (20 mm) Belt Ⓕ Screw (+PSW 6 x 20) Ⓒ

4 Connect the necessary cable(s) to the TV.

Make sure to connect the cables before installing the TV on the wall. You will be unable to connect the cables when the TV is installed.

Refer to the Reference Guide supplied with your TV.

Note

- Subcontract the cable routing in the wall to a licensed contractor.

- Bundle the connecting cables to prevent stepping on them before wall mounting.

5 Detach the Table-Top Stand from the TV.

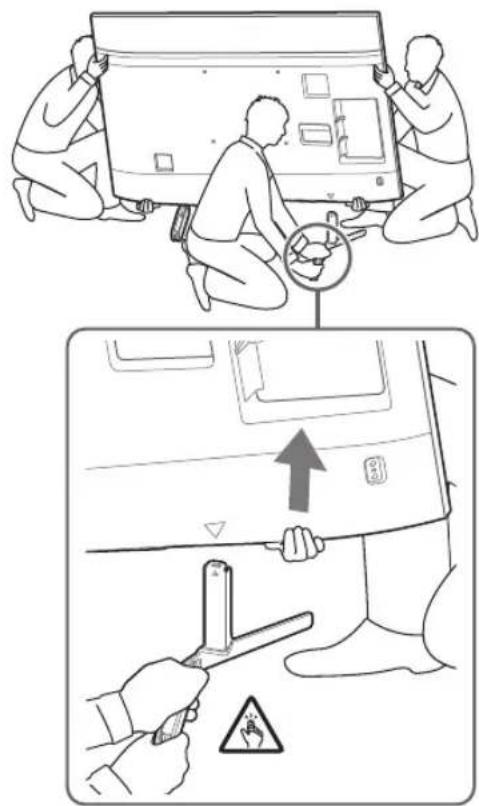

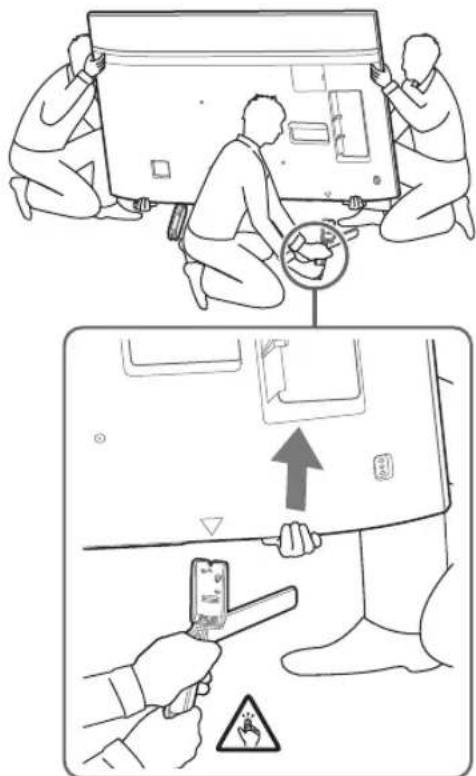

- Remove one side of the Table-Top Stand at a time. Firmly hold the Table-Top Stand securely with both hands while the other people lift up the TV.

KD-85XG85□□Diagram illustrating car maintenance procedure with workers installing a vehicle and inspecting the dashboard, accompanied by safety warning symbols.

KD-75XG87□□, KD-75XG85□□Technical diagram showing installation steps for a device, including hand positioning and safety warning symbol

- Repeat the previous step and remove the other side of the Table-Top Stand.

Note

  • Three or more people are required to detach the Table-Top Stand.
  • Be careful not to use excessive force while detaching the Table-Top Stand from the TV as it may cause the TV set to fall resulting in personal injury or physical damage to the TV. • Take care when handling the Table-Top Stand to prevent damage to the TV.
  • Be careful when lifting the TV as the Table-Top Stand is detached, the Table-Top Stand may topple over and cause personal injury. • Take care when removing the Table-Top Stand from the TV to prevent it from falling over and damaging the surface that the TV is sitting on.

KD-65/55XG87□□,

KD-65/55XG85□□

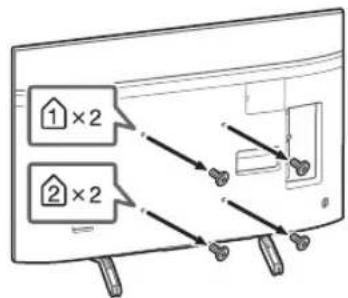

1. Remove the screws from the rear of the TV.

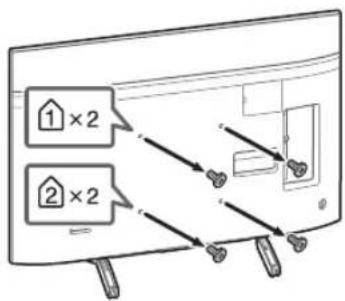

1×2 2×2

2. Attach the Attachment parts for Wall-Mount Bracket. Check the Attachment parts by referring to "Supplied with SU-WL450" in "Checking the parts" on page 5.

Note

  • Firmly secure the Attachment parts using screws.
  • When using an electric screwdriver, set the torque setting to approximately 1.5 N·m {15 kgf·cm}.
  • Be sure to store the used or unused parts in a safe place for future use. Retain this manual for future reference.

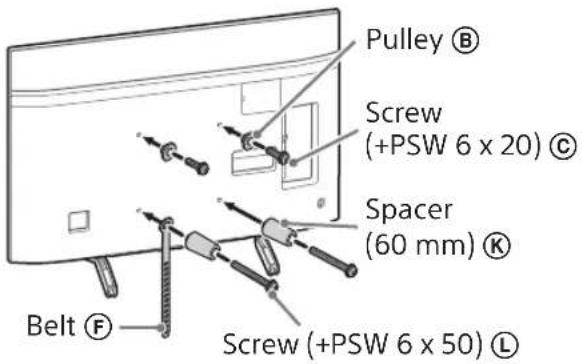

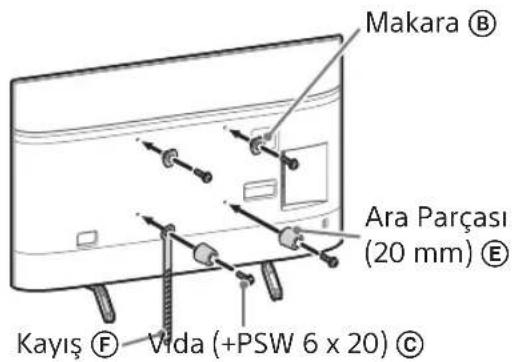

Standard mounting (2-a)Pulley Ⓑ, Screw (+PSW 6 x 20) Ⓓ, Spacer (60 mm) Ⓔ, Belt Ⓕ, Screw (+PSW 6 x 50) Ⓙ

Slim mounting (2-b)

Note

- You cannot use some of the terminals on the rear of the TV when using this mounting style.

Diagram of a door with a rectangular opening and a prohibition symbol (no text or labels)

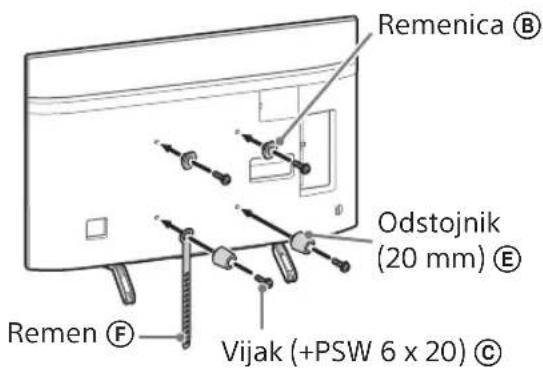

Pulley Ⓑ, Spacer (20 mm), Belt Ⓕ, Screw (+PSW 6 x 20) Ⓒ

3. Connect the necessary cable(s) to the TV.

Make sure to connect the cables before installing the TV on the wall. You will be unable to connect the cables when the TV is installed.

Refer to the Reference Guide supplied with your TV.

Note

  • Subcontract the cable routing in the wall to a licensed contractor.
  • Bundle the connecting cables to prevent stepping on them before wall mounting.

4 Detach the Table-Top Stand from the TV.

- Remove one side of the Table-Top Stand at a time. Firmly hold the Table-Top Stand securely with both hands while the other people lift up the TV.

Technical diagram showing installation procedure for a device with workers and safety symbols

- Repeat the previous step and remove the other side of the Table-Top Stand.

Note

- Three or more people are required to detach the Table-Top Stand.

- Be careful not to use excessive force while detaching the Table-Top Stand from the TV as it may cause the TV set to fall resulting in personal injury or physical damage to the TV.

• Take care when handling the Table-Top Stand to prevent damage to the TV.

- Be careful when lifting the TV as the Table-Top Stand is detached, the Table-Top Stand may topple over and cause personal injury.

• Take care when removing the Table-Top Stand from the TV to prevent it from falling over and damaging the surface that the TV is sitting on.

Installing the TV on the wall

KD-85/75XG85□□, KD-75XG87□□

1 Lift the TV.

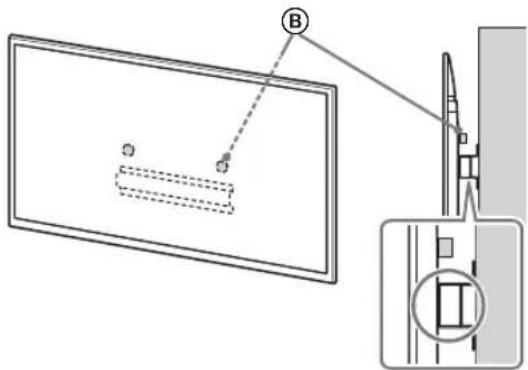

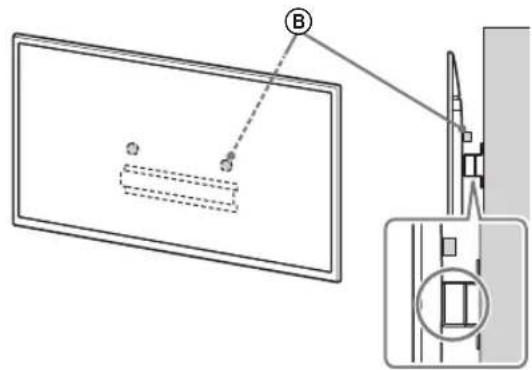

  • For the location of the Pulleys Ⓑ to the hang on the Base or Base Adaptor, refer to the table of step 3 in "Deciding on the installation location" on page 7. • Make sure that the rear of the TV touches the Base or Base Adaptor when holding the TV.

Note

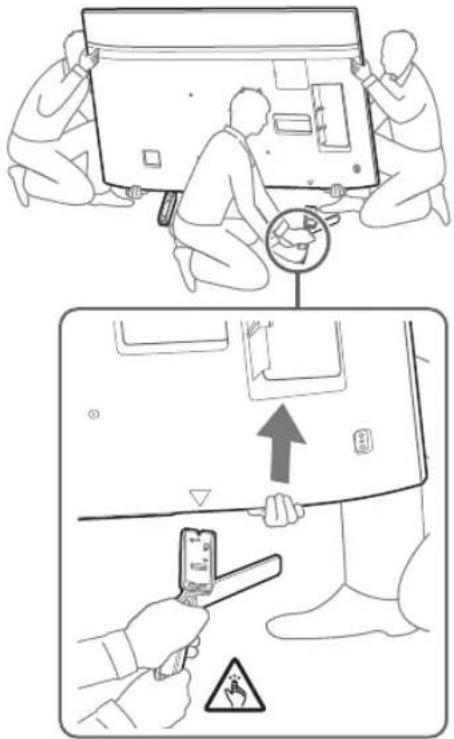

  • Hold the TV securely with both hands and make sure the Belt Ⓔ and the bottom of the TV align with the masking tape.

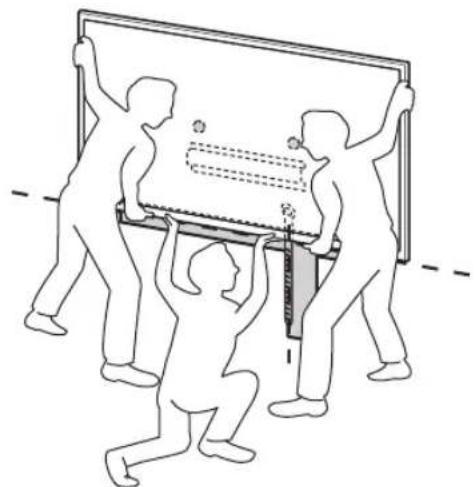

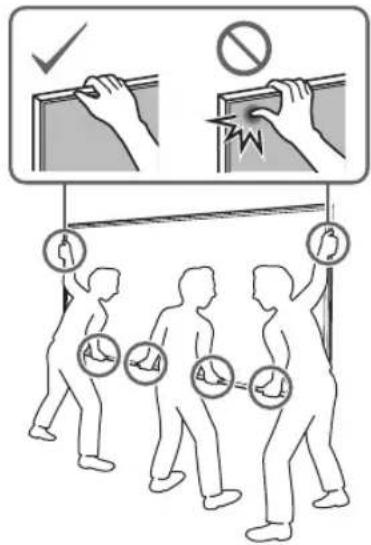

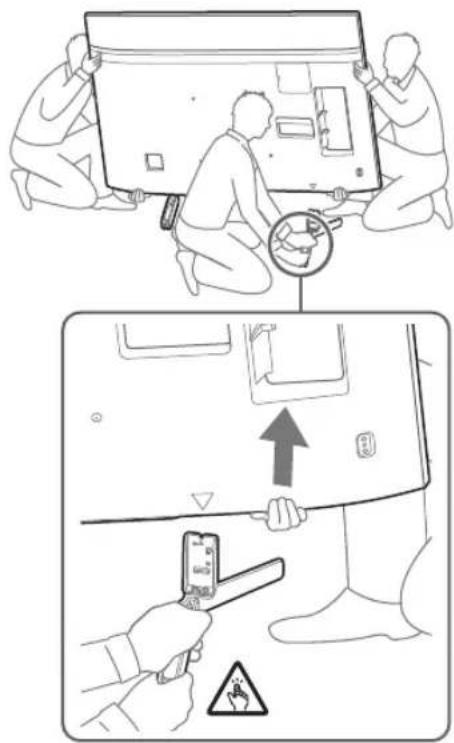

  • Carry the TV with three people, and the person who is in front of the TV leads the others to adjust the position.

Illustration of three people lifting a large object with a ruler, no text or symbols present

• Take great care when installing the TV to the wall, especially for the person who is supporting the TV from below. The television set may fall, causing serious bodily injury or even death.

Technical diagram showing a monitor with labeled components (A, B, C, D, E) and a close-up view of the device's front panel.

2 Install the TV onto the Base or Base Adaptor.

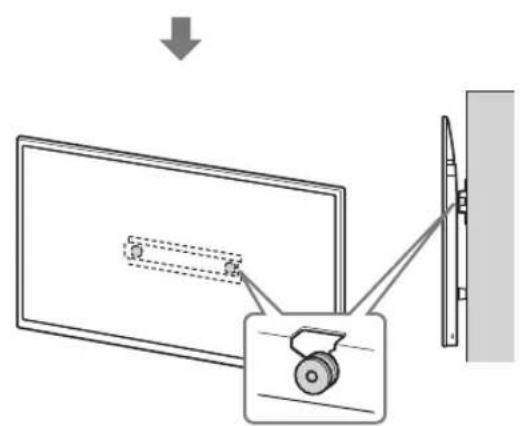

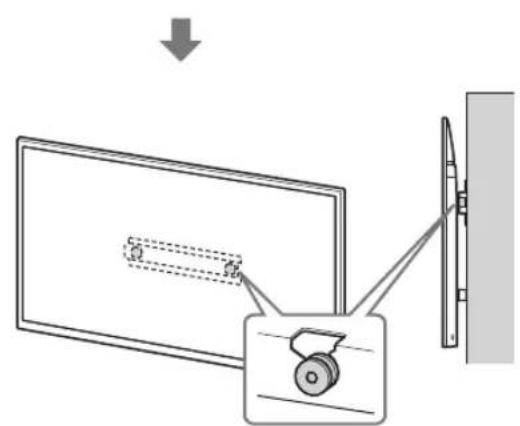

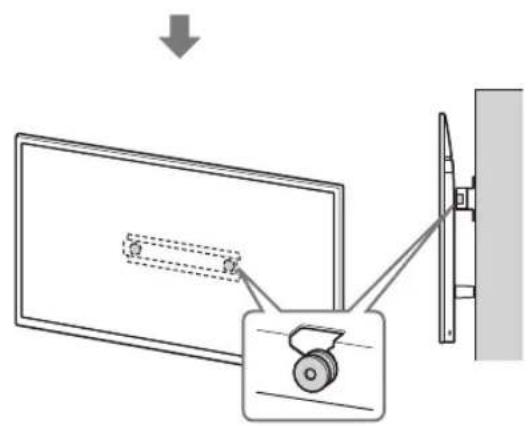

  • Gently slide down the TV and hang the Pulleys ⑧ attached to the rear of the TV to the Base or Base Adaptor, making sure to confirm the shape of the holes.
  • After installing the TV on the wall, confirm the Pulleys ® are firmly latched into the Base or Base Adaptor.
  • Release both hands slowly to ensure that the TV does not fall.

Simple line drawing of a rectangular frame with a dashed rectangle and a starburst shape at the bottom (no text or symbols)

• After installing the TV on the wall, remove the masking tape, etc. from the wall.

SONY Bravia KD65XG8588 - Install the TV onto the Base or Base Adaptor. - 2

WARNING

- Be sure that two or more persons (three or more persons for 75 inches and above TV set) hold the TV when carrying it.

Safety warning illustration showing correct and incorrect hand actions for a person holding a device, with silhouettes indicating safety symbols.

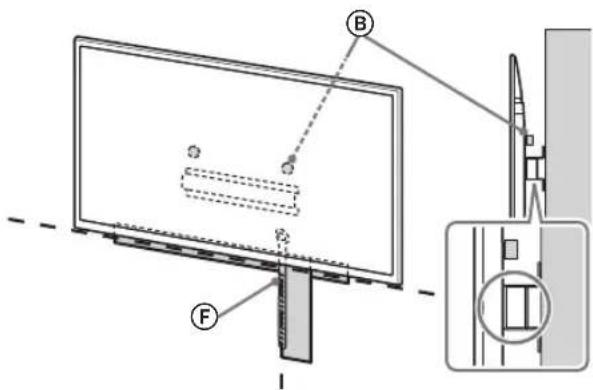

3 Preventing the bottom of the TV from shifting.

- Take up the slack of Belt Ⓔ and attach it to the wall tightly.

2-a 2-b, I, F, F

- Use a 5 mm diameter screw or equivalent (not supplied).

Note

- Try to pull the bottom of the TV towards yourself slightly, to make sure that it does not move forward. If there is any movement, it is not fixed correctly, and the Belt ⑤ should be secured firmly again.

KD-65/55XG87□□, KD-65/55XG85□□

1 Lift the TV.

- For the location of the Pulleys Ⓑ to hang on the Base or Base Adaptor, refer to the table of step 3 in "Deciding on the installation location" on page 7. - Make sure that the rear of the TV touches the Base or Base Adaptor when holding the TV.

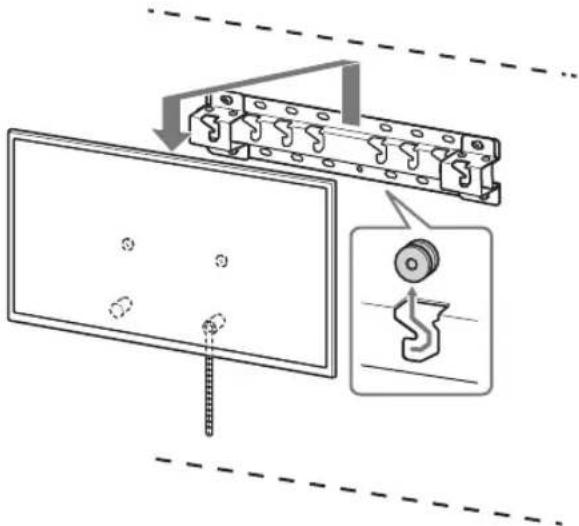

Technical diagram showing a monitor with labeled components and an inset view of a mechanical assembly with a circular component.

Note

- Hold the TV securely with both hands.

2 Install the TV onto the Base or Base Adaptor.

  • Gently slide down the TV and hang the Pulleys Ⓑ attached to the rear of the TV to the Base or Base Adaptor, making sure to confirm the shape of the holes.
  • After installing the TV on the wall, confirm the Pulleys Ⓑ are firmly latched into the Base or Base Adaptor.
  • Release both hands slowly to ensure that the TV does not fall.

Simple line drawing of a rectangular frame with a small rectangular object and a starburst shape at the bottom (no text or symbols)

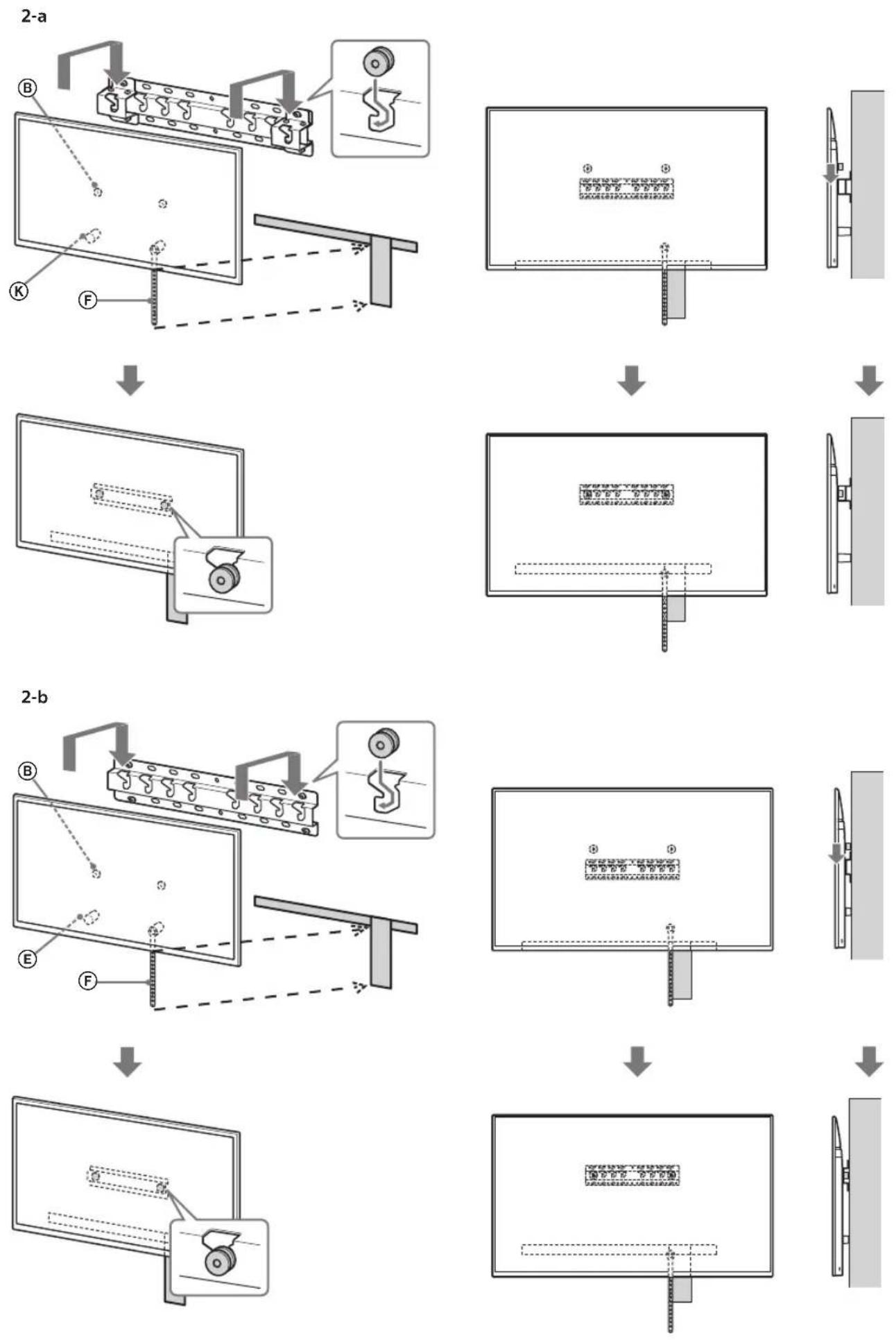

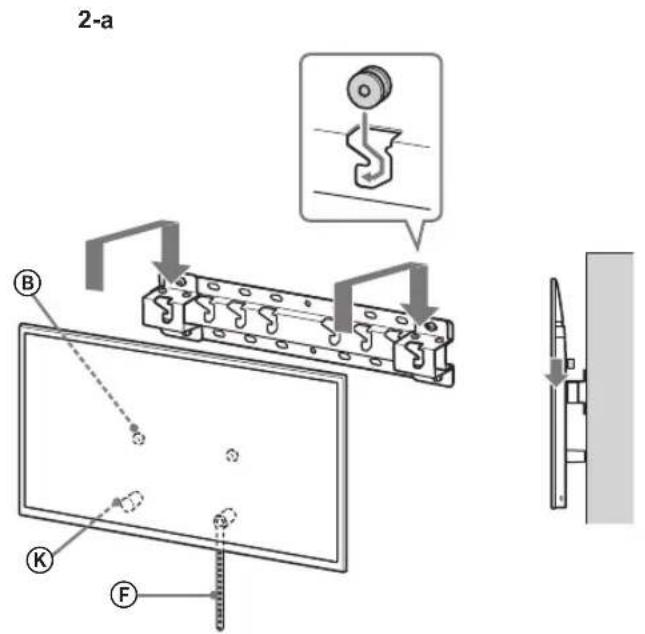

2-a, B, K, F

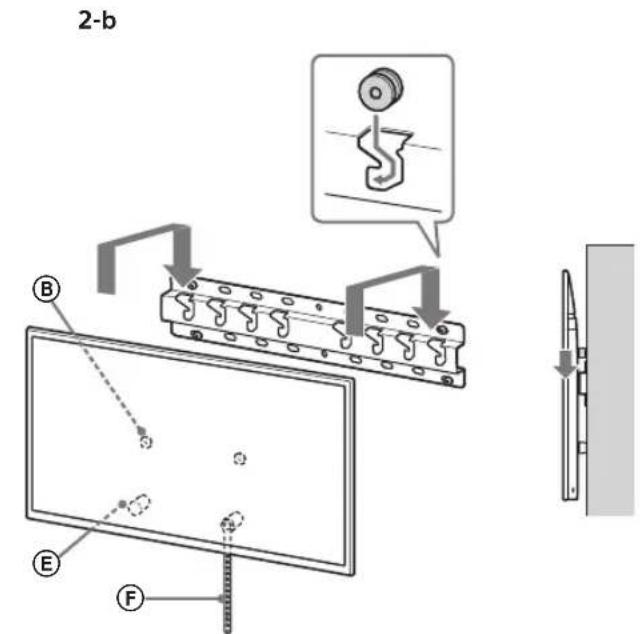

2-b, B, E, F

Diagram showing a monitor with a slide and a scroll, connected to a wall-mounted device, with an arrow indicating direction of motion.

Diagram showing a monitor with a slide and a scroll wheel, illustrating the concept of viewing or projection.

WARNING

- Be sure that two or more persons (three or more persons for 75 inches and above TV set) hold the TV when carrying it.

Safety instruction diagram showing hand protection and warning symbols for installing a panel, with two human silhouettes below.

3 Preventing the bottom of the TV from shifting.

- Take up the slack of Belt Ⓔ and attach it to the wall tightly.

2-a 2-b F F

- Use a 5 mm diameter screw or equivalent (not supplied).

Note

- Try to pull the bottom of the TV towards yourself slightly, to make sure that it does not move forward. If there is any movement, it is not fixed correctly, and the Belt ⑤ should be secured firmly again.

Confirming the completion of the installation

Check the following points.

  • The Pulleys Ⓑ are firmly hung onto the Base or Base Adaptor.
  • The cord and the cable are not twisted or pinched.
  • The Belt Ⓕ is tight with no slack.

WARNING

- Improper placement of the mains lead, etc. may cause fire or electric shock through a short circuit. Be sure to confirm the completion of the installation for safety.

Other information

When removing the TV, reverse the previous installation procedure.

Technical diagram showing a mechanical assembly with labeled components and a close-up of a gear mechanism.

WARNING

- Be sure that two or more persons (three or more persons for 75 inches and above TV set) hold the TV when removing it.

Specificationsf g e h1 h2 d c b a

Dimensions: (Approx.) [mm]

a: 400

b: 300

c: 200

d: 100

e: 80

f: 480

g: 100

h1: 20 (case 2-b)

h2: 60 (case 2-a)

Weight (base only): (Approx.) [kg]

0.8

Design and specifications are subject to change without notice.

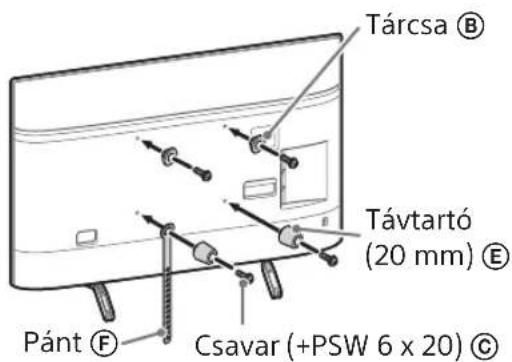

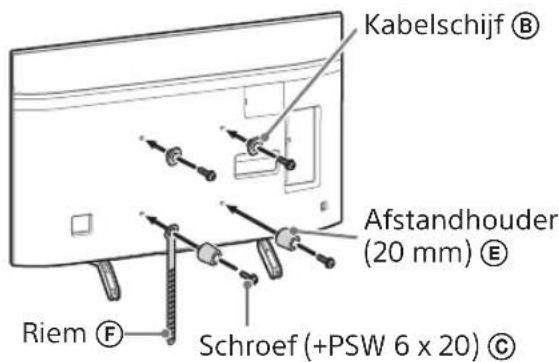

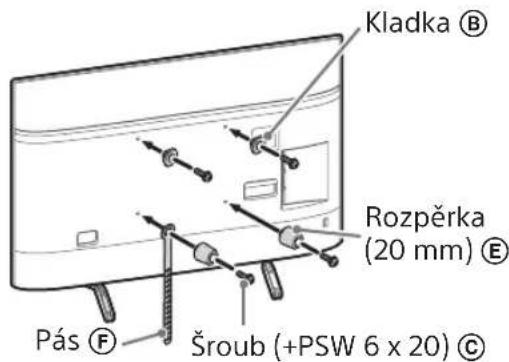

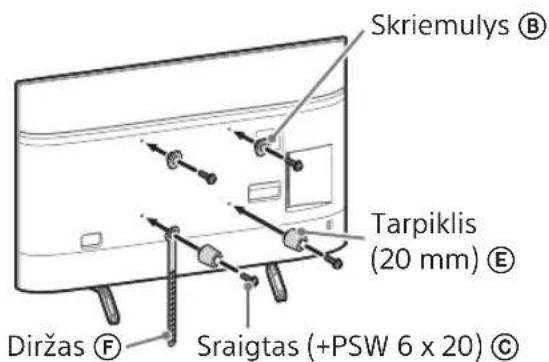

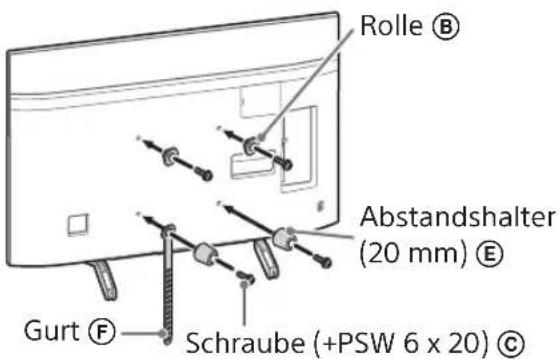

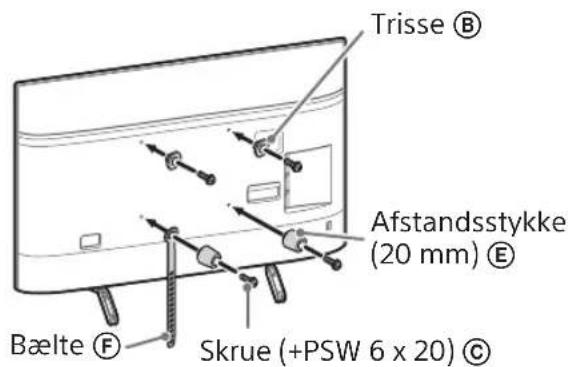

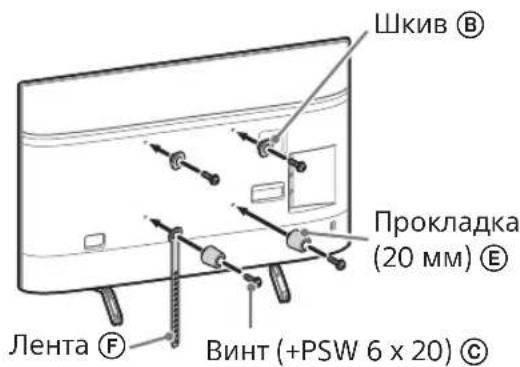

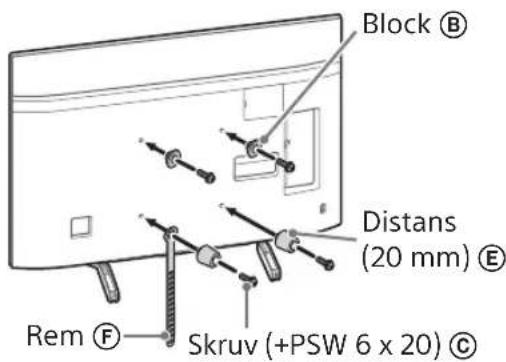

Pulley Ⓑ Spacer (20 mm) Ⓔ Belt Screw (+PSW 6 x 20) Ⓔ

KD-75XG87□□, KD-75XG85□□Technical diagram showing two steps of installing or adjusting a device, with Chinese annotations and warning symbols.

2-a B K F

2-b B E F

Diagram showing a monitor with a slide and a scroll, connected to a wall-mounted device, with an arrow indicating direction of motion.

Diagram showing a monitor with a wheel and a wall-mounted device, illustrating the concept of viewing or projection.

WARNING

Dimensions: (Approx.) [mm]

a: 400

b: 300

c: 200

d: 100

e: 80

f: 480

g: 100

h1: 20 (case 2-b)

h2: 60 (case 2-a)

2-bTechnical diagram of a mechanical component with labeled parts and dashed reference lines.

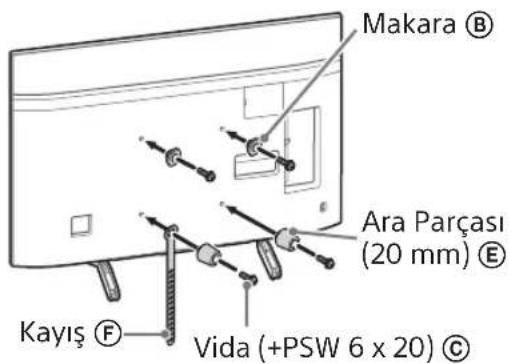

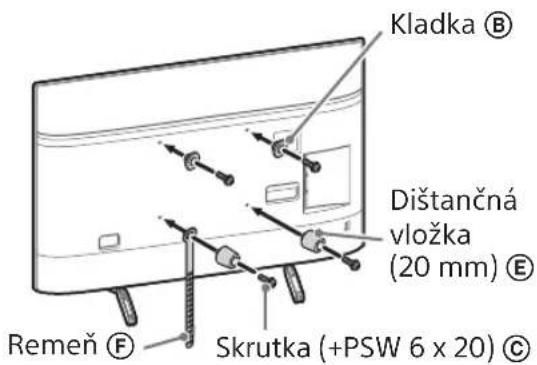

Pulley Ⓑ Spacer (20 mm) Ⓔ Belt Ⓕ Screw (+PSW 6 x 20) Ⓒ

KD-75XG87□□, KD-75XG85□□

Diagram illustrating a repair or installation procedure with workers installing components and a warning symbol.

Note

2-a B K F

2-b B E F

Diagram showing a monitor with a slide and a scroll, connected to a wall-mounted device, with an arrow indicating direction of motion.

Diagram showing a monitor with a wheel and a wall-mounted device, illustrating the concept of viewing or projection.

WARNING

WARNING

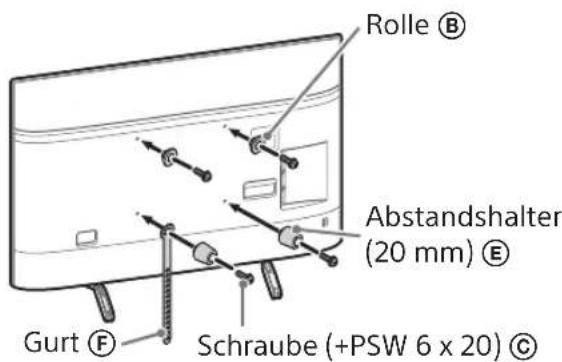

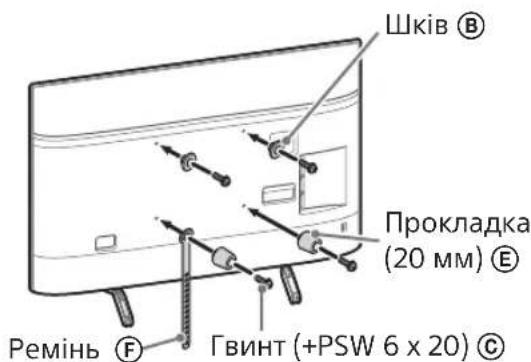

Roller Ⓑ Spacer (20 mm) Ⓔ Belt Ⓕ Screw (+PSW 6 x 20) Ⓒ

KD-75XG87□□, KD-75XG85□□

Diagram illustrating a repair or installation procedure with workers installing components and a warning symbol.

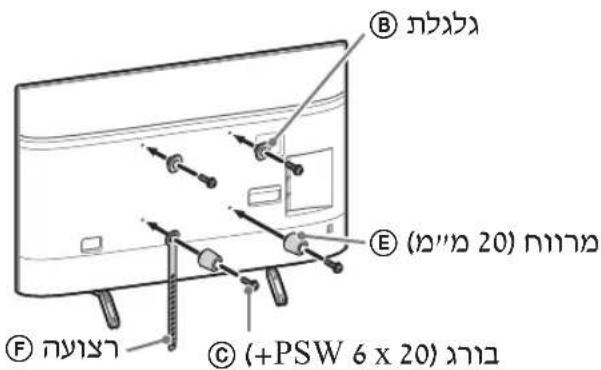

Role Ⓑ Spacer (20 mm) Ⓔ Belt Ⓕ Screw (+PSW 6 x 20) Ⓓ

Note

2-a B K F

2-b B E F

Diagram showing a monitor with a slide and a scroll, connected to a wall-mounted device with a cable.

Diagram showing a monitor with a wheel and a wall-mounted device, illustrating the concept of viewing or projection.

WARNING

WARNING

Diagram illustrating two steps of installing a car's door panel, showing installation and inspection with warning symbols.

KD-75XG87□□, KD-75XG85□□

Diagram illustrating a repair or installation procedure with workers installing components and a warning symbol.

Technical diagram showing two steps of installing or adjusting a device, with one step pointing to a warning symbol and the other to a hand holding a phone.

Note

2-a B K F

2-b B E F

Diagram showing a monitor with a slide and a scroll, connected to a wall-mounted device, with an arrow indicating direction of motion.

Diagram showing a monitor with a wheel and a wall-mounted device, illustrating the concept of viewing or projection.

WARNING

WARNING

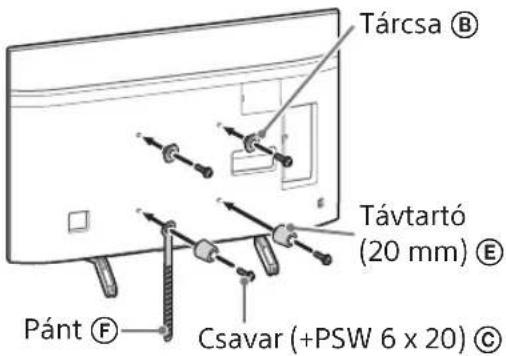

Hook Ⓑ Spacer (20 mm) Ⓔ Belt Ⓕ Screw (+PSW 6 x 20) Ⓒ

4 Connect the necessary cable(s) to the television.

KD-75XG87□□, KD-75XG85□□

Diagram illustrating a repair or installation procedure with workers installing components and a warning symbol.

Note

2-a B K F

2-b B E F

Diagram showing a monitor with a slide and a scroll, connected to a wall-mounted device, with an arrow indicating direction of motion.

Diagram showing a monitor with a wheel and a wall-mounted device, illustrating the concept of viewing or positioning.

WARNING

WARNING

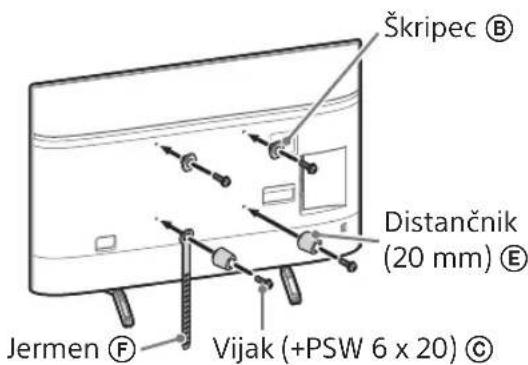

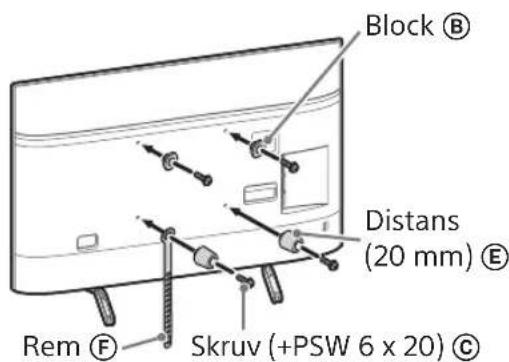

Block Ⓑ Distance (20 mm) Ⓔ Remove Ⓕ Screw (+PSW 6 x 20) Ⓓ

KD-75XG87□□, KD-75XG85□□Diagram illustrating a repair or installation procedure with labeled parts and directional arrows indicating movement.

Block B Distance (20 mm) E Rem F Screw (+PSW 6 x 20) ©

2 Mount the TV on the Base or Base Adapter.

Note

2-a B K F

2-b B E F

Diagram showing a monitor with a slide and a scroll, connected to a wall-mounted device with an arrow indicating direction.

Diagram showing a monitor with a wheel and a wall-mounted device, illustrating the concept of viewing or projection.

WARNING

WARNING

Diagram illustrating a mechanical repair or cleaning procedure with workers installing components and a warning sign indicating hazard.

KD-75XG87□□, KD-75XG85□□Diagram illustrating a repair or installation procedure with labeled parts and directional arrows indicating movement.

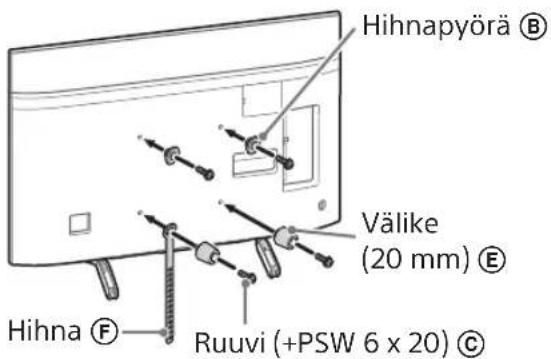

Technical diagram showing two steps of installing a device, with one being cleaned and the other using a tool to prevent hazard.

Note

2-a B K F

2-b B E F

Diagram showing a monitor with a slide and a scroll, connected to a wall-mounted device, with an arrow indicating direction of motion.

Diagram showing a monitor with a wheel and a wall-mounted device, illustrating the concept of viewing or projection.

WARNING

WARNING

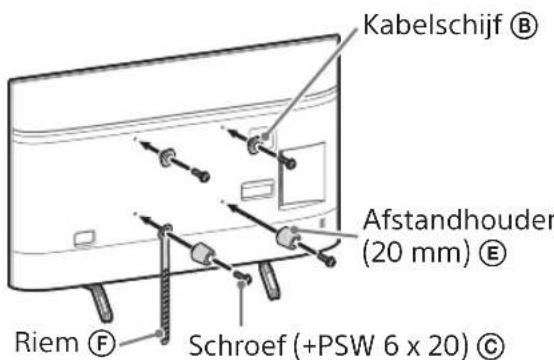

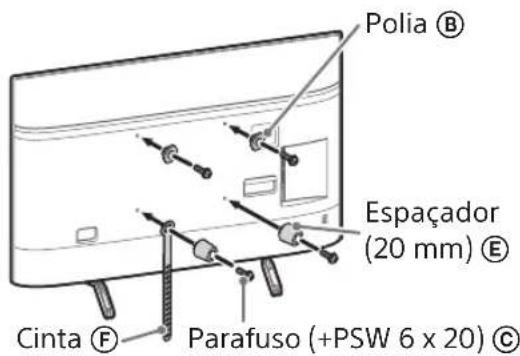

Pulley Ⓑ Spacer (20 mm) Ⓔ Belt Ⓕ Screw (+PSW 6 x 20) Ⓓ

KD-75XG87□□, KD-75XG85□□Diagram illustrating a repair or installation procedure with labeled parts and directional arrows indicating movement.

- Repeat the previous step and remove the other side of the Table-Top Stand.

Note

Pulley Ⓑ Spacer (20 mm) Ⓔ Belt Ⓕ Screw (+PSW 6 x 20) Ⓓ

☐ Repeat the previous step and remove the other side of the Table-Top Stand.

Note

2 Install the TV on the Base or Base Adapter.

- After installing the TV on the wall, remove the painter's tape, etc. from the wall.

SONY Bravia KD65XG8588 - Install the TV on the Base or Base Adapter. - 1

AVISO

Note

2-a B K F

2-b B E F

Diagram showing a monitor with a slide and a scroll, connected to a wall-mounted device, with an arrow indicating direction of motion.

Diagram showing a monitor with a wheel and a wall-mounted device, illustrating the concept of viewing or projection.

AVISO

AVISO

Weight (base only): (Approx.) [kg]

0.8

Preparation for installation....5

Checking the parts 5

Finding a location 6

Preparation for installation

1 Find the TV's location.

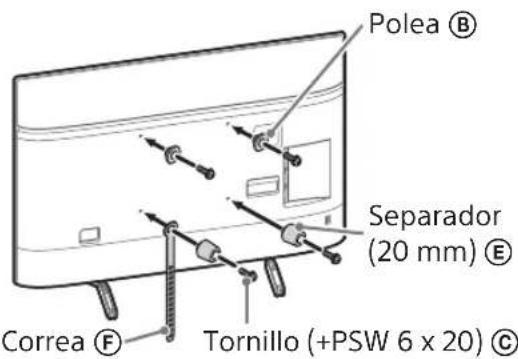

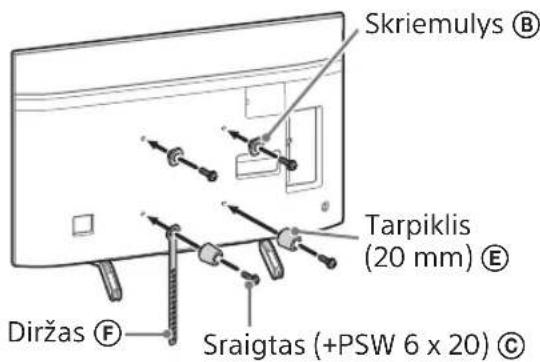

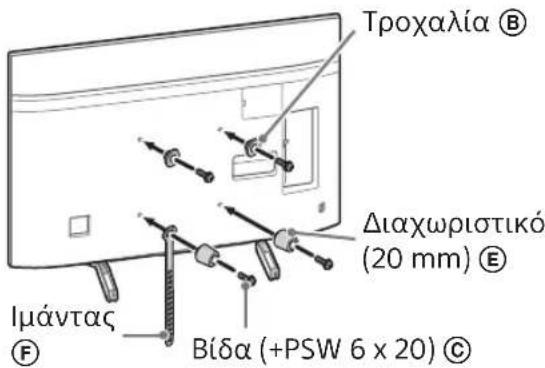

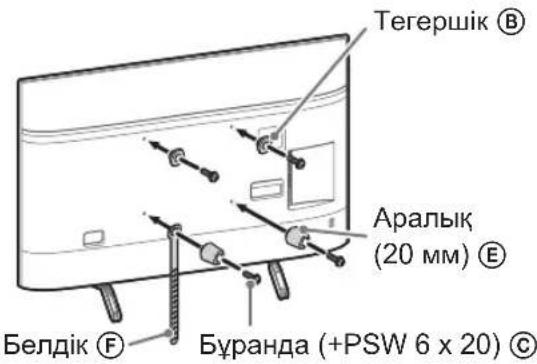

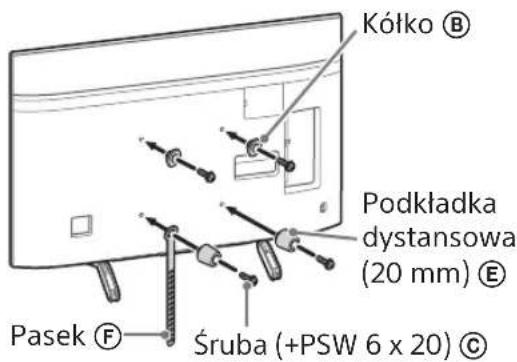

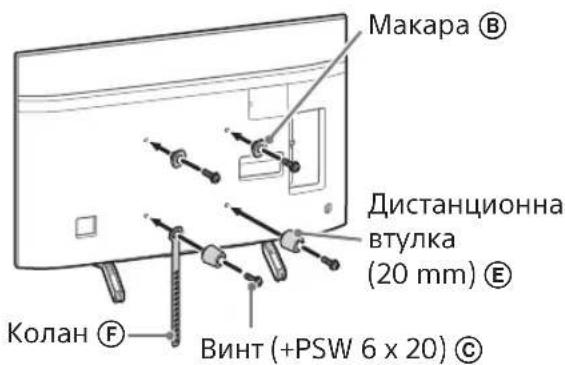

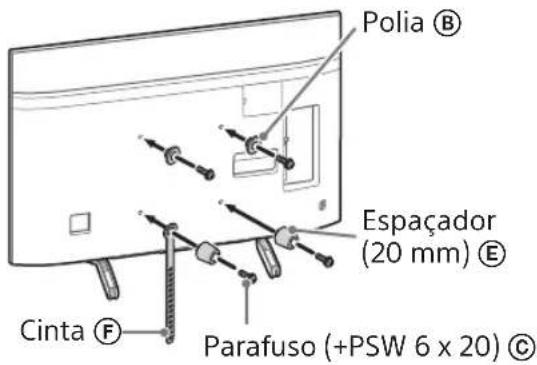

Pulley Ⓑ Spacer (20 mm) Ⓔ Belt Ⓕ Screw (+PSW 6 x 20) Ⓒ

KD-75XG87□□, KD-75XG85□□Technical diagram showing installation procedure with workers installing components and a warning sign indicating hazard.

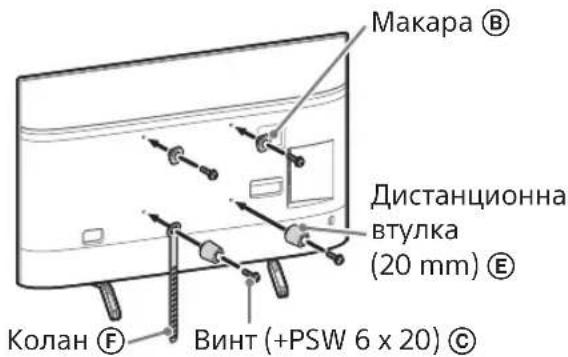

Pulley Ⓑ Spacer (20 mm) Ⓔ Belt Ⓕ Screw (+PSW 6 x 20) Ⓒ

3 How to prevent the TV from tipping over.

Note

2-a B K F

2-b B E F

Diagram showing a monitor with a slide and a scroll, connected to a wall-mounted device, with an arrow indicating direction of motion.

Diagram showing a monitor with a wheel and a wall-mounted device, illustrating the concept of viewing or projection.

WARNING

3 How to prevent the TV from moving.

WARNING

Belt pulley Ⓑ, Spacer (20 mm) Ⓔ, Belt Ⓕ, Screw (+PSW 6 x 20) Ⓓ

KD-75XG87□□, KD-75XG85□□Diagram illustrating a repair or installation procedure with labeled parts and directional arrows indicating movement.

Technical diagram showing two steps of installing a device, with one being cleaned and the other using a tool to prevent hazard.

Note

2-a B K F

2-b B E F

Diagram showing a monitor with a slide and a scroll, connected to a wall-mounted device, with an arrow indicating direction of motion.

Diagram showing a monitor with a wheel and a wall-mounted device, illustrating the concept of viewing or projection.

WARNING

WARNING

Pulley Ⓑ Spacer (20 mm) Ⓔ Belt Ⓕ Screw (+PSW 6 x 20) Ⓒ

KD-75XG87□□, KD-75XG85□□Diagram illustrating a repair or installation procedure with hands operating a device and warning symbol.

Pulley Ⓑ Spacer (20 mm) Ⓔ Belt Ⓕ Screw (+PSW 6 x 20) Ⓒ

2 Install the TV on the pedestal or pedestal adapter.

Note

2-a B K F

2-b B E F

Diagram showing a monitor with a slide and a scroll, connected to a wall-mounted device, with an arrow indicating direction of motion.

Diagram showing a monitor with a wheel and a wall-mounted device, illustrating the concept of viewing or projection.

WARNING

- Be sure to have two or more people (three or more people for TVs 75 inches or larger) hold the TV when carrying it.

Safety instruction diagram showing hand protection and warning symbols for installing a panel, with two human silhouettes below.

WARNING

- Be sure to have two or more people (three or more people for TVs 75 inches or larger) hold the TV when removing it.

Specificationsf g e h1 h2 d c b a

Dimensions: (Approx.) [mm]

a: 400

b: 300

c: 200

d: 100

e: 80

f: 480

g: 100

h1: 20 (case 2-b)

h2: 60 (case 2-a)

Weight (base only): (Approx.) [kg]

0.8

Troxalía Ⓑ Diaxwpiostiko (20 mm) Ⓔ Iμάντας Ⓕ Bíδα (+PSW 6 x 20) ©

Diagram showing hand operating a device with warning symbol and upward arrow, indicating safety or hazard.

KD-75XG87□□, KD-75XG85□□Diagram illustrating a repair or installation procedure with workers installing components and a warning symbol for inspection.

Troxalía Ⓑ Diaxwpiostiko (20 mm) Ⓔ Iμάντας Bíδα (+PSW 6 x 20) ©

Note

2-a B K F

2-b B E F

Diagram showing a monitor with a slide and a scroll, connected to a wall-mounted device, with an arrow indicating direction of motion.

Diagram showing a monitor with a slide and a wheel, connected to a wall-mounted device, with an arrow indicating direction of motion.

WARNING

WARNING

Diagram illustrating a repair or installation procedure with workers installing components and a warning sign indicating hazard.

KD-75XG87□□, KD-75XG85□□Technical diagram showing installation steps for a device, including top-down view and bottom-down view with warning symbol

Makara Ⓑ Ara Parçası (20 mm) Ⓔ Kayış Ⓕ Vida (+PSW 6 x 20) Ⓒ

Not

2-a B K F

2-b B E F

Diagram showing a monitor with a slide and a scroll, connected to a wall-mounted device, with an arrow indicating direction of motion.

Diagram showing a monitor with a wheel and a wall-mounted device, illustrating the concept of viewing or projection.

WARNING

WARNING

Note

Technical diagram showing installation procedure for a vehicle air conditioner, with workers installing components and safety warning symbol.

KD-75XG87□□, KD-75XG85□□

Diagram illustrating a repair or installation procedure with workers installing components and a warning symbol.

Technical diagram showing two steps of installing or adjusting a device, with Chinese annotations and warning symbols.

Note

2-a

2-b

B

B

K

E

F

F

WARNING

WARNING

Pulley Ⓑ Spacer (20 mm) Ⓔ Belt Ⓕ Screw (+PSW 6 x 20) Ⓔ

KD-75XG87□□, KD-75XG85□□Technical diagram showing installation steps for a device, including hand positioning and safety warning symbol.

Pulley Ⓑ Spacer (20 mm) Ⓔ Belt Ⓕ Screw (+PSW 6 x 20) Ⓓ

Note

2-a B K F

2-b B E F

Diagram showing a monitor with a slide and a scroll, connected to a wall-mounted device, with an arrow indicating direction of motion.

Diagram showing a monitor with a wheel and a wall-mounted device, illustrating the concept of viewing or projection.

WARNING

WARNING

4 Determine the position of the screws for mounting the stand (20) Ⓐ.

Diagram illustrating a mechanical repair or cleaning procedure with workers installing components and a warning sign indicating hazard.

KD-75XG87□□, KD-75XG85□□Diagram illustrating a repair or installation procedure with hands operating a device and warning symbol

Diagram illustrating a procedure for installing or adjusting a device, with labeled parts and warning symbols.

Note

2-a B K F

2-b B E F

Diagram showing a monitor with a slide and a scroll, connected to a wall-mounted device, with an arrow indicating direction of motion.

Diagram showing a monitor with a slide and a scroll wheel, connected to a wall-mounted device with an arrow indicating direction.

WARNING

WARNING

Dimensions: (approx.) [mm]

a : 400

b : 300

c : 200

d: 100

e: 80

f: 480

g: 100

Diagram illustrating car maintenance and safety instructions, showing workers installing a battery cover and using a tool to prevent accidents.

KD-75XG87□□, KD-75XG85□□Technical diagram showing installation steps for a device, including top-down view and bottom-down view with warning symbol

Diagram illustrating a procedure for installing or adjusting a device, with labeled parts and warning symbols.

Note

2-a B K F

2-b B E F

Diagram showing a monitor with a slide and a scroll, connected to a wall-mounted device, with an arrow indicating direction of motion.

Diagram showing a monitor with a wheel and a wall-mounted device, illustrating the concept of viewing or projection.

WARNING

WARNING

Diagram illustrating a mechanical repair or cleaning procedure with workers installing components and a warning sign indicating hazard.

KD-75XG87□□, KD-75XG85□□Technical diagram showing two steps of installing a device, with one being cleaned and the other using a tool to prevent hazard.

Technical diagram showing installation procedure with workers installing a device and a hand holding a device with warning symbol

Note

2-a B K F

2-b B E F

Diagram showing a monitor with a slide and a scroll, connected to a wall-mounted device, with an arrow indicating direction of motion.

Diagram showing a monitor with a wheel and a wall-mounted device, illustrating the concept of viewing or positioning.

WARNING

3 Prevention

WARNING

Technical diagram showing installation of a car air conditioner unit with workers and safety symbols.

KD-75XG87□□, KD-75XG85□□

Diagram illustrating a repair or installation procedure with workers installing components and a warning symbol.

Technical diagram showing two steps of installing or adjusting a device, with one step pointing upward and the other to use a handheld device.

Note

2-a B K F

2-b B E F

Diagram showing a monitor with a slide and a scroll, connected to a wall-mounted device, with an arrow indicating direction of movement.

Diagram showing a monitor with a slide and a wheel, connected to a wall-mounted device, with an arrow indicating direction of motion.

WARNING

WARNING

Technical diagram showing two steps of installing a car air conditioner panel, with one step indicating the correct installation and the other indicating the absence of warning.

KD-75XG87□□, KD-75XG85□□Diagram illustrating a repair or cleaning procedure with workers installing components and a hand using a tool to prevent accidents.

Note

2-a B K F

2-b B E F

Diagram showing a monitor with a slide and a scroll, connected to a wall-mounted device, with an arrow indicating direction of motion.

Diagram showing a monitor with a wheel and a wall-mounted device, illustrating the concept of viewing or positioning.

WARNING

WARNING

Pulley Ⓑ, Belt ring (20 mm) Ⓔ, Belt Ⓕ, Screw (+PSW 6 x 20) Ⓓ

KD-75XG87□□, KD-75XG85□□Diagram illustrating a repair or cleaning procedure with labeled parts and warning symbols.

Pulley Ⓑ, Belt ring (20 mm) Ⓔ, Belt Ⓕ, Screw (+PSW 6 x 20) Ⓒ

- After installing the TV on the wall, remove the tape or similar from the wall.

SONY Bravia KD65XG8588 - WARNING - 4

WARNING

Note.

2-a B K F

2-b B E F

Diagram showing a monitor with a slide and a scroll, connected to a wall-mounted device, with an arrow indicating direction of motion.

Diagram showing a monitor with a wheel and a wall-mounted device, illustrating the concept of viewing or positioning.

WARNING

WARNING

Mass (only stand): (approx.) [kg]

0.8

Pulley Ⓑ Washer (20 mm) Ⓔ Strap Ⓕ Screw (+PSW 6 x 20) Ⓓ

KD-75XG87□□, KD-75XG85□□Diagram illustrating a mechanical repair or installation procedure with labeled parts and directional arrows indicating movement.

Pulley Ⓑ Washer (20 mm) Ⓔ Strap Ⓕ Screw (+PSW 6 x 20) Ⓒ

2 Install the TV on the base or base adapter.

3 Do not tilt the bottom of the TV.

- Grasp the end of the strap Ⓕ and firmly attach it to the wall.

2-a 2-b F F

Note

- Hold the TV firmly with both hands.

2 Install the TV on the base or base adapter.

2-a B K F

2-b B E F

Diagram showing a monitor with a slide and a scroll, connected to a wall-mounted device, with an arrow indicating direction of motion.

Diagram showing a monitor with a wheel and a wall-mounted device, illustrating the concept of viewing or projection.

WARNING!

3 Do not tilt the bottom of the TV.

- Grasp the end of the strap Ⓔ and firmly attach it to the wall.

2-a 2-b F F

WARNING!

Pulley Ⓑ Spacer (20 mm) Ⓔ Belt Ⓕ Screw (+PSW 6 x 20) Ⓒ

KD-75XG87□□, KD-75XG85□□Diagram illustrating a repair or installation procedure with hands operating a device and warning symbol.

Pulley Ⓑ Spacer (20 mm) Ⓔ Belt Ⓕ Screw (+PSW 6 x 20) Ⓒ

Note

2-a B K F

2-b B E F

Diagram showing a monitor with a slide and a scroll, connected to a wall-mounted device, with an arrow indicating direction of motion.

Diagram showing a monitor with a wheel and a wall-mounted device, illustrating the concept of viewing or projection.

WARNING

WARNING

4 Determine the positions of the screws for installing the stand (20) Ⓐ.

Pulley Ⓑ Spacer (20 mm) Ⓔ Belt Ⓕ Screw (+PSW 6 x 20) ⒨

4 Connect the necessary cables to the TV.

Be sure to connect the cables before mounting the TV on the wall. Once the TV is mounted, you will not be able to connect the cables.

KD-75XG87□□, KD-75XG85□□Diagram illustrating a repair or installation procedure with hands installing components and a warning symbol

Pulley Ⓑ Spacer (20 mm) Ⓔ Belt Ⓕ Screw (+PSW 6 x 20) Ⓓ

3 Connect the necessary cables to the TV.

Be sure to connect the cables before mounting the TV on the wall. Once the TV is mounted, you will not be able to connect the cables.

2 Install the TV on the stand or the stand adapter.

- After mounting the TV on the wall, remove the masking tape etc. from the wall.

SONY Bravia KD65XG8588 - Install the TV on the stand or the stand adapter. - 1

WARNING

Note

- Hold the TV firmly with both hands.

2 Install the TV on the stand or the stand adapter.

2-a B K F

2-b B E F

Diagram showing a monitor with a slide and a scroll, connected to a wall-mounted device with an arrow indicating direction.

Diagram showing a monitor with a wheel and a wall-mounted device, illustrating the concept of viewing or projection.

WARNING

WARNING

4 Decide on the position of the screws for setting up the base (20) Ⓐ.

Refer to the specifications on page 18. When you select option 2-a, use the base adapter hole positions ①.

WARNING

  • The wall on which you mount the TV must be able to support at least four times the weight of the TV (See the Reference Guide of your TV for its weight).
  • Check the strength of the wall on which you will mount the TV. If necessary, reinforce the wall.

Mounting the base on the wall

  • Prepare four or more screws with a diameter of 8 mm or similar screws (not supplied).
  • Attach four screws into the holes for the adapter base ① In the case of the base (20) ④ (only 2-a). • Place the base (20) Ⓐ on the wall horizontally.

2-a I A

2-b A

Preparation for mounting the TV on the wall

For installing the stand, refer to the Setup Guide.

KD-85/75XG85□□, KD-75XG87□□

Pulley Ⓑ Bumper (20 mm) Ⓔ Belt Ⓕ Screw (+PSW 6 x 20) Ⓔ

4 Connect the necessary cables to the TV.

Be sure to connect the cables before mounting the TV on the wall. You will not be able to connect the cables once the TV is mounted. See the Reference Guide supplied with your TV.

Note

  • Have a licensed contractor run the cables through the wall.
  • Connect the connection cables so that you do not step on them before mounting the device on the wall.

5 Remove the Table-Top Stand from the TV.

- Remove the table-top stand one side at a time. Hold the table-top stand firmly with both hands while another person lifts the TV.

KD-85XG85□□Diagram illustrating car maintenance procedure with workers installing a vehicle and inspecting the dashboard, accompanied by safety warning symbols.

KD-75XG87□□, KD-75XG85□□Diagram illustrating a repair or installation procedure with hands installing components and a warning sign indicating hazard.

- Repeat the previous step and remove the other side of the table-top stand.

Note

Pulley Ⓑ Bumper (20 mm) Ⓔ Belt Ⓕ Screw (+PSW 6 x 20) Ⓔ

3 Connect the necessary cables to the TV.

Be sure to connect the cables before mounting the TV on the wall. You will not be able to connect the cables once the TV is mounted. Refer to the Reference Guide supplied with your TV.

Note

- Repeat the previous step and remove the other side of the table-top stand.

Note

2 Place the TV on the base or base adapter.

- After installing the TV on the wall, remove the adhesive tape from the wall.

SONY Bravia KD65XG8588 - Place the TV on the base or base adapter. - 1

WARNING

3 Preventing the TV from tipping over.

- Take a piece of the strap Ⓕ and loosely attach it to the wall.

2-a 2-b I F F

Note

- Hold the TV firmly with both hands.

2 Place the TV on the base or base adapter.

2-a B K F

2-b B E F

Diagram showing a monitor with a slide and a scroll, connected to a wall-mounted device, with an arrow indicating direction of motion.

Diagram showing a monitor with a wheel and a wall-mounted device, illustrating the concept of viewing or projection.

WARNING

3 Preventing the TV from tipping over.

- Take a piece of strap Ⓔ and loosely attach it to the wall.

2-a 2-b F F

WARNING

- Make sure that two or more people (three or more people for a TV 75 inches or larger) hold the TV when removing it.

Specificationsf g e h1 h2 d c b a

Dimensions: (approximately) [mm]

a : 400

b : 300

c : 200

d : 100

e : 80

A Heriz (20) (1) B Terepshik (2)SONY Bravia KD65XG8588 - Dimensions: (approximately) [mm] - 1SONY Bravia KD65XG8588 - Dimensions: (approximately) [mm] - 2
© PSW 6x20 (4) © TbIbYH PSW 4x20(2)SONY Bravia KD65XG8588 - Dimensions: (approximately) [mm] - 3SONY Bravia KD65XG8588 - Dimensions: (approximately) [mm] - 4
E ApaIbIc (20) (2) © SONY Bravia KD65XG8588 - Dimensions: (approximately) [mm] - 5БeIaIc (1)SONY Bravia KD65XG8588 - Dimensions: (approximately) [mm] - 6
G TbIbYH (20) (M4)(2)SONY Bravia KD65XG8588 - Dimensions: (approximately) [mm] - 7H PSW 4x20 (2)SONY Bravia KD65XG8588 - Dimensions: (approximately) [mm] - 8
I Heri3rI aIapter(2)SONY Bravia KD65XG8588 - Dimensions: (approximately) [mm] - 9J PSW 4x10 (8)SONY Bravia KD65XG8588 - Dimensions: (approximately) [mm] - 10
K ApaIbIc (60) (2) © SONY Bravia KD65XG8588 - Dimensions: (approximately) [mm] - 11PSW 6x50 (2)SONY Bravia KD65XG8588 - Dimensions: (approximately) [mm] - 12
M TbIbYH (M4) (2) © SONY Bravia KD65XG8588 - Dimensions: (approximately) [mm] - 13PSW 4x50 (2)SONY Bravia KD65XG8588 - Dimensions: (approximately) [mm] - 14

Determining the installation location

1 Determine the installation location.

4 Determine the positions of the screws for installing the base (20) Ⓐ.

Diagram illustrating a mechanical repair or cleaning procedure with labeled components and warning symbols.

KD-75XG87□□, KD-75XG85□□Diagram illustrating a repair or installation procedure with hands operating a device and warning symbols.

Diagram illustrating two steps of installing a device, showing hand positioning and a safety warning symbol.

Instruction

2-a B K F

2-b B E F

Diagram showing a monitor with a slide and a scroll, connected to a wall-mounted device, with an arrow indicating direction of motion.

Diagram showing a monitor with a slide and a wheel, connected to a wall-mounted device, with an arrow indicating direction of motion.

WARNING

WARNING

4 Decide on the screw positions for installing the base (20) Ⓐ.

See the specifications on page 18. When choosing 2-a, select the adapter bracket hole positions ①.

WARNING

  • The wall on which the TV will be mounted should be able to support at least four times the weight of the TV (see your TV's Reference Guide for its weight).
  • Determine the strength of the wall on which the TV will be mounted. Reinforce the wall sufficiently if necessary.

Installing the base on the wall

  • Use four or more screws of 8 mm diameter or equivalent (not supplied).
  • Insert four screws into the holes of the base connector ① with the base (20) Ⓐ (only for 2-a).
  • Position the base (20) Ⓐ horizontally on the wall.

2-a I A

2-b A

Preparation for installing the TV

Refer to the Setup Guide for installing the stand.

KD-85/75XG85□□, KD-75XG87□□

1 Mark the installation location on the wall.

Pulley Ⓑ Spacer (20 mm) Ⓔ Strap Ⓕ Screw (+PSW 6 x 20) Ⓒ

KD-75XG87□□, KD-75XG85□□Diagram illustrating a repair or installation procedure with labeled parts and directional arrows indicating movement.

- Repeat the previous step and remove the other side of the table-top stand.

Note

  • Three or more people are required to detach the table-top stand.
  • Be careful not to use excessive force when detaching the table-top stand from the TV, as this may cause the TV to fall and result in personal injury or physical damage to the TV.
  • Handle the table-top stand carefully to avoid damaging the TV.
  • Carefully lift the TV while detaching the table-top stand to prevent it from tipping over and causing injury.
  • Carefully detach the table-top stand from the TV so that it does not fall and damage the surface on which the TV is placed.

KD-65/55XG87□□,

KD-65/55XG85□□

1 Remove the screws from the back of the TV.

1×2 2×2

2 Attach the mounting parts for the wall-mount bracket. Check the mounting parts by referring to "Supplied with SU-WL450" in "Checking the parts" on page 5.

Note

Pulley Ⓑ Spacer (20 mm) Ⓔ Strap Ⓕ Screw (+PSW 6 x 20) Ⓒ

- Repeat the previous step and remove the other side of the table-top stand.

Note

2 Place the TV on the base or base connector.

  • Carefully move the TV and hang the pulleys ⑧ on the back of the TV onto the base or base connector, making sure they match the shape of the openings.
  • After mounting the TV on the wall, check that the pulleys Ⓑ are firmly attached to the base or base connector.
  • Slowly release both hands so that the TV does not fall.

Simple line drawing of a rectangular frame with a dashed rectangle and a starburst shape at the bottom (no text or symbols)

- When installing the TV on the wall, remove the crepe tape from the wall.

SONY Bravia KD65XG8588 - Place the TV on the base or base connector. - 2

WARNING

3 Preventing the bottom of the TV from moving.

- Lift the loose part of the strap Ⓔ and fasten it firmly to the wall.

2-a 2-b F F

- Use a screw with a diameter of 5 mm or equivalent (not supplied).

Note

Note

2-a B C F D

2-b B E F

Diagram showing a monitor with a slide and a scroll, connected to a wall-mounted device, with an arrow indicating direction of motion.

Diagram showing a monitor with a wheel and a wall-mounted device, illustrating the concept of viewing or projection.

WARNING

3 Preventing the TV from moving.

- Lift the loose part of the strap Ⓔ and attach it firmly to the wall.

2-a 2-b F F

- Use a screw with a diameter of 5 mm or equivalent (not supplied).

Note

WARNING

Technical diagram of a mechanical component with labeled parts and mounting holes

(20) (1) ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ㉑ ㉒ ㉓ ㉔ ㉕ ㉖ ㉗ ㉘ ㉙ ㉚ ㉛ ㉜ ㉝ ㉞ ㉟ ㉳ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟

1,9096K32085X5G85□□

KD-75XG87□□ 1,673468200107 KD-75XG85□□

2

.תְקָרִיַעֹל

Technical diagram showing two steps of installing or adjusting a device, with hands performing maintenance and a warning symbol.

4

.הכלה

1

.תְקּוֹרָה

B E (ה"מ" 20) ב"ר" C (+PSW 6 x 20) ב"ר" F © ( +PSW 6 x 20 ) ב"ר"

2

• אַרְשׁוֹתָה

-

,הכלההוּרָהִיַעֹרְהָהִיַעֹרְהָהִיַעֹרְהָהִיַעֹרְהָהִיַעֹרְהָהִיַעֹרְהָהִיַע .

Diagram showing a monitor with labeled parts (A, B, C, D, E) and a close-up view of the front panel.

SONY Bravia KD65XG8588 - .הכלה - 4

.הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָה

Technical diagram showing a monitor with labeled components and an inset view of a mechanical assembly with a circular component.

1. כְרָה בַתִים

3

2-a 2-b F

Diagram of a mechanical or structural component with a force arrow and labeled point F (no text or symbols present).

Table of contents Click a title to access it
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : SONY

Model : Bravia KD65XG8588

Category : Television
