10030518 - Blender Klarstein - Free user manual and instructions

USER MANUAL 10030518 Klarstein

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability.

Contents

Technical Data 6

Safety Instructions 6

product Description 7

Use and Operation 7

Cleaning and Care 9

Troubleshooting 9

Hints on Disposal 9

Declaration of Conformity 9

Technical Data

Item number 10030518, 10030519, 10030520
Power supply 220-240 V ~ 50-60 Hz
Power consumption 350 W

Safety Instructions

• Before use, ensure the power voltage is consistent with the rated voltage indicated on the product.
• Pull out power plug if the product is not in use. In case of power plug damage, deliver the product to the company's after-sale service department or the franchise service provider;
• It is strictly prohibited to Blender on the uneven work table, and in strict accordance with the time requirements for operation and use.
• Product overheating protection device, when the motor to work long hours to overheating protection automatically disconnect the motor automatic protection.
• Do not keep product idling. Adequate amount of water or liquid seasoning ingredients must be added while mixing raw material in the stirring cup; Never exceed the processing capacity indicated on stirring cup while mixing any raw material, such as the Max/maximum water level;
• Never immerse the machine (power unit) in water or any other liquid, nor flush under faucet. Clean the machine with wet cloth; Never allow the product operating under unattended state;
• Store the product at a place away from children. Prevent children from playing with the product.
• To prevent accident, do not put knife holder without screwing on cup separately on the main machine;
• Do not place hot food (the maximum temperature of 40^ ) into a mixing cup and processing, in order to avoid deformation of the mixing cup.
• This product is not allowed to sterilize all accessories with more than 40^ hot water and a microwave, so as not to damage the thermal deformation.
• The product is applicable for household and not for commercial purpose.

• Please use the original configuration of the blender jar, the Company does not recommend the use of nonoriginal accessory production, may cause danger or personal injury.

• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Children shall not play with the appliance. Warn potential injury for misuse.
• Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use. Always disconnect the appliance from the supply if it is left unattended and before assembling disassembling or cleaning.

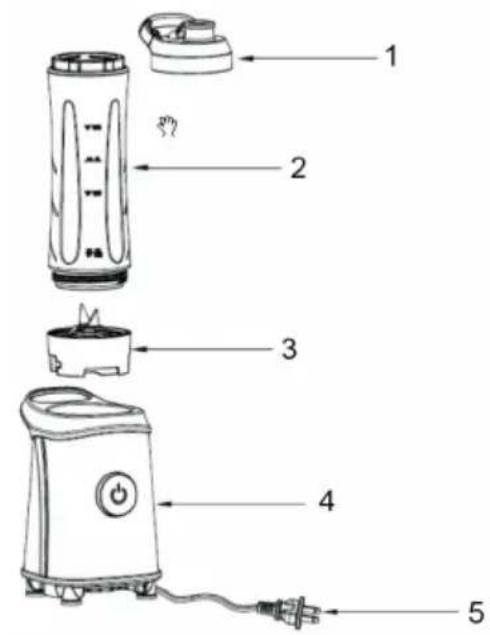

Product Description

1 Leakproof drinking cup cover
2 Mixing cup
3 Mixing knife holder unit
4 Main machine
5 Wires

Use and Operation

Before first use of the blender, clean the parts in contact with food completely (Reference cleaning and maintenance section).

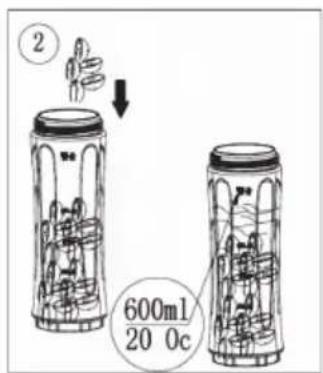

1. The mixing cup is placed on a horizontal table top, and the knife seat is opened, the right amount of drinking water is added, and the prepared fruit is put into the stirring cup; (FIG. 1/2) NOTE: Into the mixing Cup ingredients must not exceed the amount of the maximum scale.
2. Ingredients percentage: Fruits/Vegetables and water ratio is: 2:3.

Usage Tips

• Unless otherwise specified by the recipe, first add liquid into the mixing Cup.
• The fruit (removal of nuclear and other hard objects) and vegetables are cut into blocks, the size is not more than 10 × 10 mm .
• Do not use the blender overload work, if the motor stops rotating, please immediately turn off the blender, unplug the power let it cool at least 20-30 minutes, and then from the new start operation;
• This blender is not available for mixing thick flour or stirring meat.

Cleaning and Care

• Switch off power supply for blender and pull out plug;
  After use, the parts must be cleaned in time;
• Never immerse the machine (power unit) in water or any other liquid, nor flush under faucet. Clean the machine with wet cloth;
• The product should be stored in a dry place, avoid direct exposure to ultraviolet rays.
• Before storing the product, make sure that the product is clean and dry.

Troubleshooting

Problem Possible Cause and Solution
Unable to work Check if power plug is inserted	and stirring cup is correctly installed.
Abnormal smell comes from motor unit during operation	For the first several operations, it is normal for a new product to cause some abnormal smell or smoke, and the phenomenon would disappear after several operations. In addition, the product working for a long time continuously would also cause abnormal smell or smoke, shut down the product and cool it down 60min.
Knife blade device or motor unit is stuck during operation	Power off, move away the cup and scrap raw material on blade with spatula, and small processing quantity should be added each time.
Stirring cup subject to leakage Power off, move away the cup and pour out raw material, unscrew anticlockwise the blade unit for mixing. Check if sealing ring is correctly installed on the mixing blade holder.
Should boiling hot raw material be poured into stirring cup?	No, to prevent accessory damage, it is required to allow the liquid or raw material cool down to Celsius 60 degrees.

Hints on Disposal

According to the European waste regulation 2002/96/EG this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Declaration of Conformity

Producer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2004/108/EC (EMC)

2011/65/EU (RoHS)

2006/95/EC (LVD)
