Product type	Hiking backpack / bike
Brand	Vaude
Model	Moab Pro 22 M
Volume	22 liters
Weight	About 1.2 kg
Dimensions (approx.)	50 x 30 x 20 cm
Carrying system	Adjustable F.L.A.S.H. shoulder straps with lumbar belt
Main material	Resistant nylon / polyester
Helmet holder	Integrated attachment system (multiple variants)
Rear light attachment	Strap or cutout for blinker light clip
Tool compartment	Front pocket with pump loop
Rain cover	Integrated in a zippered compartment at the bottom of the backpack
Volume extension	Yes, +3 to 5 liters
Map pocket	Easy-access front pocket
Moab inner compartment	Triple access for separating gear
Protection attachment	Side compression straps
Hydration system	Compatible, tube exit and Velcro/hook attachment
Care	Clean with lukewarm water and a soft cloth, no harsh detergent
Safety	Reflective elements (integrated), rear light attachment
Spare parts	Not specified, but repairable by Vaude customer service

Frequently Asked Questions - Moab Pro 22 M Vaude

How to adjust the length of the F.L.A.S.H. shoulder straps?

Open the Velcro strap under the back system to unlock the locking device. Adjust the length by pulling or pushing the shoulder strap, then close the Velcro strap by pressing. The size indications on the outer side of the Velcro help determine the correct length.

How to use the helmet holder?

Several variants exist: hook the helmet straps onto the hooks, use the straps on the top of the backpack, or attach the provided helmet net. For full-face helmets, pass the flap and clips through the chin guard.

Where to place heavy items in the backpack?

Heavy items (climbing equipment, tent, provisions, water) should be stored in the middle of the backpack, close to the back, to keep the center of gravity above the body. Light items go in the top flap, outer pockets, or bottom compartment.

How to attach the hydration reservoir?

The compartment for the hydration system is located near the back. Use the Velcro attachment or hook according to your model. The tube exit is on the side under the flap (for flap backpacks) or above the shoulder straps (for zippered backpacks).

How to use the rain cover?

The rain cover is stored in a zippered compartment at the bottom of the backpack. Take it out and wrap it around the backpack. The lower part has cutouts for the lumbar belt to optimize the fit.

How to extend the backpack volume?

Some VAUDE Bike backpacks have a volume extension that increases internal space by about 3 to 5 liters. Refer to the specific instructions for your model to activate it.

How to attach protectors to the backpack?

Use the side compression straps to attach protectors (knee pads, elbow pads) to the backpack. Pass the protectors under the straps and tighten.

Where is the Moab inner compartment?

The Moab inner compartment is a triple-access storage that allows separating important gear from the main compartment. It is located inside the backpack.

How to care for the Vaude Moab Pro 22 M backpack?

Clean the backpack with lukewarm water and a soft cloth. Avoid harsh detergents or machine washing. Let it air dry away from direct heat sources.

How to adjust the carrying system?

First adjust the length of the F.L.A.S.H. shoulder straps. Then put the packed backpack on your back: slightly pull on the shoulder straps and load adjuster straps, close and tighten the hip belt (80% of load), then loosen the shoulder straps until the weight rests on the hips and retighten slightly to stabilize the shoulders.

USER MANUAL Moab Pro 22 M Vaude

bike hardWare backpacks

deuTsch. 1
ENGLISH 9
Français. 17
iTaliano 25
espaNol. 33
中文 41

INHALT

General Instructions 9

How to pack your backpack correctly. 9

Hydration system. 10

F.L.A.S.H. strap length adjustment 11

Carrying system settings and adjustment. 12

Features 13

Helmet carriers. 13

Features 13

Blinker holder. 14

Tool compartment / Pump compartment 14

Rain cover. 15

Volume expansion 15

Map compartment / Inner compartment Moab....16

Securing protective gear. 16

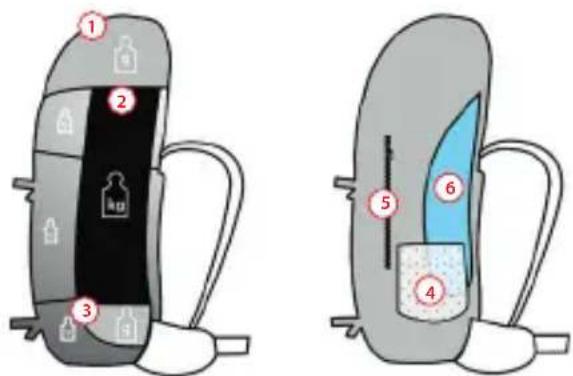

GENERAL INSTRUCTIONS HOW TO PACK YOUR BACKPACK CORRECTLY

The rule of thumb is to make sure the loaded pack's center of gravity lies directly above your own. Heavy items should therefore be packed as close to your back as possible.

1. Lid Compartment: small, lightweight items of gear that need to be close at hand, e.g. mobile phones, GPS, compass.

ENGLISH

HYDRATION SYSTEM

Hydration tube port with top lid closure

Hydration tube port with front zip closure

Hydration bladder attachment:velcro

Hydration bladder attachment: hook

1. Main Compartment: Lighter items such as clothing should be packed at the bottom, top and on the sides. Heavier items such as climbing equipment (carabiners, wedges, quickdraws), the tent, tinned food or water supplies should be packed in the middle, close in to your back.
2. Bottom Compartment: This is the best place to store lightweight, bulky items that would take up too much room in the main compartment (sleeping bag, dirty laundry bag).
3. Outer Pockets and Mesh Pockets: Room for smaller items (rain jacket, cap, tissues, gloves etc.). Each side should weigh about the same.
4. Map Pocket: Flat outer pocket for easy access to maps, climbing topos and hiking guides.
5. Hydration System: The pocket for the hydration bladder always lies close to your back so that it doesn't offset your center of gravity. The hydration tube port in backpacks with top lids is located underneath the top lid closure. In backpacks with front zip closures, the hydration tube port is found above the shoulder straps.

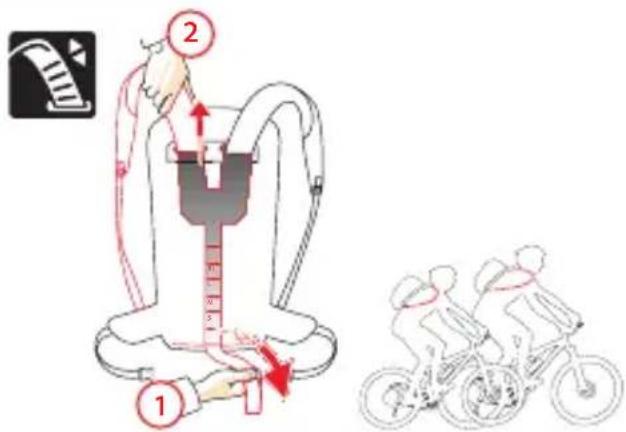

f.l.a.s.h. straP lenGth adJustment

Some VAUDE Bike backpacks are equipped with the F.L.A.S.H. strap length adjustment system. Every person has an individual back length and shape, and this strap system can be adjusted to optimally fit any upper body proportions: the backpack fits as if it were custom tailored.

For an optimal fit, the end of the shoulder strap should be just below the chest (see figure).

adJustment: You can adjust the length of the shoulder straps quickly and conveniently to any body size using the Velcro strip at the rear of the back system. By opening the Velcro, you release the shoulder strap lock (1). Pull out the shoulder strap or push it in to adjust its length (2). When the shoulder straps are the ideal length, close the Velcro again. Mark the position on the outer side of the Velcro to correct the shoulder strap length in future.

ENGLISH

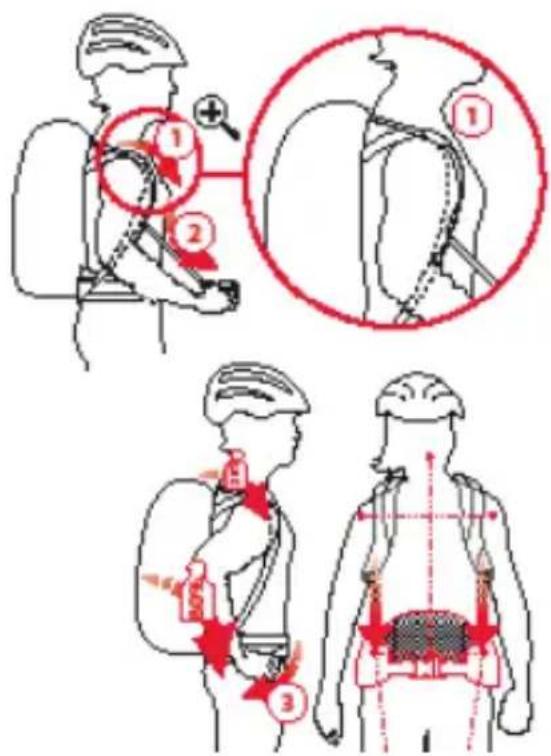

carrYinG sYstem settinGs and adJustment

If your VAUDE Bike backpack is equipped with strap length adjustment, adjust it first.

Shoulder the packed backpack and adjust as follows:

1. Gently tighten the shoulder straps and load adjustment straps (1 and 2). The ladder-lock buckles and the load adjustment straps must be positioned between your collar bone and the bony prominence at the top of your shoulder blade.

2. Lift your shoulders, then close and pull the hip belt to create a snug fit (3). The hip belt must ride on the upper edge of your pelvic bone. Your hips should bear approx. 80% of the load.

3. Loosen the shoulder straps until all of the weight is resting on your hips. Gently tighten the shoulder straps again to stabilize the backpack on your shoulders.

FEATURES

HELMET CARRIERS

Every VAUDE Bike backpack is equipped with a helmet carrier. We use a few different systems.

Variant 1: Brackets with hooks allow you to hook the helmet chin band to the backpack, or you can loop the straps behind the brackets and close them.

Variant 2: Use the two loops on the upper section of the backpack as the helmet carrier. To do this, simply open the helmet chin band, thread each side through a loop and close the chin band again.

Variant 3: Fasten the helmet net included to the two loops on both the upper and lower sections of the backpack. To do this, place the helmet on the backpack, place the net on top of it and put the plastic hooks through the loops.

Variant 4: Integrated helmet straps provide room for cross country and full face helmets. To use them, re

QUICK GUIDE

ENGLISH

lease the two buckles on the upper section of the backpack, push the helmet into the pocket and close the buckles again. For full face helmets, simply loop the straps and buckles through the chin guard, close them again and pull them tight.

Blinker holder

Every VAUDE Bike backpack is equipped with a blinker holder in the lower section. You can either clip the blinker to the attached piece of webbing or a cutout in the material. There is also a piece of webbing for this on the lower section of the rain cover.

tool comPartment / PumP comPartment

Some VAUDE Bike backpacks are equipped with extra tool compartments. Applied to the front of the backpack, they provide you with quick, convenient access to key tools. An extra loop even keeps larger pumps firmly in place.

raincoVer

Every VAUDE Bike backpack is equipped with a rain cover. It is located in a zip compartment under the floor of the backpack. To allow the rain cover to enclose the backpack as completely as possible, it has small cutouts on the bottom for the carrier system hip fins.

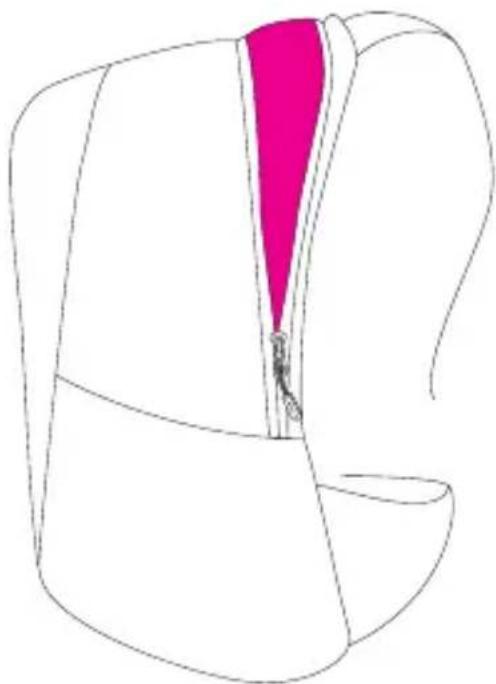

Volume exPansion

Some VAUDE Bike backpacks have a volume expansion function that enlarges the backpack by approx. 3-5 l.

ENGLISH

maP comPartment / inner comPartment moaB

The touring backpacks in the VAUDE Bike collection are equipped with an easy-access map compartment at the front. Use it to store your maps securely.

The backpacks in the Moab series have an extra 3-way inner compartment. In it, you can stow key pieces of equipment separately from the main compartment.

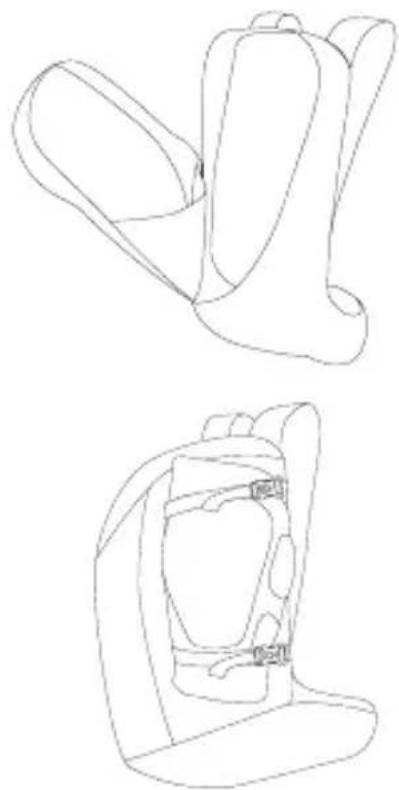

securinG ProtectiveVe Gear

With some of the All Mountain backpacks in the VAUDE Bike collection, you can use the compression straps at the sides to secure your protective gear.
