USER MANUAL ILP 240 IBERNA

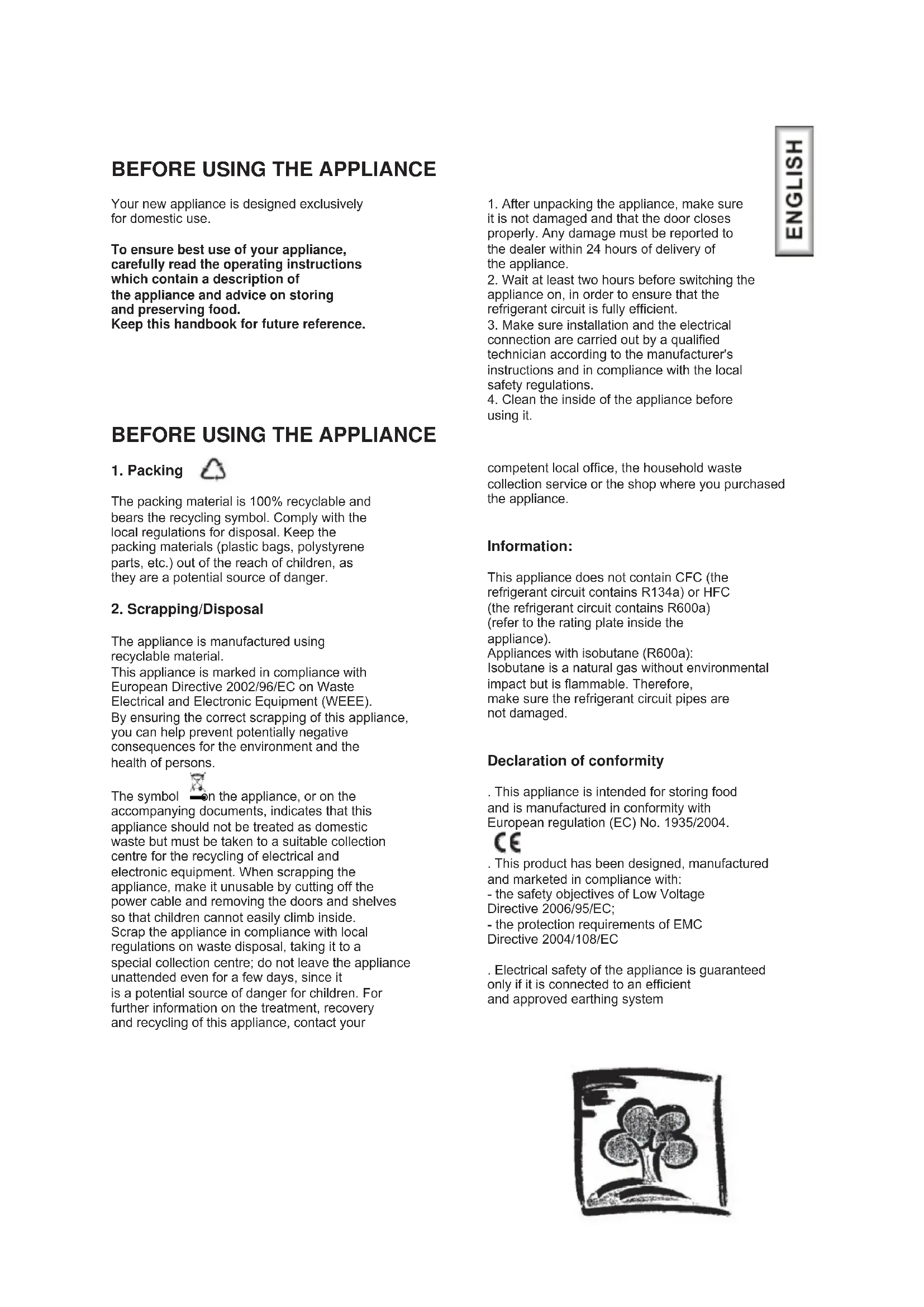

BEFORE USING THE APPLIANCE

Your new appliance is designed exclusively for domestic use.

To ensure best use of your appliance, carefully read the operating instructions which contain a description of the appliance and advice on storing and preserving food. Keep this handbook for future reference.

BEFORE USING THE APPLIANCE

1. Packing

The packing material is 100% recyclable and bears the recycling symbol. Comply with the local regulations for disposal. Keep the packing materials (plastic bags, polystyrene parts, etc.) out of the reach of children, as they are a potential source of danger.

2. Scrapping/Disposal

The appliance is manufactured using recyclable material.

This appliance is marked in compliance with European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring the correct scrapping of this appliance, you can help prevent potentially negative consequences for the environment and the health of persons.

The symbol — on the appliance, or on the accompanying documents, indicates that this appliance should not be treated as domestic waste but must be taken to a suitable collection centre for the recycling of electrical and electronic equipment. When scrapping the appliance, make it unusable by cutting off the power cable and removing the doors and shelves so that children cannot easily climb inside. Scrap the appliance in compliance with local regulations on waste disposal, taking it to a special collection centre; do not leave the appliance unattended even for a few days, since it is a potential source of danger for children. For further information on the treatment, recovery and recycling of this appliance, contact your

1. After unpacking the appliance, make sure it is not damaged and that the door closes properly. Any damage must be reported to the dealer within 24 hours of delivery of the appliance.
2. Wait at least two hours before switching the appliance on, in order to ensure that the refrigerant circuit is fully efficient.
3. Make sure installation and the electrical connection are carried out by a qualified technician according to the manufacturer's instructions and in compliance with the local safety regulations.
4. Clean the inside of the appliance before using it.

competent local office, the household waste collection service or the shop where you purchased the appliance.

Information:

This appliance does not contain CFC (the refrigerant circuit contains R134a) or HFC (the refrigerant circuit contains R600a) (refer to the rating plate inside the appliance).

Appliances with isobutane (R600a): Isobutane is a natural gas without environmental impact but is flammable. Therefore, make sure the refrigerant circuit pipes are not damaged.

Declaration of conformity

. This appliance is intended for storing food and is manufactured in conformity with European regulation (EC) No. 1935/2004.

CE

. This product has been designed, manufactured and marketed in compliance with:

- the safety objectives of Low Voltage Directive 2006/95/EC;

- the protection requirements of EMC Directive 2004/108/EC

. Electrical safety of the appliance is guaranteed only if it is connected to an efficient and approved earthing system

Simple line drawing of a four-leaf clover tree on a hill (no text or symbols)

IMPORTANT SAFETY INSTRUCTIONS

These warnings are provided in the interests of your safety. Ensure that you understand

all before installing or using this appliance. Your safety is of paramount importance.

If you are unsure about any of the meanings or these warnings contact the Customer Care Department.

Installation

• This appliance is heavy. Care should be taken when moving it.
• It is dangerous to alter the specifications or attempt to modify this product in any way.
• Ensure that the appliance does not stand on the electrical supply cable. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.
• Parts which heat up should not be exposed. Whenever possible, the back of the appliance should be close to a wall but leaving the required distance for ventilation as stated in the installation instructions.
• The appliance should be left for 2 hours after installation before it is turned on, in order to allow the refrigerant to settle.

WARNING: Keep ventilation opening, in the appliance enclosure or in the built-in structure, clear of obstruction.

Child Safety

• This appliance is not intended for use by young children or infirm persons unless they have been adequately supervised by a responsible person to ensure that they can use the appliance safely.
• Young children should be supervised to ensure that they do not play with the appliance.

During Use

• This appliance is designed for domestic use only, specifically for the storage of edible foodstuffs only.
• Frozen food should not be refrozen once it has thawed out.
• Do not place carbonated or fizzy drinks in the freezer.
• Ice lollies can cause 'frost/freezer burns' if consumed straight from the freezer.
• Do not remove items from the freezer if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.

Maintenance and Cleaning

- Switch off, and unplug the appliance before carrying out any cleaning or maintenance work.

- Do not use sharp instruments to scrape off frost or ice. (See defrosting instructions).

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not use electrical appliance inside the food storage compartments of the appliance, unless they are of the recommended

WARNING: Do not damage the refrigerant circuit.

Servicing

This product should be serviced by an authorised engineer, and only genuine spare parts should be used.

- Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Force Centre.

At the End of the Appliance Life

• Before discarding an old PRODUCT, switch off and disconnect it from the power supply, Cut off and render any plug useless.
• Ensure that the door cannot jam (removing it is best), regardless of whether or not it can be pushed open from inside.

AN OLD PRODUCT CAN BE A DEADLY PLAYTHING FOR CHILDREN

CAUTION: At the end of the function life of the appliance it must be disposed in accordance with the W.E.E.E directive (See below). You appliance contains R600a refrigerant and inflammable gas in the insulating foam.

Please read this instruction book carefully before use and retain for future reference.

2. CORRECTLY POSITIONING

Well Ventilating

There is need of good ventilation around the refrigerator for easy dissipation of heat, high efficiency of refrigeration and low power consumption. For this purpose, sufficient clear space should be need around the refrigerator. It is back is at least 100mm away from the wall, its sides at least have a space of 100mm separately and the height from over its top is not less than 200mm. A clear space should be left to open its doors to 160°.

Power Supply

The refrigerator is only applied with po wer su pply of sin gle phase alternating c urrent of (22 240)V\~/50Hz;230V\~/60Hz. If fluctuation of voltage in the district user is of so large that the volta ge exceeds the above scope, for safety sake, be sure to apply a.c. automatic voltage regulator to the refrigerator. The refrigerator must employ a special po wer socket inst ead of comm on one with other electric a ppliances. Its plug must match the socket with ground wire.

Power Line Cord

The cord should be neither lengthened nor folded into coil during operation. Moreover, it is forbidden that cord is kept close onto the compressor at the back of the refrigerator, the surface temperature of which is quite high when operating. Touching with it would deactivate the insulation or cause leakage for electricity.

Protection from Moisture

Avoiding placing the refrigerator in a place where heavy moisture is present so as to minimize possibility of rusty for its metal parts. Still more, the refrigerator is forbidden to be directly sprayed by water, otherwise, poor insulation and current leakage would occur.

Protection from Heat

The refrigerator should be far away from any heat source or direct sunshine.

Fixing Stable

Floor on which refrigerator will be placed must be flat and solid.

It should not be laid on any soft material such as foam plastic, etc. If the refrigerator is not on the same level, adjust the screws suitably. the refrigerator should not be placed near anything which may echo.

Keep Away from Danger

It is inadvisable that the refrigerator is placed near any volatilizable or combustible such as gas, petrol, alcohol, lacquer and banana oil, etc. The above-mentioned objects can not be stored in the refrigerator.

Moving

When fixed or moved, the refrigerator can not be set horizontally or de clinet to more than 45^ or upside-down.

3. Cautions

• Water contained in food or getting into air inside the refrigerator by opening doors may form a layer of frost inside. It will wea ken the refrigerator when the frost is thick, while it is more than 2mm thick, you should defrost.
• If the supply cord of this appliance is damaged, it must only be replaced by a repair shop appointed by the manufacturer, because special purpose tools are required.

4. Care and maintenance

Replacing lamps

When replacing the lamp, proceed as follows:

• Unplug the appliance from the mains.
• Squeeze the tabs on the sides of the lamp cover and remove it.
• Replace the lamp with a new one, maximum watts recommended in the label inside the appliance next to the lamp.
• Put the lamp cover back on and wait 5 minutes before plugging the appliance back into the mains.

5. Troubleshooting

1. WHEN THE REFRIGERATOR DOES NOT WORK

Check if there is a power failure.

Check if the power plug is plugged into the power outlet.

Check that the fuse has not blown.

2. WHEN THE REFRIGERATOR IS COOLING EXCESSIVELY

The temperature control dial may be set too high.

If you place foodstuffs containing a lot of moisture directly under the cool air outlets, they will freeze easily.

This does not indicate a malfunction.

3. WHEN THE REFRIGERATOR IS NOT COOLING SUFFICIENTLY

The food may be packed too tightly together which will block the flow of cool air.

You may have put something hot or a lot of foodstuffs into the refrigerator.

The door may not have been closed properly.

The door gaskets may be damaged.

The refrigerator may not be ventilated.

There may be insufficient clearance between the refrigerator and the surfaces

Immediately both sides and above.

The temperature control dial may not be set properly

4. WHEN THE DEFROSTING WATER OVERFLOWS INSIDE THE REFRIGERATOR AND ONTO THE FLOOR.

Check that the drain pipe and the drain hose are not clogged.

Check that the drain pan is housed properly.

5. WHEN CONDENSATION FORM ON THE OUTSIDE OF THE REFRIGERATOR

Condensation may form on the outside when the humidity is high such as during a wet season. This is the same result as the condensation formed when chilled water is poured into a glass. It does not, therefore, indicate a failure, wipe dry with a dry cloth.

6. WHEN YOU HEAR A SOUND LIKE WATER FLOWING

A sound like water flowing is the refrigerant flowing. It does not Indicate a malfunction.

7. WHEN THE CABINET'S SIDE PANEL HEATS UP

The side panel of the cabinet will heat up when the door is opened or closed frequently, when starting the unit and when the unit operates in summer with high ambient outside temperature, In such case, do not touch the panel, it results from the dissipation of the heat from inside the cabinet, and it does not mean that something is wrong with the refrigerator.

6. Technical specifications

*For the detailed technical specifications, please refer to the nameplate at the back of the refrigerator.

*Specifications are subject to change without prior notice.

refrigerator

Wait at least two hours before switching the appliance on, in order to ensure that the refrigerant circuit is fully efficient.

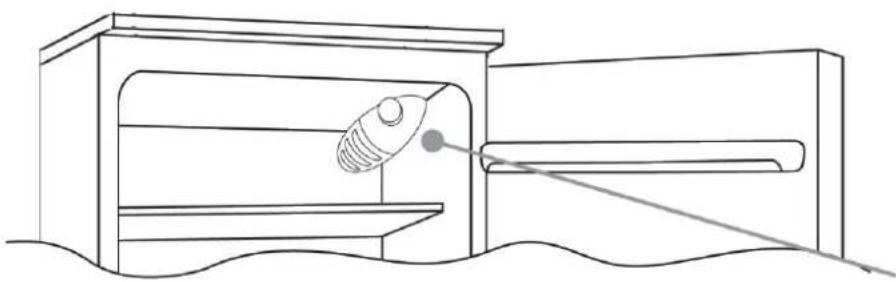

CONTROL PANEL

Line drawing of a mechanical device with a lever and base, no text or symbols present

The thermostat box to control the appliance is located inside the fridge compartment on the top right. To check whether the appliance is functioning, make sure that the thermostat knob is not set on "0".

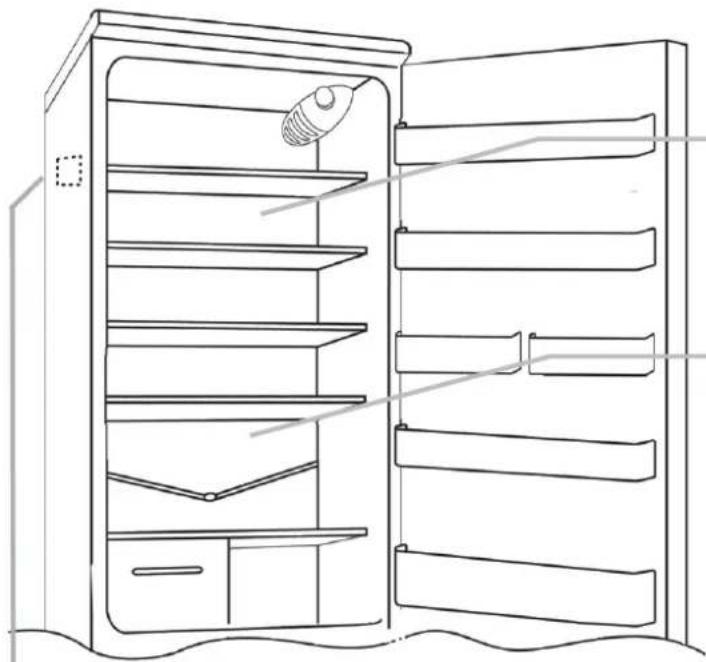

DEFROSTING and FREEZING

The rating plate states the maximum quantity of foods that can be frozen, (see "gure 2). Freezing is guaranteed with any knob setting.

(Figure 2)

Line drawing of a refrigerator with shelves open and one shelf highlighted (no text or symbols)

Defrosting of the fridge compartment occurs automatically in this product.

Make sure the water outlet is always clean. Make sure foods do not touch the back or sides of the fridge compartment

A small amount of frost or drops of water on the back of the fridge compartment when the fridge is working is normal

NB. This is the rating plate. If you need to contact our Service Department in the event of faults, remember to give them the information on the plate.

Important: If the room temperature is very warm, the appliance may work continuously and a layer of frost will deposit on the back of the fridge compartment. In this case, turn the knob to lower settings (1-2).

REVERSING THE OPENING OF THE DOORS

In order to reverse the opening of the doors, follow the indications in relation to the insert and hinge type your product is made up of.

A

Place or tilt the fridge at a 45° angle, since it is necessary to work on the bottom of the appliance

1

45°

Remove the bottom hinge by removing the screws, the plug and washers, then remove the bottom door

2

Pure technical line drawing of two mechanical components with no text or symbols

Remove the caps (A) and (B), loosen the screws and partially remove the panel.

3

(A) (B)

Unscrew the right hinge

Simple line drawing of a mechanical device with a lever and base (no text or symbols)

Before reassemble the hinge to the left side, reverse the direction of the hinge.

Simple line drawing of a mechanical bracket with screws and bolts (no text or symbols)

Remove the plug on the left-hand side and insert it on the right hand-side of the door.

6 Left Right

Reassemble the hinges and doors working from bottom to top, 1 ☐ 2

7 ② ①

AVANT TOUTE UTILISATION

Simple black-and-white sketch of a four-leaf clover tree on a curved base (no text or symbols)

INSTRUCTIONS DE SECURITE IMPORTANTES

Simple line drawing of a fish inside a container with a handle, no text or symbols present

Line drawing of an open refrigerator with shelves and a light bulb on top (no text or symbols)

Two identical line drawings of a mechanical or architectural component with no text, numbers, or symbols.

(3) (A) (B)

Simple line drawing of a mechanical clamp or bracket with a wavy base and pin (no text or symbols)

Technical line drawing of a mechanical assembly with screws and a base plate (no text or symbols)

Simple line drawing of a curved path with two circular markers and arrows, no text or symbols present.

Simple black-and-white sketch of a four-leaf clover tree on a hill (no text or symbols)

Line drawing of a mechanical device with a bulb inserted into a housing (no text or symbols)

Line drawing of an open refrigerator with shelves and a bulb on top (no text or symbols)

Pure technical line drawing of two identical mechanical components with mounting brackets and fasteners (no text or symbols)

Simple line drawing of a rectangular container with two side square markers and a curved top line (no text or symbols)

Simple line drawing of a mechanical clamp or bracket with no text or symbols

Technical line drawing of a mechanical assembly with bolts and a base plate (no text or symbols)

Simple line drawing of a curved beam with two circular markers at endpoints (no text or symbols)

Simple line drawing of a rectangular frame with two horizontal lines at the bottom (no text or symbols)

VOR INBETRIEBNAHME

Simple black-and-white sketch of a tree with four rounded canopy and curved trunk (no text or symbols)

Simple line drawing of a fish inside a container with an arrow pointing to it (no text or symbols)

Line drawing of a refrigerator with shelves and door, no text or symbols present

Pure technical line drawing of two identical mechanical components with mounting holes and a central wavy line (no text or symbols)

Simple line drawing of a rectangular container with a wavy top and two small square openings at the bottom (no text or symbols)

Pure technical line drawing of a mechanical clamp or bracket assembly without any text, numbers, or symbols

Pure technical line drawing of a mechanical assembly with bolts and brackets (no text or symbols)

Simple line drawing of a curved beam with two circular markers at both ends (no text or symbols)

Simple line drawing of a rectangular frame with two horizontal lines at the bottom (no text or symbols)

ANTES DE UTILIZAR EL ELECTRODOMÉSTICO

Simple black-and-white sketch of a tree with four rounded canopy and two small leaves, enclosed in a square frame (no text or symbols)

Line drawing of a mechanical device with a spring-like component inserted into a housing (no text or symbols)

Line drawing of a refrigerator with shelves and a lamp on top (no text or symbols)

Pure technical line drawing of two identical mechanical components with mounting brackets and a central vertical axis (no text or symbols)

Simple line drawing of a rectangular container with a wavy top and two small square openings at the bottom (no text or symbols)

Simple line drawing of a mechanical clamp or bracket with a wavy base and mounting bracket (no text or symbols)

Technical line drawing of a mechanical bracket with bolts and mounting points (no text or symbols)

Simple line drawing of a curved object with two circular annotations pointing to the ends (no text or symbols)

Simple line drawing of a rectangular frame with two horizontal lines at the bottom (no text or symbols)

ANTES DE UTILIZAR O APARELHO

Simple black-and-white sketch of a four-leaf clover tree on a hill, enclosed in a square frame (no text or symbols)

INSTRUÇÕES DE SEGURANÇA IMPORTANTES

Simple line drawing of a mechanical component with a bulb and connecting rods (no text or symbols)

Line drawing of an open refrigerator with shelves and a lamp (no text or symbols)

Pure technical line drawing of two identical mechanical components with mounting base (no text or symbols)

Simple line drawing of a rectangular container with a wavy top and two small square openings at the bottom (no text or symbols)

Retire as duas t ampas (A) e (B), desapert e os parafusos e remova o painel superior.

4

(A) (B)

Simple line drawing of a mechanical clamp or bracket with no text or symbols

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Simple line diagram of a curved object with two circular indicators pointing to its ends (no text or symbols)

Simple line drawing of a rectangular frame with two horizontal lines at the bottom (no text or symbols)

Simple black-and-white sketch of a four-leaf clover tree with a curved trunk (no text or symbols)

Line drawing of a mechanical device with a bulb and connecting rod (no text or symbols)

Line drawing of an open refrigerator with shelves and a lamp (no text or symbols)

Pure technical line drawing of two vertical panels with base supports and a central wavy line (no text or symbols)

Simple line drawing of a rectangular container with a wavy top and two small square openings at the bottom (no text or symbols)

Simple line drawing of a mechanical clamp or bracket with a wavy base (no text or symbols)

Pure technical line drawing of a mechanical bracket or clamp assembly without any text, numbers, or symbols

Simple line drawing of a curved object with two circular markers, no text or symbols present

Simple line drawing of a rectangular frame with two horizontal lines at the bottom (no text or symbols)

Simple black-and-white sketch of a four-leaf clover tree on a hill (no text or symbols)

7. KDYŽ SE HŘEJÍ STĚNY CHLADNIČKY:

Line drawing of a mechanical device with a bulb inserted into a housing (no text or symbols)

Line drawing of an open refrigerator with shelves and door, no text or symbols present

Pure technical line drawing of two identical mechanical components with no text or symbols

Simple line drawing of a rectangular container with a wavy top and two small square openings at the bottom (no text or symbols)

Simple line drawing of a mechanical setup with a bracket and mounting base (no text or symbols)

Technical line drawing of a mechanical bracket with bolts and mounting holes (no text or symbols)

Simple line drawing of a curved beam with two circular markers at ends (no text or symbols)

Simple line drawing of a rectangular frame with two horizontal lines at the bottom (no text or symbols)

VOOR GEBRUIK

Simple black-and-white sketch of a four-leaf clover tree on a hill (no text or symbols)

BELANGRIJKE VEILIGHEIDSINSTRUCTIES

Line drawing of a mechanical device with a bulb inserted into a housing (no text or symbols)

Line drawing of an open refrigerator with shelves and a bulb on top (no text or symbols)

Pure technical line drawing of two identical mechanical components with no text or symbols

Simple line drawing of a rectangular container with a wavy top and two small square openings at the bottom (no text or symbols)

Simple line drawing of a mechanical setup with a bracket and mounting base (no text or symbols)

Technical line drawing of a mechanical bracket with bolts and a flat plate (no text or symbols)

Simple line drawing of a curved beam with two circular markers at both ends (no text or symbols)

Simple line drawing of a rectangular frame with two horizontal lines at the bottom (no text or symbols)

ENNEN LAITTEEN KÄYTTÖÖNOTTOA

Line drawing of a mechanical device with a spring-loaded component and connecting rod (no text or symbols)

Line drawing of a refrigerator with shelves open and one shelf highlighted (no text or symbols)

Simple line drawing of a mechanical clamp or bracket with a wavy base and mounting feet (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly with screws and bolts (no text or symbols)

Left O Right

Simple line diagram of a vertical rectangular structure with two labeled arrows pointing to it, no text or symbols present.

GENERELLE FORHOLDSREGLER OG RÅD

Line drawing of a mechanical device with a handle and lever mechanism (no text or symbols)

Line drawing of a refrigerator with shelves open and one shelf highlighted (no text or symbols)

Avising av kjøledelen foregår automatisk på dette produktet.

Line drawing of a mechanical device with a lever and base, no text or symbols present

Line drawing of an open refrigerator with shelves and a bulb on top (no text or symbols)

Simple line drawing of a mechanical clamp or bracket with a spring, no text or symbols present

Technical line drawing of a mechanical clamp or bracket with screws and bolts (no text or symbols)

Left Right

SAFETY INSTRUCTIONS AND CAUTIONS

Line drawing of a mechanical device with a handle and internal components (no text or symbols)

Line drawing of a refrigerator with shelves open and one shelf partially filled, no text or symbols present

Simple line drawing of a mechanical or electrical component with no text, numbers, or symbols

Technical line drawing of a mechanical assembly with bolts and a bracket (no text or symbols)

Left Right

Simple line diagram of a vertical rectangular structure with two labeled arrows pointing to it (no text or symbols present)

ÎNAINTE DE UTILIZAREA APARATULUI

Simple black-and-white sketch of a tree with four rounded canopy and two curved leaves, enclosed in a square frame (no text or symbols)

MĂSURI IMPORTANTE PRIVIND SIGURANȚA

Line drawing of a mechanical component with a bulb inserted into a housing (no text or symbols)

Line drawing of an open refrigerator with shelves and a hanging bag (no text or symbols)

Pure technical line drawing of two vertical panels with base and corner features, no text or symbols present

Simple line drawing of a rectangular container with two side boxes and a wavy top line (no text or symbols)

Simple line drawing of a mechanical clamp or bracket with a base and handle (no text or symbols)

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Simple line drawing of a curved path with two circular markers and directional arrows (no text or symbols)

Simple line drawing of a rectangular frame with two horizontal lines at the bottom (no text or symbols)

A KÉSZÜLÉK HASZNÁLATA ELŐTT

Simple black-and-white sketch of a four-leaf clover tree on a hill (no text or symbols)

FONTOS BIZTONSÁGI UTASÍTÁSOK

Line drawing of a mechanical component with a bulb inserted into a housing (no text or symbols)

Line drawing of a refrigerator with shelves open and one shelf partially visible (no text or symbols)

Simple black-and-white sketch of a four-leaf clover tree on a hill, enclosed in a square frame (no text or symbols)

POMEMBNA VARNOSTNA NAVODILA

Line drawing of a mechanical component with a bulb inserted into a housing (no text or symbols)

Termostat v hladilnem delu desno zgoraj omogoča upravljanje aparata. Aparat deluje, će gumb termostata ni obrnjen na 0 •.

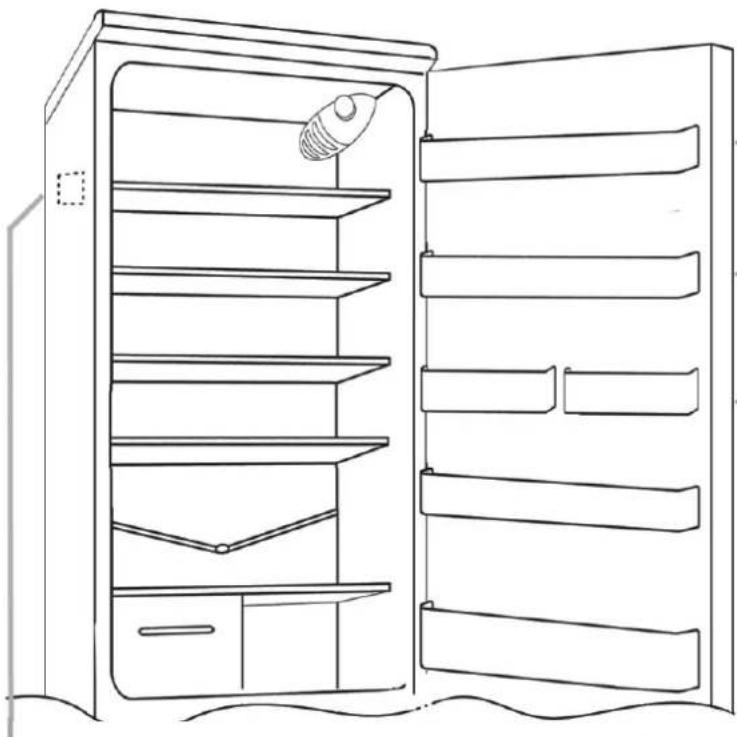

ODTALJEVANJE IN ZAMRZOVANJE

Line drawing of an open refrigerator with shelves and a decorative lamp (no text or symbols)

Pure technical line drawing of two identical mechanical components with mounting base (no text or symbols)

Simple line drawing of a rectangular container with a wavy top and two small square openings at the bottom (no text or symbols)

Simple line drawing of a mechanical clamp or bracket with no text or symbols

Pred premeščanjem tečaja na levo stran tečaj obrnite.

6

Pure technical line drawing of a mechanical assembly with bolts and brackets (no text or symbols)

Odstranite čep na levi strani in ga potisnite v luknjo na desni strani vrat.

7

Simple line drawing of a curved object with two circular annotations pointing to the ends (no text or symbols)

Simple line drawing of a rectangular frame with two horizontal lines at the bottom (no text or symbols)

Simple black-and-white sketch of a four-leaf clover tree on a hill (no text or symbols)

Line drawing of a mechanical device with a lever and base, no text or symbols present

Line drawing of a refrigerator with shelves open and one shelf highlighted (no text or symbols)

Pure technical line drawing of two identical mechanical components with no text or symbols

Simple line drawing of a rectangular container with a wavy top and two small square openings at the bottom (no text or symbols)

Simple line drawing of a mechanical clamp or bracket with no text or symbols

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Simple line drawing of a curved beam with two circular components at ends, no text or symbols present.

Simple line drawing of a rectangular frame with two horizontal lines at the bottom (no text or symbols)

PRIJE KORIŠTENJA UREĐAJA

Simple black-and-white sketch of a four-leaf clover tree on a curved base (no text or symbols)

VAŽNE SIGURNOSNE NAPOMENE

Niže navedena upozorenja odnose se na vašu sigurnost. Budite sigurni da ste ih u potpunosti razumjeli prije instalacije ili korištenja uređaja. Vaša sigurnost je najvažnija.

Ako ste nesigurni u navedena značenja ili upozorenja molimo da se obratite ovlaštenom servisu.

INSTALACIJA UREĐAJA

Line drawing of a mechanical device with a bulb inserted into a housing (no text or symbols)

Gumb termostata za kontrolu temperature uređaja nalazi se u unutarnjem prostoru hladnjaka s gornje desne strane. Da provjerite da li uređaj funkcionira, budite sigurni da gumb termostata nije postavljen na položaj "0".

ZALEĐIVANJE I ODLEĐIVANJE

Line drawing of an open refrigerator with shelves and a decorative lamp on top (no text or symbols)

Pure technical line drawing of two identical mechanical components with no text or symbols

Uklonite kapice A i B, odvijte vijke i privremeno uklonite masku.

3

(A) (B)

Simple line drawing of a mechanical clamp or bracket with no text or symbols

Technical line drawing of a mechanical bracket with bolts and a flat plate (no text or symbols)

Simple line drawing of a curved beam with two circular markers at endpoints (no text or symbols)

Simple line drawing of a vertical rectangular structure with two horizontal supports at the bottom (no text or symbols)
